Connect new technology to legacy ones

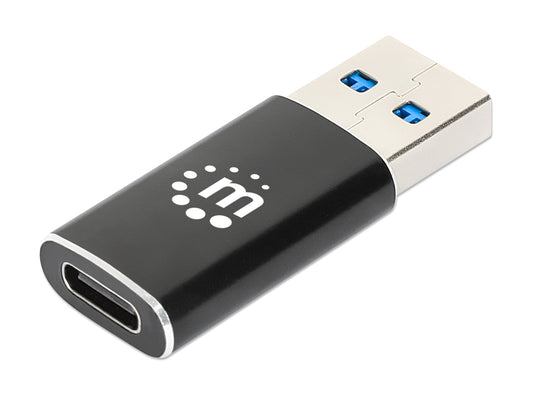

The Manhattan USB 3.2 Gen 2 Type-C to Type-A Adapter is an ultra-compact adapter that allows a USB-C cable or device to connect to a USB Type-A port. Measuring only 27 millimeters (1 in.), the adapter is designed with portability and simplicity in mind. With charge and sync capabilities at up to 3 A and 10 Gbps respectively, you will quickly and easily keep your device ready for whatever is next.

USB-A adapter for use with USB-C cables

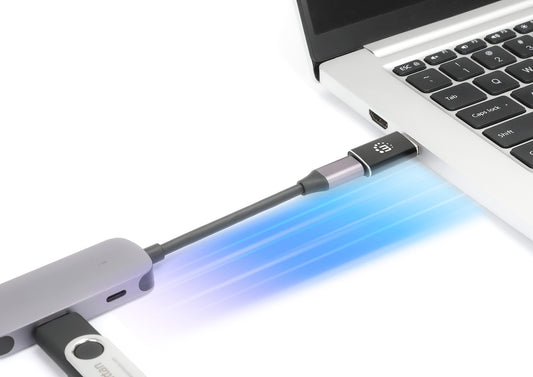

Connects USB-C cable or device — i.e. hub, card reader, etc. — to Type-A port, allowing devices to charge and sync
Supports speeds up to 10 Gbps and 3 A charging
Nickel-plated connections for best performance
Ultra-compact, portable design
Lifetime Warranty

USB 3.2 Gen 2

General
Nickel plated
Molded ABS boot
56K Ω resistor

Connections
One 9-pin USB Type-A (male)
One 24-pin USB Type-C (female)

Electrical
Insulation resistance: 5M Ω
Contact resistance: 2 Ω

Physical
27 x 17 x 10 mm (1 x 0.7 x 0.4 in.)
8.5 g (0.3 oz)

Operating Environment
Operation Temperature: 32 – 104°F (0 – 40°C)
Storage Temperature: -4 – 140°F (-20 – 60°C)
Humidity (noncondensing): 0 – 96%

Package contents
USB 3.1 Gen2 Type-C to Type-A Adapter

Additional SKUs

Amazon ASIN: B0765SGJ68
EAN: 0766623354714
UPC: 766623354714
ALSO: 3018187
API: 252782

Physical Specifications

Weight: 0.01 kg
Dimensions: 27 (L) x 17 (W) x 10 (H) [mm]
Packaging: Bag
Carton Quantity: 500
Carton Weight: 7.00 kg

Datasheet

Datasheet » Download

Declaration of Conformity » Download

Technical Drawing » Download

Declaration of Conformity » Download
