The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL 9004) & gray (RAL 7035).
We offer you a solution for every need. Various options include: Removable side panels (some lockable), Tempered/Toughened glass doors, Double Section, making cabling and component exchange simple.
- Ideal for 10" rackmount applications
- Maximum static load of 60 kg
- Usable depth: 265 mm (10.43 in.)

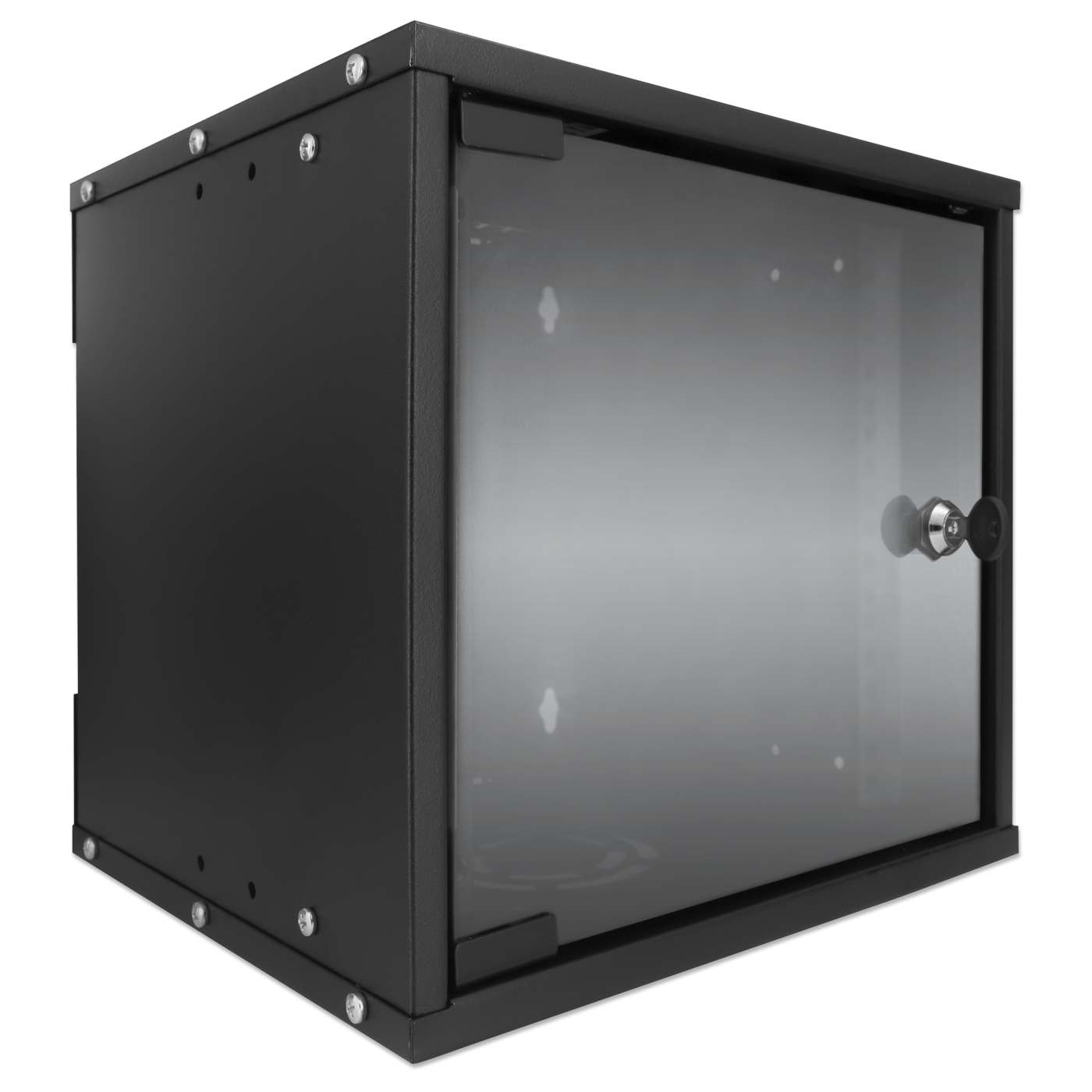

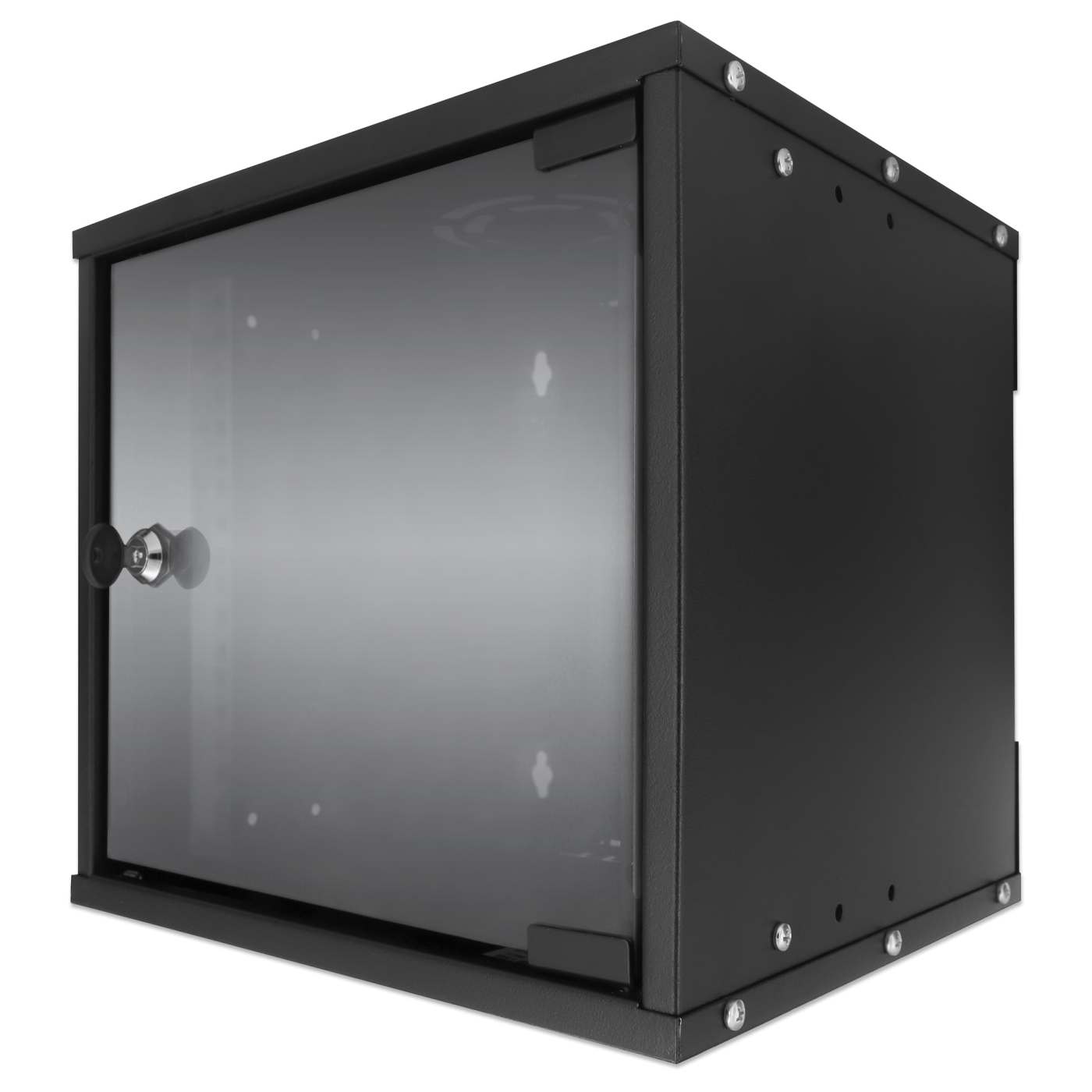

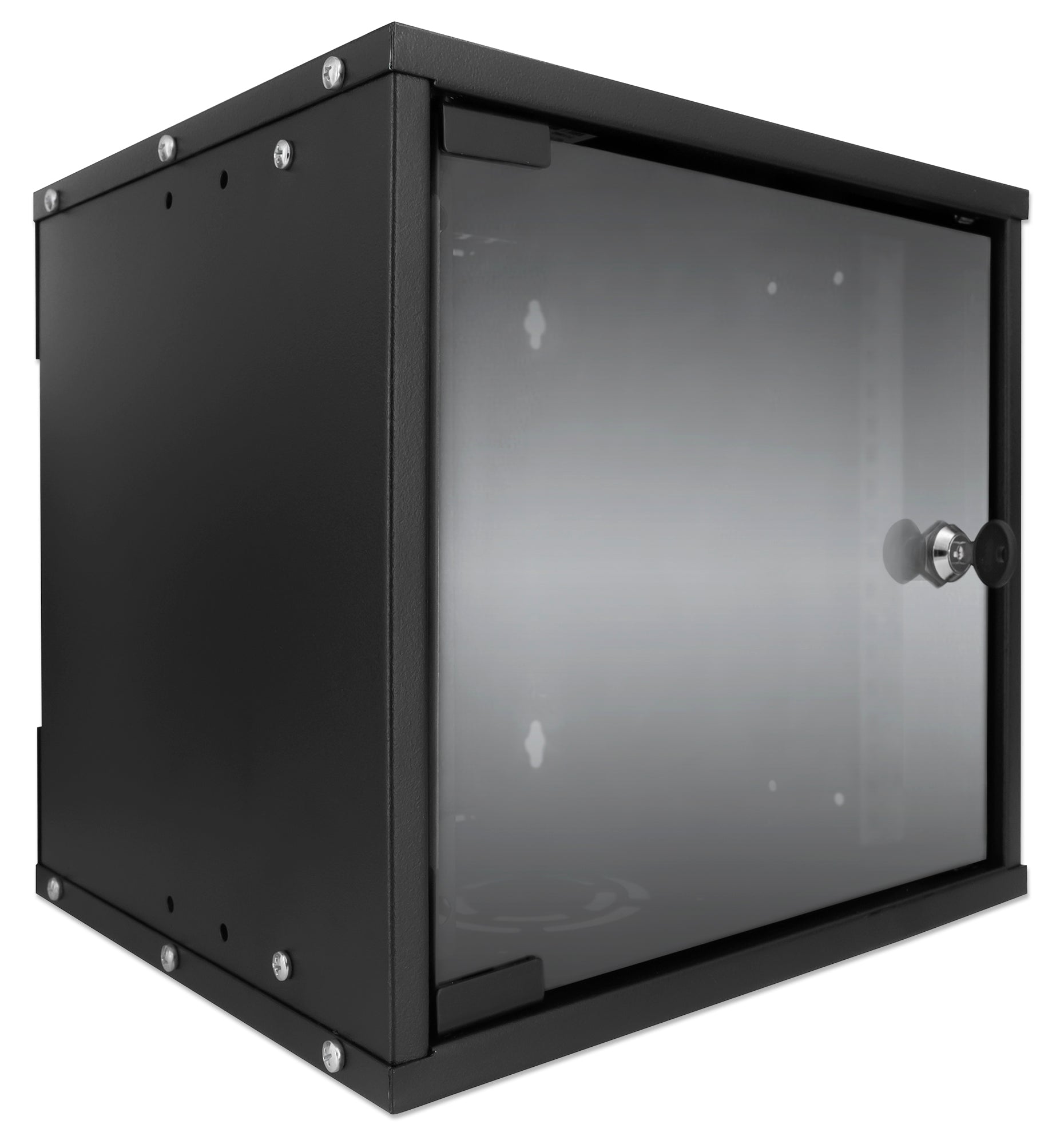

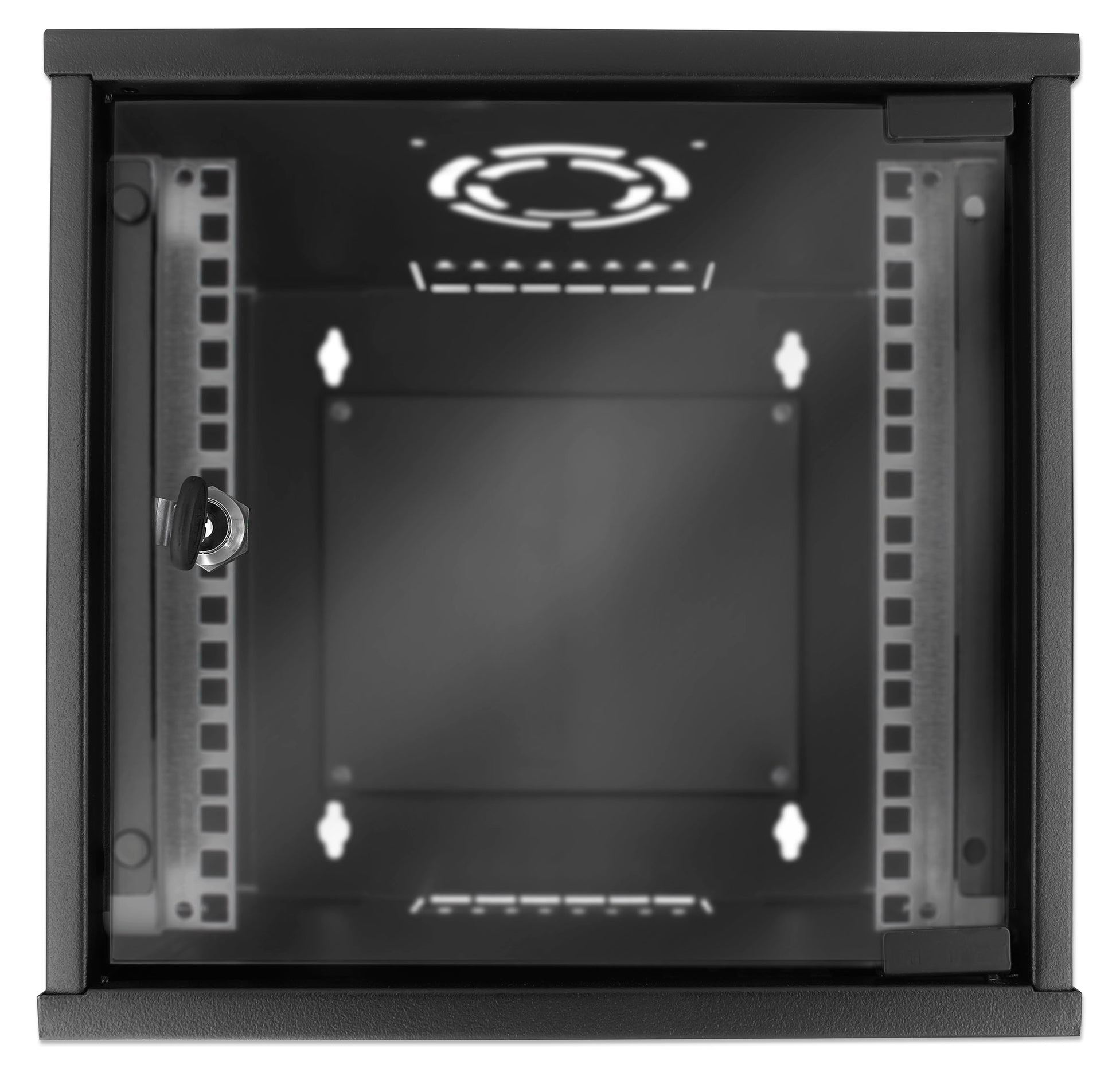

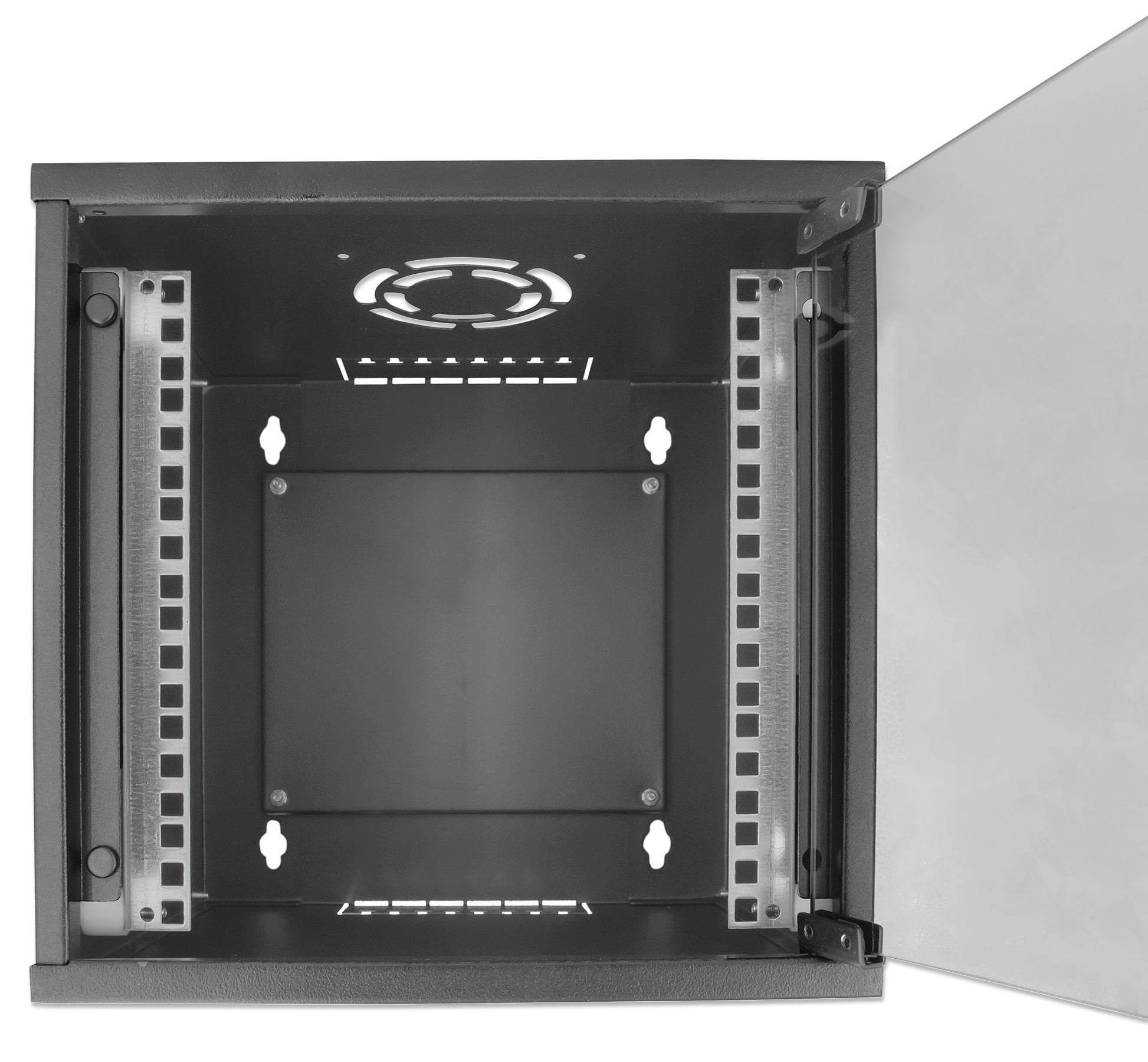

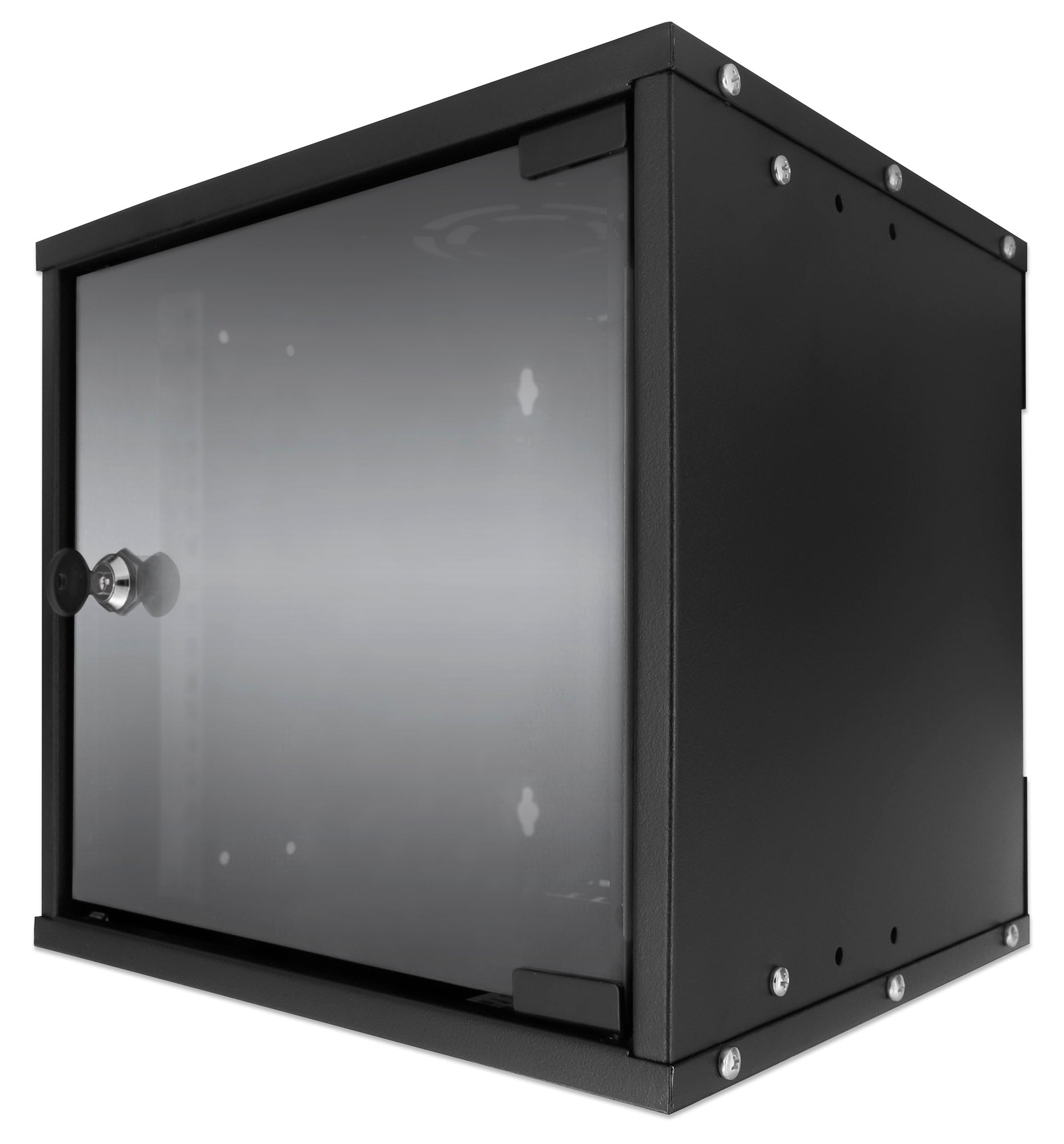

- Tempered-glass door can be opened more than 180°

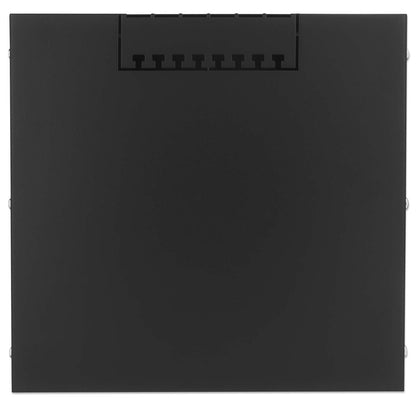

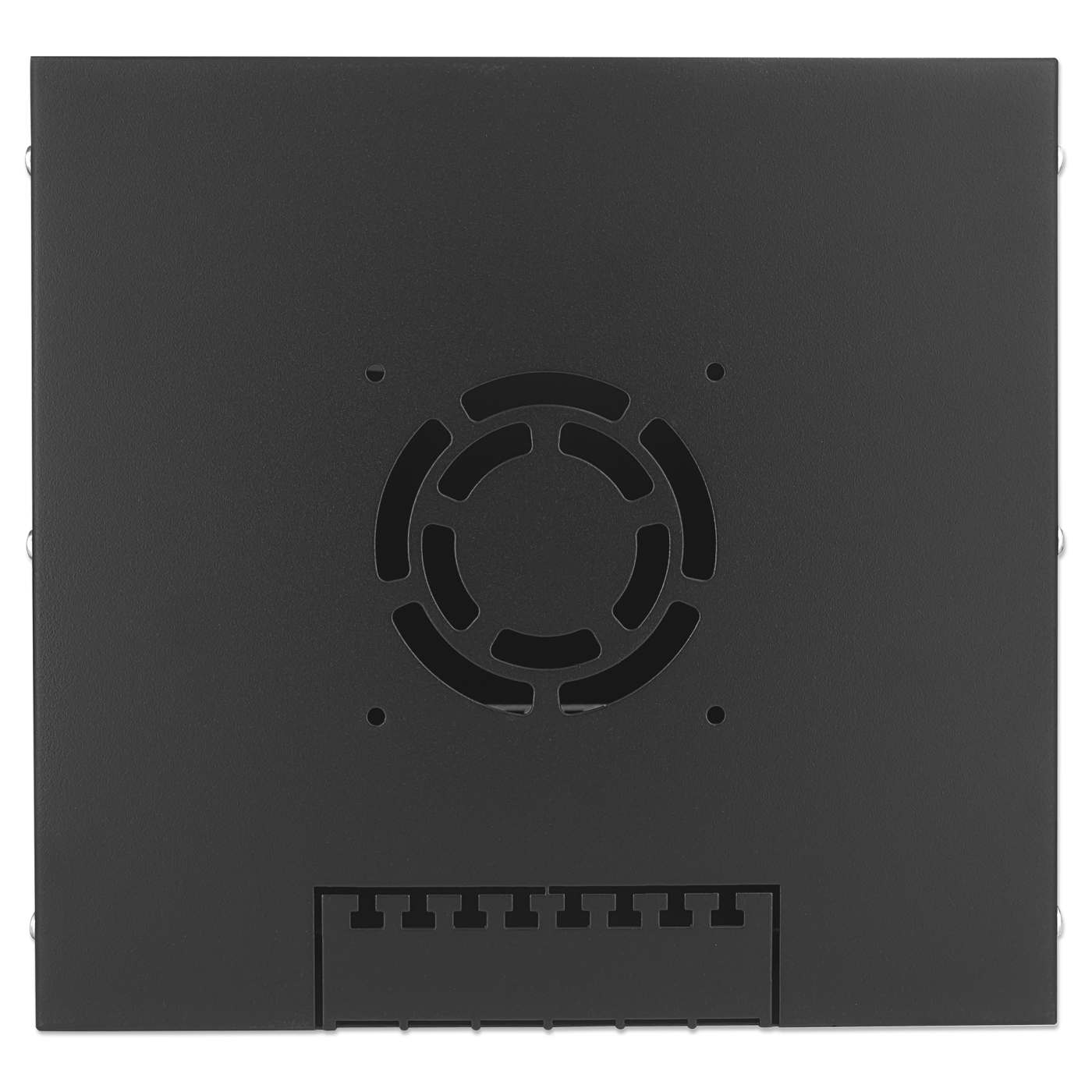

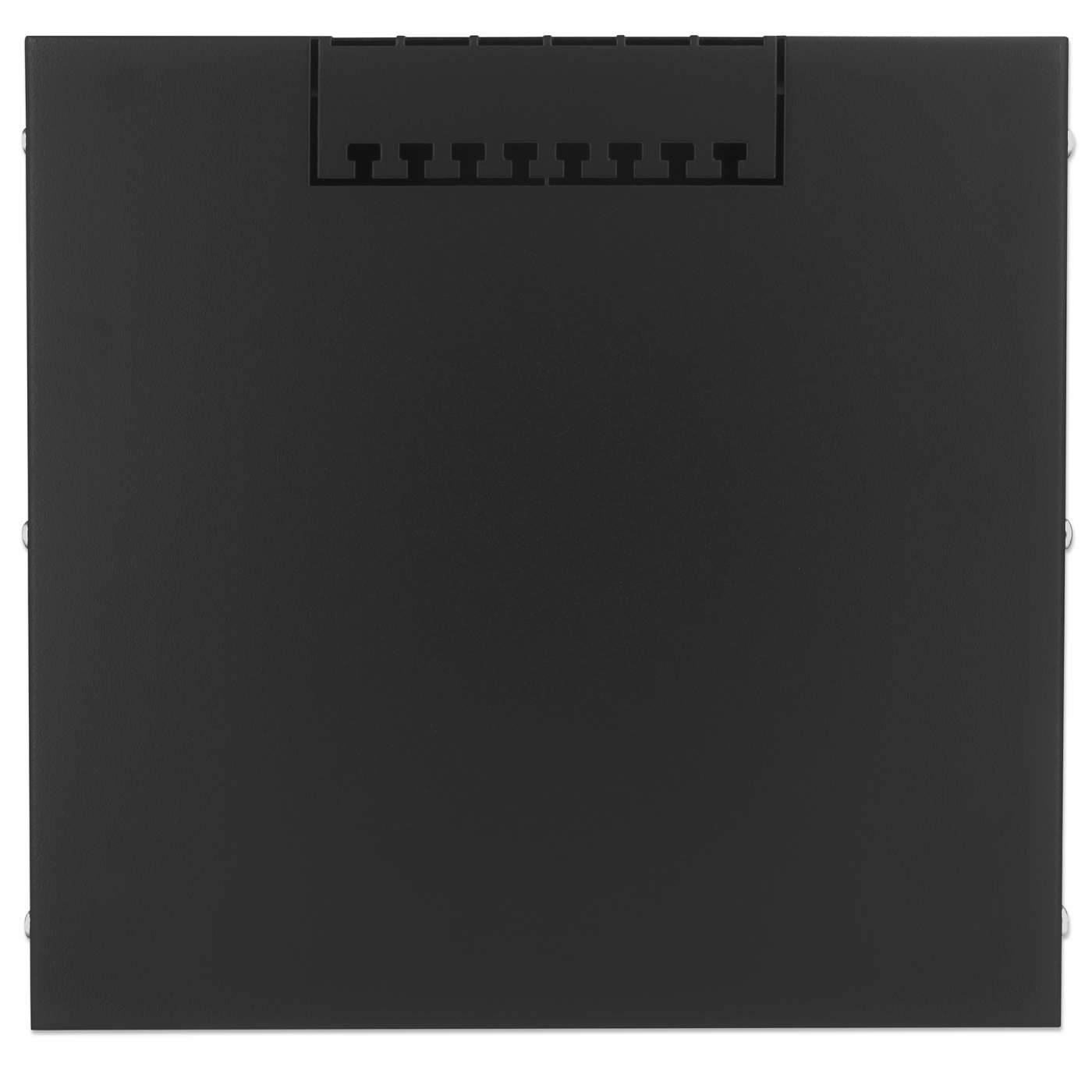

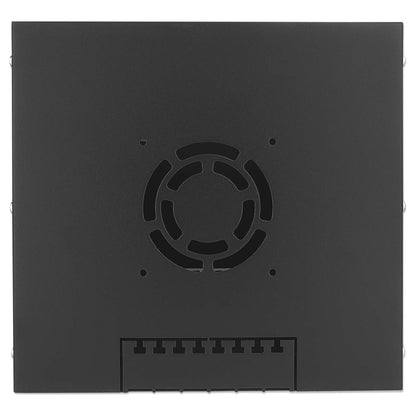

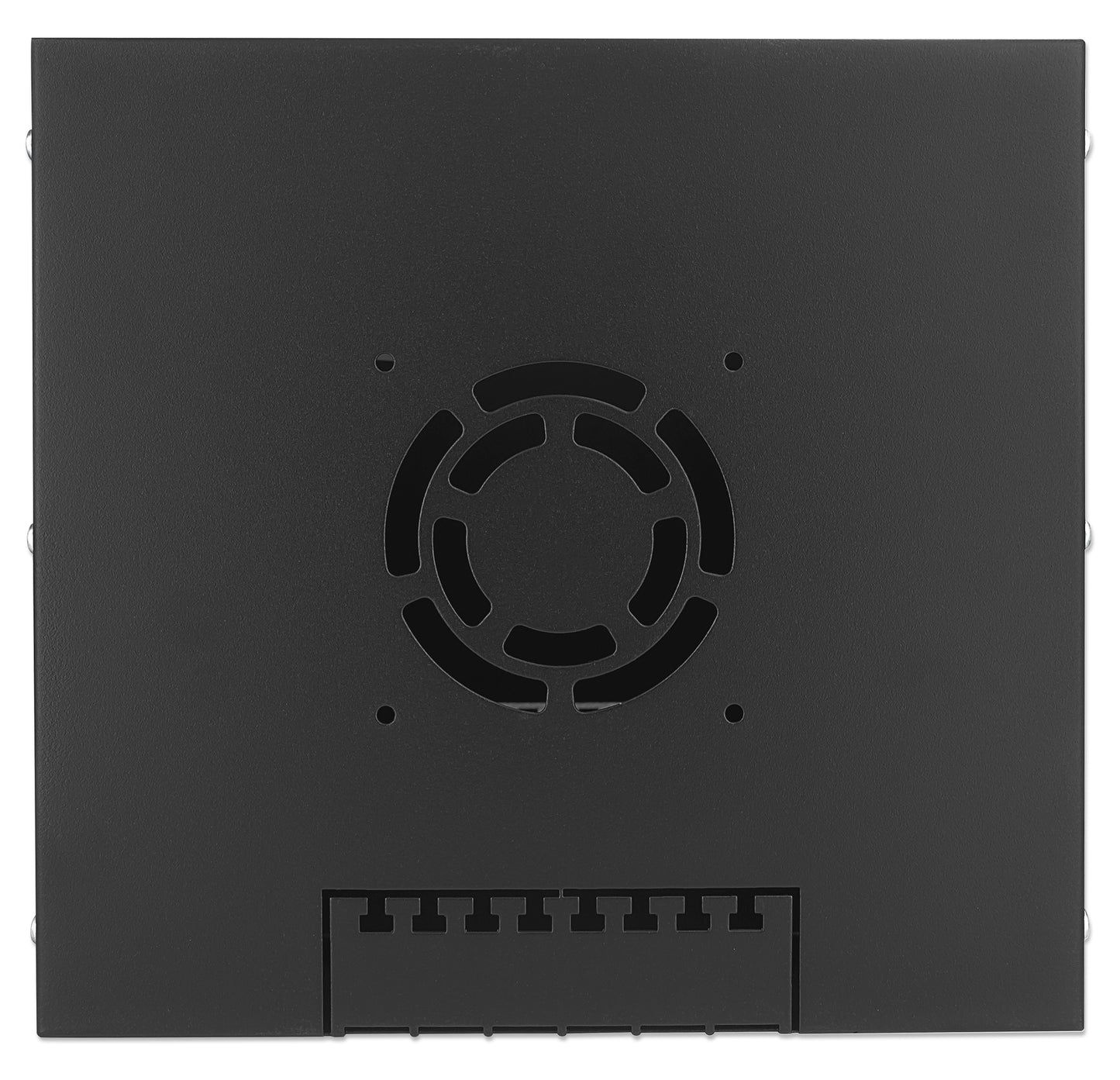

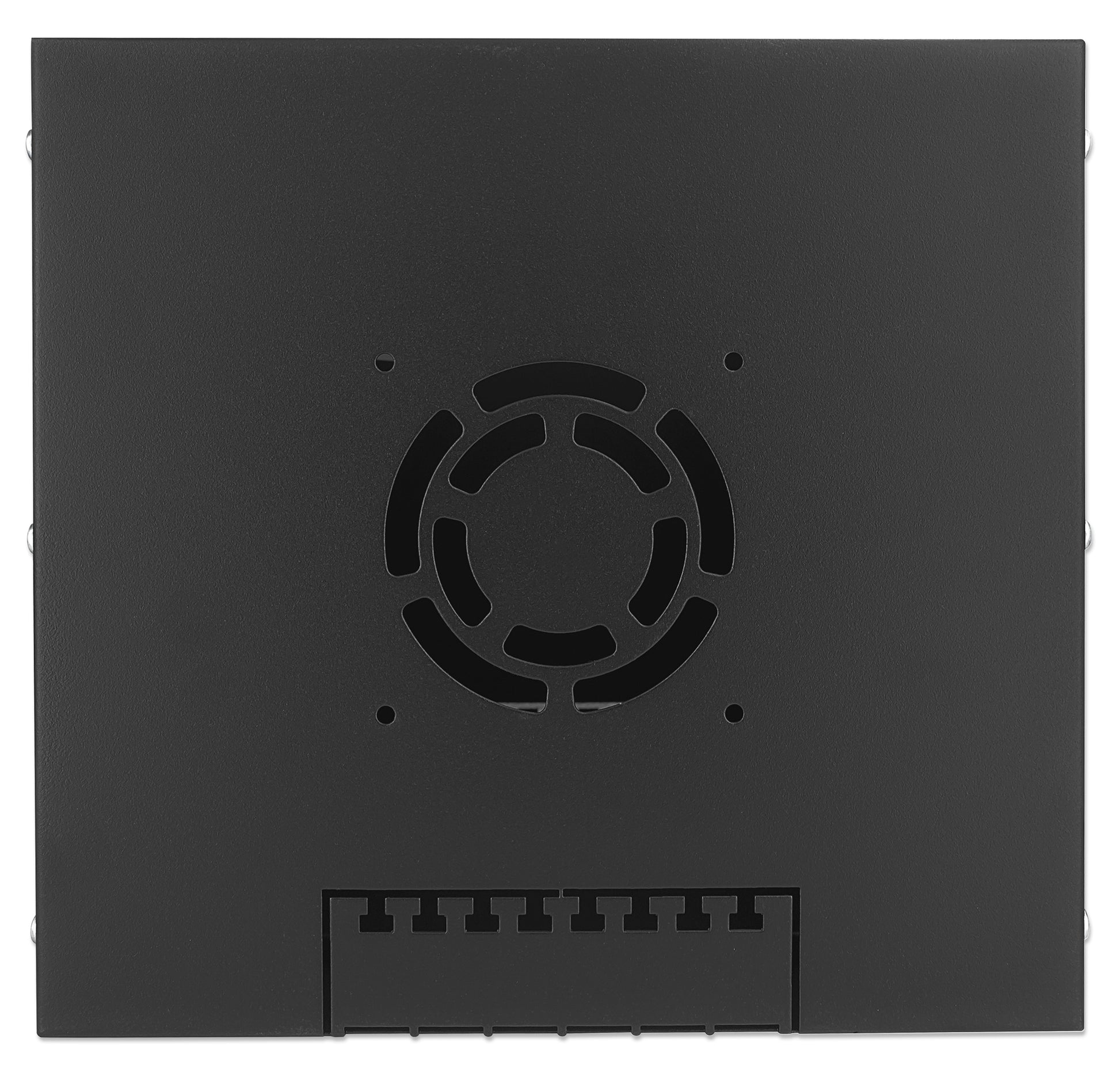

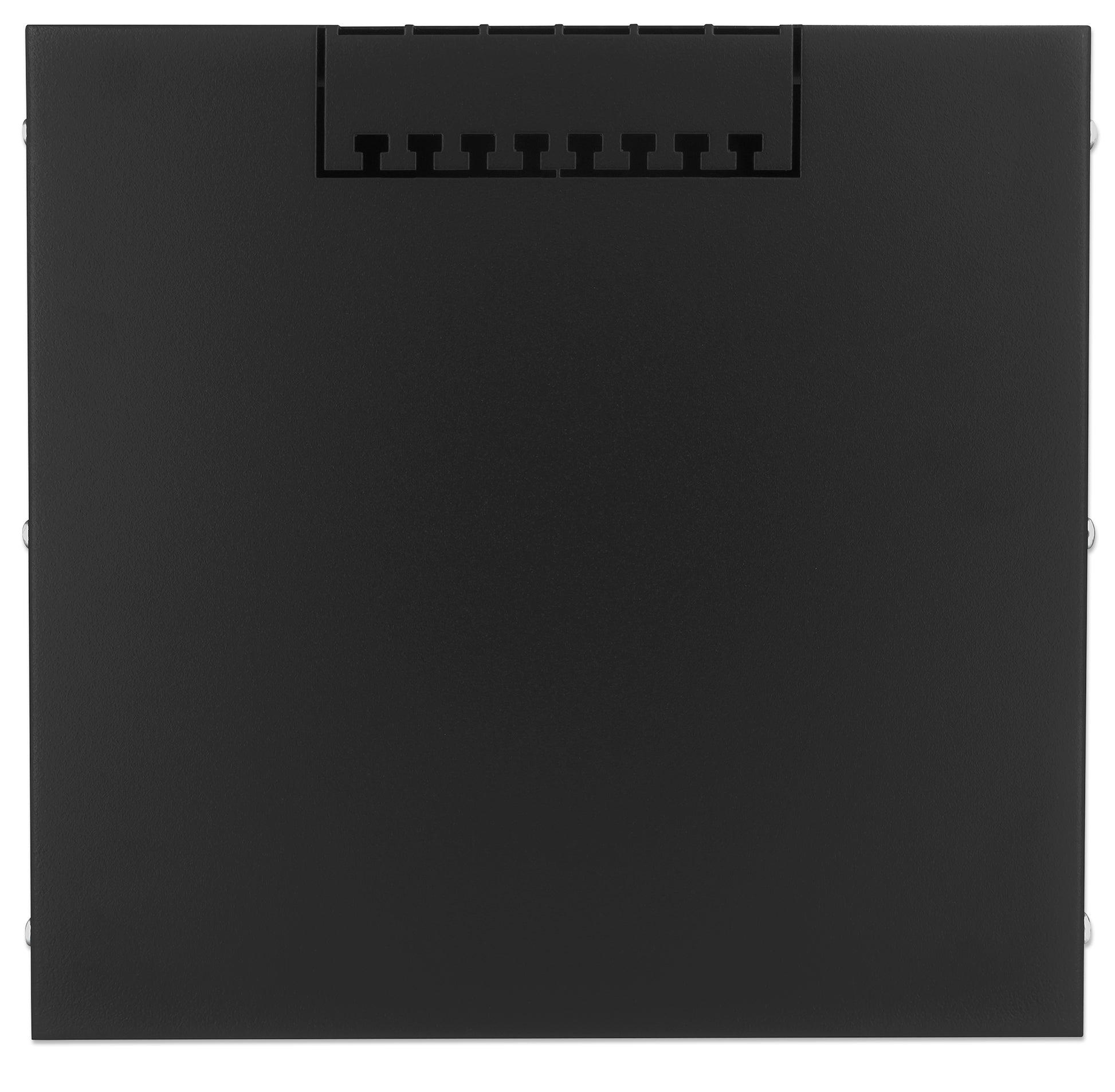

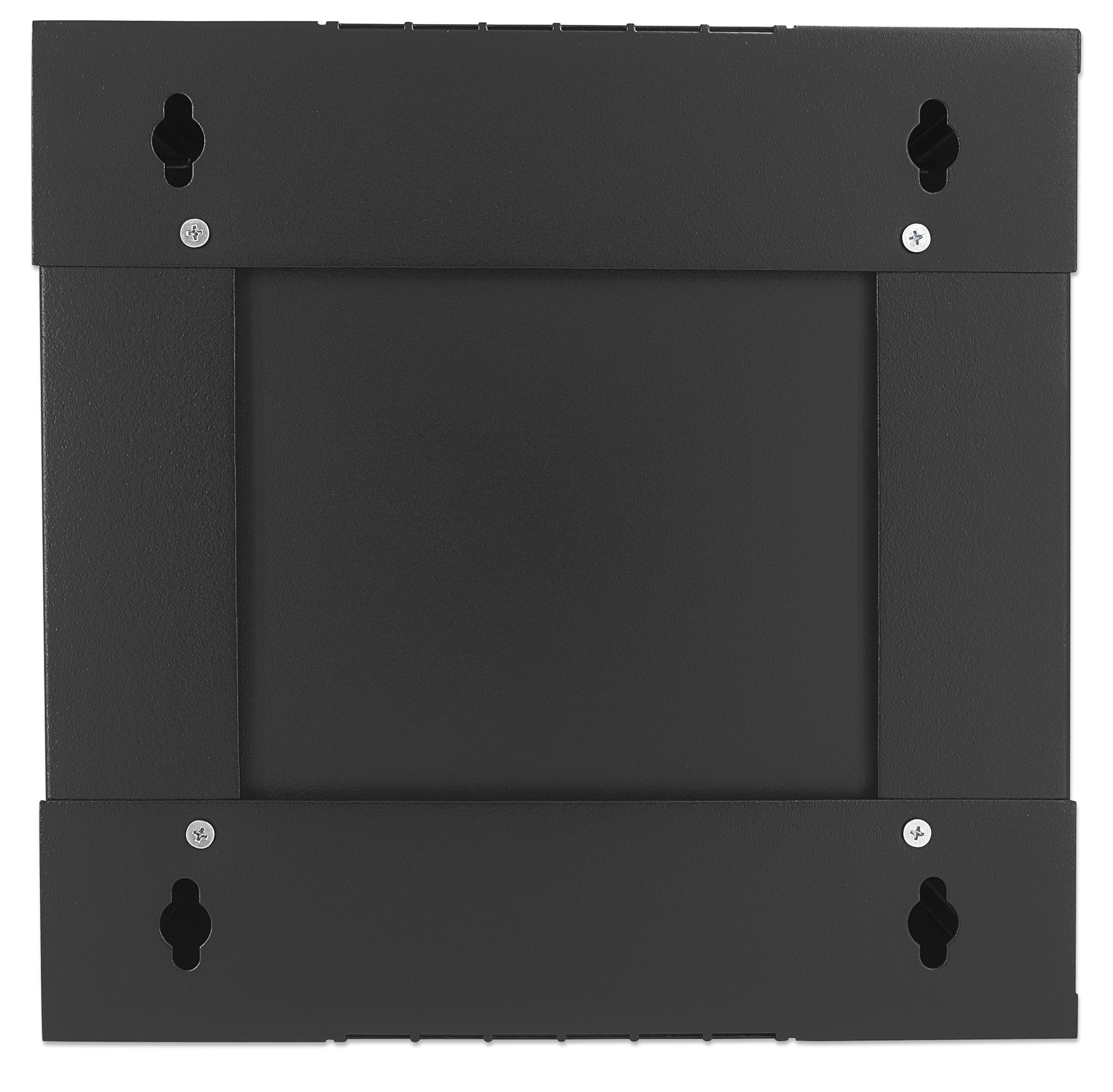

- Cable entry via rear or top panel
- Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
- Ships assembled
- Three-Year Warranty
- General
- 10"
- Height: 6U
- Color: Black RAL 9004
- Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Dimensions
- 320 (h) x 300 (w) x 300 (d) mm
- 12.6 (h) x 11.81 (w) x 11.81 (d) in.
- Usable depth: 265 mm (10.43 in.)
Package Contents

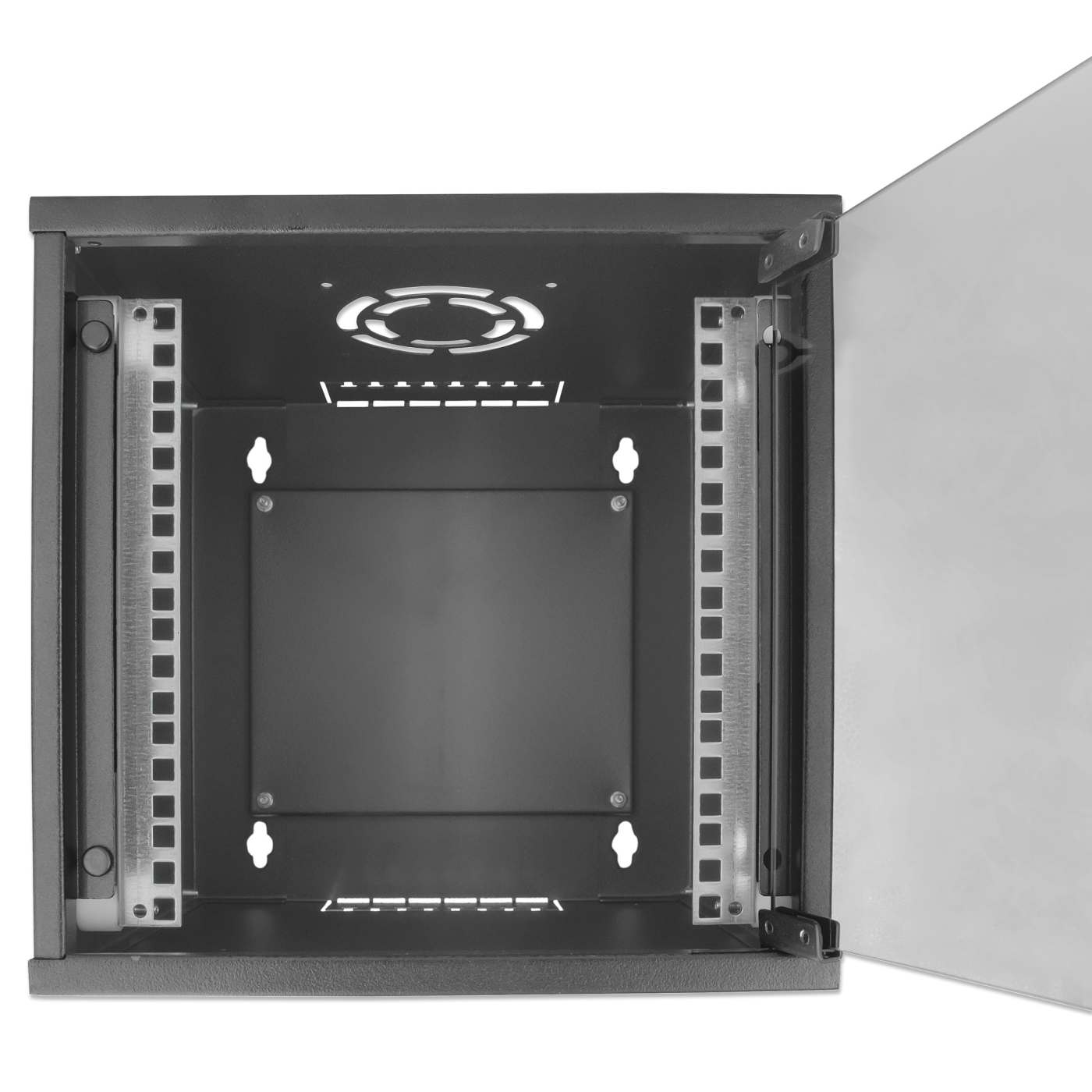

- 2 depth-adjustable mounting rails
- Installation hardware
Additional SKUs
- Amazon ASIN: B00NYQQ0ME
- EAN: 0766623711692
- UPC: 766623711692
- ALSO: 2282612
- API: 155163
Physical Specifications
- Product net weight: 6.7 kg
- Dimensions: 320 x 300 x 300 (mm)
- Packaging type: Brown Box
- Packaging dimensions: 390 x 370 x 370 [mm]
- Master Carton Quantity: 1
- Master Carton Weight: 7.90 kg
- Master Carton Dimensions: 370 x 370 x 390 [mm]
