Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide customers with options for Cat5 and Cat5e cables in unshielded and shielded varieties. We offer 15 micro-inch gold contacts for our standard plugs or a high-quality 50 micro-inch standard in our Premium and Pro lines.

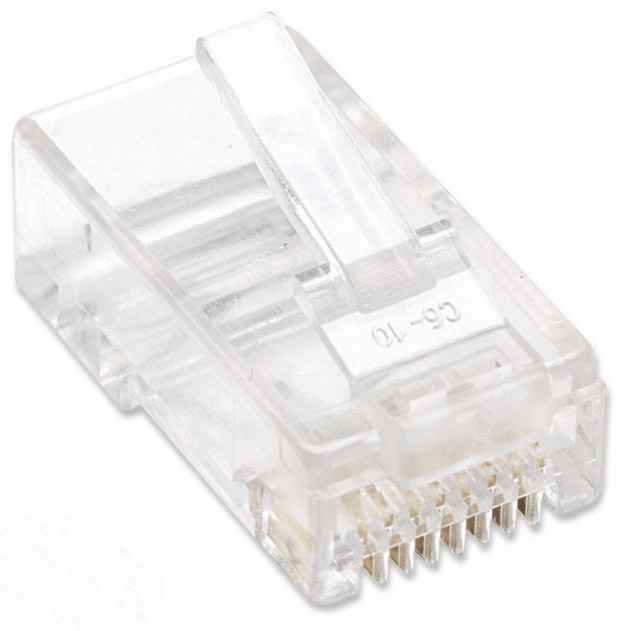

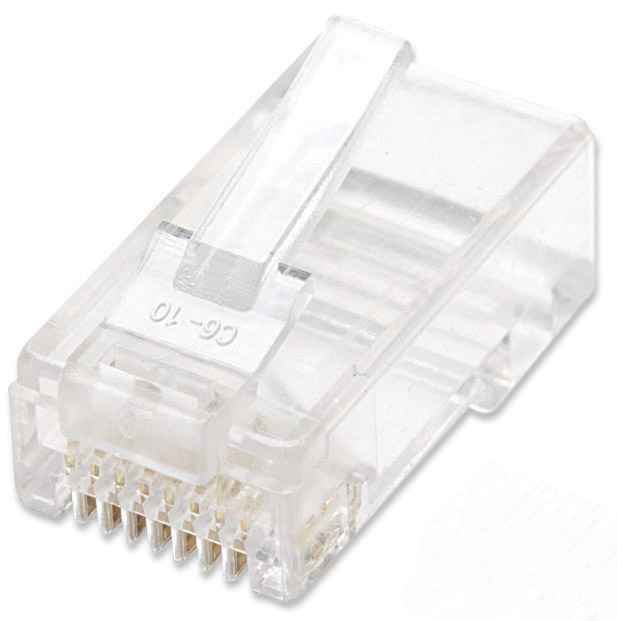

- Cat5e RJ45 modular plug
- 15 micro-inch gold plated contacts
- Three-prong terminal for solid wire
- Supports 24 to 26 AWG
- Fits round cable
- For unshielded twisted pair applications
- Standard 8P8C design, compatible with all network RJ45 connections
- Fully compatible with Category 3, 4, 5 and 5e applications
- Lifetime Warranty
- Standards
- Category 5 (ANSI/TIA/EIA-568-A)
- Category 5e (TIA/EIA-568-B)
Material
- Insulator: polycarbonate rated UL 94V-2
- Contacts: phosphor bronze
Contact Plating
- 15 micro-inch gold
Package Contents

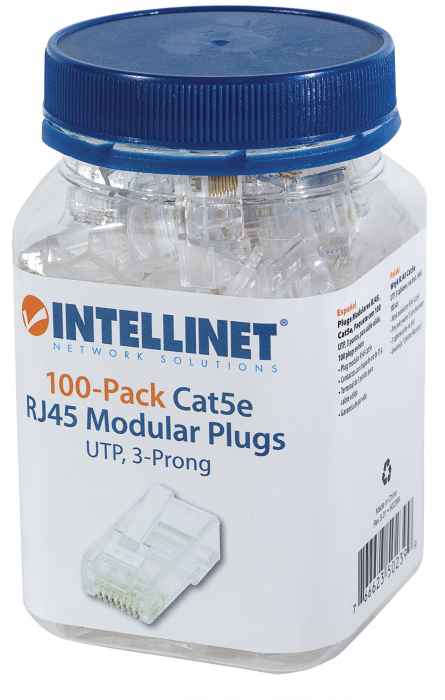

- 100 Cat5e RJ45 Modular Plugs in jar
Additional SKUs
- Amazon ASIN: B07FM87YSD
- EAN: 0766623502399
- UPC: 766623502399
- ALSO: 1955179
- API: 101079
Physical Specifications
- Product net weight: 0.21 kg
- Product gross weight: 0.21 kg
- Packaging dimensions: 67.3 x 67.3 x 110 [mm]
- Master Carton Quantity: 70
- Master Carton Weight: 14.90 kg
- Master Carton Dimensions: 480 x 340 x 240 [mm]
