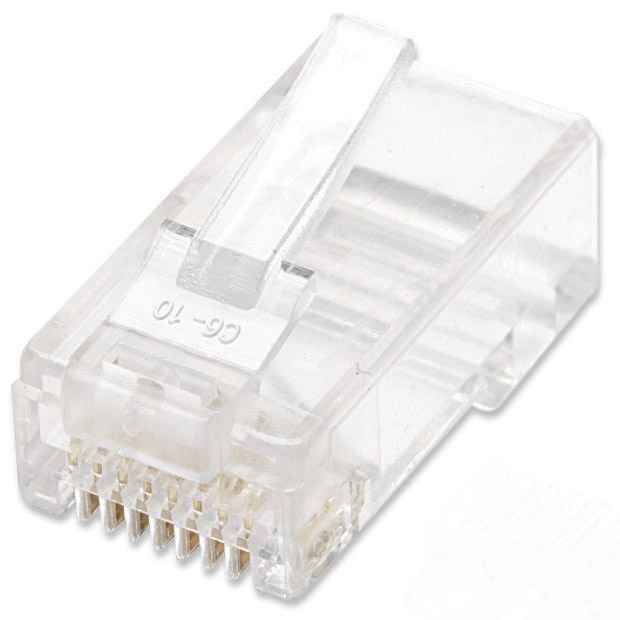

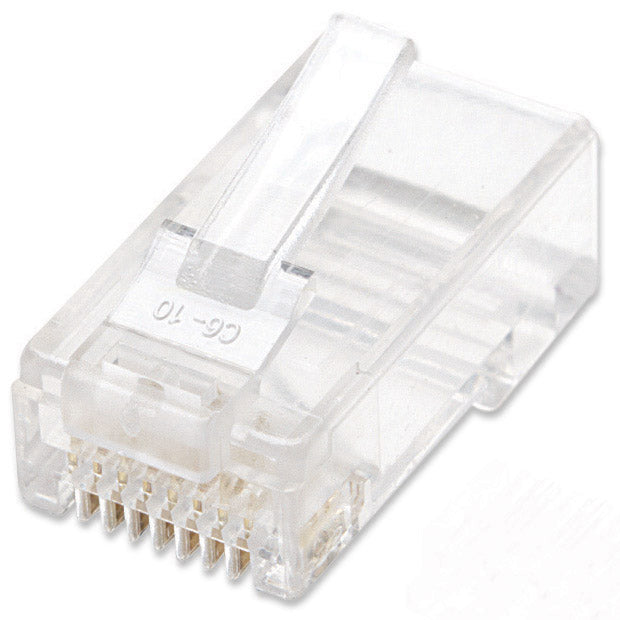

100-Pack Cat6 RJ45 Modular Plugs

UTP, 2-prong, for stranded wire, 100 plugs in jar

Part-No.: 502344

Highlights

  • Cat6 RJ45 modular plug
  • 15 µ gold-plated contacts
  • Two-prong terminal for stranded wire


  • Cat6 RJ45 modular plug
  • 15 µ gold-plated contacts
  • Two-prong terminal for stranded wire
  • Supports 22 to 26 AWG
  • Fits round cable
  • For unshielded twisted pair applications
  • Standard 8P8C design, compatible with all network RJ45 connections
  • Fully compatible with Category 3, 4, 5, 5e and 6 applications
  • Lifetime Warranty

    Standards
  • Category 5 (ANSI/TIA/EIA-568-A)
  • Category 5e (TIA/EIA-568-B)
  • Category 6 (ANSI/TIA-568-B.2-1)

    Material
  • Insulator: polycarbonate rated UL 94V-2
  • Contacts: phosphor bronze

    Contact Plating
  • 15-micron gold

    Package Contents

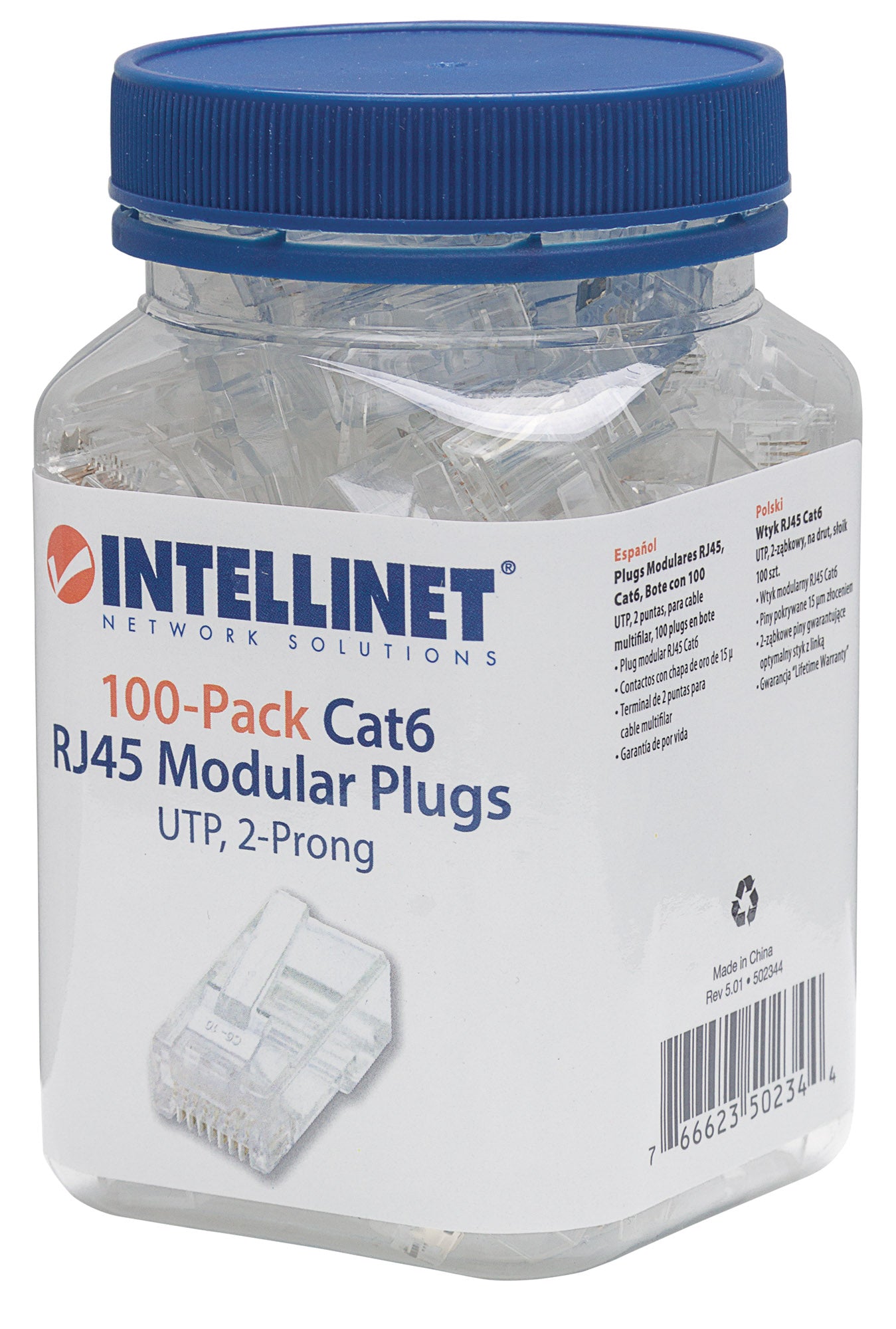

  • 100 Cat6 RJ45 Modular Plugs in jar

  • Additional SKUs

    • Amazon ASIN: B00J4T0WXI
    • EAN: 0766623502344
    • UPC: 766623502344
    • ALSO: 1955043
    • API: 101083

  • Physical Specifications

    • Weight: 0 kg
    • Carton Quantity: 70
    • Carton Weight: 14.00 kg

  • Datasheet
