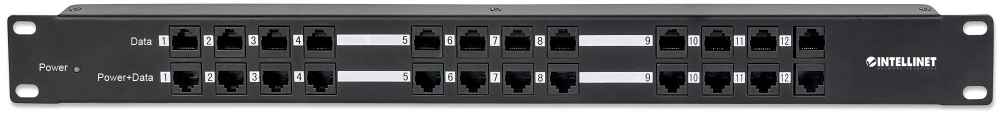

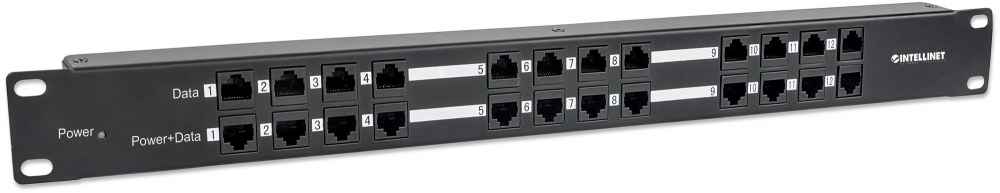

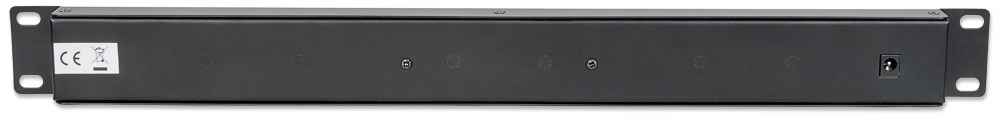

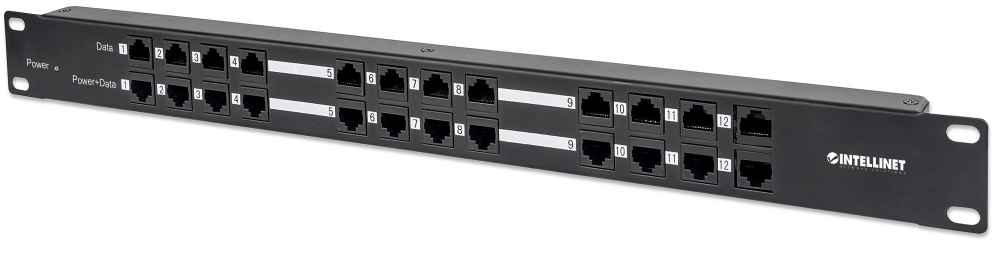

12 Port Passive PoE Patch Panel

24 Port Patch Panel with 12 port RJ45 Data In and 12 port RJ45 Data and Power Out

Part-No.: 720342

Highlights

  • Passive Power over Ethernet Delivered on 12 Ports
  • 1U height
  • 19" Rack mountable

Future arrivals:

#
Quantity
Arrival Date
1
36
2021-05-14


Do you need a cost effective solution to upgrade your Network with Power over Ethernet? Then the 720342 from Intellinet Network Solutions is your ideal solution. Intellinet Network Solutions is renowned for their PoE products and this is one of our latest additions.

  • Passive Power over Ethernet Delivered on 12 Ports
  • 1U height
  • 19" Rack mountable
  • Simple Installation
  • Cost Effective Power over Ethernet Upgrade for your network
  • CAT5e Compatible
  • Three-Year Warranty

  • 24 Port 1U 19" Patch Panel
  • 12 port RJ45 Data In
  • 12 port RJ45 Data and Power Out
  • 120 watts of usable power
  • Up to 30 watts per port
  • 48 V DC power output
  • 12 PoE Injector Ports
  • Metal construction
  • Black

    Package contents:
  • 1U Patch Panel with 24 Ports total

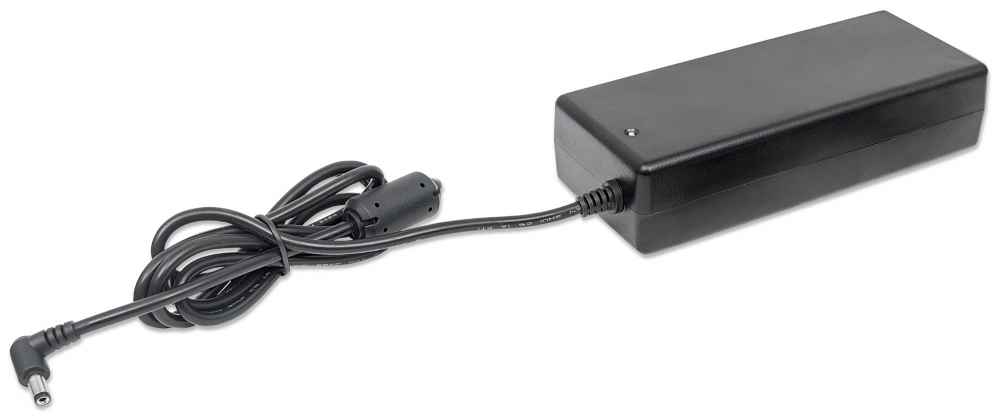

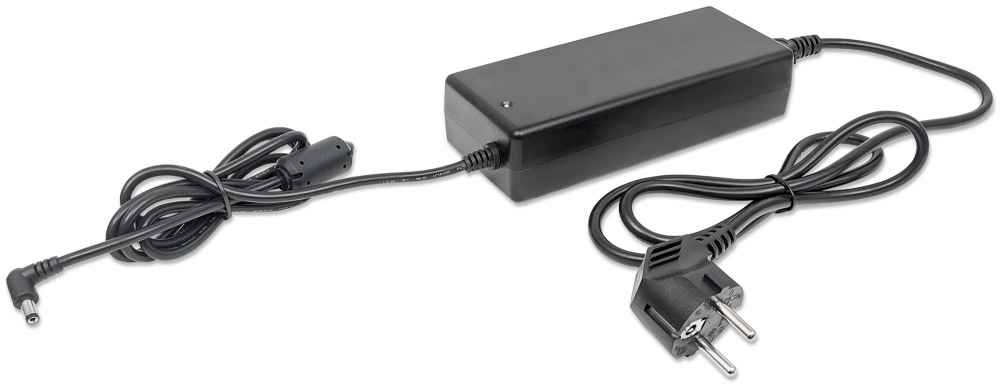

  • Power Supply

  • Additional SKUs

    • Amazon ASIN: B0072IHY0C
    • EAN: 0766623720342
    • UPC: 766623720342
    • ALSO: 2564374
    • API: 194305

  • Physical Specifications

    • Weight: 1.34 kg
    • Dimensions: 482.6 (L) x 21.8 (W) x 44.3 (H) [mm]
    • Packaging: Brown Box
    • Carton Quantity: 12
    • Carton Weight: 17.90 kg

  • Datasheet


  • Manual

    • Quick Instruction Guide     » Download
