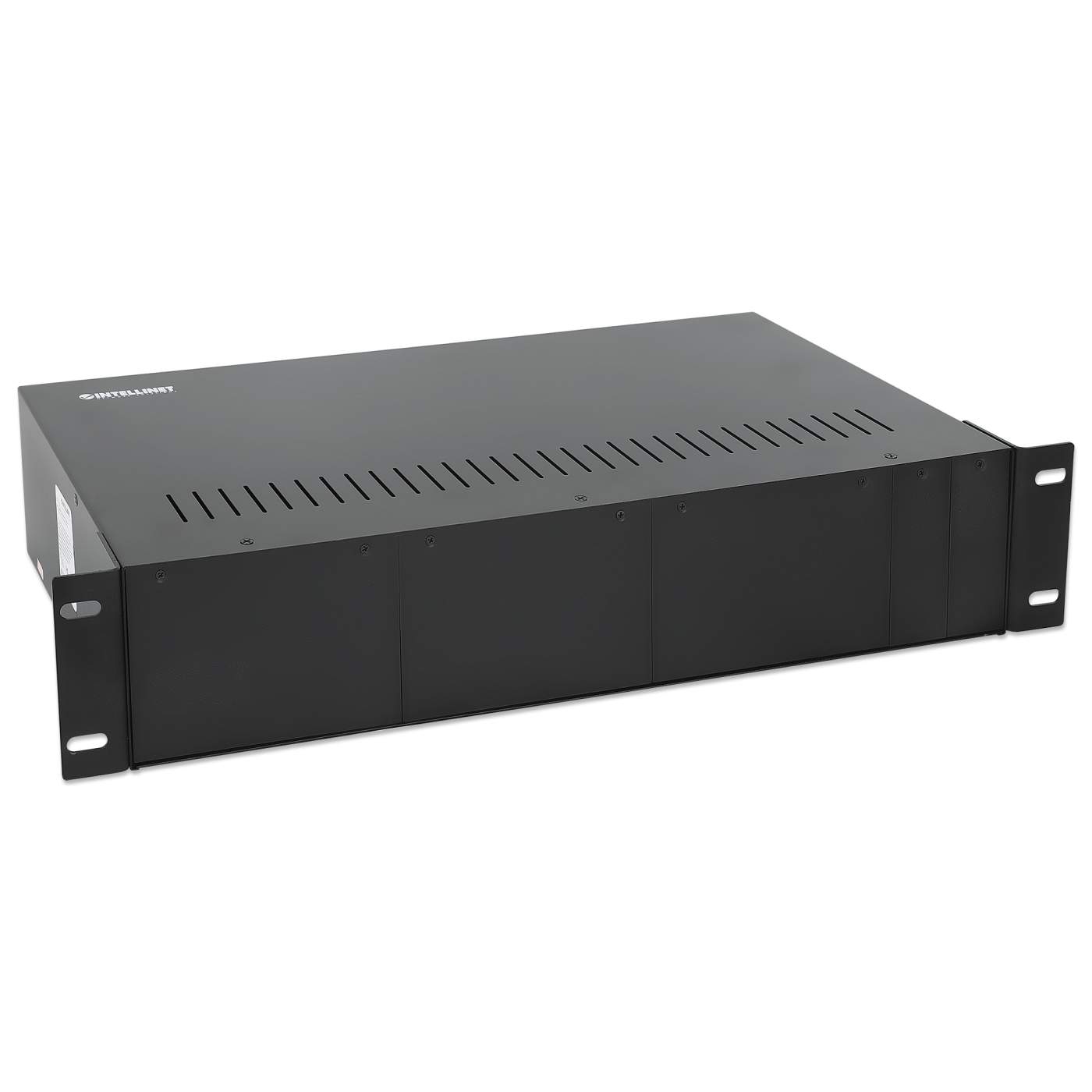

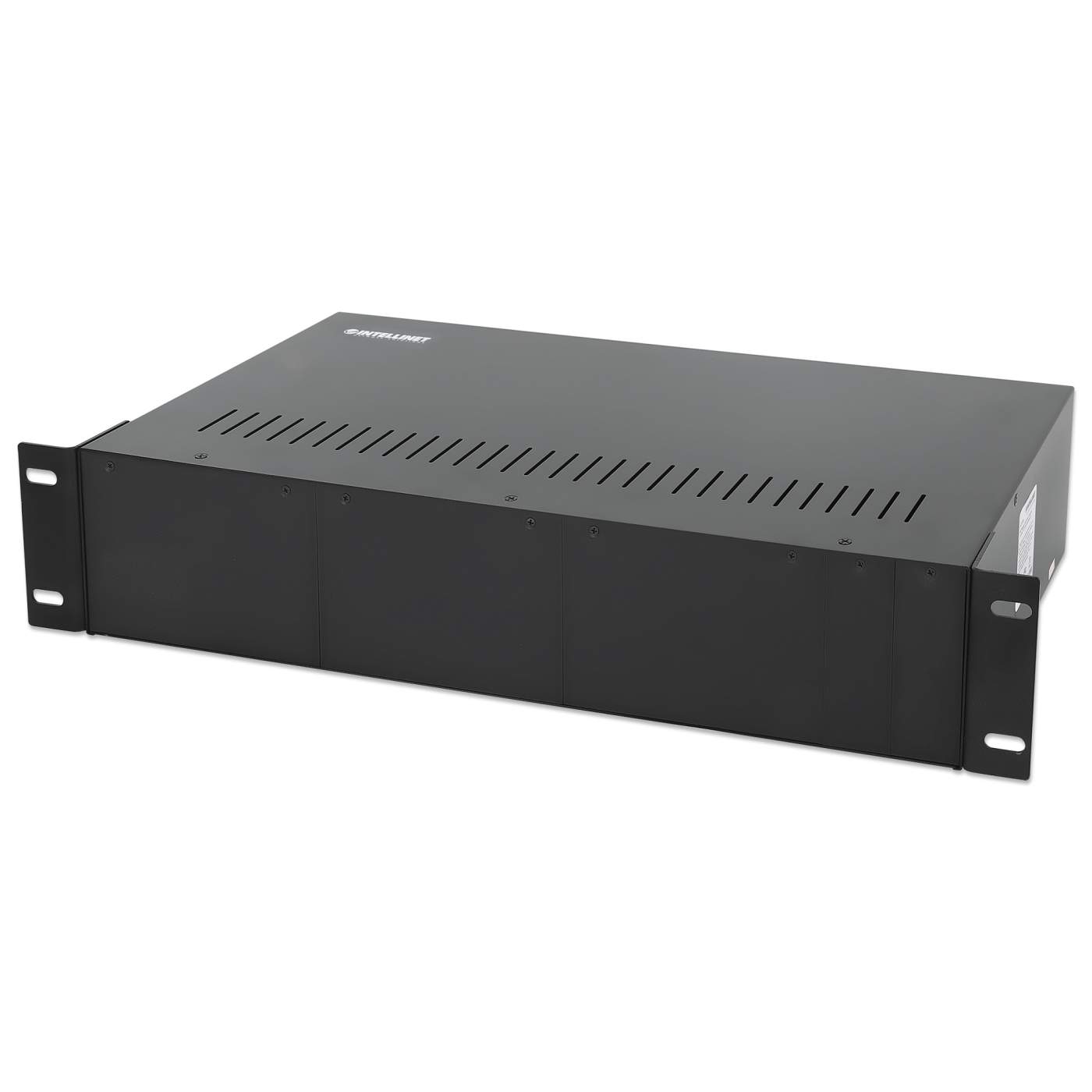

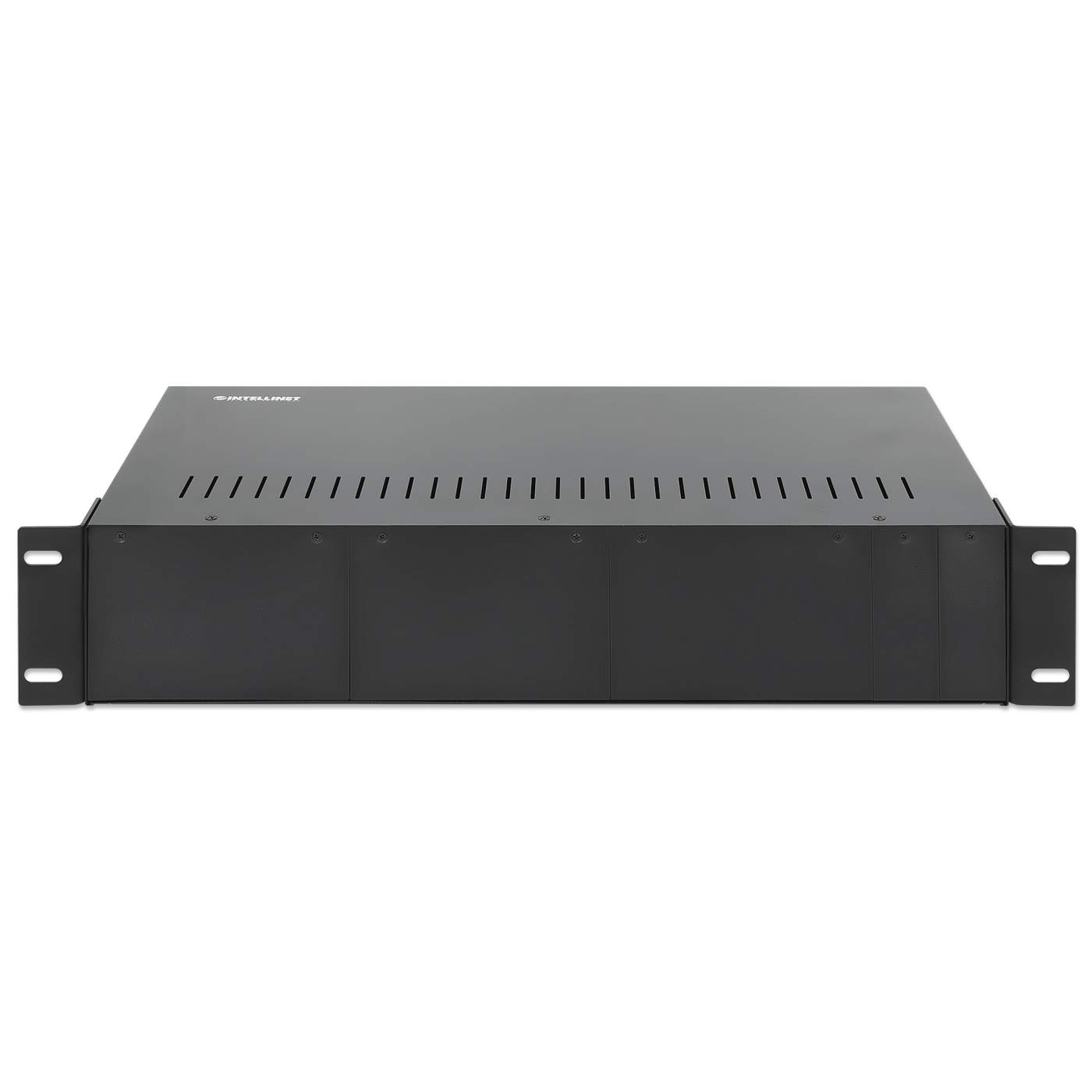

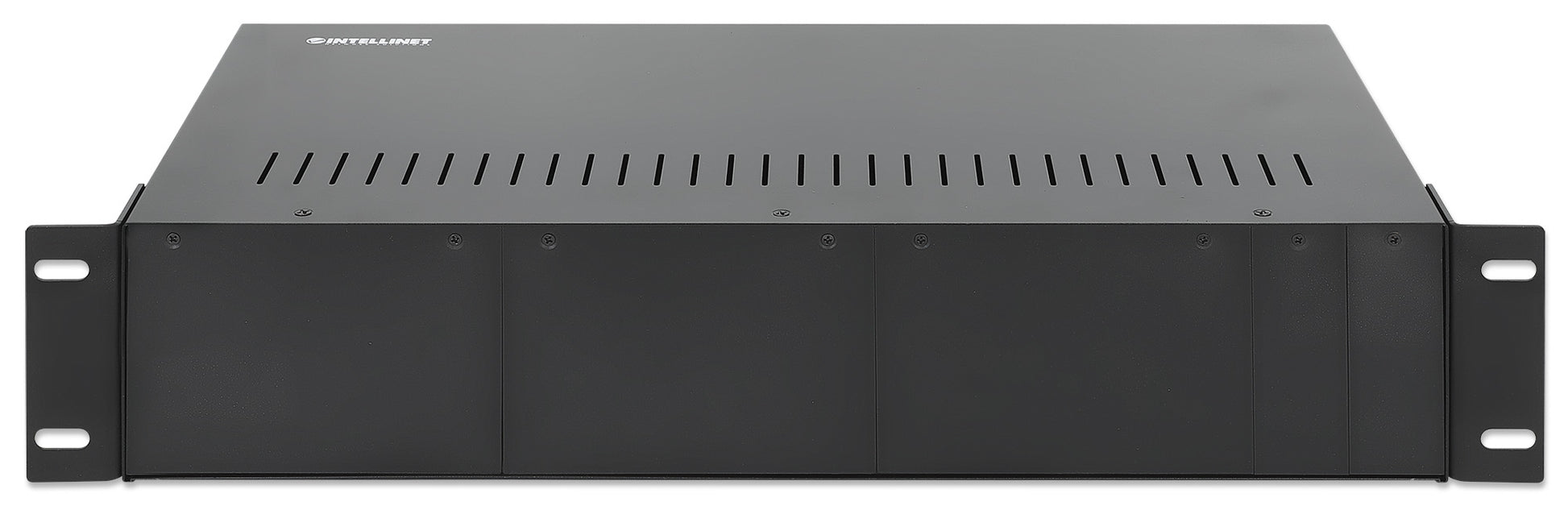

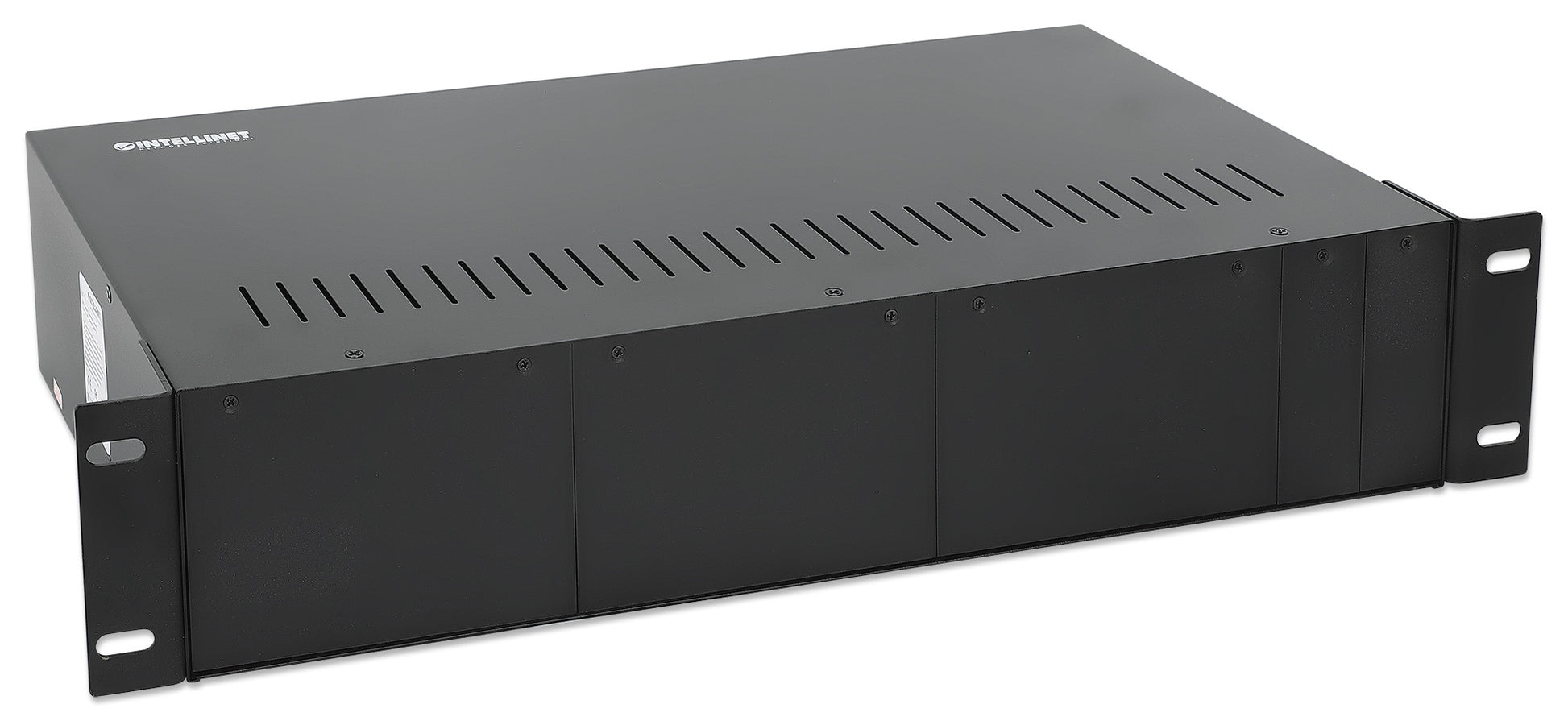

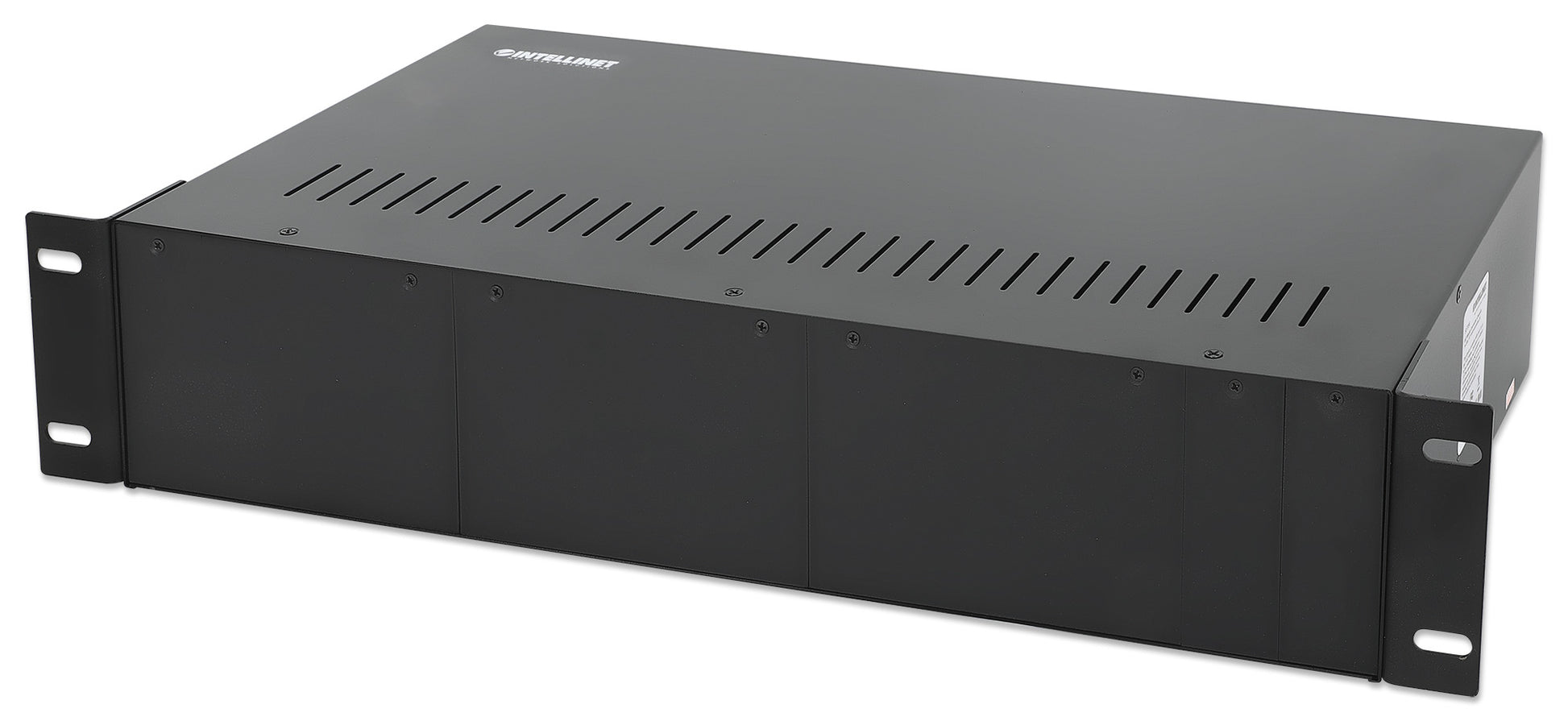

14-Slot Media Converter Chassis

Includes redundant power supply, 19" rackmountable, 2U

Part-No.: 507356

Highlights

  • High-quality 19" rackmount steel chassis
  • Supports up to 14 stand-alone media converters
  • Two internal 100 – 260V universal switching power supplies avoid network downtime and protect your converter investments

Future arrivals:

#
Quantity
Arrival Date
1
30
2021-06-10

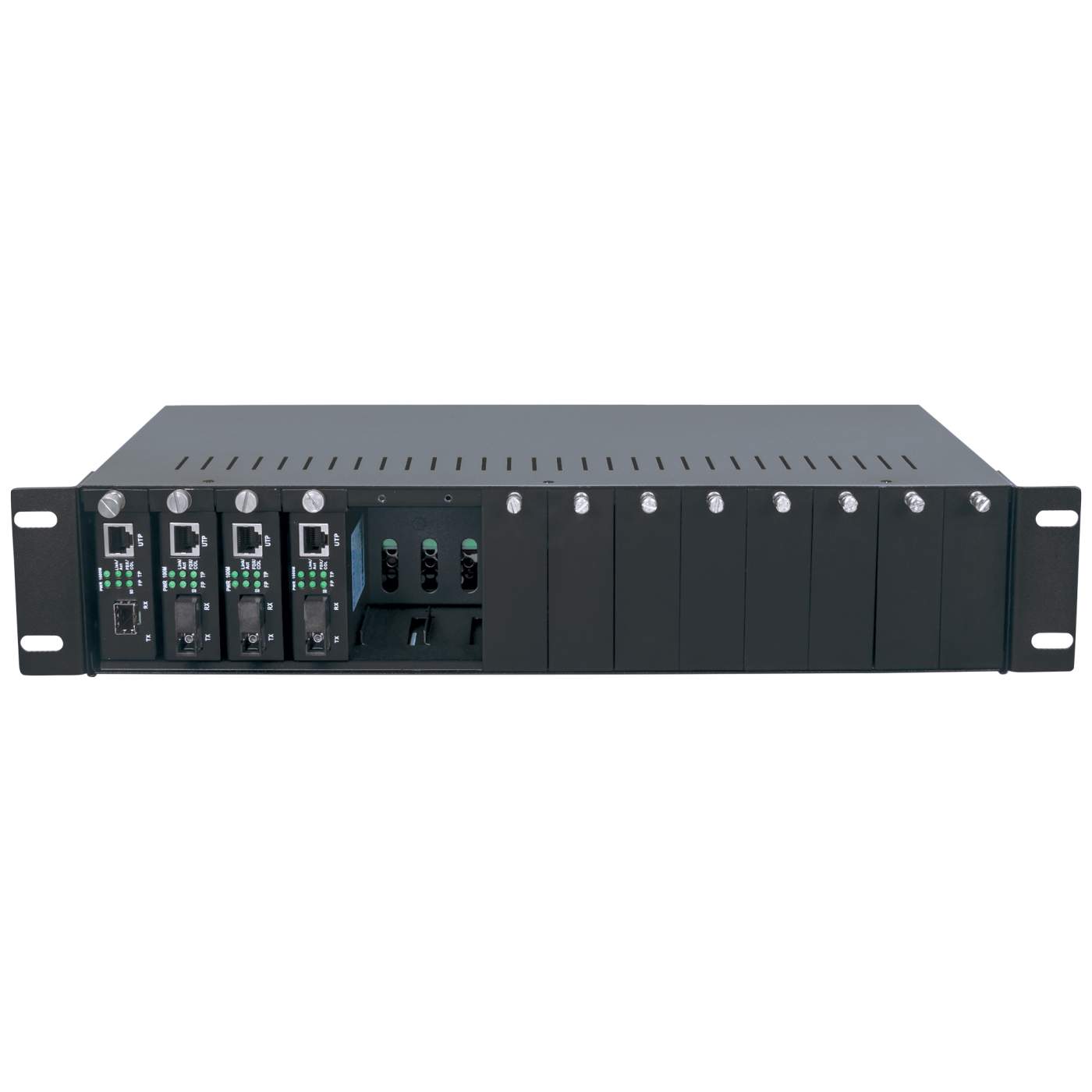

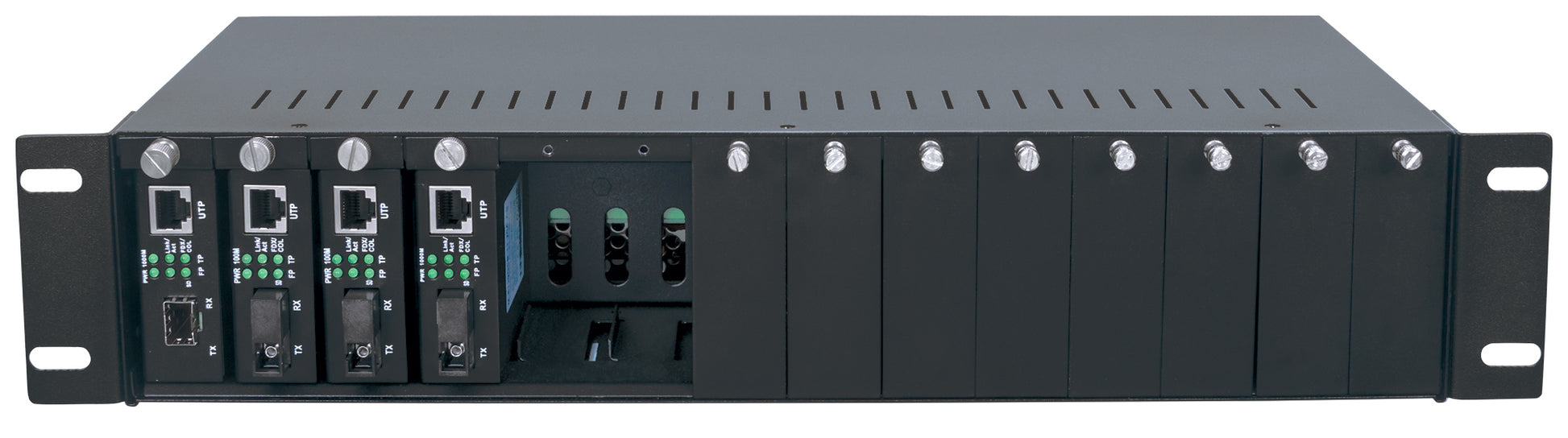

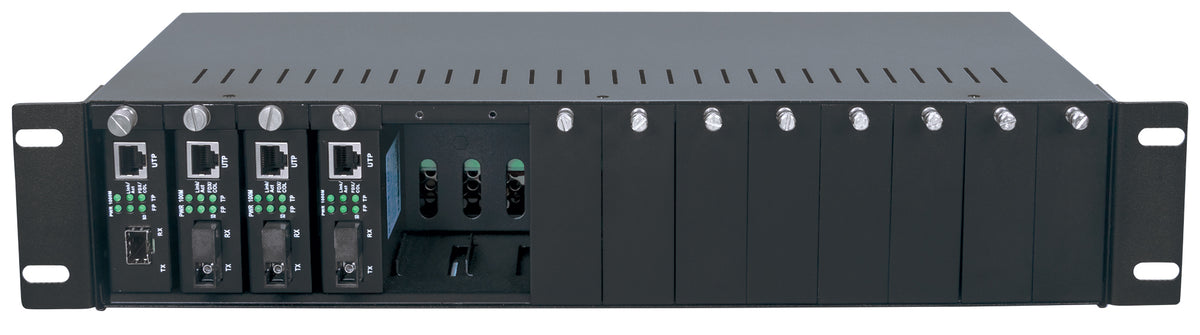

The Intellinet Network Solutions 507356 Media Converter Chassis accommodates up to 14 media converters in a single unit.
Reliability and Functionality

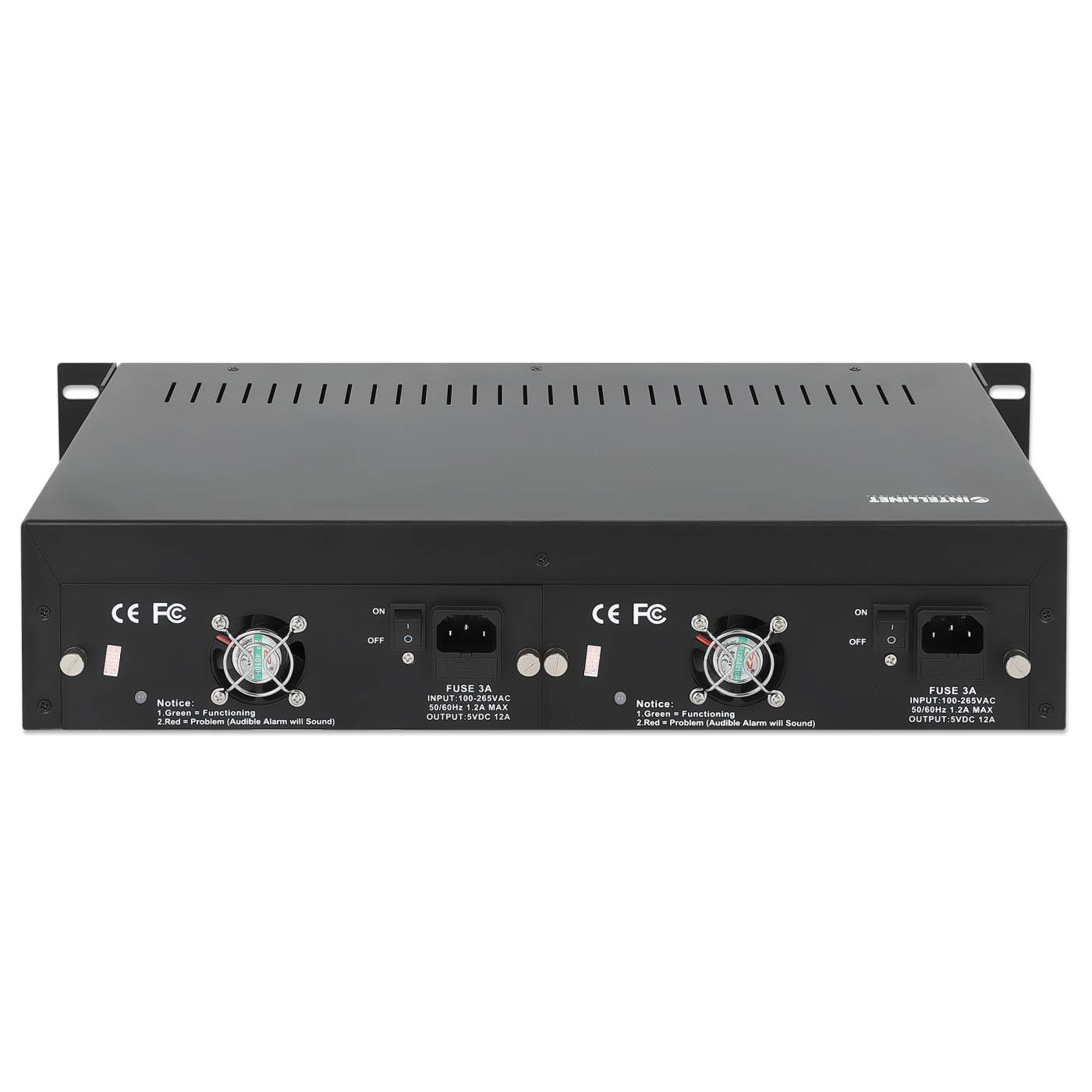

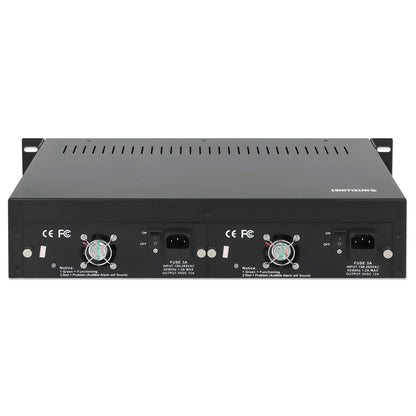

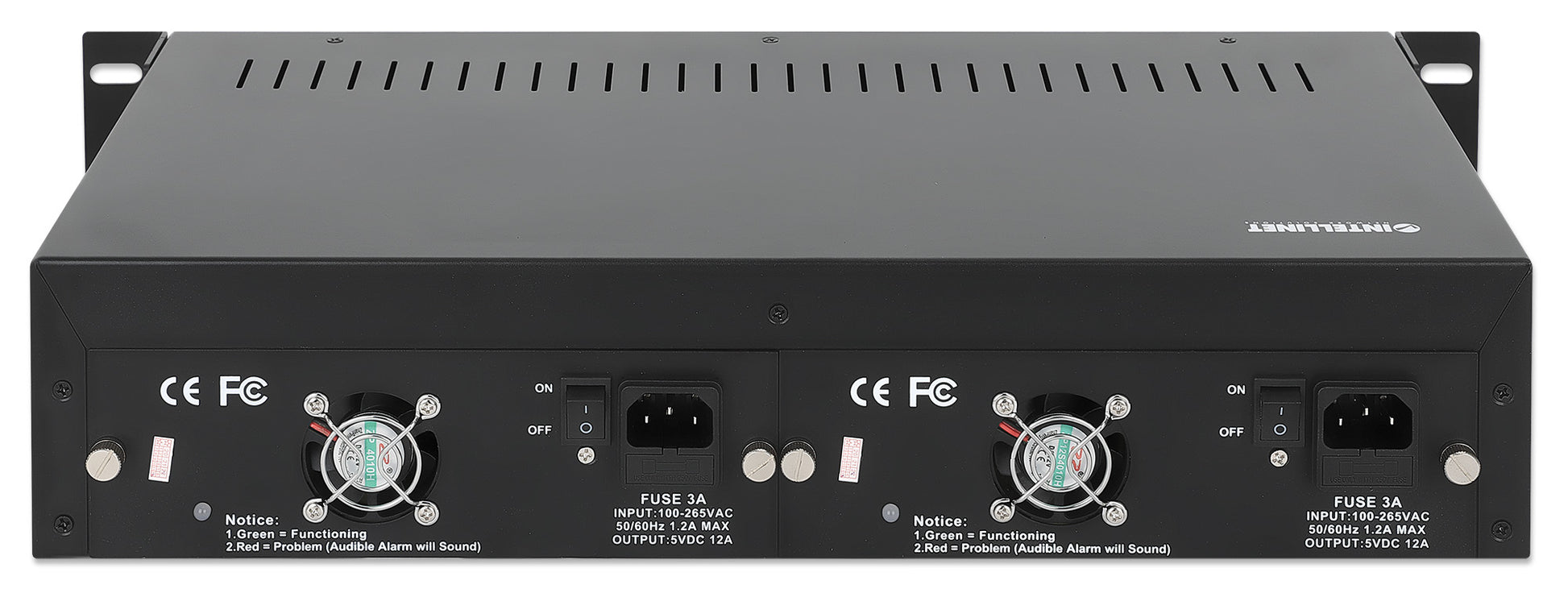

The 507356 Media Converter Chassis allows hot-swapping the media converters, and provides strong redundancy due to its two integrated power supplies. Two high-volume cooling fans ensure a cool operating environment.

  • High-quality 19" rackmount steel chassis
  • Supports up to 14 stand-alone media converters
  • Two internal 100 – 260V universal switching power supplies avoid network downtime and protect your converter investments
  • Power supplies support load sharing, and circuit-breakers protect against over voltage and short circuits
  • Two high-volume cooling fans ensure perfect ventilation
  • Slot power isolation ensures each slot is electrically isolated from the next
  • Three-Year Warranty

  • Capacity: 14 slots for up to 14 media converters
  • Occupies 2 height units (2U)
  • Certifications: FCC Class A, CE

    Compatibility
  • Fast Ethernet Media Converter 506502
  • Fast Ethernet Media Converter 506519
  • Fast Ethernet Media Converter 507332
  • WDM Fast Ethernet Media Converter 510530
  • WDM Fast Ethernet Media Converter 510547
  • Gigabit Ethernet Media Converter 506533
  • Gigabit Ethernet Media Converter 507349
  • Gigabit Ethernet Media Converter 510493
  • WDM Gigabit Ethernet Media Converter 545068
  • WDM Gigabit Ethernet Media Converter 545075

    LEDs
  • LED for each power supply

    Power
  • Input: 100 – 260 VAC
  • Output: 5 VDC

    Environmental
  • Material: aluminum/steel
  • Dimensions: 440 (L) x 231 (W) x 90 (H) mm / 17.32 (L) x 9.09 (W) x 3.54 (H) in.
  • Weight: 4.7 kg (10.3 lbs.)
  • Operating temperature: 0 – 50°C (32 – 122°F)
  • Operating humidity: 5 – 95% RH, non-condensing
  • Storage temperature: -20 – 85°C (-4 – 185°F)

    Package Contents
  • Media Converter Chassis with 2 integrated power supplies
  • 14 media converter carries brackets
  • Installation instructions

  • Additional SKUs

    • Amazon ASIN: B01AW2LSEM
    • EAN: 0766623507356
    • UPC: 766623507356
    • ALSO: 2519937
    • API: 192801

  • Physical Specifications

    • Weight: 4.96 kg
    • Dimensions: 440 (L) x 231 (W) x 90 (H) [mm]
    • Packaging: Brown Box
    • Carton Quantity: 3
    • Carton Weight: 18.50 kg

  • Datasheet


  • Manual

    • User Manual (English)     » Download
