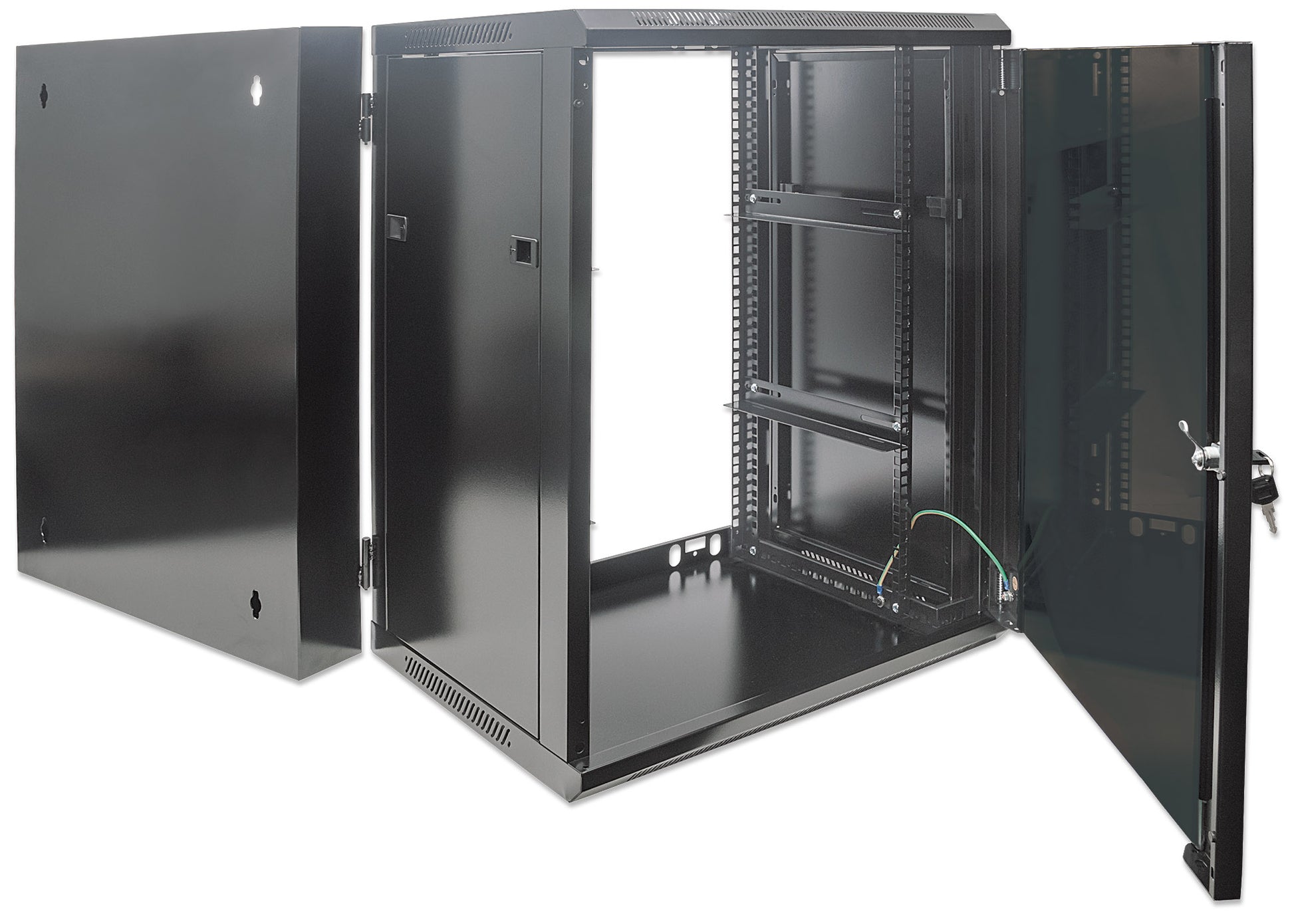

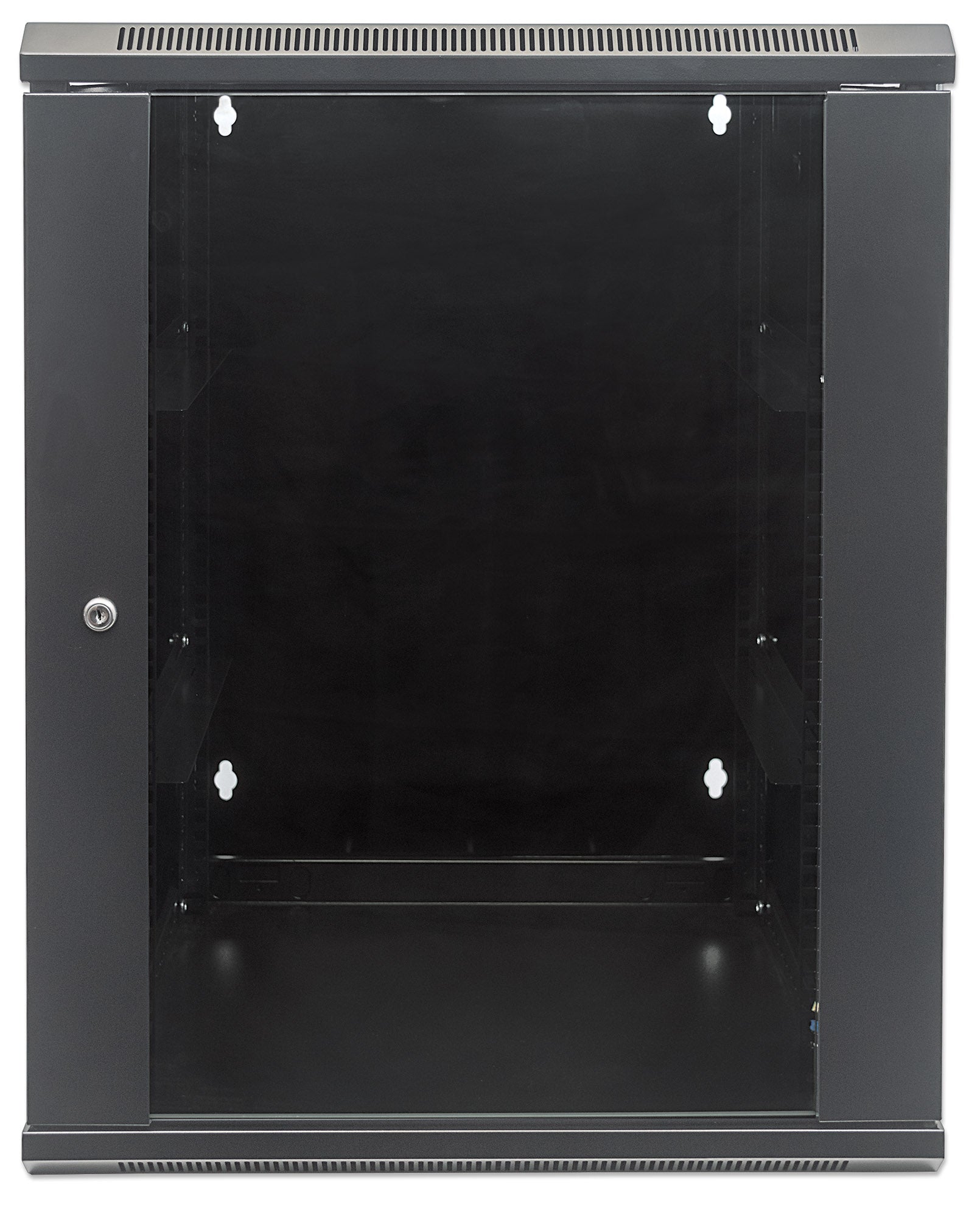

Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. The tempered-glass door, easily removable side panels and cold-rolled galvanized steel are just some of the top quality workmanship and materials that are standard. These cabinets ship completely assembled for a quick and easy installation.
- Ideal for 19" rackmount applications
- Maximum static load of 30 kg

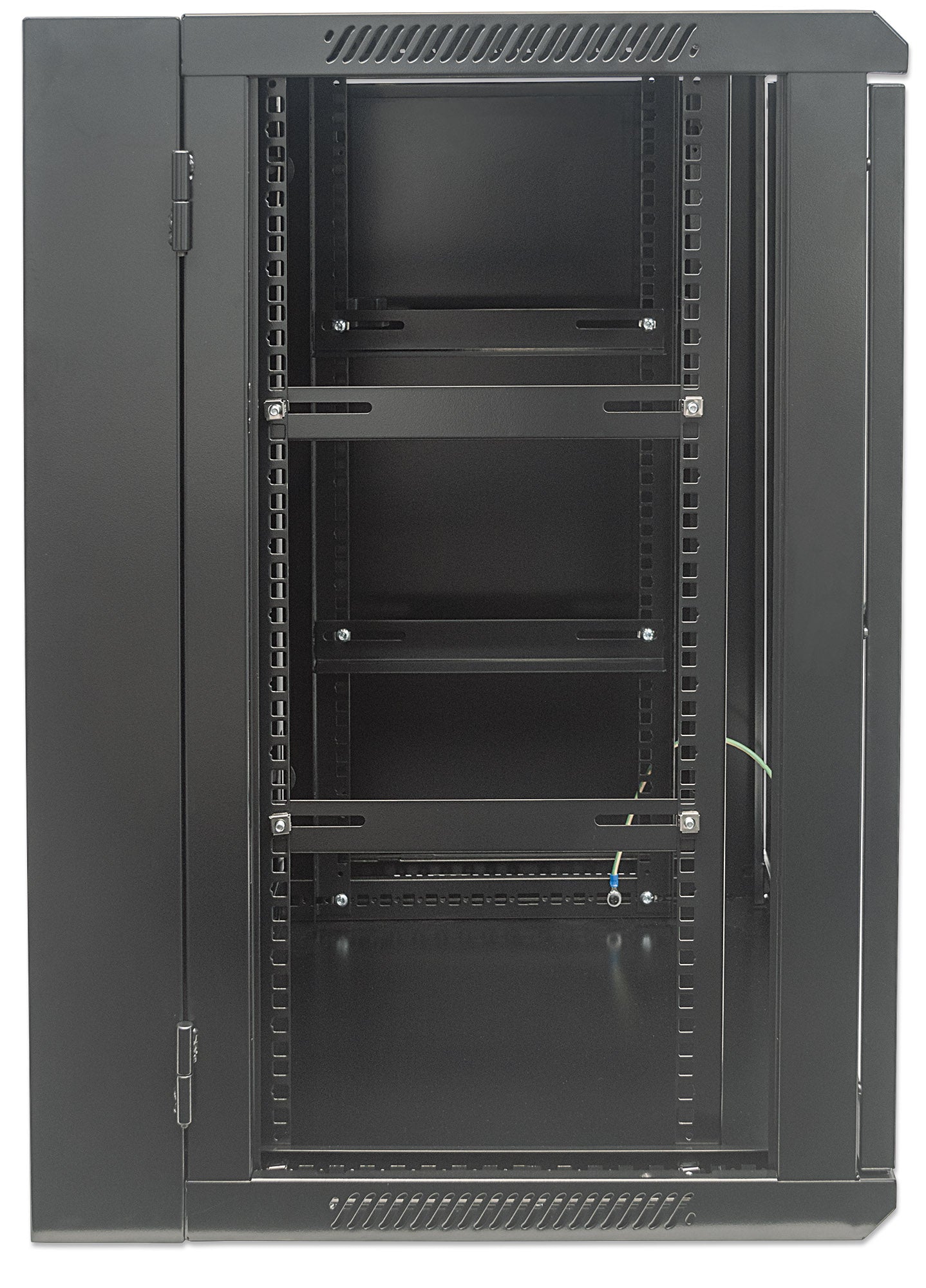

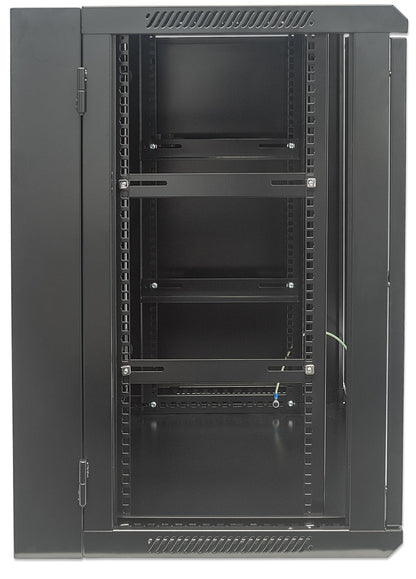

- Installation depth (distance between front and rear mounting rails): 62 mm (2.44 in.) to 369 mm (14.53 in.), adjustable
- Note: Additional depth between rear upright and rear door

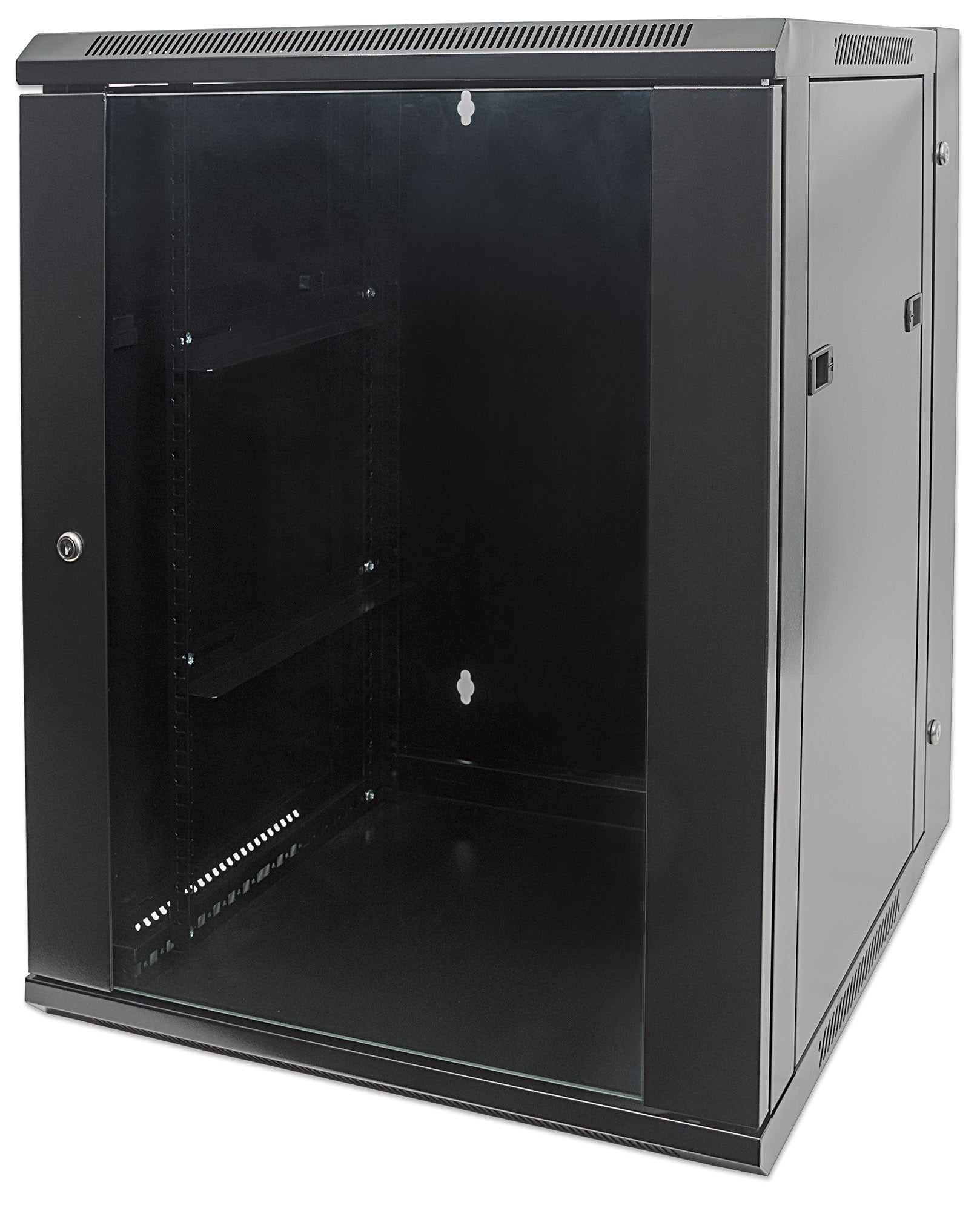

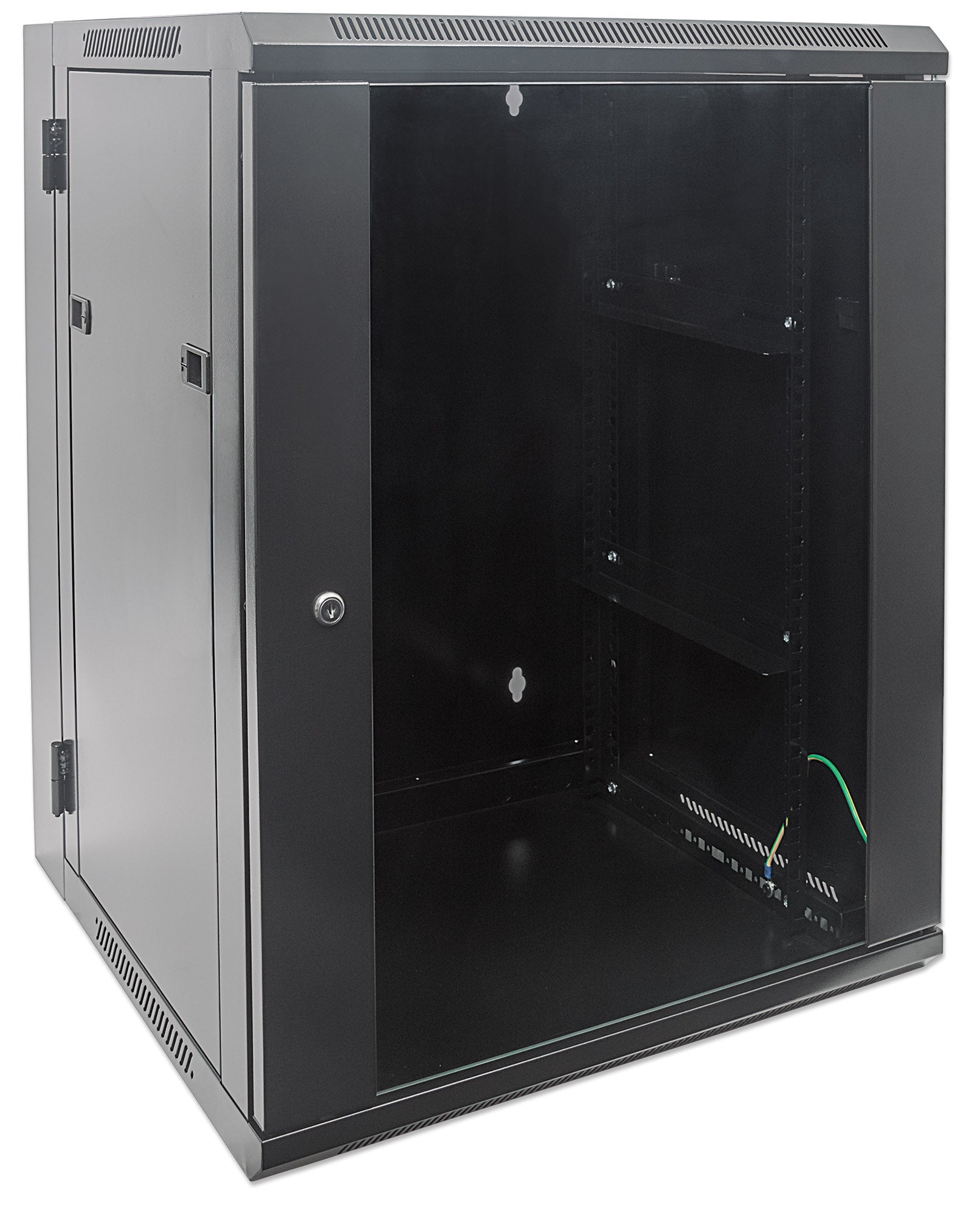

- Tempered-glass door can be opened more than 180°
- Cable entry via top panel
- Rear door for easy access to back of cabinet
- Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
- Reversible Front door

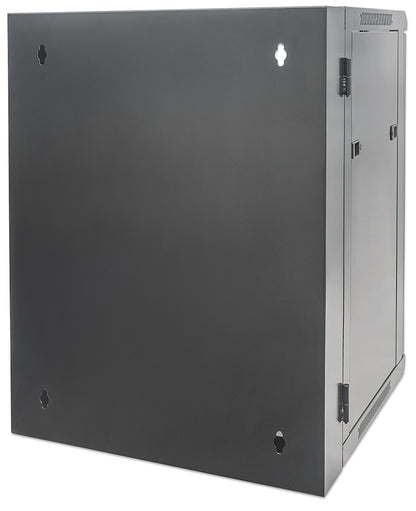

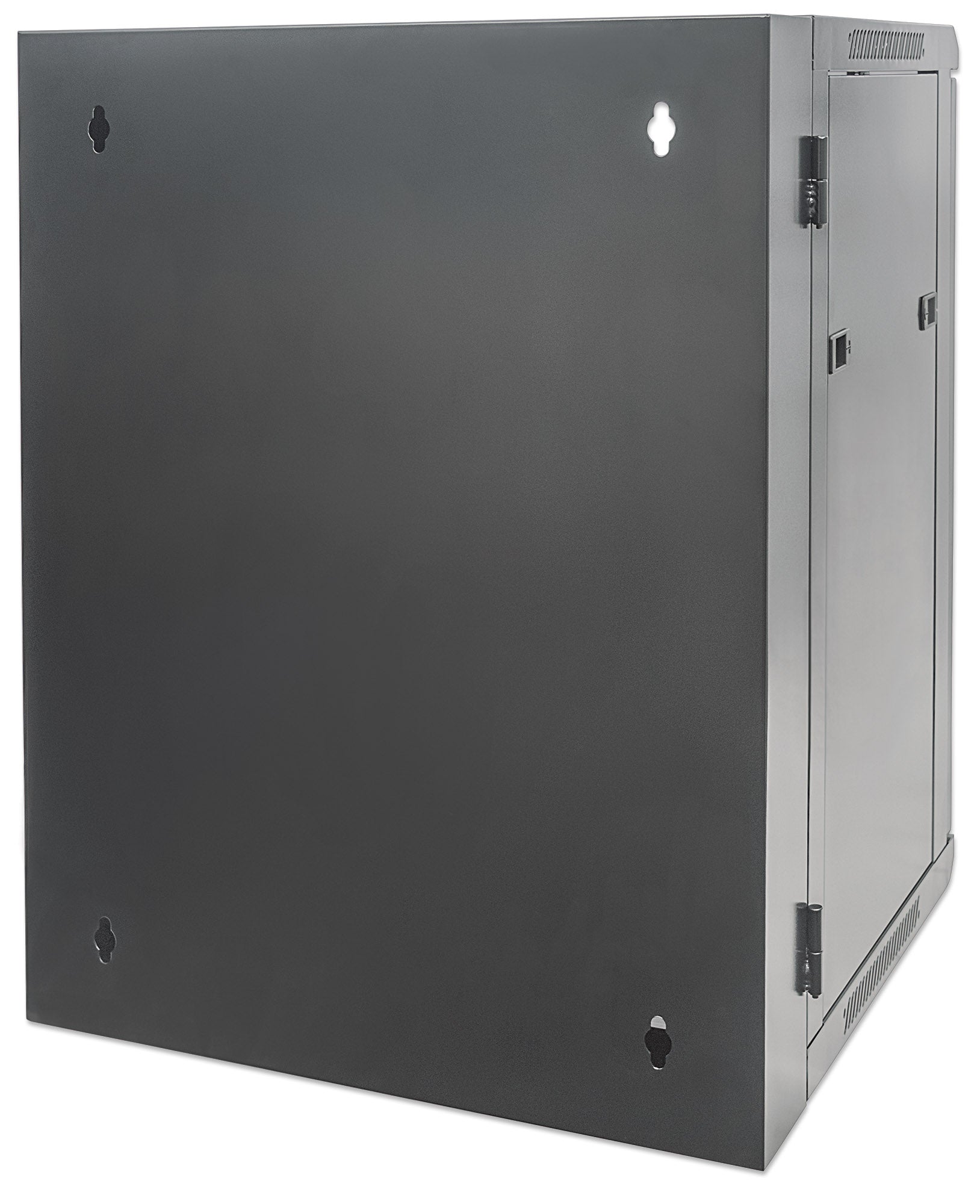

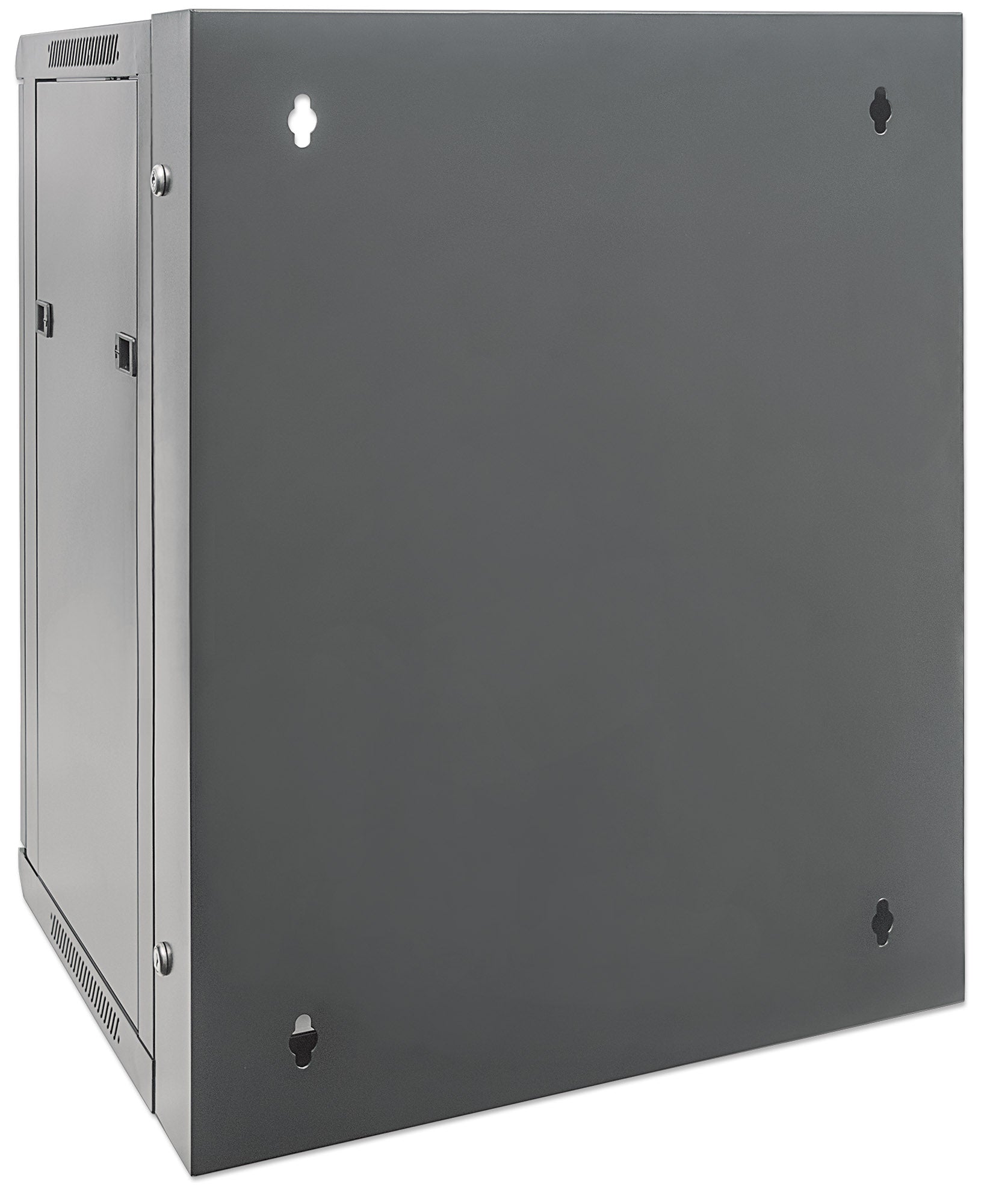

- Easily removable and lockable side panels
- Ships assembled
- Three-Year Warranty
- General
- 19"
- Height: 15U
- Color: Black RAL 9004
- Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Physical
- 770 (h) x 600 (w) x 550 (d) mm
- 30.3 (h) x 23.6 (w) x 21.7 (d) in.
- Usable depth: 62 mm (2.44 in.) to 369 mm (14.53 in.)
- Maximum static load: 30 kg (66 lbs.)
Package Contents
- Double section wall mount
- Installation hardware including tool, 20x M6 Sets and 6x Keys
Additional SKUs
- Amazon ASIN: B00NYQRLRW
- EAN: 0766623712019
- UPC: 766623712019
- ALSO: 2282643
- API: 159428
Physical Specifications
- Product net weight: 27.5 kg
- Product gross weight: 31 kg
- Dimensions: 770 x 600 x 550 (mm)
- Packaging type: Brown Box
- Packaging dimensions: 670 x 620 x 840 [mm]
- Master Carton Quantity: 1
- Master Carton Weight: 32.80 kg
- Master Carton Dimensions: 670 x 620 x 840 [mm]
