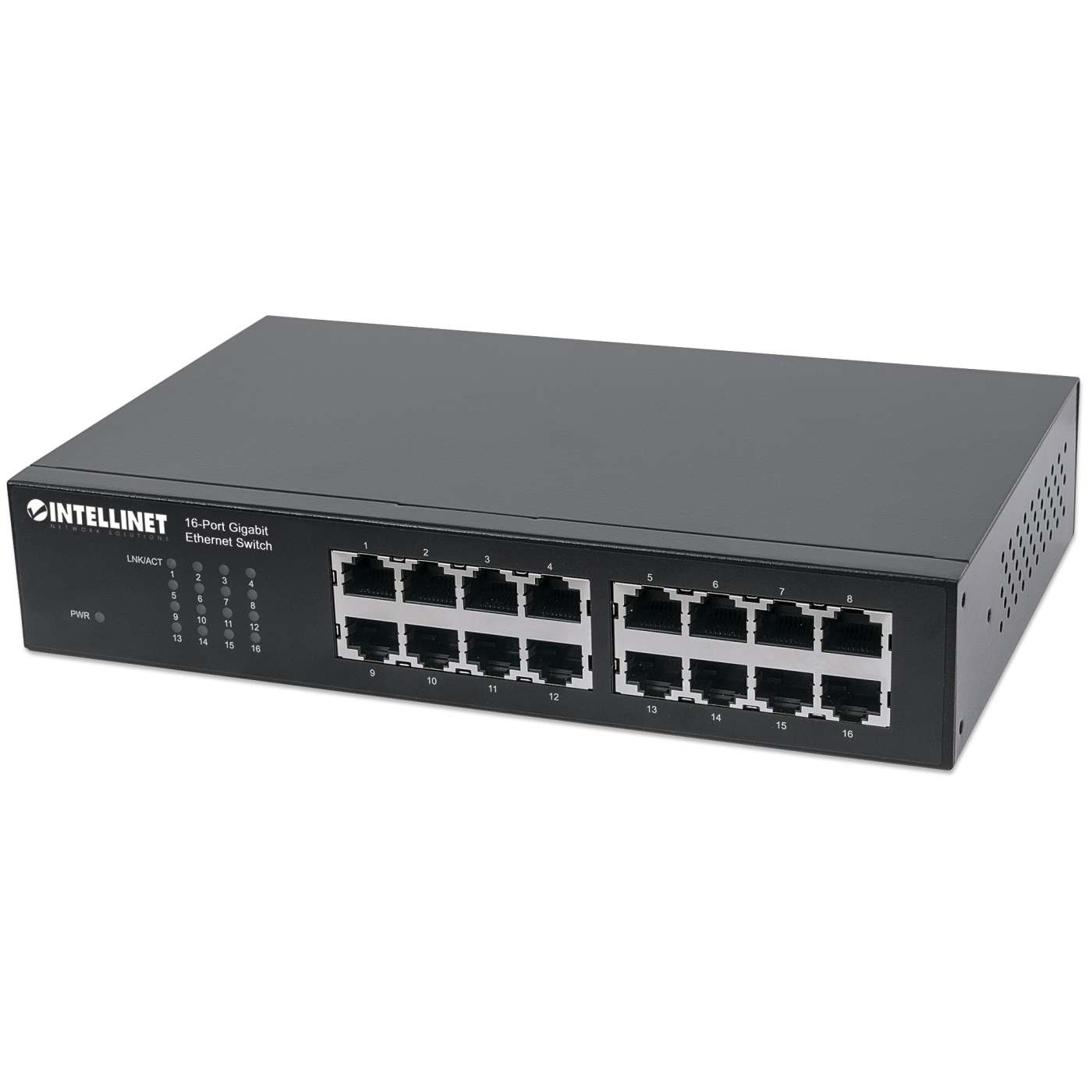

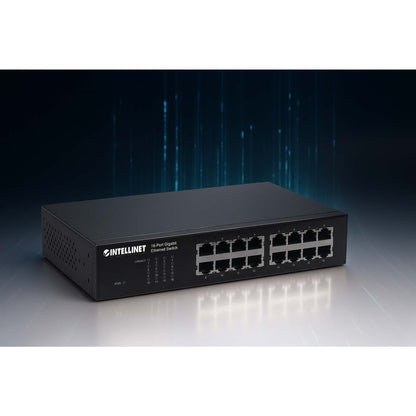

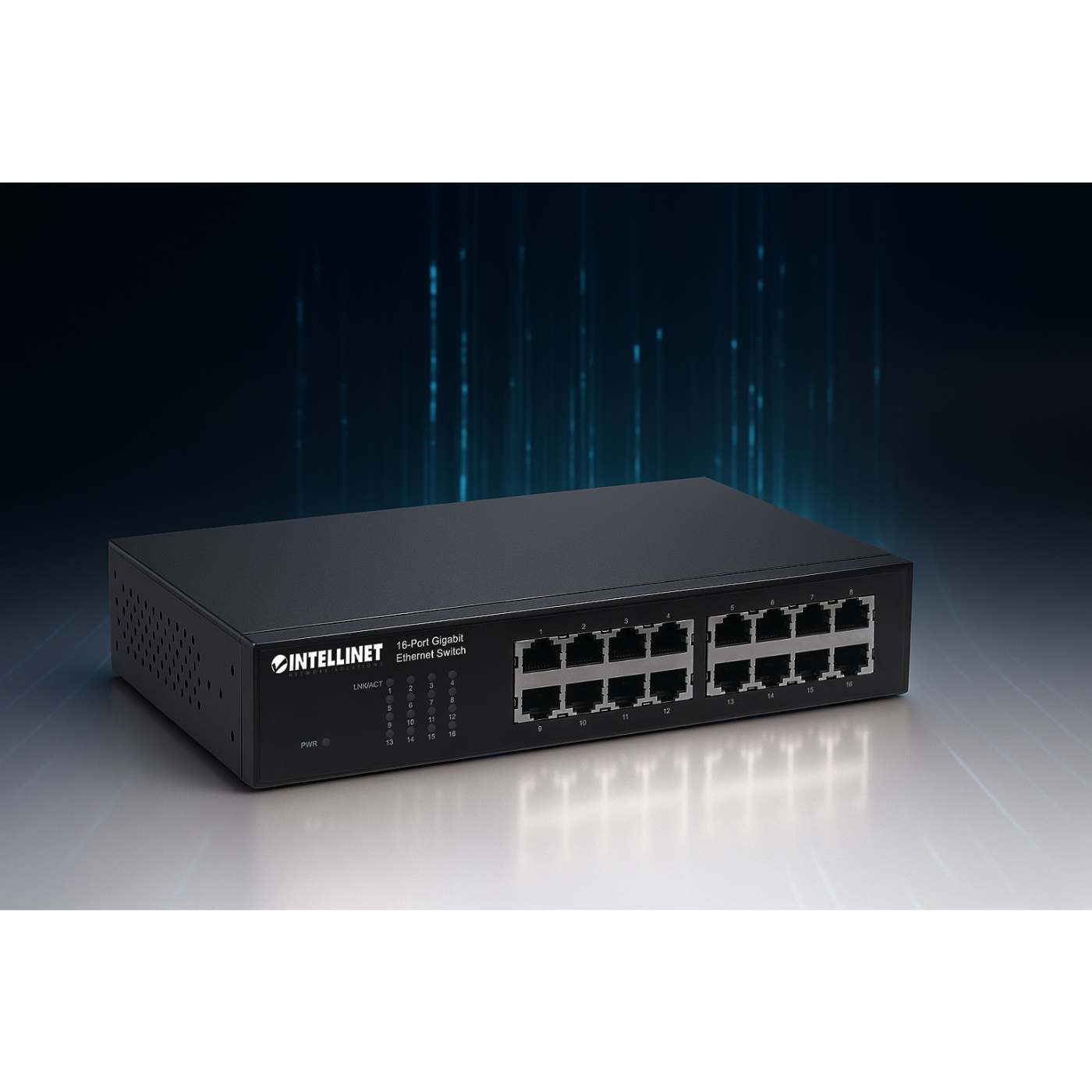

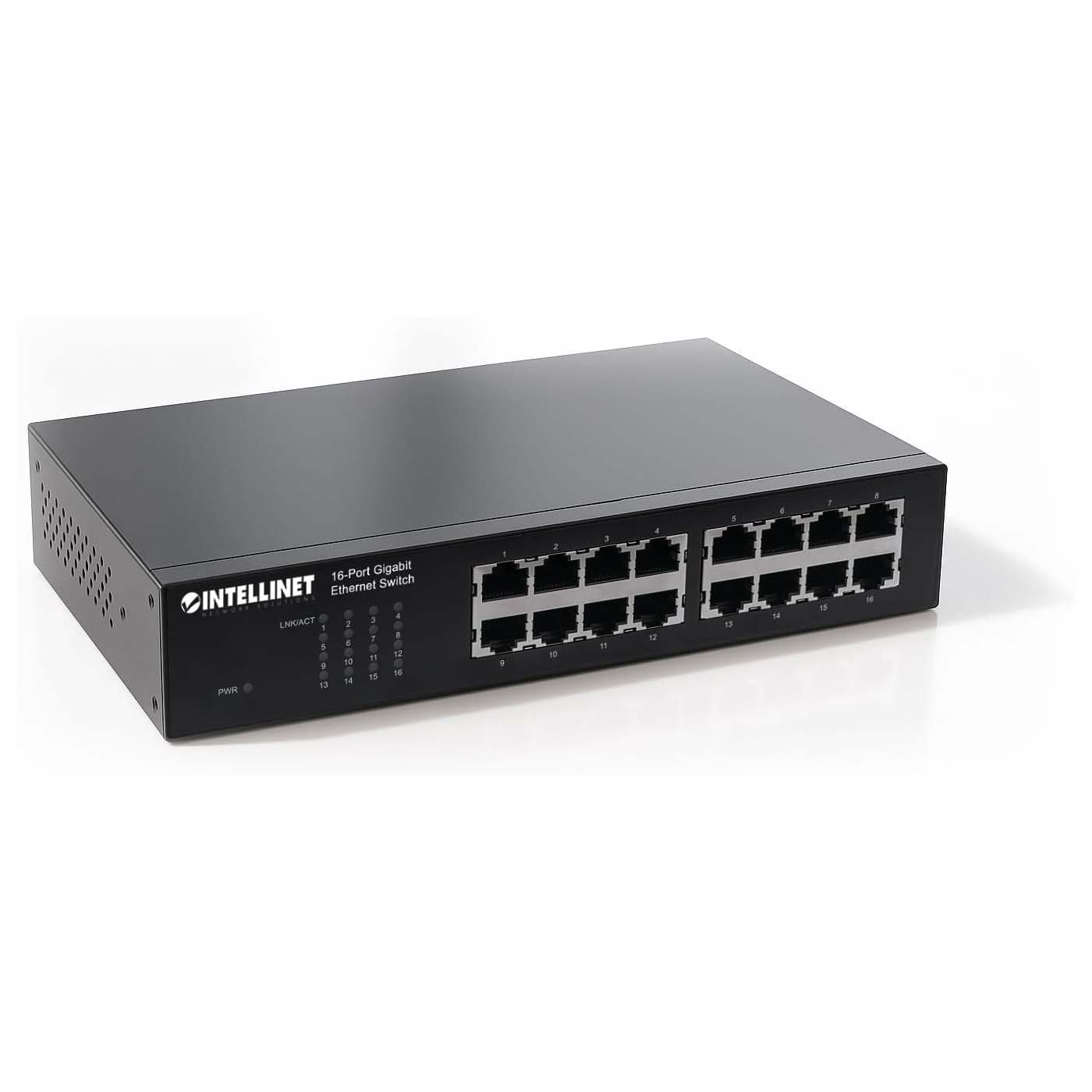

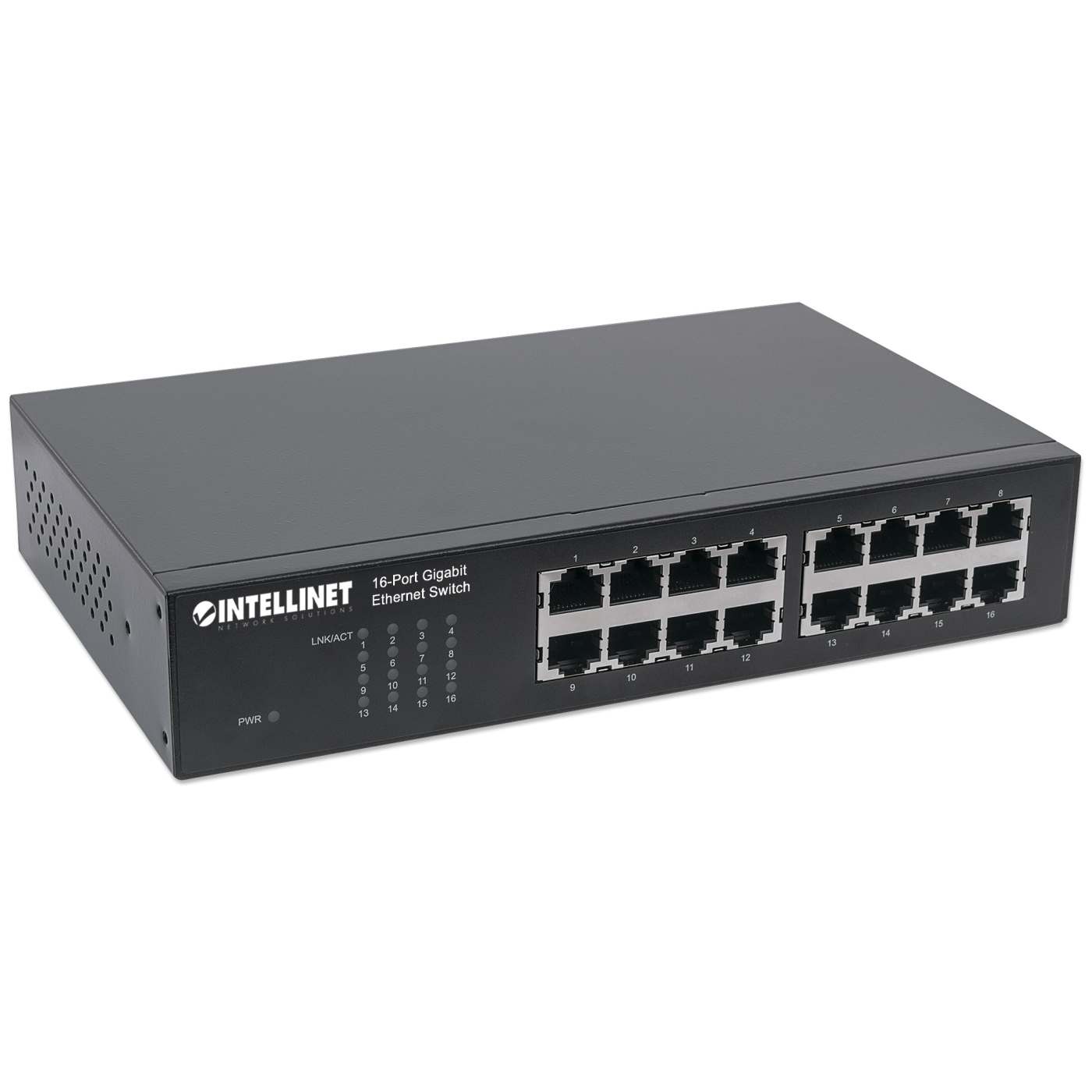

16-Port Gigabit Ethernet Switch

16-Port RJ45 10/100/1000 Mbps, IEEE 802.3az Energy Efficient Ethernet, Desktop, 19" Rackmount

Part-No.: 561068

Highlights

  • 10/100/1000 auto-sensing ports automatically detect optimal network speeds
  • All RJ45 ports with Auto-MDIX (auto uplink) support
  • For use on desktop or mounted in standard 19" rack

Future arrivals:

#
Quantity
Arrival Date
1
160
2021-07-20


Boost your network speed.
The Intellinet Network Solutions Gigabit Ethernet Switch offers an array of features while providing superior network throughput.
Extreme Flexibility
Sixteen 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds.
Extreme Throughput
With a backplane speed of 32 Gbps, there is plenty of performance available for your computers, servers and other networking devices.

  • 10/100/1000 auto-sensing ports automatically detect optimal network speeds
  • All RJ45 ports with Auto-MDIX (auto uplink) support

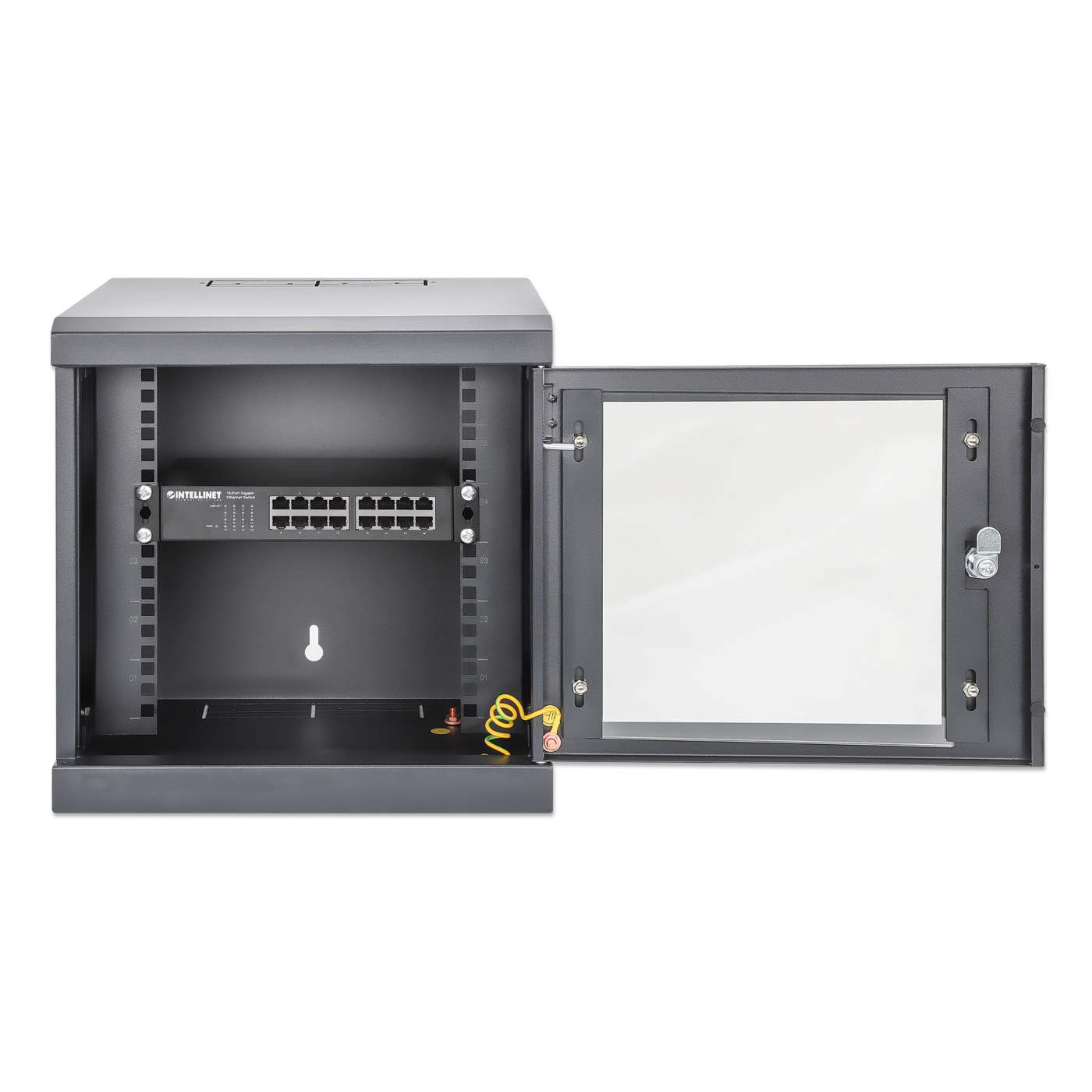

  • For use on desktop or mounted in standard 19" rack
  • Supports NWay auto-negotiation
  • Store and forward switching architecture
  • Full/half duplex operation
  • Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
  • Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
  • 32 Gbps switch fabric
  • Supports jumbo frames up to 9 kBytes
  • Supports up to 8192 MAC address entries
  • 512 kBytes buffer memory
  • Supports MAC address auto-learning and auto-aging
  • Fanless design ideal for silent operation

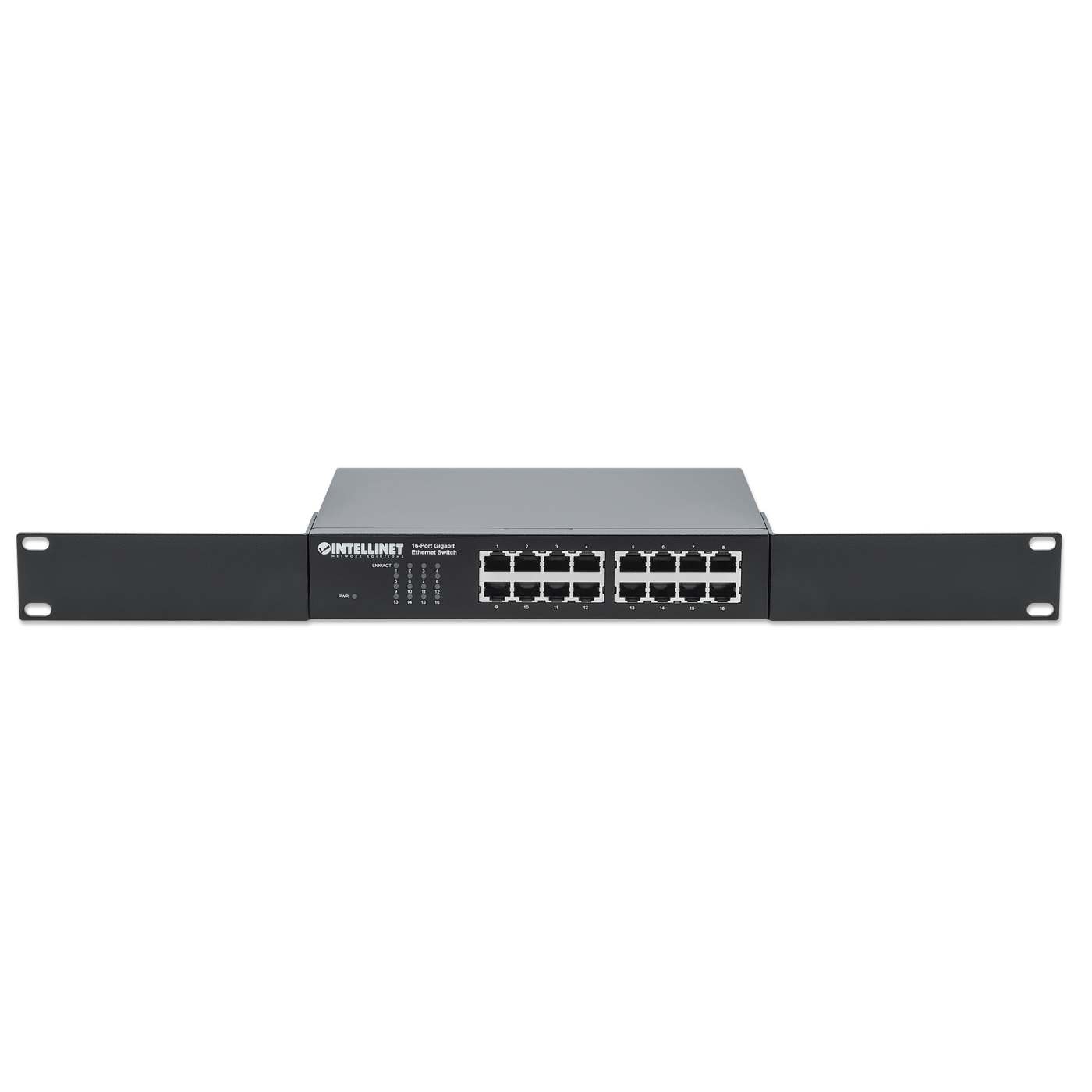

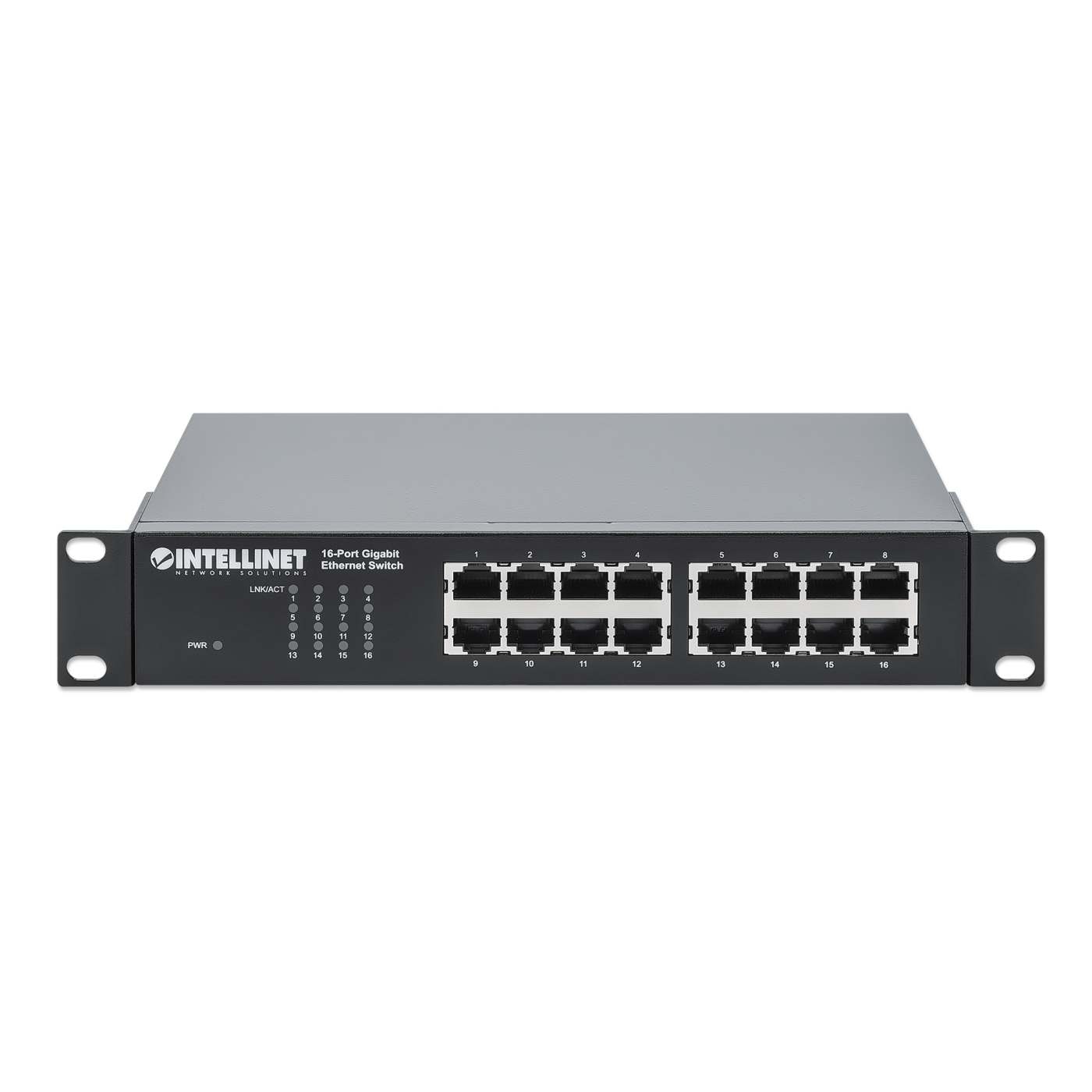

  • Includes 19" rackmount brackets
  • Three-Year Warranty

    Standards
  • IEEE 802.3 (10Base-T Ethernet)
  • IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
  • IEEE 802.3az (Energy Efficient Ethernet EEE)
  • IEEE 802.3u (100Base-TX Fast Ethernet)
  • IEEE 802.3x (flow control, for full duplex mode)

    General
  • Media support:
    - 10Base-T Cat3, 4, 5 UTP/STP RJ45
    - 100Base-TX Cat5 UTP/STP RJ45
    - 1000Base-T Cat5e UTP/STP RJ45
  • Packet filter/forwarding rate:
    - 1,488,000 pps (1000 Mbps)
    - 148,800 pps (100 Mbps)
    - 14,880 pps (10 Mbps)
  • MAC address table: 8192 entries
  • Backplane speed: 32 Gbps
  • Switch architecture: store and forward

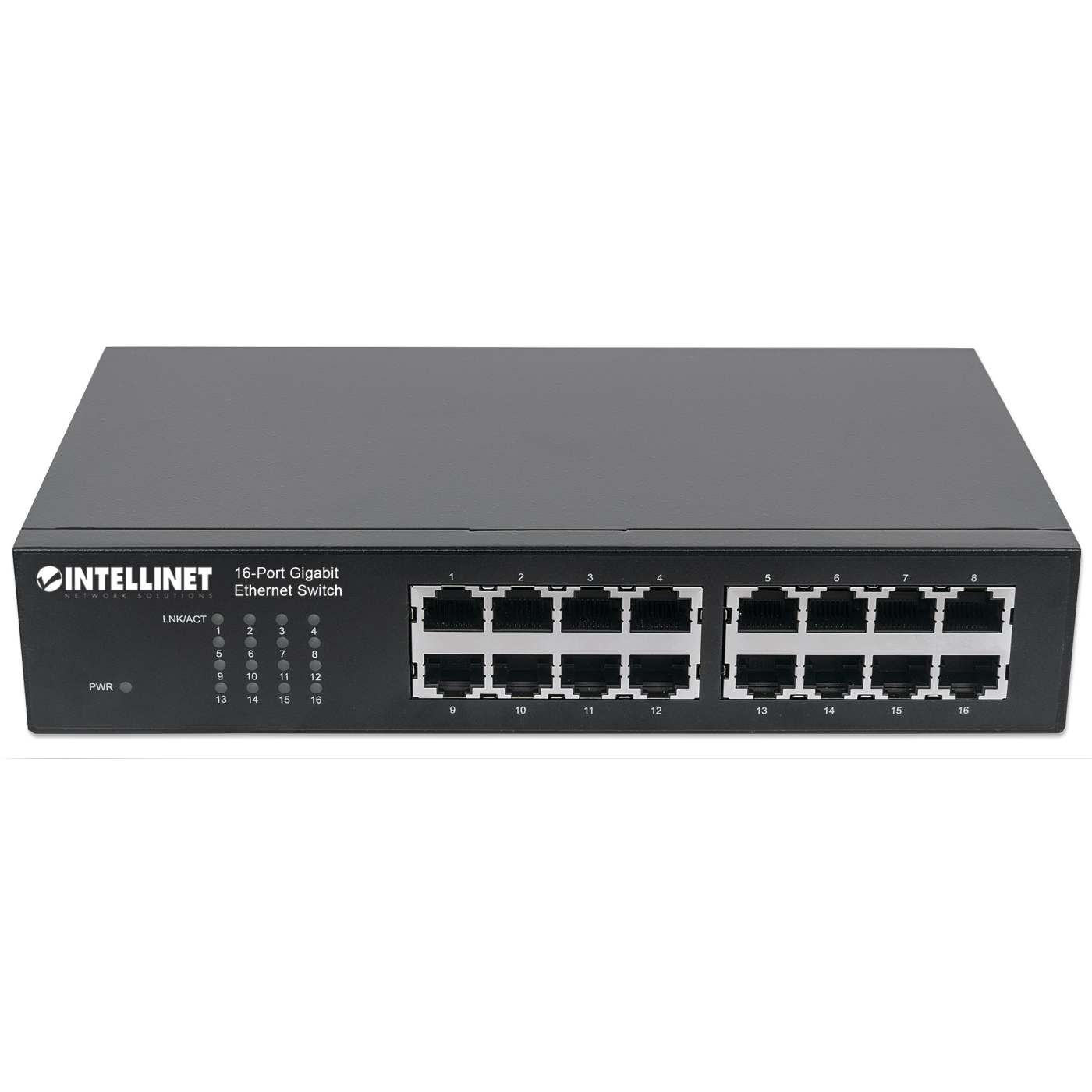

  • 16 RJ45 Gigabit Ethernet ports
  • Certifications: FCC Class A, CE

    LEDs
  • Power
  • Link Speed per port: 1000 Mbps
  • Link/Activity per port

    Power

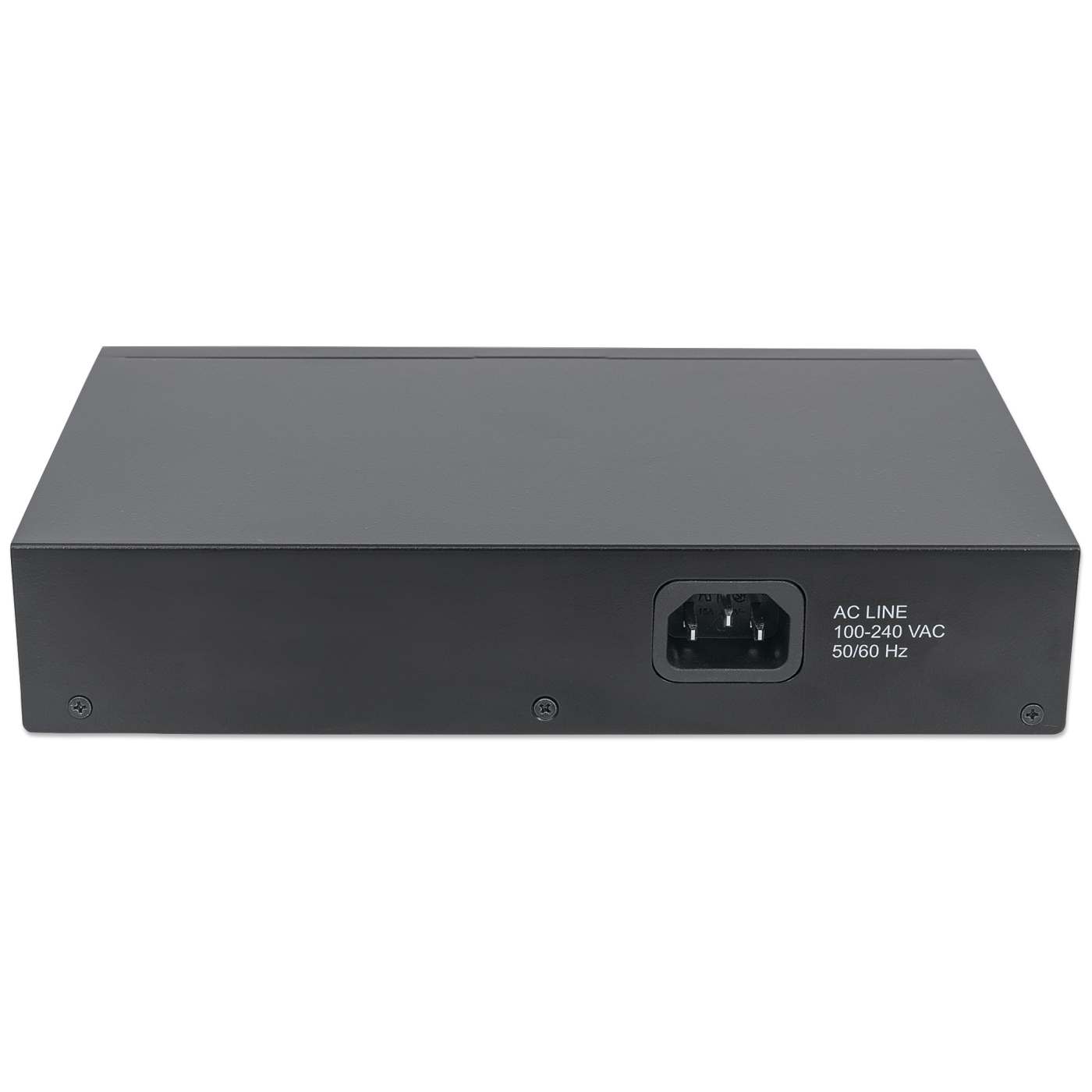

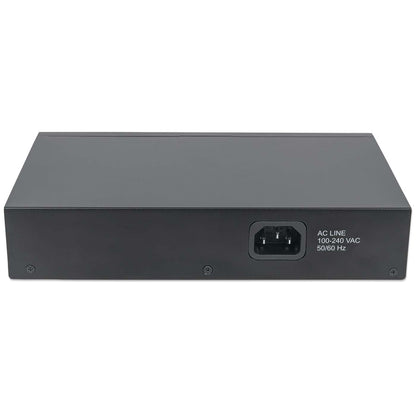

  • Internal power supply: 100 – 240 VAC, 50/60 Hz
  • Power consumption: 9.1 watts (maximum)

    Environmental
  • Metal housing
  • Dimensions: 215 (W) x 133 (L) x 44 (H) [mm] / 8.46 (W) x 5.24 (L) x 1.73 (H) [in.]
  • Weight: 0.94 kg (2 lbs.)
  • Operating temperature: 0 – 40°C (32 – 104°F)
  • Operating humidity: 10 – 90% RH, non-condensing
  • Storage temperature: -20 – 70°C (-4 – 158°F)

    Package Contents
  • 16-Port Gigabit Ethernet Switch

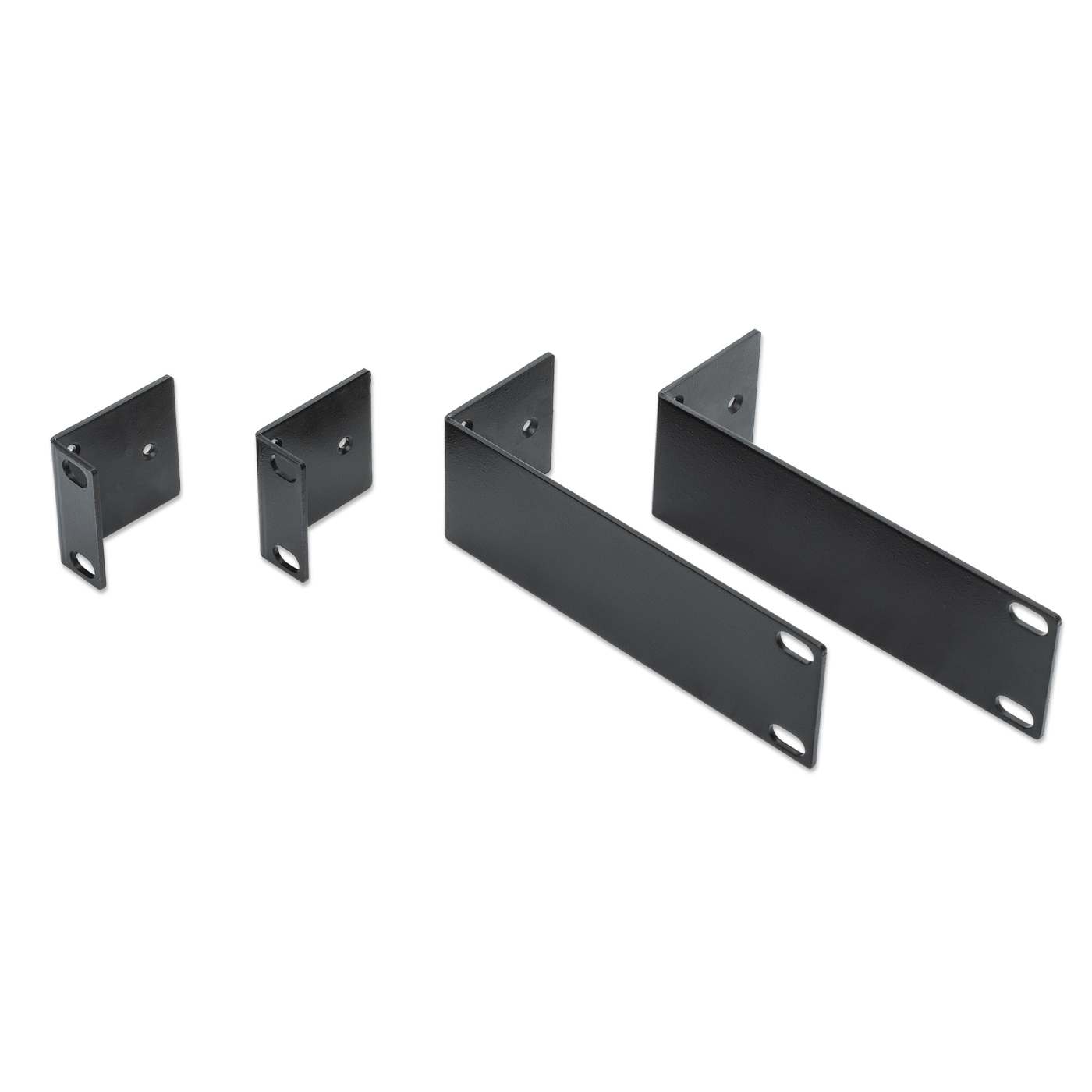

  • 19" rackmount brackets
  • Power cable
  • Instructions

  • Additional SKUs

    • Amazon ASIN: B018X9RU0W
    • EAN: 0766623561068
    • UPC: 766623561068
    • ALSO: 2535112
    • API: 195151

  • Physical Specifications

    • Weight: 1.35 kg
    • Dimensions: 133 (L) x 215 (W) x 44 (H) [mm]
    • Packaging: Retail Box
    • Carton Quantity: 8
    • Carton Weight: 14.97 kg

  • Datasheet


  • Manual

    • Quick Install Guide (multilanguage)
      English, Deutsch, Español, Polski, Italiano, Français     » Download

    • Declaration of Conformity     » Download
