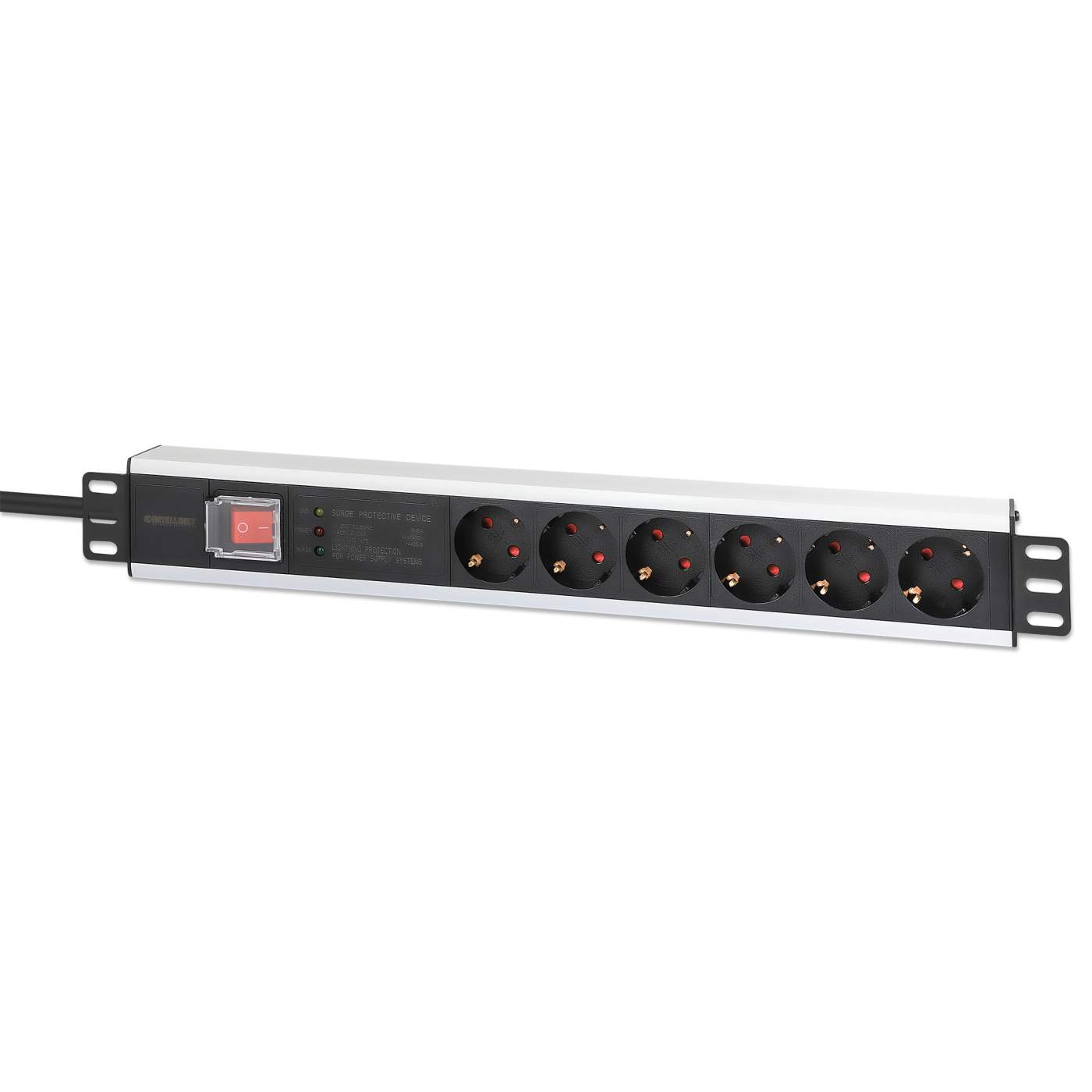

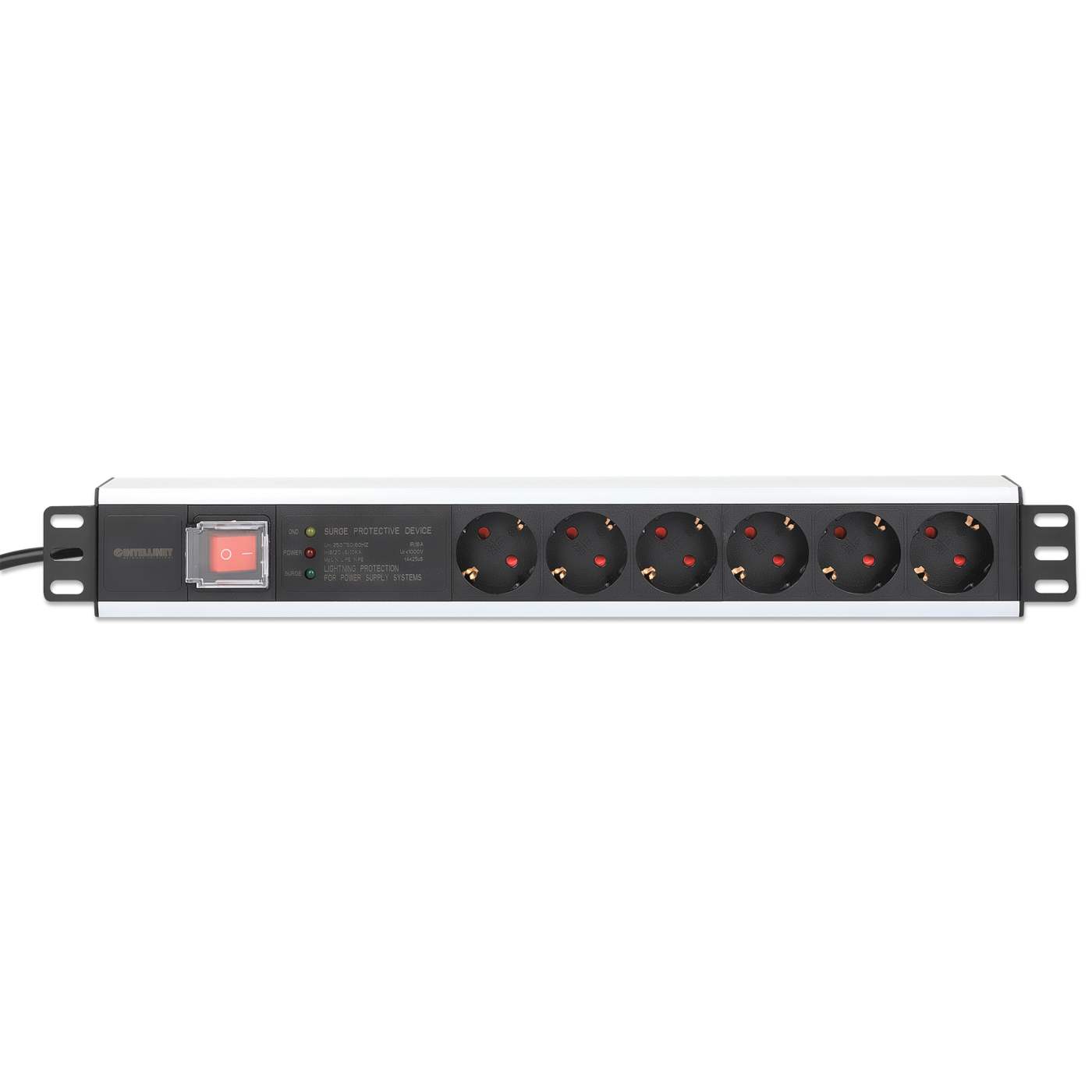

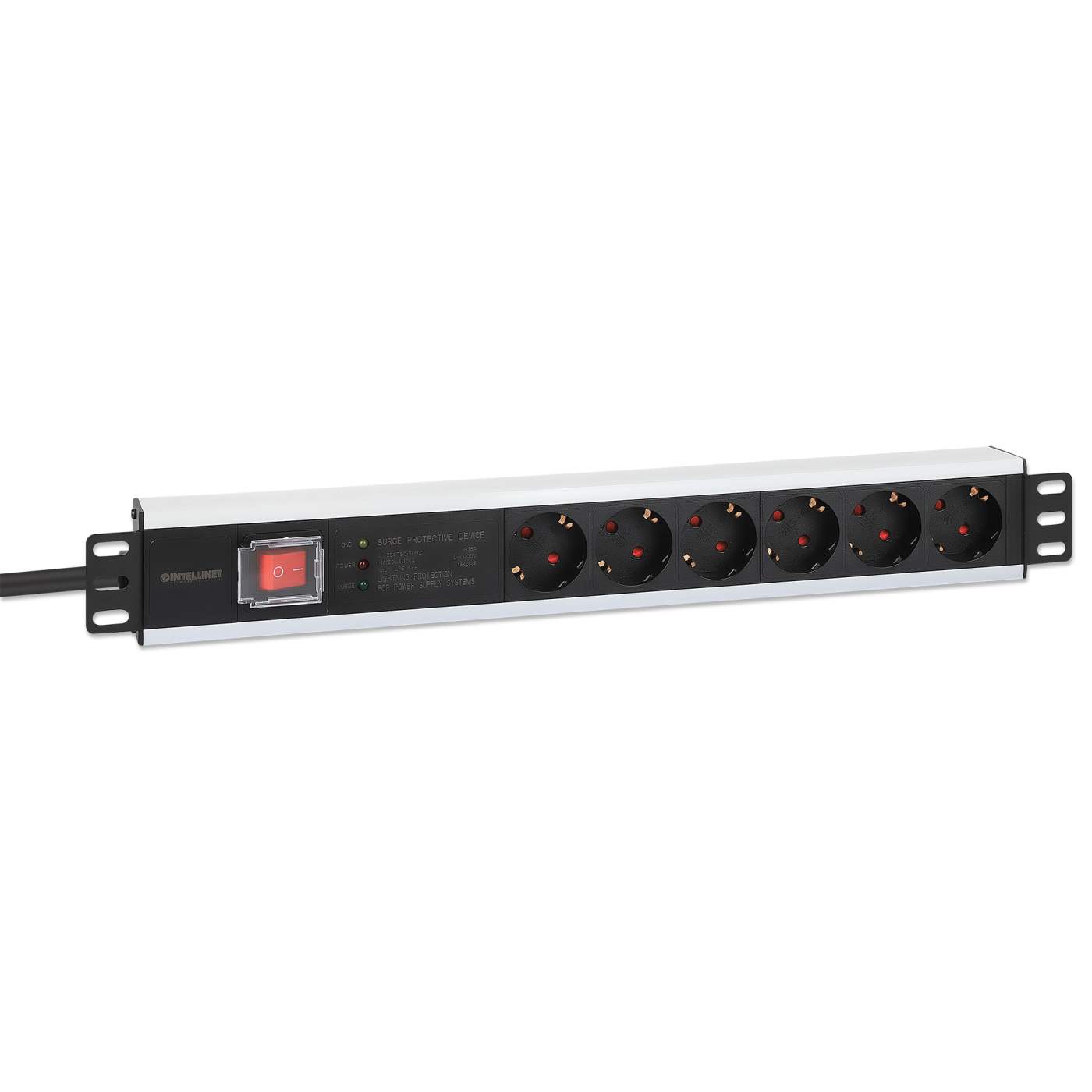

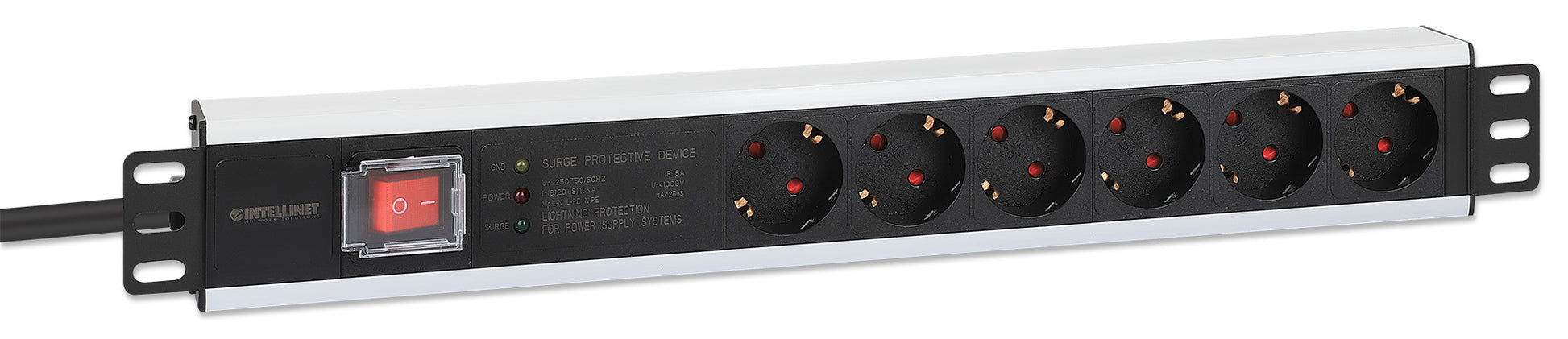

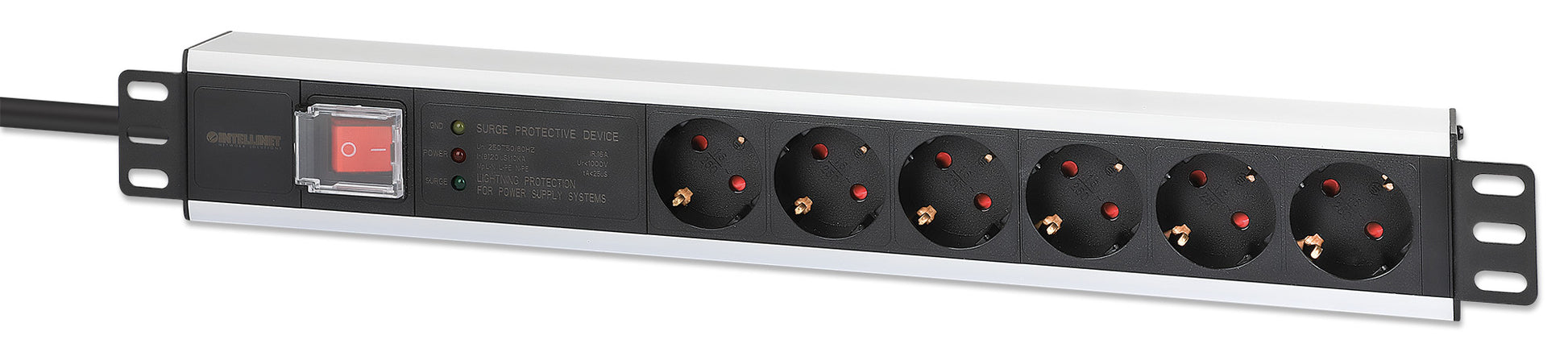

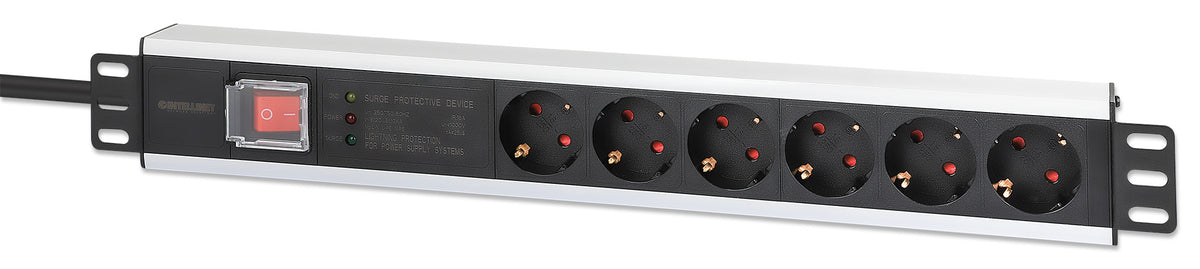

Intellinet Network Solutions basic rack PDUs (Power Distribution Units) provide reliable power distribution via a single input with multiple output receptacles. Our current range is designed to distribute power from low amperage single phase electrical circuits.
- Power input style: left-end single input
- Cable plug: IEC60884
- Control functions: with switch
- Protection functions: surge protection
- Shell color & material: black aluminum
- Relative humidity: 10 - 90%
- Three-year warranty

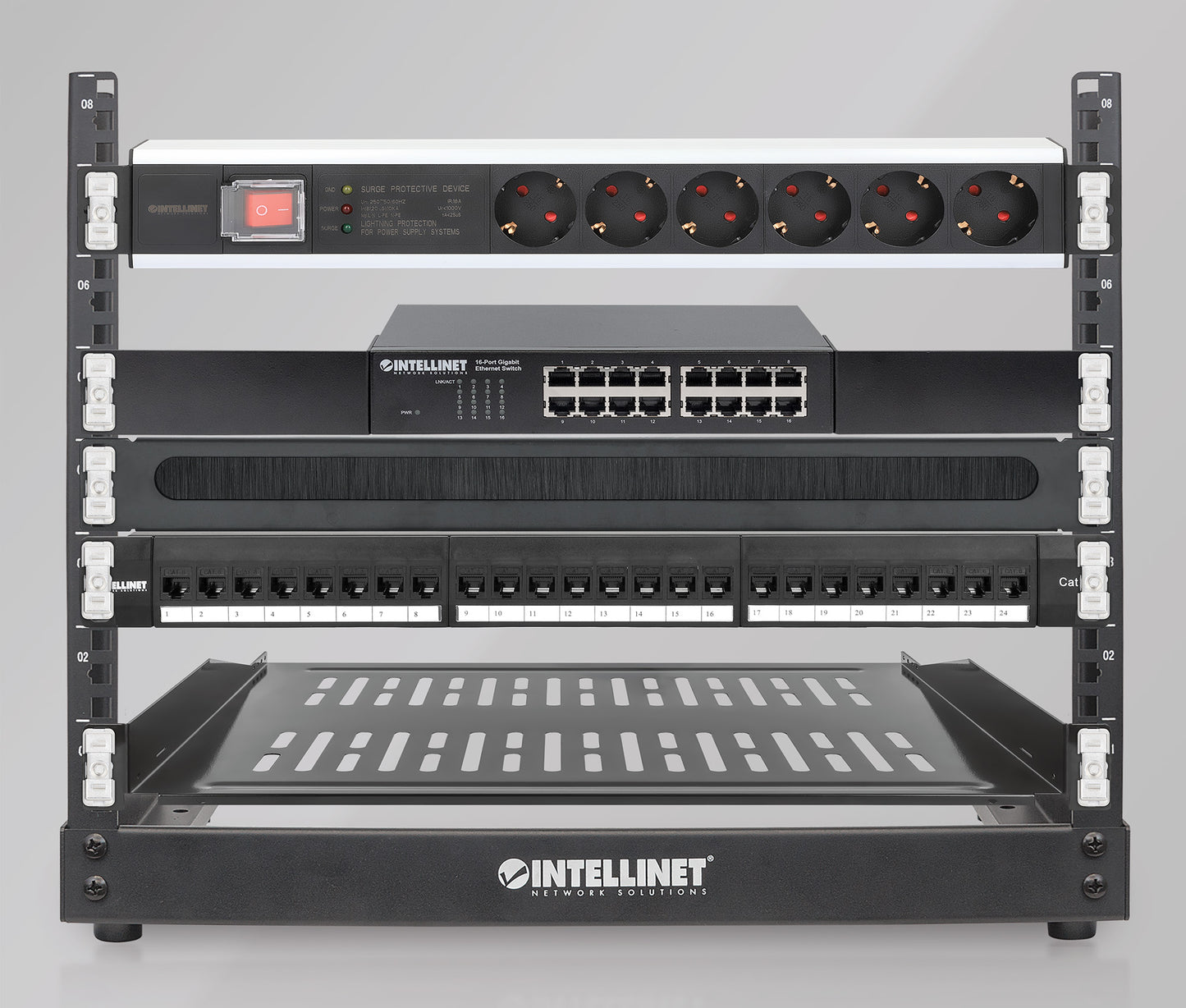

- 1.5U Rackmount
- Socket/outlet standard: IEC60884

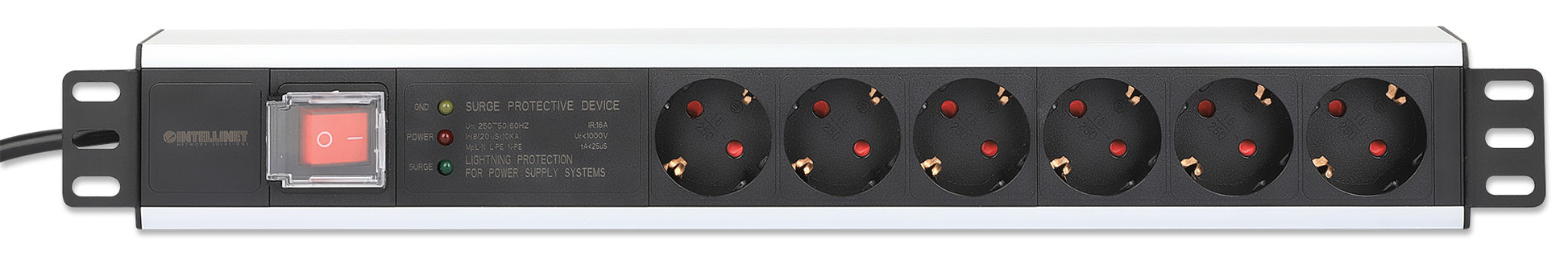

- Outlets: 6

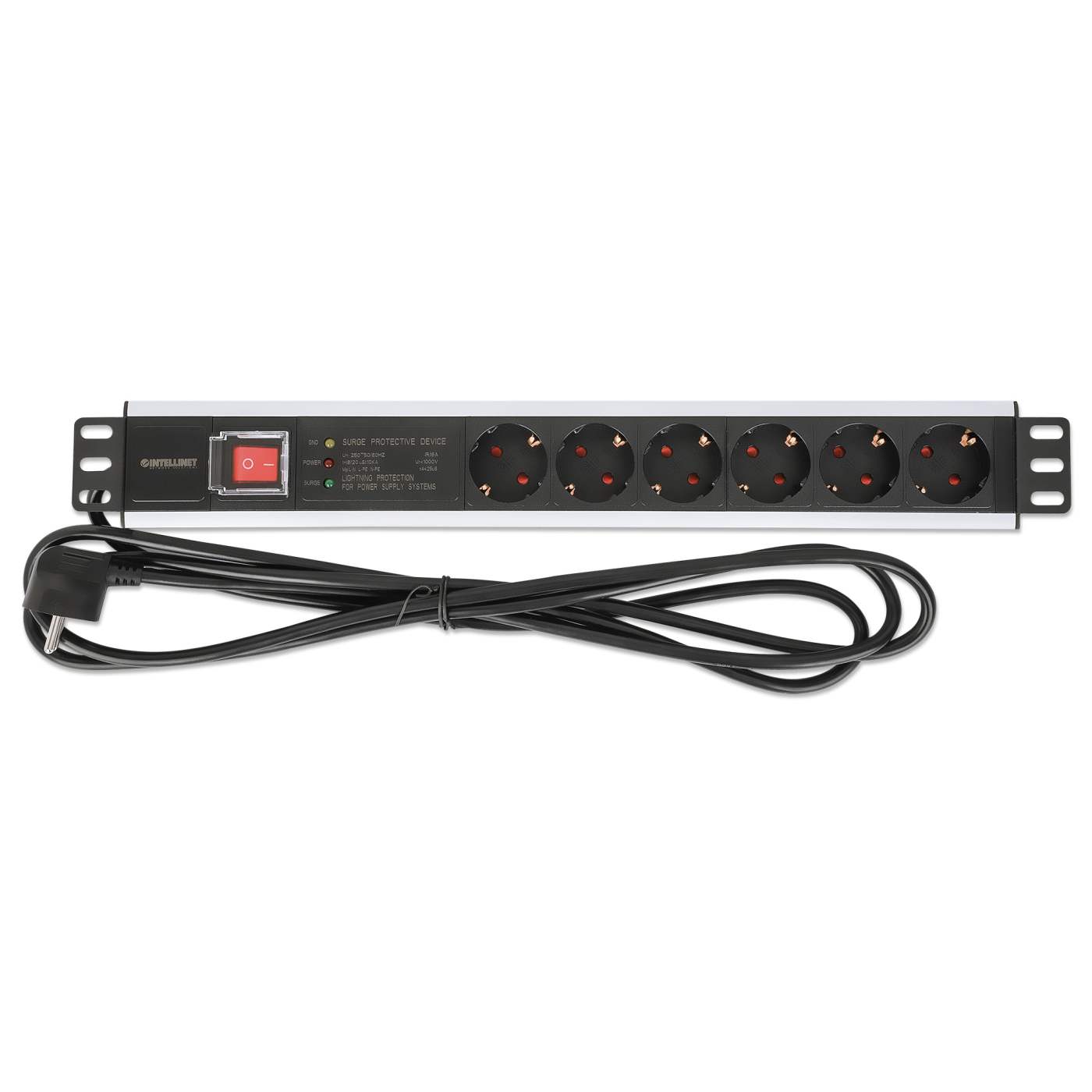

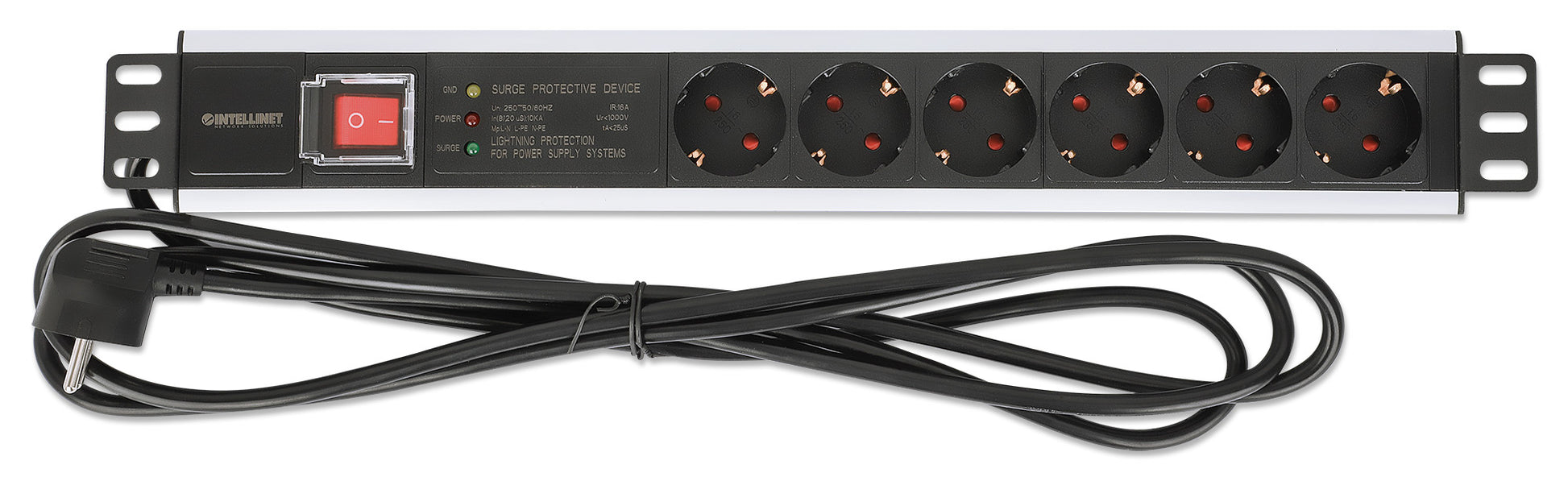

- Cable specification: standard 3 m (10 ft.) power cord
- Cable type: H05VV-F 3G 1.5 mm²
- Size: 482.6 x 44.4 x 62 mm (L x W x H) / 19 (L) x 1.75 (W) x 2.44 (H) [in]
- Electrical rating: 250 V AC
- Maximum load current: 16 A
- Flammability: Tested and rated in accordance with UL 94 V-0

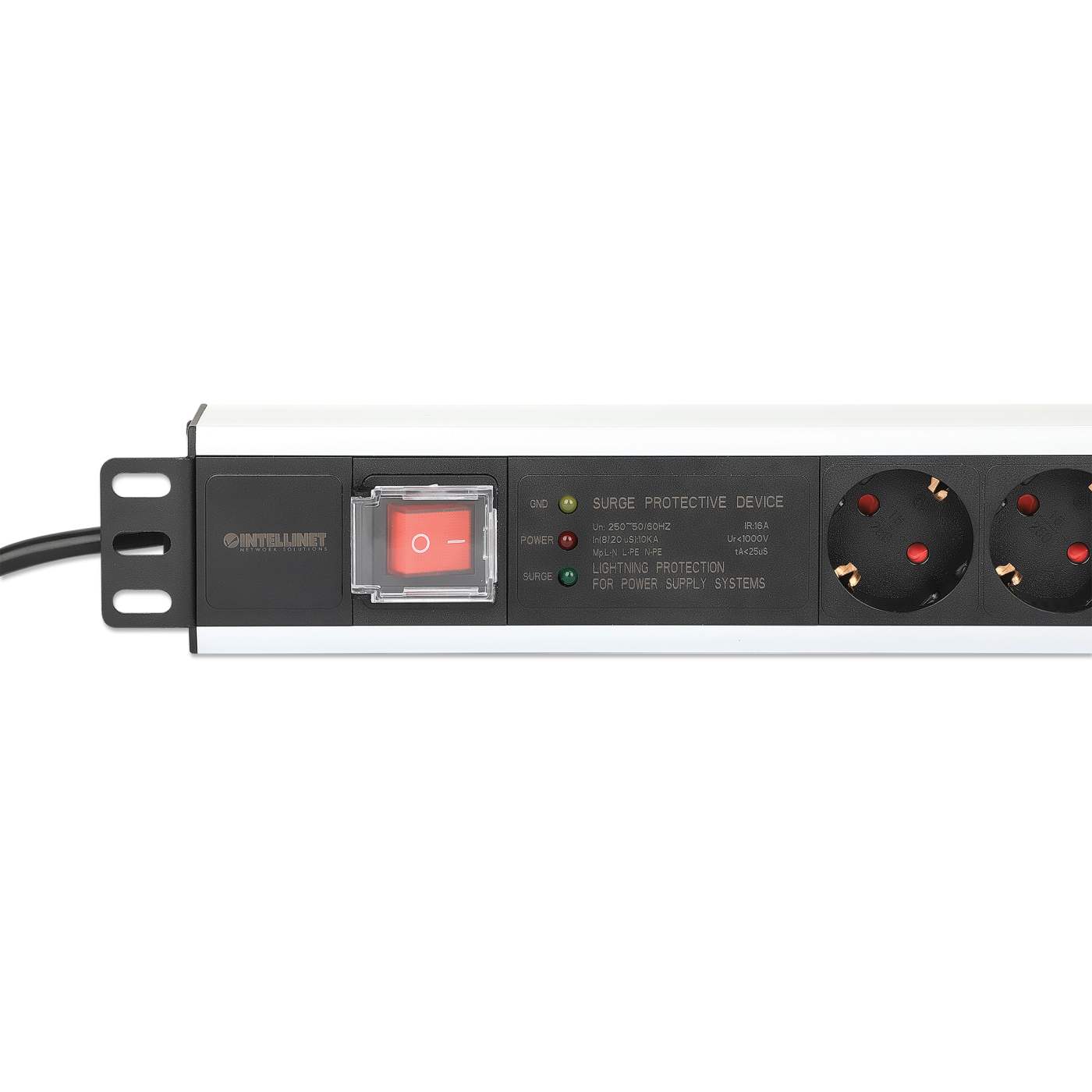

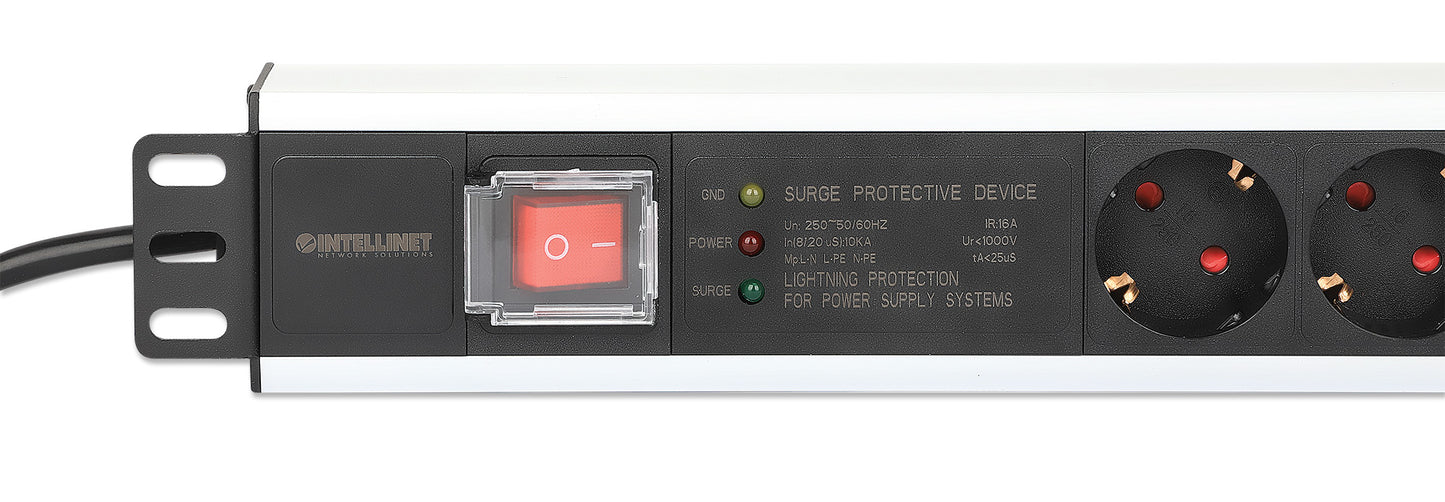

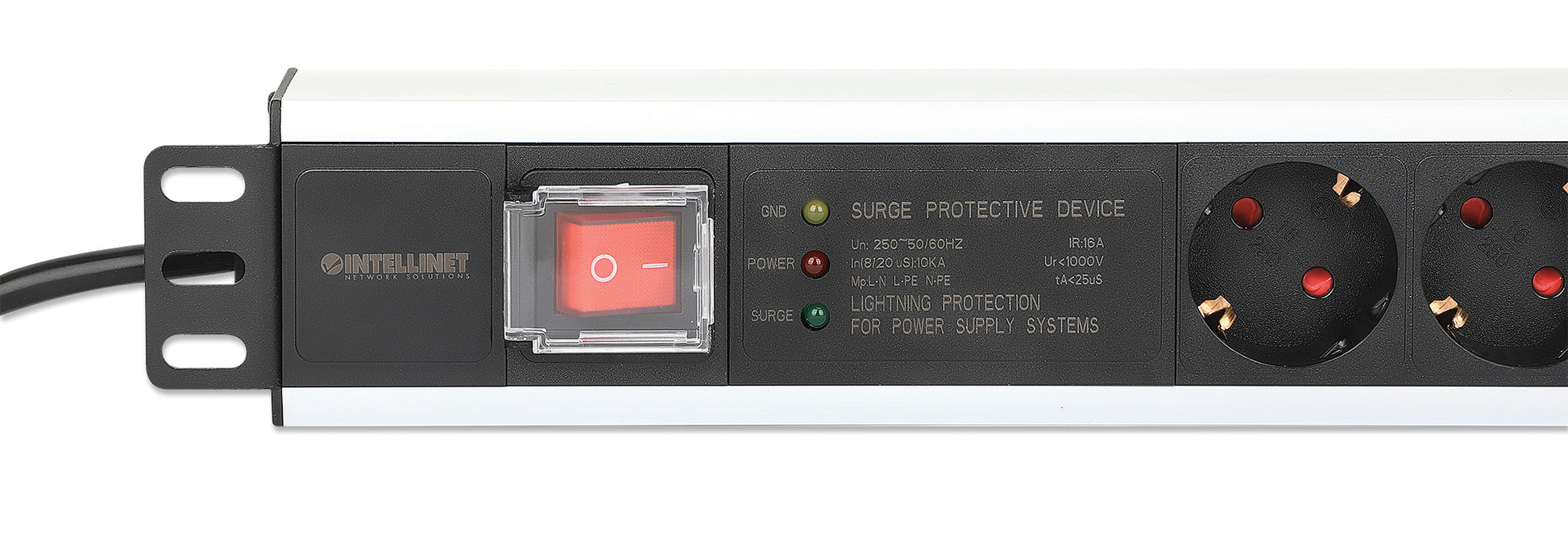

LED Indicators
- Green "SOURCE” LED
- On: Surge protection is active and working properly
- Off: Surge protection failed and is inactive
- Yellow “GND” LED
- On: Unit is grounded properly with correct polarity
- Off: Unit is grounded improperly, or L/N polarity is reversed
- Blinking: Unit is grounded improperly, or electrical equipment is leaking
- Red “POWER” LED
- On: Unit is receiving power
- Off: Unit is not receiving power
Additional SKUs
- Amazon ASIN: B01GWS31XQ
- EAN: 0766623713962
- UPC: 766623713962
- ALSO: 2597157
- API: 200744
Physical Specifications
- Product net weight: 1 kg
- Product gross weight: 1.15 kg
- Dimensions: 482.6 (L) x 44.4 (W) x 62 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 510 x 55 x 93 [mm]
- Master Carton Quantity: 10
- Master Carton Weight: 12.00 kg
- Master Carton Dimensions: 200 x 510 x 300 [mm]
