Smart PDU for your network

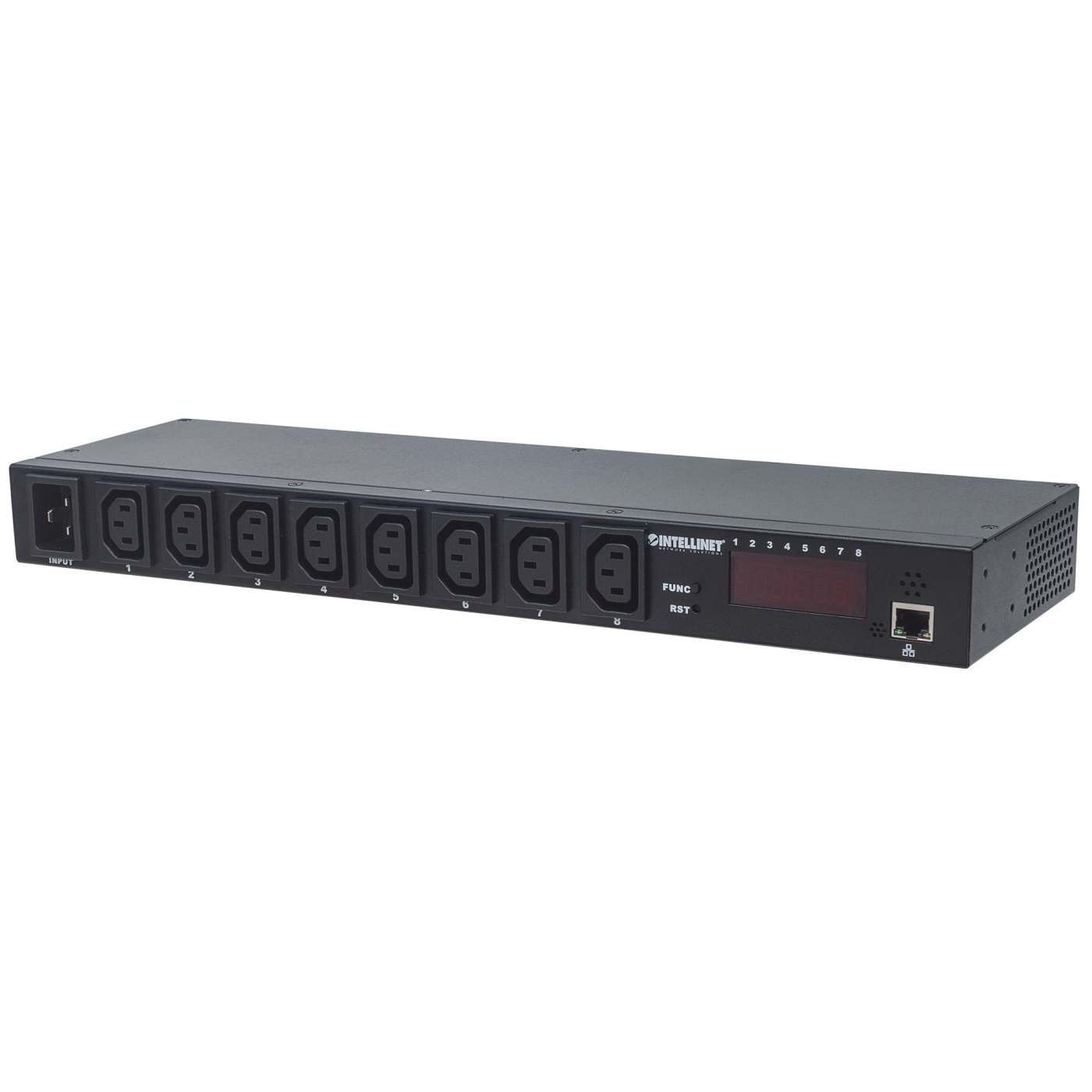

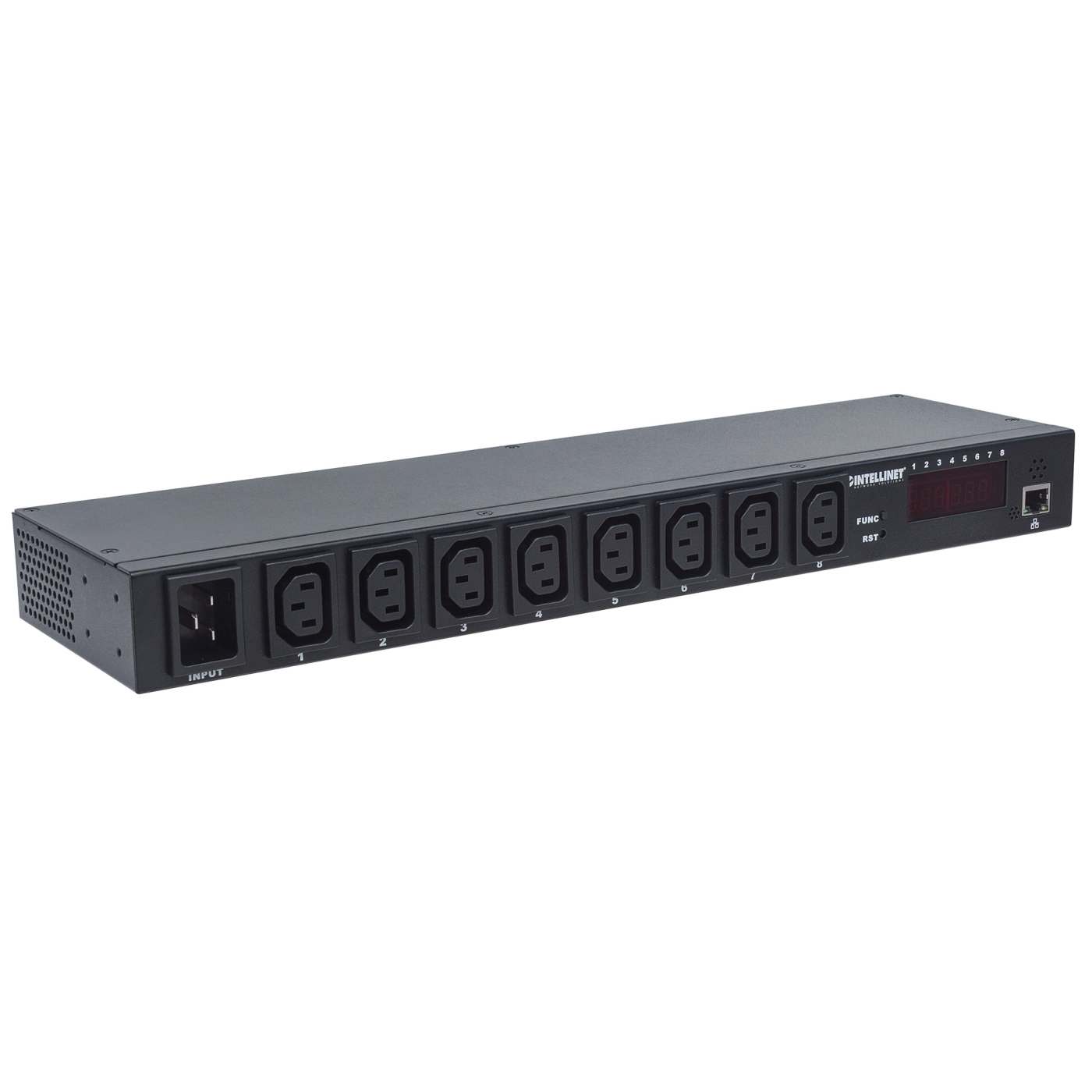

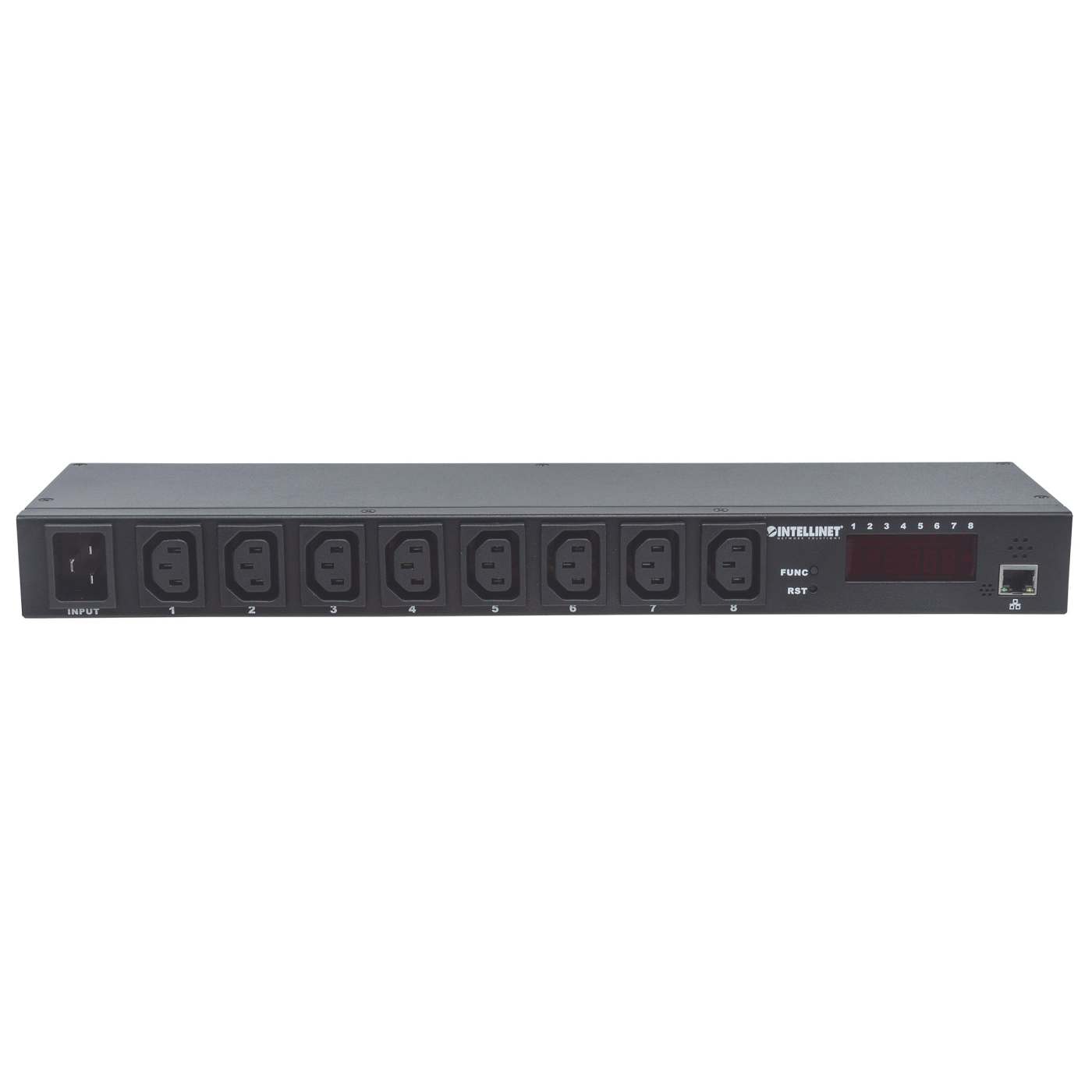

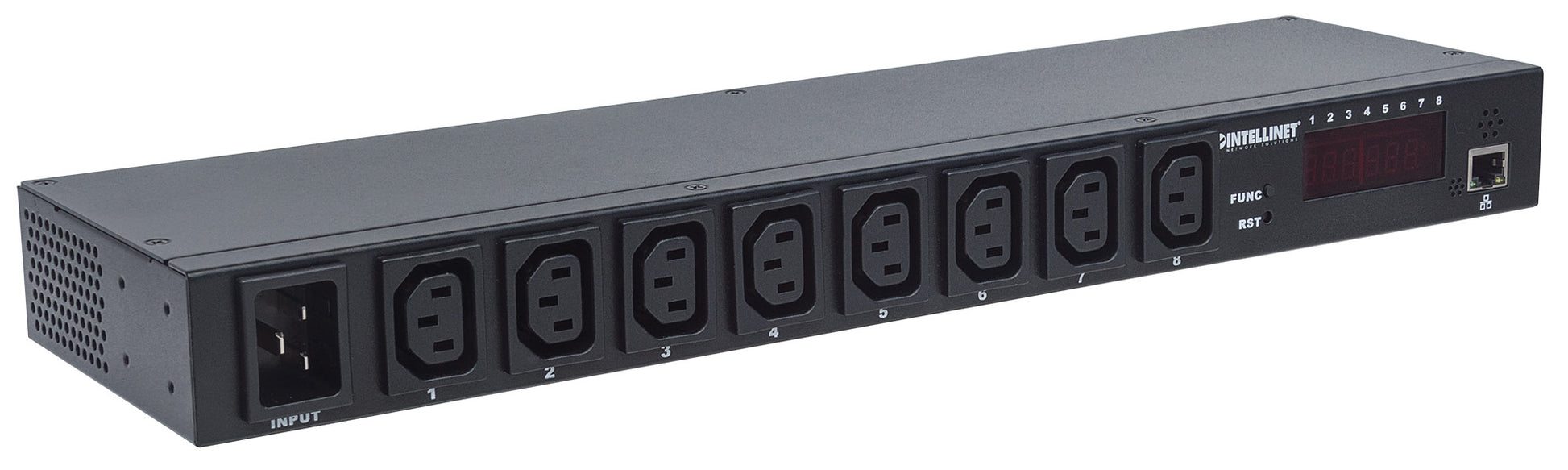

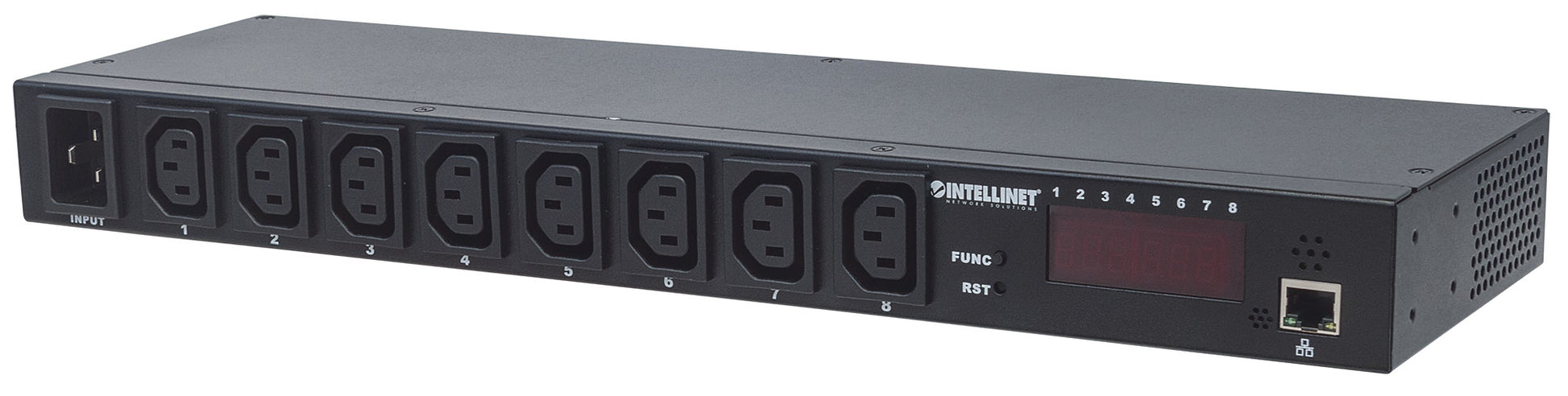

The Intellinet Network Solutions 19" Intelligent 8 Port PDU provides your system-critical devices with steady power, monitors current-voltage levels and keeps track of environmental temperature and humidity levels. A simple web interface enables the systems administrator to set thresholds for the safety of your valuable I.T. equipment.
- Eight-port, IEC320 C13 power output with total current of 16 A
- Displays total delivered power in voltage and watts
- Built-in temperature and humidity sensor monitors the operating environment
- Embedded technology, supports Java and web browsing

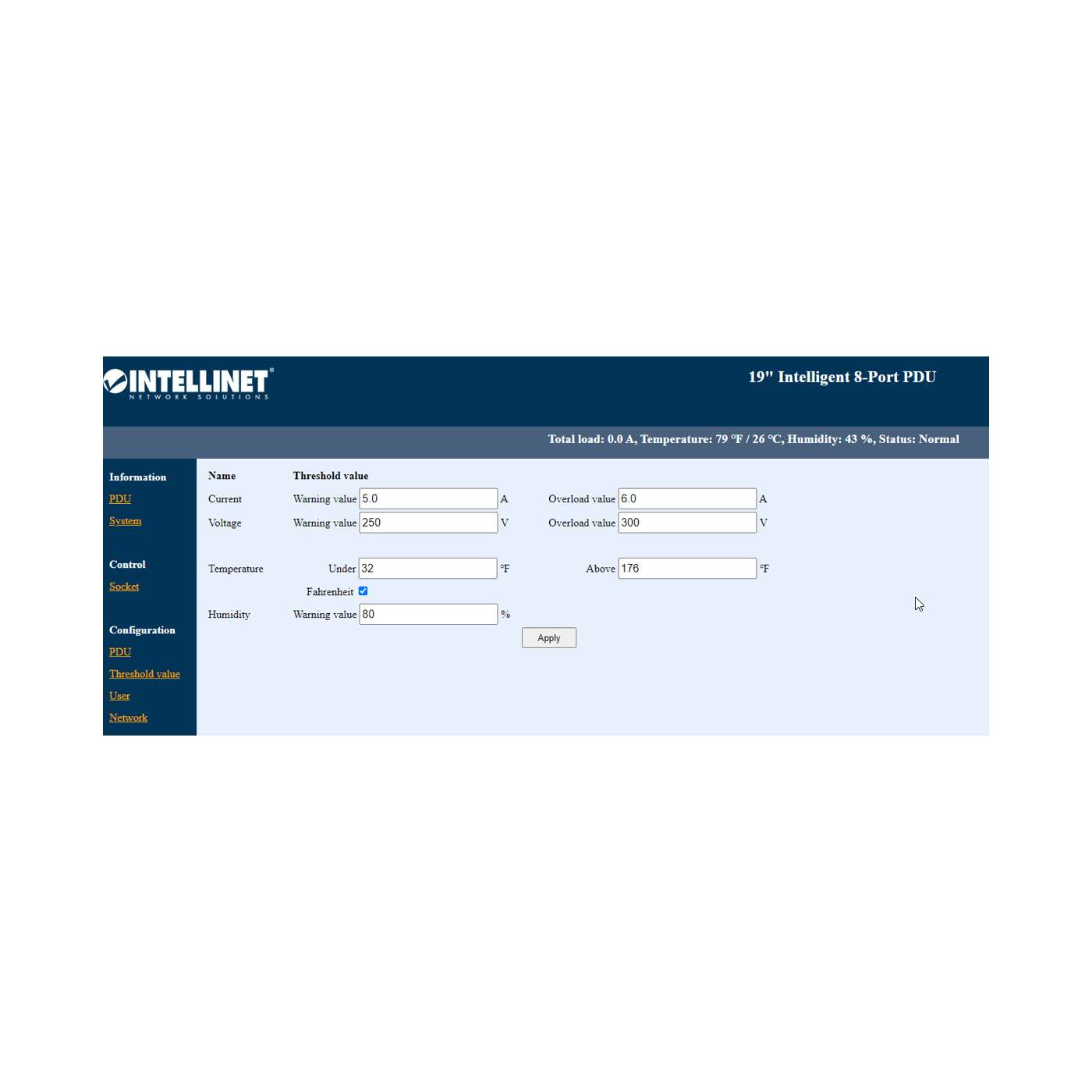

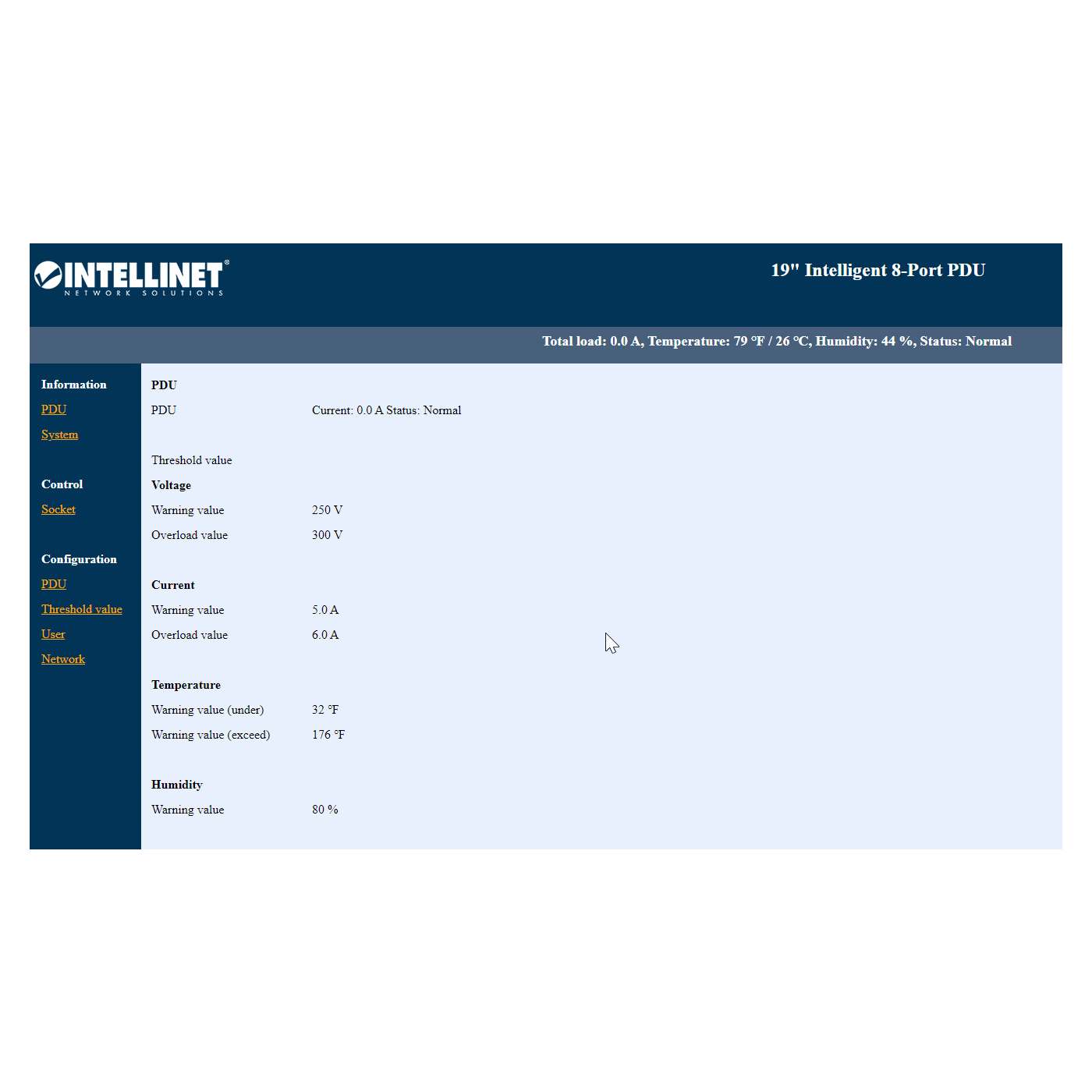

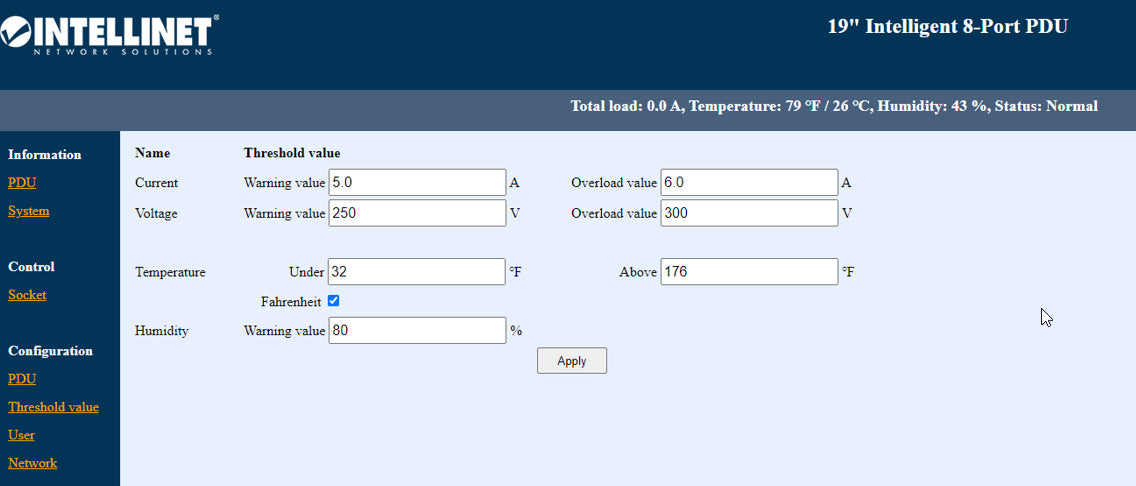

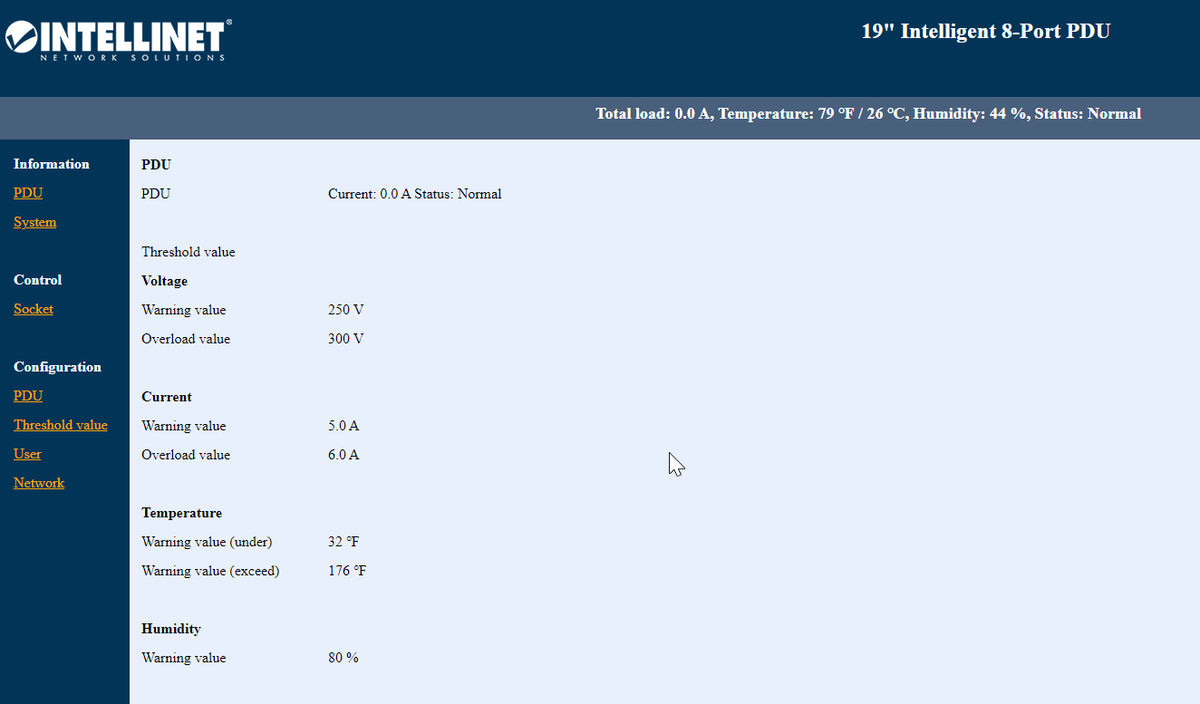

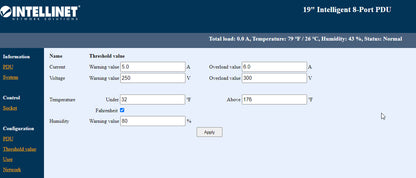

- Customizable Warning and Overload alarms

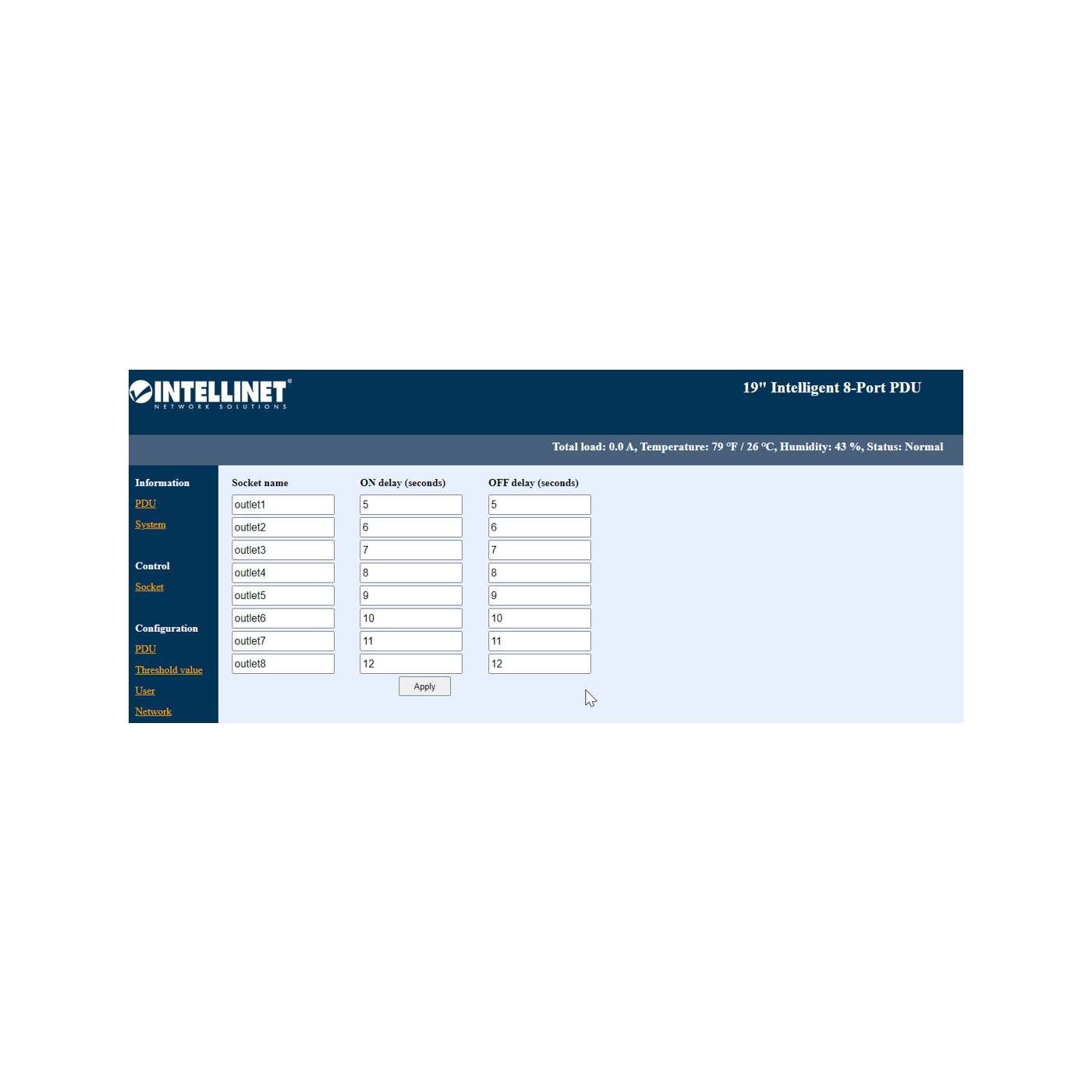

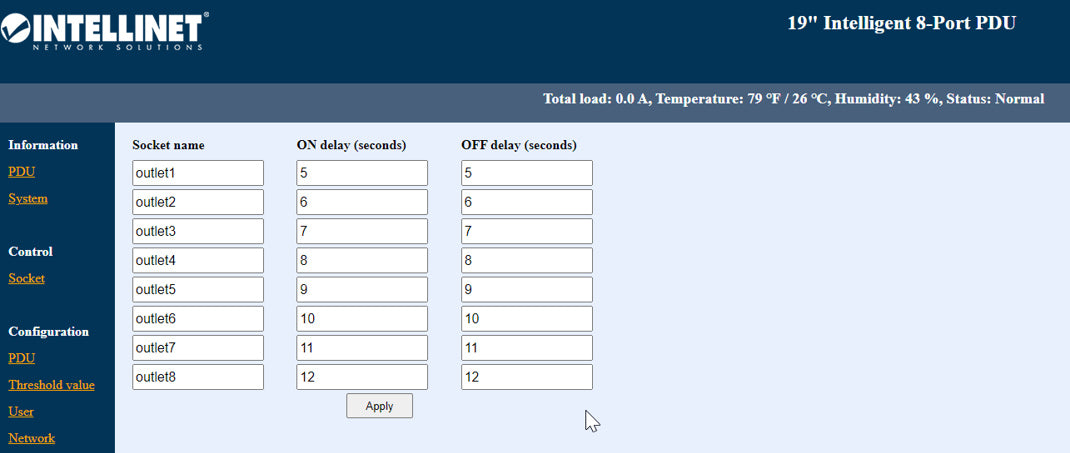

- Power-outlet delay-time configurable to prevent the possibility of a power surge to the integral power supply

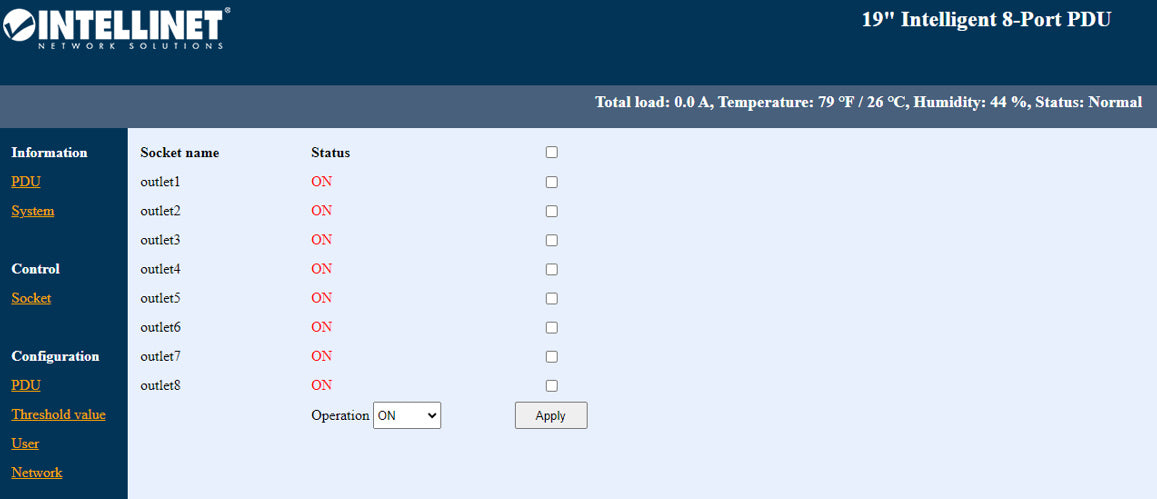

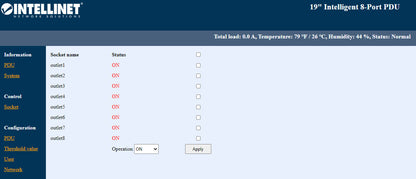

- Power cycle of each port via web interface
- LED indicates power-supply condition of each power outlet

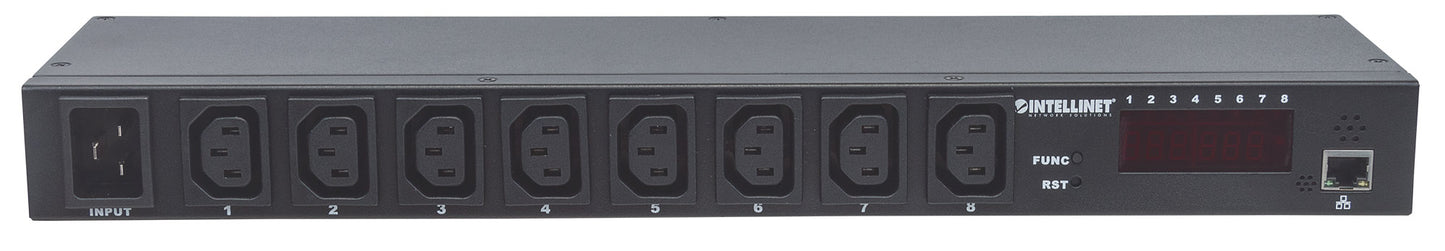

- Digital display shows real-time value of voltage and current, IP address, or temperature and humidity
- Built-in lightning-protection circuit and voltage-surge circuit

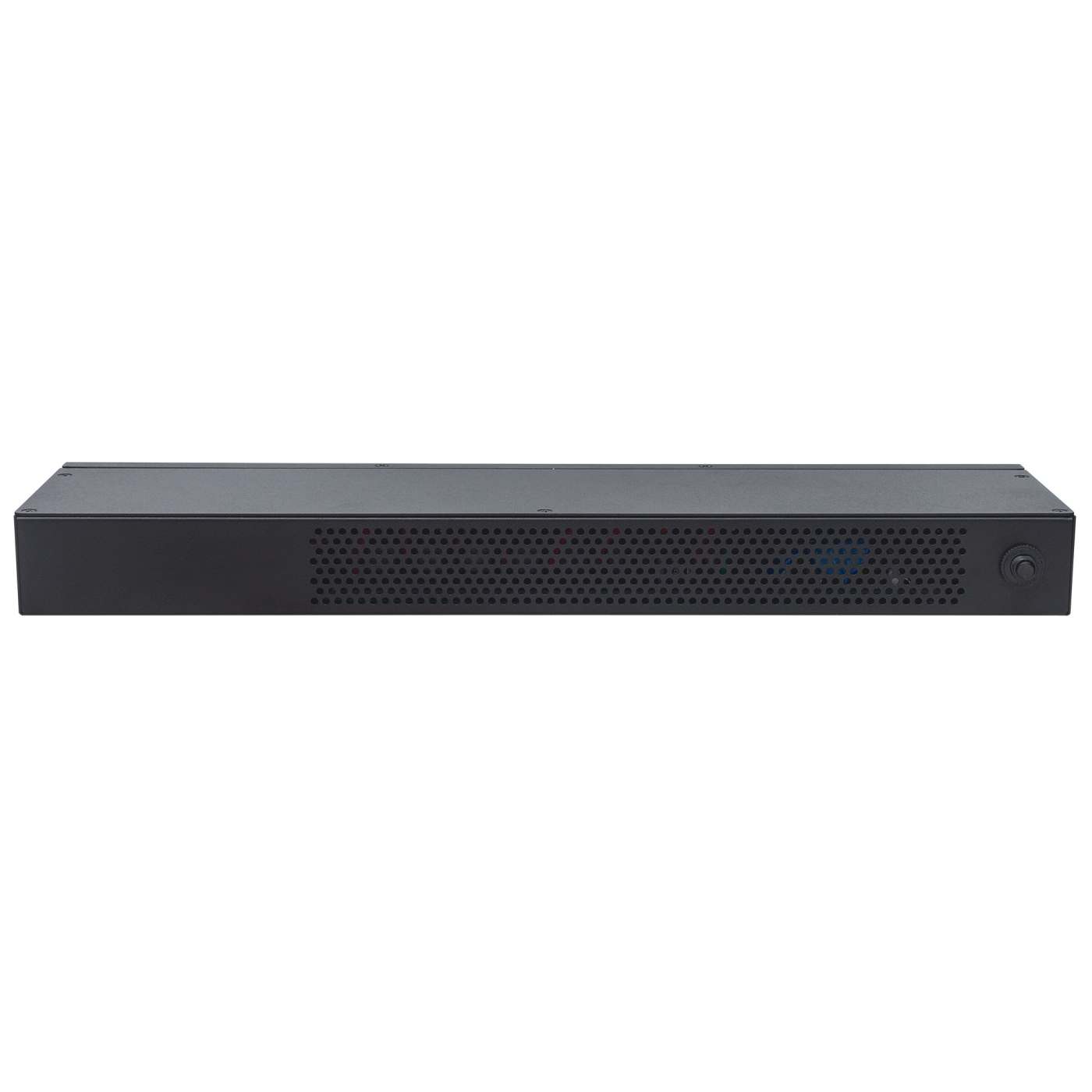

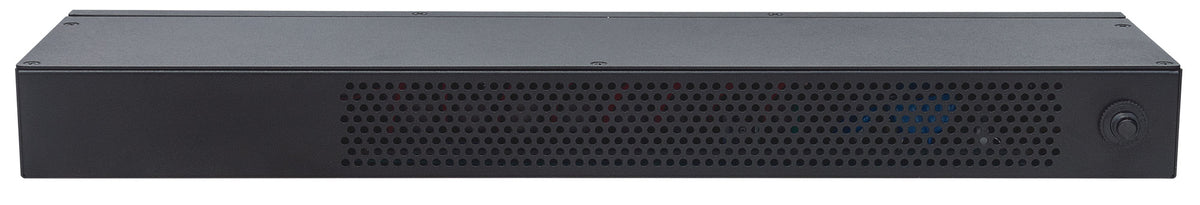

- Fanless design for silent operation
- Three-Year Warranty
- Certifications
- FCC
- CE
General

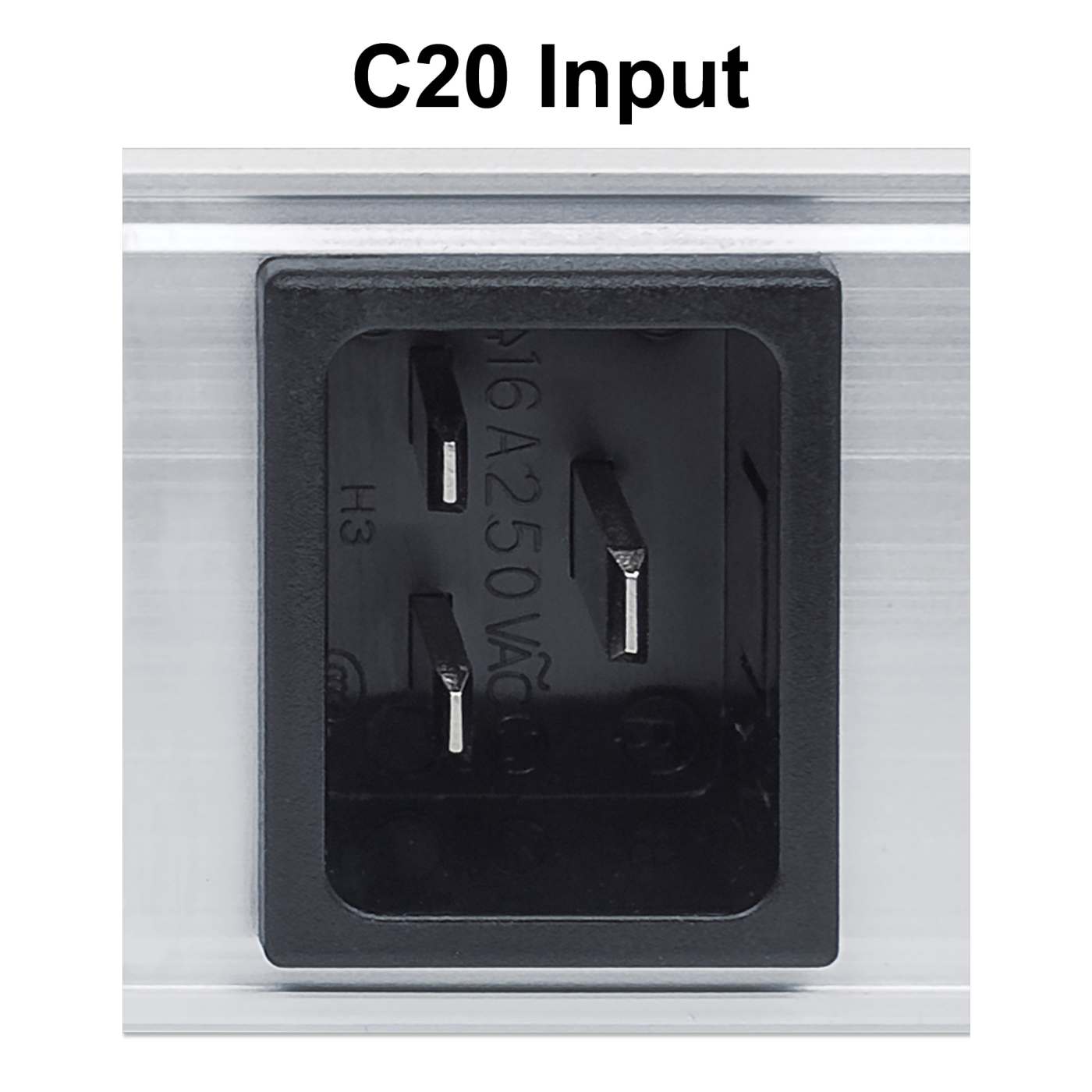

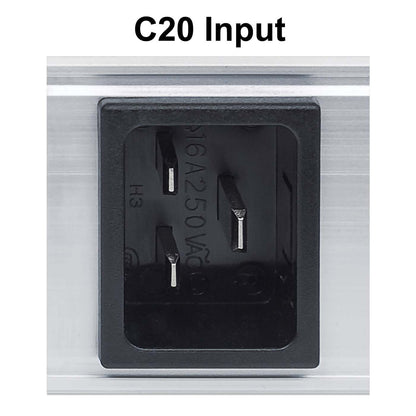

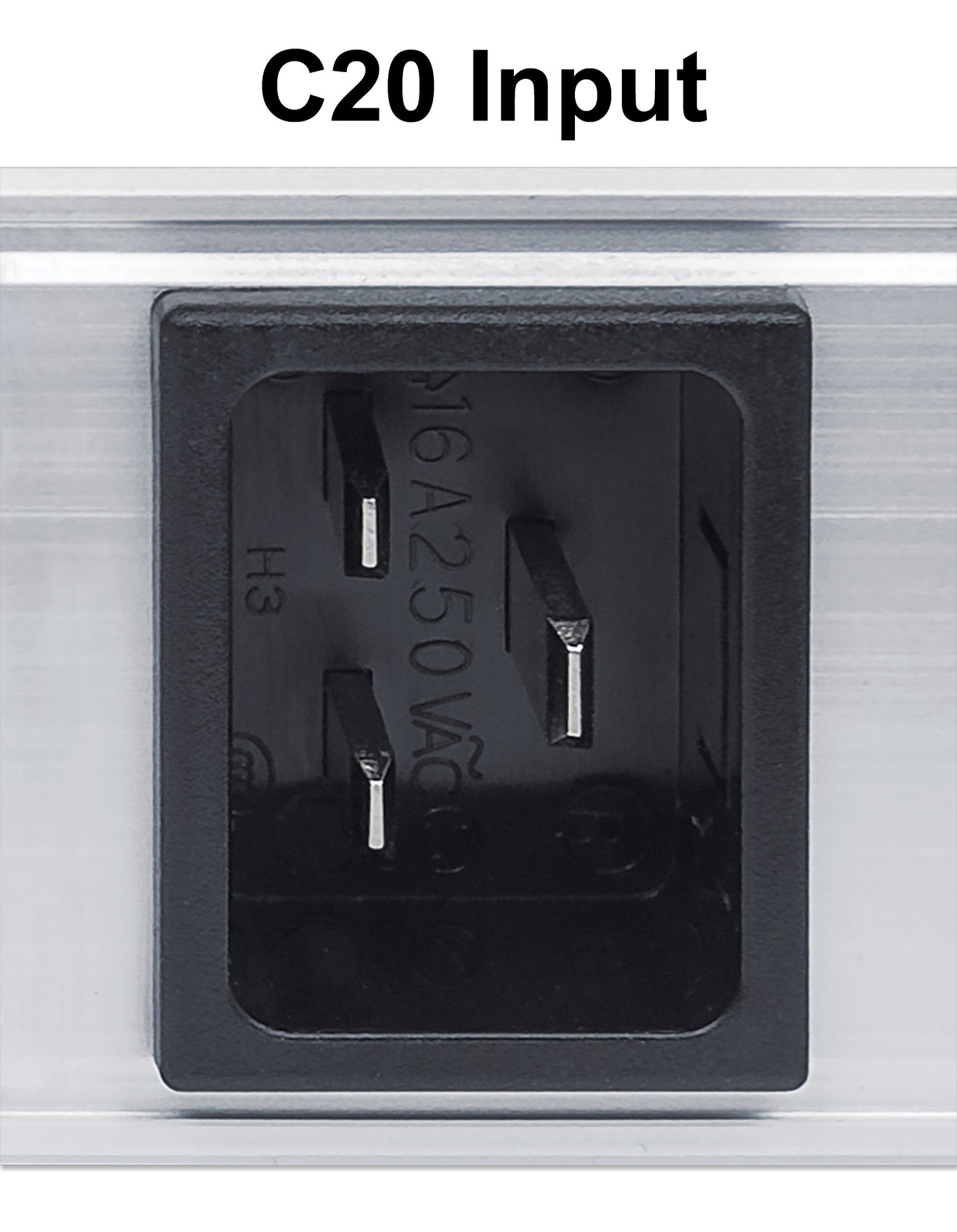

- Power input: one IEC320 C20

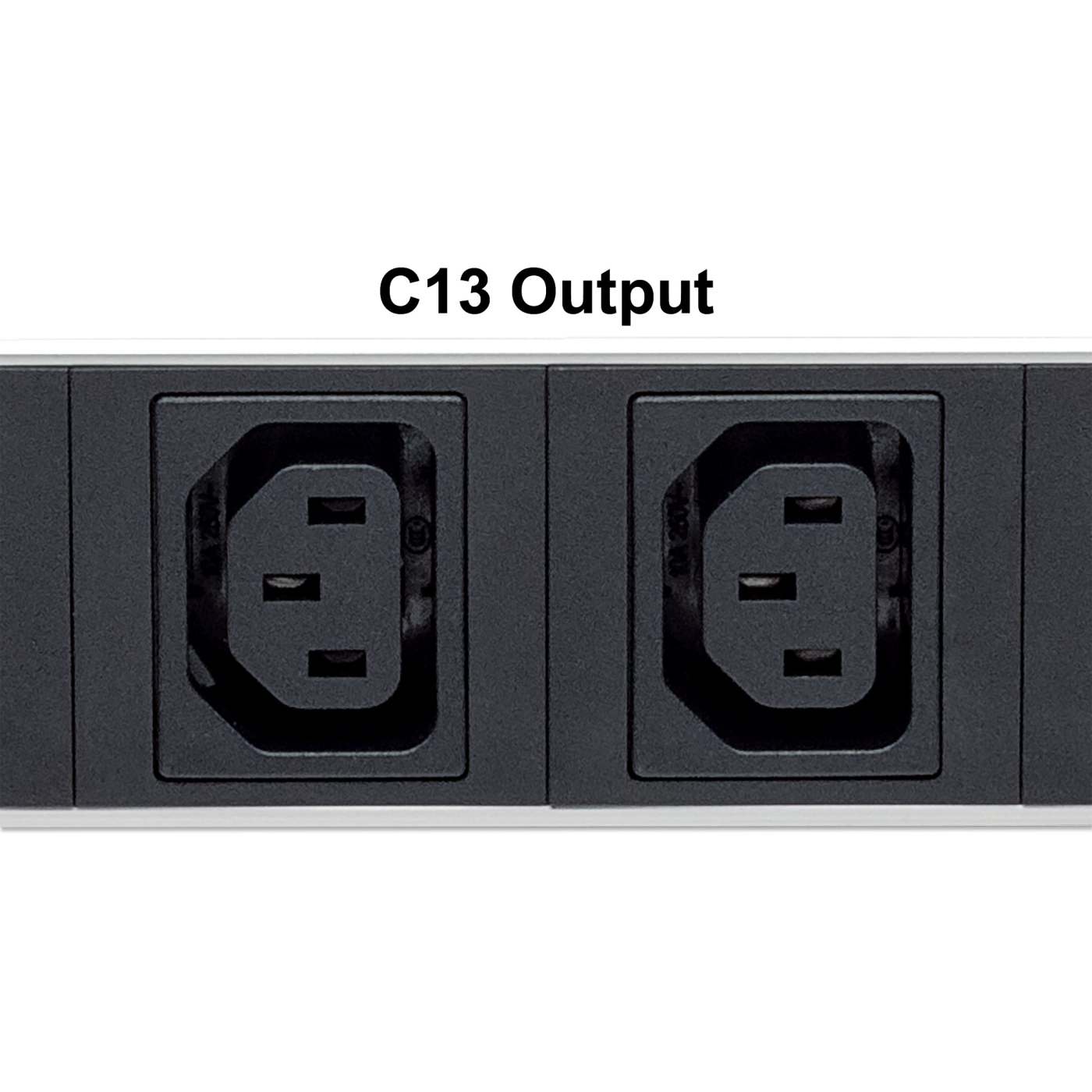

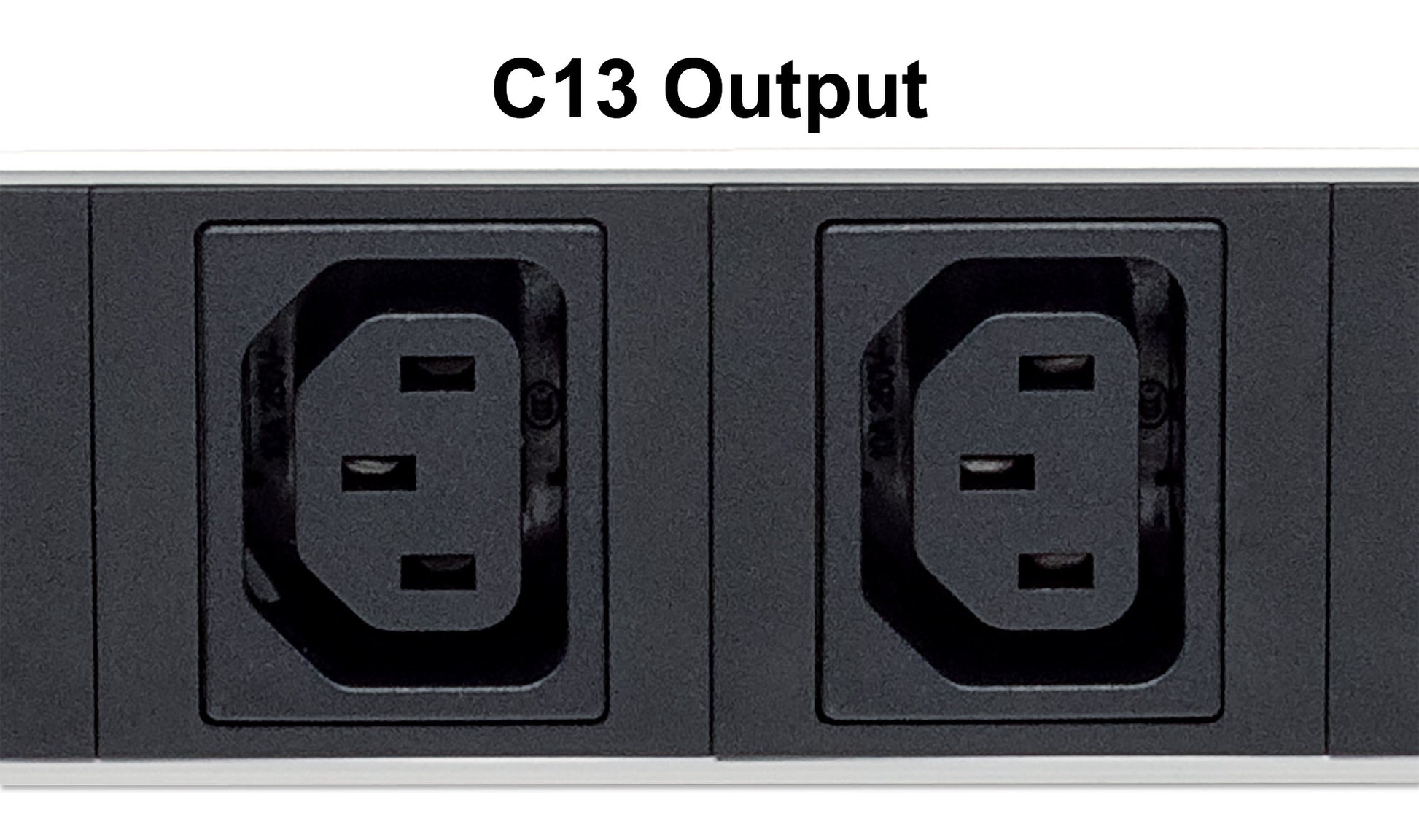

- Power outputs: eight IEC320 C13
- LAN connection: one RJ45 port
Technical
- Voltage input: 90-240 V 50/60 Hz
- Voltage output: 90-240 V 50/60 Hz
- Voltage measurement range: 90-264 VAC increment of 1 V
- Current measurement range: 0-20 A increment of 0.1 A
- No-load power consumption: 5.0 W
- Temperature measurement range: 0° – 50°C (32° – 122°F) increment of 1°C (1°F)
- Humidity measurement range: 20% – 90% increment of 1%
Physical
- Dimensions (D x W x H): 119.5 x 442 x 44.5 mm (4.69 x 17.4 x 1.75 in.)
- Net weight: 1.6 kg (4.54 lbs.)
- Gross weight: 2.38 kg (5.25 lbs.)
- Metal housing
- Flammability: Tested and rated in accordance with UL 94 V-0
Package Contents
- Intelligent 8-Port PDU
- 19" rackmount brackets
- Power cable C19 to C20, 2 m (7 ft.)
Additional SKUs
- Amazon ASIN: B075TXJFWN
- EAN: 0766623163682
- UPC: 766623163682
- ALSO: 2965541
- API: 249202
Physical Specifications
- Product net weight: 1.6 kg
- Product gross weight: 2.38 kg
- Dimensions: 442 (L) x 119 (W) x 44.5 (H) [mm]
- Packaging type: White Box
- Packaging dimensions: 500 x 205 x 90 [mm]
- Master Carton Quantity: 6
- Master Carton Weight: 14.82 kg
- Master Carton Dimensions: 520 x 440 x 95 [mm]
