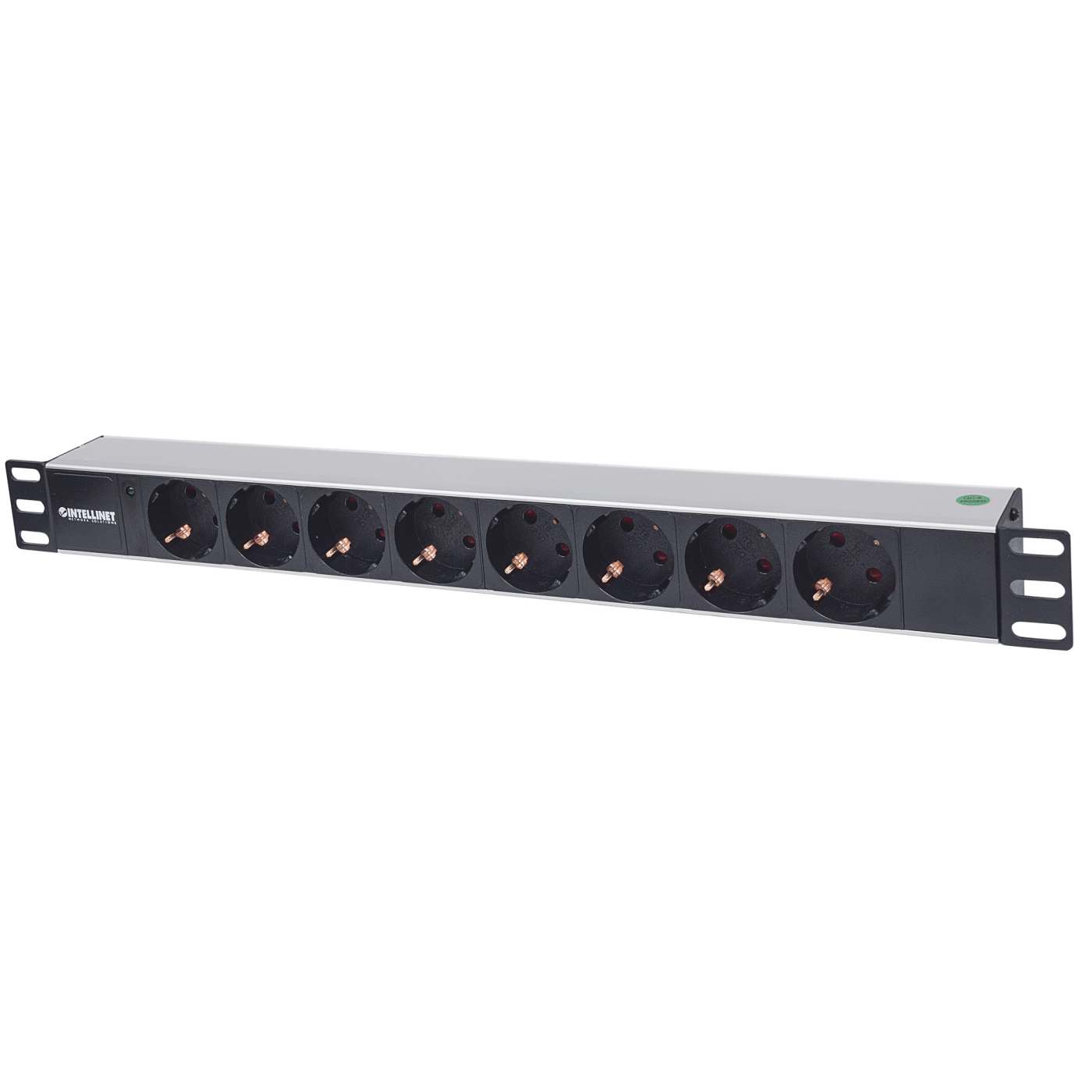

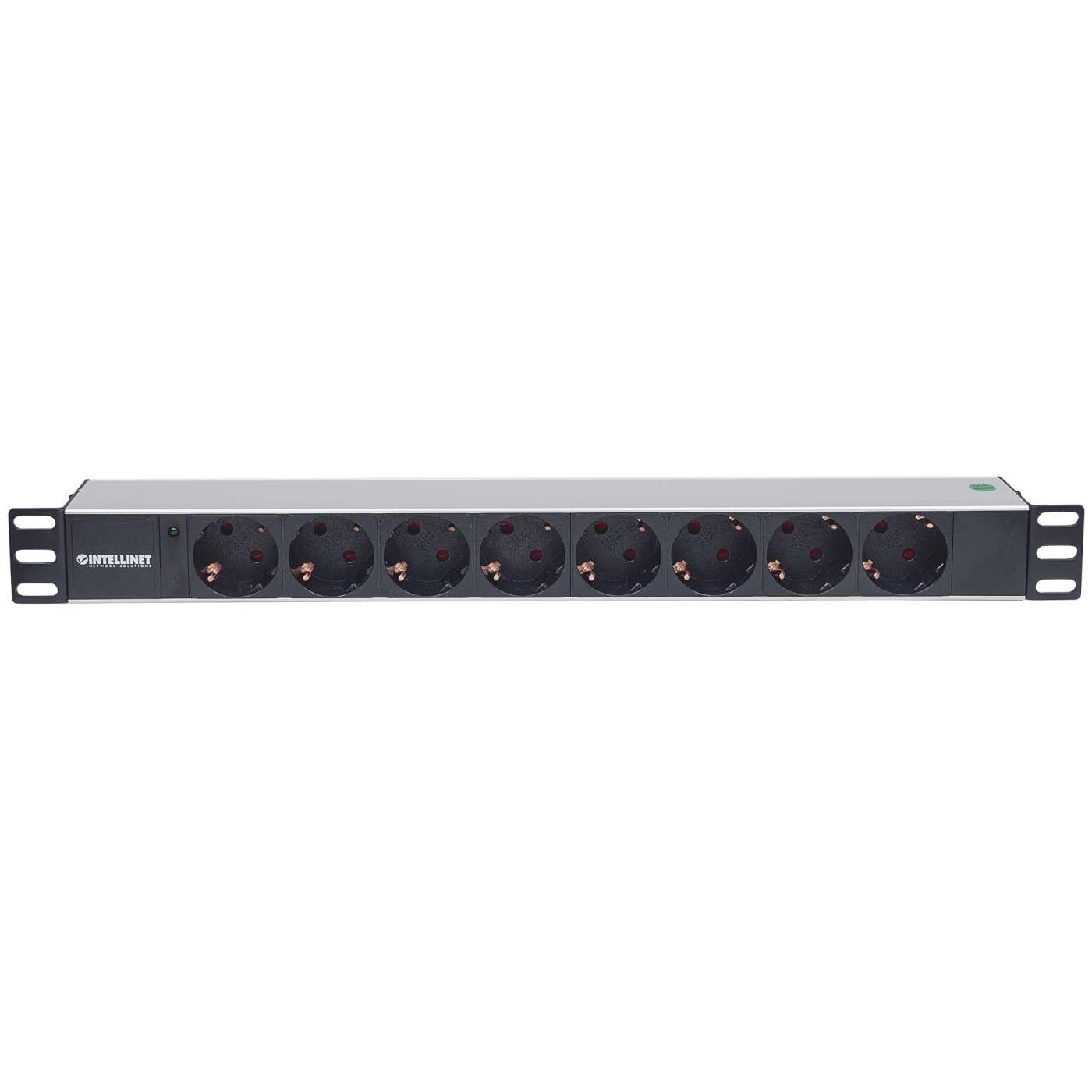

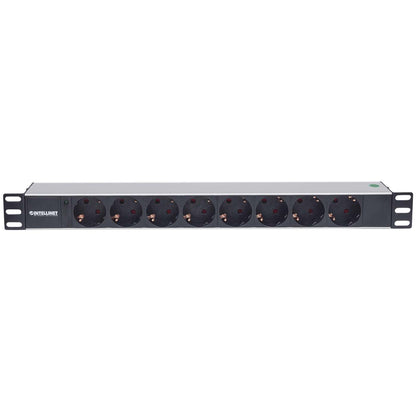

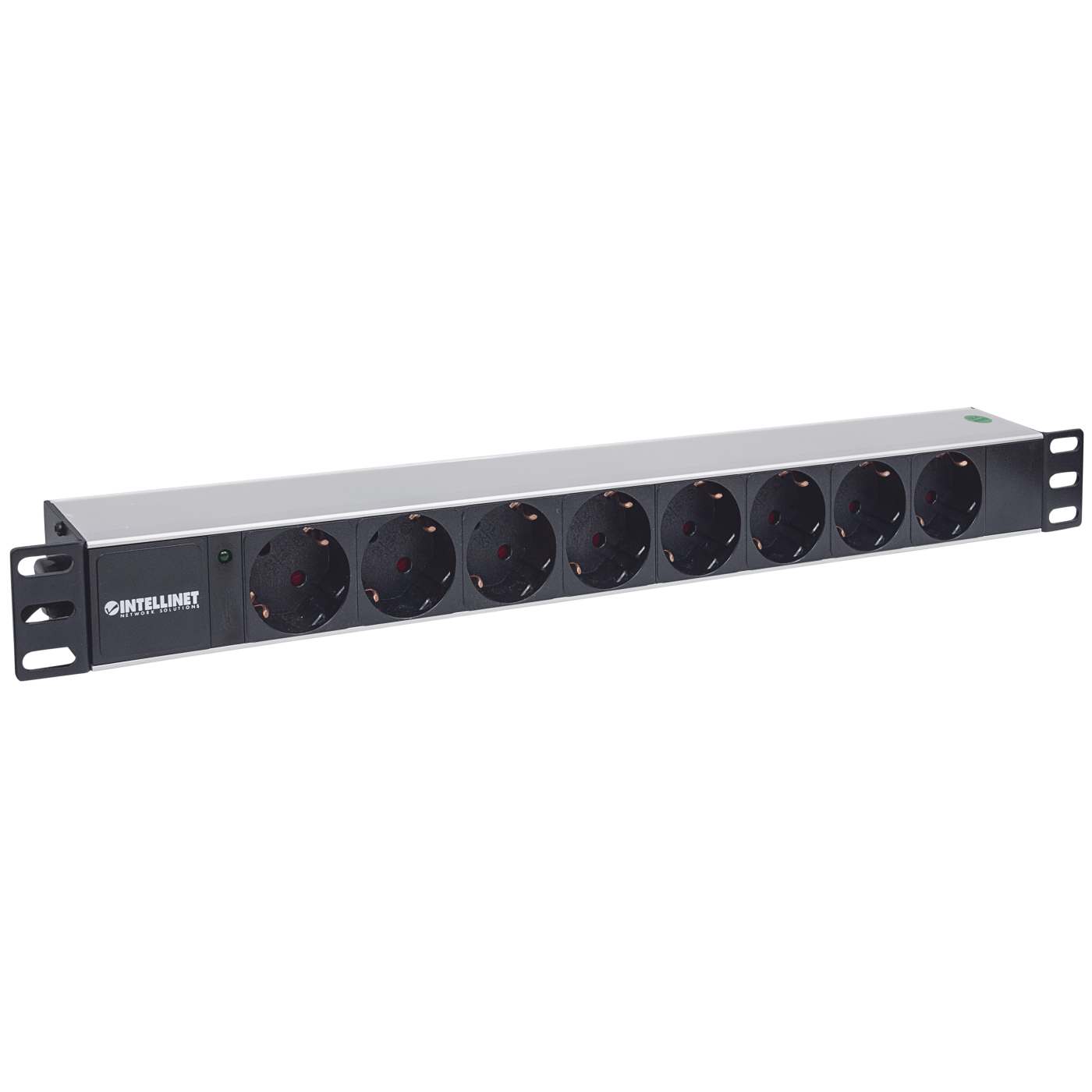

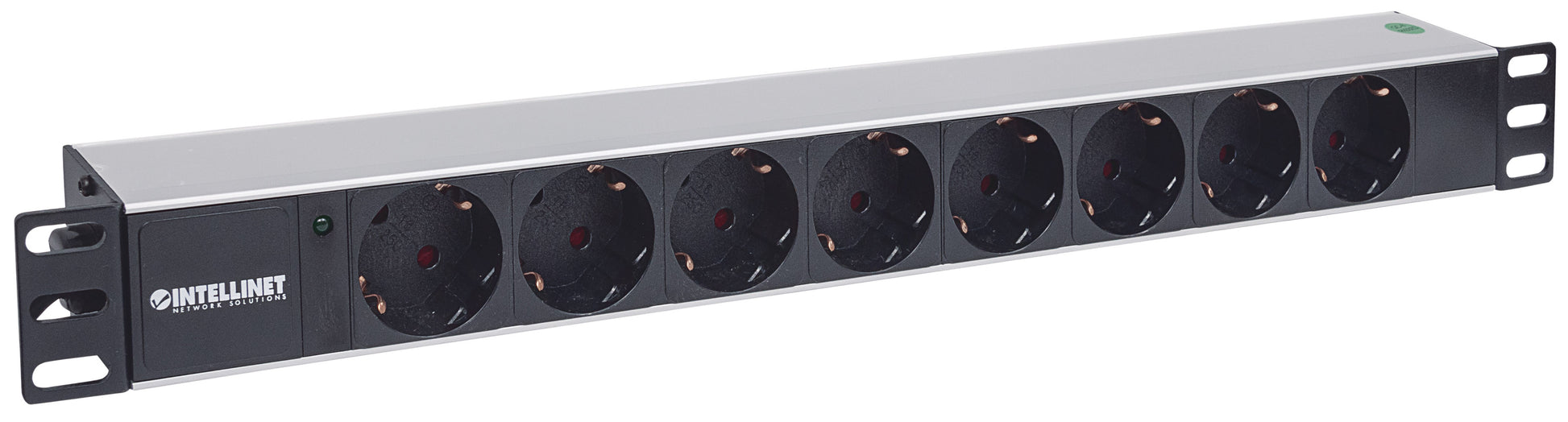

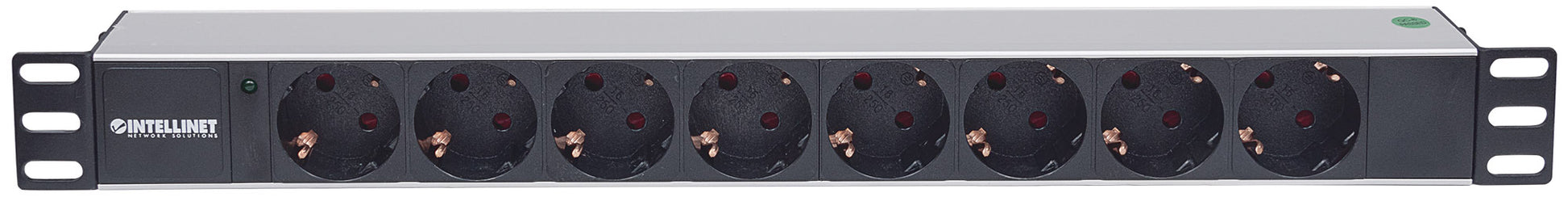

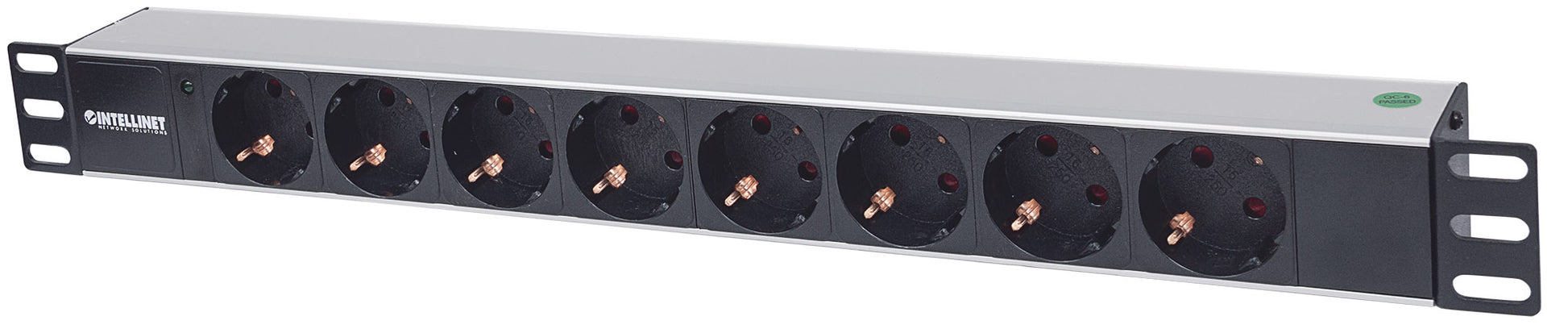

19" 1U Rackmount 8-Output Power Distribution Unit (PDU)

EU CEE 7/3 Outlets, With LED Indicator Only, No Surge Protection, Built-in 1.8 m (5.9 ft.) Power Cord with EU CEE 7/4 Plug

Part-No.: 714037

Highlights

  • Outlets: 8
  • Power input style: left-end single input
  • Bracket installation style: frontal


Intellinet Network Solutions basic rack PDUs (Power Distribution Units) provide reliable power distribution via a single input with multiple output receptacles. Our current range is designed to distribute power from low amperage single phase electrical circuits.

  • Outlets: 8
  • Power input style: left-end single input
  • Bracket installation style: frontal
  • Cable plug: IEC60884
  • Control functions: none
  • Protection functions: no surge protection
  • Shell color & material: black aluminum
  • Relative humidity: 10 - 90%
  • Three-year warranty

  • 1U Rackmount
  • Socket/outlet standard: IEC60884
  • Outlets: 8
  • Cable specification: standard 1.8 m (5.9 ft.) power cord
  • Size: 482.6 x 44.4 x 62 mm (L x W x H) / 19 (L) x 1.75 (W) x 2.44 (H) [in]
  • Electrical rating: 250V AC
  • Maximum load current: 15 A

  • Additional SKUs

    • Amazon ASIN: B0037FKPVO
    • EAN: 0766623714037
    • UPC: 766623714037
    • ALSO: 2597159
    • API: 200747

  • Physical Specifications

    • Weight: 1.1 kg
    • Dimensions: 482.6 (L) x 44.4 (W) x 62 (H) [mm]
    • Packaging: Brown Box
    • Carton Quantity: 10
    • Carton Weight: 10.00 kg

  • Datasheet

    • PDU Datasheet
      Tech drawing of PDU     » Download

    • Datasheet     » Download

    • PDU Flyer
      PDU Range Flyer     » Download

    • Declaration of Conformity     » Download


  • Manual

    • Quick Instruction Guide     » Download
