Rack mount 8-way 19" power strip - power up to eight devices in your network

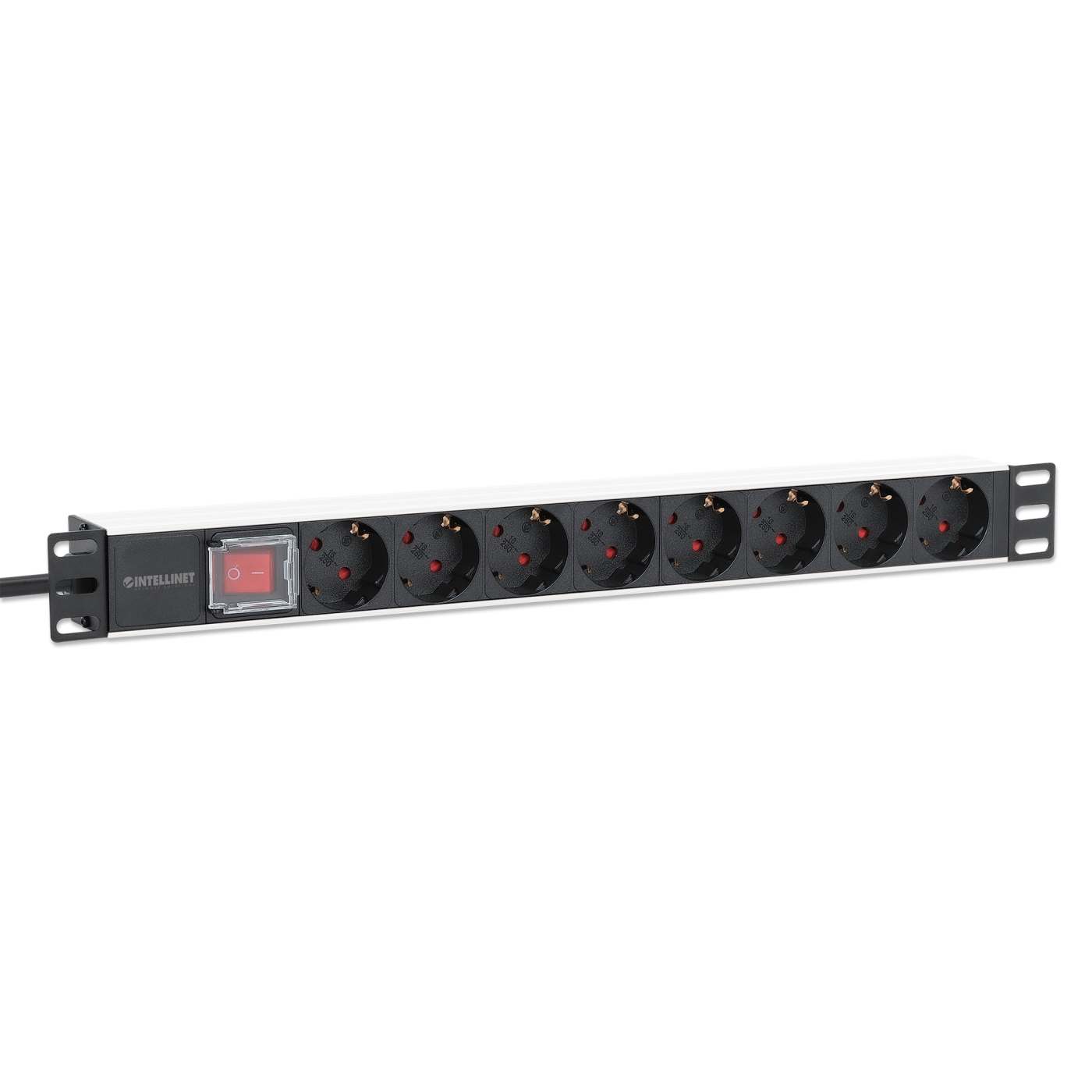

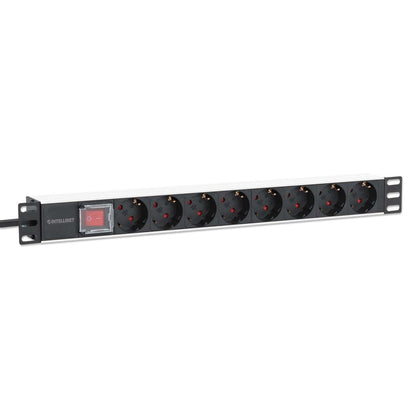

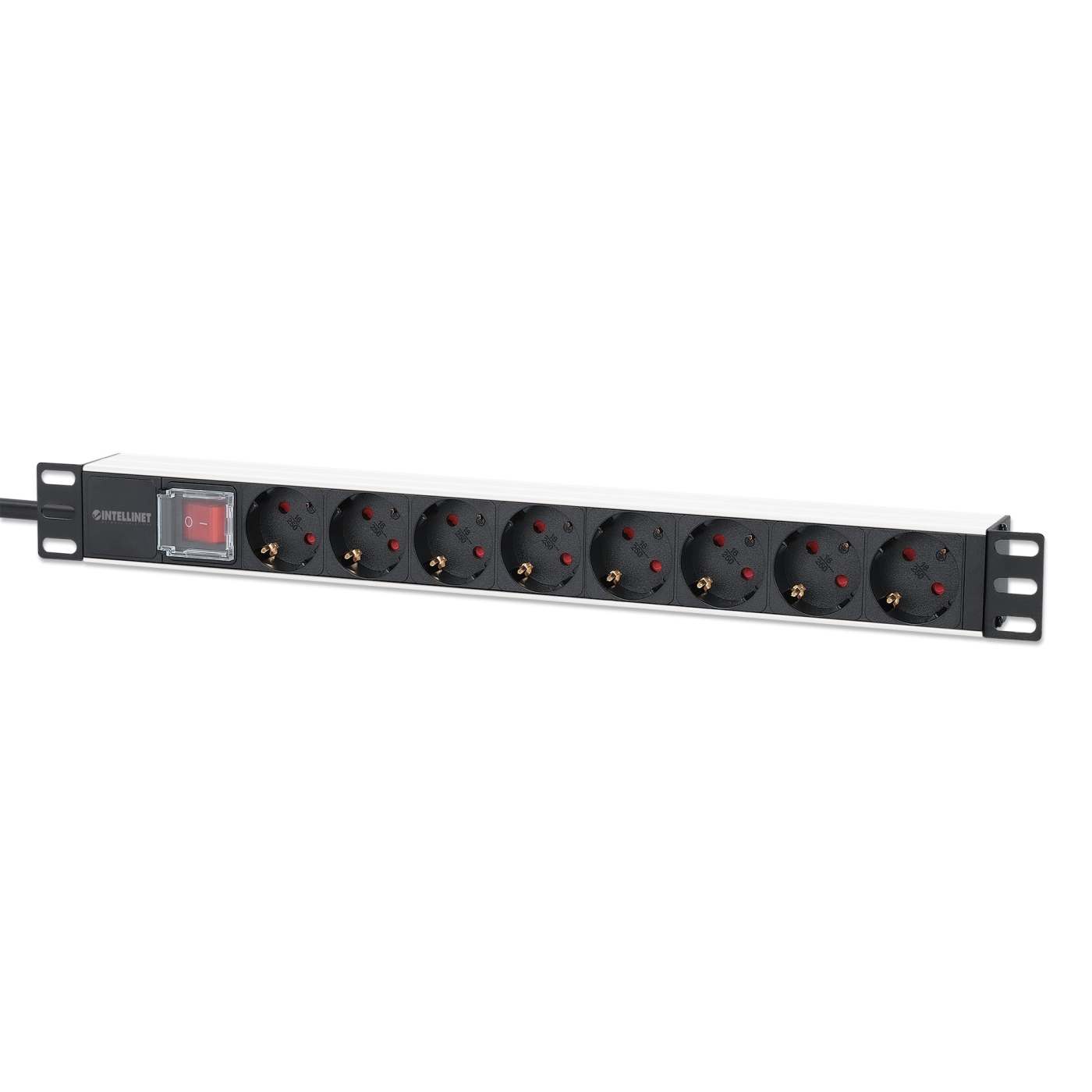

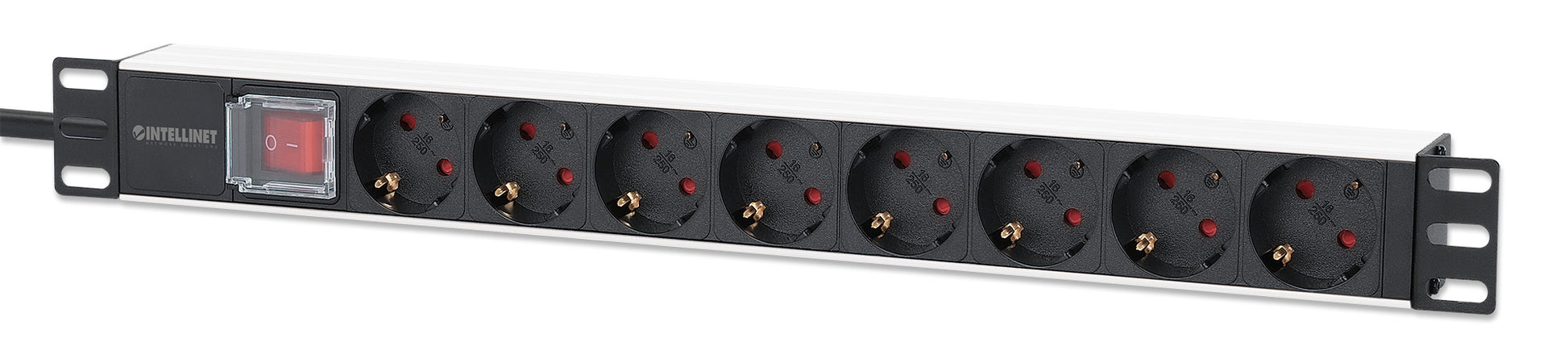

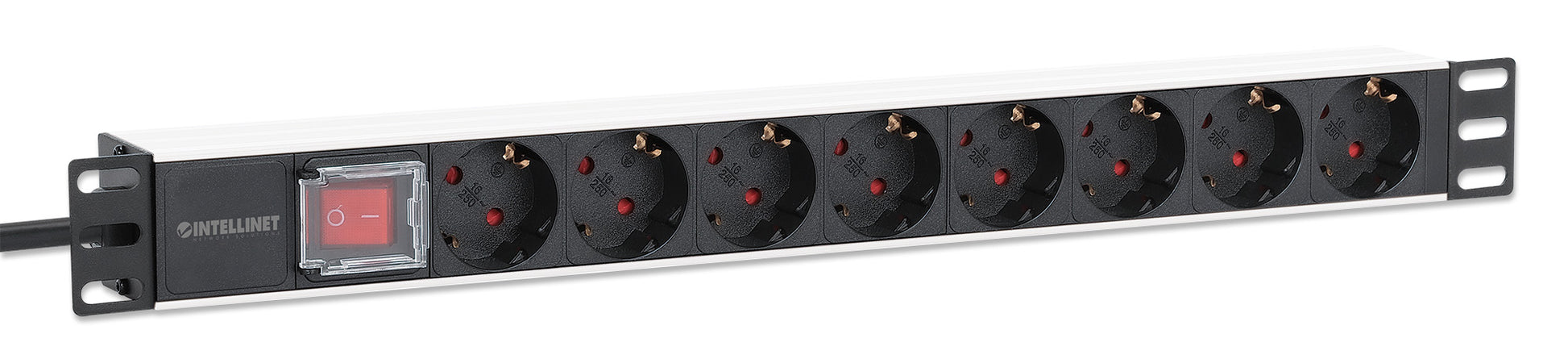

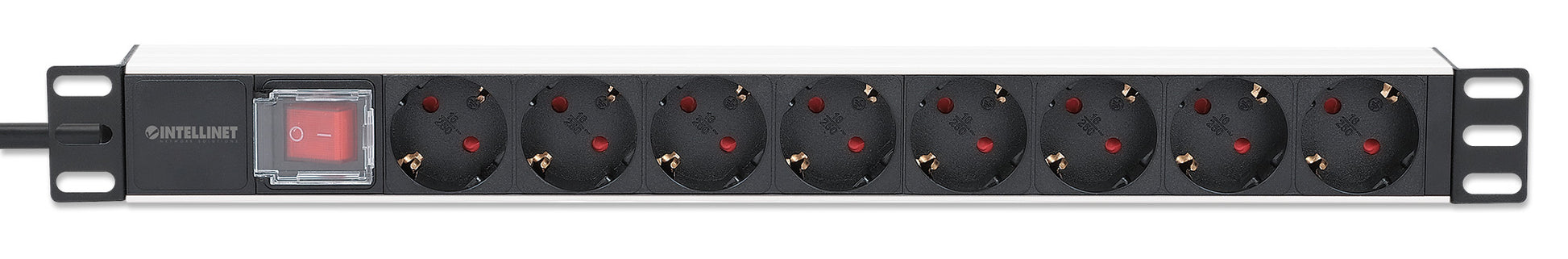

Plug your networking, telecom, surveillance, AV or other electronics into this 8-outlet 19” PDU from Intellinet Network Solutions. It is compatible with standard electrical equipment and features eight EU Type E/F outlets in a durable black aluminum housing. This PDU mounts in 1U of space in 19-inch racks. The illuminated on/off switch provides one-touch control over all connected devices and has a protective hinged cover to prevent accidental shutdown.
- 8-way single-phase PDU for electrical equipment, ideal for networking, telecom, security and audio/video

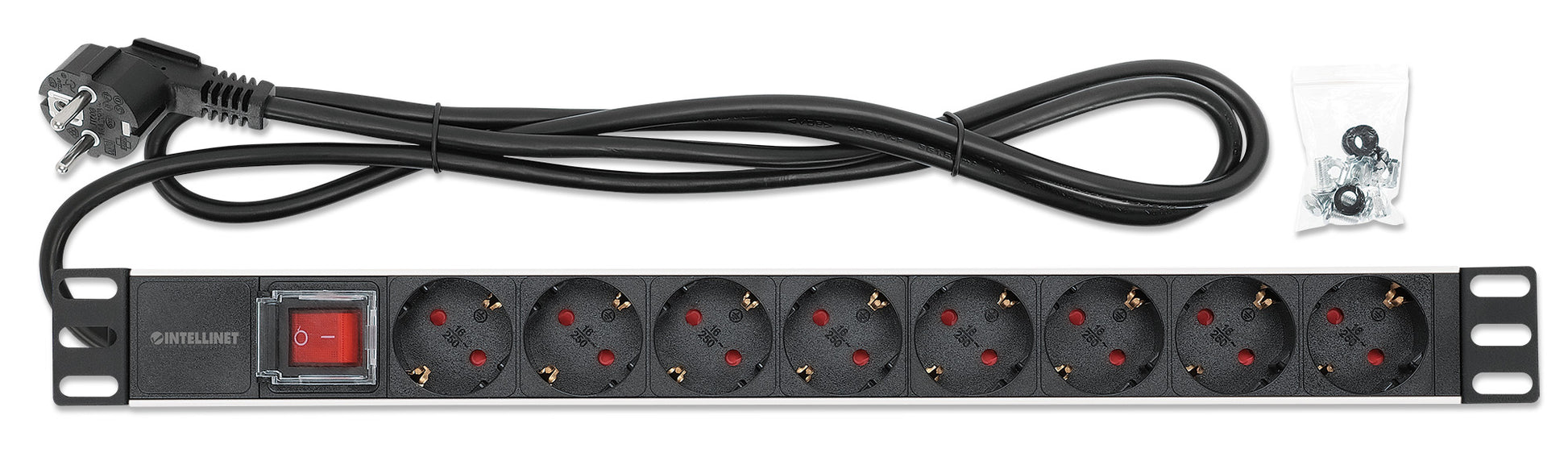

- Built-in 2 m power cord with EU CEE 7/7 (Type E/F) plug

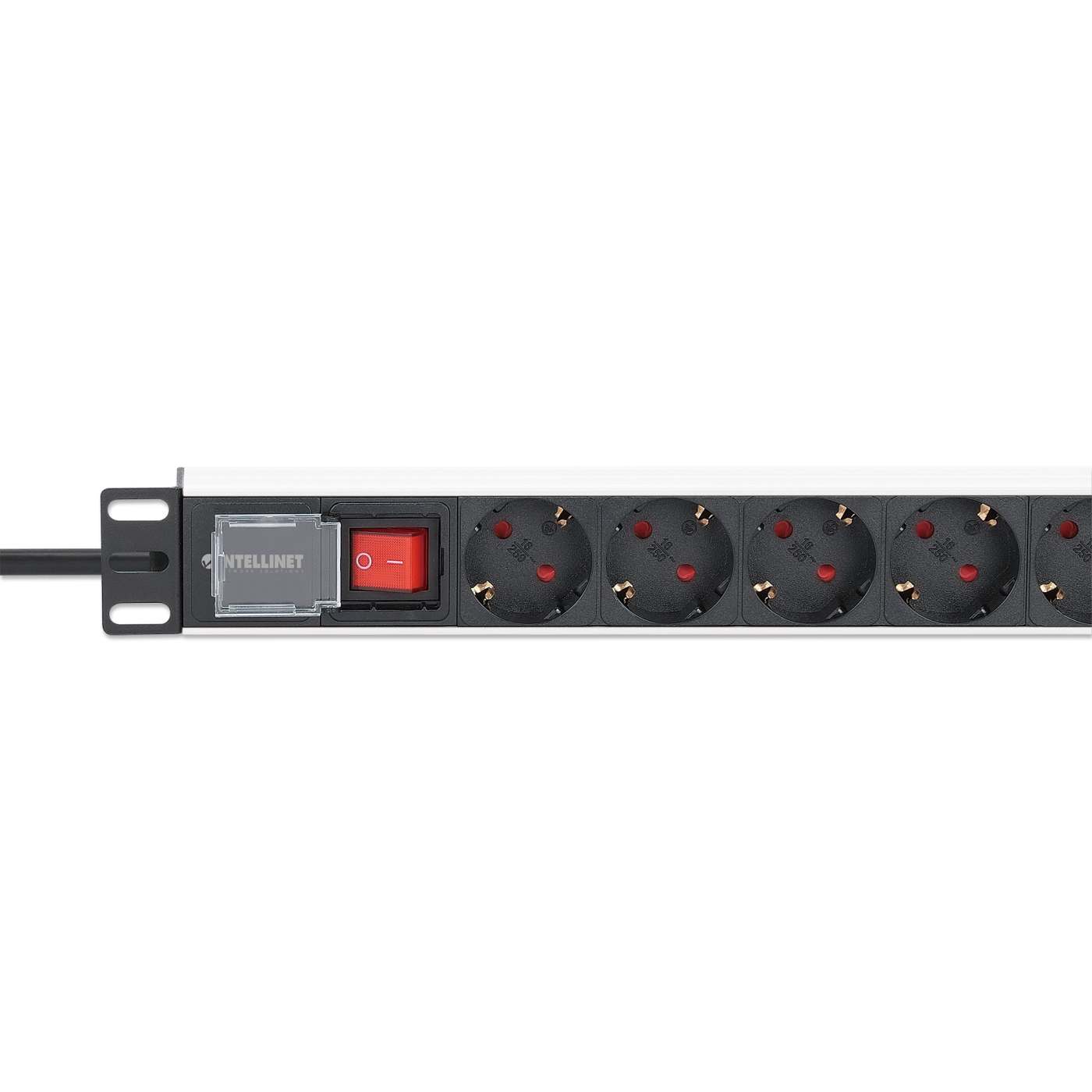

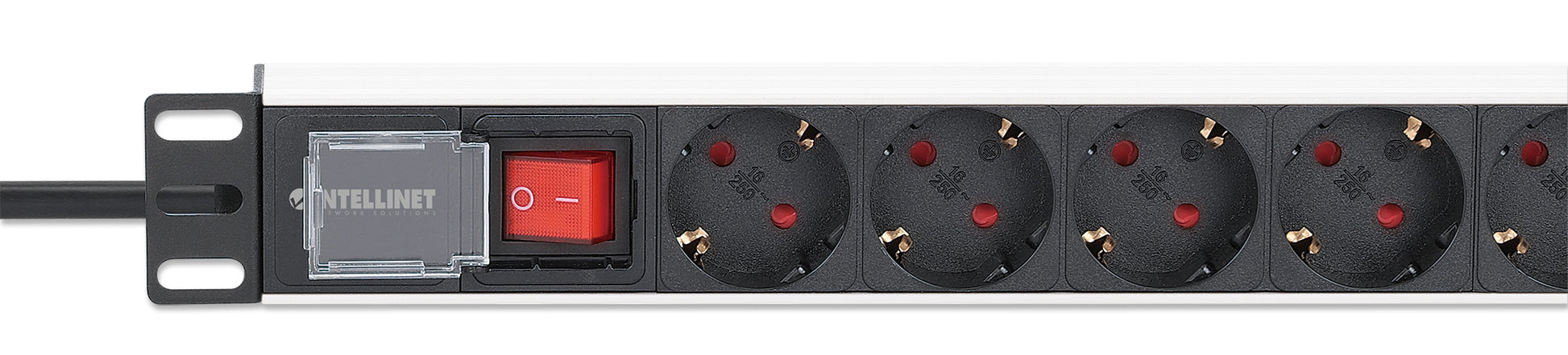

- Illuminated two-pole on/off safety switch with protective cover to prevent accidental shutdown
- Sockets with increased touch protection through contact shutters

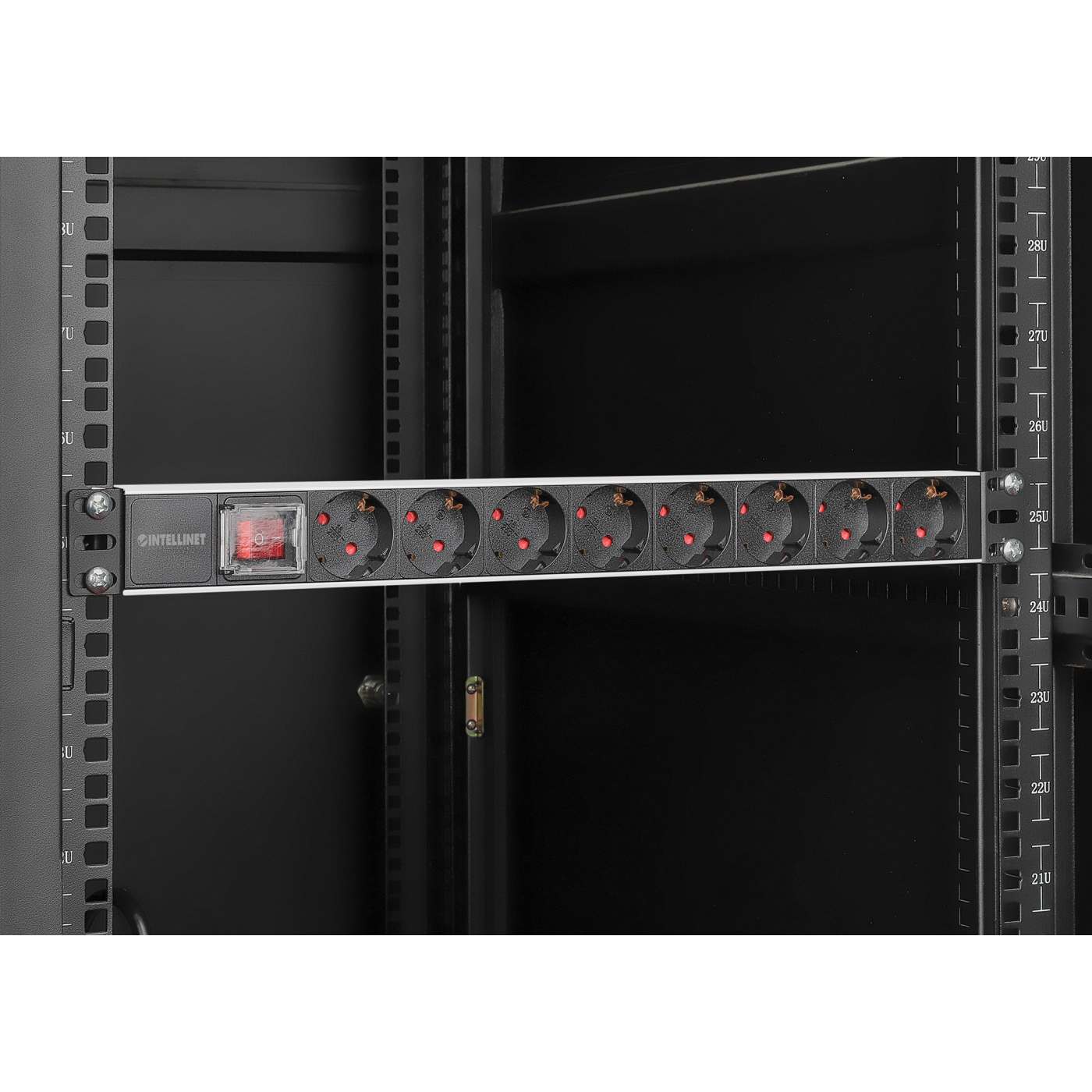

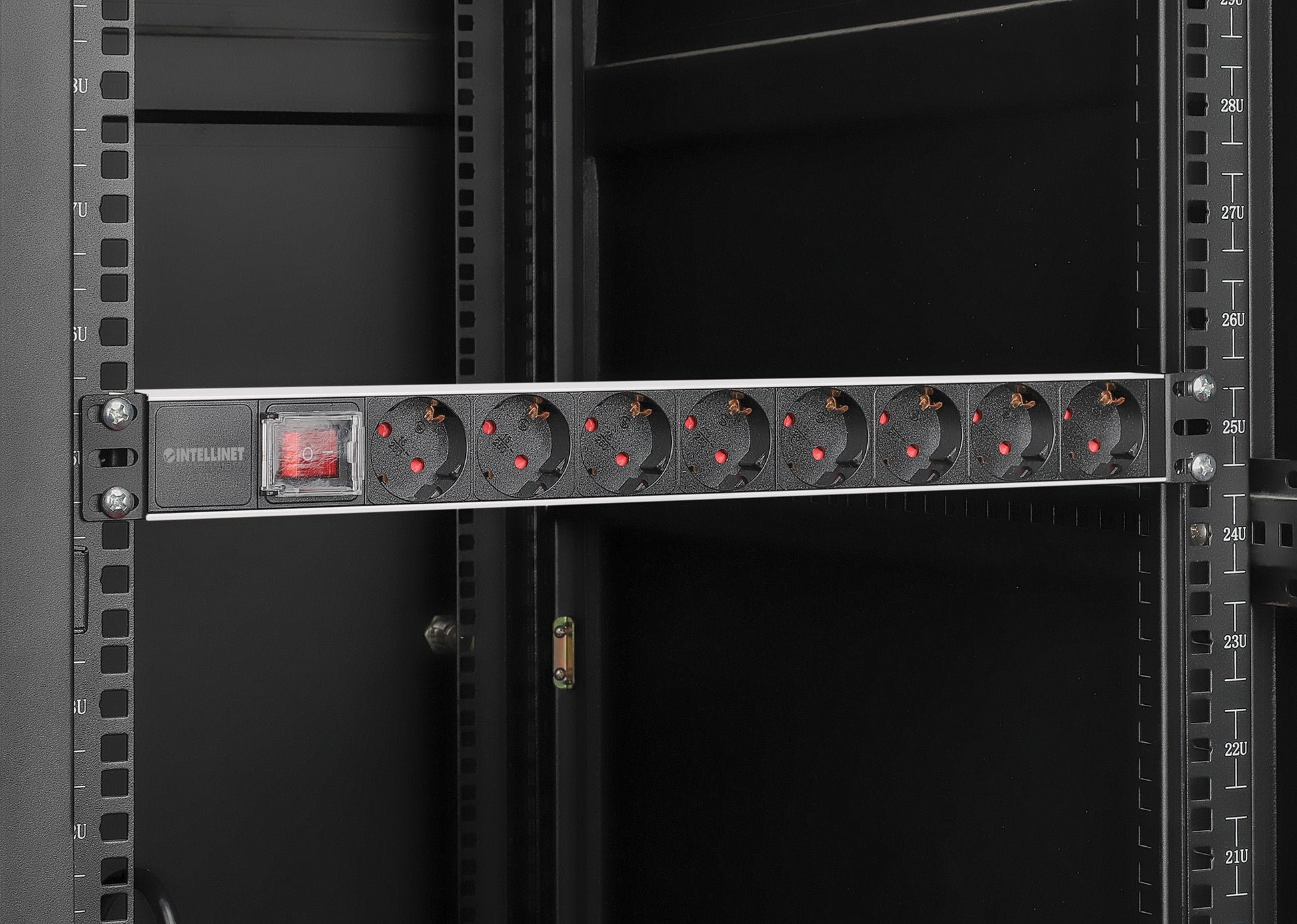

- Horizontal 1U 19" rack-mount installation
- Angled outlet orientation
- Durable aluminum construction

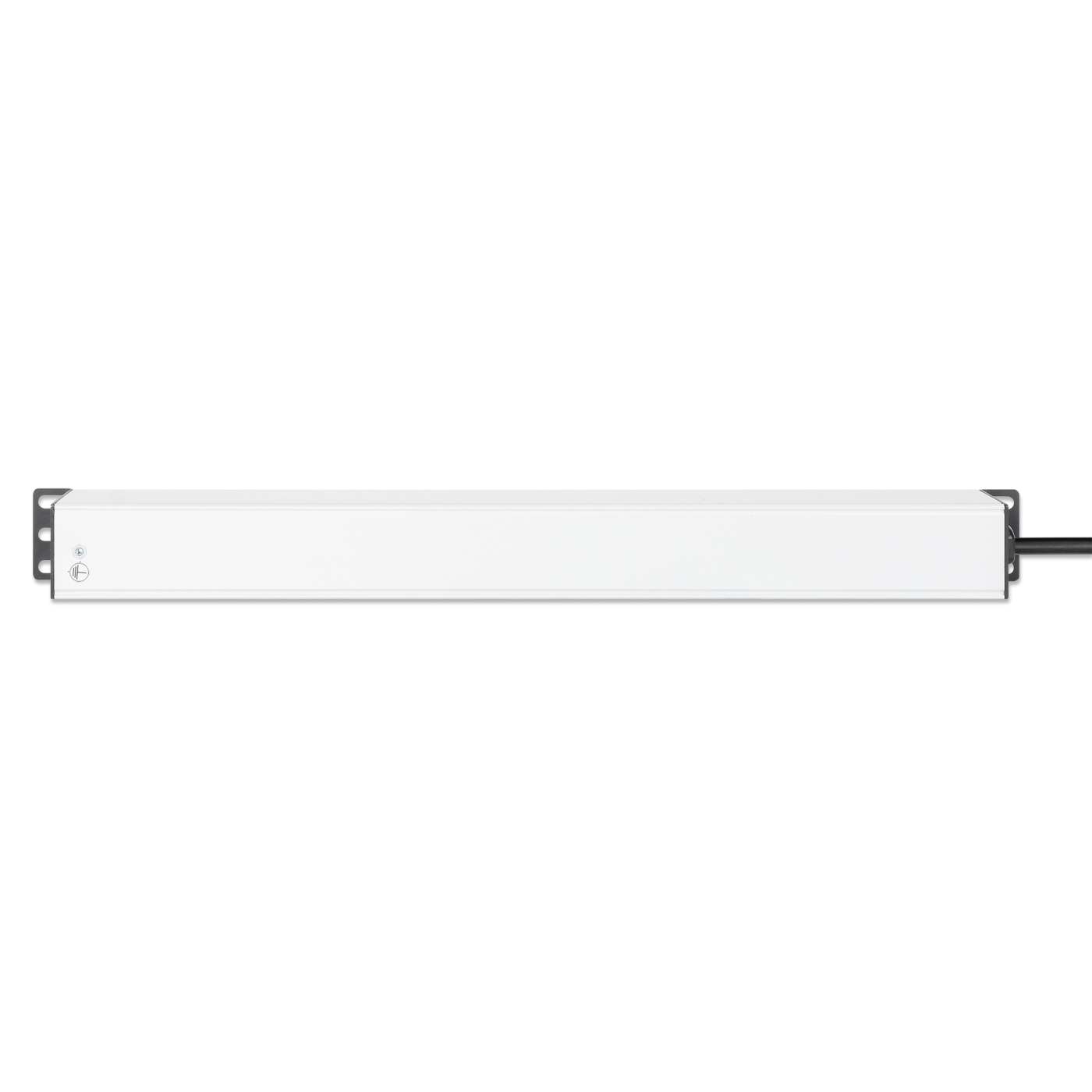

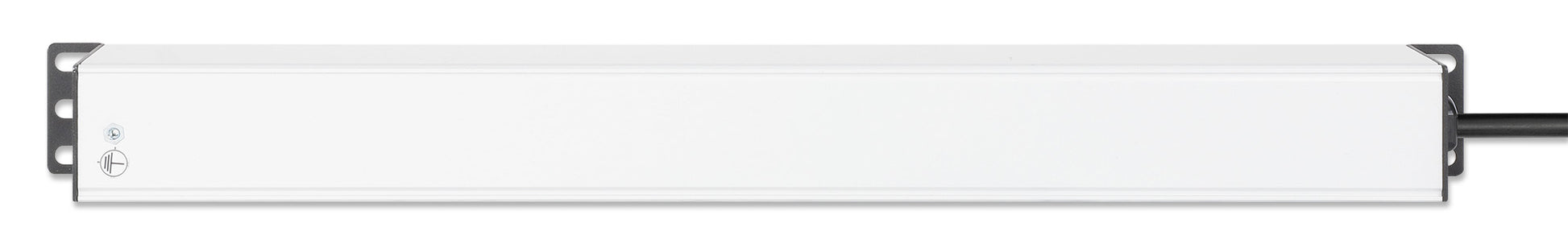

- Grounding point to protect equipment from external electrical surges
- Bracket installation style: frontal
- For indoor use only
- Three-year warranty
- Standards and Certifications
- CE
- RoHS
- REACH
- IEC 60297
- IEC 60884
Electrical
- AC input: 220.0 - 250.0 V; 50 - 60 Hz
- Operating voltage: 230.0 V
- Plug standard: EU CEE 7/7 (Type E/F); IEC 60884
- Socket/outlet standard: EU CEE 7/3 (Type F); IEC 60884
- Maximum load: 4,000.0 W
- Overload protection: 16.0 A maximum load current
Physical
- Dimensions (L x W x H): 45 x 483 x 45 mm
- 1U rack mount
- Cable length: 2 m
- Cable type: H05VV-F 3G 1.5 mm²
- Socket angle: 35°
- Net weight: 800 g
- Gross weight: 900 g
- Housing: aluminum

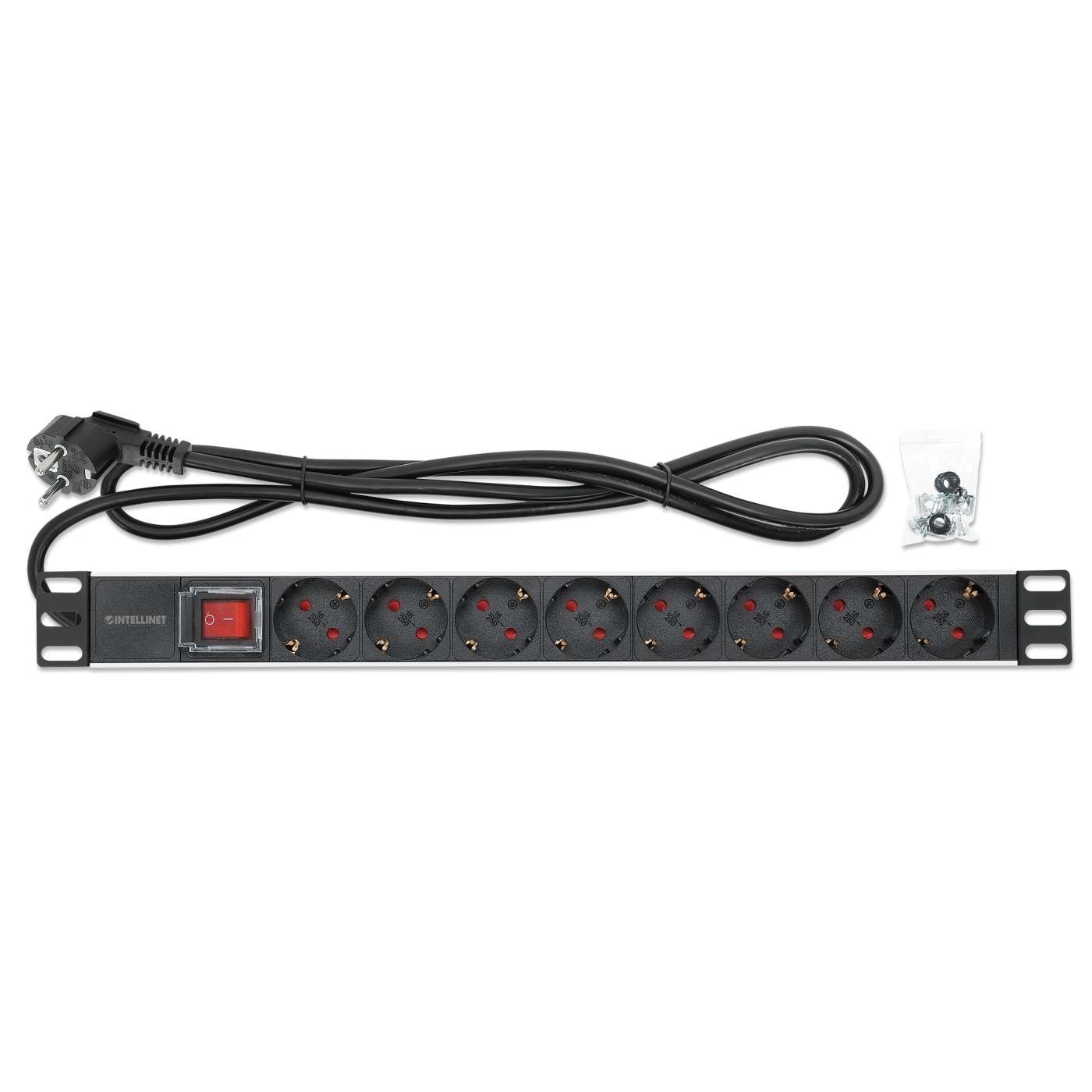

Package Contents
- 19-inch 1U 8-Way PDU with On/Off Switch
Additional SKUs
- EAN: 0766623715126
- UPC: 766623715126
Physical Specifications
- Product net weight: 0.8 kg
- Product gross weight: 0.9 kg
- Dimensions: 45 (L) x 483 (W) x 45 (H) [mm]

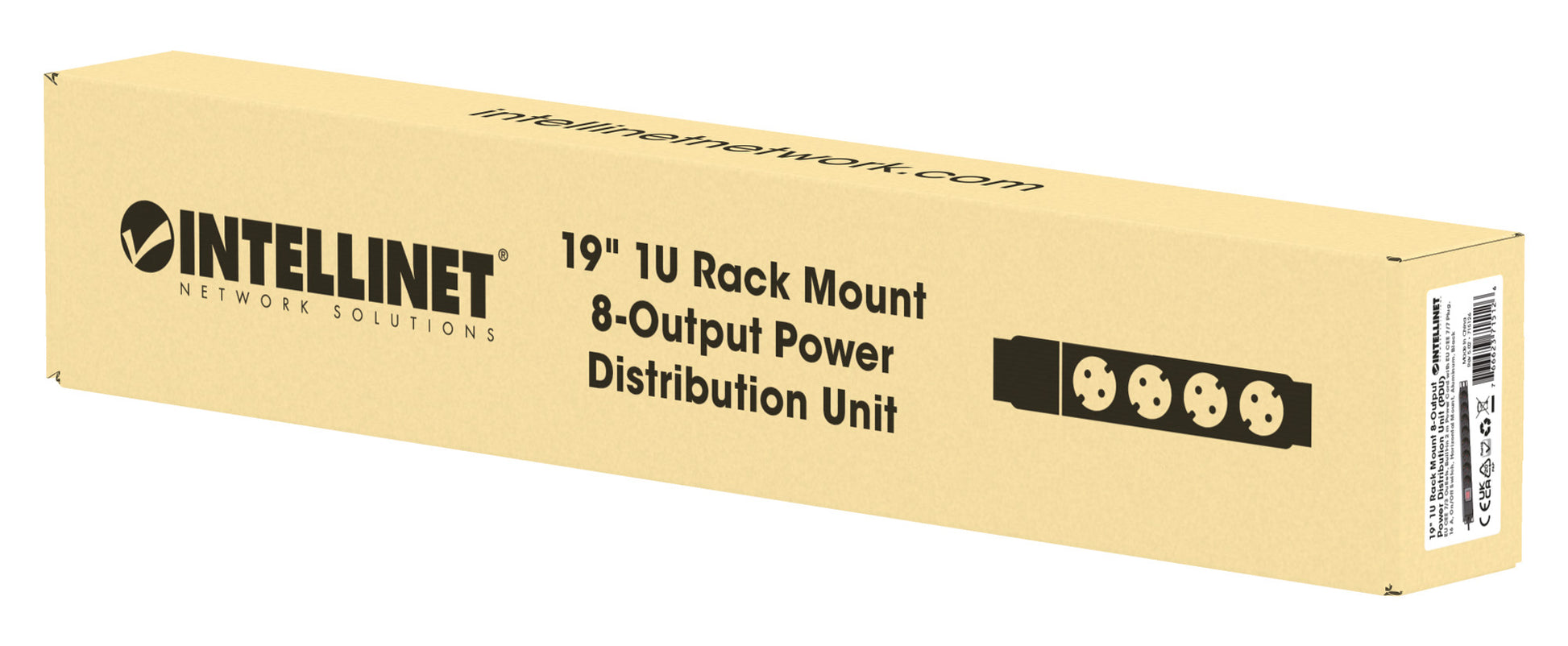

- Packaging type: Brown Box
- Packaging dimensions: 515 x 95 x 60 [mm]
- Master Carton Quantity: 10
- Master Carton Weight: 10.00 kg
- Master Carton Dimensions: 530 x 325 x 215 [mm]
