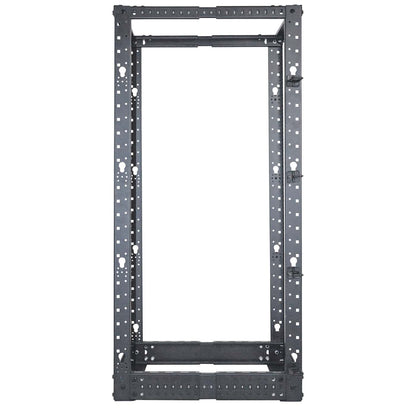

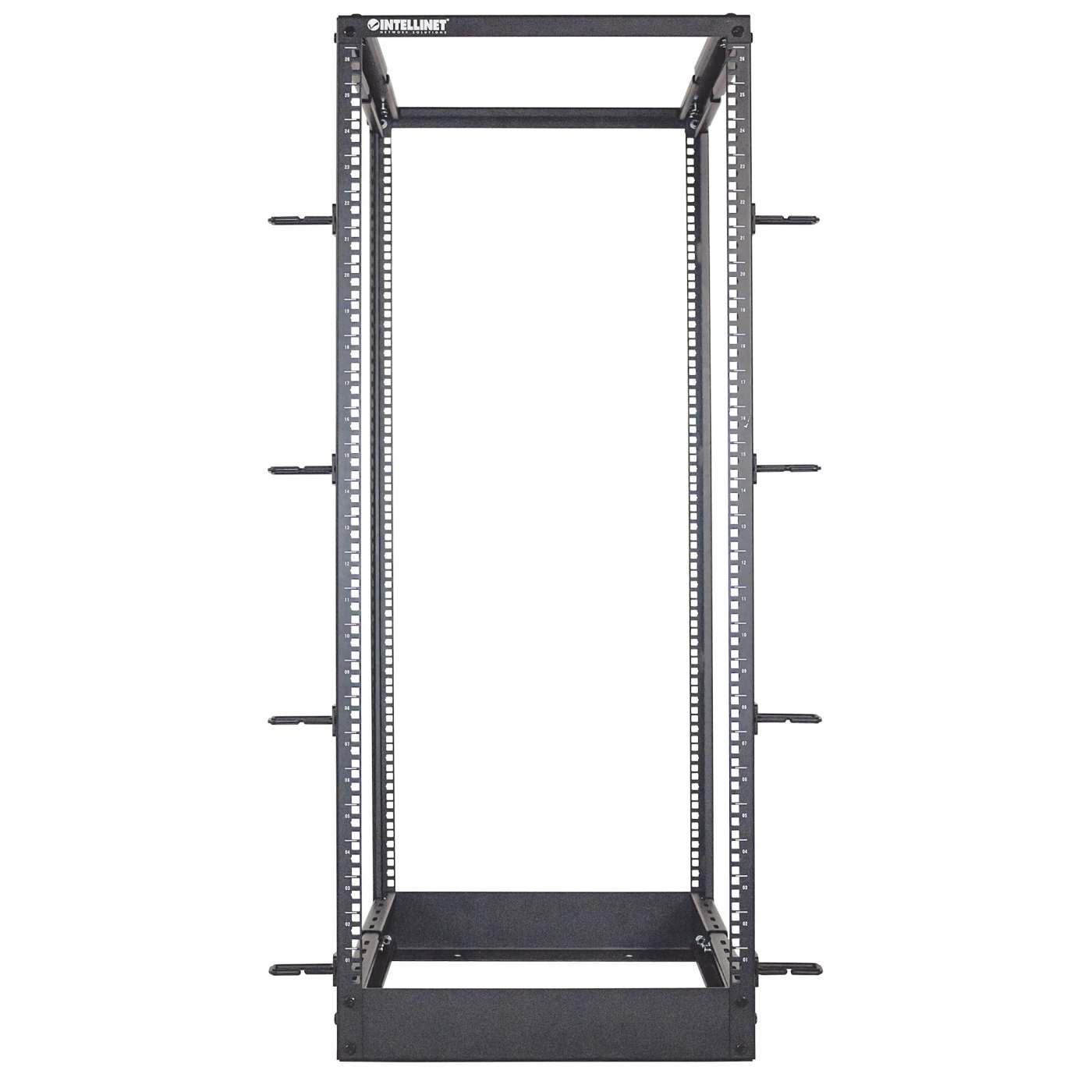

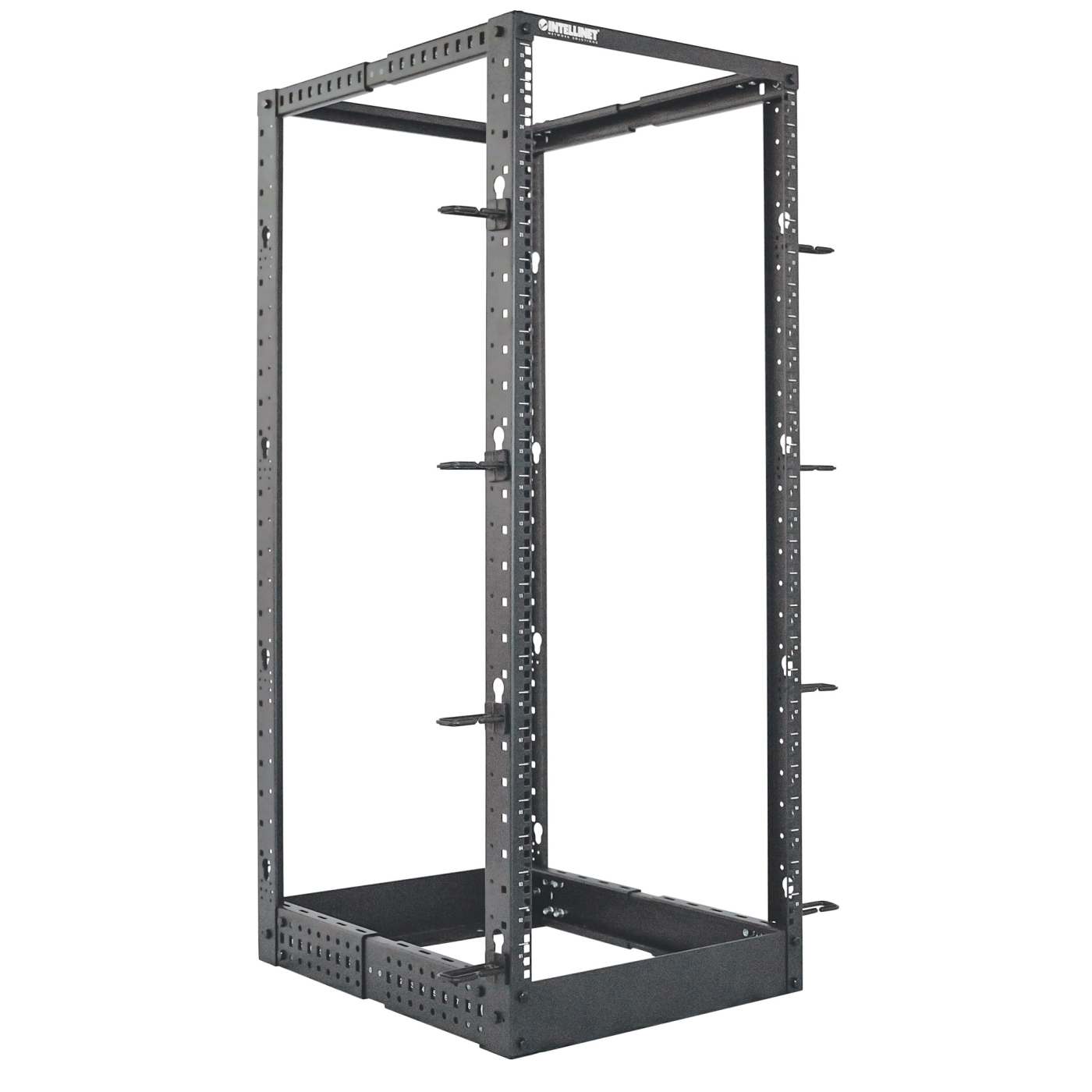

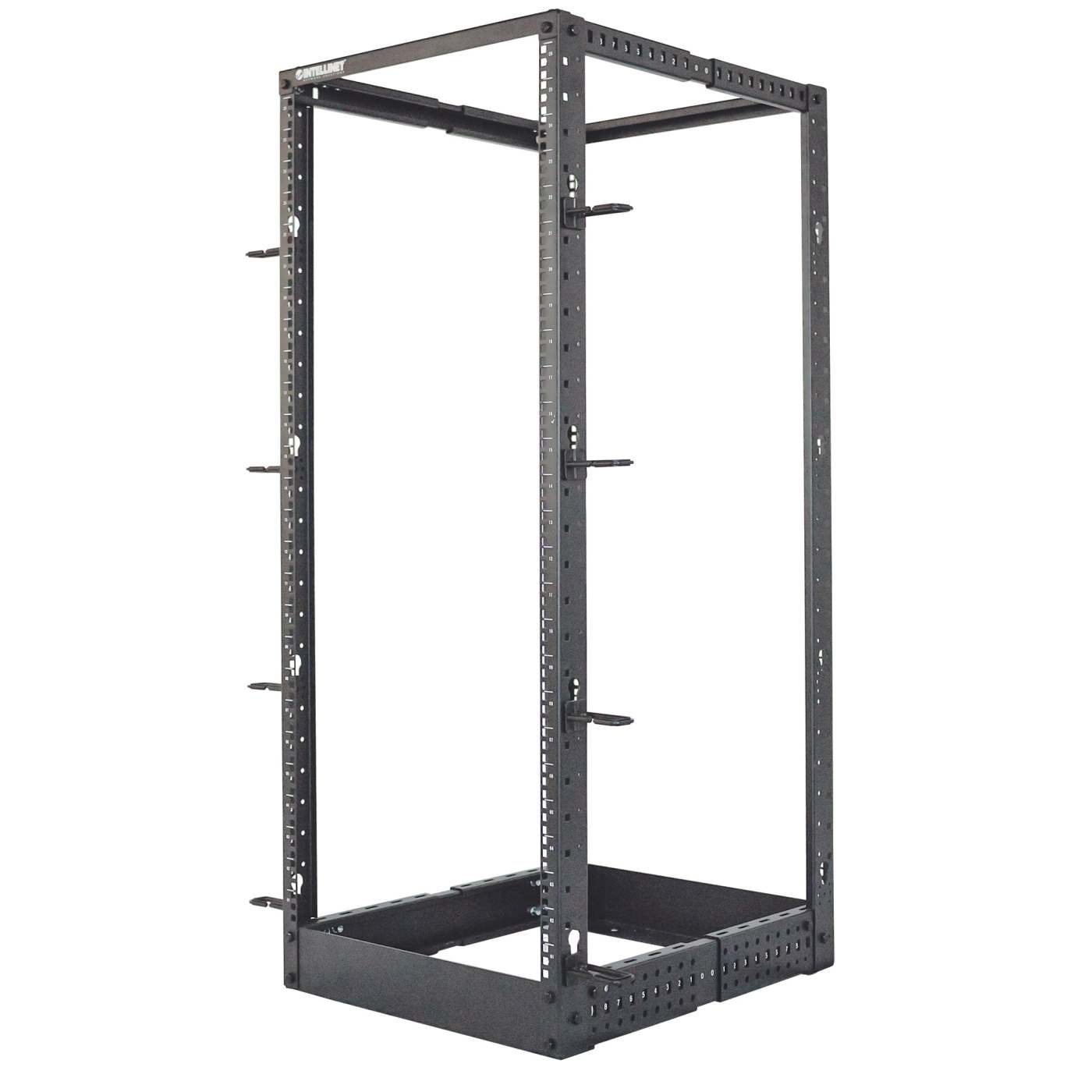

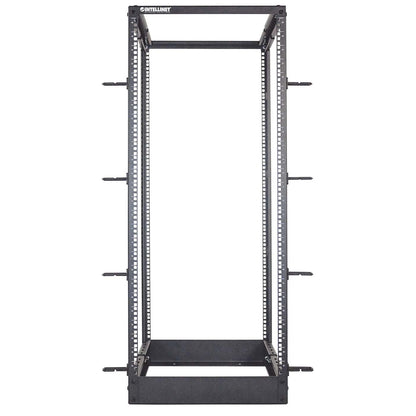

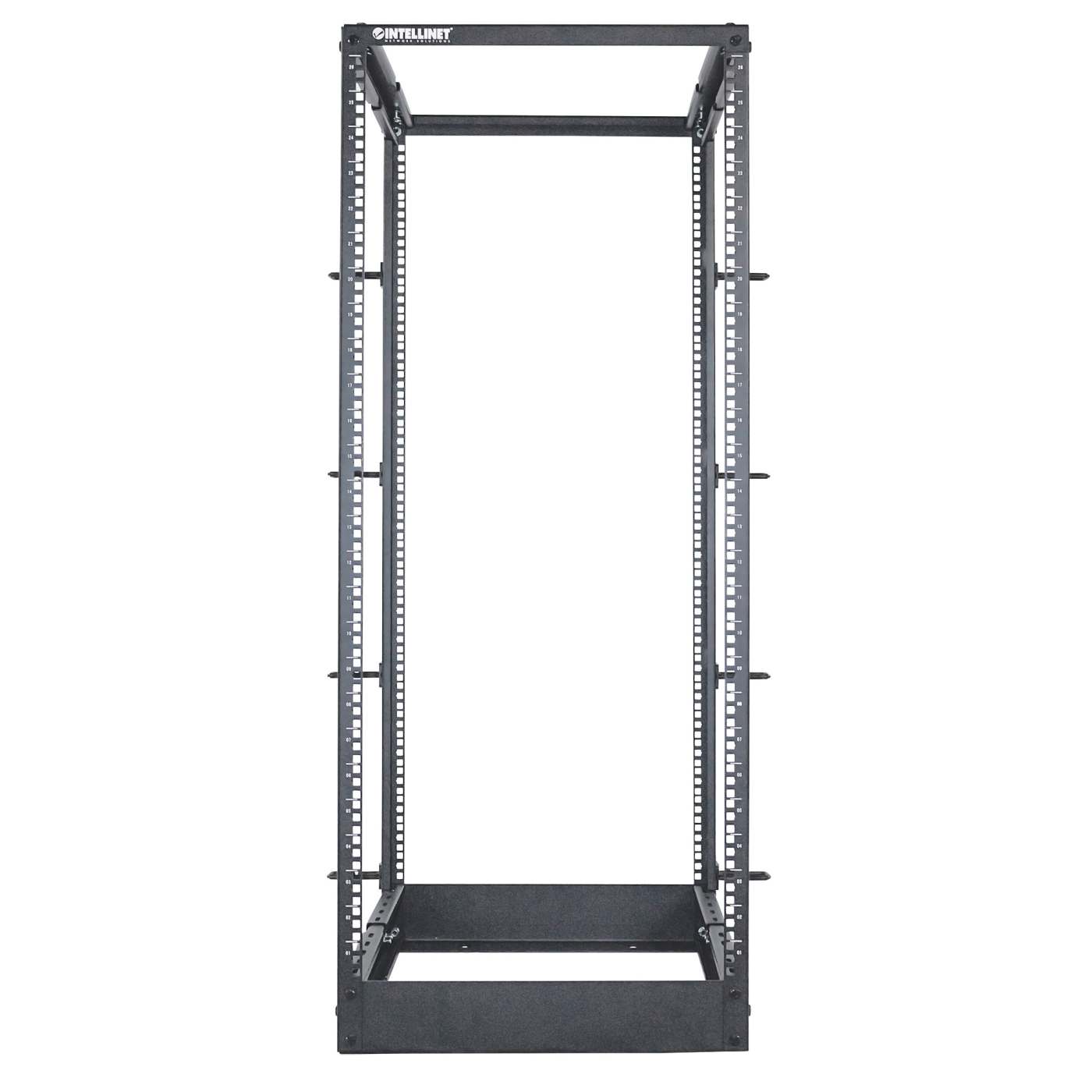

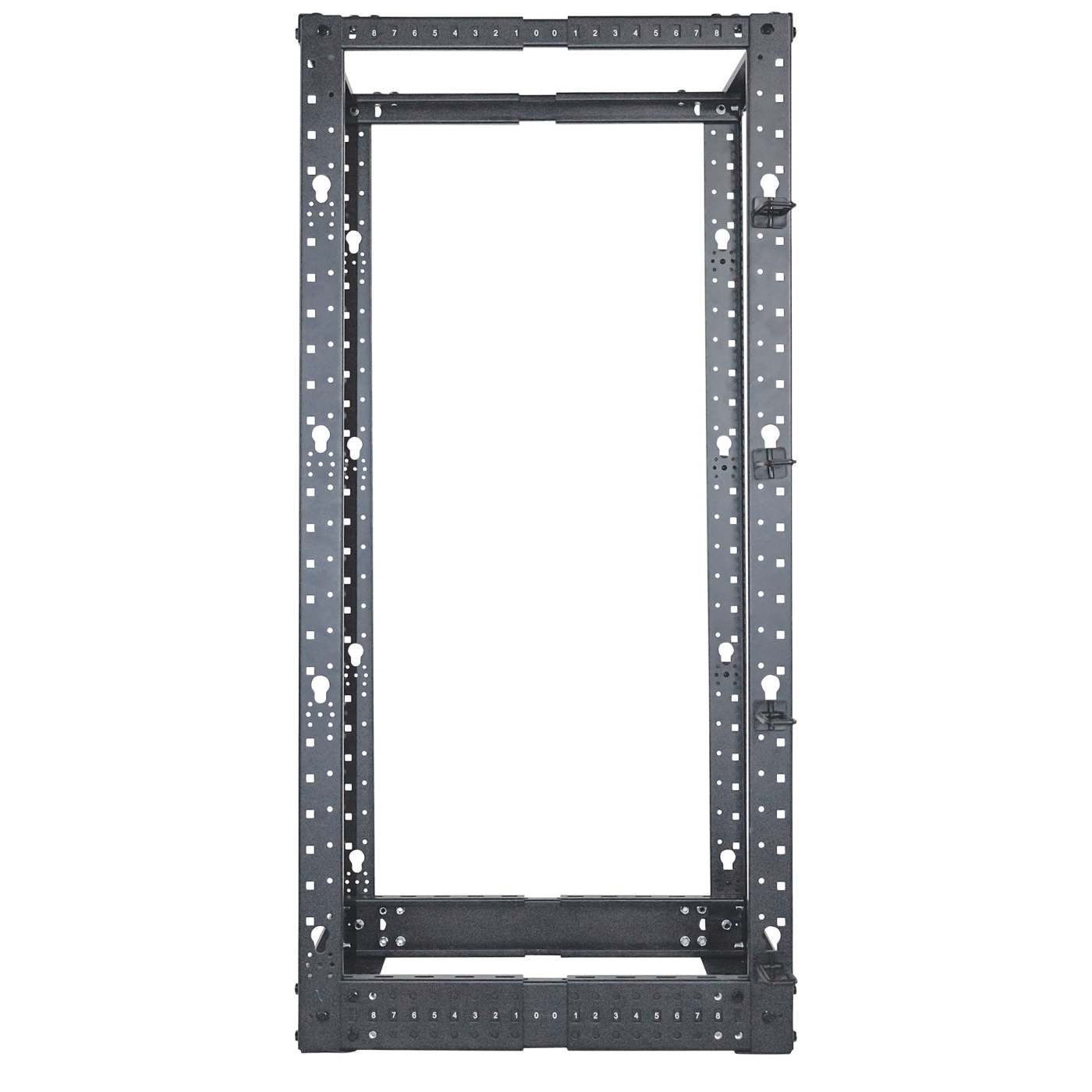

Intellinet Network Solutions 4 Post Open Frame Racks provide a sturdy, low-cost solution to support large rackmount equipment. Whether for servers, telecom equipment or other network facilities, the rack provides the strength and stability of an enclosure with easy access to the equipment and cabling.
- Ideal for all 19 in. rackmount applications
- Fast Installation
- Maximum static load of 360 kg (790 lbs.)
- Adjustable depth from 559 to 1016 mm (22 to 40 in.)
- Option to use casters, feet or to bolt to floor
- Ships flatpacked
- Three-Year Warranty
- General
- 19 in.
- Height: 48U
- Color: Black RAL9005

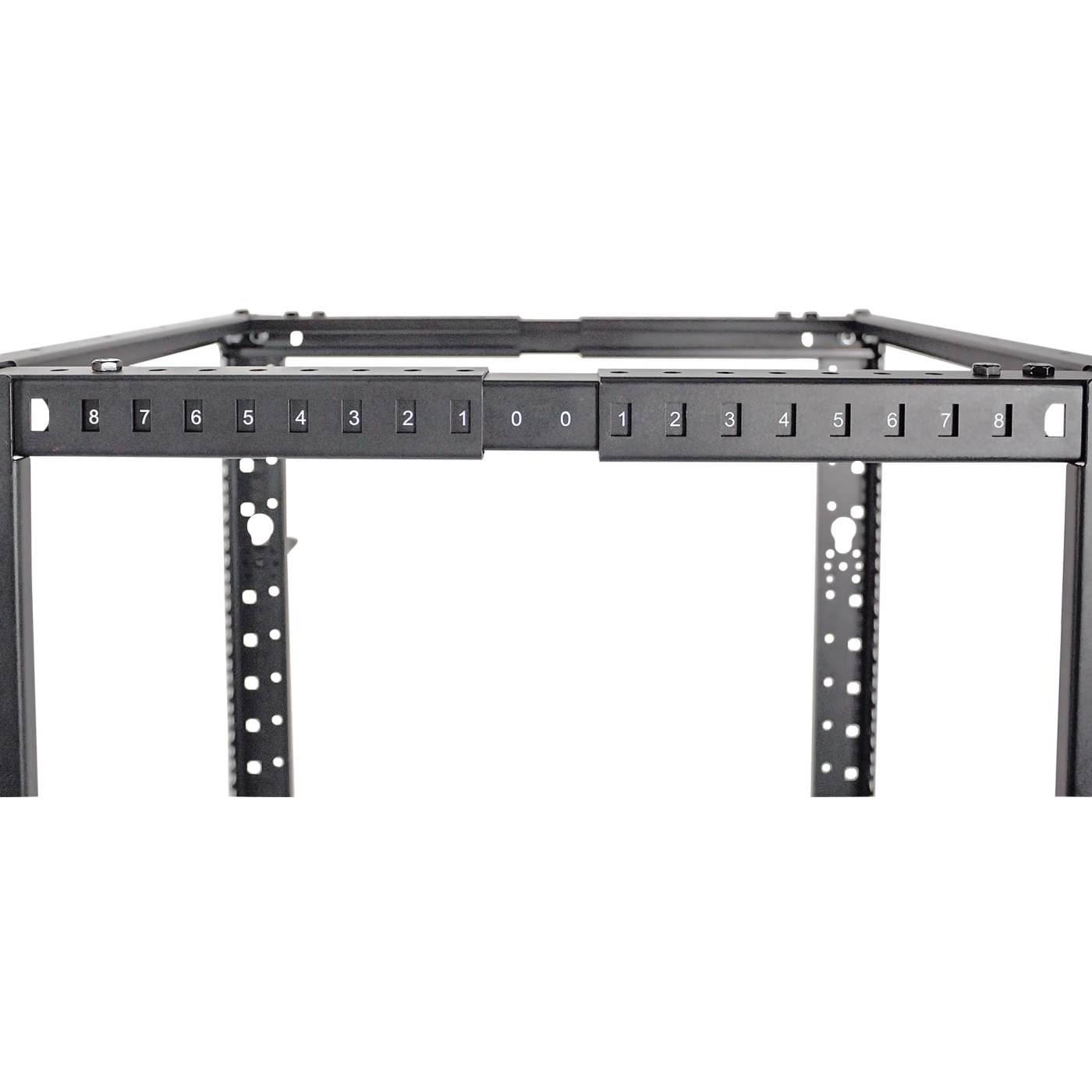

- Depth adjustable 22 to 40 inches (in 1-inch increments)
Physical
- 558.8 (L) x 514.5 (W) x 2273.1 (H) [mm]
- 22 (L) x 20.26 (W) x 89.49 (H) [in]
- Maximum static load: 360 kg (790 lbs.)
Package Contents
- Flatpacked Four-Post Open-Frame Rack
- Four casters
- Four adjustable supporting feet

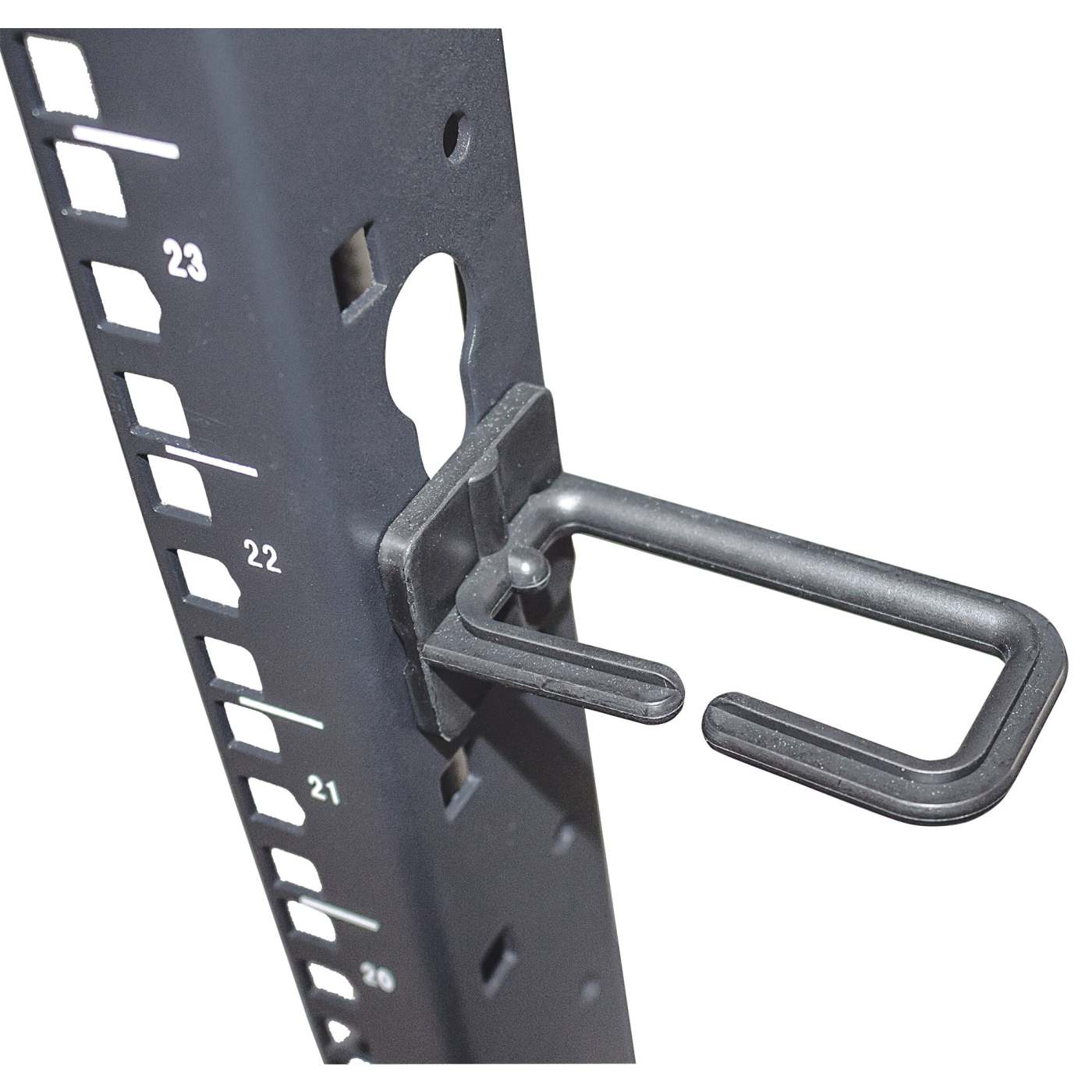

- Twenty Four cable-management hooks
- Assembly bolts, washers and nuts
- Assembly instructions
Additional SKUs
- EAN: 0766623714419
- UPC: 766623714419
- ALSO: 2895378
- API: 243528
Physical Specifications
- Product net weight: 32 kg
- Product gross weight: 33 kg
- Dimensions: 558.8 (L) x 514.5 (W) x 2273.1 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 2325 x 240 x 150 [mm]
- Master Carton Quantity: 1
- Master Carton Weight: 32.60 kg
- Master Carton Dimensions: 2325 x 240 x 150 [mm]
