19" Basic Wallmount Cabinet, 6U, 400 mm Depth, Black

19" Basic Wallmount Cabinet, 6U, 400 mm Depth, Black

IP20-Rated Housing, Flat Pack, Steel Panels, Maximum Static Load 50 kg, Reversible Front Door

Part-No.: 714143

Highlights

  • Ideal for 19" rackmount applications
  • Protection grade: IP20
  • Maximum static load of 50 kg
[ view high resolution images ]

Future arrivals:

#
Quantity
Arrival Date
1
100
2025-09-08
2
12
2025-09-08

View full details

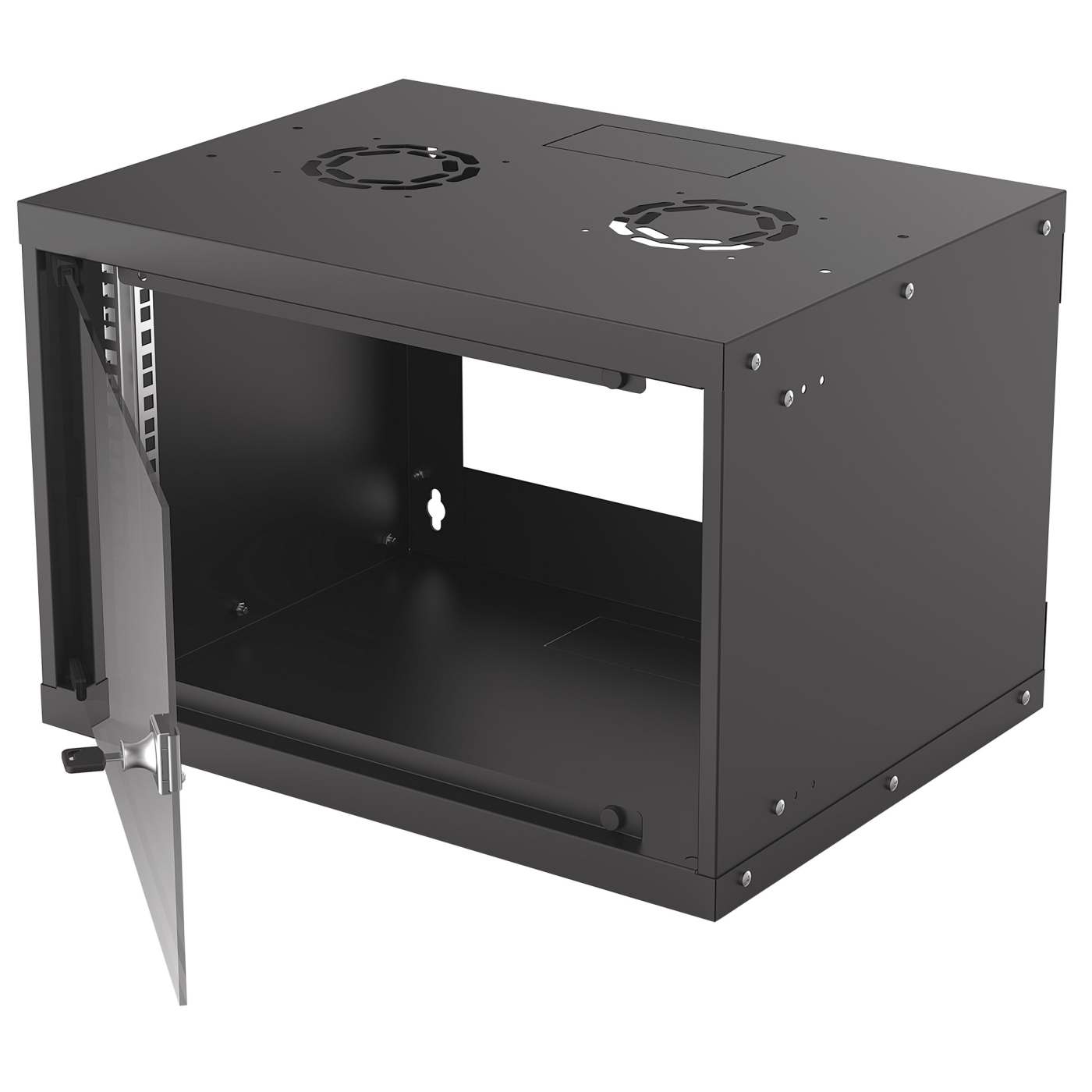

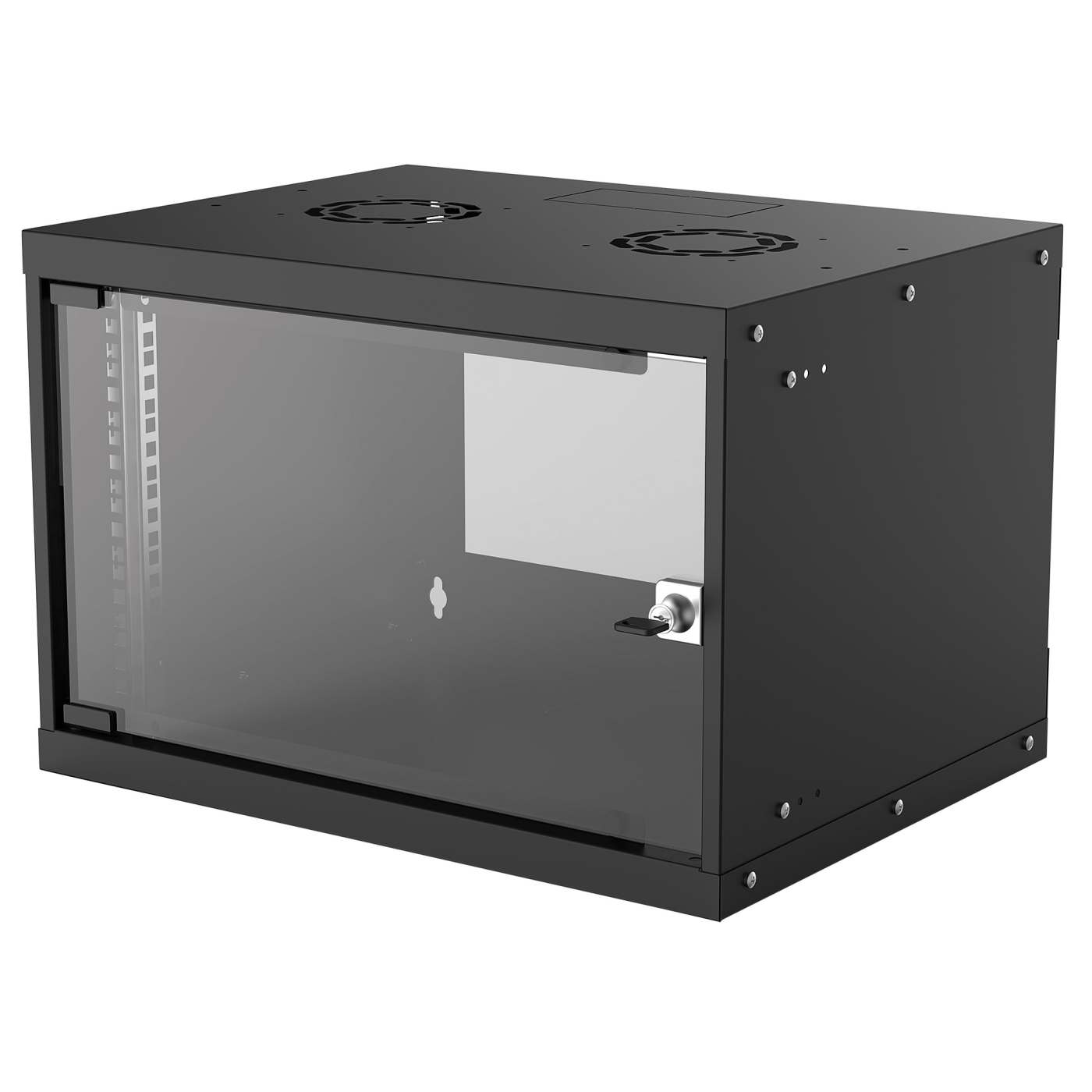

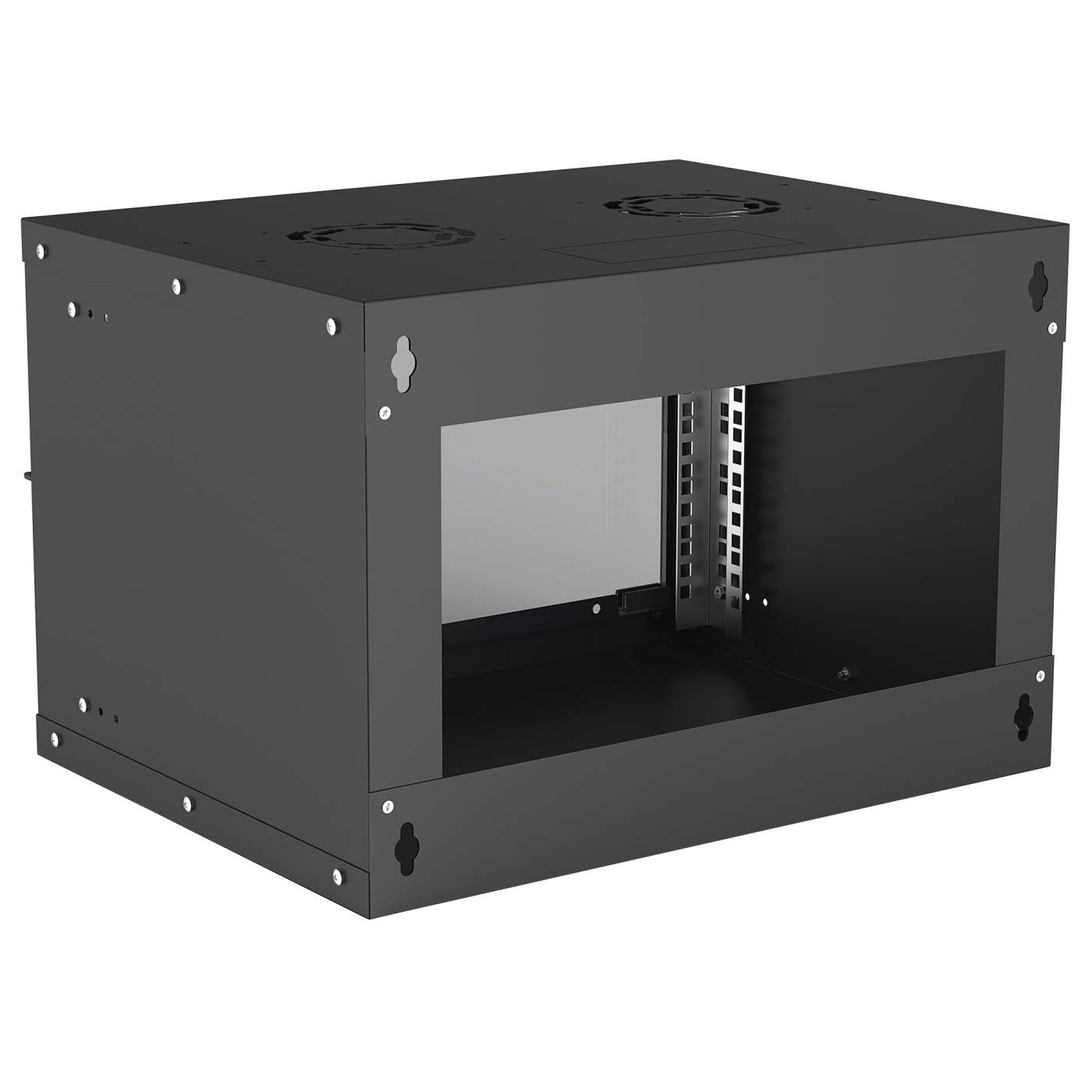

The Intellinet Network Solutions Basic Wallmount Cabinet provides a low-cost yet highly effective solution for protecting network equipment and securing its installation. An IP20 rating is achieved with cold-rolled, galvanized steel and a reversible, tempered-glass door that allows for easy access in limited-space environments. Available in black or gray at 6U or 9U heights and common, device-friendly depths, the Intellinet Network Solutions Basic Wallmount Cabinet is sure to accommodate and protect network equipment while complementing the network space and its surrounding environment.

  • Ideal for 19" rackmount applications
  • Protection grade: IP20
  • Maximum static load of 50 kg
  • Usable depth: 340 mm (13.39 in.)
  • Reversible Front door
  • Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
  • Ships flatpacked
  • Three-Year Warranty

    General
  • 19 in.
  • Height: 6U
  • Color: Black RAL9005
  • Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

    Dimensions
  • 400 (L) x 540 (W) x 353 (H) [mm]
  • 15.75 (L) x 21.26 (W) x 13.9 (H) [in]
  • Horizontal distance between wall-mount screw holes: 488 mm (19.21 in.)
  • Vertical distance between wall-mount screw holes: 278.8 mm (10.98 in.)

    Package Contents
  • Flat Pack Wallmount
  • Installation Instructions

  • Additional SKUs

    • Amazon ASIN: B0755C5G96
    • EAN: 0766623714143
    • UPC: 766623714143
    • ALSO: 2893670
    • API: 240548

  • Physical Specifications

    • Product net weight: 8.91 kg
    • Dimensions: 400 (L) x 540 (W) x 353 (H) [mm]
    • Packaging type: Brown Box
    • Packaging dimensions: 500 x 600 x 170 [mm]
    • Master Carton Quantity: 1
    • Master Carton Weight: 12.00 kg
    • Master Carton Dimensions: 500 x 600 x 170 [mm]

  • Datasheet
    • Datasheet     » Download

    • Declaration of Conformity     » Download

    • Technical Drawing     » Download


  • Manual
    • Assembly instructions, English     » Download

    • Montageanleitung, deutsch     » Download
