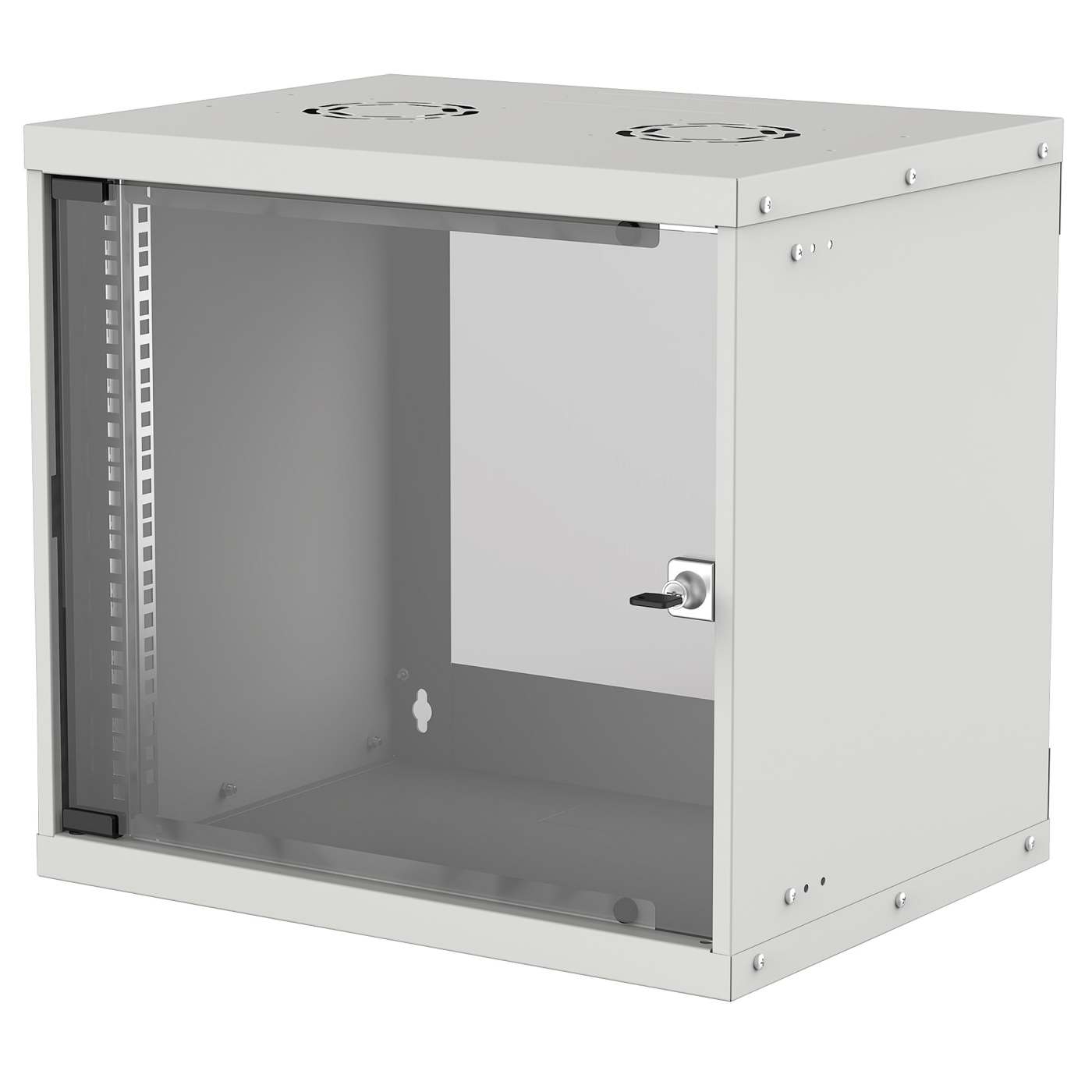

The Intellinet Network Solutions Basic Wallmount Cabinet provides a low-cost yet highly effective solution for protecting network equipment and securing its installation. An IP20 rating is achieved with cold-rolled, galvanized steel and a reversible, tempered-glass door that allows for easy access in limited-space environments. Available in black or gray at 6U or 9U heights and common, device-friendly depths, the Intellinet Network Solutions Basic Wallmount Cabinet is sure to accommodate and protect network equipment while complementing the network space and its surrounding environment.
- High-quality basic wallmount
- Ideal for 19" rackmount applications
- Protection grade: IP20
- Maximum static load of 50 kg
- Usable depth: 500 mm (19.69 in.)
- Reversible Front door
- Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
- Ships flatpacked
- Three-Year Warranty
- General
- 19 in.
- Height: 9U
- Color: Gray RAL7035
- Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Dimensions
- 560 (L) x 540 (W) x 487 (H) [mm]
- 22.05 (L) x 21.26 (W) x 19.17 (H) [in]
Package Contents
- Flat Pack Wallmount
- Installation Instructions
Additional SKUs
- Amazon ASIN: B075561G5P
- EAN: 0766623714815
- UPC: 766623714815
- ALSO: 2893973
- API: 240573
Physical Specifications
- Product net weight: 13.15 kg
- Dimensions: 560 (L) x 540 (W) x 487 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 600 x 600 x 170 [mm]
- Master Carton Quantity: 1
- Master Carton Weight: 15.00 kg
- Master Carton Dimensions: 600 x 600 x 170 [mm]
