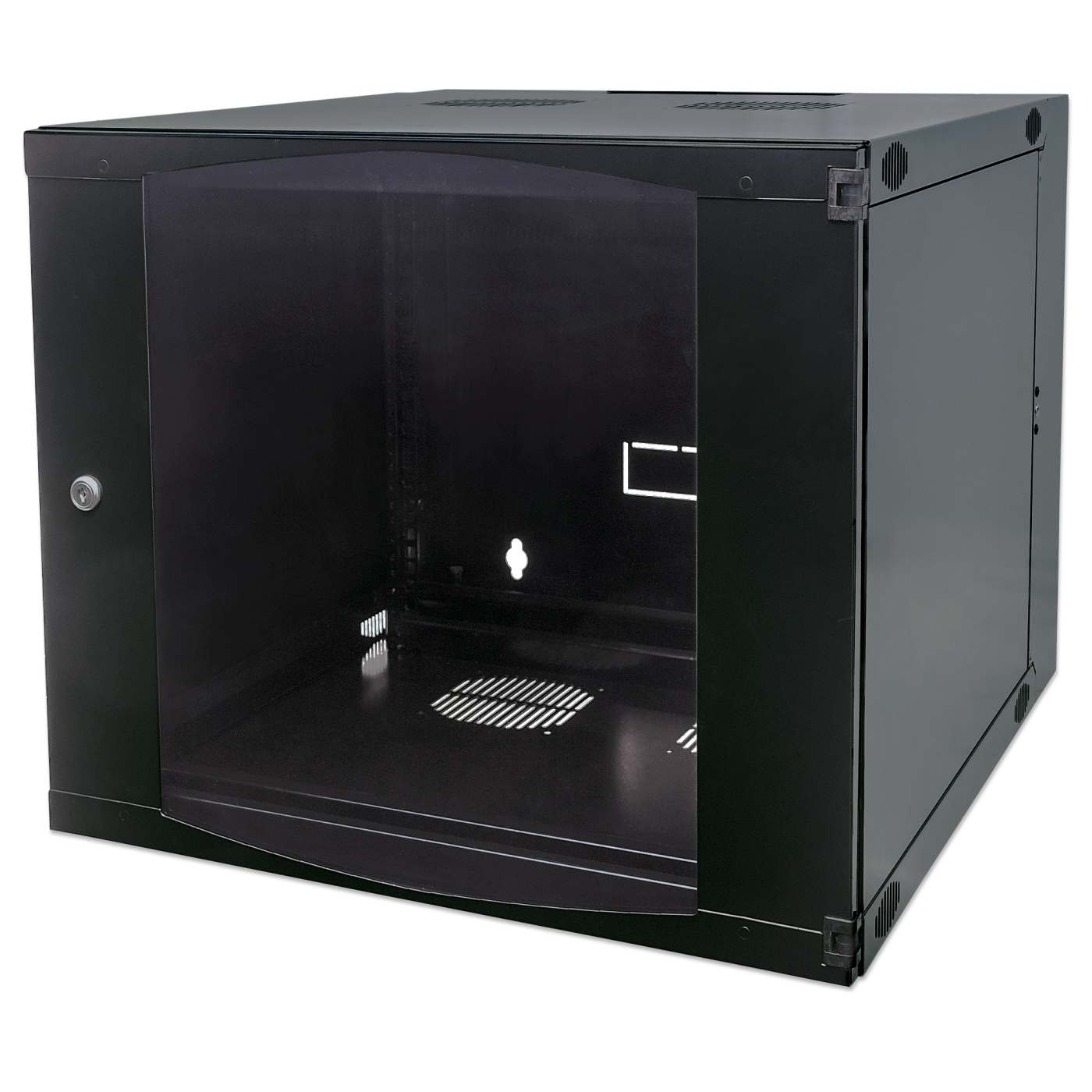

Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. Since they ship flat-pack (unassembled)*, they save you space and money. High quality features include a 4MM toughened glass door and cold-rolled galvanized steel. The rear door access to the back of the cabinet makes cabinet and component exchange a breeze.
*Completely assembled versions are available in certain countries.
- Ideal for 19" rackmount applications
- Maximum static load of 30 kg
- Usable depth: 279 mm (10.98 in.) to 359 mm (14.13 in.)
- Cable entry via rear or top panel
- 4MM toughened glass door

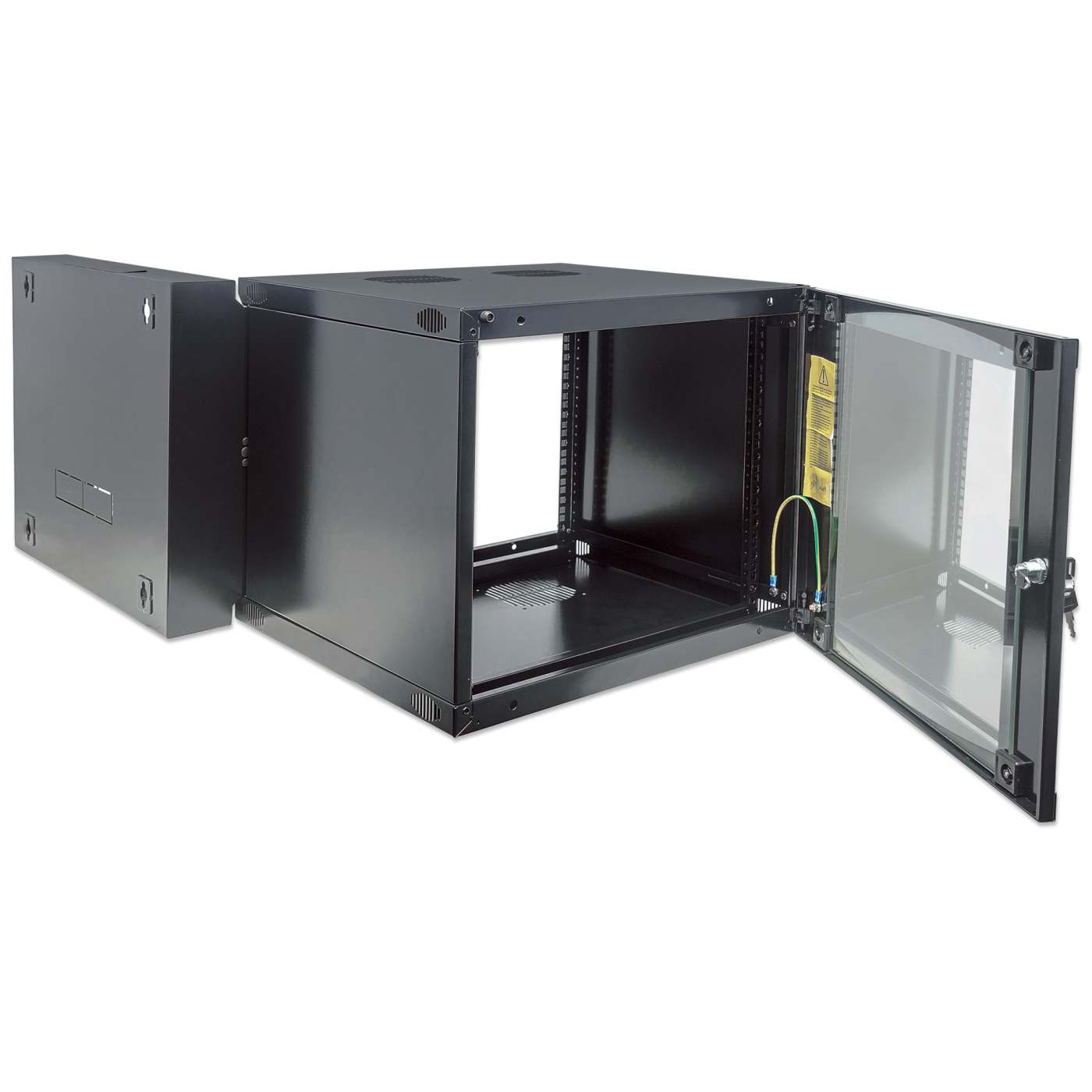

- Rear door for easy access to back of cabinet
- Reversible Front door
- Cold-rolled, galvanized SPCC steel with up to 1.5 mm thickness
- Ships Flatpacked
- Three-Year Warranty
- General
- 19"
- Height: 12U
- Color: Black RAL 9004
- Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Physical
- 593 (h) x 540 (w) x 600 (d) mm
- 23.35 (h) x 21.26 (w) x 23.62 (d) in.
- Usable depth: 279 mm (10.98 in.) to 359 mm (14.13 in.)
- Maximum static load: 30 kg (66 lbs.)
Package Contents
- 2 Rail frames
- Top, Bottom, Front, Back & Side Panels
- Installation hardware including 10x M6 Sets and 2x Keys
Additional SKUs
- Amazon ASIN: B01C7IV7RW
- EAN: 0766623713863
- UPC: 766623713863
- ALSO: 2559211
- API: 194405
Physical Specifications
- Product net weight: 24.5 kg
- Product gross weight: 26.3 kg
- Dimensions: 600 (D) x 540 (W) x 593 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 600 x 290 x 630 [mm]
- Master Carton Quantity: 1
- Master Carton Weight: 24.50 kg
- Master Carton Dimensions: 645 x 310 x 610 [mm]
