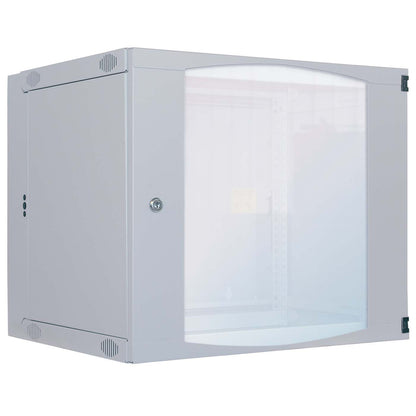

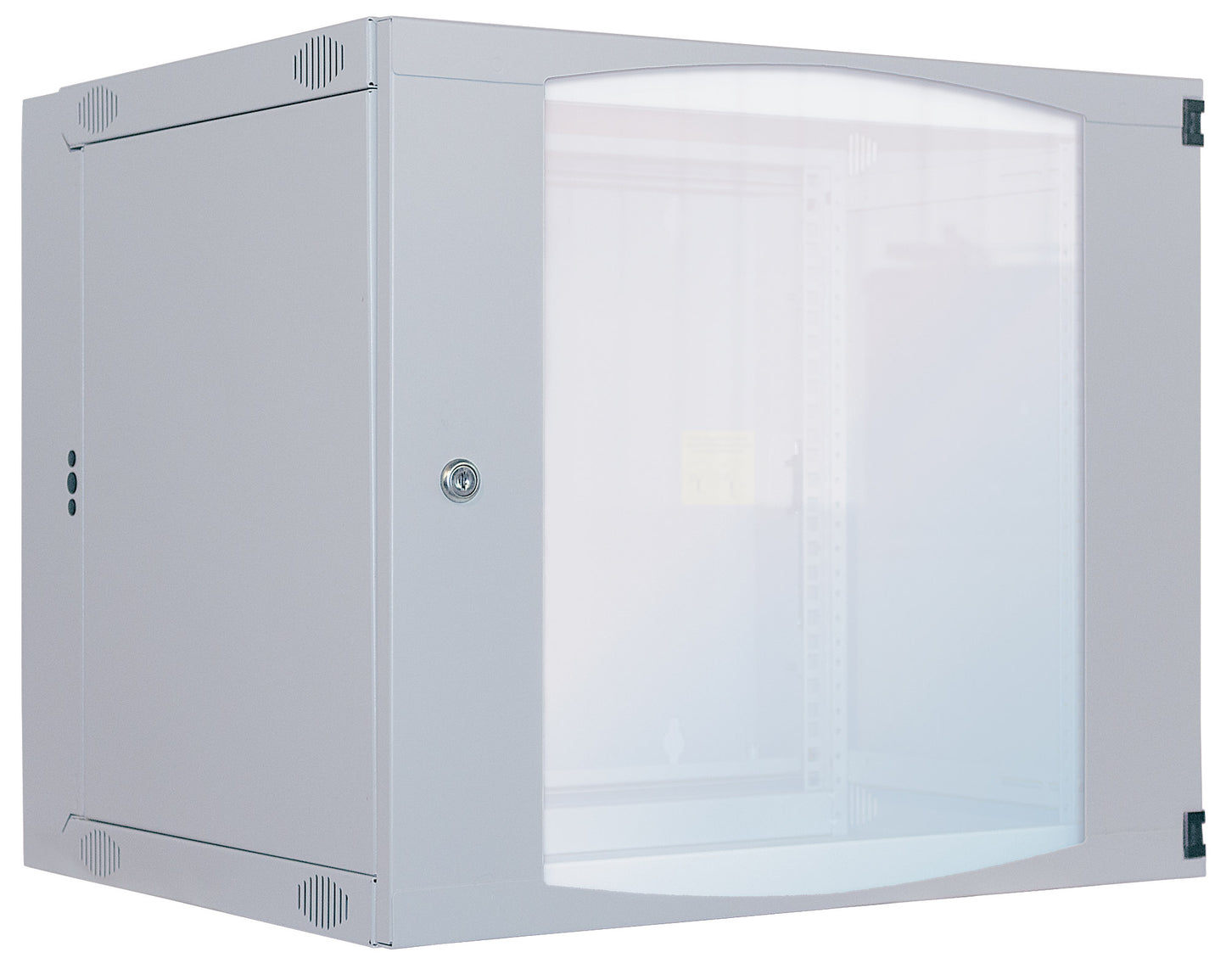

The Intellinet Network Solutions wallmount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flatpack version.

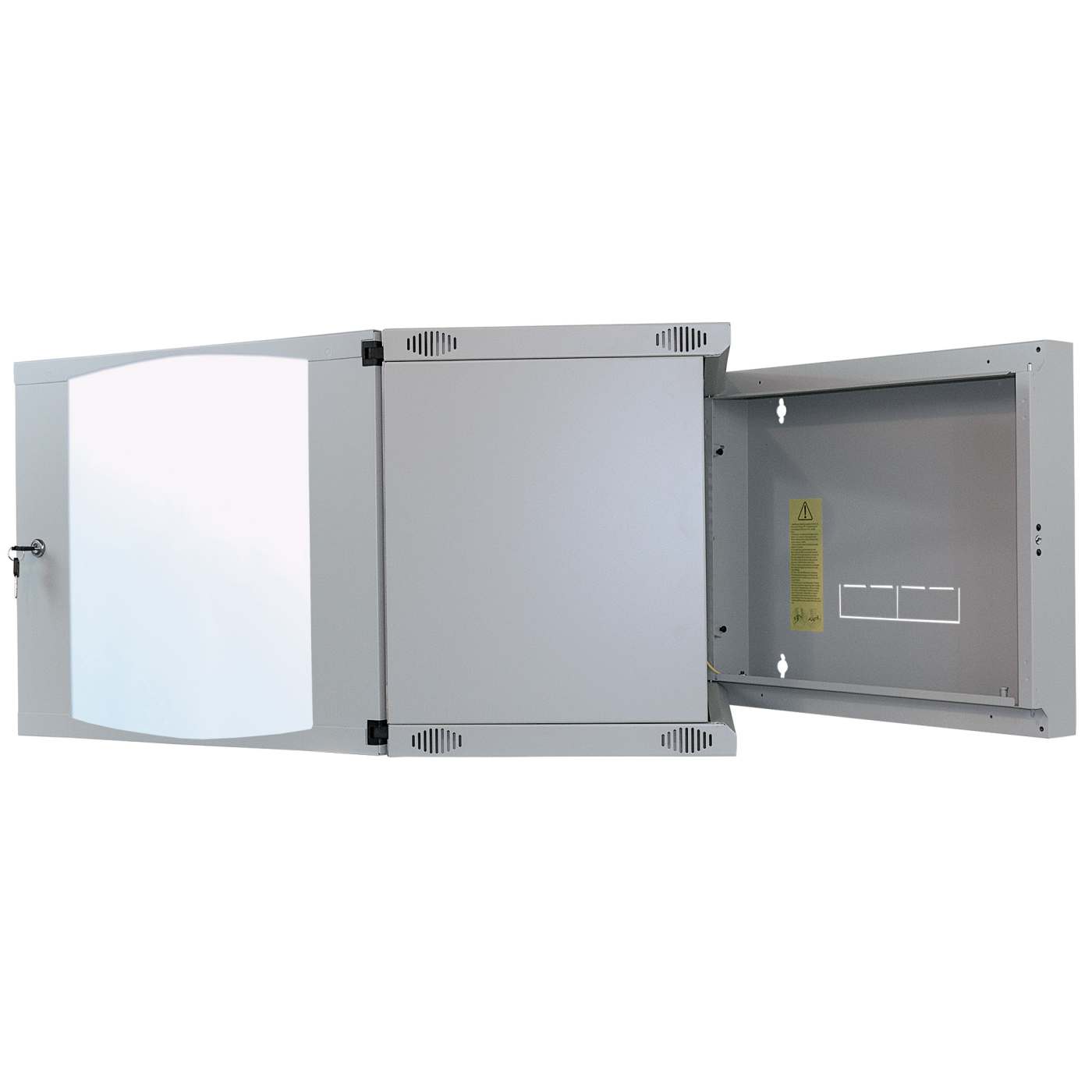

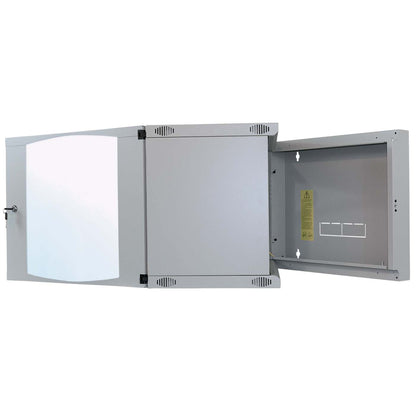

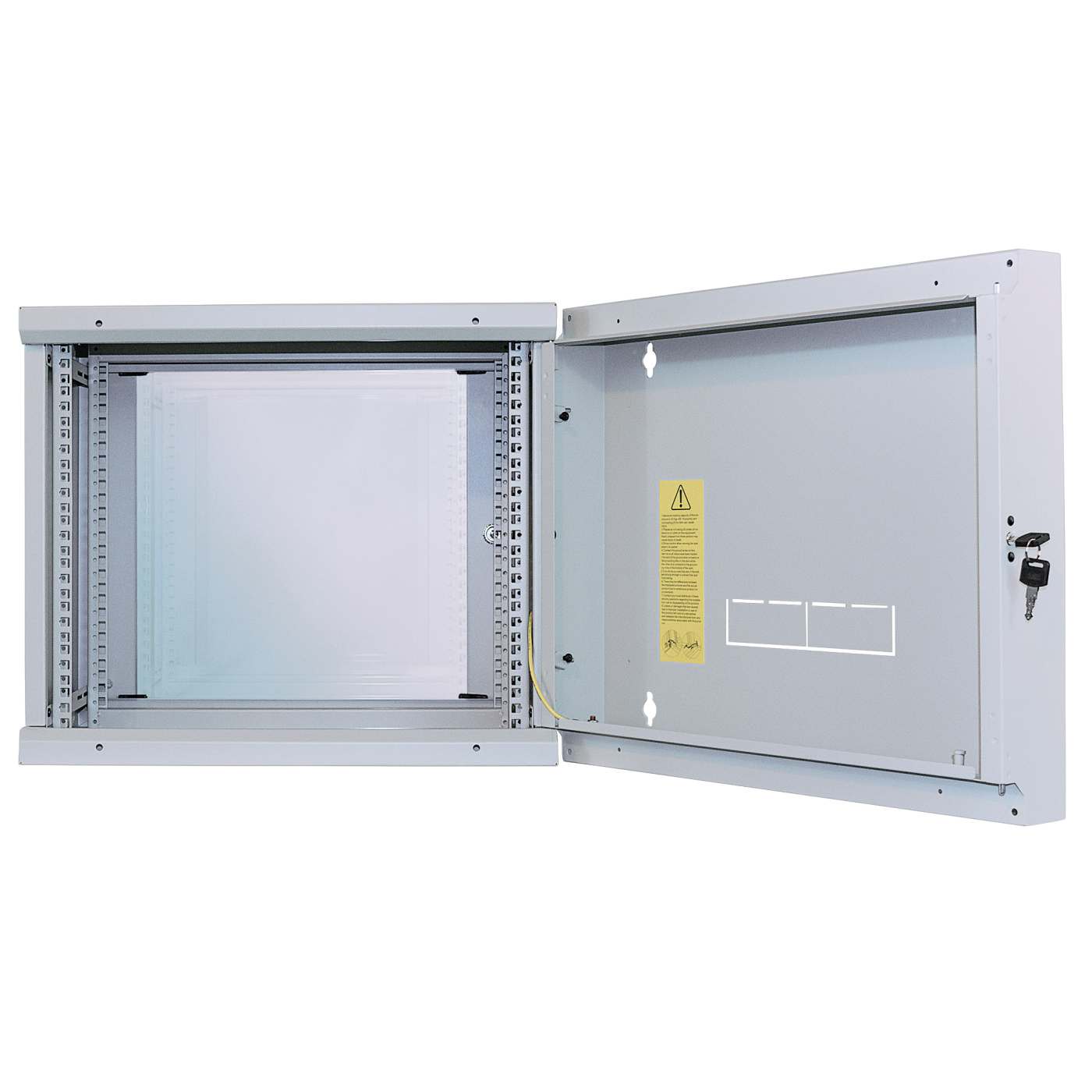

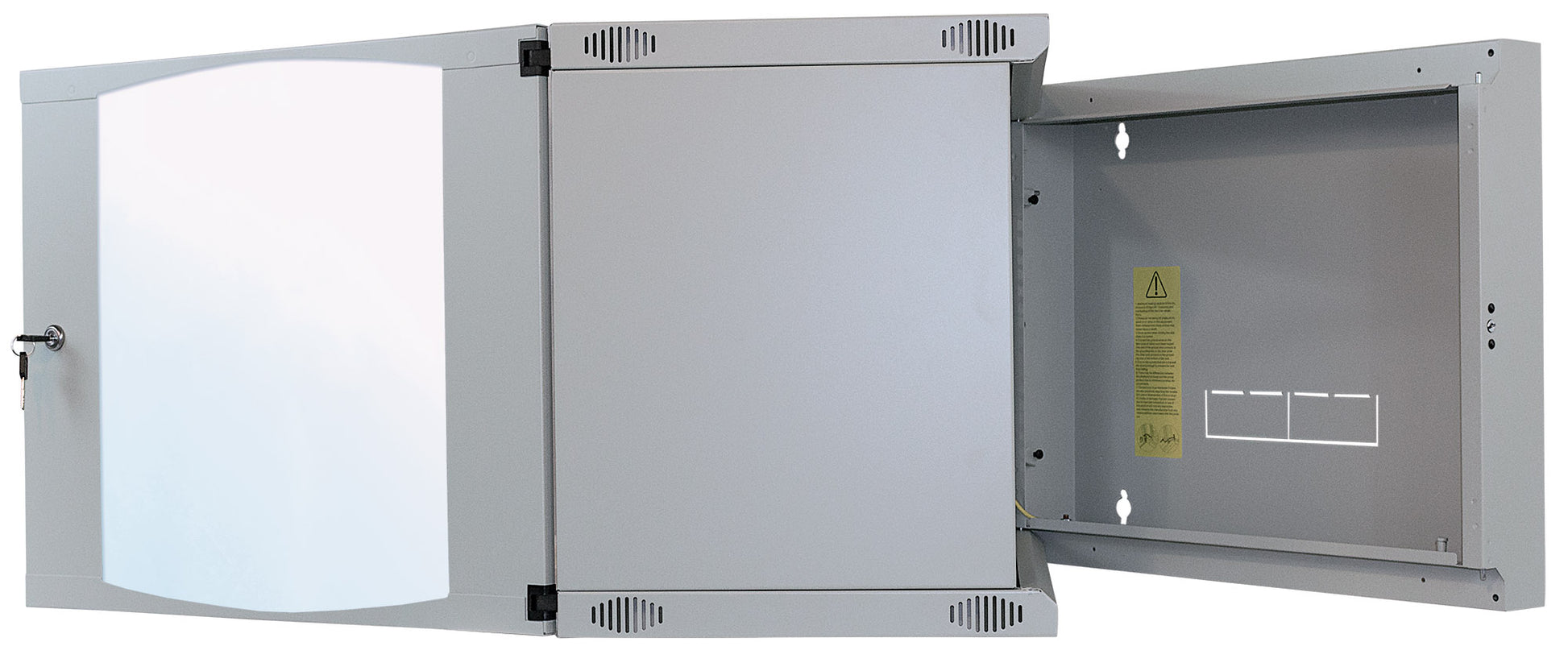

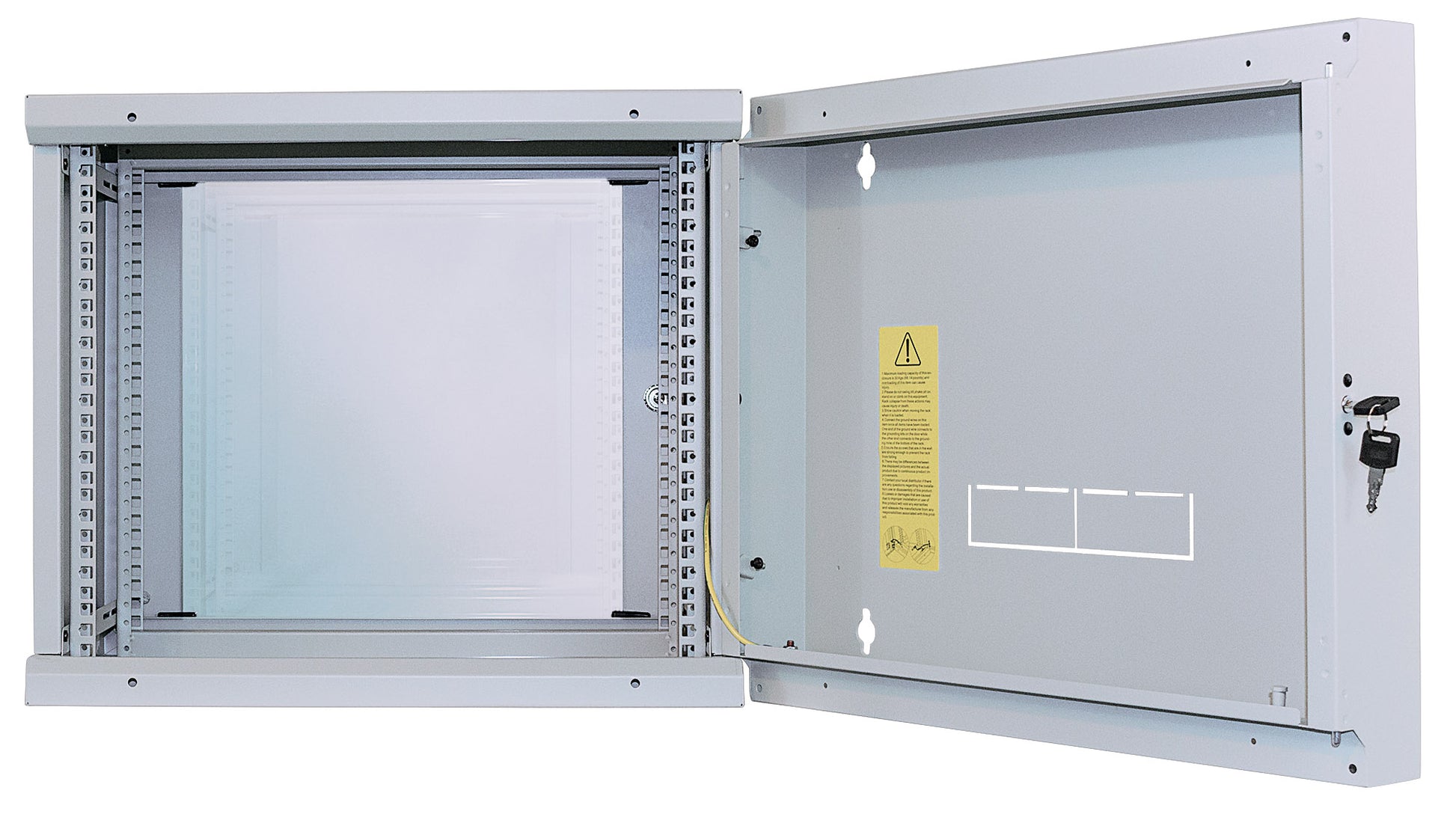

In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. With heights from 6 to 20 units in black (RAL9005), (RAL7021) or gray (RAL7035), we offer you a solution for every need. The removable side panels, the lockable tempered glass-door that can be opened more than 180° and the optional double section make cabling and component exchange particularly easy.
- Ideal for 19" rackmount applications
- Maximum static load of 30 kg
- Usable depth: 129 mm (5.08 in.) to 209 mm (8.23 in.)

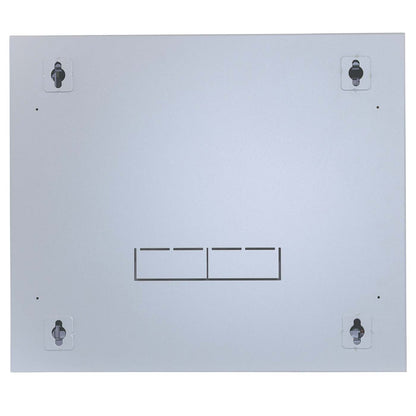

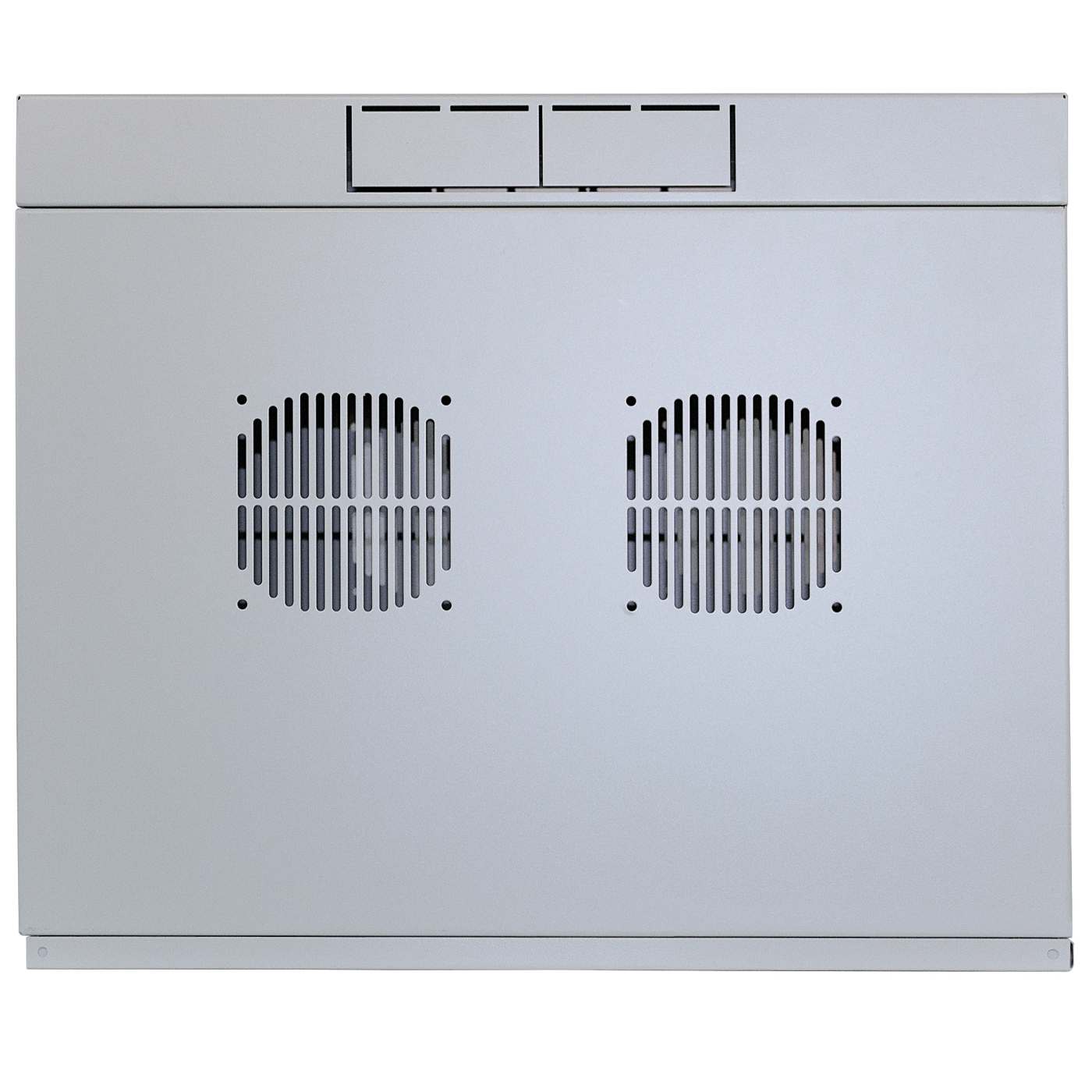

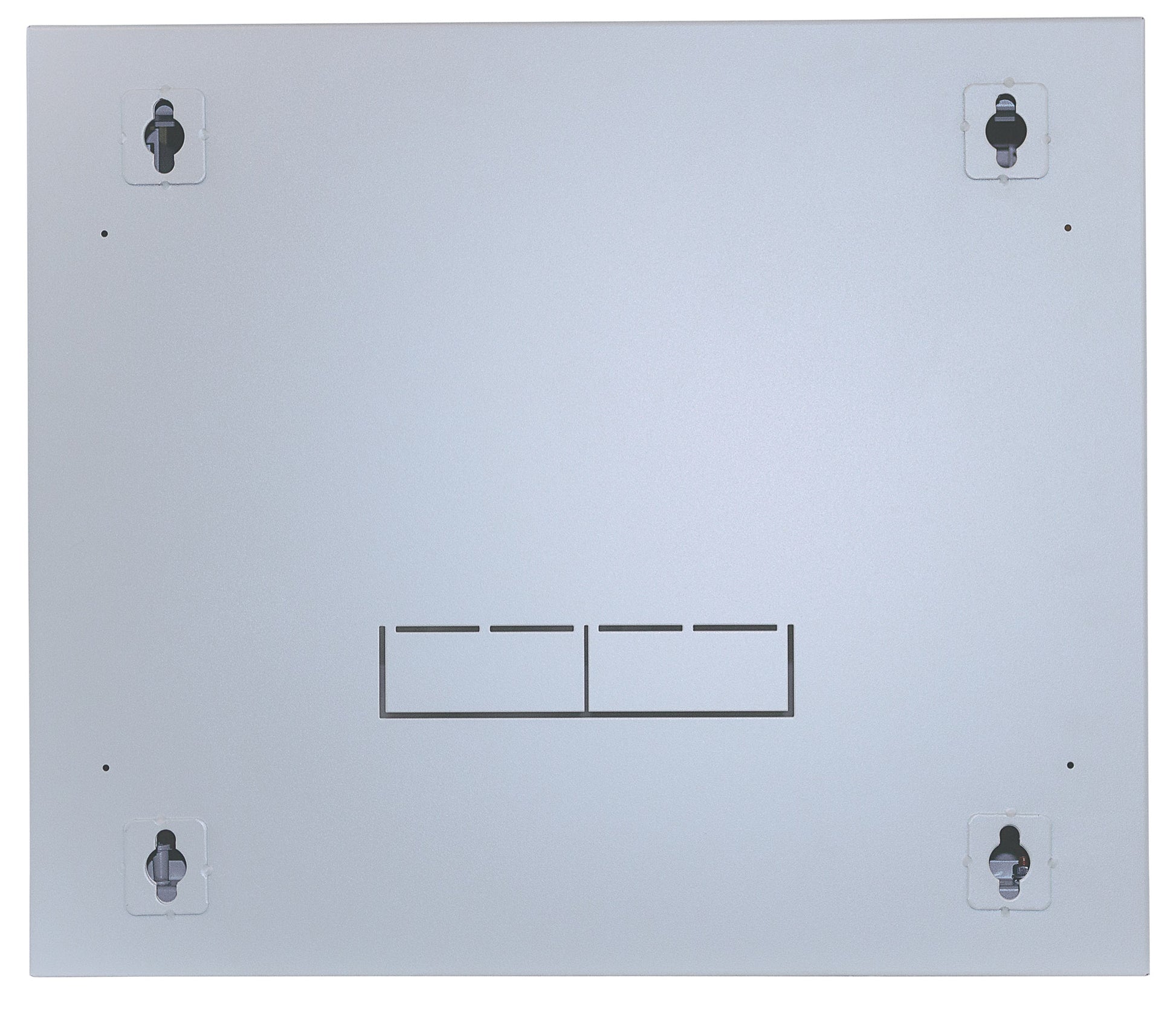

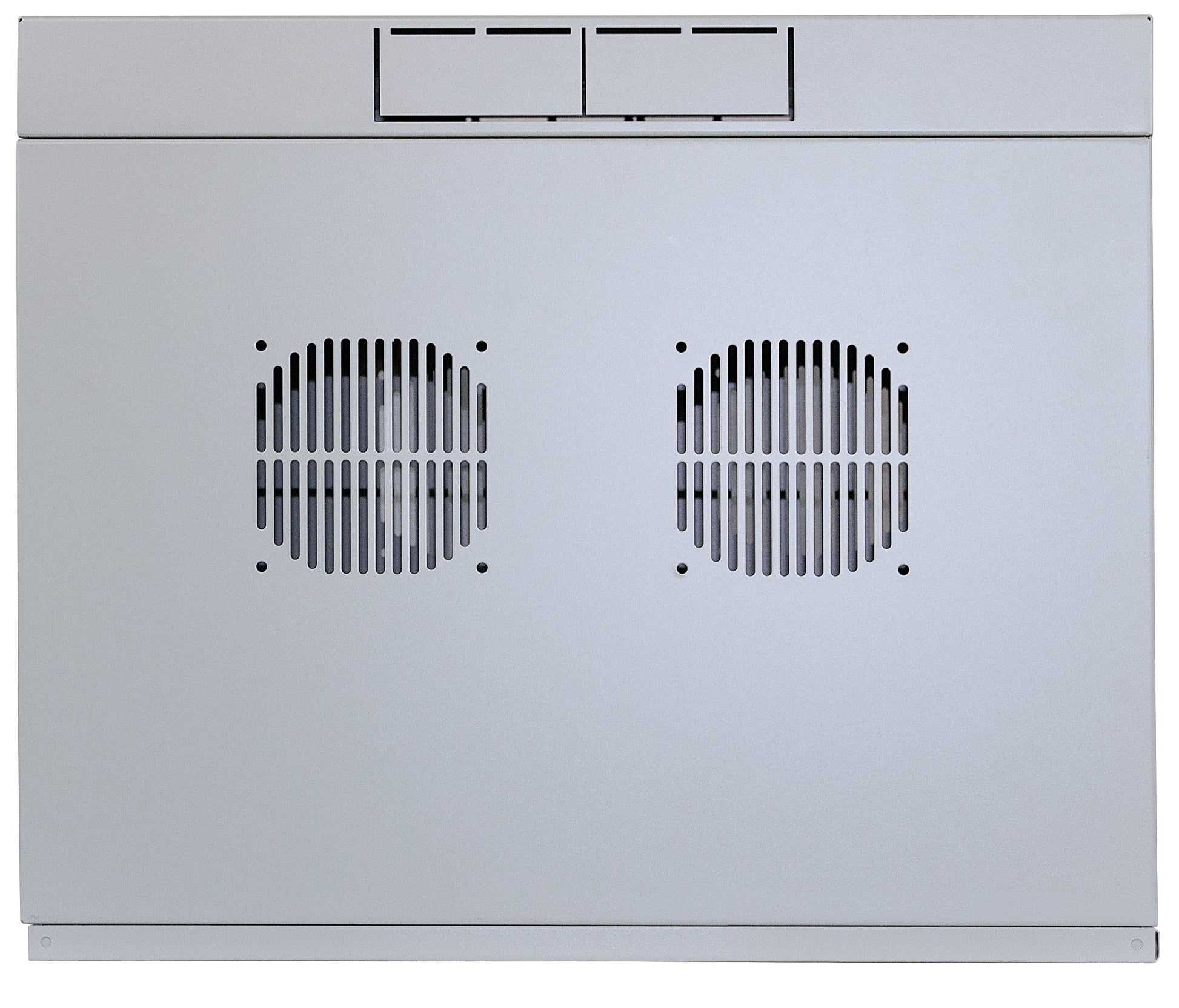

- Cable entry via rear or top panel

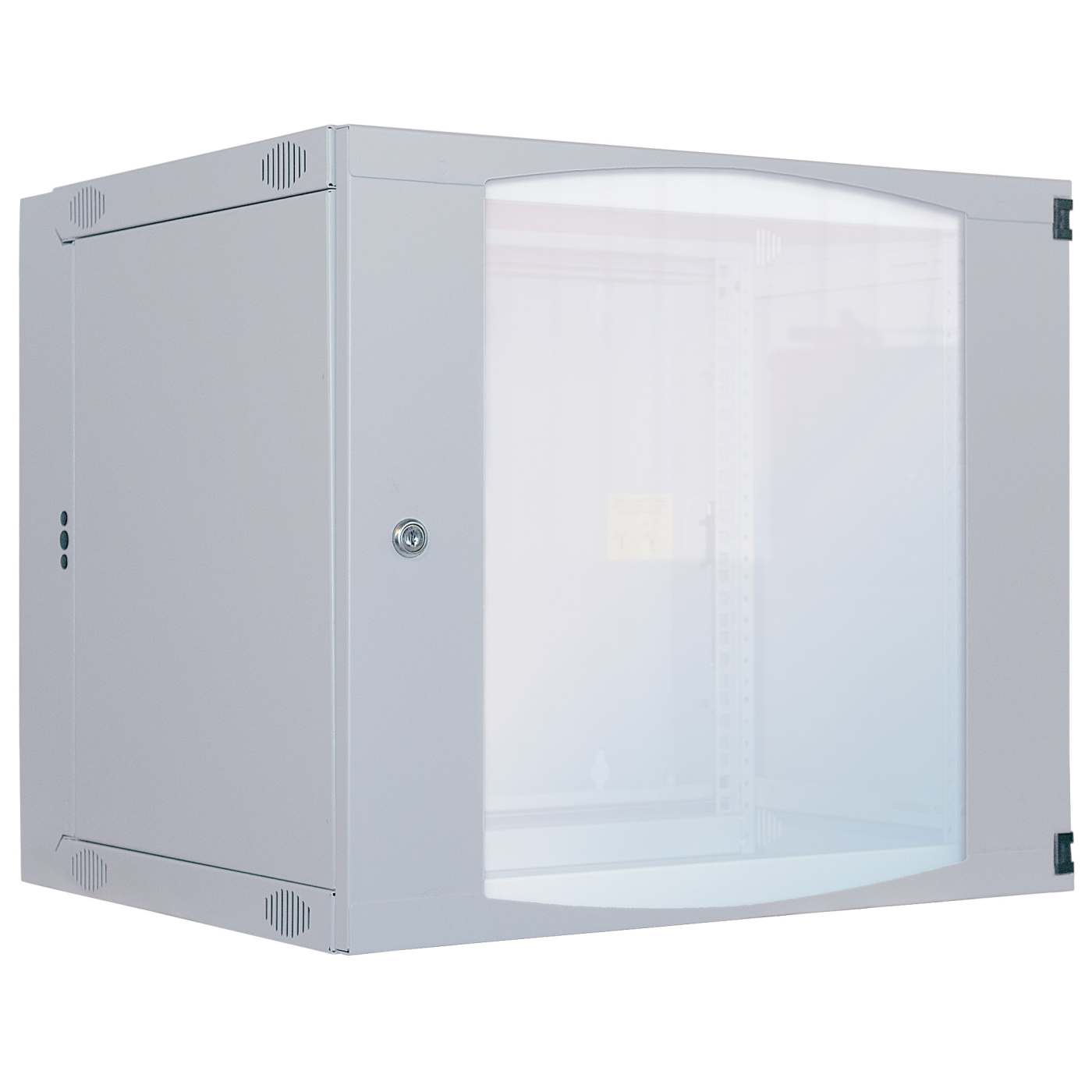

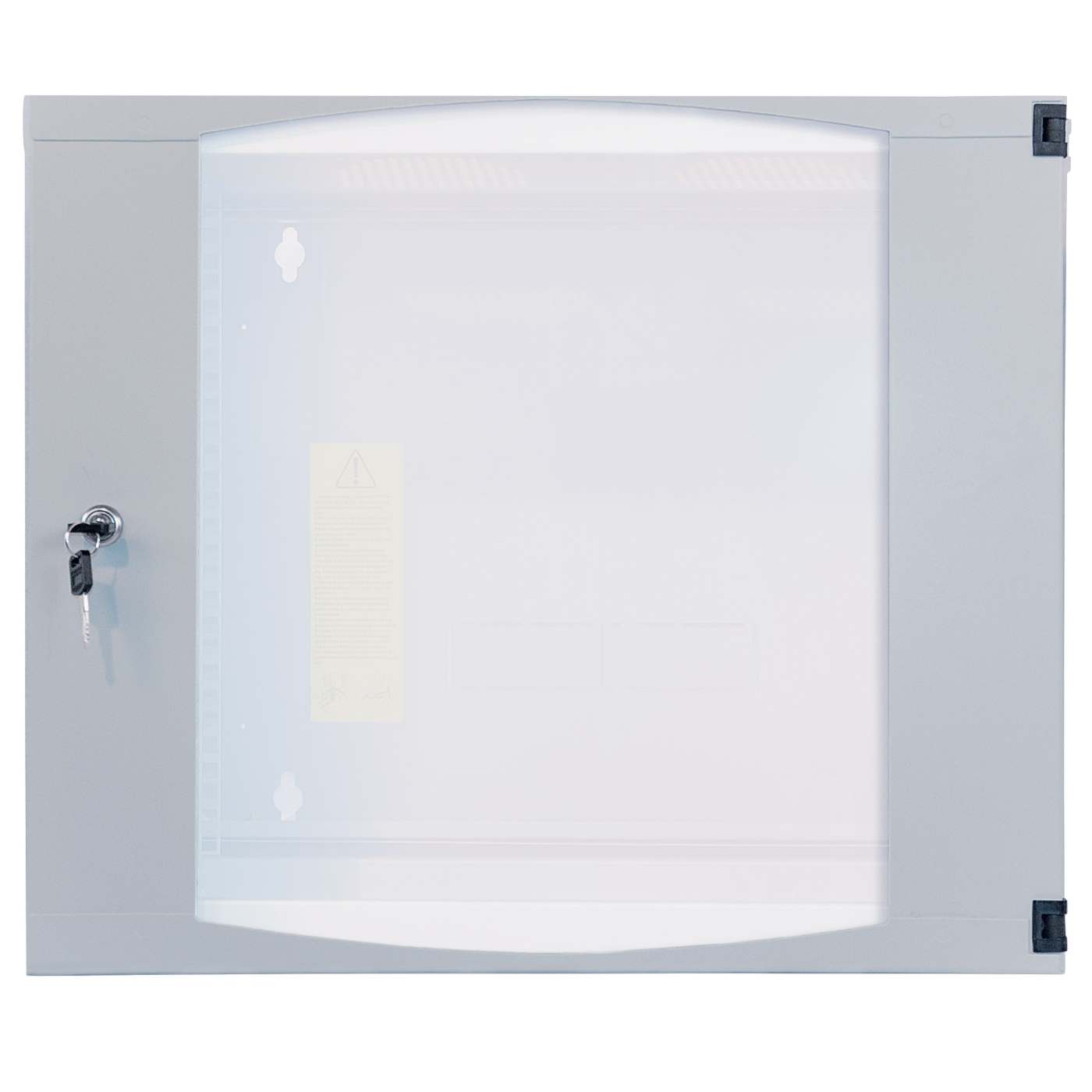

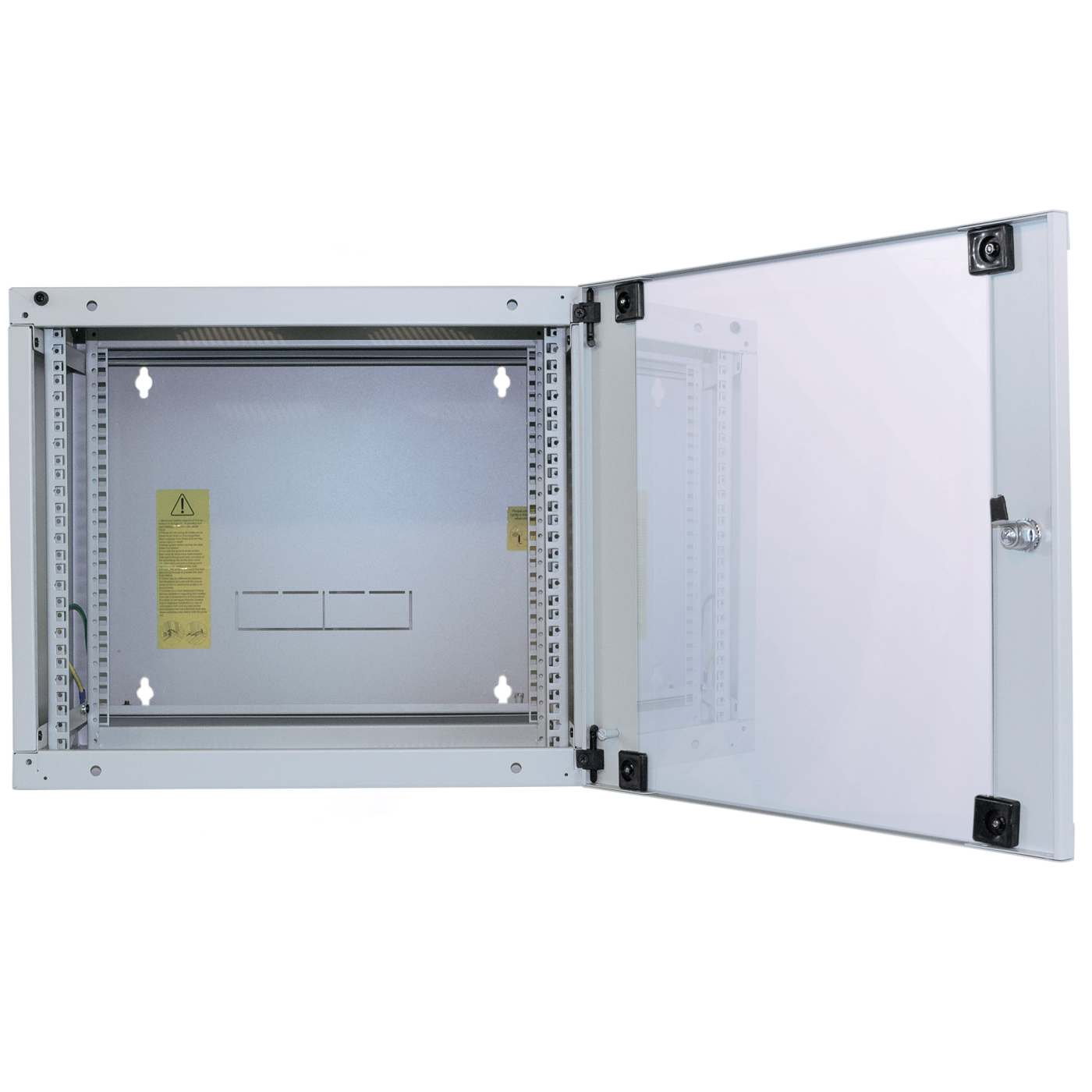

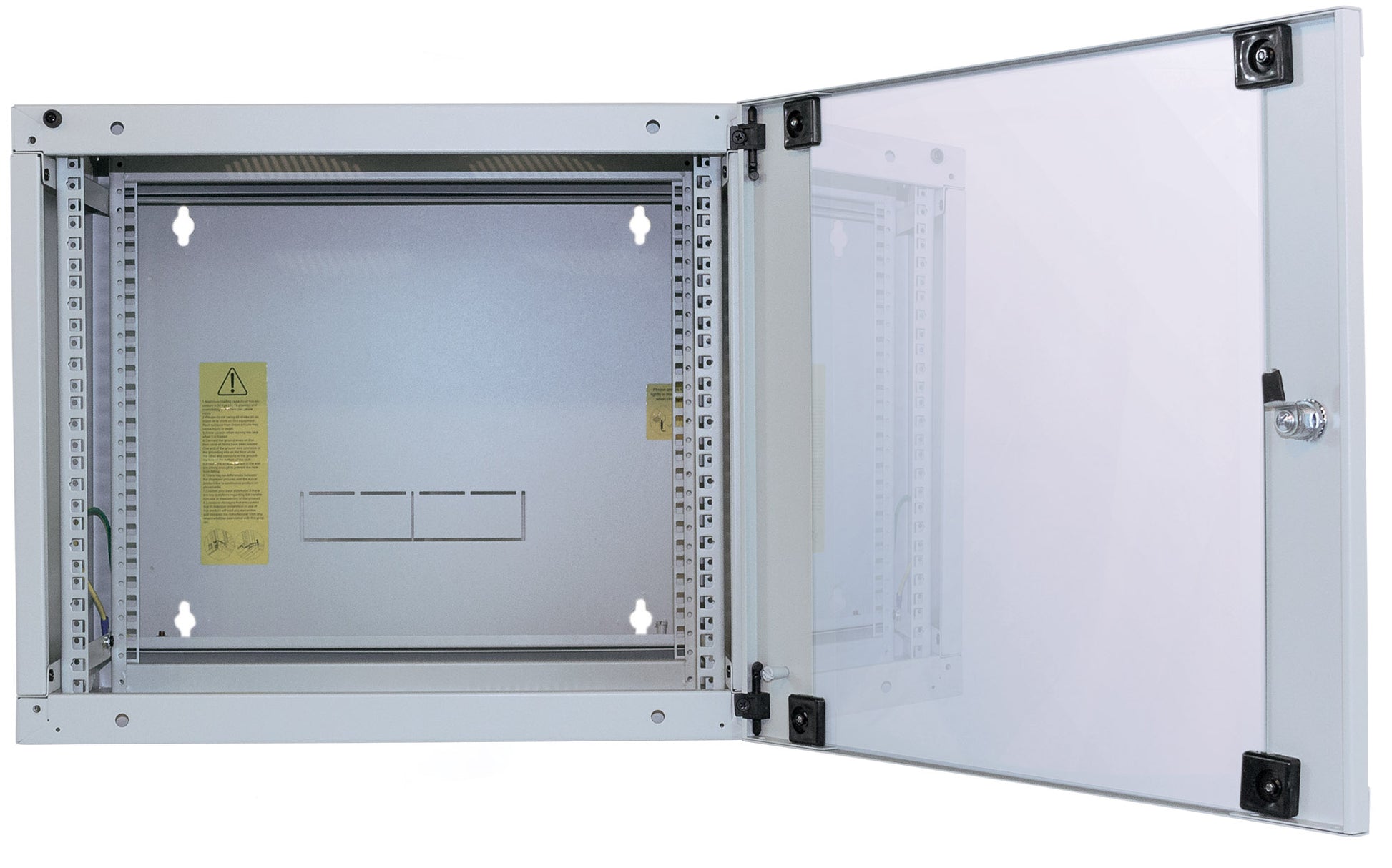

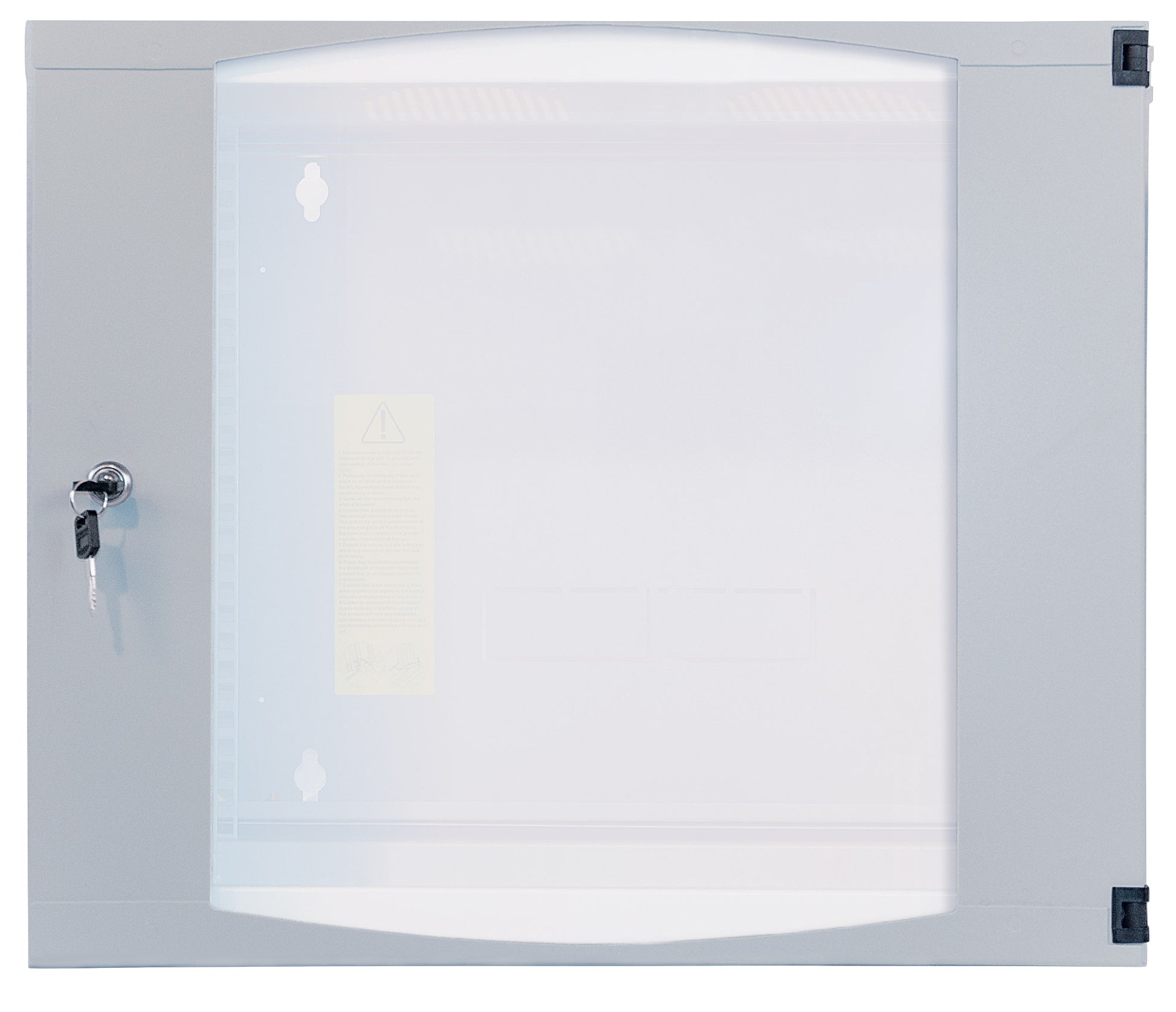

- 4MM toughened glass door

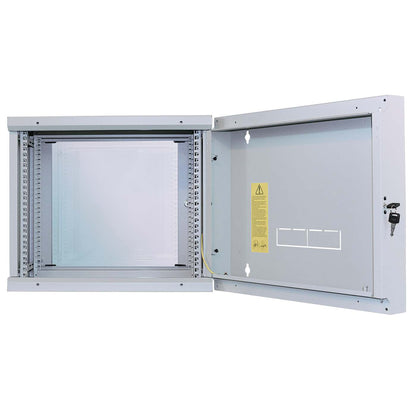

- Rear door for easy access to back of cabinet
- Reversible Front door
- Cold-rolled, galvanized SPCC steel with up to 1.5 mm thickness
- Ships Flatpacked
- Three-Year Warranty
- General
- 19"
- Height: 15U
- Color: Gray RAL7035
- Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Physical
- 725 (h) x 540 (w) x 450 (d) mm
- 28.54 (h) x 21.26 (w) x 17.72 (d) in.
- Usable depth: 129 mm (5.08 in.) to 209 mm (8.23 in.)
- Maximum static load: 30 kg (66 lbs.)
Package Contents
- 2 Rail frames
- Top, Bottom, Front, Back & Side Panels
- Installation hardware including 10 x M6 sets and 2 x keys
Additional SKUs
- Amazon ASIN: B01C7IV6T6
- EAN: 0766623713818
- UPC: 766623713818
- ALSO: 2559209
- API: 194398
Physical Specifications
- Product net weight: 26 kg
- Dimensions: 450 (D) x 540 (W) x 725 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 600 x 270 x 760 [mm]
- Master Carton Quantity: 1
- Master Carton Weight: 27.00 kg
- Master Carton Dimensions: 800 x 240 x 610 [mm]
