The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL9005) or (RAL7021) & gray (RAL7035).
We offer you a solution for every need.
Various options include:
Removable side panels (some lockable).
Tempered/Toughened glass doors.

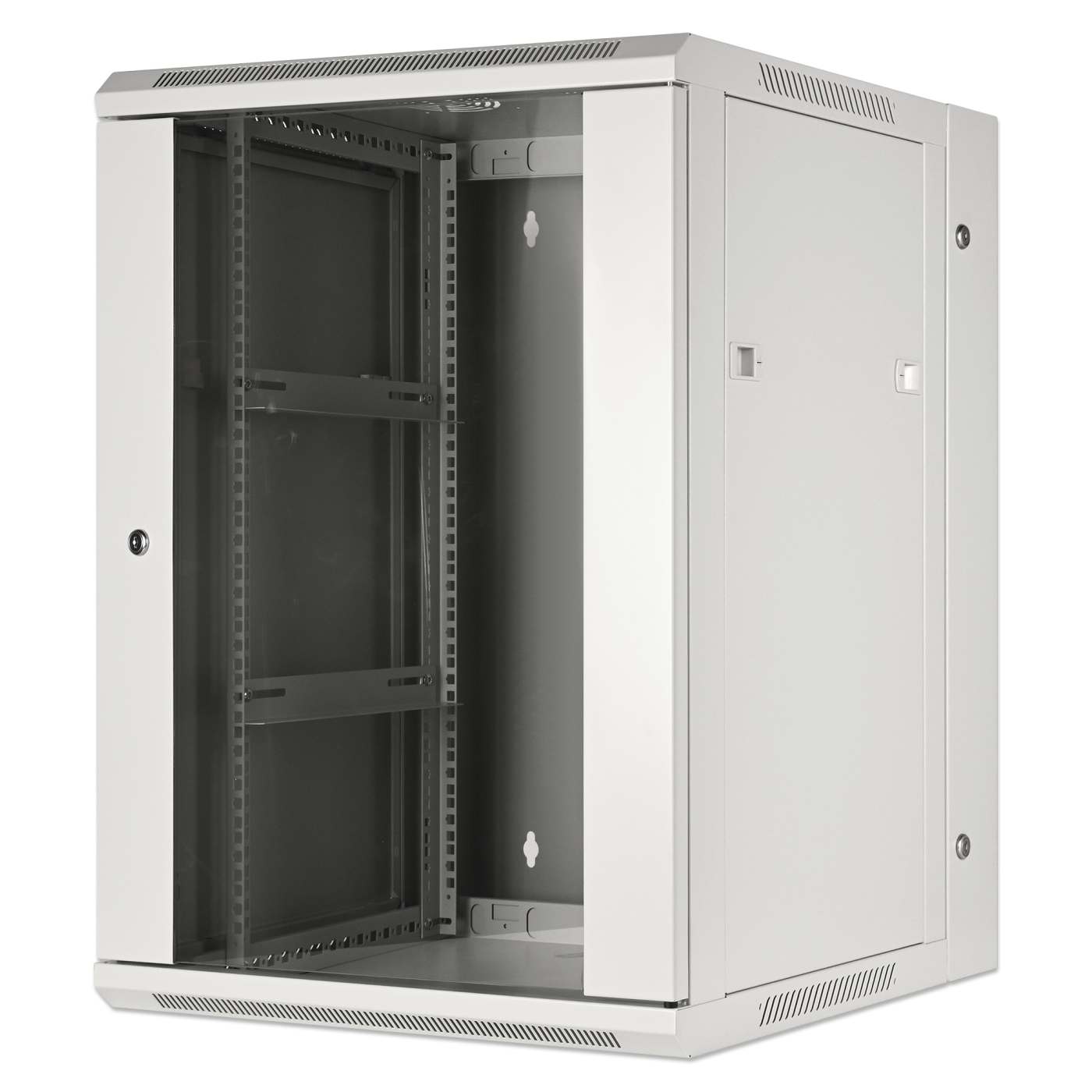

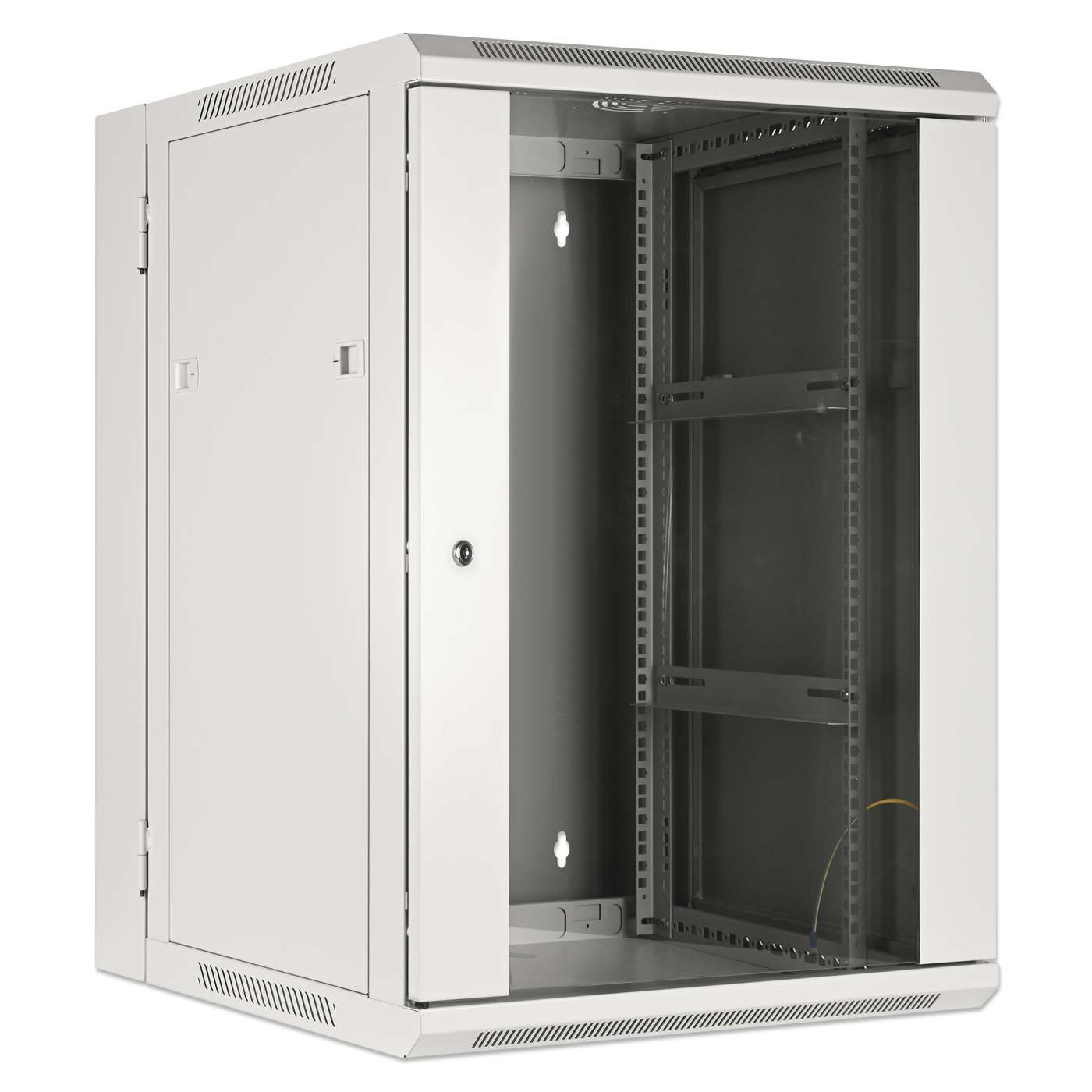

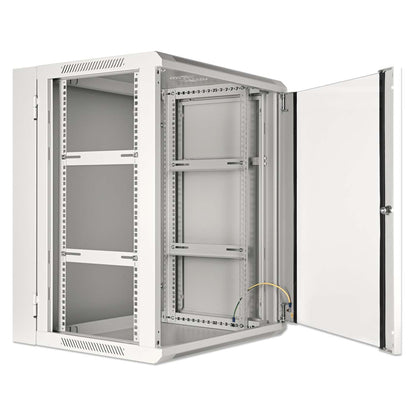

Double Section, making cabling and component exchange simple.
- Ideal for 19" rackmount applications
- Maximum static load of 30 kg
- Usable depth: 62 mm (2.44 in.) to 369 mm (14.53 in.)

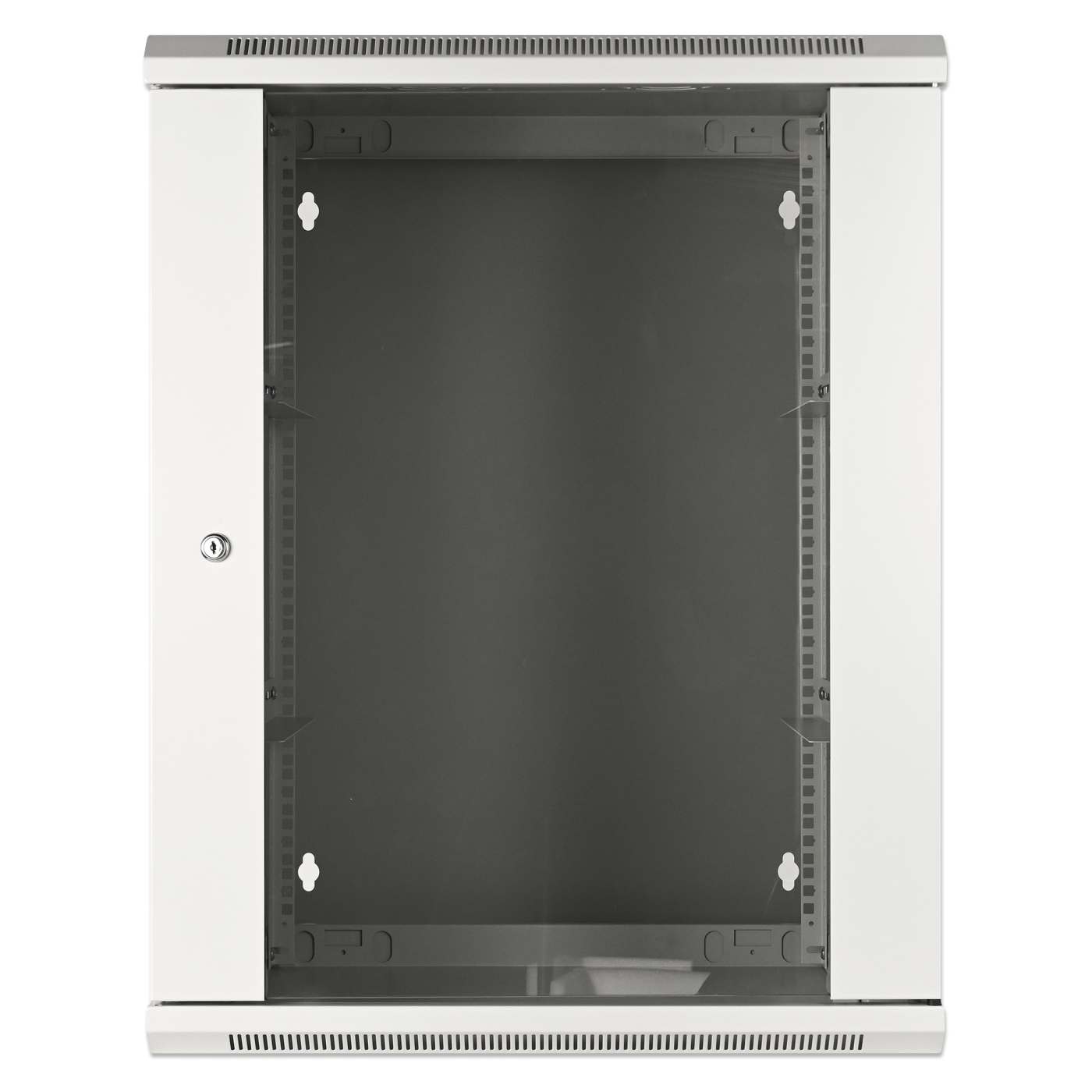

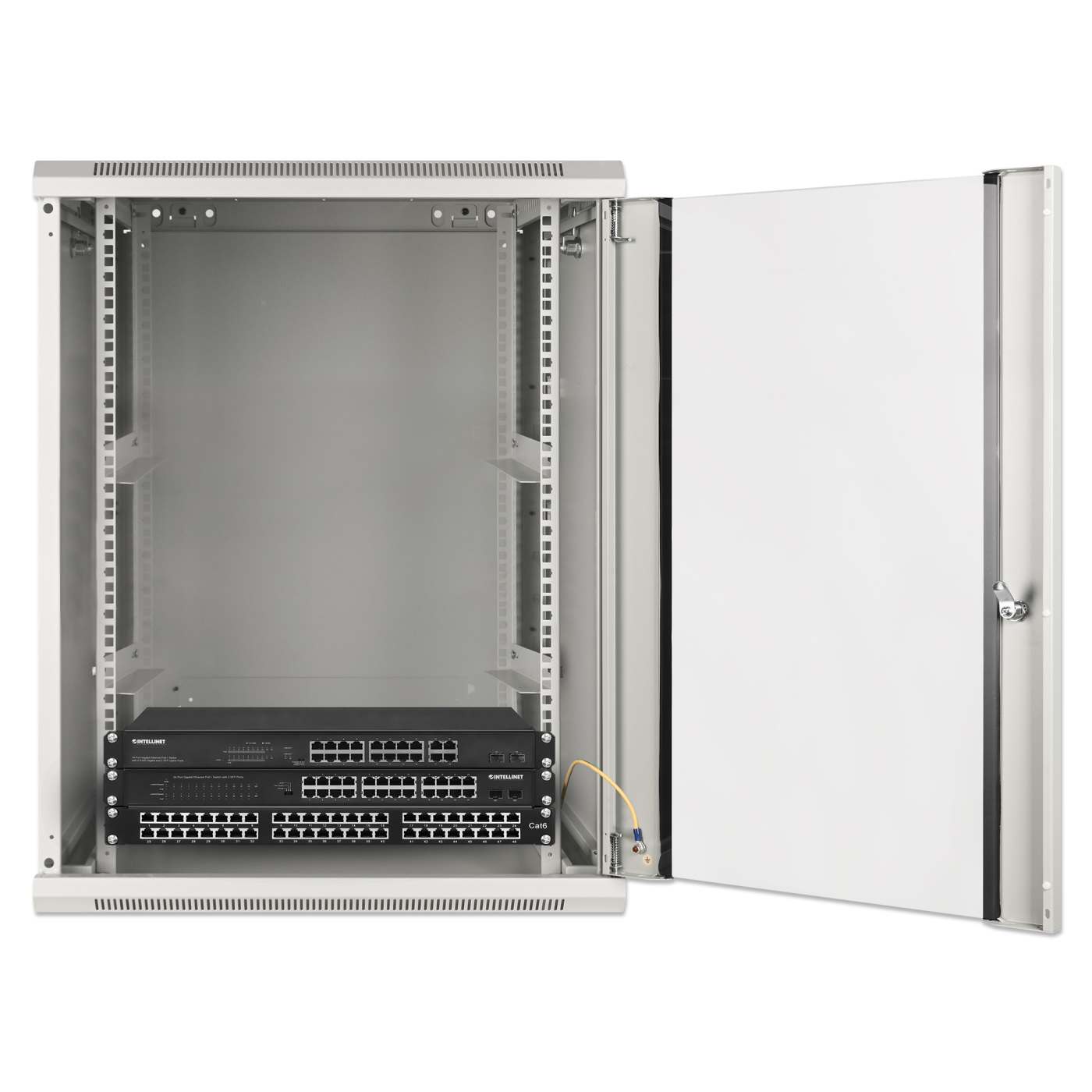

- Tempered-glass door can be opened more than 180°

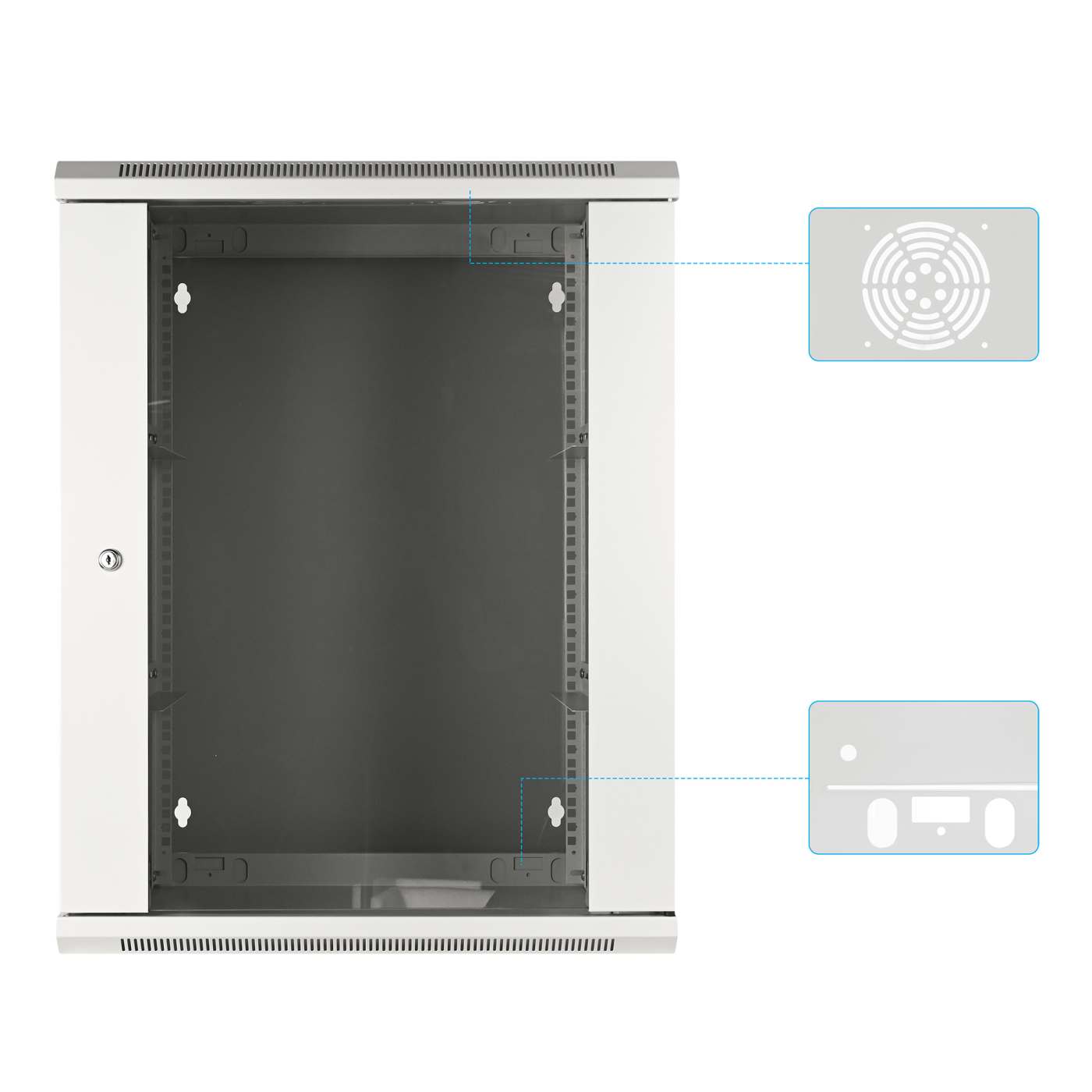

- Cable entry via top panel

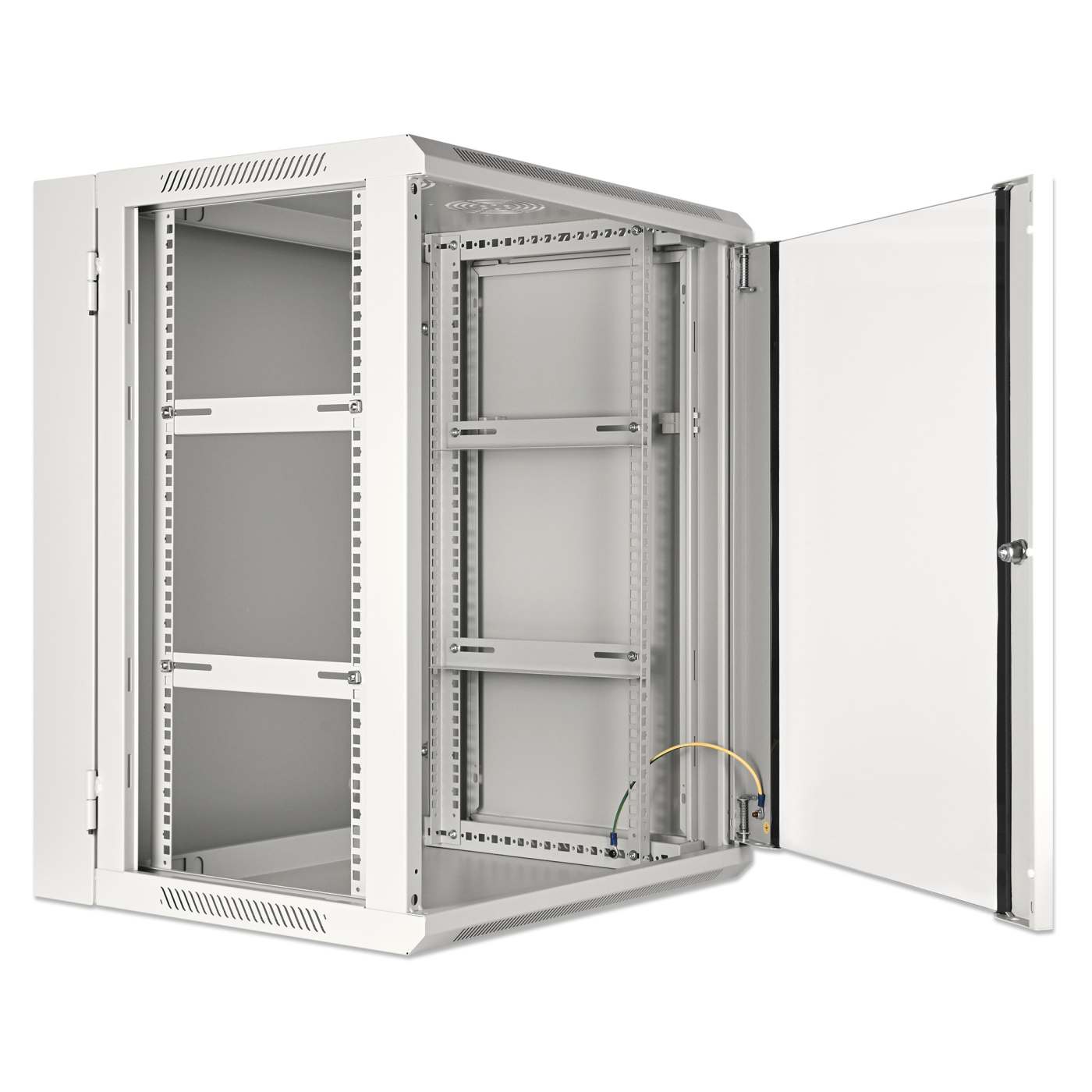

- Rear door for easy access to back of cabinet
- Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
- Reversible Front door
- Easily removable side panels
- Ships assembled
- Three-Year Warranty
- General
- 19"
- Height: 15U
- Color: Gray RAL7035
- Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Physical
- Dimensions (H x W x D): 770 x 600 x 550 mm (30.3 x 23.6 x 21.7 in.)
- Usable depth: 62 mm (2.44 in.) to 369 mm (14.53 in.)
- Maximum static load: 30 kg (66 lbs.)
- Net weight: 30 kg (66.14 lbs.)
- Gross weight: 31 kg (68.34 lbs.)
Package Contents
- Double section wall mount
- Installation hardware including tool, 20x M6 Sets and 6x Keys
Additional SKUs
- Amazon ASIN: B00NYQRKCI
- EAN: 0766623712026
- UPC: 766623712026
- ALSO: 2282642
- API: 159434
Physical Specifications
- Product net weight: 30 kg
- Product gross weight: 31 kg
- Dimensions: 770 x 600 x 550 (mm)
- Packaging type: Brown Box
- Packaging dimensions: 670 x 620 x 840 [mm]
- Master Carton Quantity: 1
- Master Carton Weight: 31.00 kg
- Master Carton Dimensions: 670 x 620 x 840 [mm]
