- Ideal for all 19 in. rackmount applications
- Maximum static load of 1500 kg

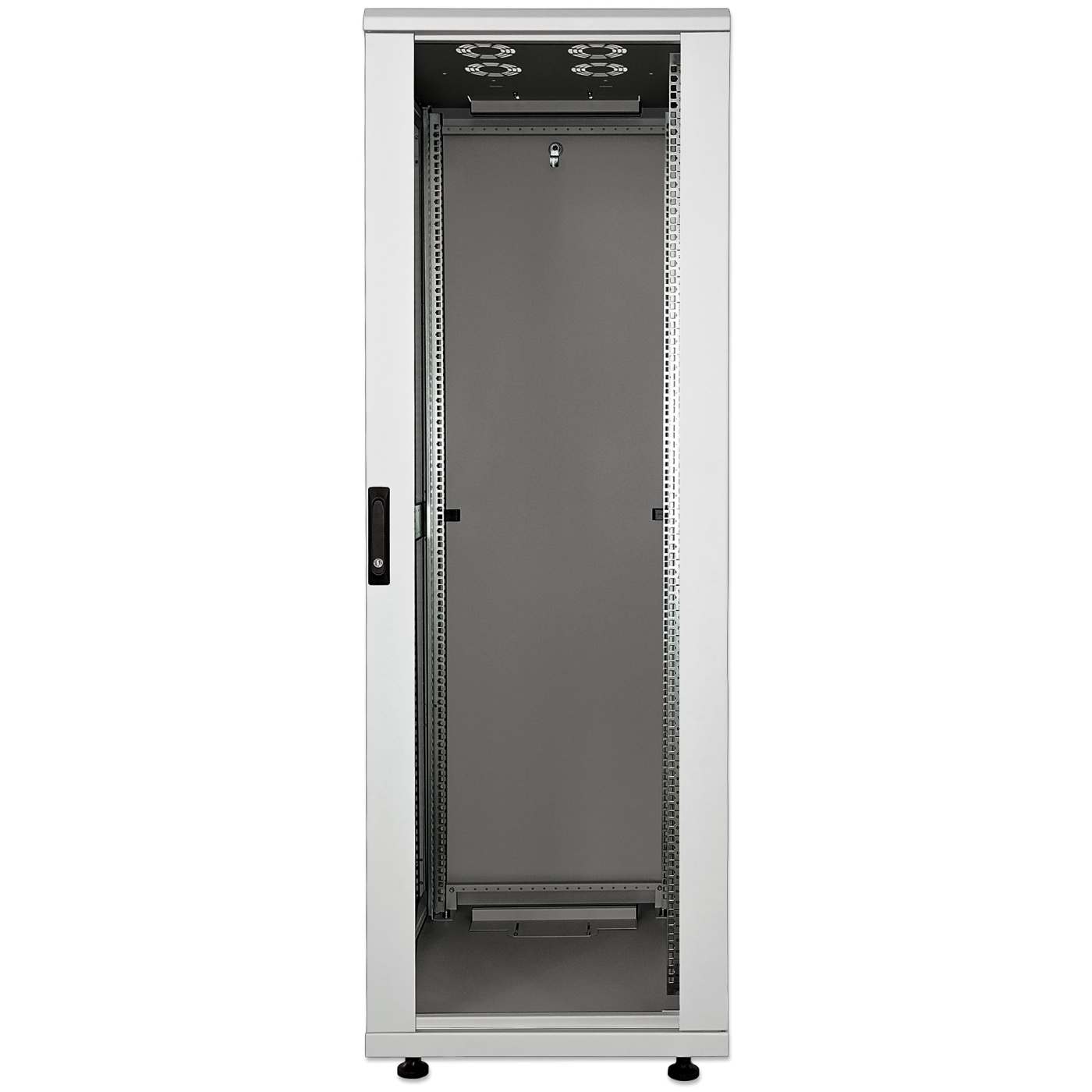

- Tempered-glass door
- Zinc-plated 19 in. mounting rails
- Antistatic powder coating on all panels
- Panels with up to 2 mm steel thickness

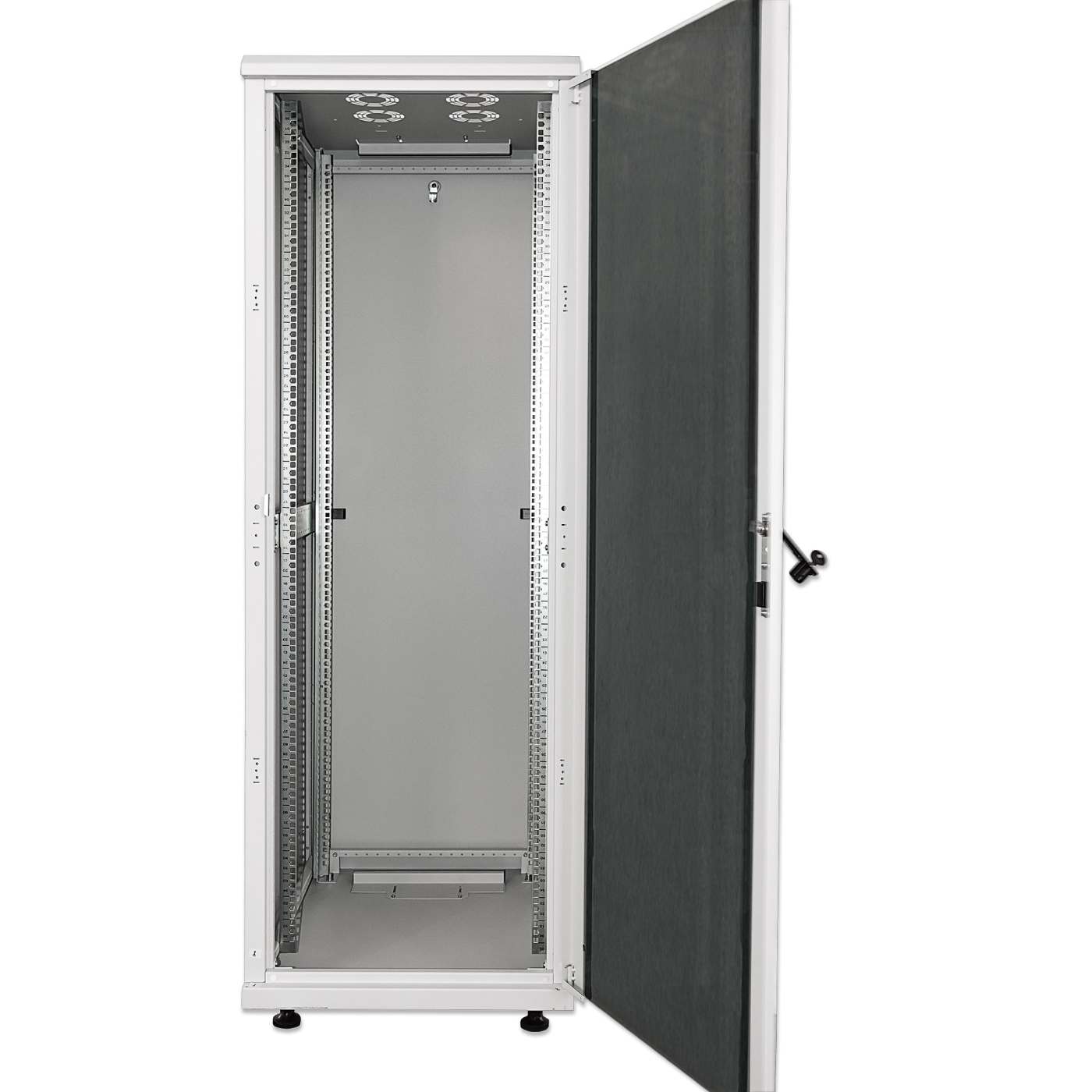

- Reversible front door
- IP20-rated housing
- Easily removable side and rear panels
- Multi-point door lock
- Two apertures allow cable inlet from top or bottom

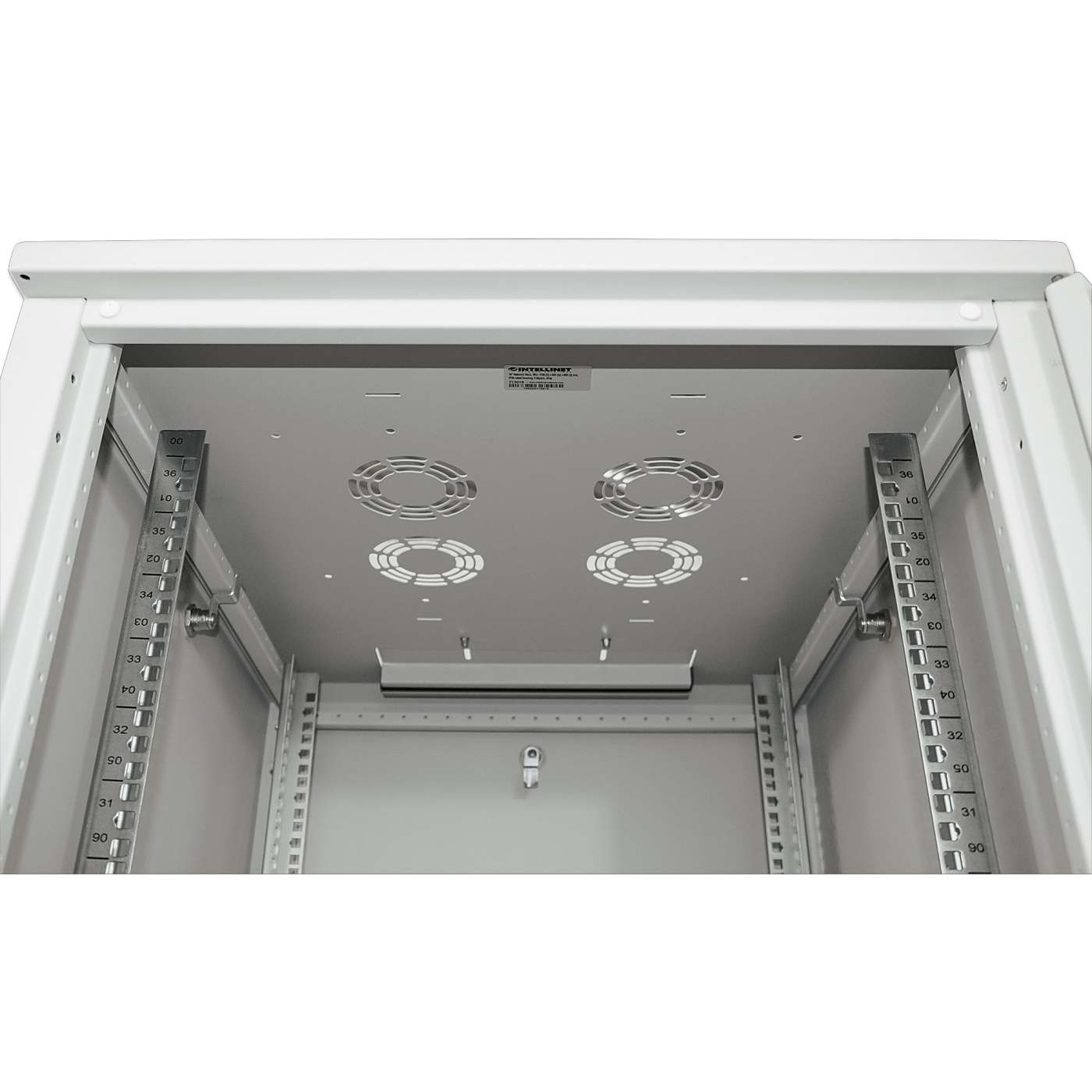

- Ventilation slots provide excellent airflow
- Ships flatpacked
- Three-Year Warranty
- General
- 19 in.
- Height: 22U
- Color: Gray RAL7035
- Certifications: RoHS, UL, Gost-R
- Protection rating: IP20
Dimensions
- 800 (D) x 600 (W) x 1144 (H) [mm]
- 31.5 (L) x 23.62 (W) x 45.04 (H) [in]
Package Contents:
- 4 depth-adjustable mounting rails

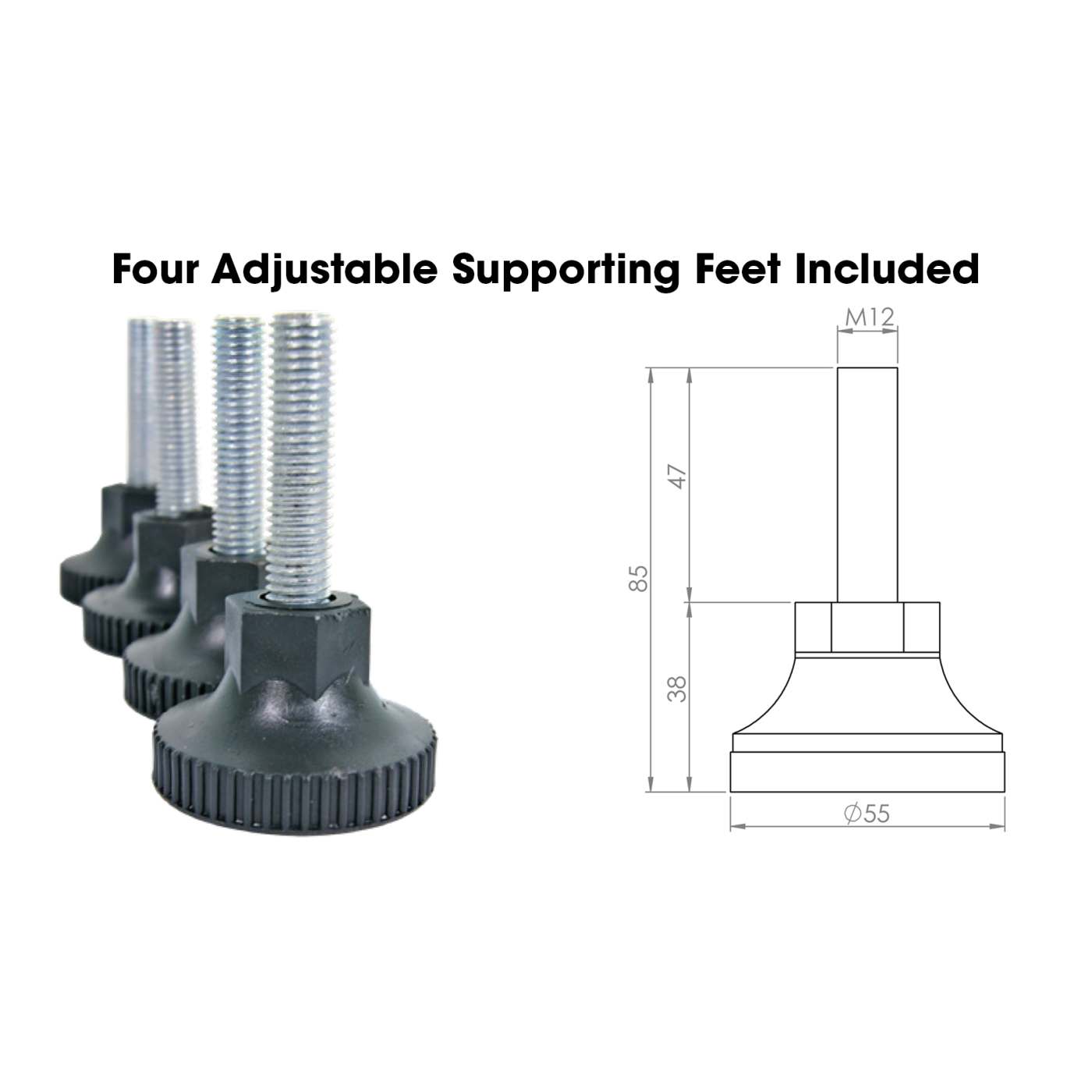

- 4 adjustable supporting feet
- Installation hardware
Additional SKUs
- Amazon ASIN: B00NJGFKES
- EAN: 0766623712941
- UPC: 766623712941
- ALSO: 2274591
- API: 154043
Physical Specifications
- Product net weight: 81 kg
- Dimensions: 800 (L) x 600 (W) x 1144 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 1360 x 735 x 265 [mm]
- Master Carton Quantity: 1
