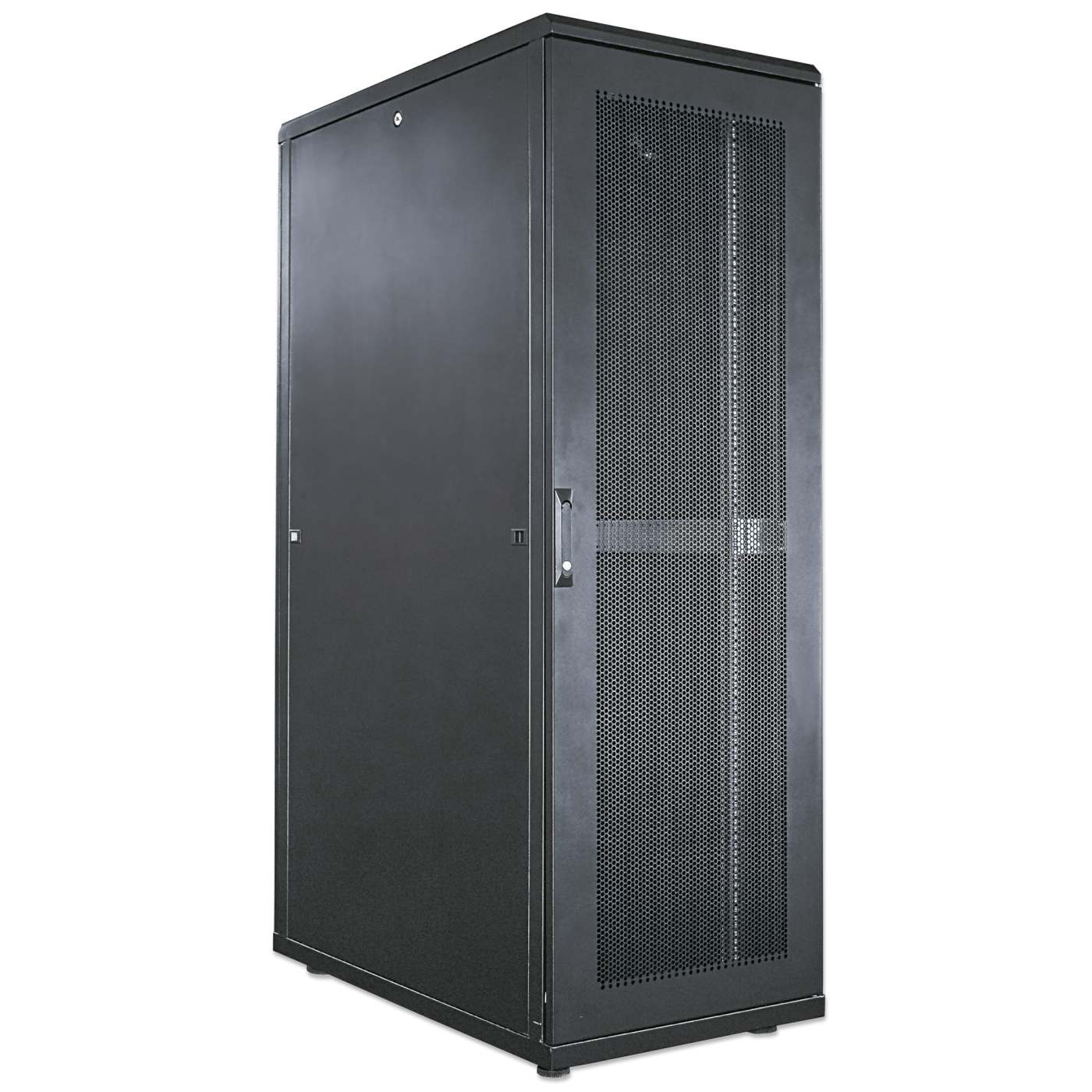

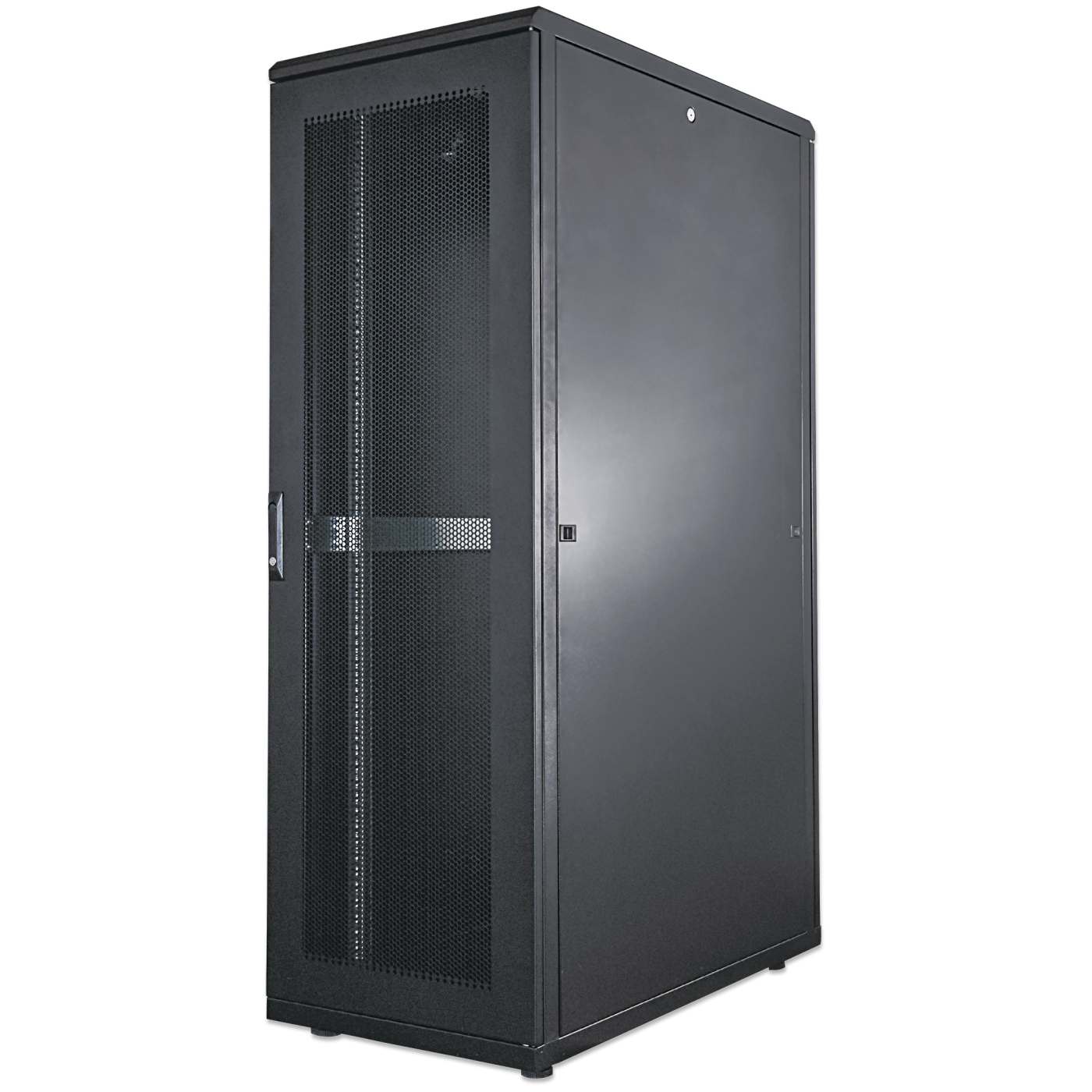

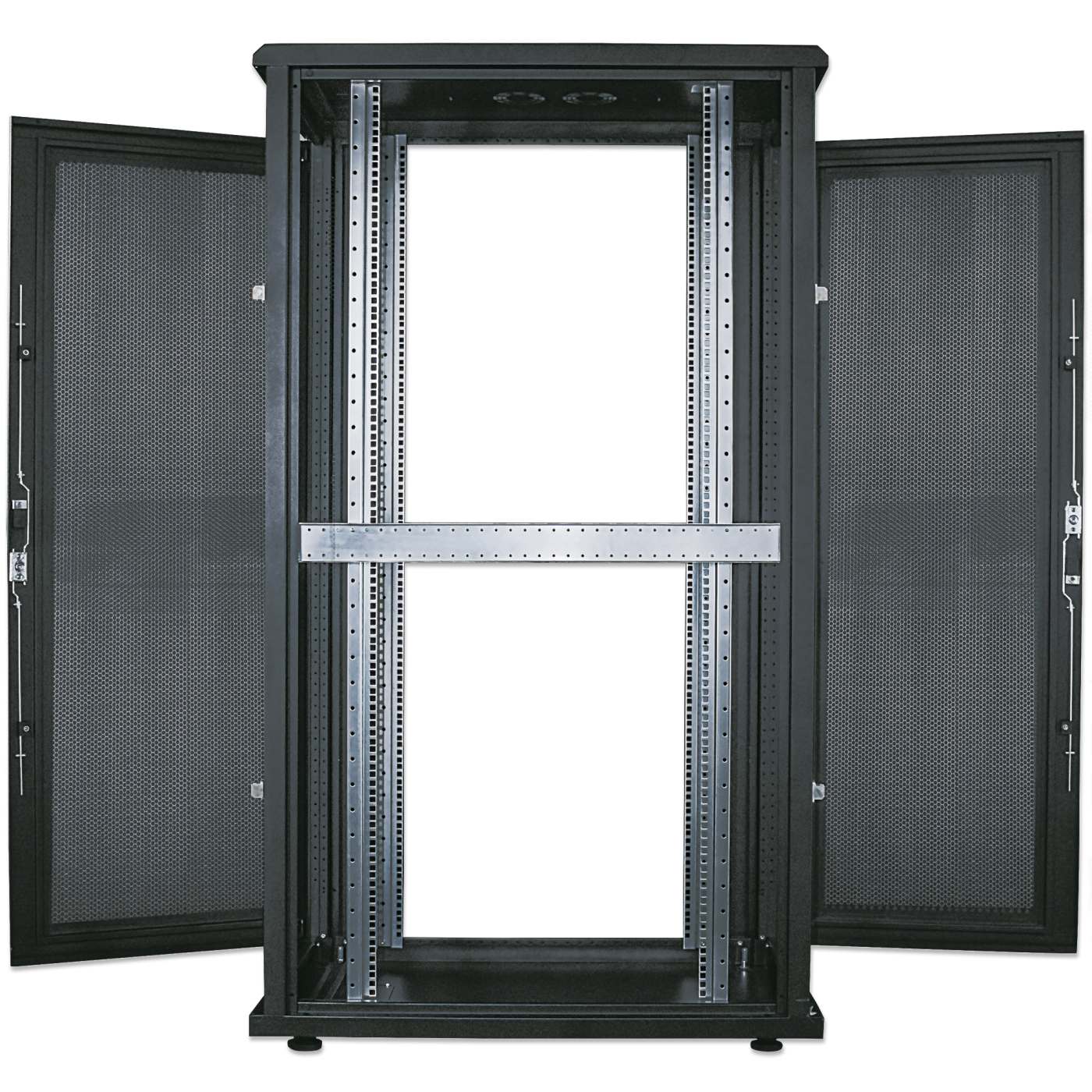

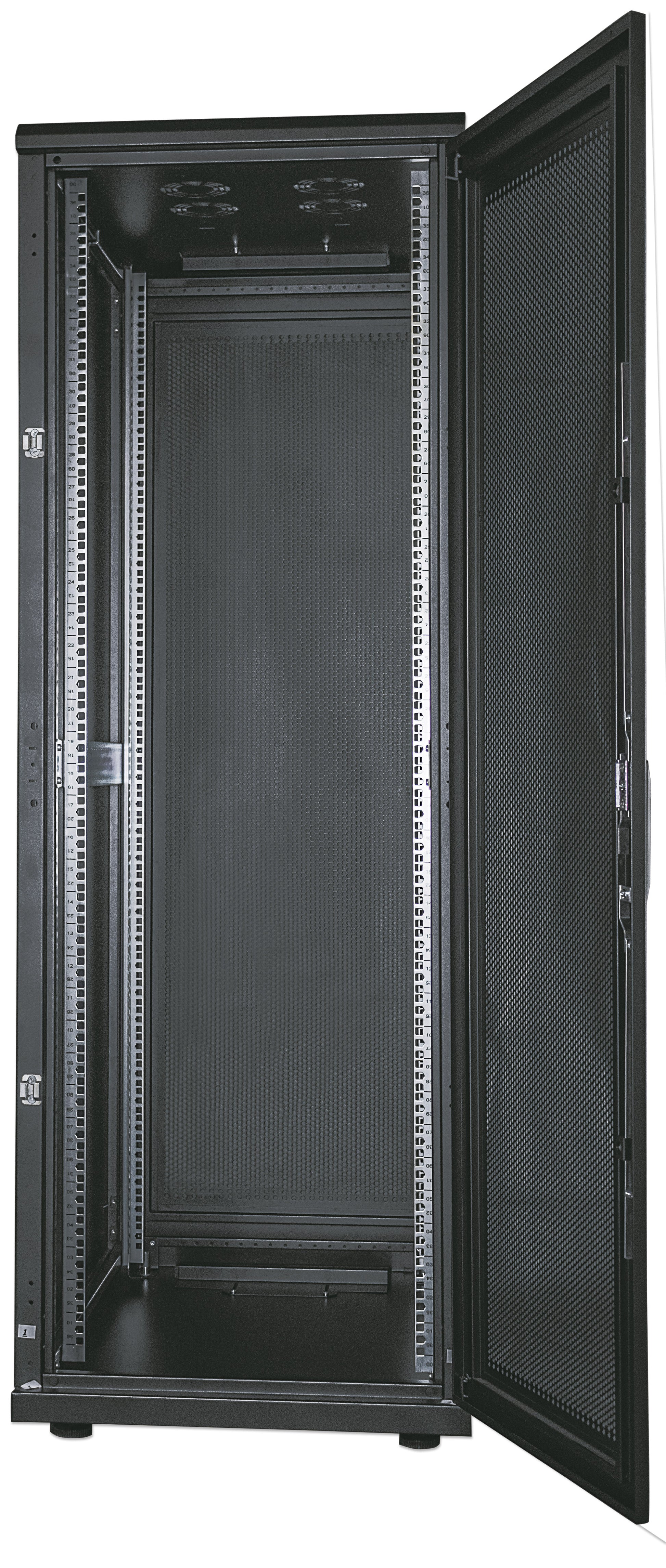

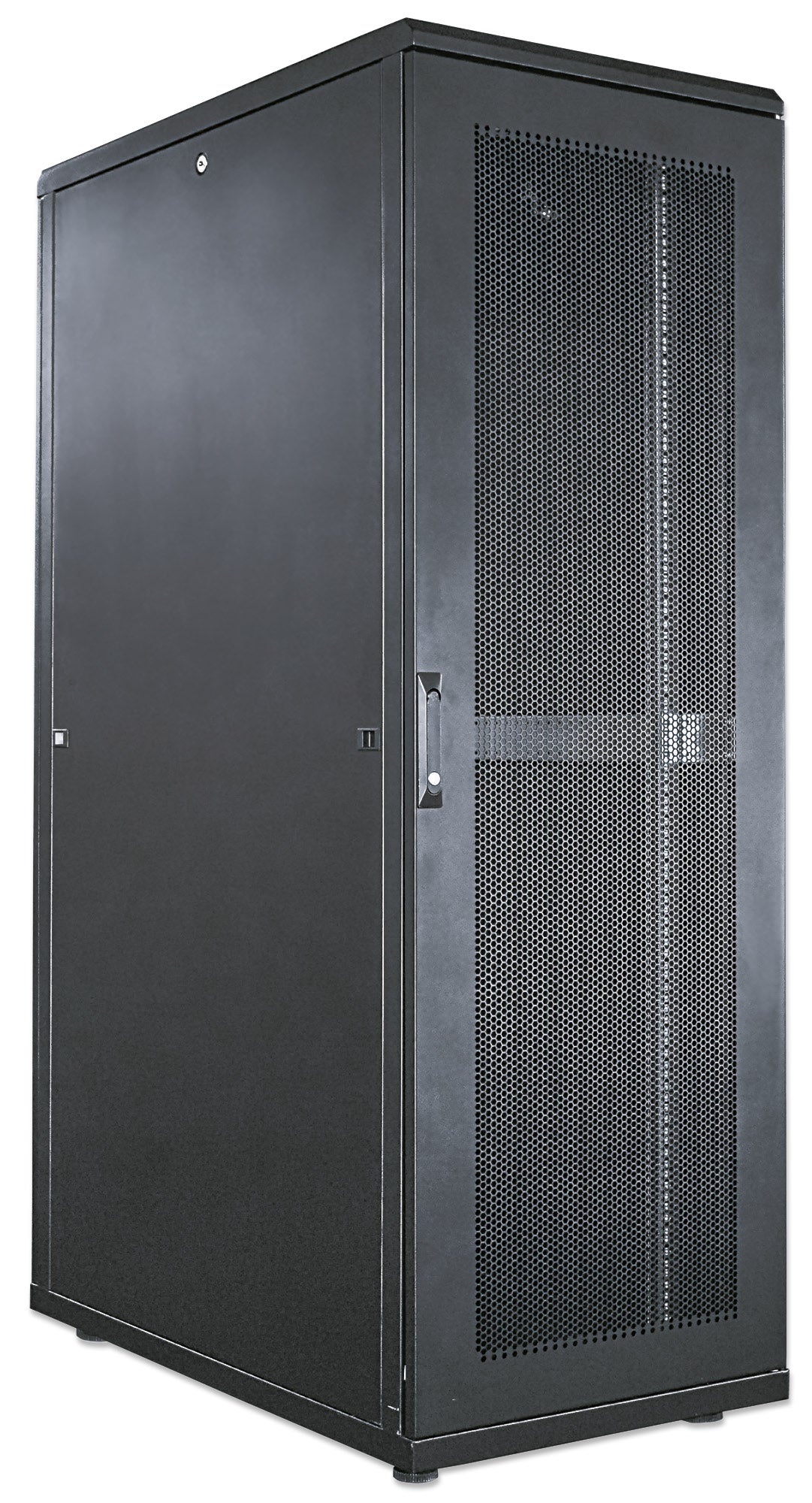

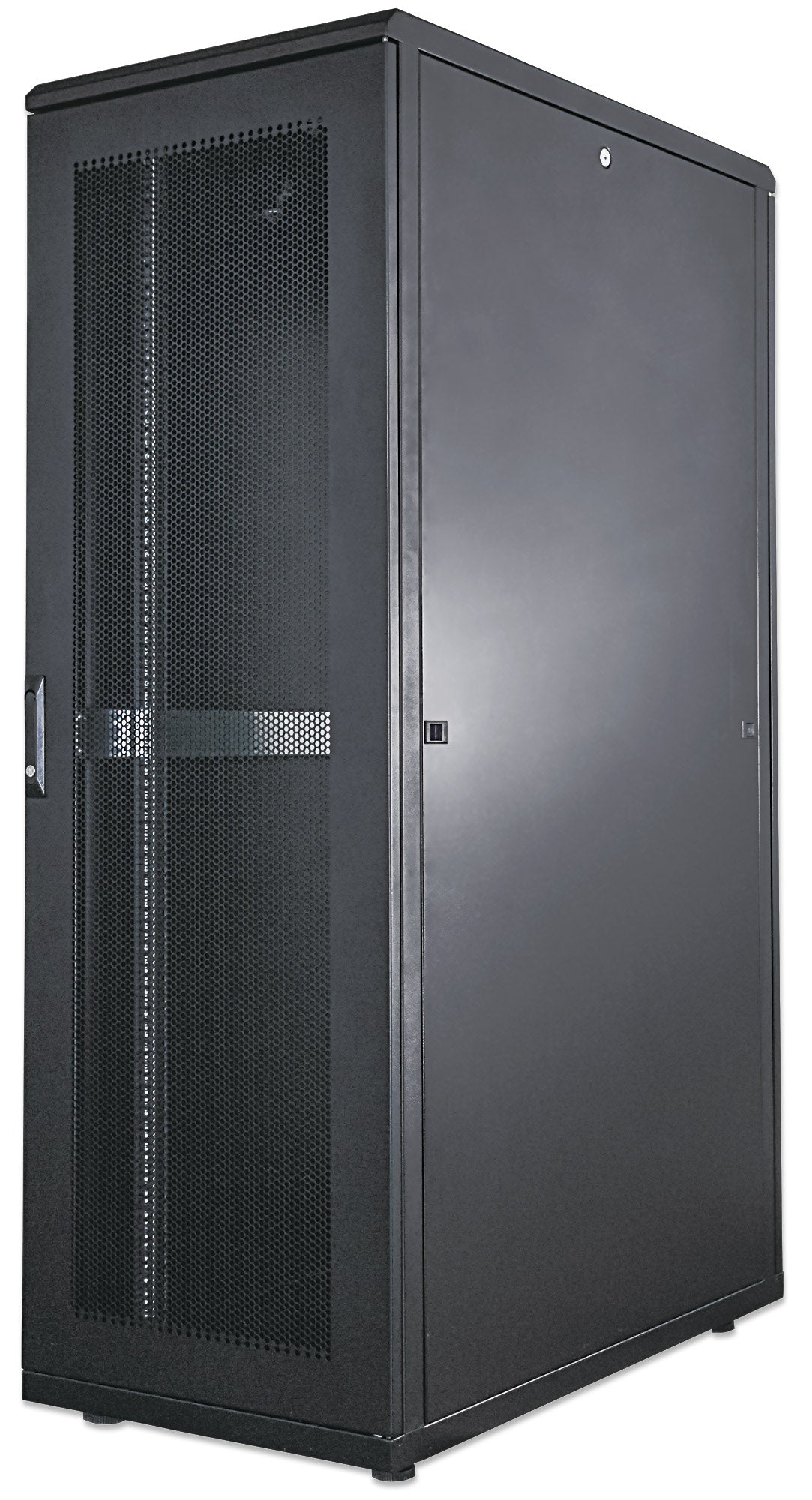

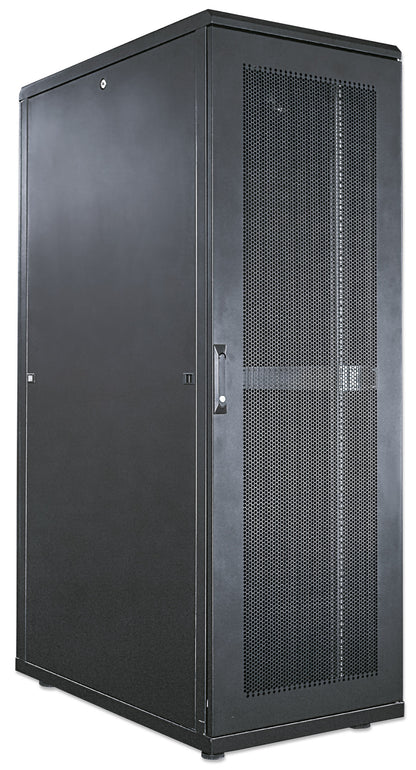

Intellinet Network Solutions server cabinets offer you a flexible and comprehensive solution for your server installations. Top quality materials and workmanship include a perforated door and ventilation slots for excellent airflow, antistatic powder coating and a multi-point door lock; while the flat-pack (unassembled) shipping* saves you space and money. In addition, the removable side panels make cabling and component exchange particularly easy.
*Completely assembled versions are available in certain countries.

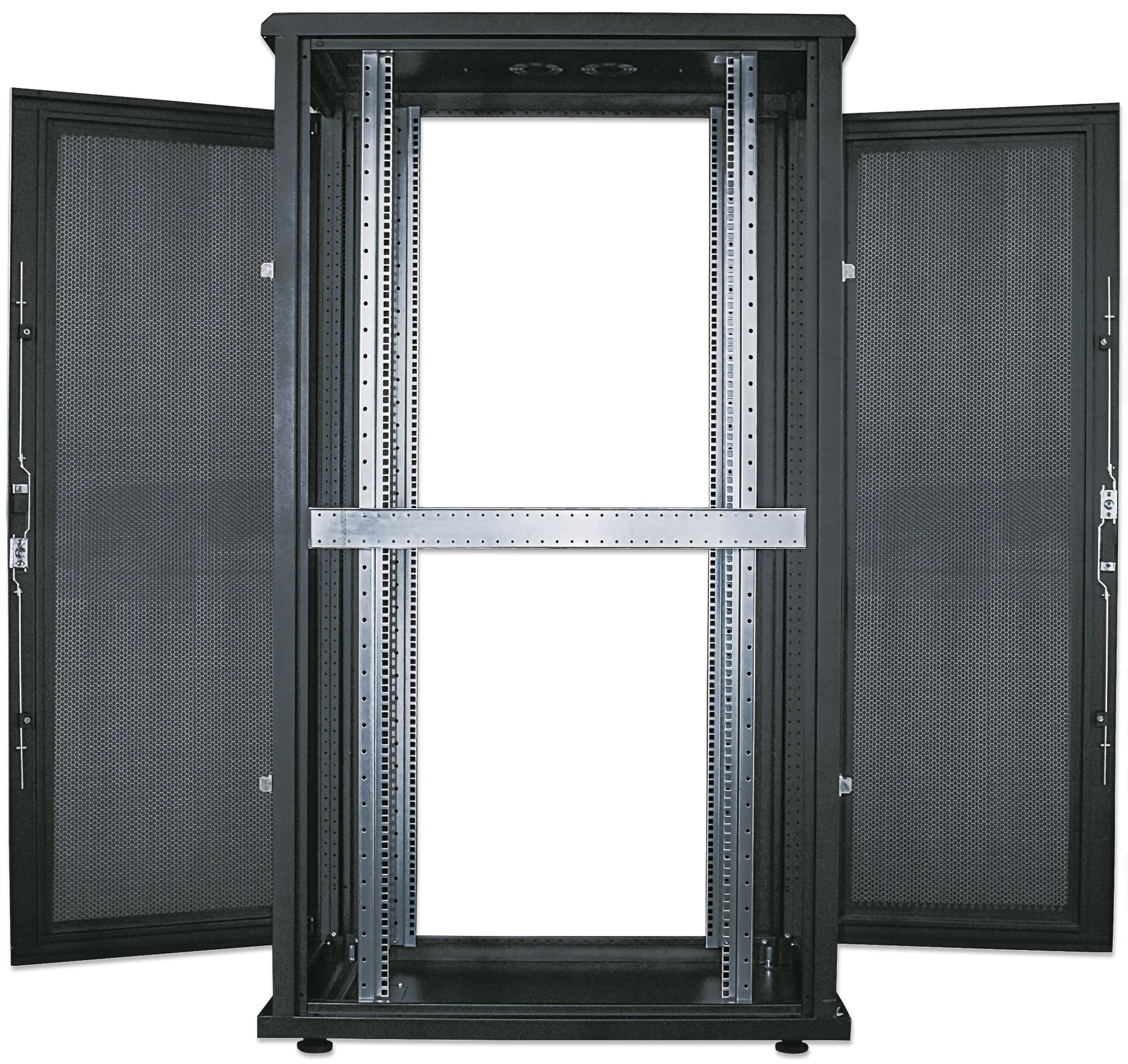

- Ideal for all 19 in. rackmount applications
- Maximum static load of 1500 kg

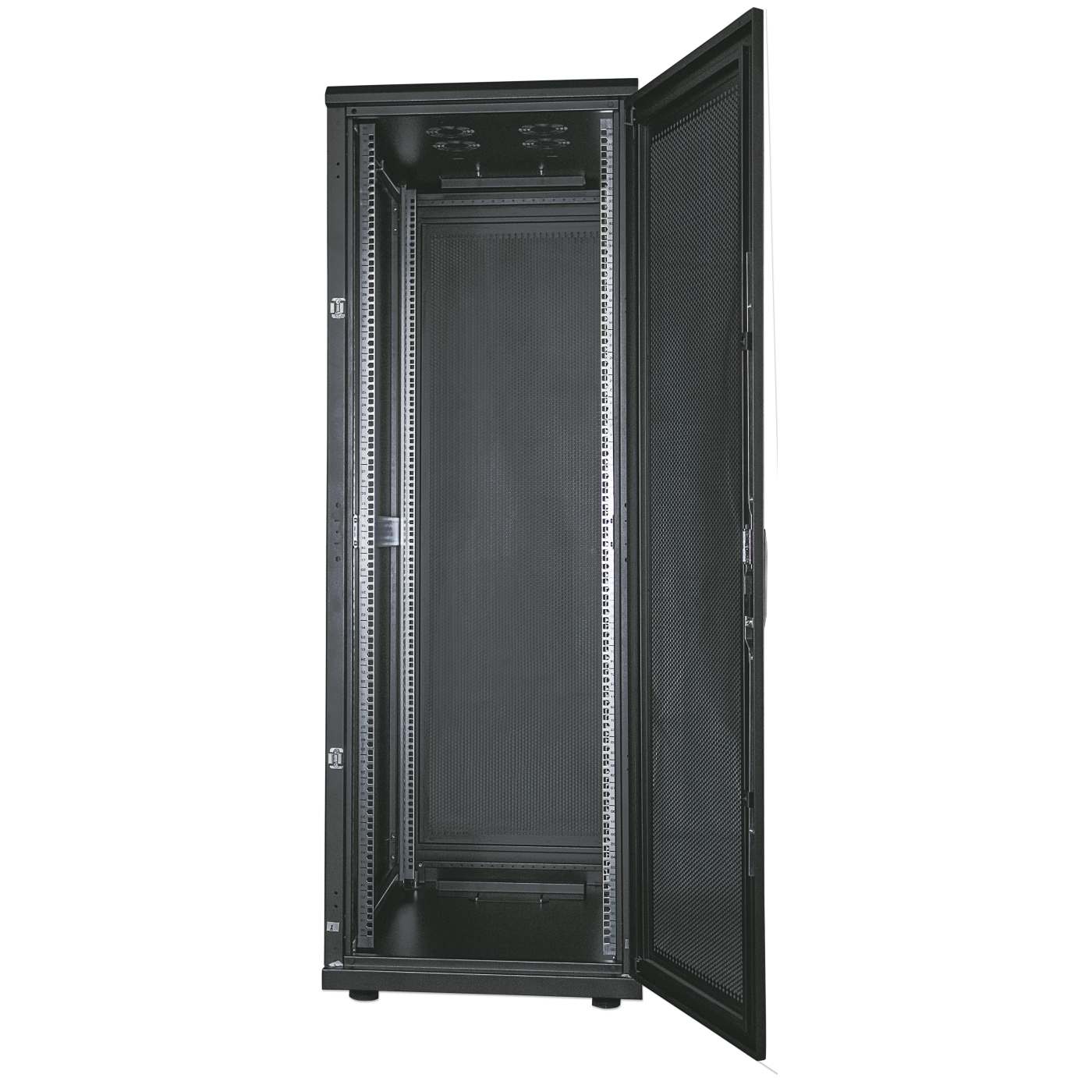

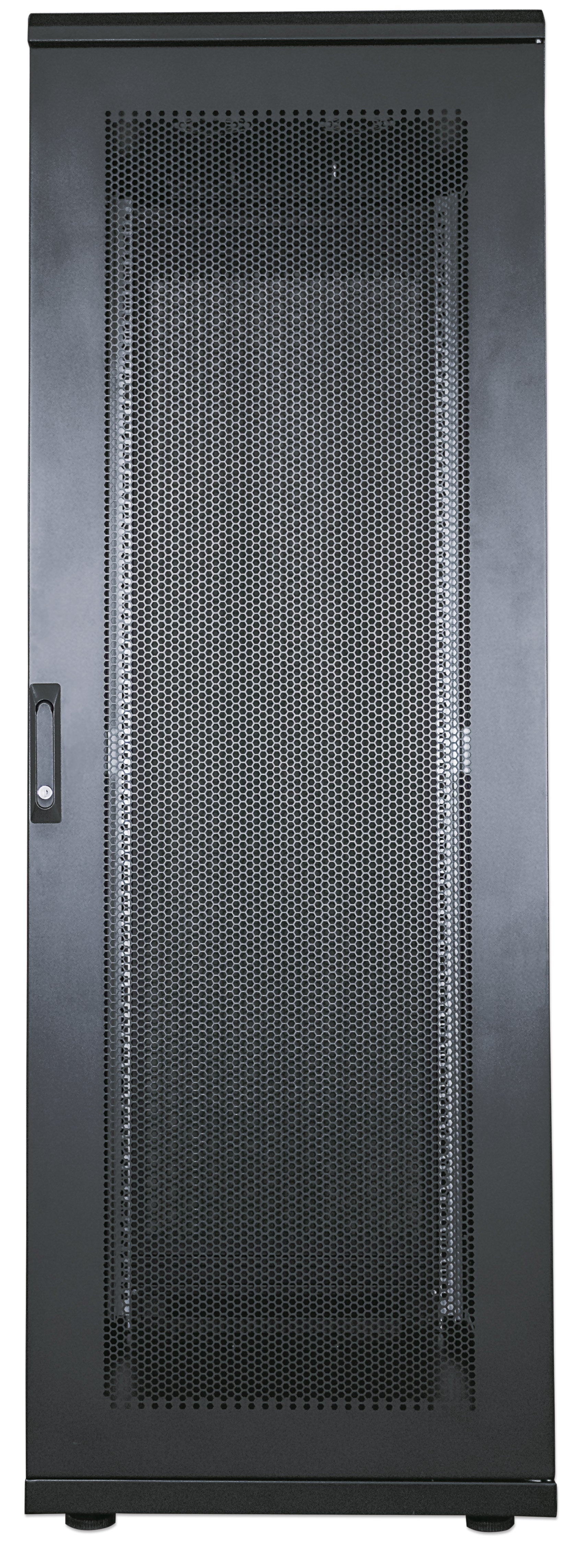

- Perforated door and ventilation slots provide excellent airflow

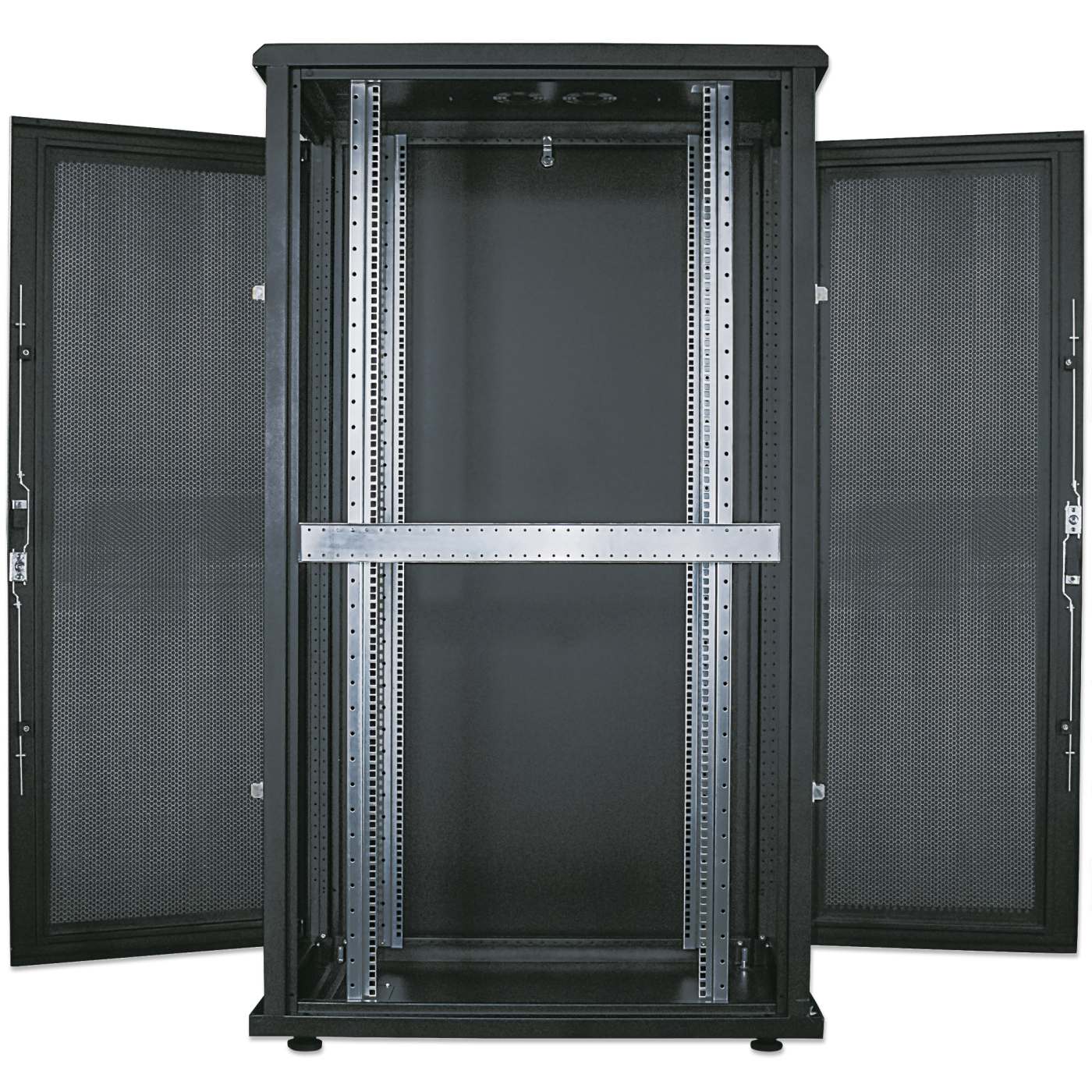

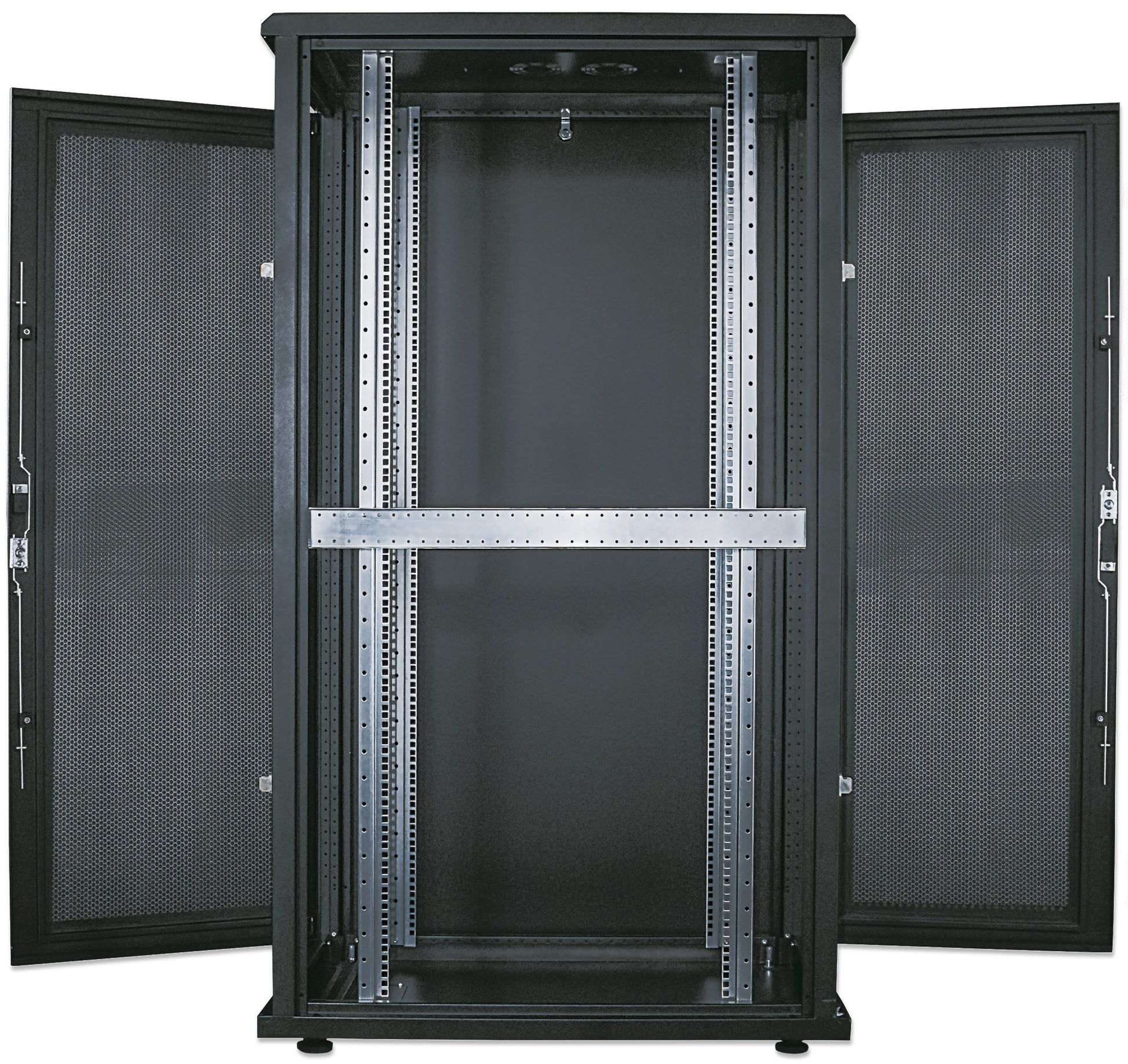

- Zinc-plated 19 in. mounting rails
- Antistatic powder coating on all panels
- Panels with up to 2 mm steel thickness

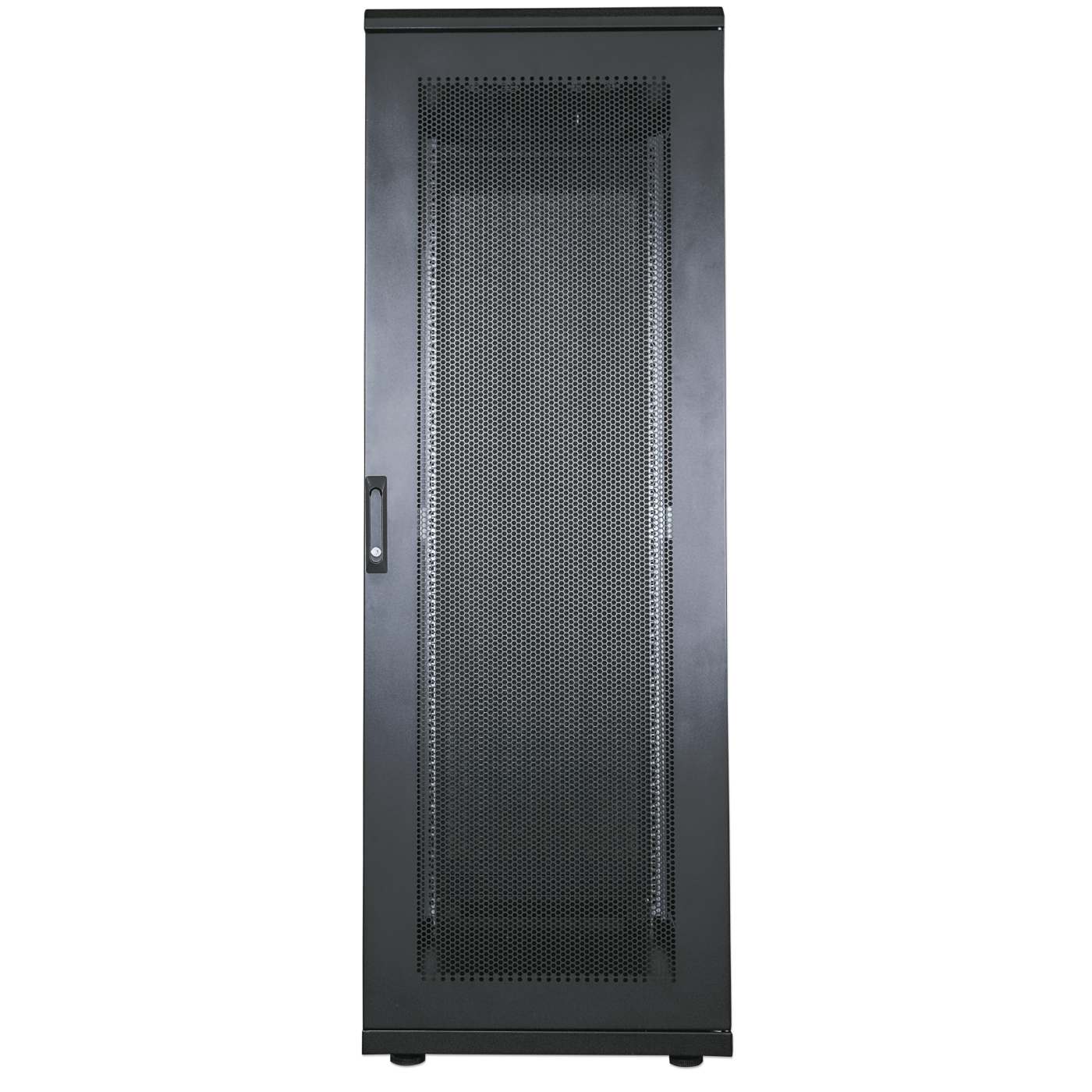

- Reversible front door
- IP20-rated housing

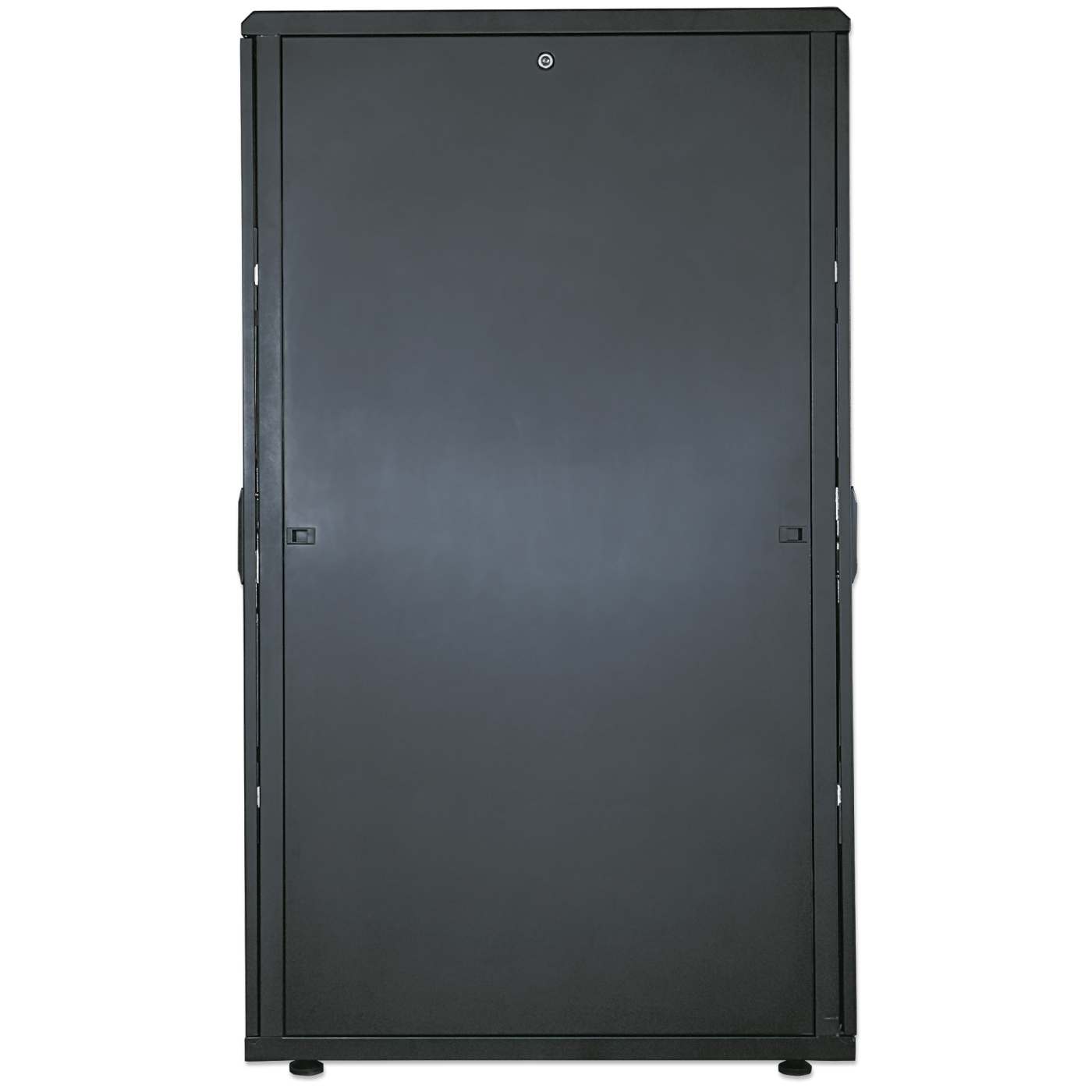

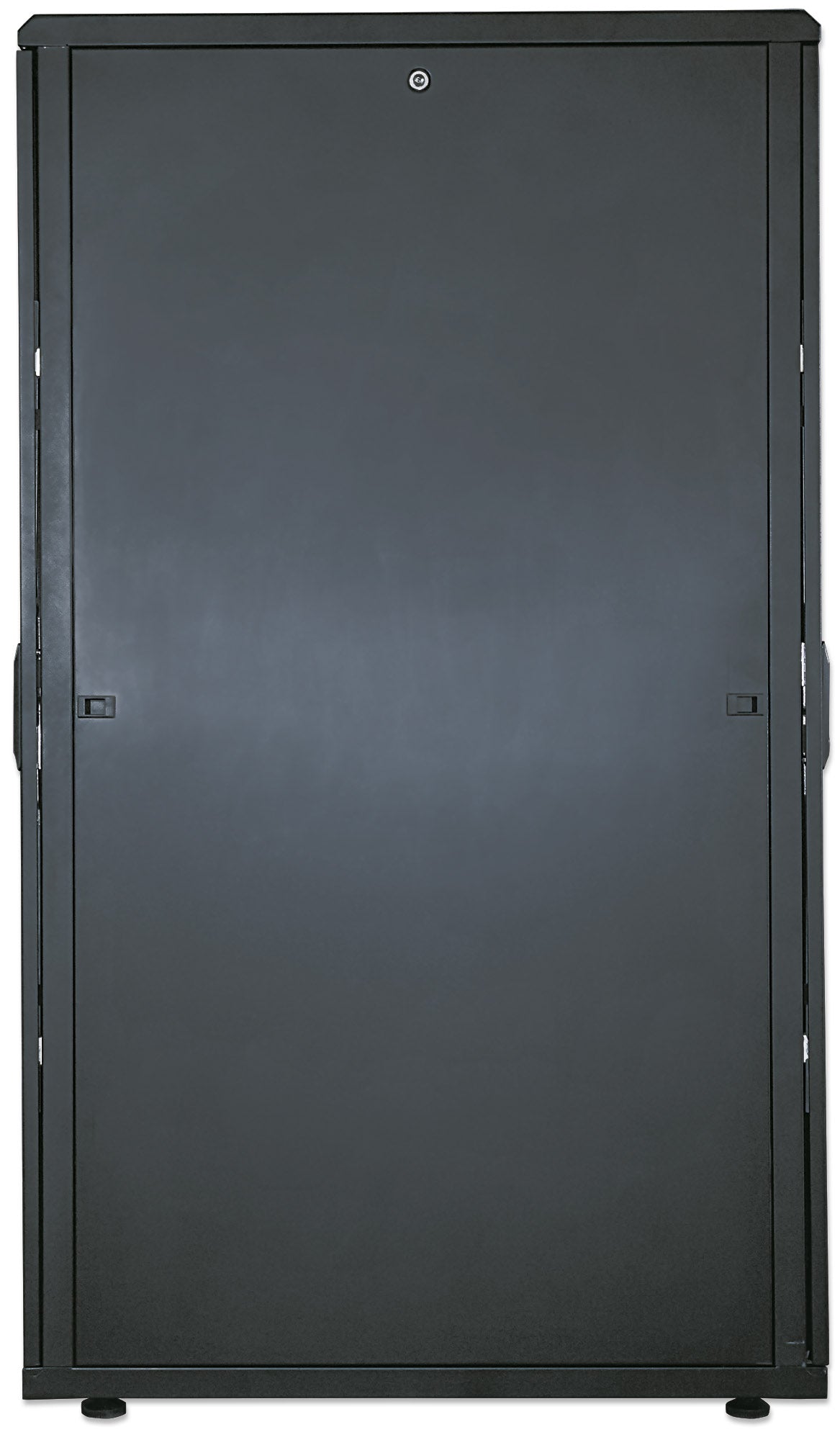

- Easily removable side and rear panels

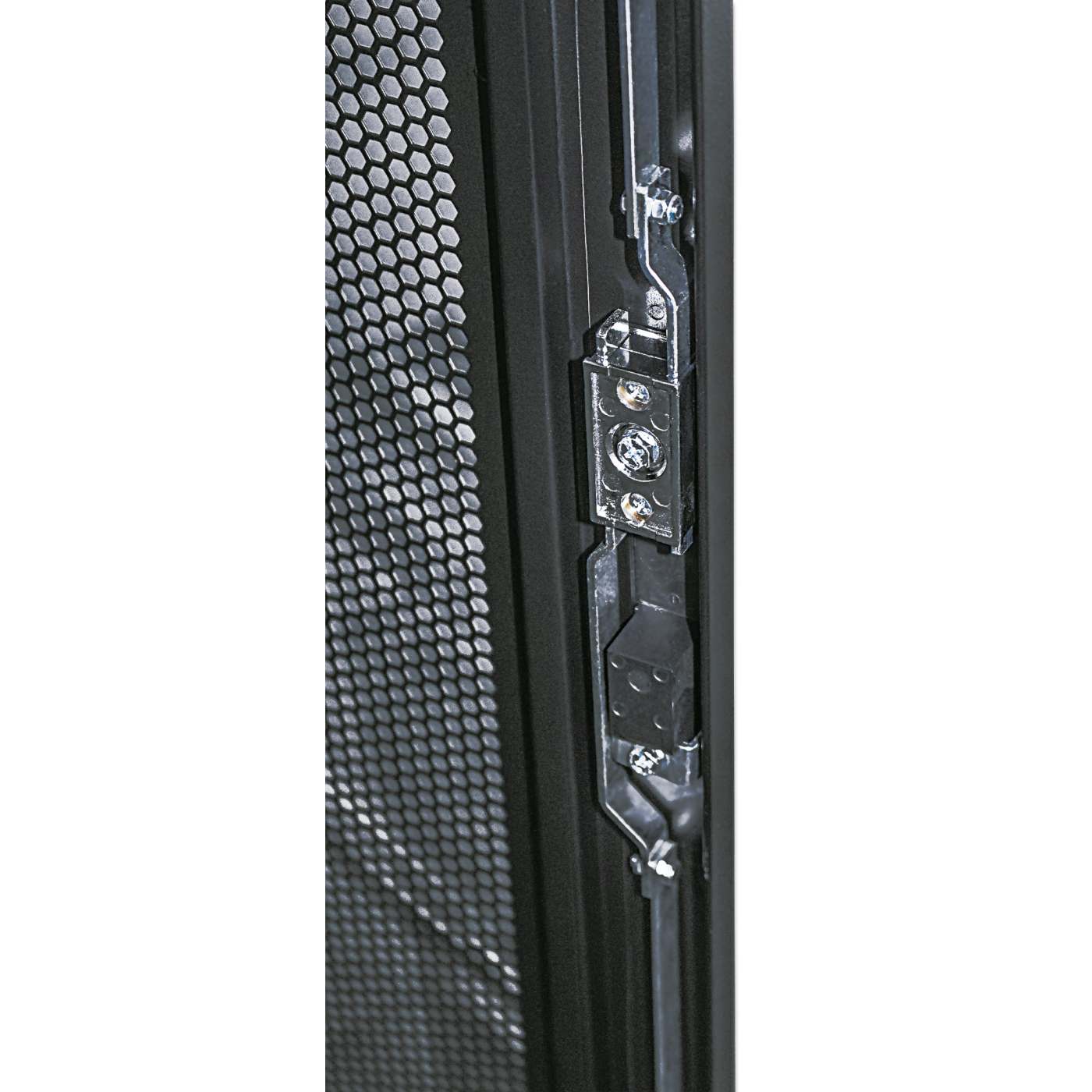

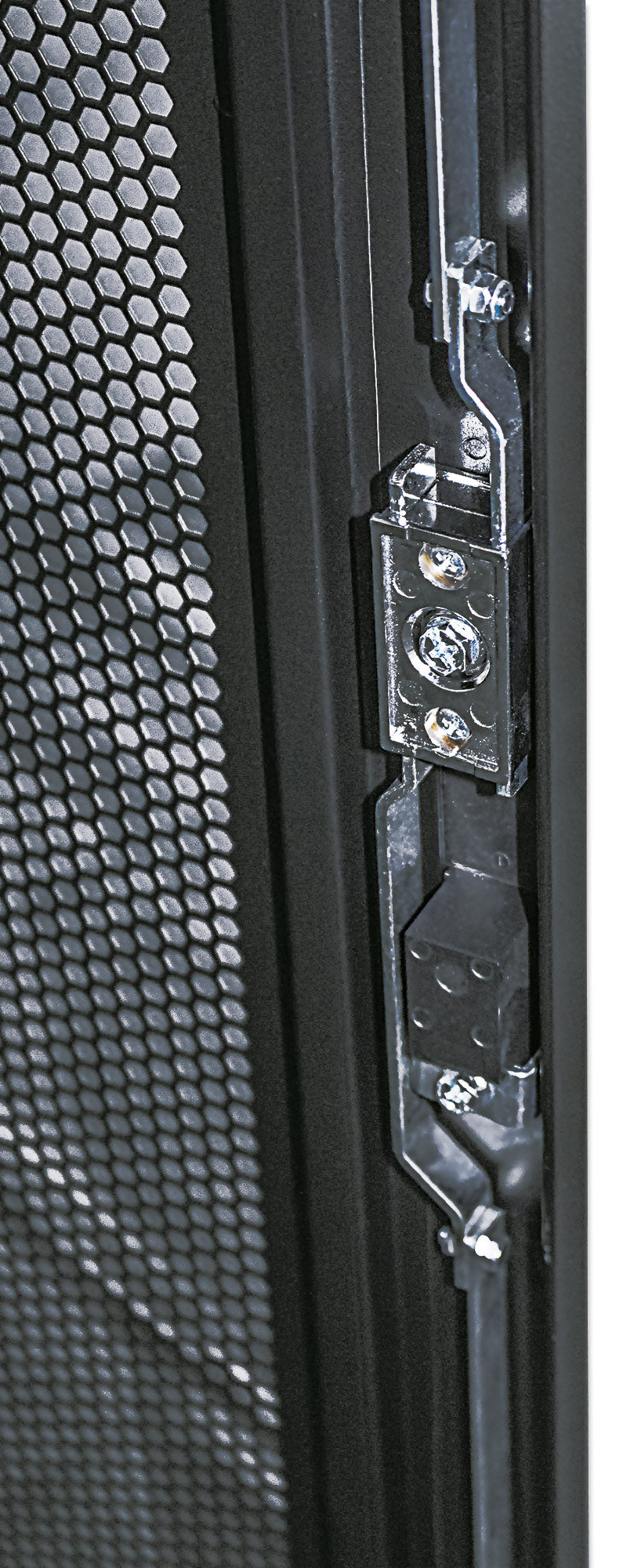

- Multi-point door lock

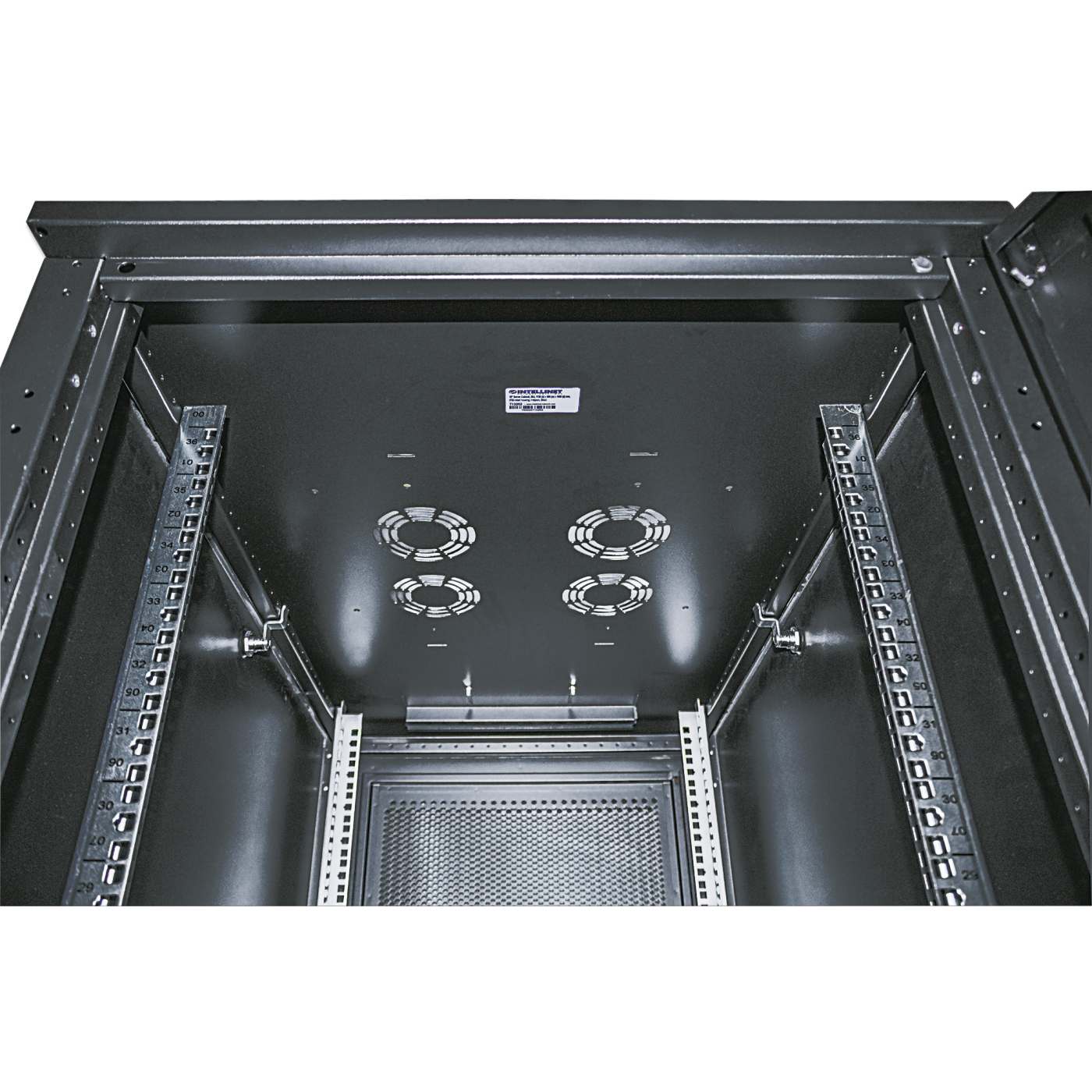

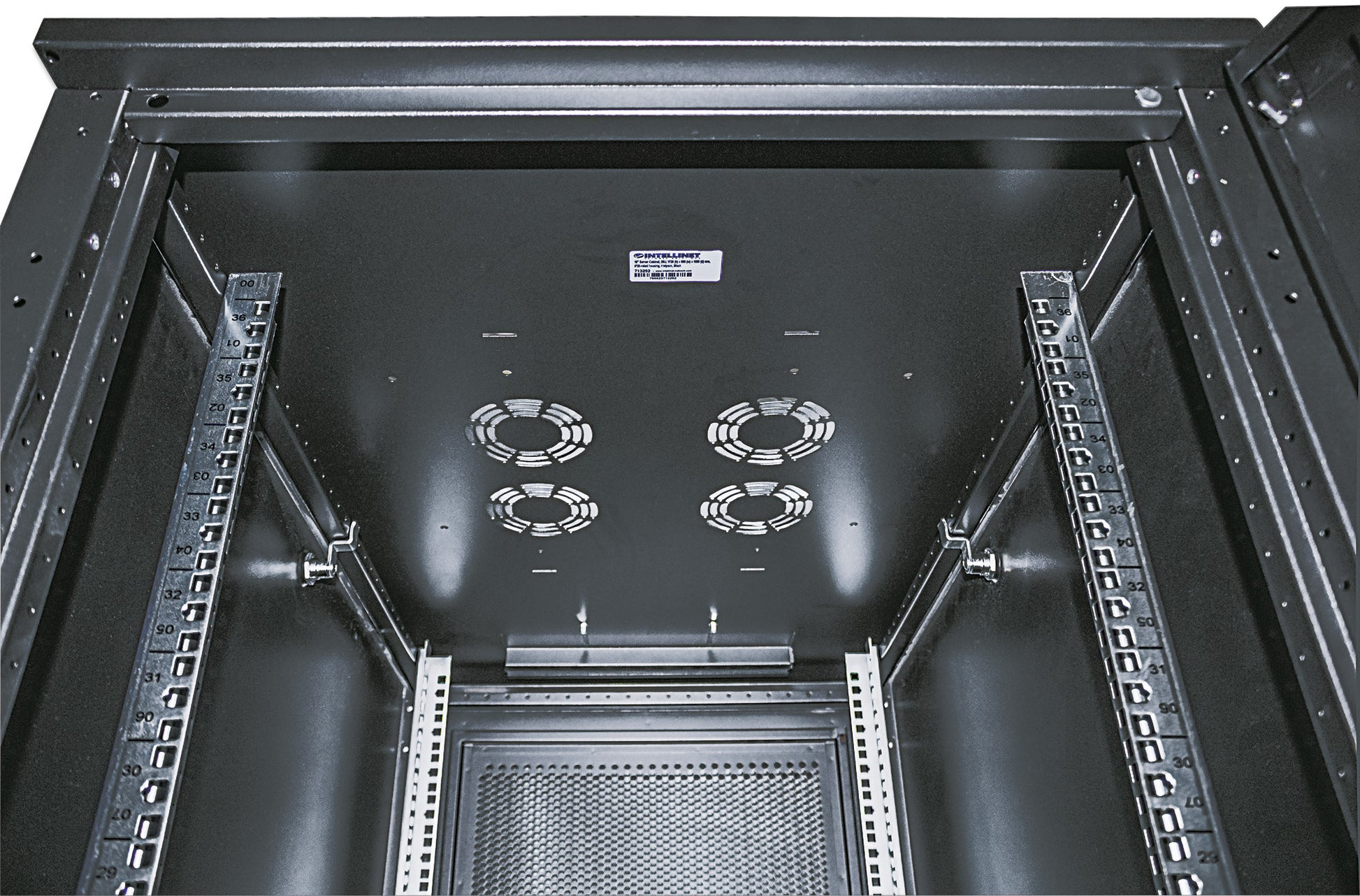

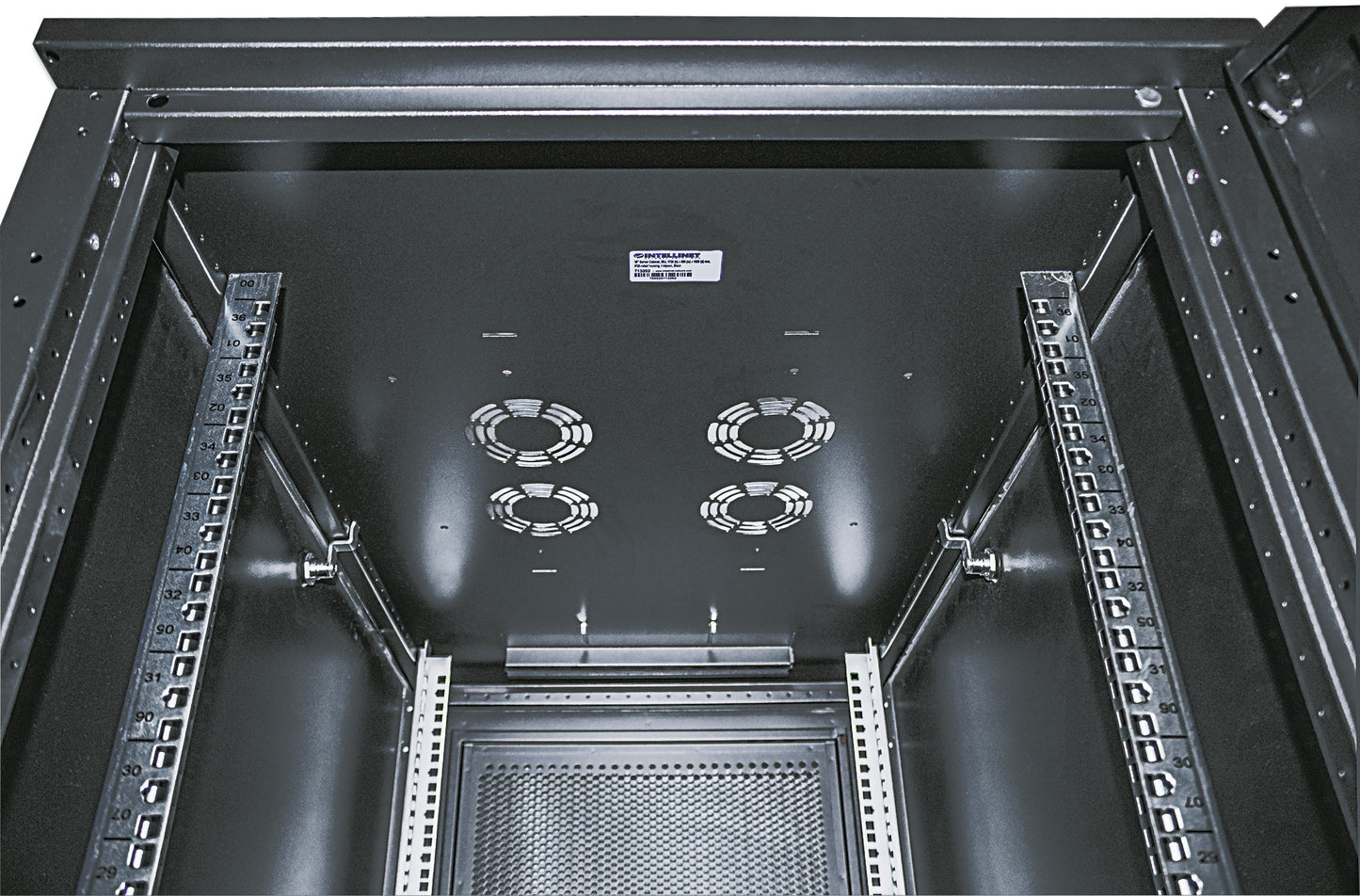

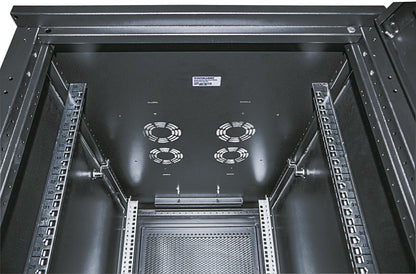

- Two apertures allow cable inlet from top or bottom
- Ships flatpacked
- Three-Year Warranty
- General
- 19 in.
- Height: 42U
- Color: Black RAL9005
- Certifications: RoHS, UL, Gost-R
- Protection rating: IP20
Dimensions
- Internal: 950 (D) x 503 (W) x 1873 (H) [mm] / 37.4 (L) x 27.68 (W) x 73.74 (H) [in.]
- External: 1000 (D) x 600 (W) x 2033 (H) [mm] / 39.37 (D) x 23.62 (W) x 80.04 (H) [in.]
- Adjustable Depth Range: 123 to 773 mm / 4.84 to 30.43 in.
Package Contents:
- 4 depth-adjustable mounting rails

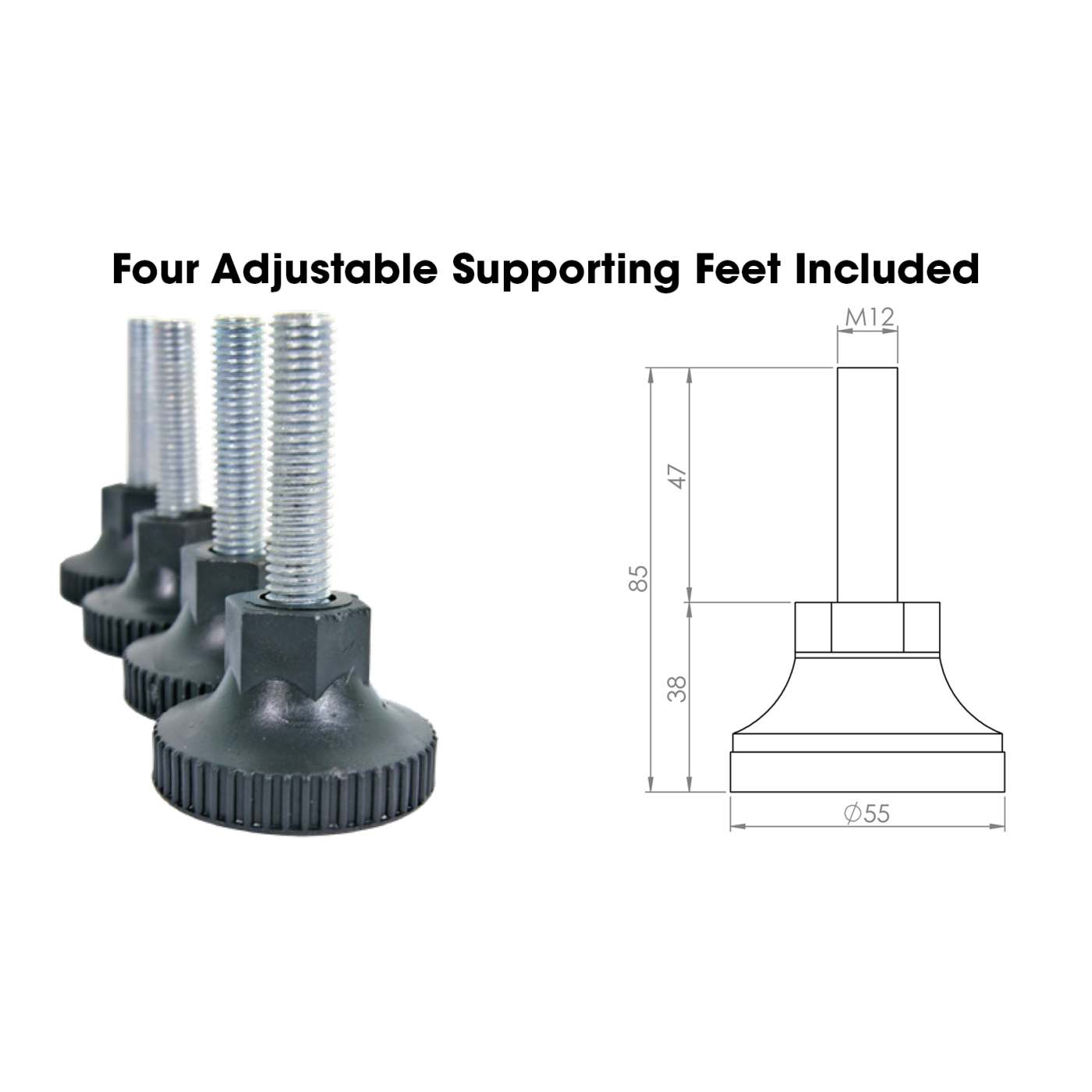

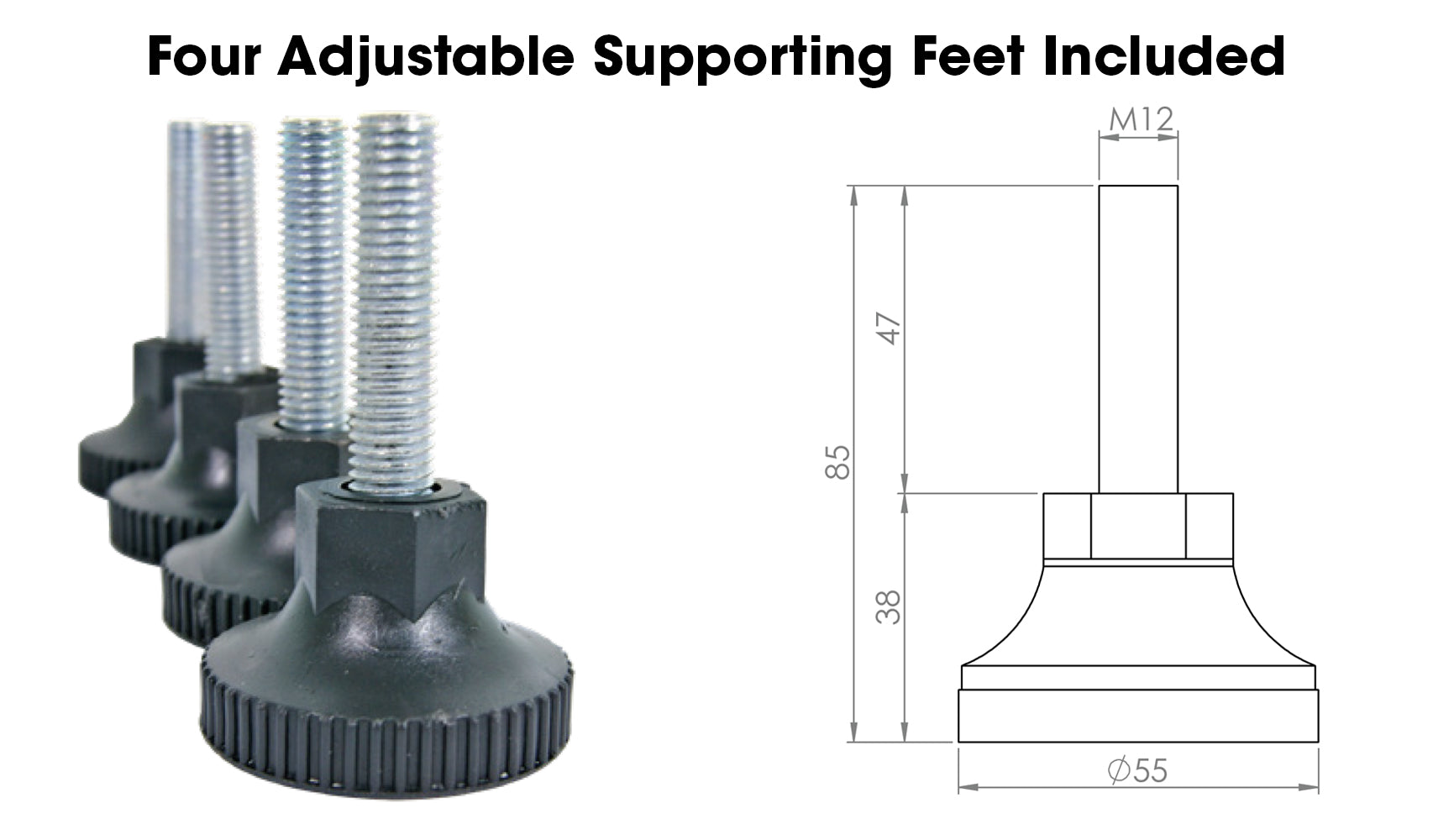

- 4 adjustable supporting feet
- Installation hardware
Additional SKUs
- Amazon ASIN: B00NM3G7C2
- EAN: 0766623713269
- UPC: 766623713269
- ALSO: 2206728
- API: 153909
Physical Specifications
- Product net weight: 127 kg
- Product gross weight: 146 kg
- Dimensions: 1000 (L) x 600 (W) x 2033 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 2075 x 1135 x 265 [mm]
- Master Carton Quantity: 1
- Master Carton Weight: 146.00 kg
- Master Carton Dimensions: 2075 x 1135 x 265 [mm]
