Intellinet Network Solutions Server Cabinets offer flexible and comprehensive solutions for your server installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flatpack version.
Numerous 19″ options are available for housing, all with an installation depth of 1000 mm & 1200 mm. Cabinet heights range from 26 to 47 units in either black (RAL9005) or gray (RAL7035) color, so there's a solution for every need. The removable side panels and the lockable doors make cabling and component exchange particularly easy. Perforations on front and back provide excellent airflow.
We provide top quality in materials and workmanship, including a cold-rolled steel frame, zinc-plated 19″ mounting rails and antistatic powder coating on all panels.
- Ideal for all 19 in. rackmount applications
- Maximum static load of 1500 kg

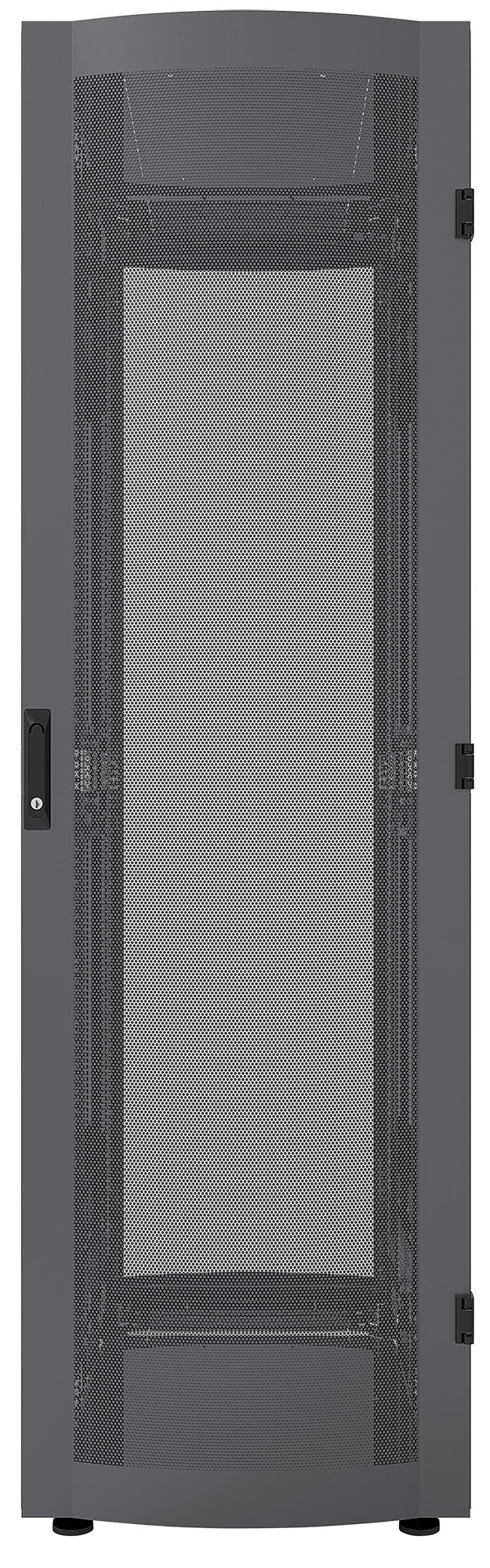

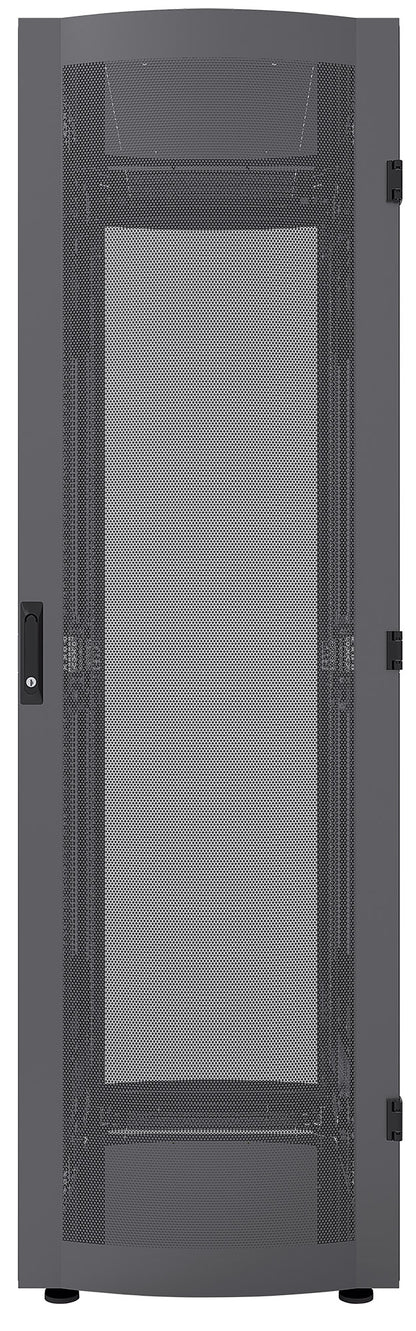

- Perforated door and ventilation slots provide excellent airflow
- Zinc-plated 19 in. mounting rails
- Antistatic powder coating on all panels
- Panels with up to 2 mm steel thickness

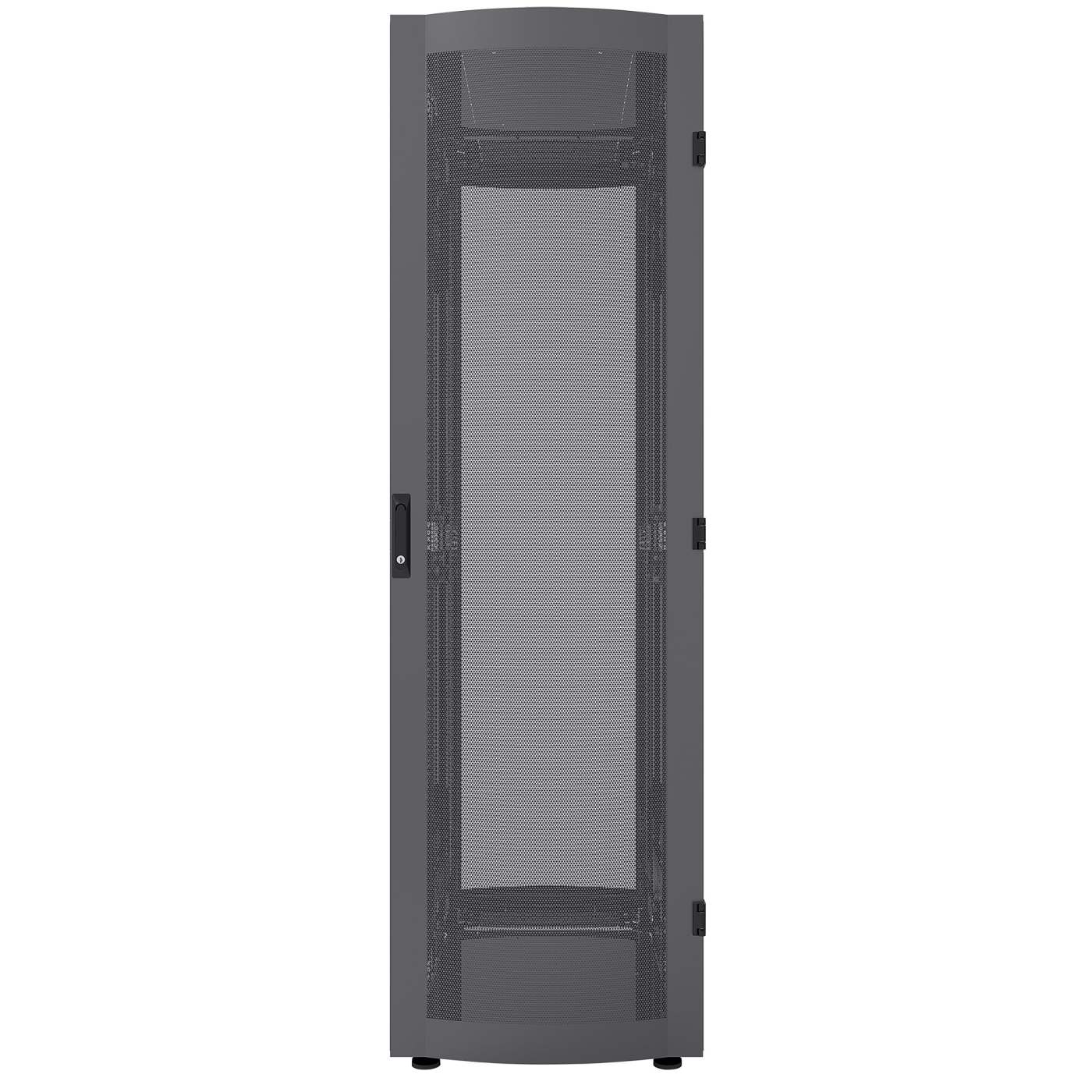

- Reversible front door
- IP20-rated housing

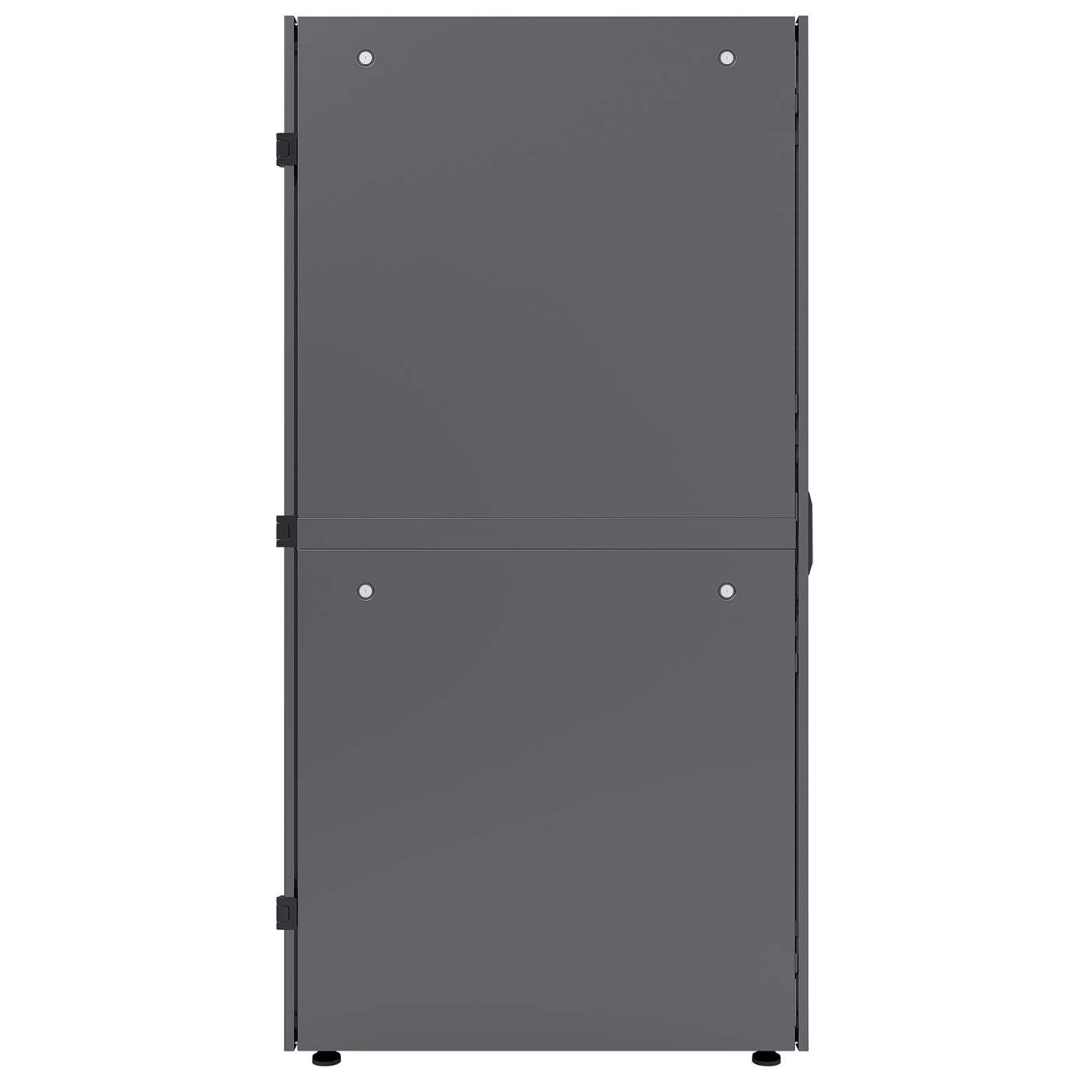

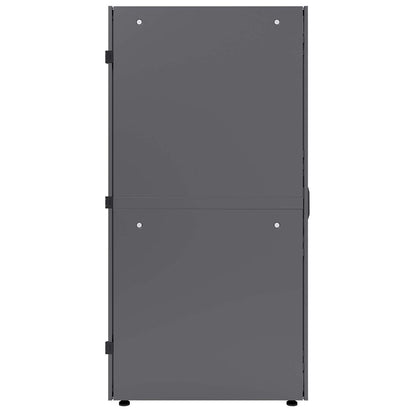

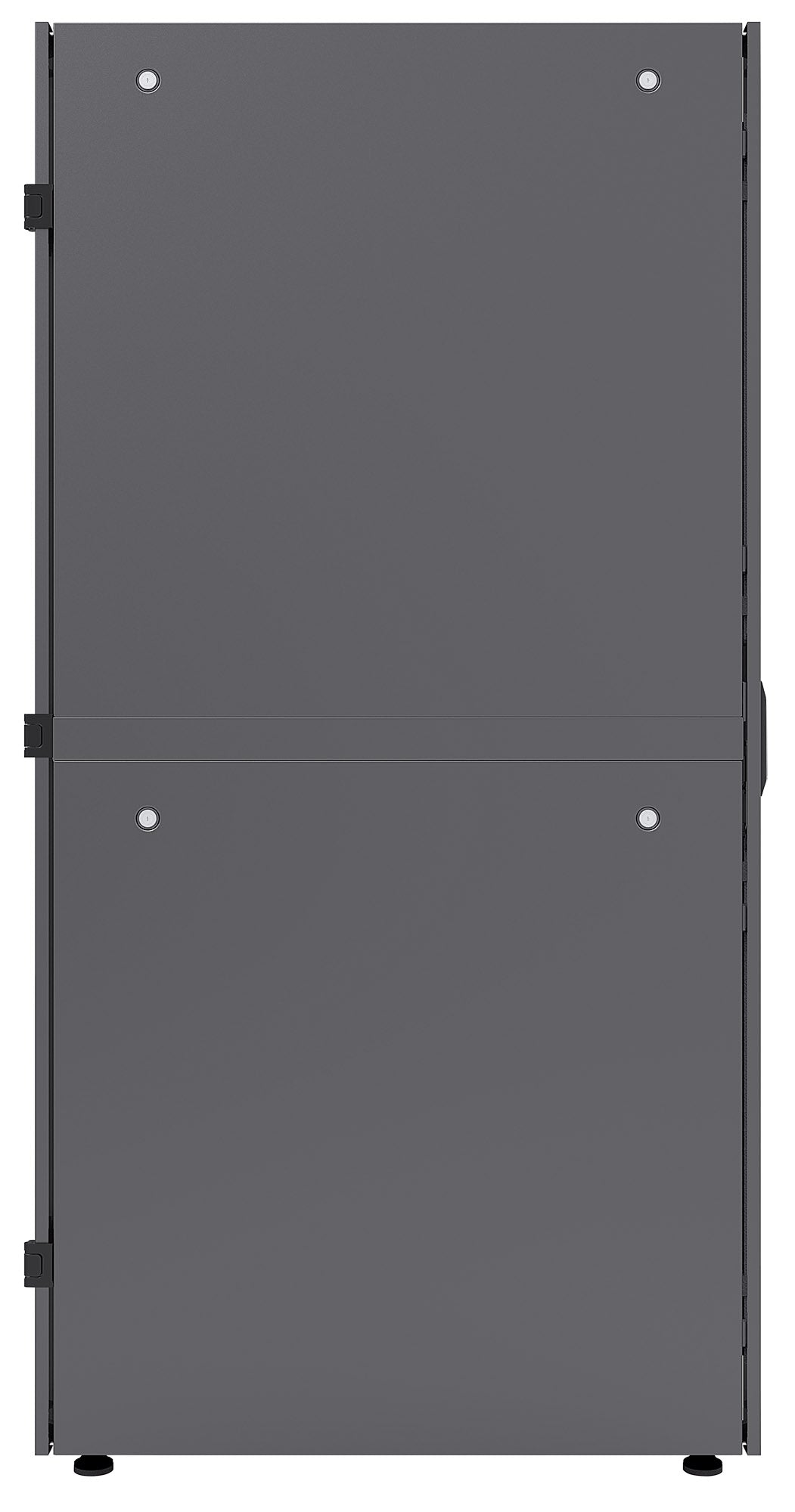

- Easily removable side and rear panels
- Multi-point door lock
- Two apertures allow cable inlet from top or bottom
- Ships fully assembled
- Three-Year Warranty
- General
- 19 in.
- Height: 42U
- Color: Black RAL9005
- Certifications: RoHS, UL, Gost-R
- Protection rating: IP20
Dimensions
- Internal: 1150 (D) x 503 (W) x 1873 (H) [mm] / 45.27 (L) x 19.8 (W) x 73.74 (H) [in.]
- External: 1200 (D) x 600 (W) x 2033 (H) [mm] / 47.24 (D) x 23.62 (W) x 80.04 (H) [in.]
- Adjustable Depth Range: 123 to 973 mm / 4.84 to 38.3 in.
Package Contents
- Four depth-adjustable mounting rails

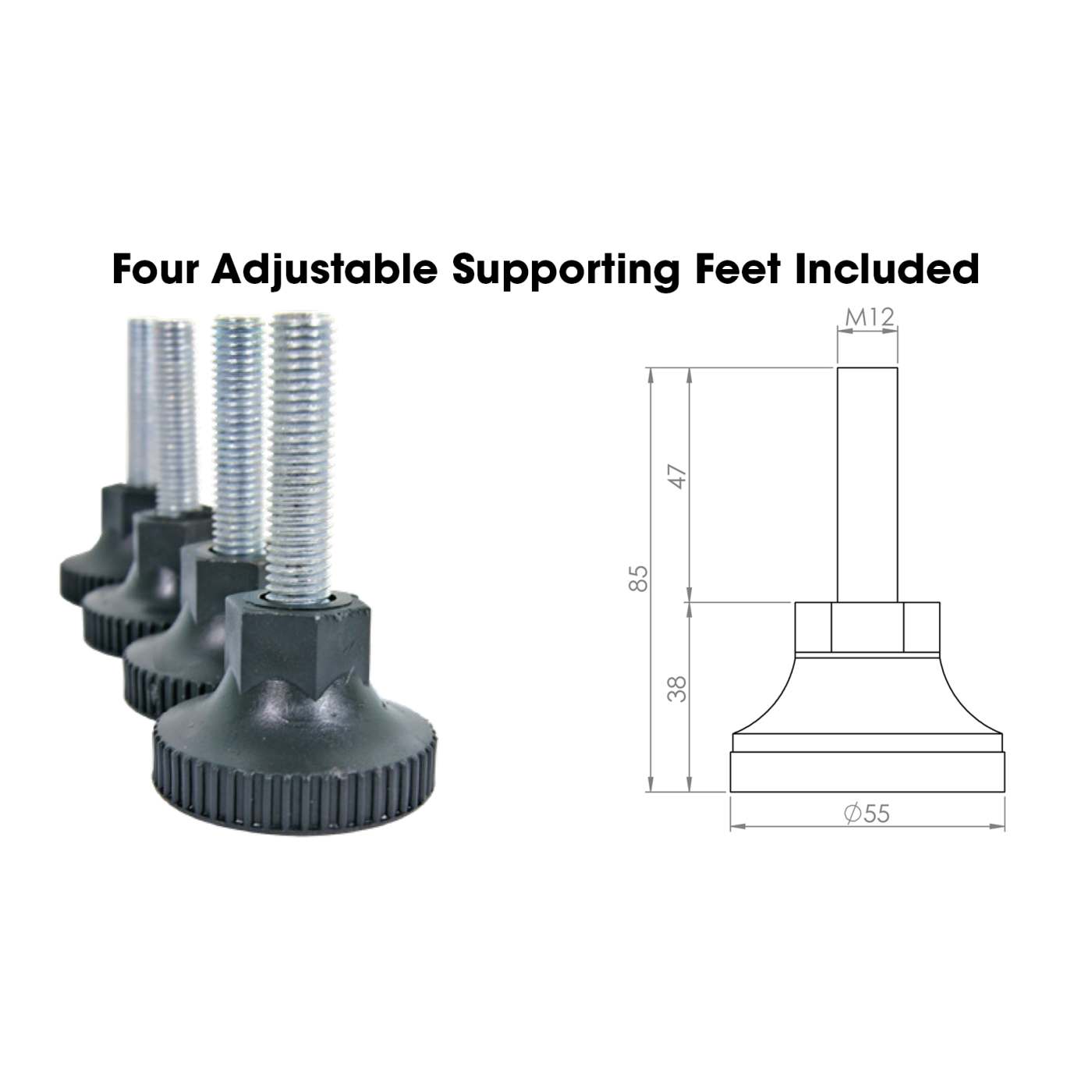

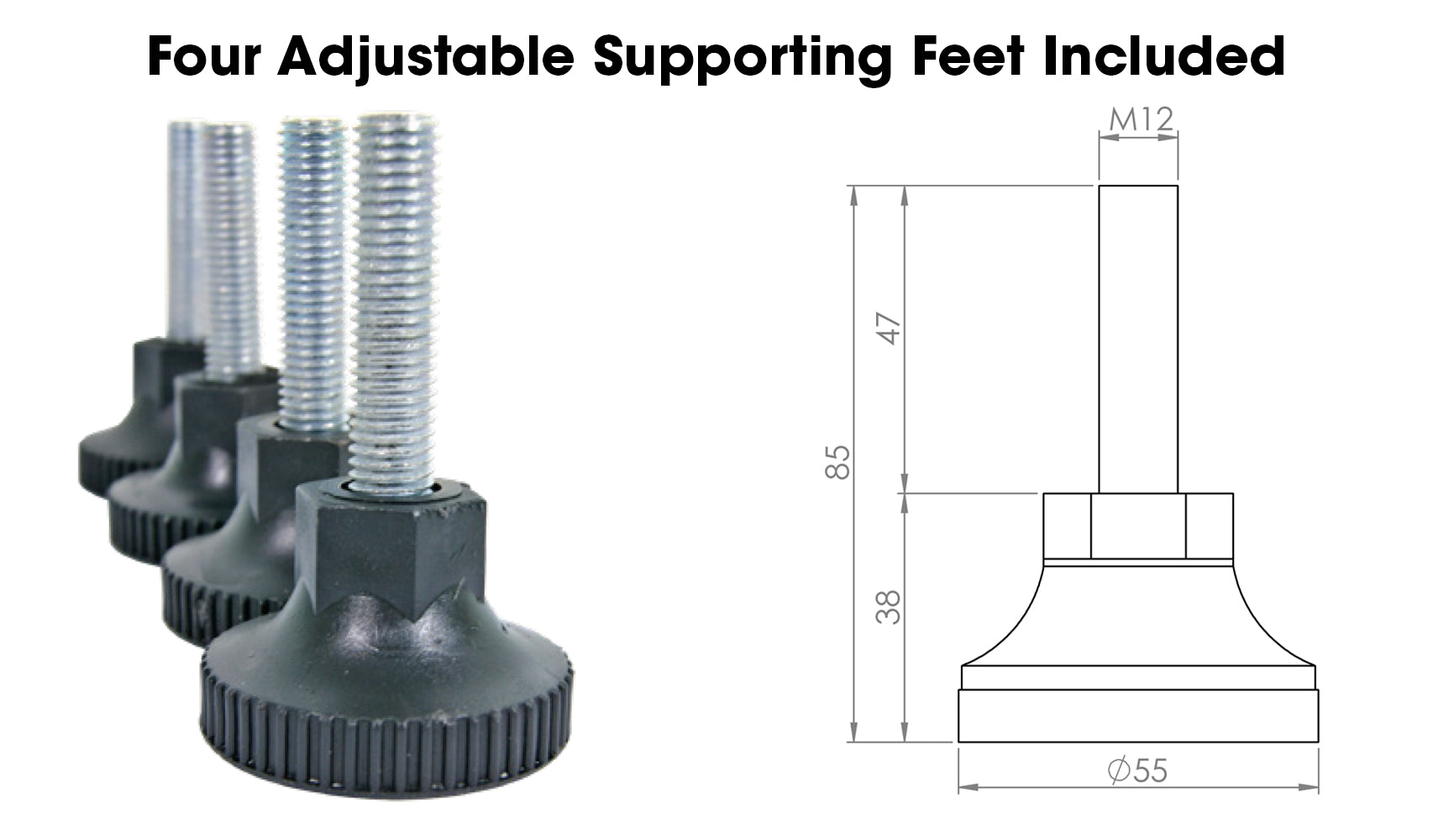

- Four adjustable supporting feet
- Installation hardware
Additional SKUs
- EAN: 0766623715201
- UPC: 766623715201
Physical Specifications
- Product net weight: 121 kg
- Product gross weight: 133 kg
- Dimensions: 1200 (L) x 600 (W) x 2057 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 2200 x 1270 x 640 [mm]
- Master Carton Quantity: 1
- Master Carton Weight: 133.00 kg
- Master Carton Dimensions: 2200 x 1270 x 640 [mm]
