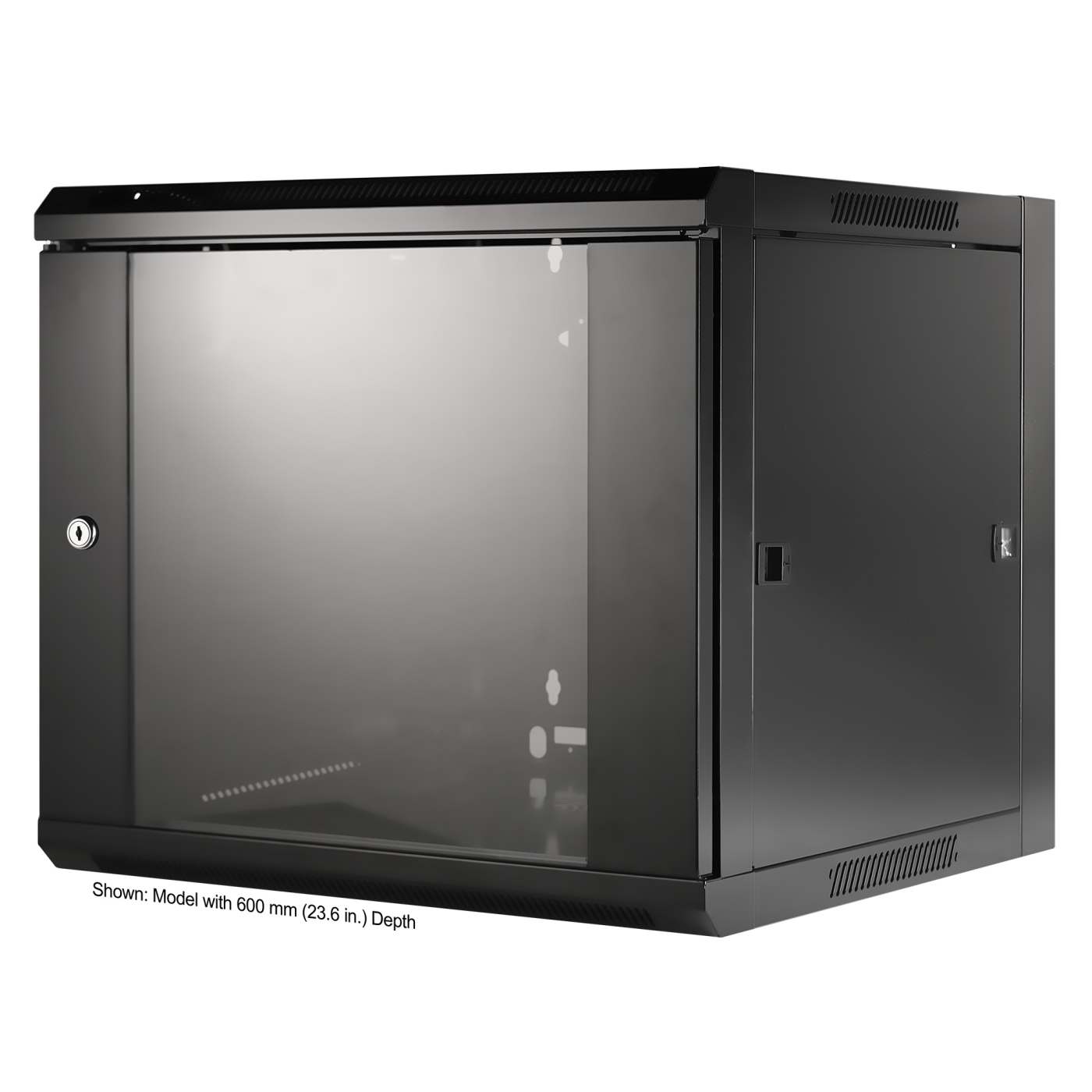

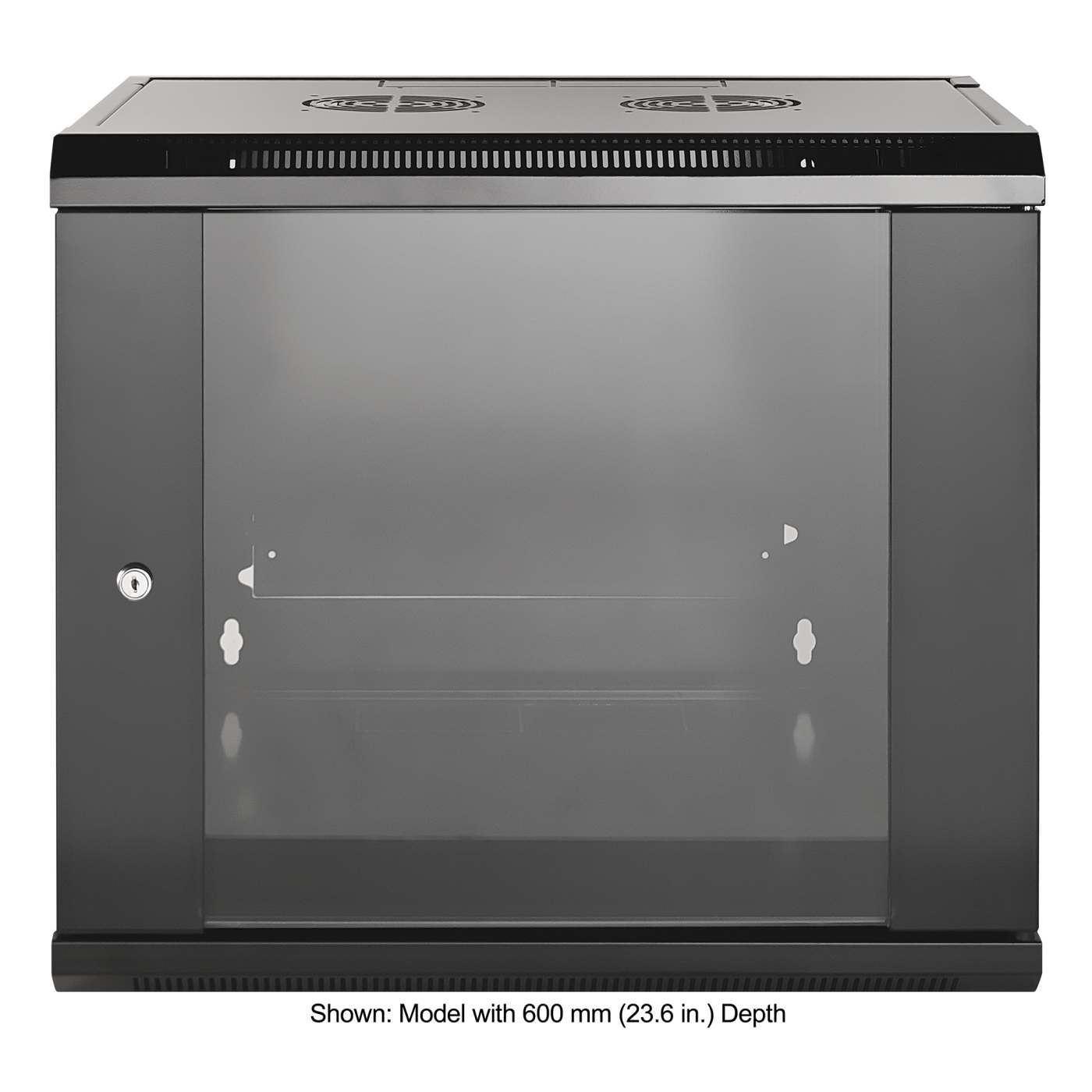

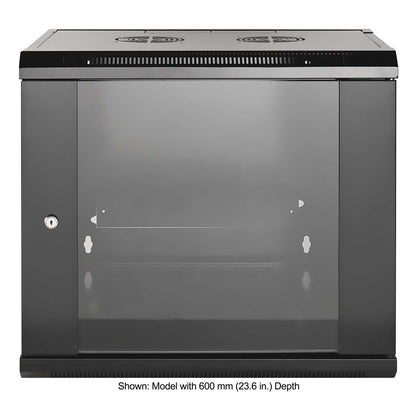

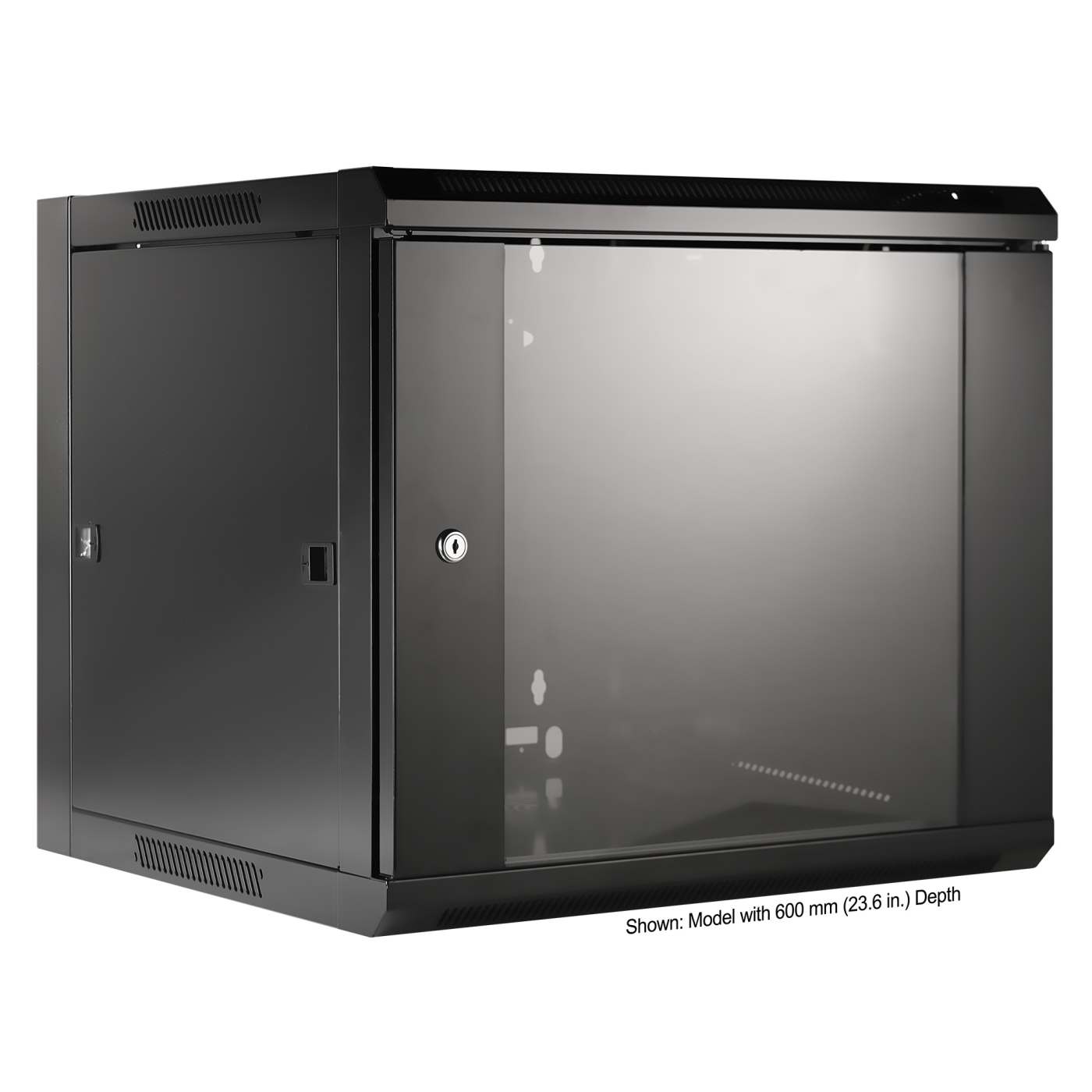

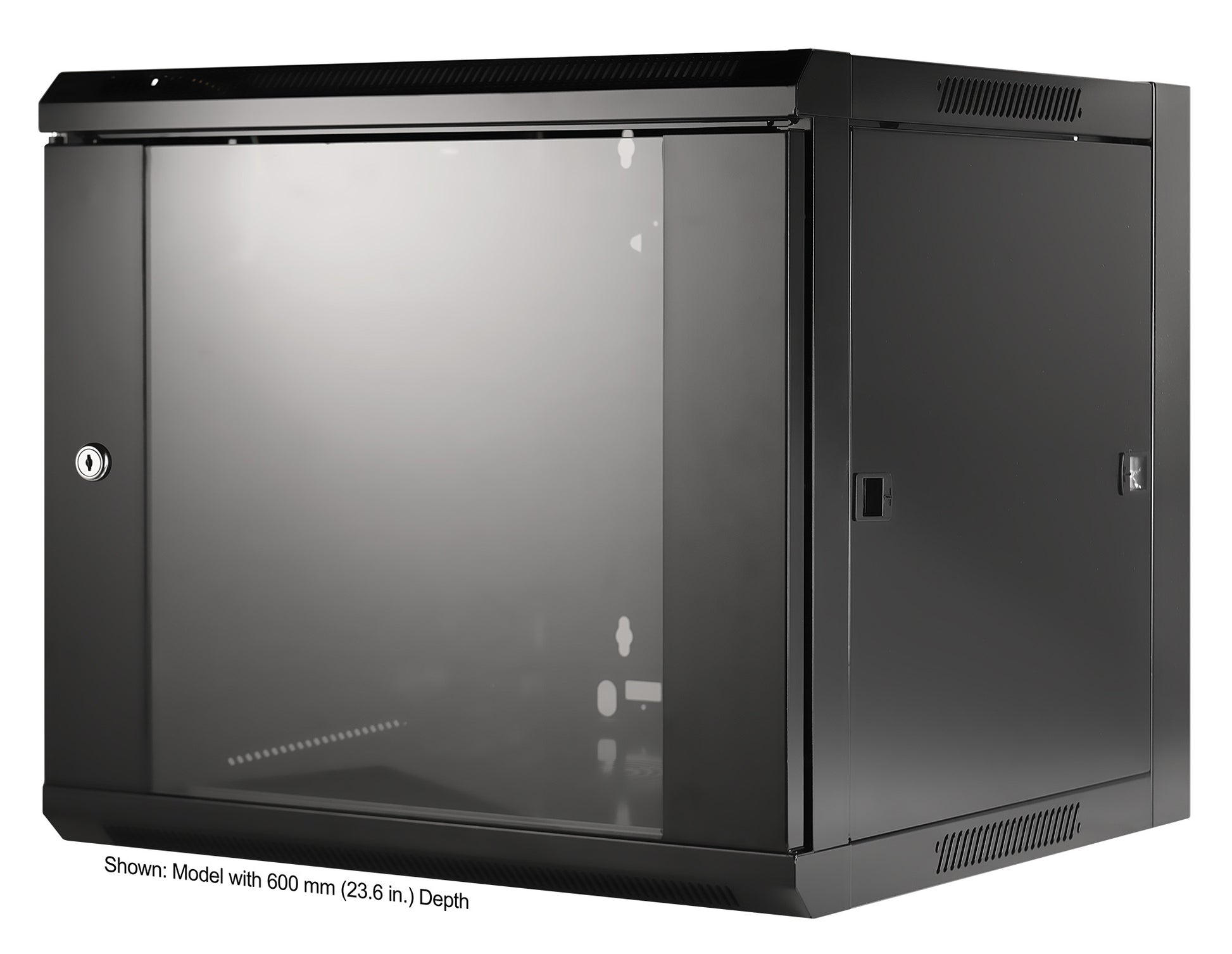

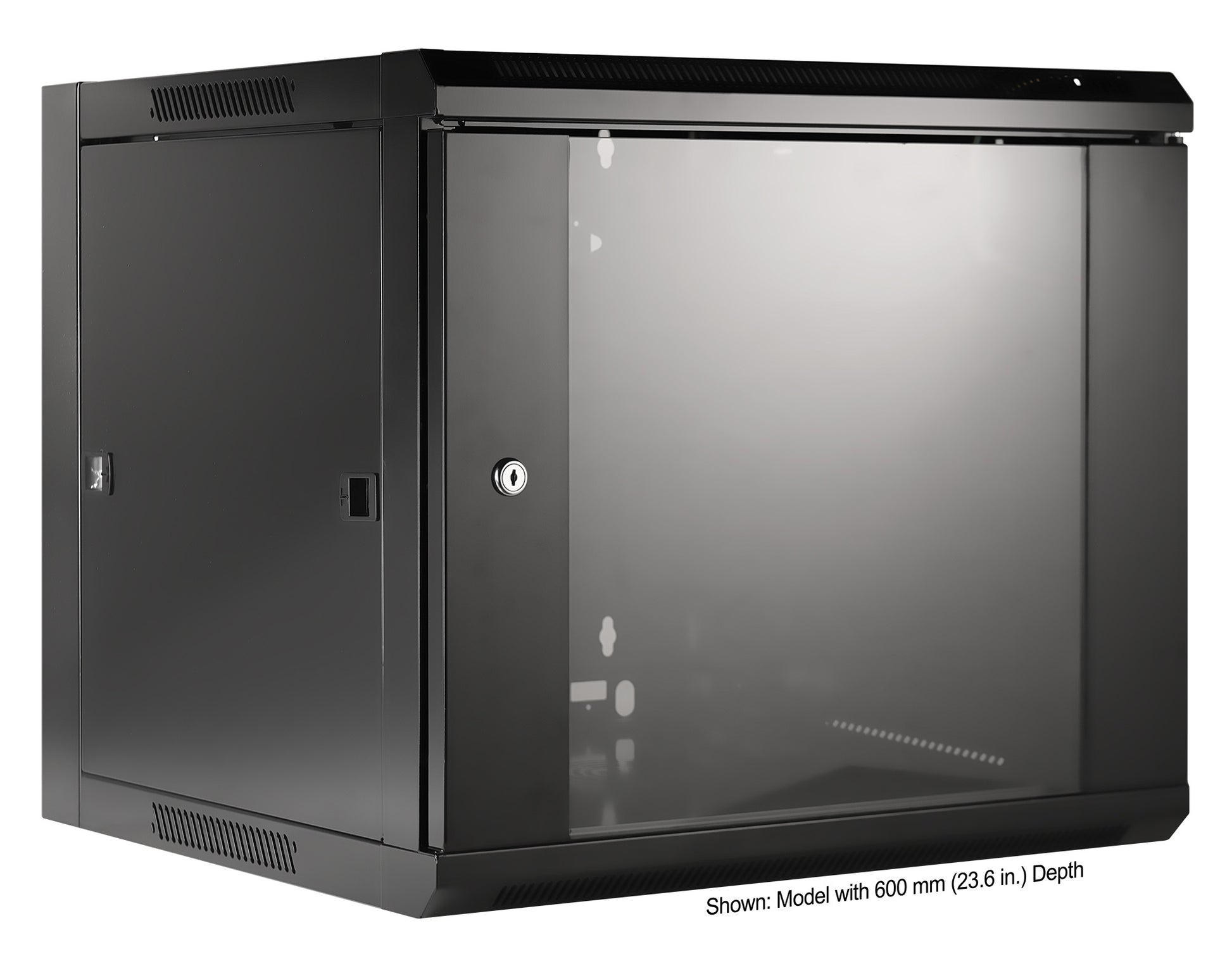

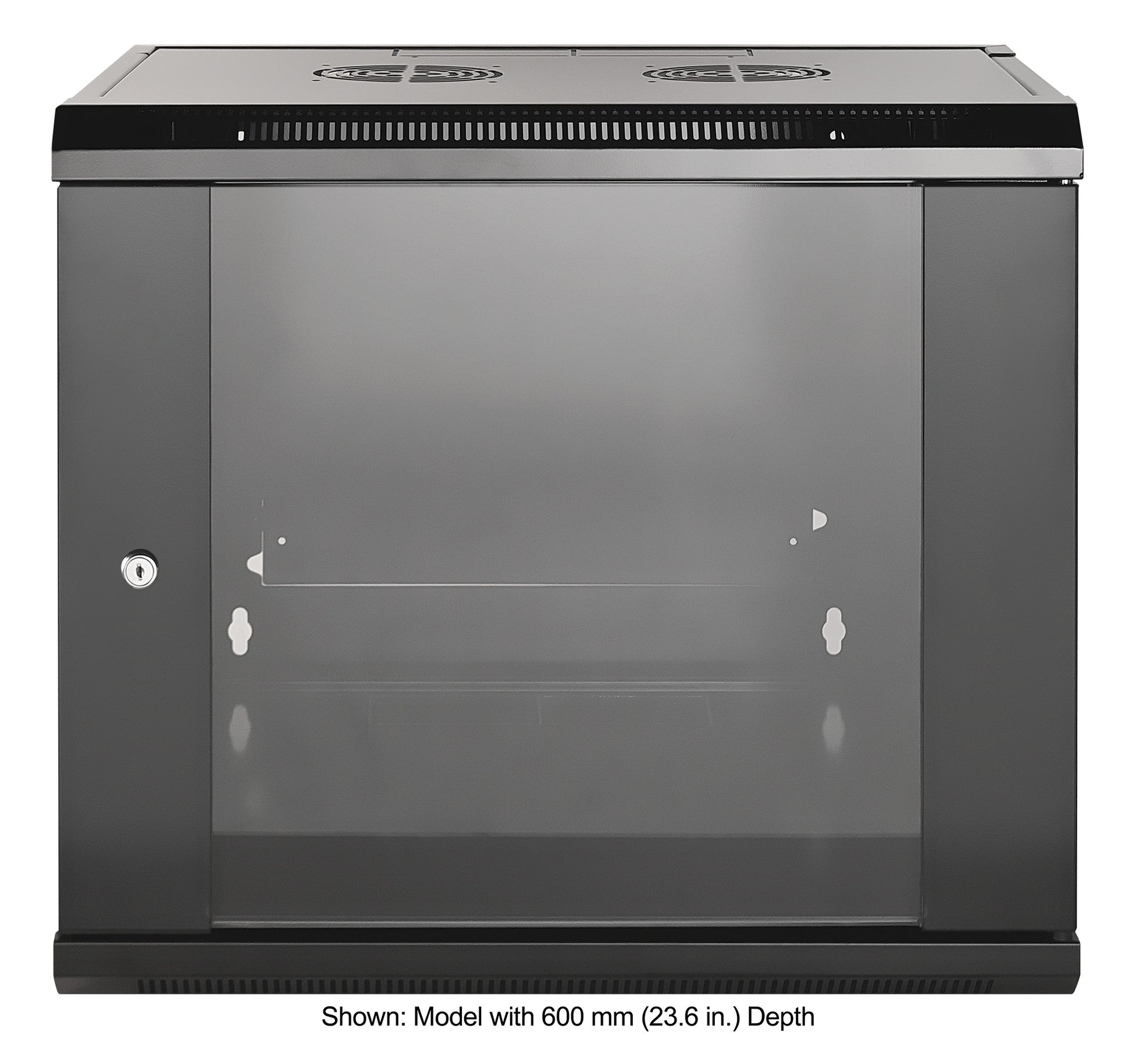

Intellinet Network Solutions wallmount cabinets offer you a flexible and comprehensive solution for your network installations. Top quality materials and workmanship include cold-rolled, galvanized steel frame and a tempered-glass door; while the flat-pack (unassembled) shipping* saves you space and money.
*Completely assembled versions are available in certain countries.
- Ideal for 19" rackmount applications
- Maximum static load of 60 kg
- Usable depth: 270 mm (10.63 in.) to 350 mm (13.78 in.)

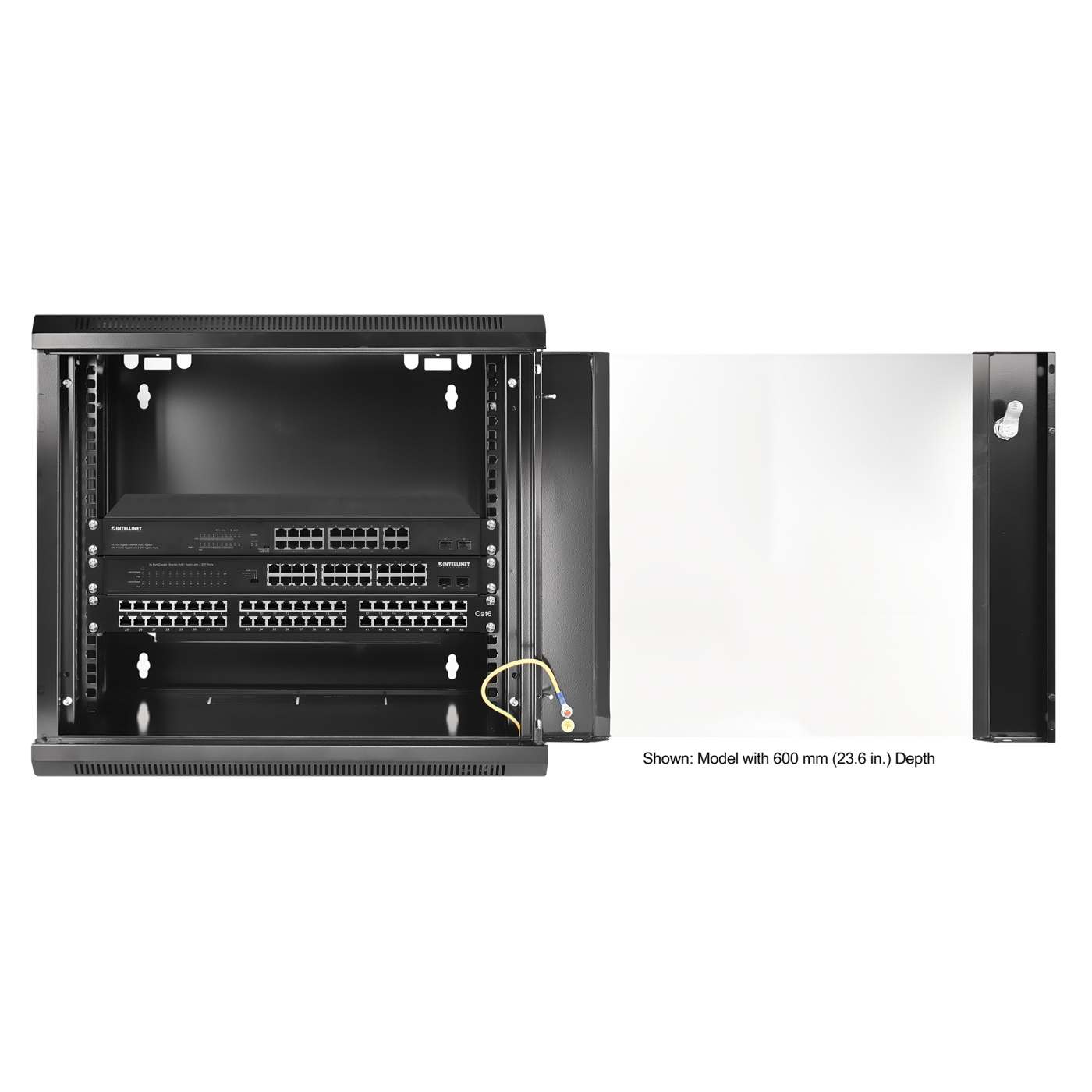

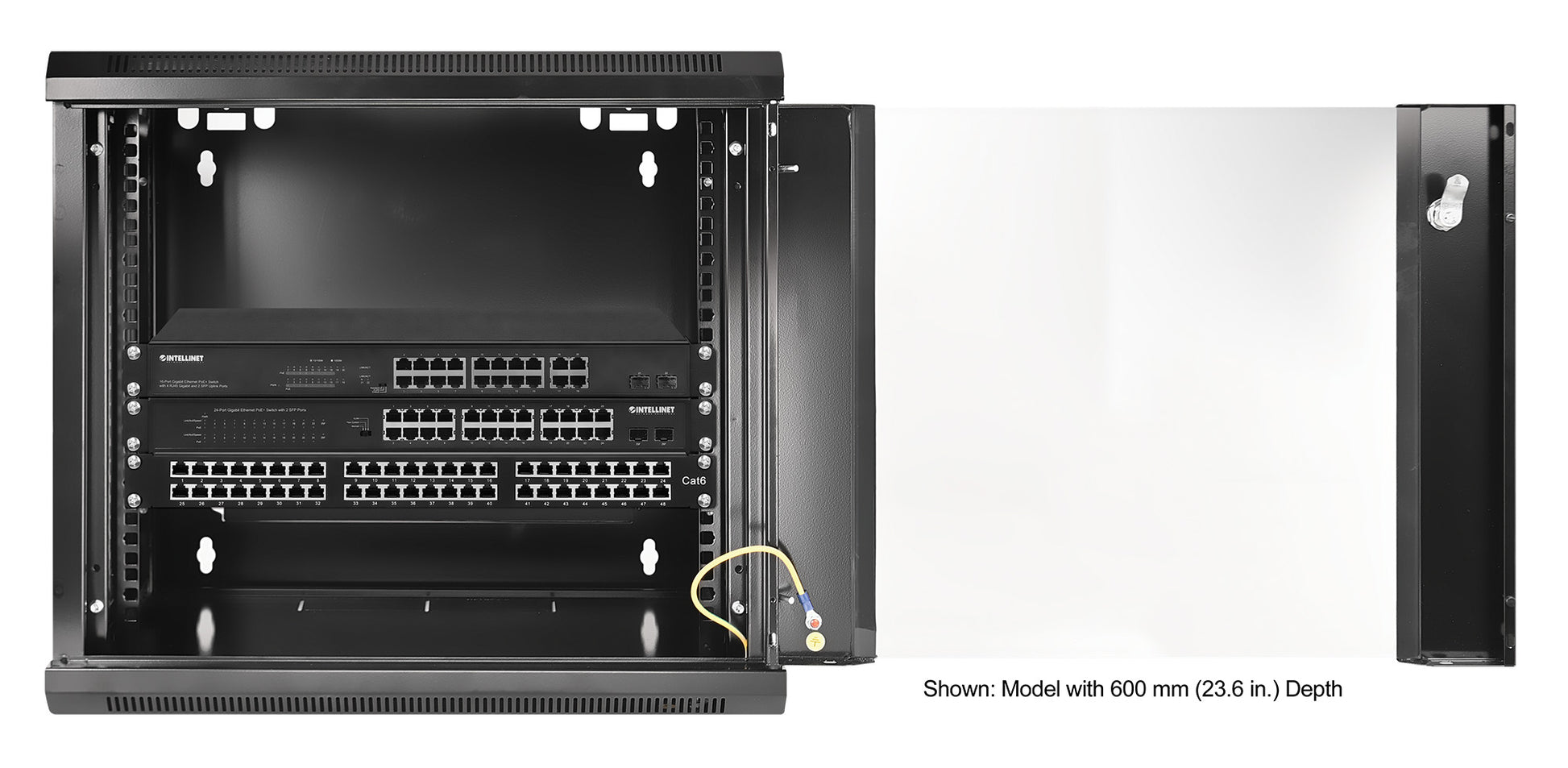

- Tempered-glass door can be opened more than 180°

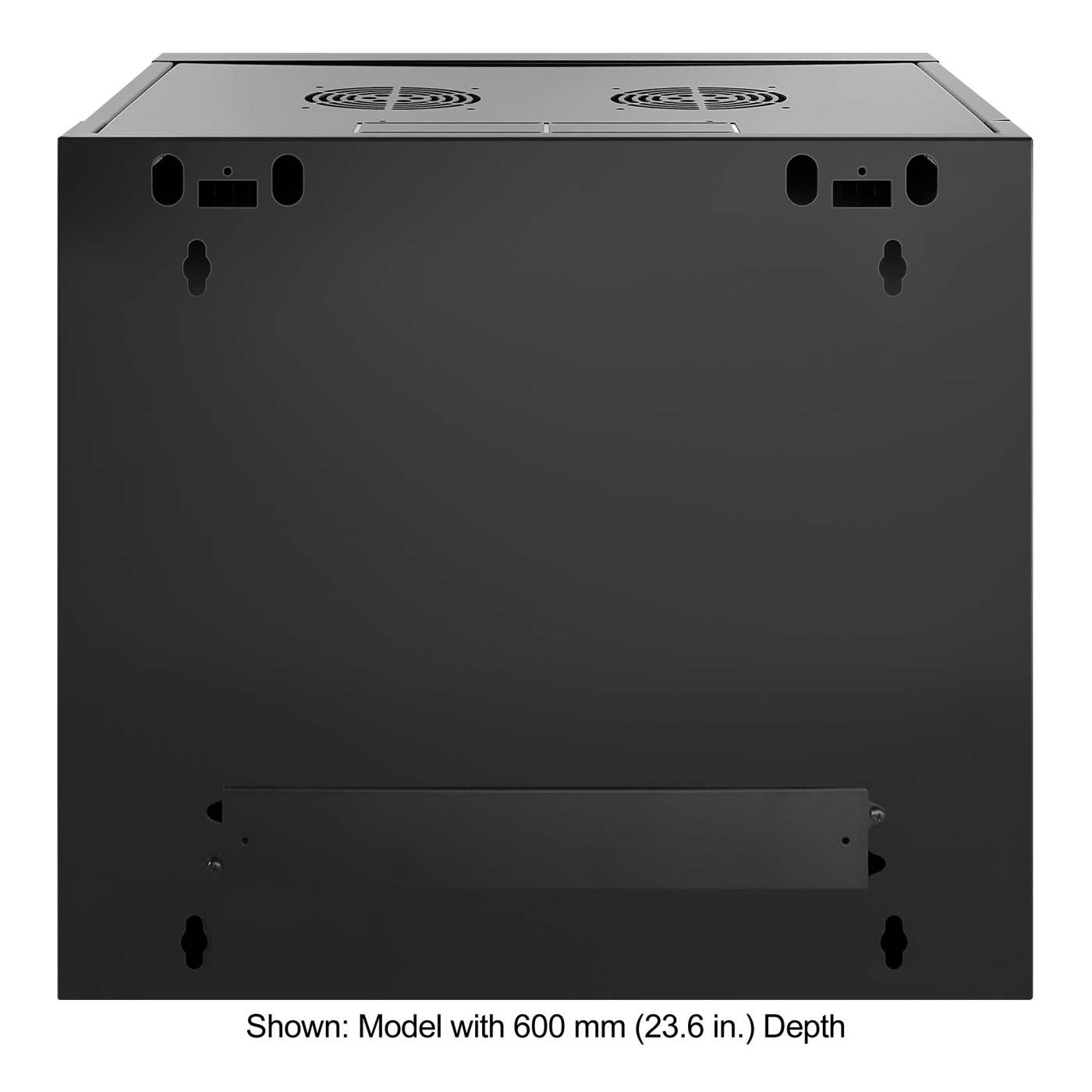

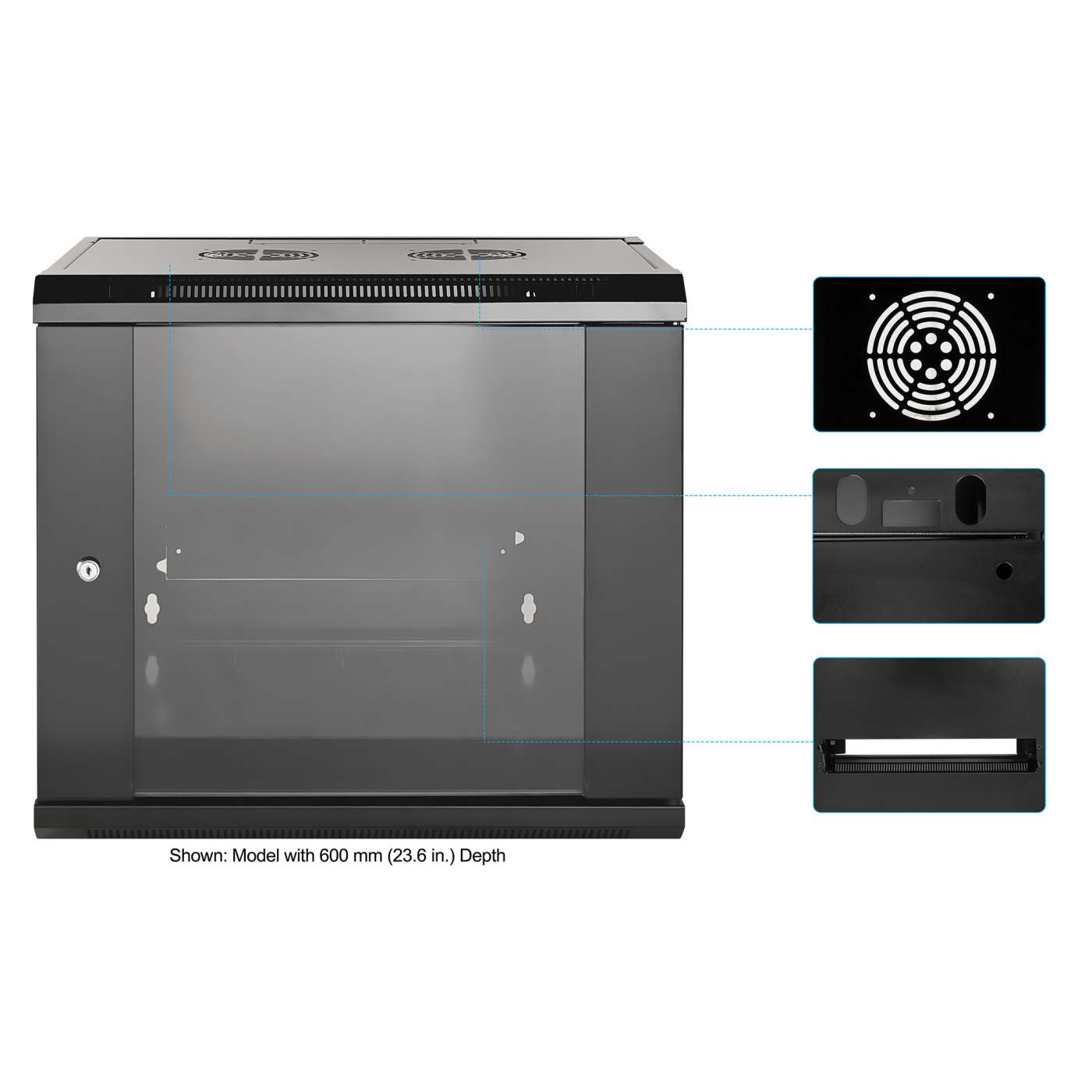

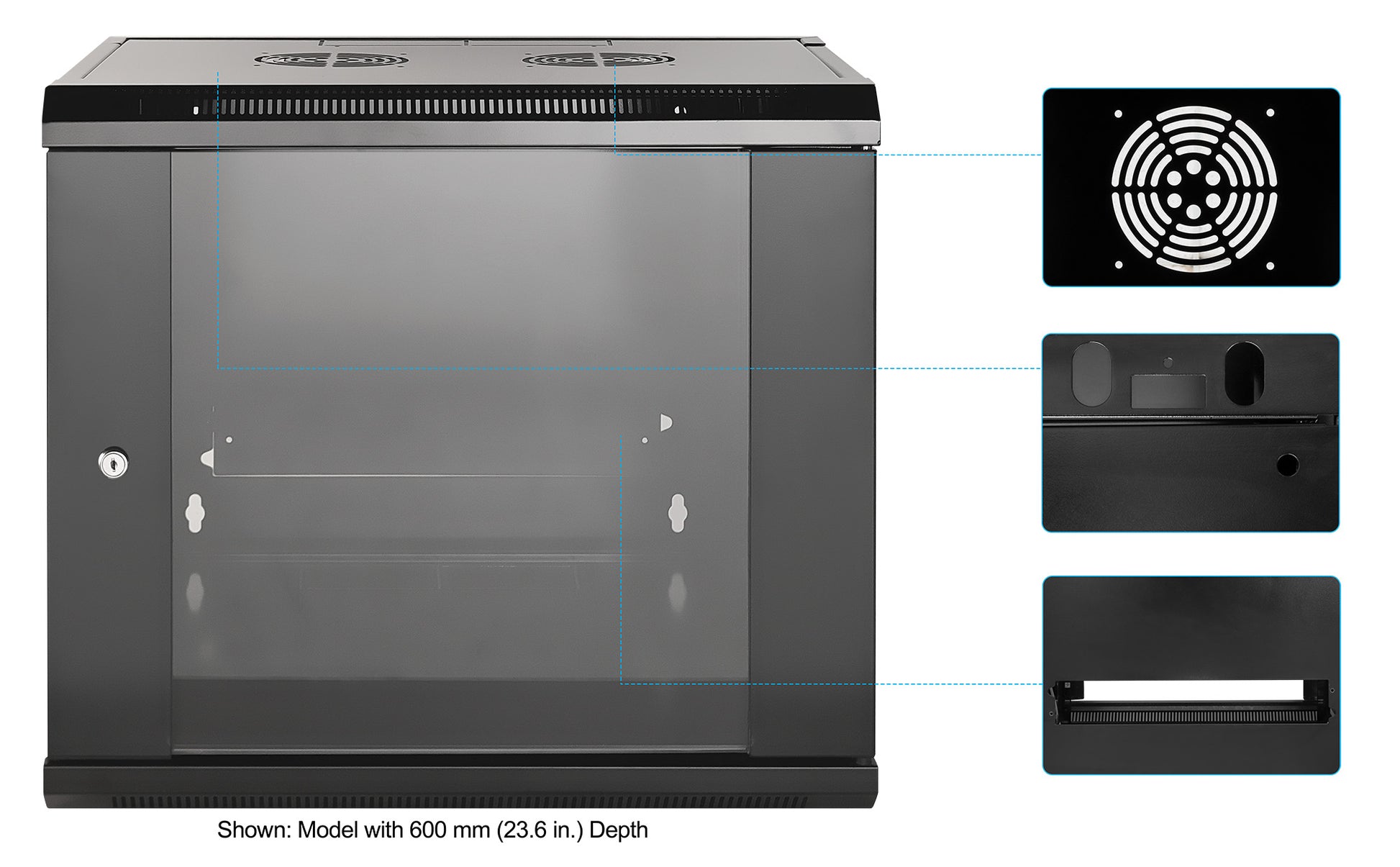

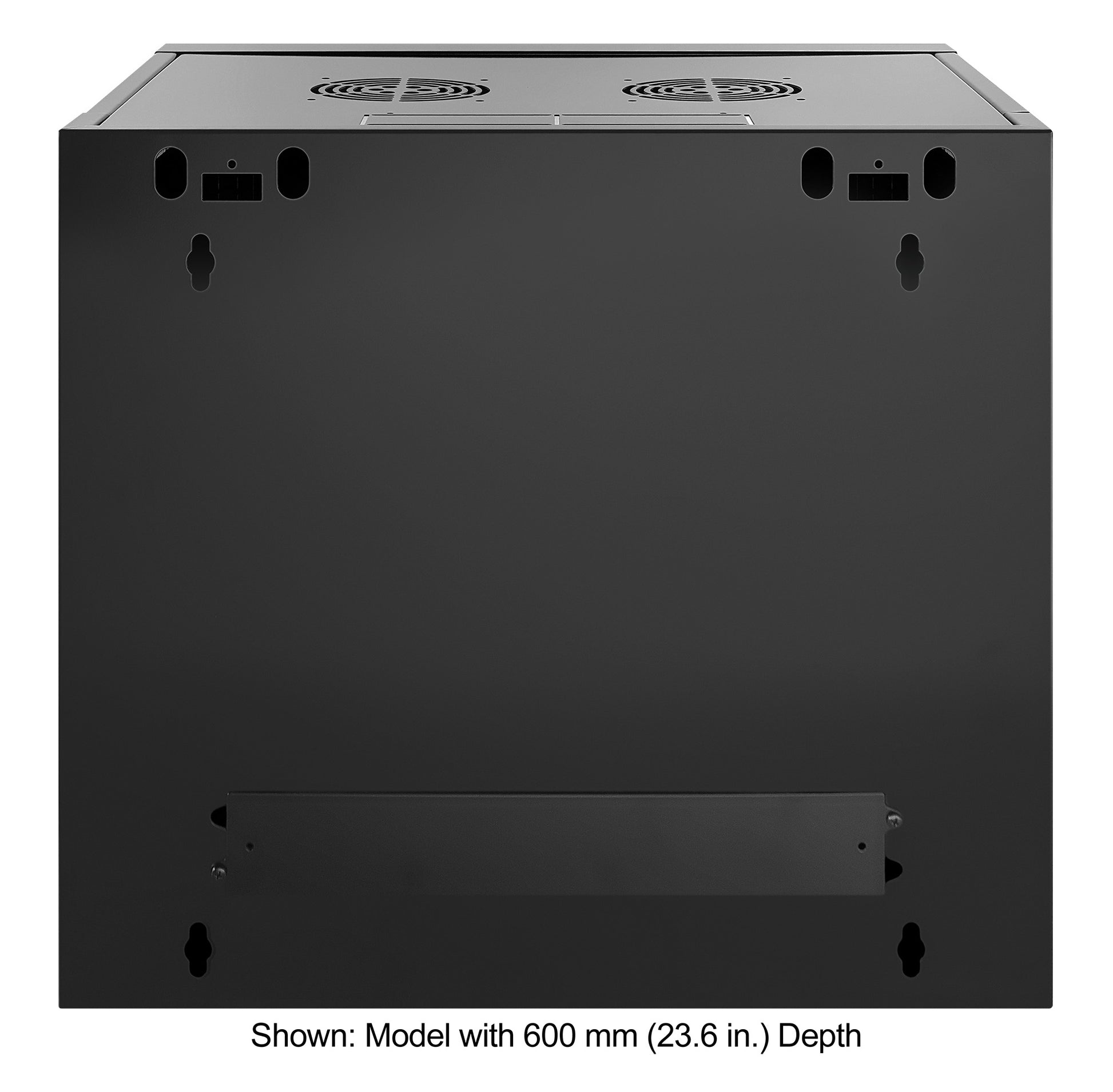

- Cable entry via rear or top panel
- Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
- Reversible Front door
- Easily removable side panels
- Ships flatpacked
- Three-Year Warranty
- General
- 19"
- Height: 9U
- Color: Black RAL 9004
- Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Dimensions
- 500 (h) x 570 (w) x 450 (d) mm
- 19.7 (h) x 22.4 (w) x 17.7 (d) in.
- Usable depth: 270 mm (10.63 in.) to 350 mm (13.78 in.)
Package Contents
- 2 depth-adjustable mounting rails
- Installation hardware including tool, 10x M6 Sets and 6x Keys
There is a 2-piece set of spare rails available for this product by the model number shown:
- #712446
Additional SKUs
- Amazon ASIN: B00NYQQBB4
- EAN: 0766623711777
- UPC: 766623711777
- ALSO: 2282618
- API: 155372
Physical Specifications
- Product net weight: 17.5 kg
- Product gross weight: 18 kg
- Dimensions: 500 x 570 x 450 (mm)
- Packaging type: Brown Box
- Packaging dimensions: 530 x 600 x 200 [mm]
- Master Carton Quantity: 1
- Master Carton Weight: 21.50 kg
- Master Carton Dimensions: 530 x 600 x 200 [mm]
