Keep Equipment Cool with our Roof Mount Fans for 19 inch Wall-Mount Cabinets

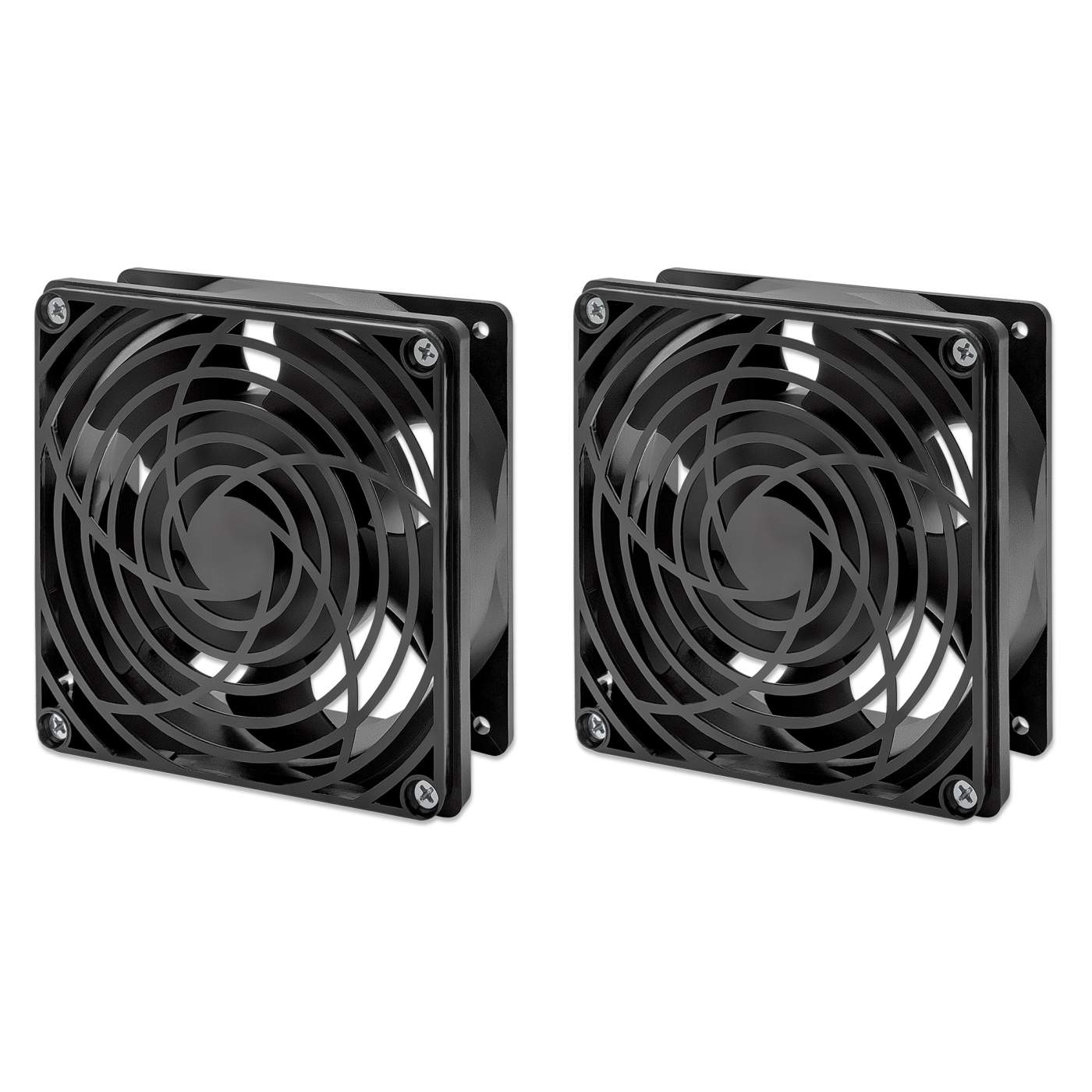

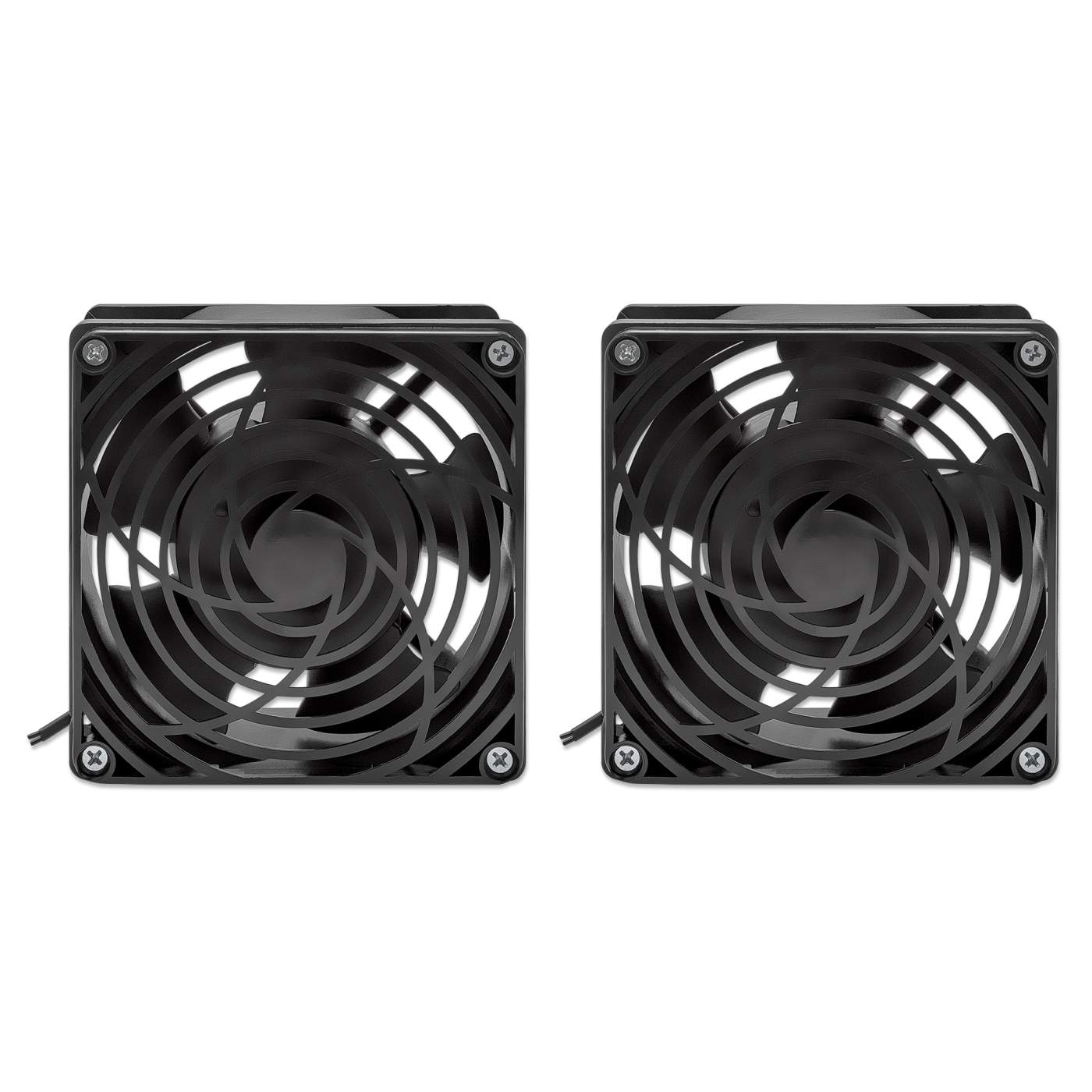

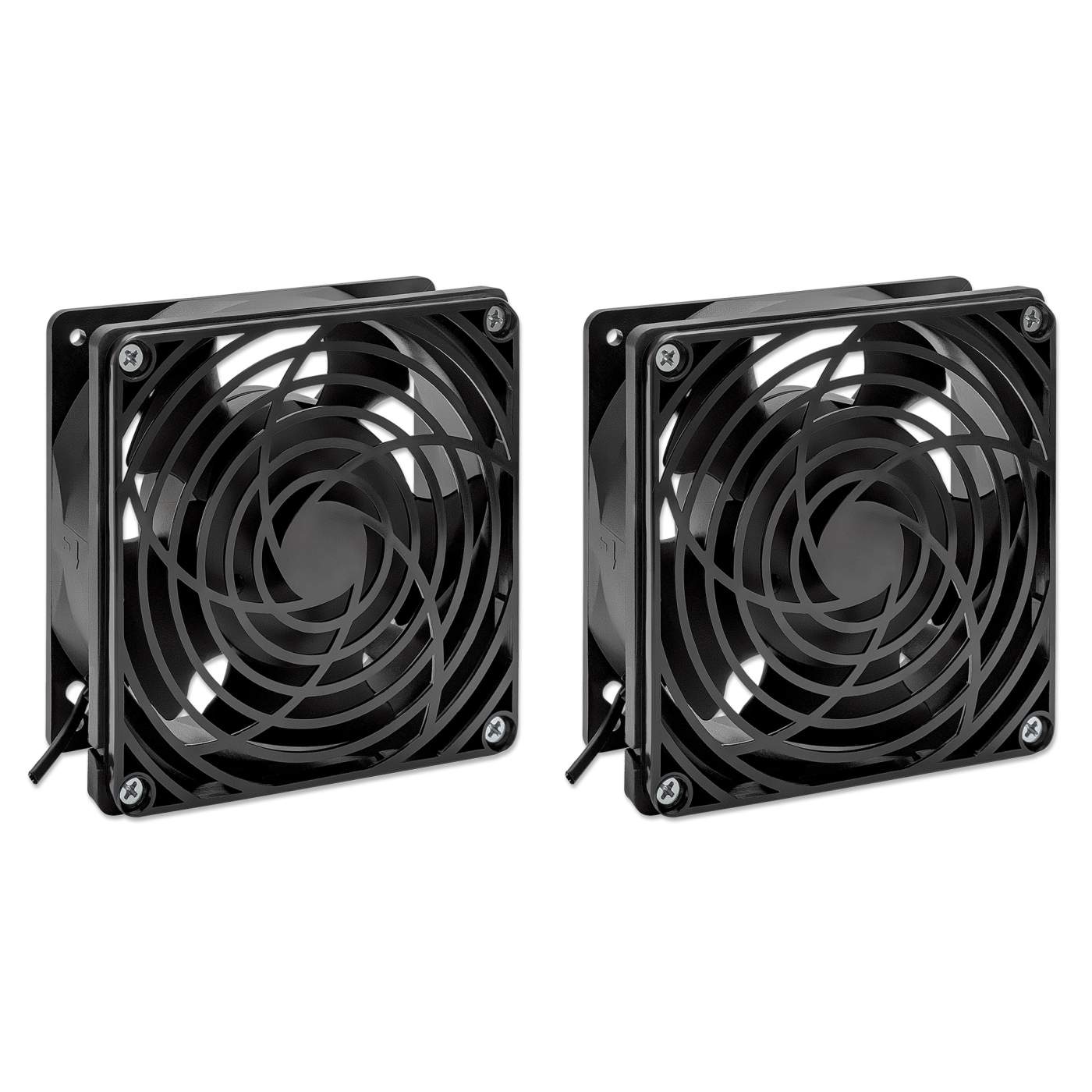

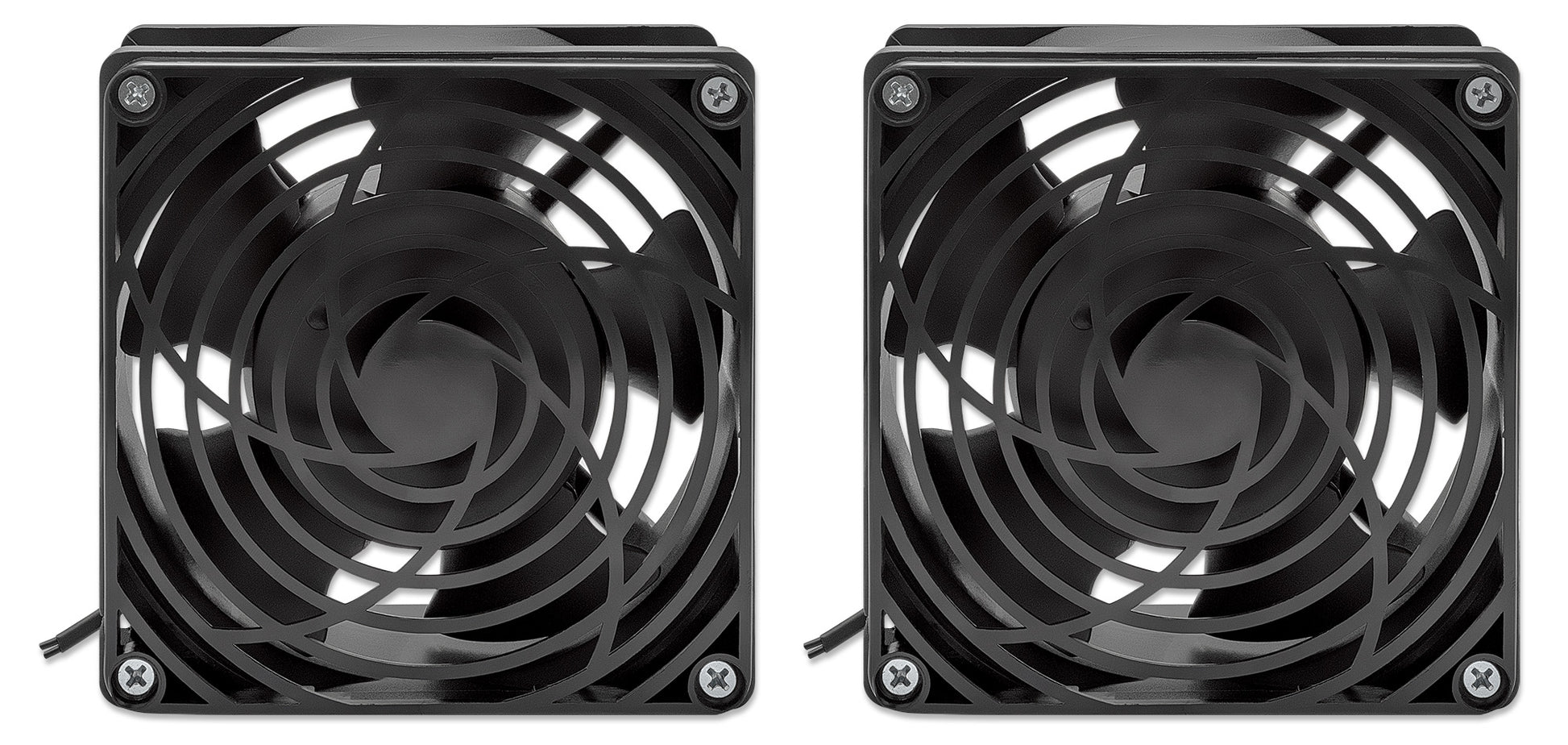

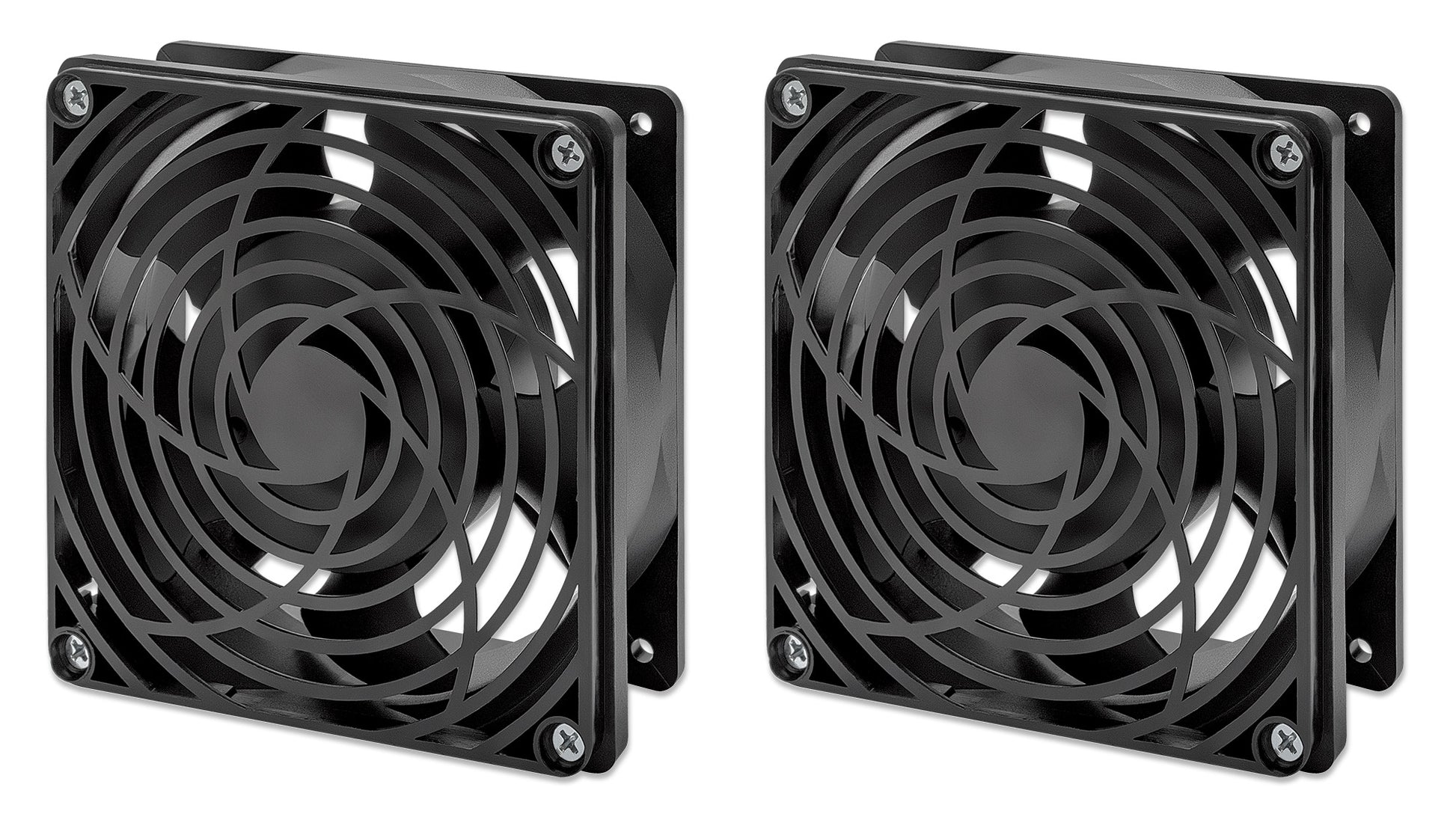

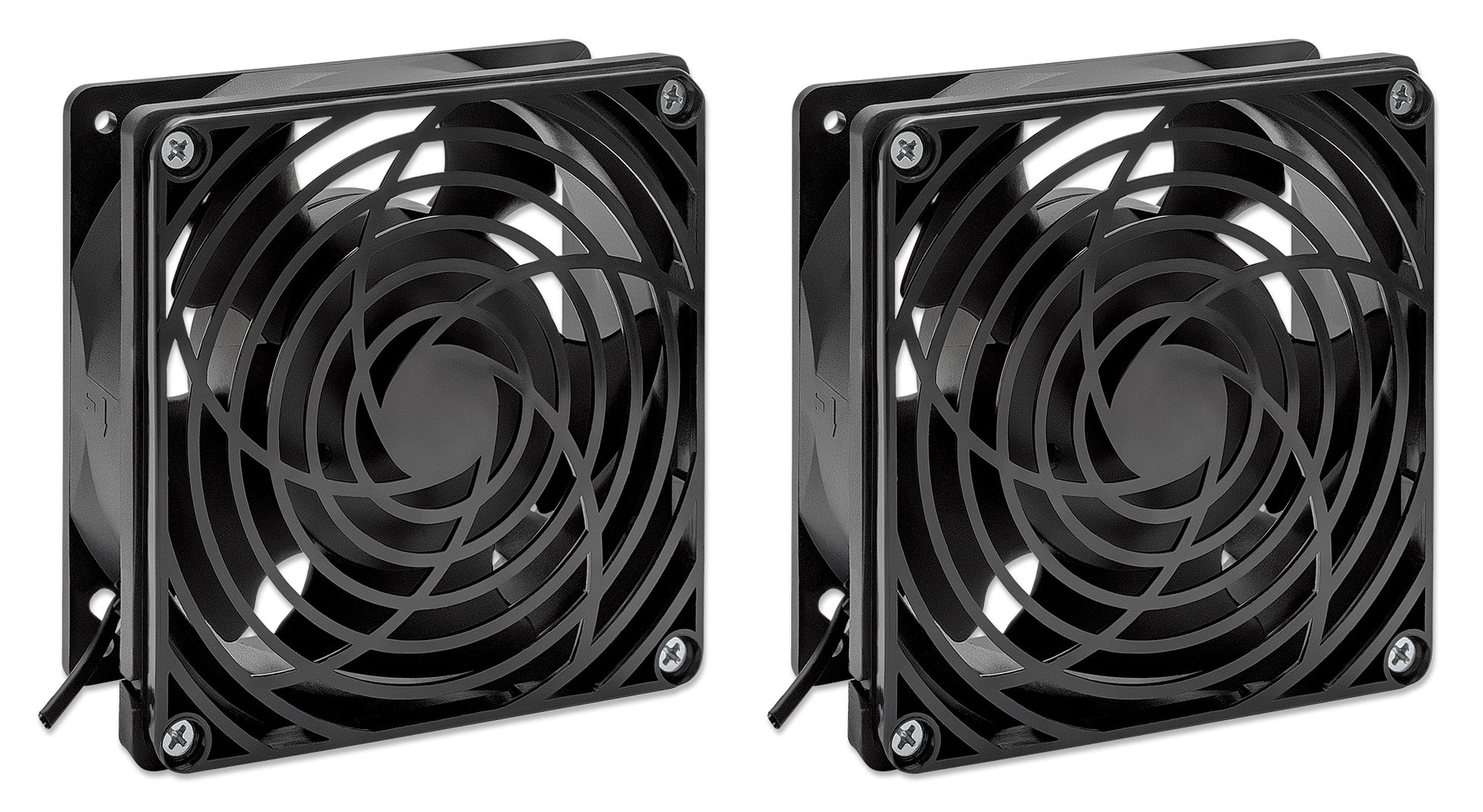

This 2-Fan Ventilation Unit from Intellinet Network Solutions offers reliable cooling and ideal air circulation in 19" wall mount cabinets, providing improved performance and longer life to your network equipment. It is mounted on the cut-outs in the roof of a cabinet, where it dissipates damaging heat. As these cut-outs are standardized, this cooling unit is compatible with most 19" wall-mount cabinets, including all standard models from Intellinet Network Solutions. For more cabinet cooling options, check out our 1U rail-mount versions #712668 (black) and #712378 (gray).
- Roof-mount ventilation unit for reliable, energy-efficient cooling in wall-mount cabinets from Intellinet Network Solutions and other brands
- 1.8 m power cord with EU CEE 7/7 (Type E+F) plug
- Efficient heat dissipation for a wide operating temperature up to 50°C
- Quiet fans with a noise level of only 24.9 db (A)
- Earthing kit included
- Three-year warranty
- Standards and Certifications
- CE
- RoHS
- REACH
General
- Air flow: 85 m³/h (50 cfm)
- Noise level: 24.9 db (A)
- Temperature range: -10 - 50°C (14 - 122°F)

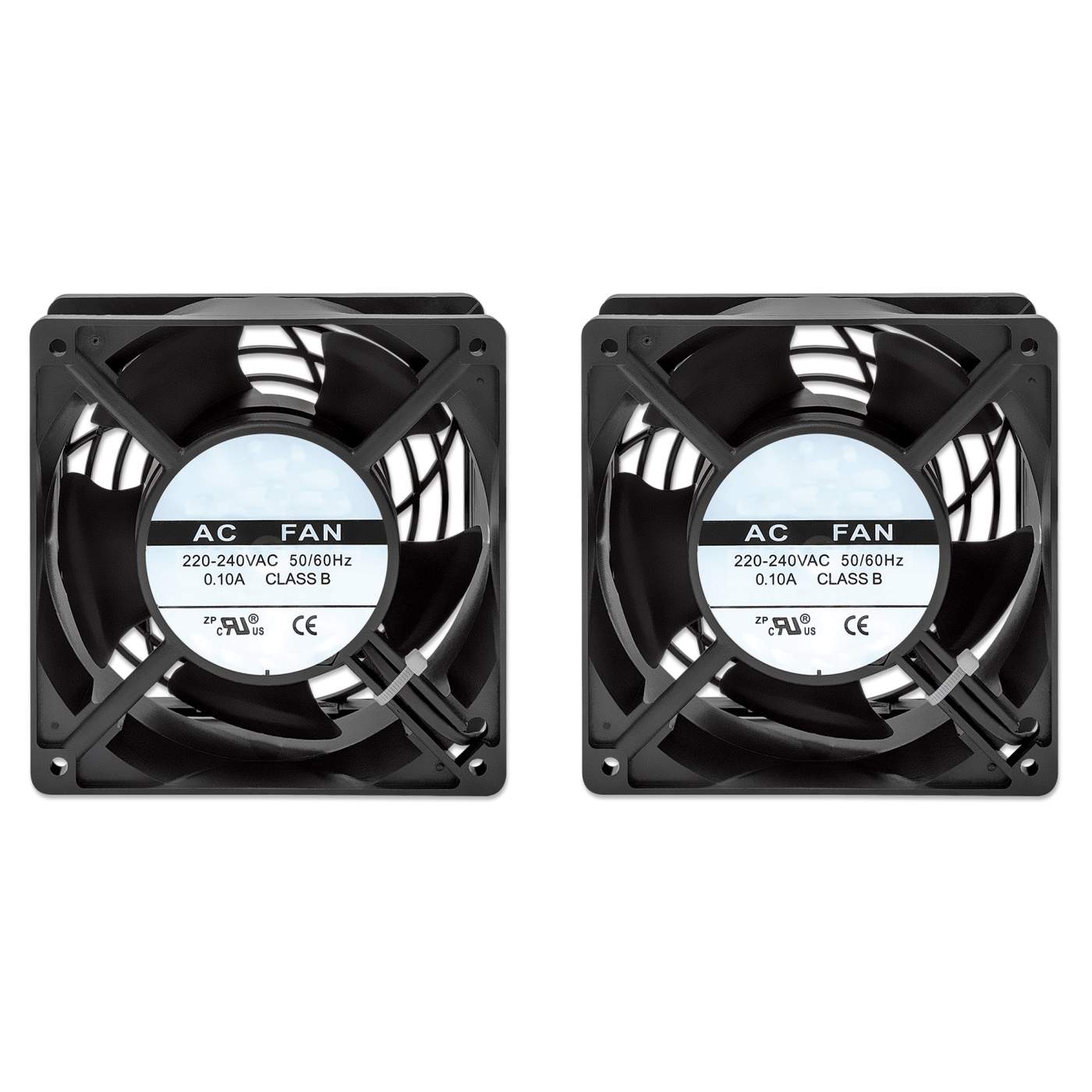

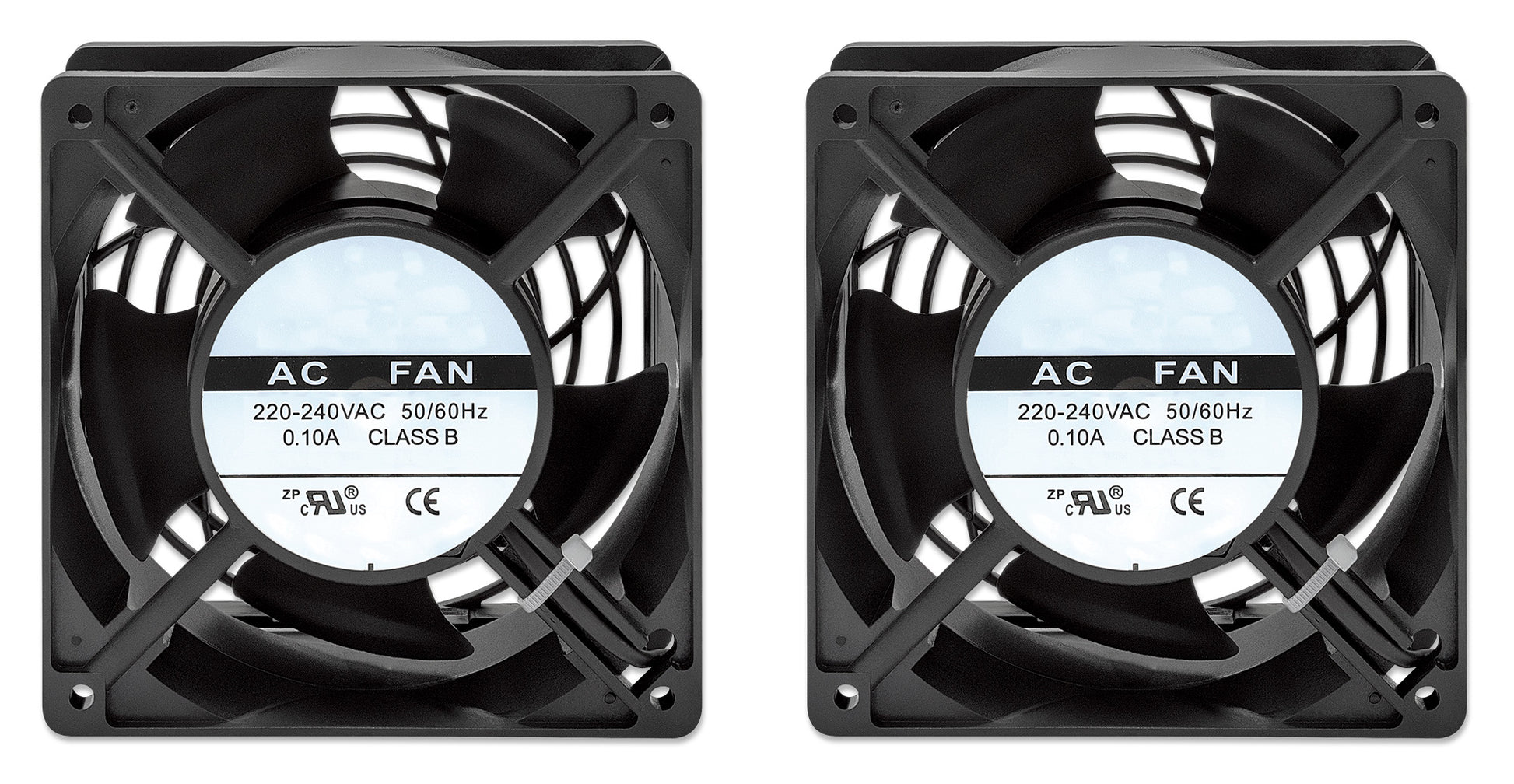

- Operating voltage: 220.0 - 240.0 VAC, 50 - 60 Hz, 0.1 A
Physical
- Dimensions (L x W x H): 120 x 120 x 38 mm (per fan unit)
- Power cable length: 1.8 m
- Net weight: 900 g
- Gross weight: 1.15 kg

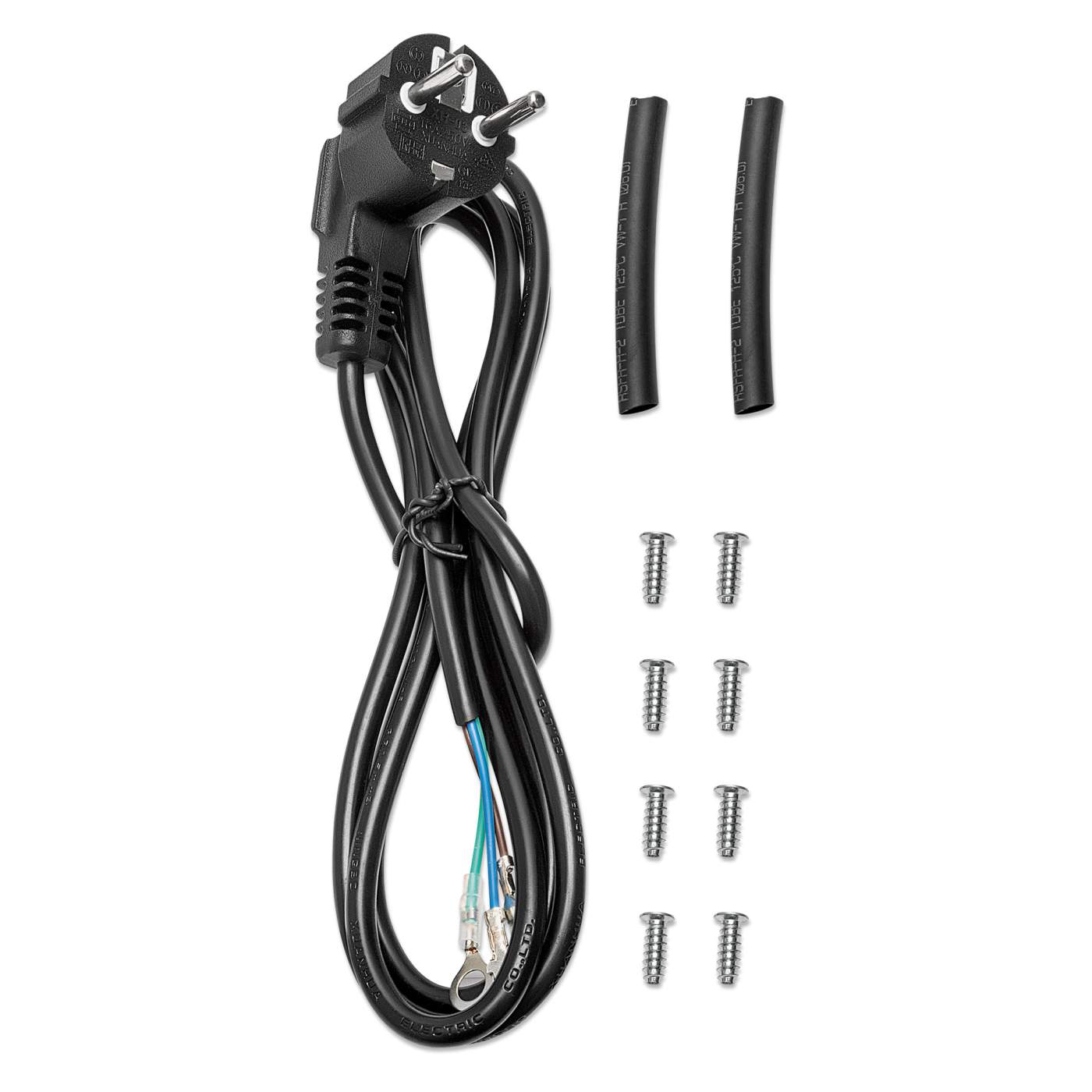

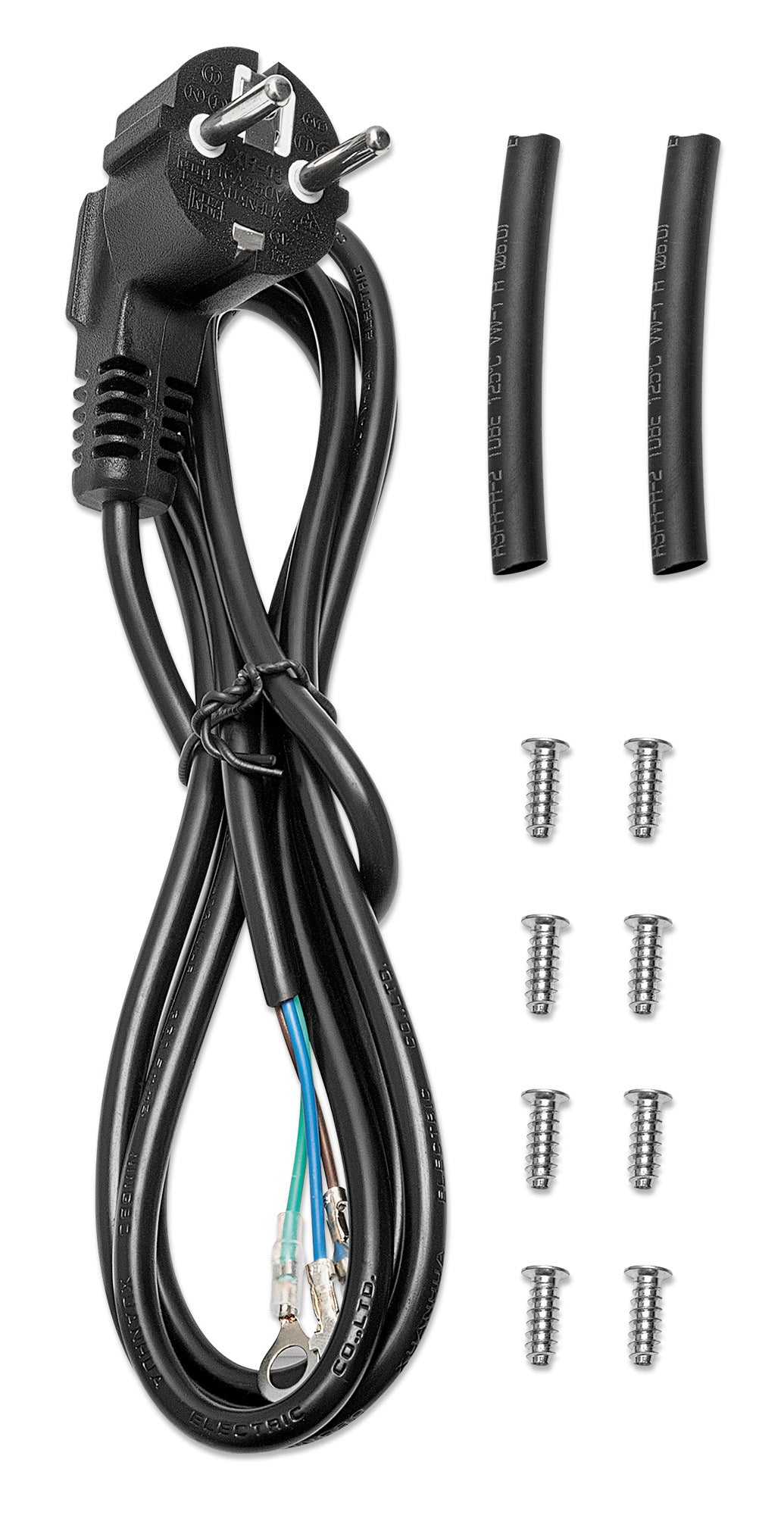

Package Contents
- 2-Fan Ventilation Unit for 19" Wallmount Cabinets
- Earthing kit
- Power cable, 1.8 m
- Documentation
Additional SKUs
- EAN: 0766623716154
- UPC: 766623716154
Physical Specifications
- Product net weight: 0.9 kg
- Product gross weight: 1.15 kg
- Dimensions: 120 (L) x 120 (W) x 38 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 255 x 220 x 58 [mm]
- Master Carton Quantity: 10
- Master Carton Weight: 12.10 kg
- Master Carton Dimensions: 540 x 310 x 250 [mm]
- Datasheet
- Datasheet » Download
