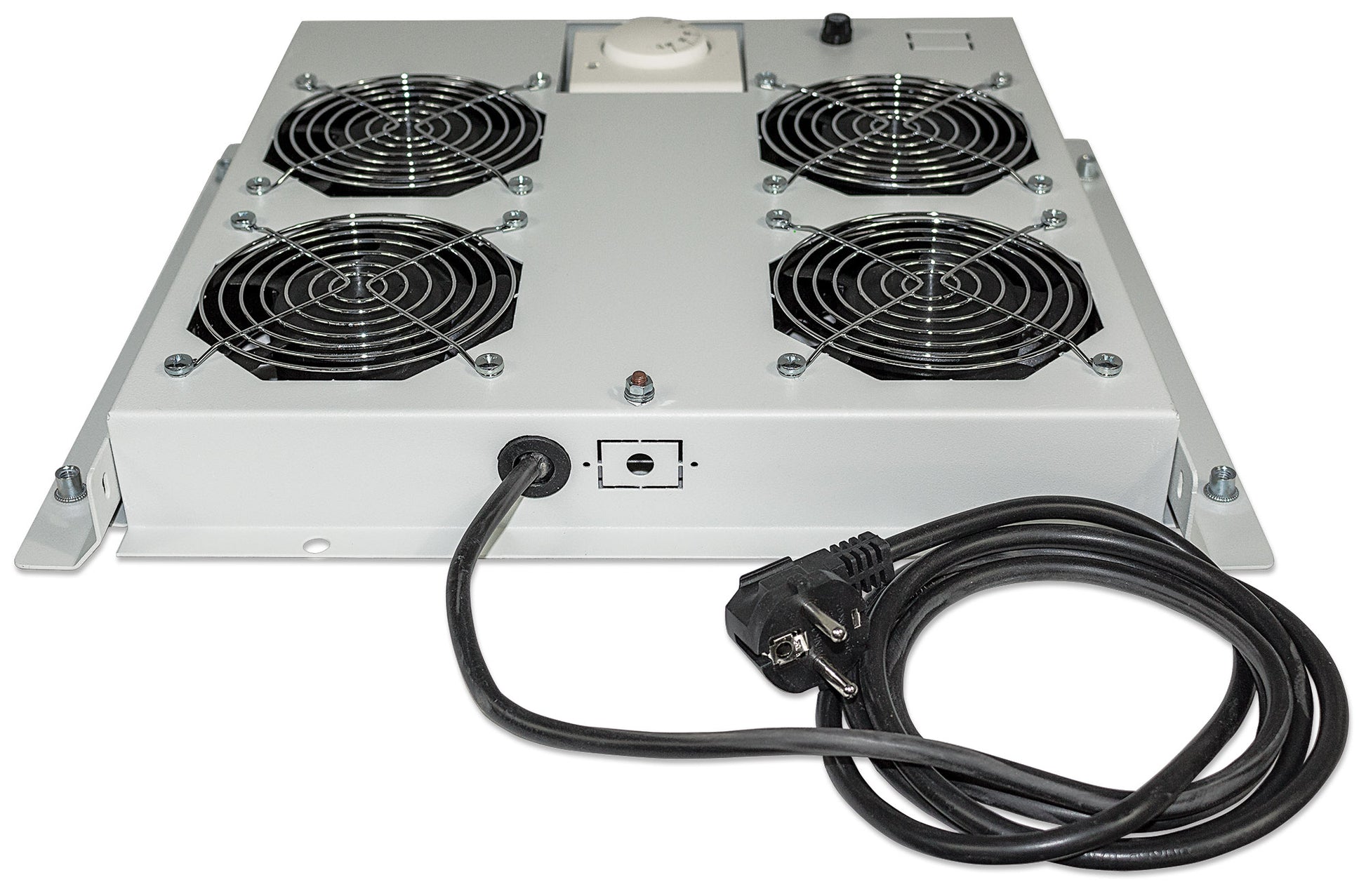

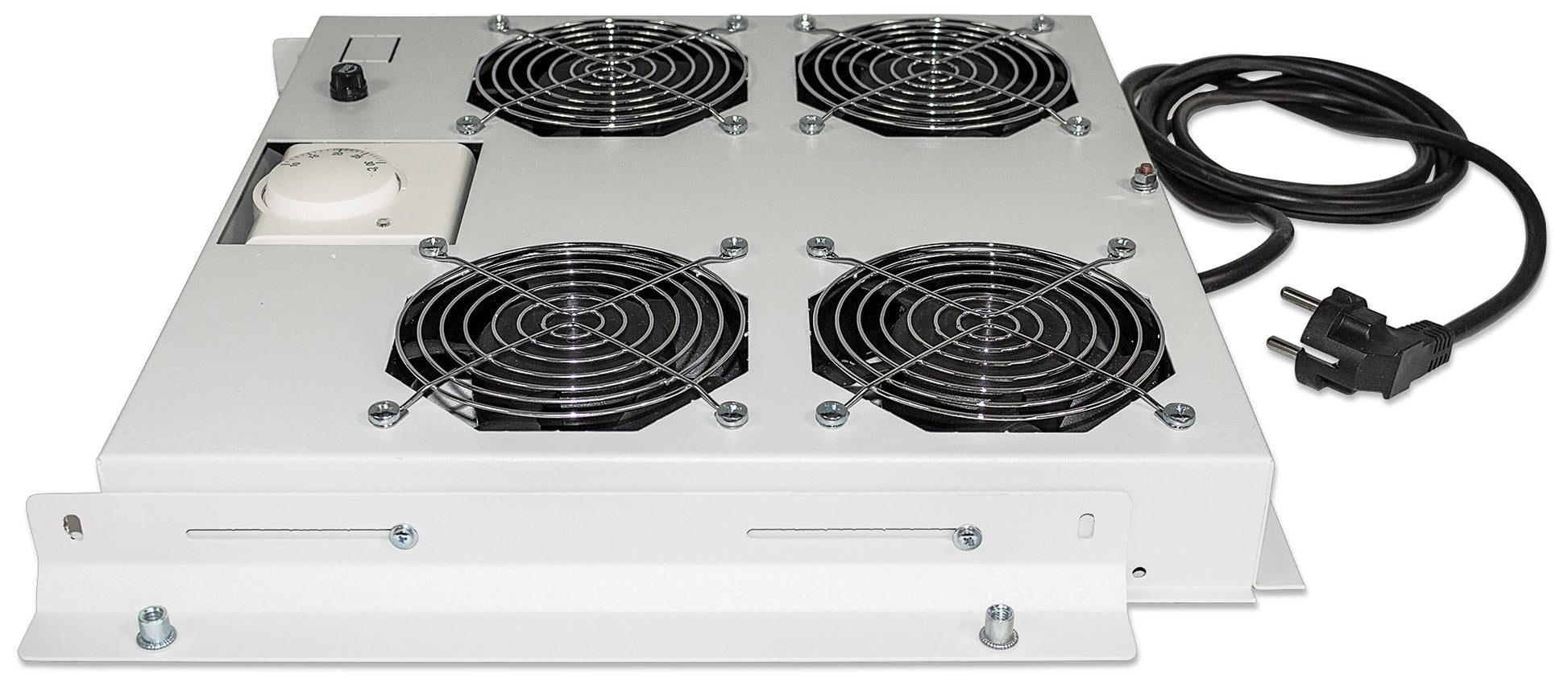

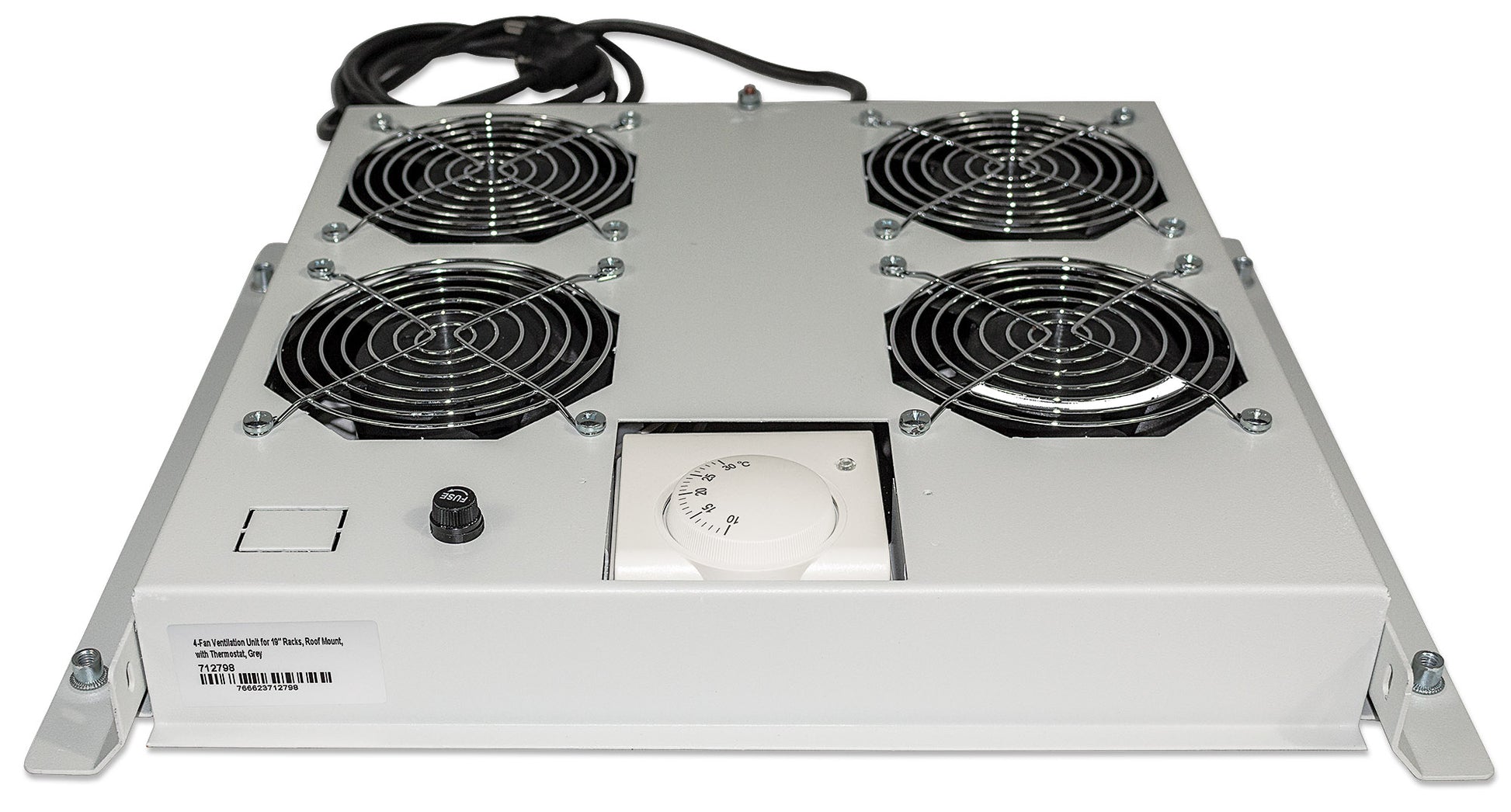

4-Fan Ventilation Unit for 19" Racks

Roof Mount, with Thermostat, Gray

Part-No.: 712798

Highlights

  • Antistatic powder coating
  • 1.5 mm steel thickness
  • Three-Year Warranty

The Intellinet Network Solutions ventilation units provide reliable cooling and ideal air circulation in 19″ cabinets for improved performance and longer life of your networking components.High-quality workmanship that includes antistatic powder coating as well as silent fans completes this cooling system. For server and network cabinets, choose the roof-mount ventilation units. If you require cooling for components in wallmount cabinets, use the rail-mount versions.

  • Antistatic powder coating
  • 1.5 mm steel thickness
  • Three-Year Warranty

  • Air Flow: 95 -115 CFM
  • Fan Speed: 2700 - 3100 rpm
  • Noise level: 44-49 db/A
  • Operating Voltage: 220-240V, 50-60 Hz
  • Complies with: IEC 297-1
  • Color: Gray RAL9005

  • Additional SKUs

    • Amazon ASIN: B00NW47G4Y
    • EAN: 0766623712798
    • UPC: 766623712798
    • ALSO: 2279073
    • API: 155463

  • Physical Specifications

    • Weight: 3.95 kg
    • Dimensions: 375 (L) x 363 (W) x 47 (H) [mm]

  • Datasheet
