5-in-1 Cable Tester

Tests 5 Commonly Used Network and Computer Cables

Part-No.: 780094

Highlights

  • Versatile cable tester
  • For Cat5/6 network and ISDN connection tests
  • USB AB- and IEEE1394 6-pin FireWire cable tester

Future arrivals:

#
Quantity
Arrival Date
1
300
2020-11-16

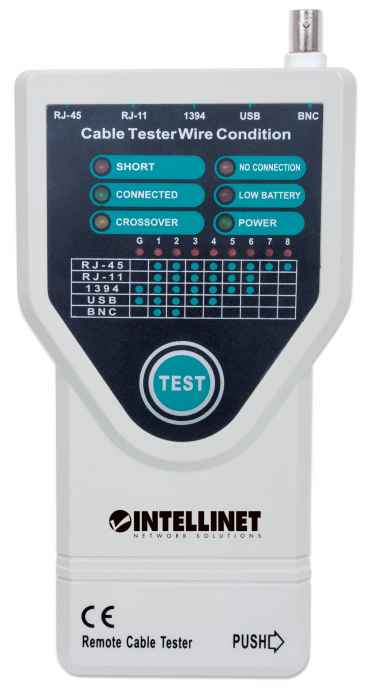

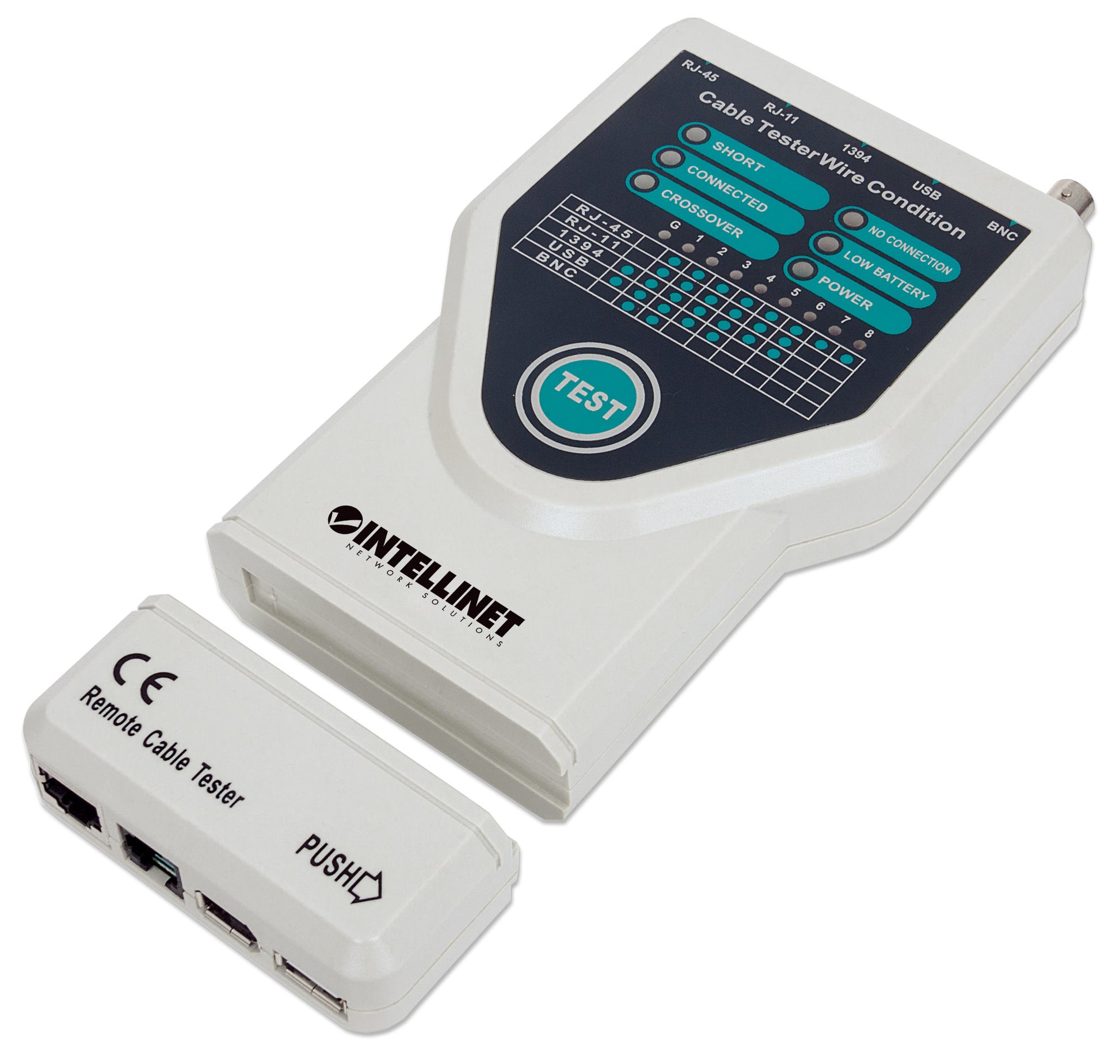

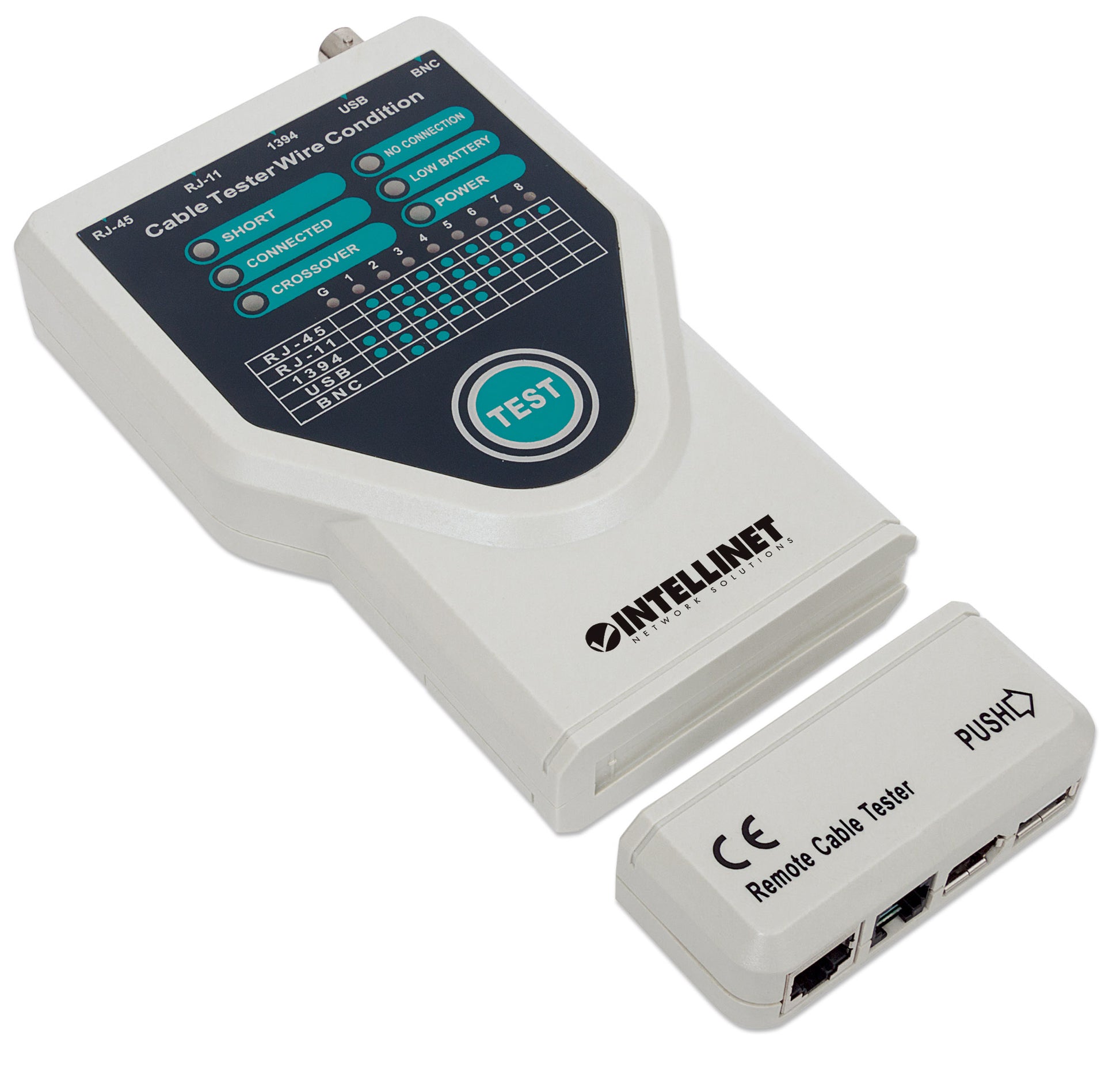

The Intellinet Network Solutions 5-in-1 Cable Tester is an affordable and versatile MIS tool that tests five common LAN and computer cables up to 600 ft. long: Ethernet (RJ45), 10Base, RJ11, FireWire (1394) and USB. It checks for continuity, crossover and shorting. Testing is completed with the press of a button, and LEDs indicate connections and faults of wires and pins. Designed for use with both shielded (STP) and unshielded (UTP) cables up to 180 m (600 ft.) long.

  • Versatile cable tester
  • For Cat5/6 network and ISDN connection tests
  • USB AB- and IEEE1394 6-pin FireWire cable tester

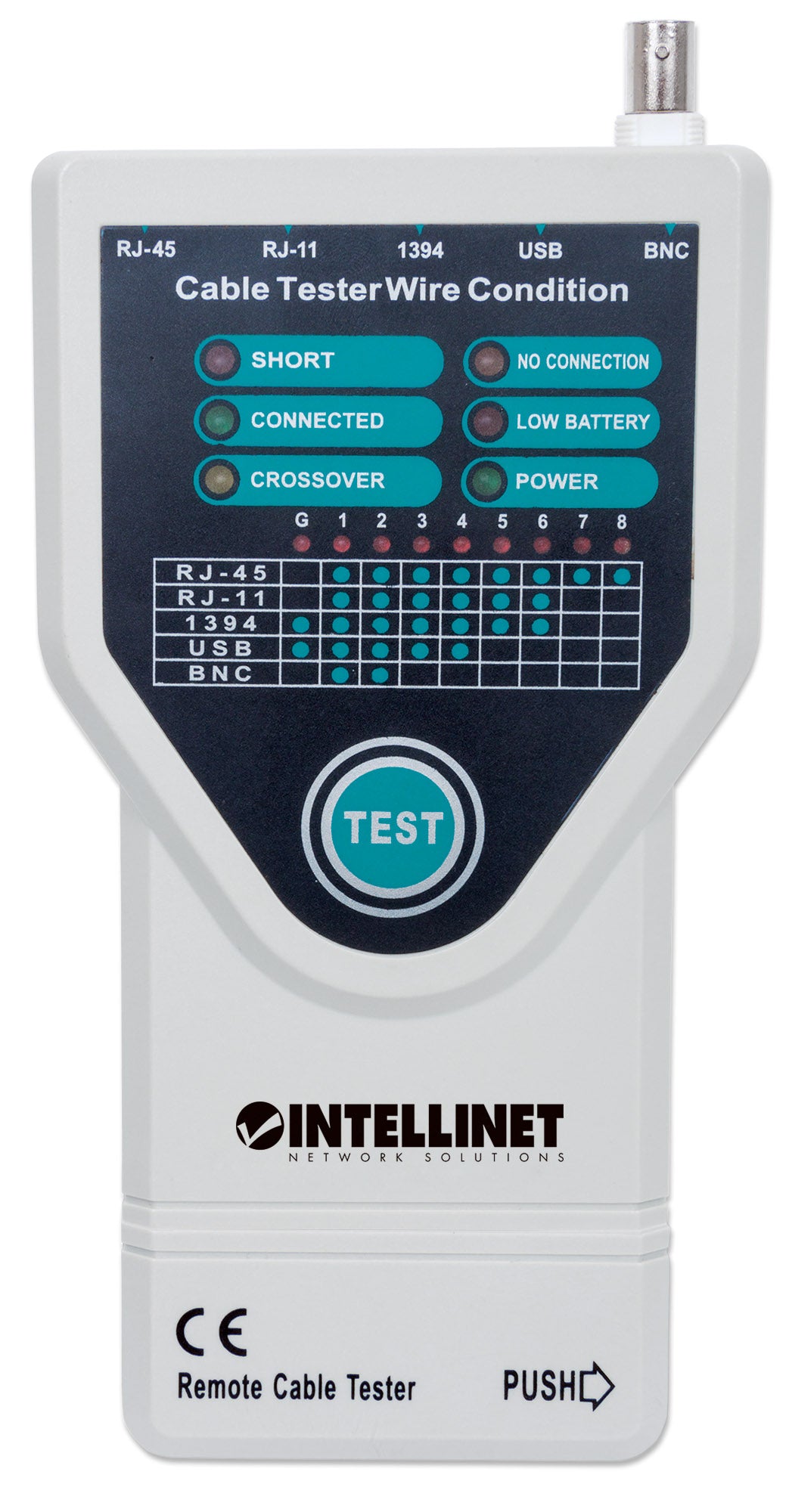

  • Connection test with LED indicators for 8 single lines and screening
  • Tests for: Short, Non-Parallel, No Connection

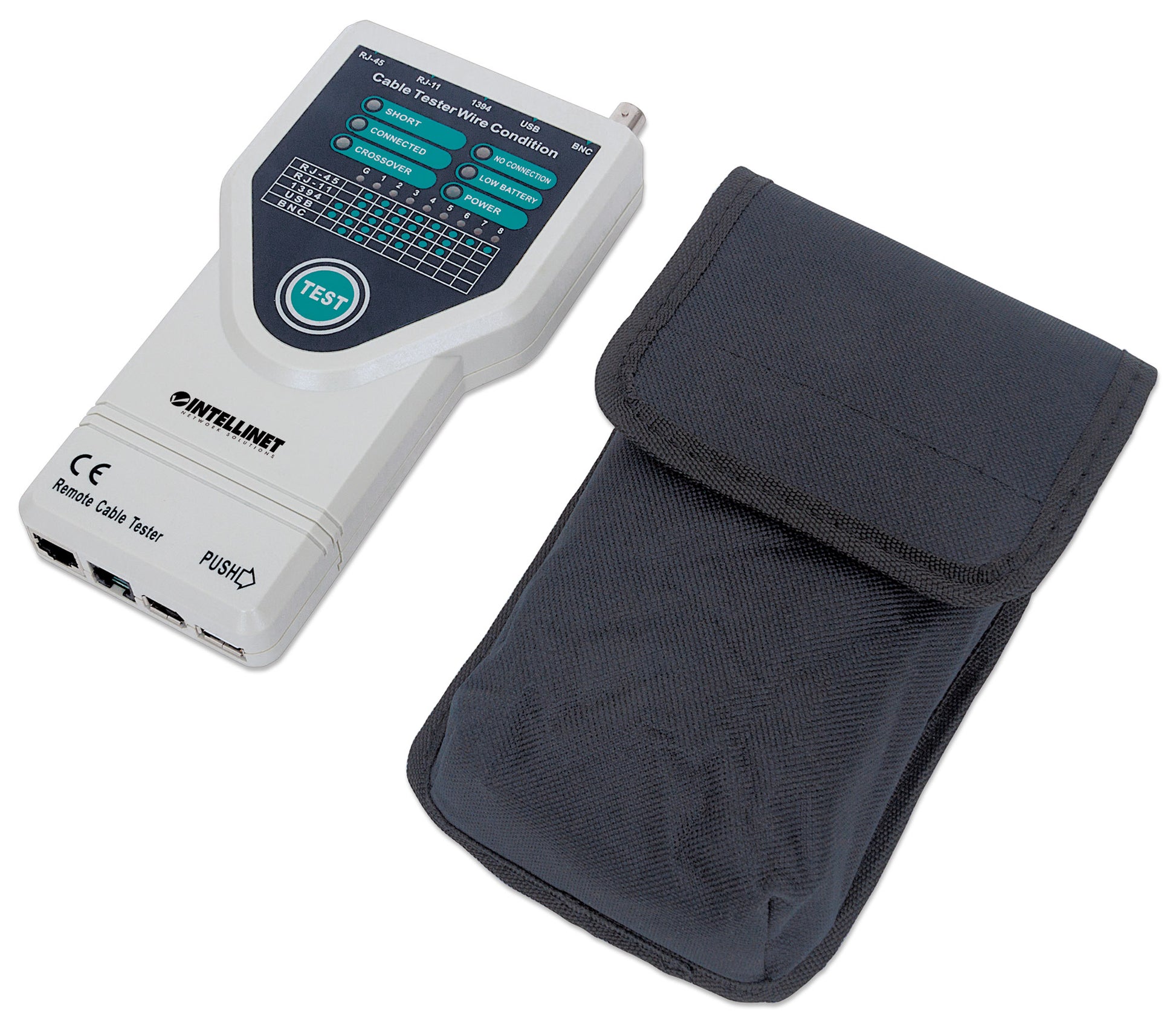

  • Quality protective pouch
  • Lifetime Warranty

  • Open / Short wiring test
  • Connected wires display
  • No Connection / No Termination indicator
  • Bad Connection / Non-Parallel Connection indicator

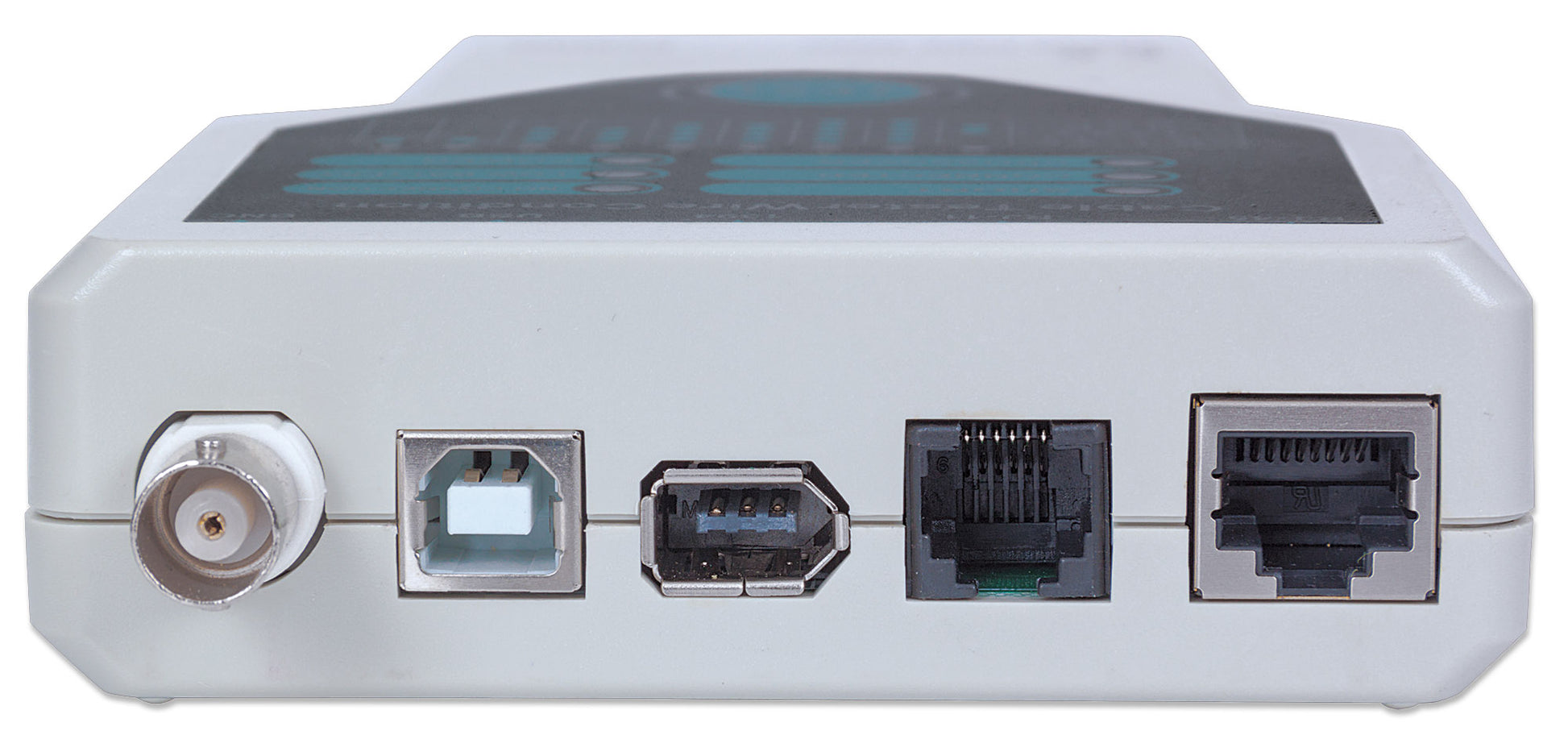

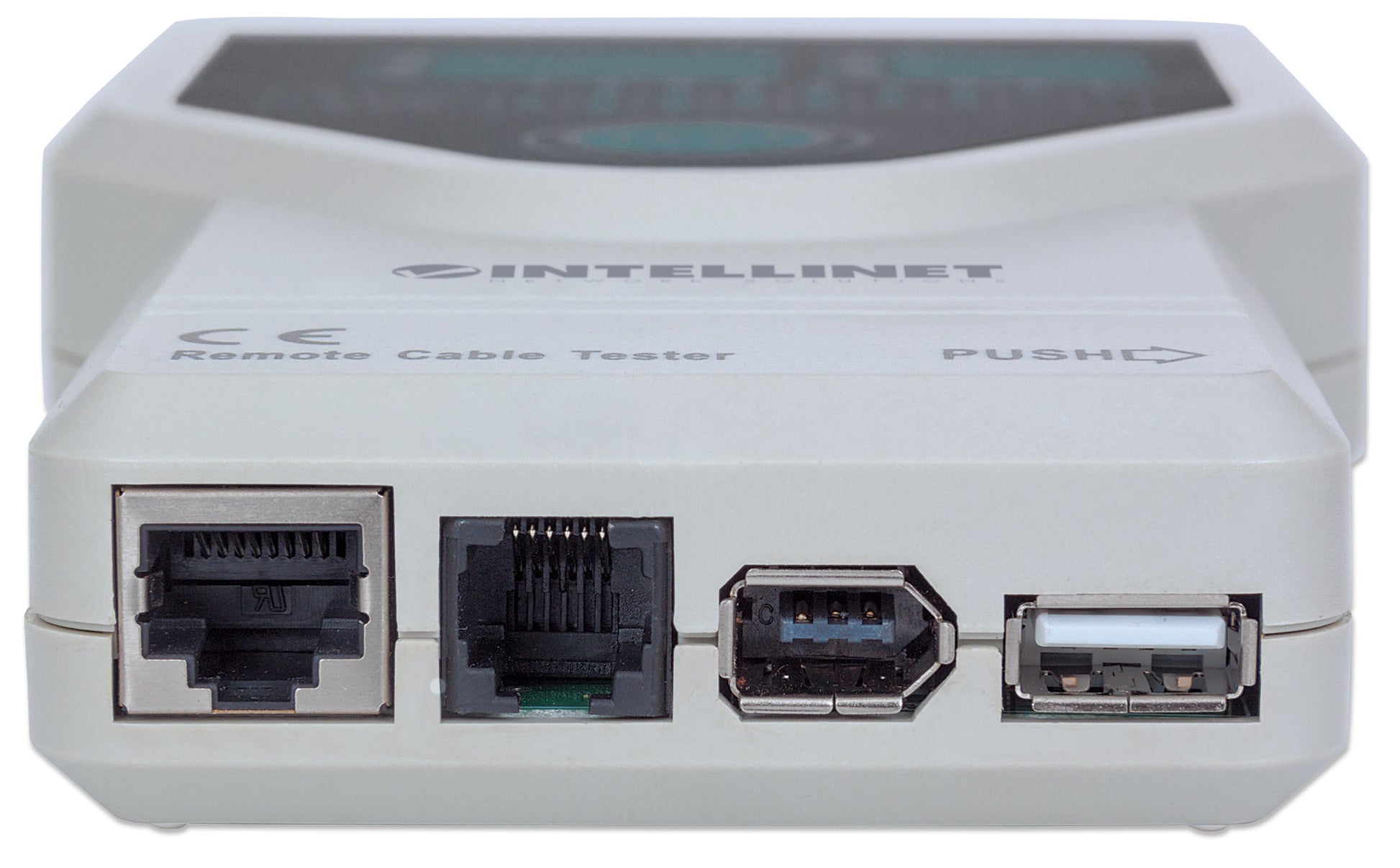

  • Ethernet (RJ45), 10Base2 / BNC, RJ11, USB and FireWire testing options

    Package Contents
  • Cable Tester
  • Protective pouch
  • Coaxial adapter
  • Instructions

  • Additional SKUs

    • Amazon ASIN: B018EAEF4E
    • EAN: 0766623780094
    • UPC: 766623780094
    • ALSO: 2579712
    • API: 194181

  • Physical Specifications

    • Weight: 0.35 kg
    • Dimensions: 185 (L) x 31 (W) x 100 (H) [mm]
    • Packaging: Retail Box

  • Datasheet


  • Manual
