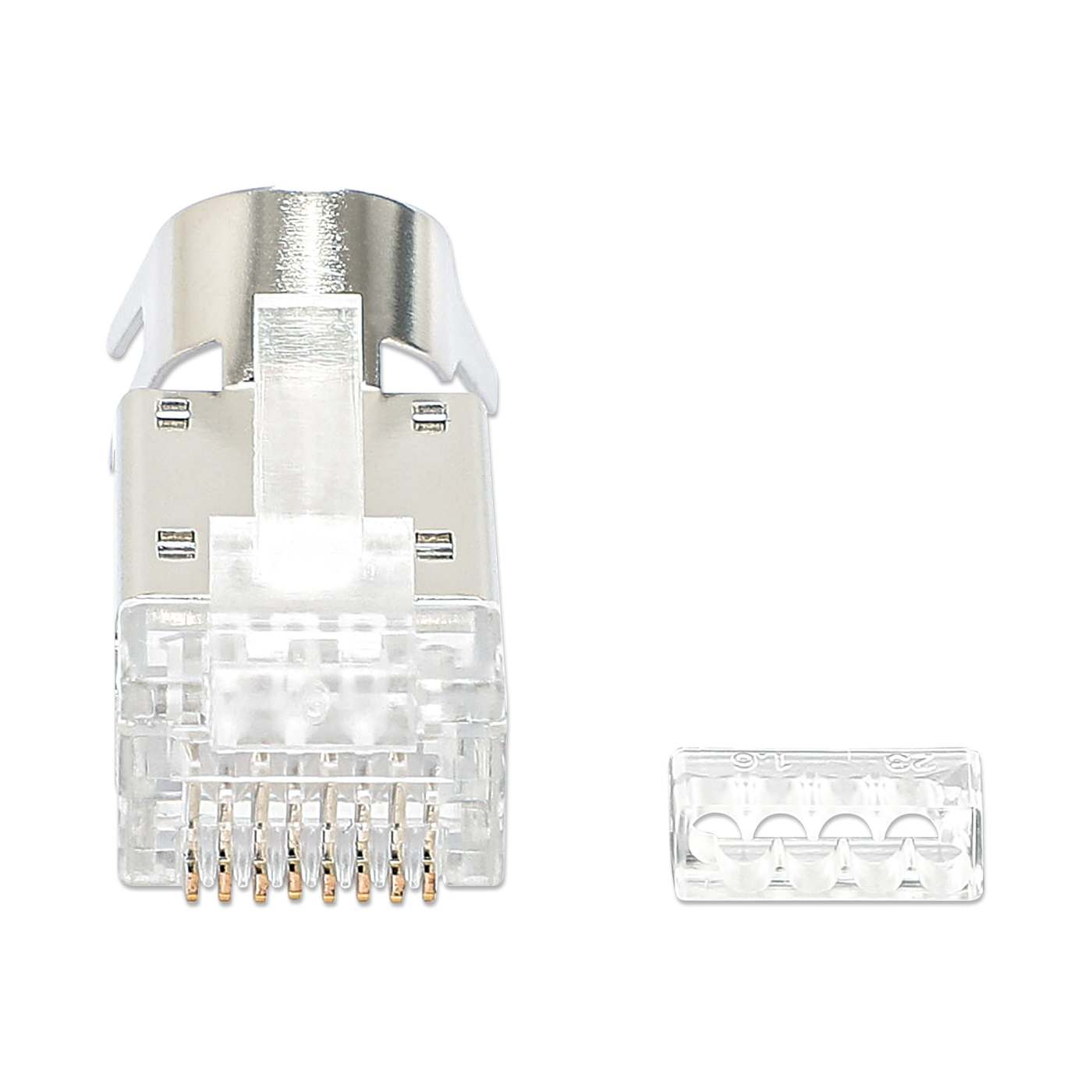

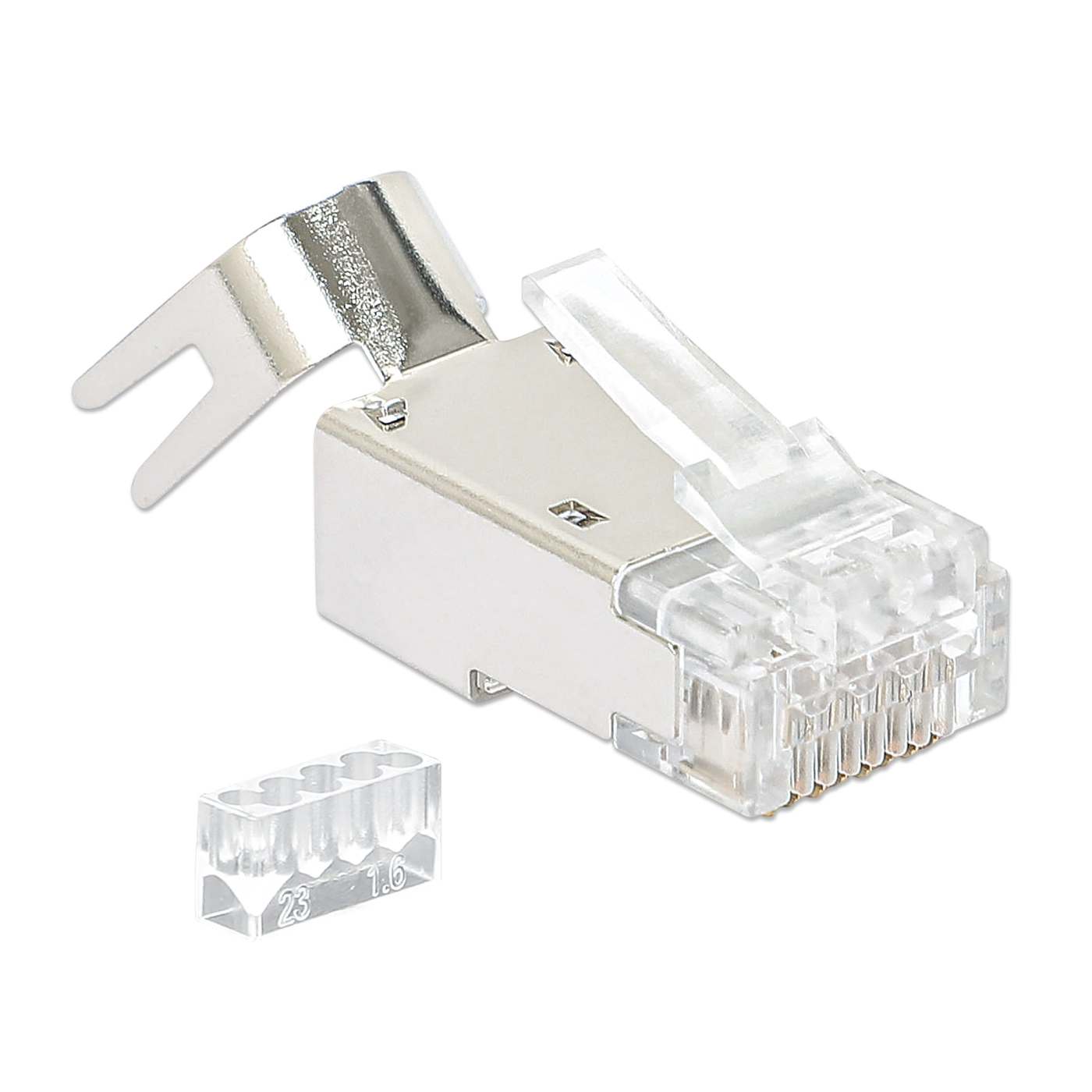

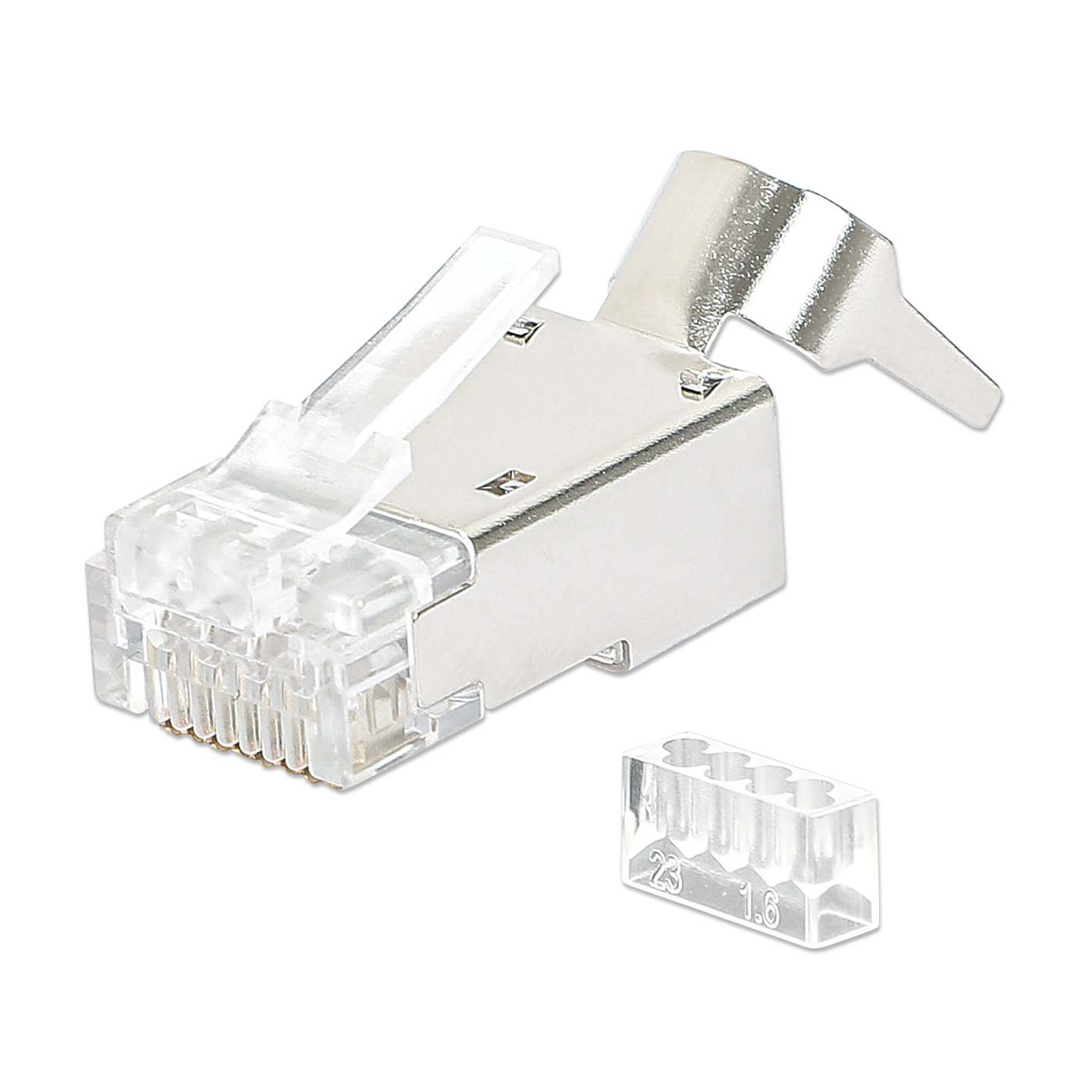

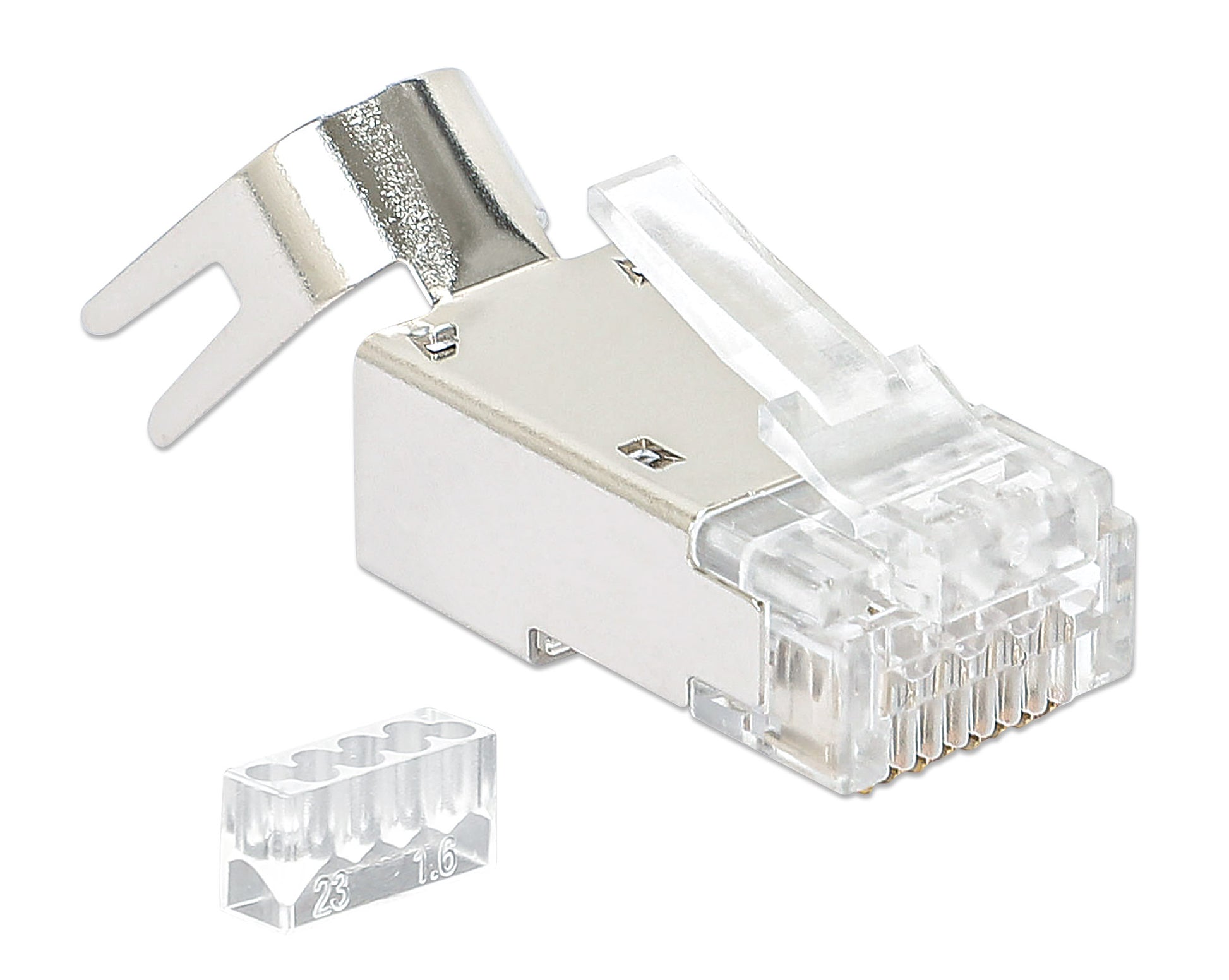

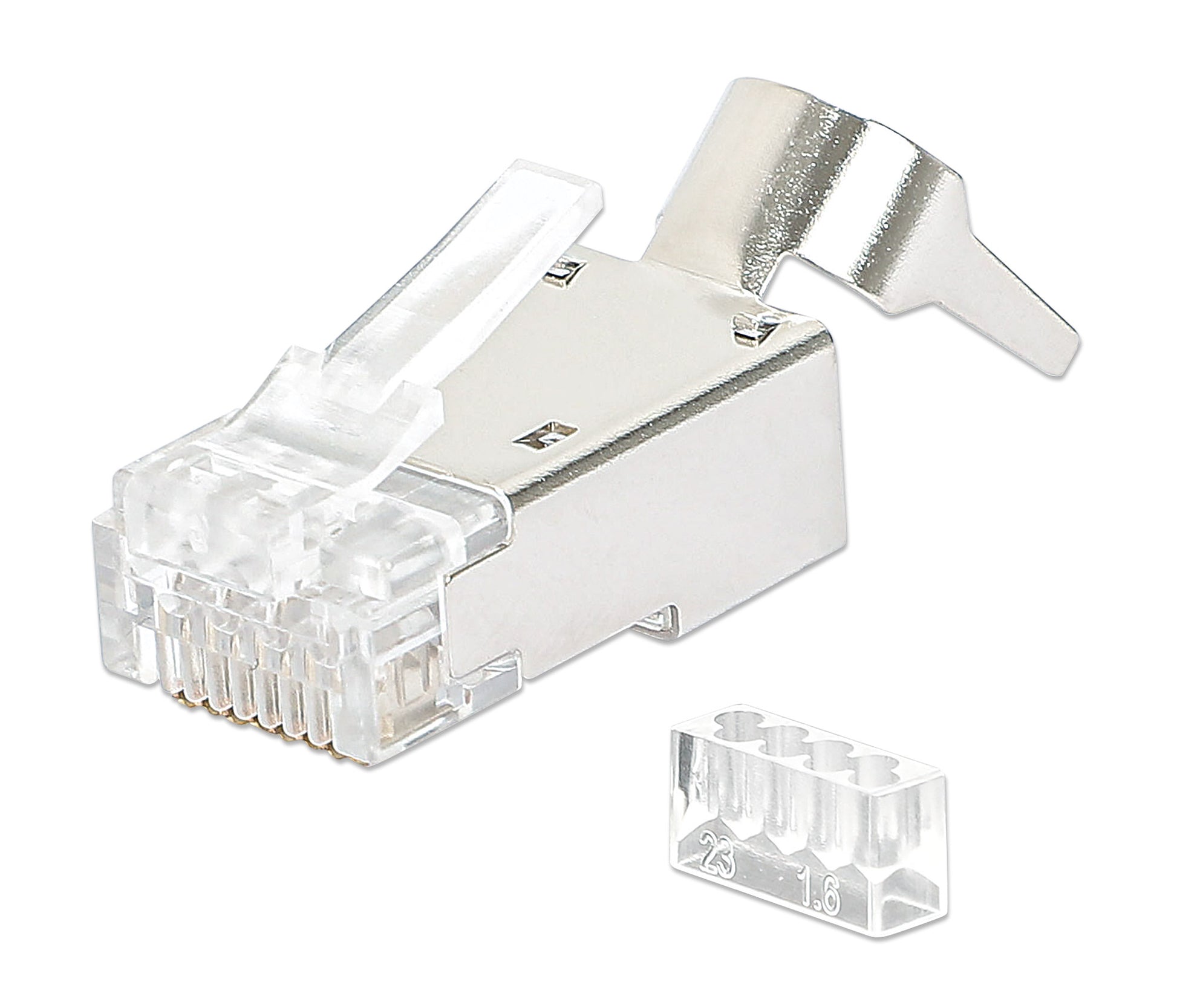

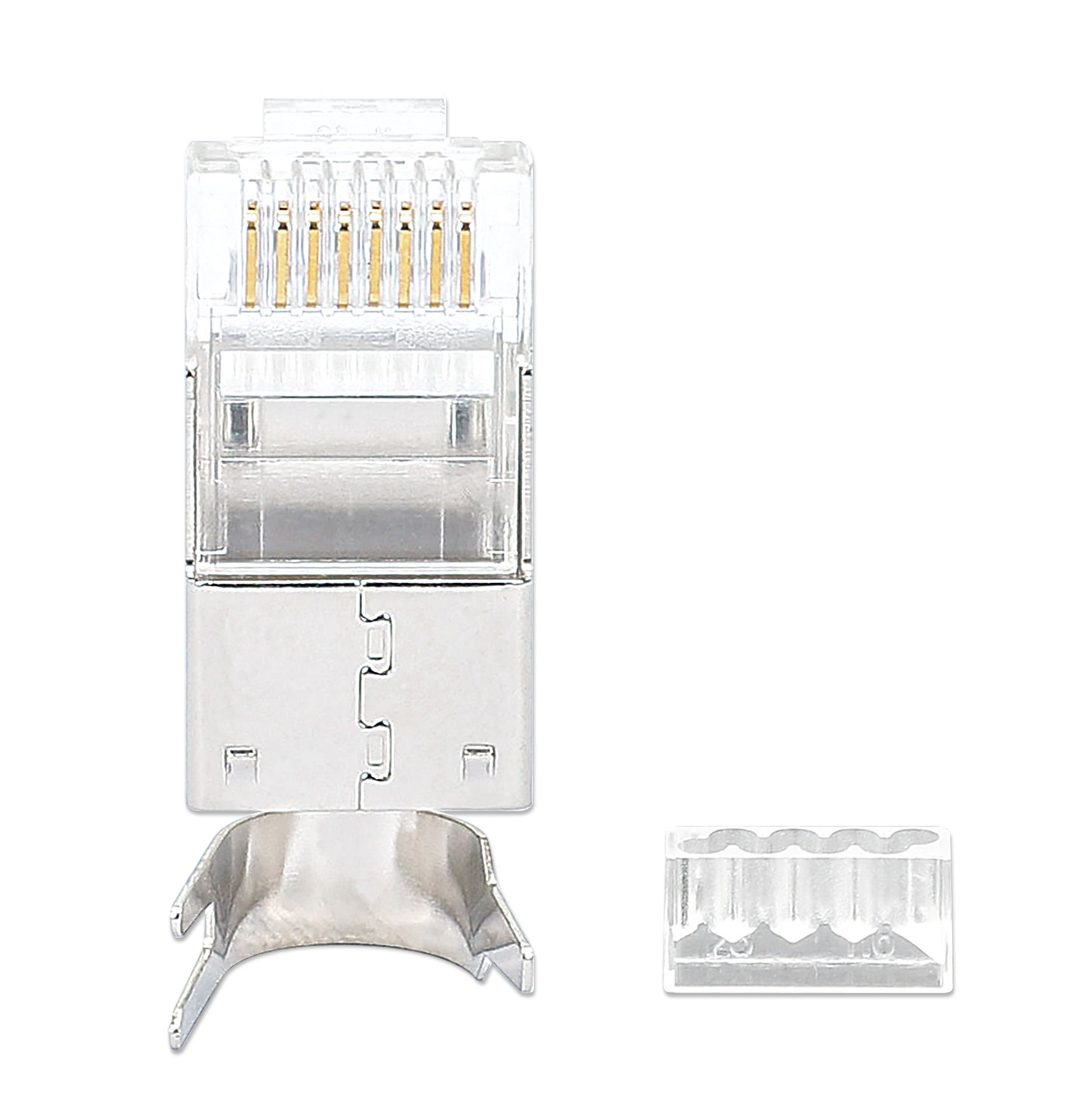

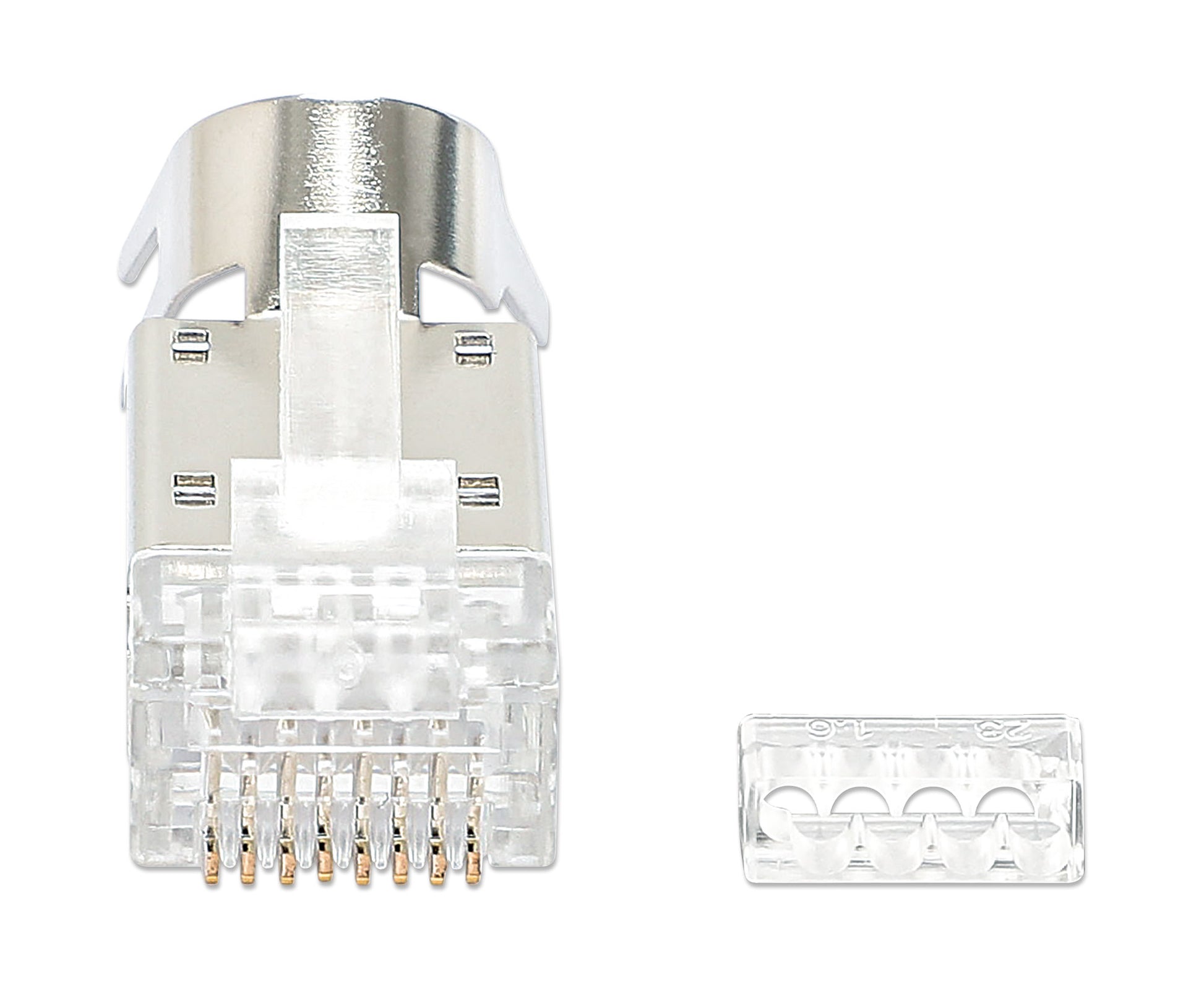

50-Pack Cat6A RJ45 Modular Plugs Pro Line

50-Pack Cat6A RJ45 Modular Plugs Pro Line

STP, 3-prong, for solid & stranded wire, 50 plugs in jar

Part-No.: 790505

Highlights

  • Cat6A RJ45 modular plug
  • 50 micro-inch gold-plated contacts
  • Three-prong terminal for solid & stranded wire
[ view high resolution images ]
View full details

Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide our customers with options for CAT5e, CAT6 and CAT6a cables in unshielded and shielded varieties. We offer 15 micro-inch gold contacts for our standard plugs or a high-quality 50 micro-inch standard in our Premium and Pro lines.

  • Cat6A RJ45 modular plug
  • 50 micro-inch gold-plated contacts
  • Three-prong terminal for solid & stranded wire
  • Supports 22 to 23 AWG
  • Heavy-duty strain relief
  • Fits round cable
  • For shielded twisted pair applications
  • Suitable for extreme operating temperatures of -40 to 85ºC (-40 to 185ºF)
  • Standard 8P8C design, compatible with all network RJ45 connections
  • Fully compatible with Category 3, 4, 5, 5e, 6 and 6A applications
  • Lifetime Warranty

    Standards
    Category 5 (ANSI/TIA/EIA-568-C)
    Category 5e (TIA/EIA-568-C)
    Category 6 (ANSI/TIA-568-C)
    Category 6A (ANSI/TIA-568-C)

    Material
    Insulator: polycarbonate rated UL 94V-2
    Contacts: phosphor bronze
    Contact Plating: 50 micro-inch gold

    Package Contents

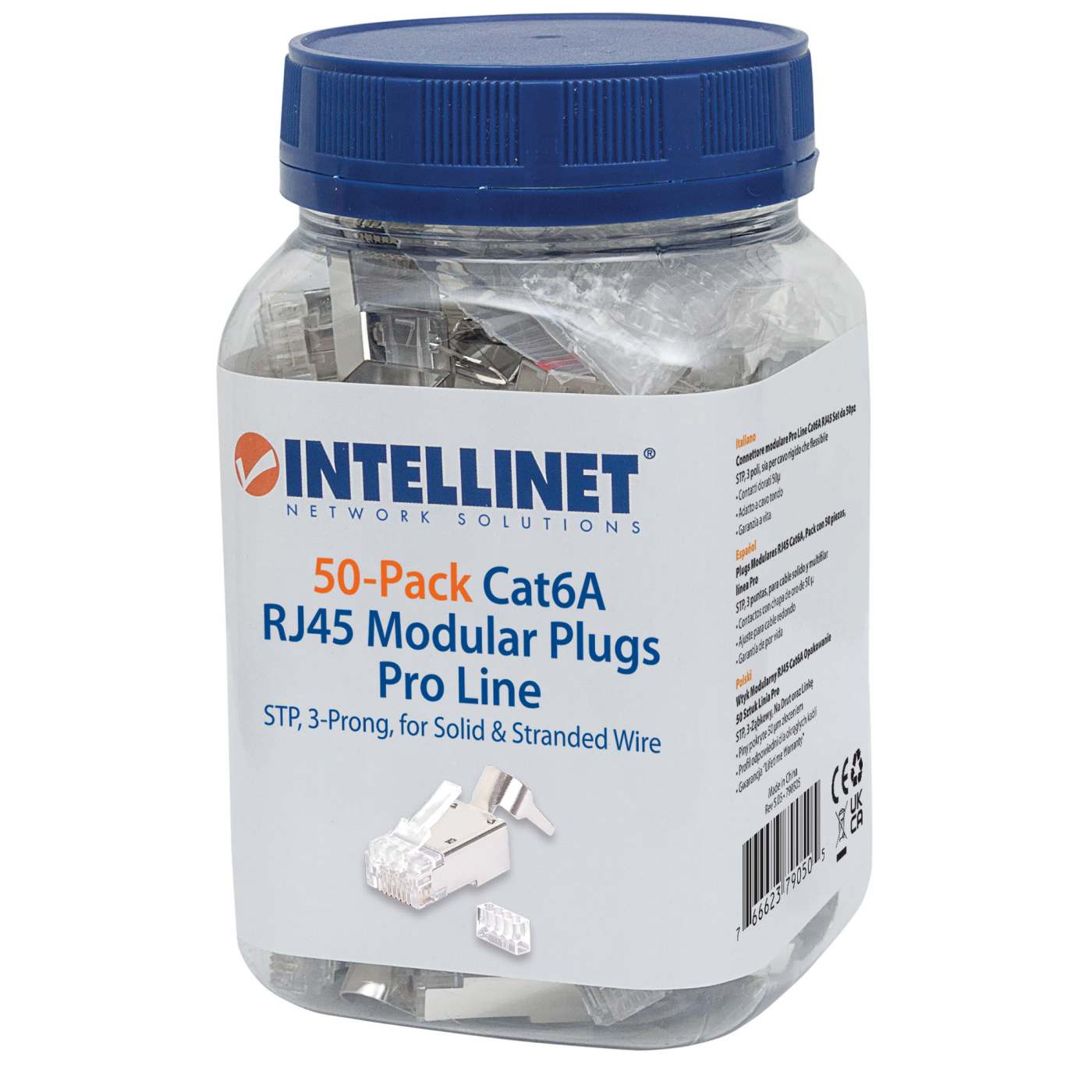

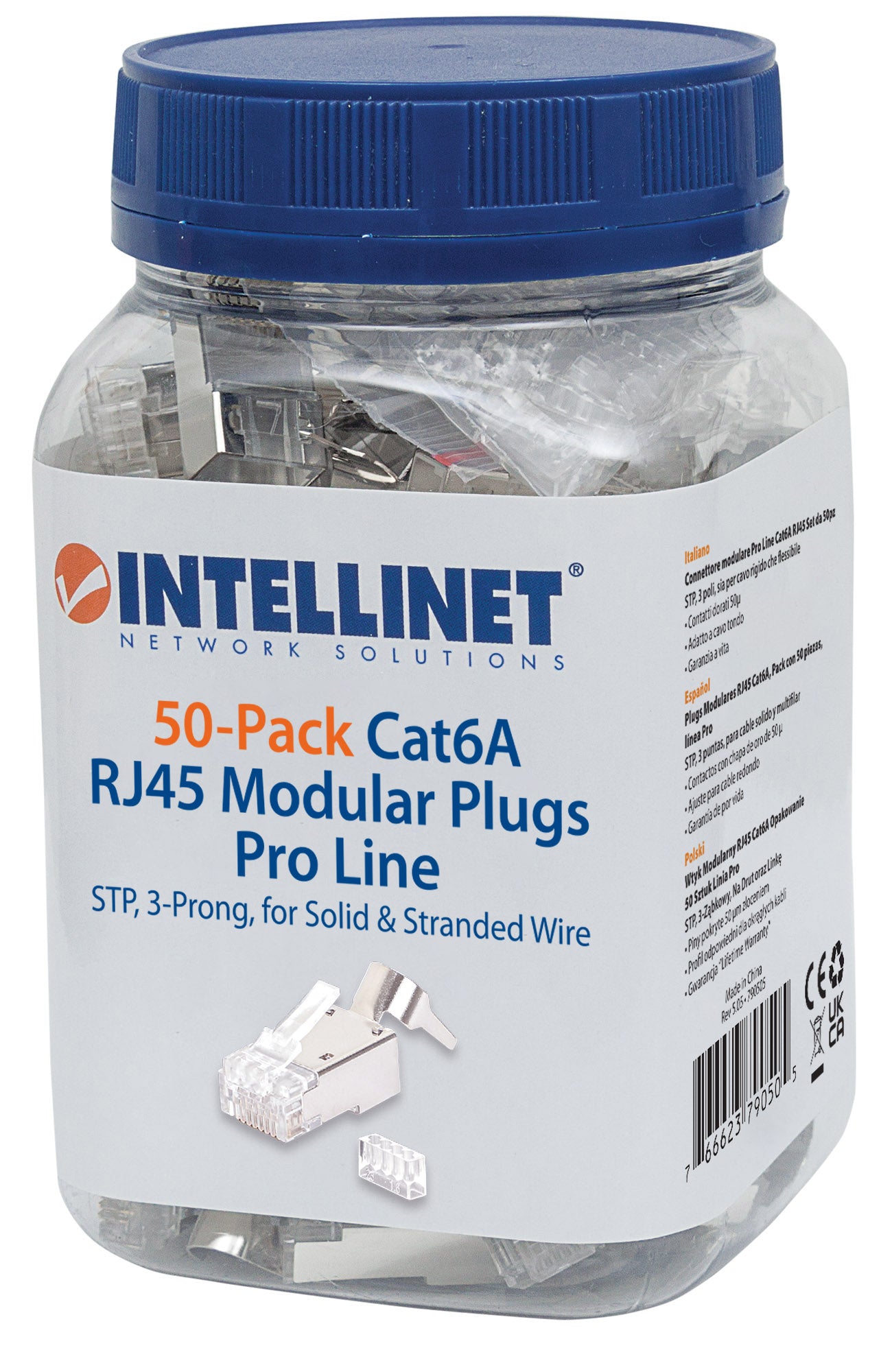

    50 Cat6A RJ45 Modular Plugs with Liners in jar

  • Additional SKUs

    • Amazon ASIN: B01CWN8DBU
    • EAN: 0766623790505
    • UPC: 766623790505
    • ALSO: 2642219
    • API: 219810

  • Physical Specifications

    • Product net weight: 0 kg
    • Product gross weight: 0.21 kg
    • Dimensions: 21.5 (L) x 11.5 (W) x 8.2 (H) [mm]
    • Packaging dimensions: 67.3 x 67.3 x 112 [mm]
    • Master Carton Quantity: 70
    • Master Carton Weight: 15.00 kg
    • Master Carton Dimensions: 340 x 480 x 240 [mm]
