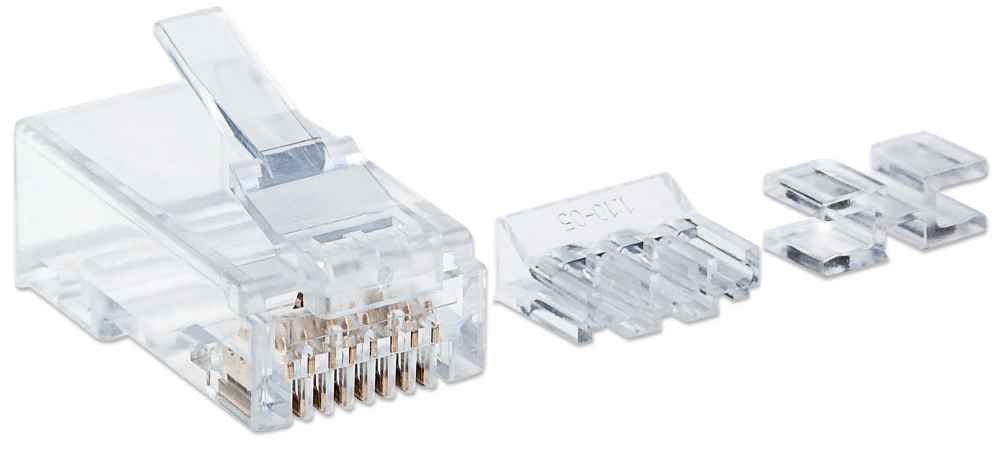

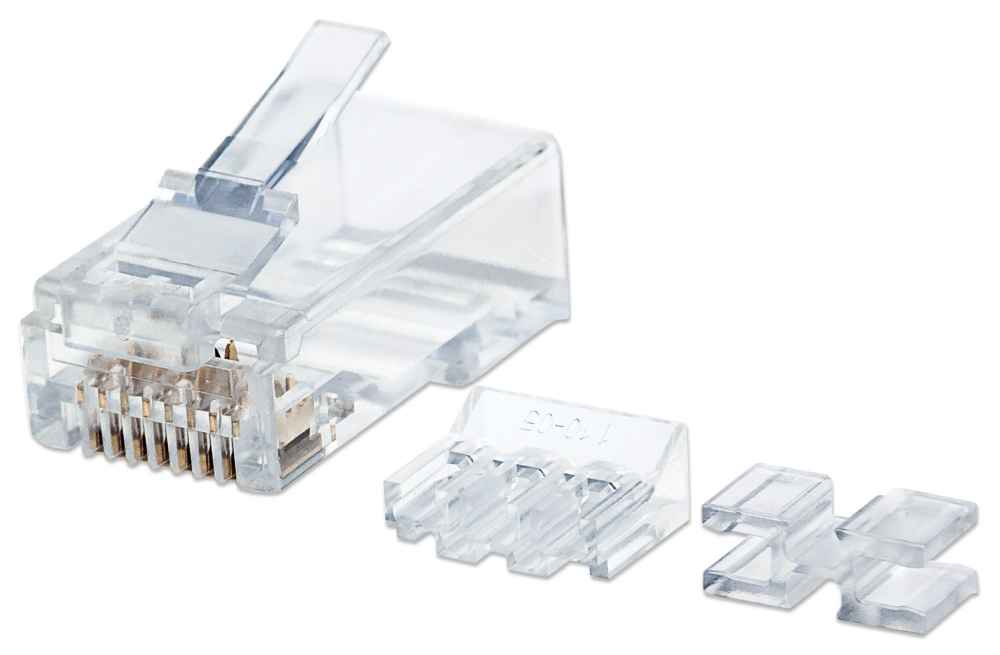

Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide our customers with options for CAT5e, CAT6 and CAT6a cables in unshielded and shielded varieties. We offer 15 micro-inch gold contacts for our standard plugs or a high-quality 50 micro-inch standard in our Premium and Pro lines.
- 15 micro-inch gold-plated contacts
- Three-prong terminal for solid wire
- Supports 24 to 26 AWG
- Fits round cable
- For unshielded twisted pair applications
- Standard 8P8C design, compatible with all network RJ45 connections
- Fully compatible with Category 3, 4, 5, 5e, 6 and 6A applications
- Lifetime Warranty
- Standards
Category 5 (ANSI/TIA/EIA-568-C)
Category 5e (TIA/EIA-568-C)
Category 6 (ANSI/TIA-568-C)
Category 6A (ANSI/TIA-568-C)
Material
Insulator: polycarbonate rated UL 94V-2
Contacts: phosphor bronze
Contact Plating: 15 micro-inch gold
Package Contents

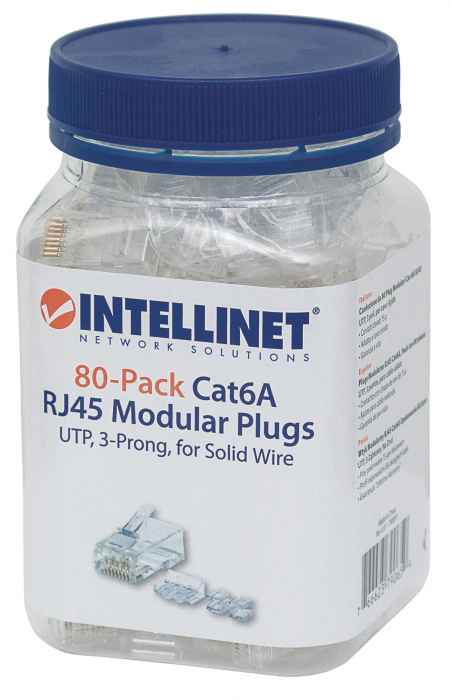

80 Cat6A RJ45 Modular Plugs with liners and sleds in jar
Additional SKUs
- Amazon ASIN: B01L6PN28E
- EAN: 0766623790659
- UPC: 766623790659
- ALSO: 2733149
- API: 209340
Physical Specifications
- Product net weight: 0 kg
- Product gross weight: 0.19 kg
- Dimensions: 21.5 (L) x 11.5 (W) x 8.2 (H) [mm]
- Packaging dimensions: 70 x 70 x 105 [mm]
- Master Carton Quantity: 70
- Master Carton Weight: 12.00 kg
- Master Carton Dimensions: 480 x 340 x 240 [mm]
- Datasheet
- Datasheet » Download
