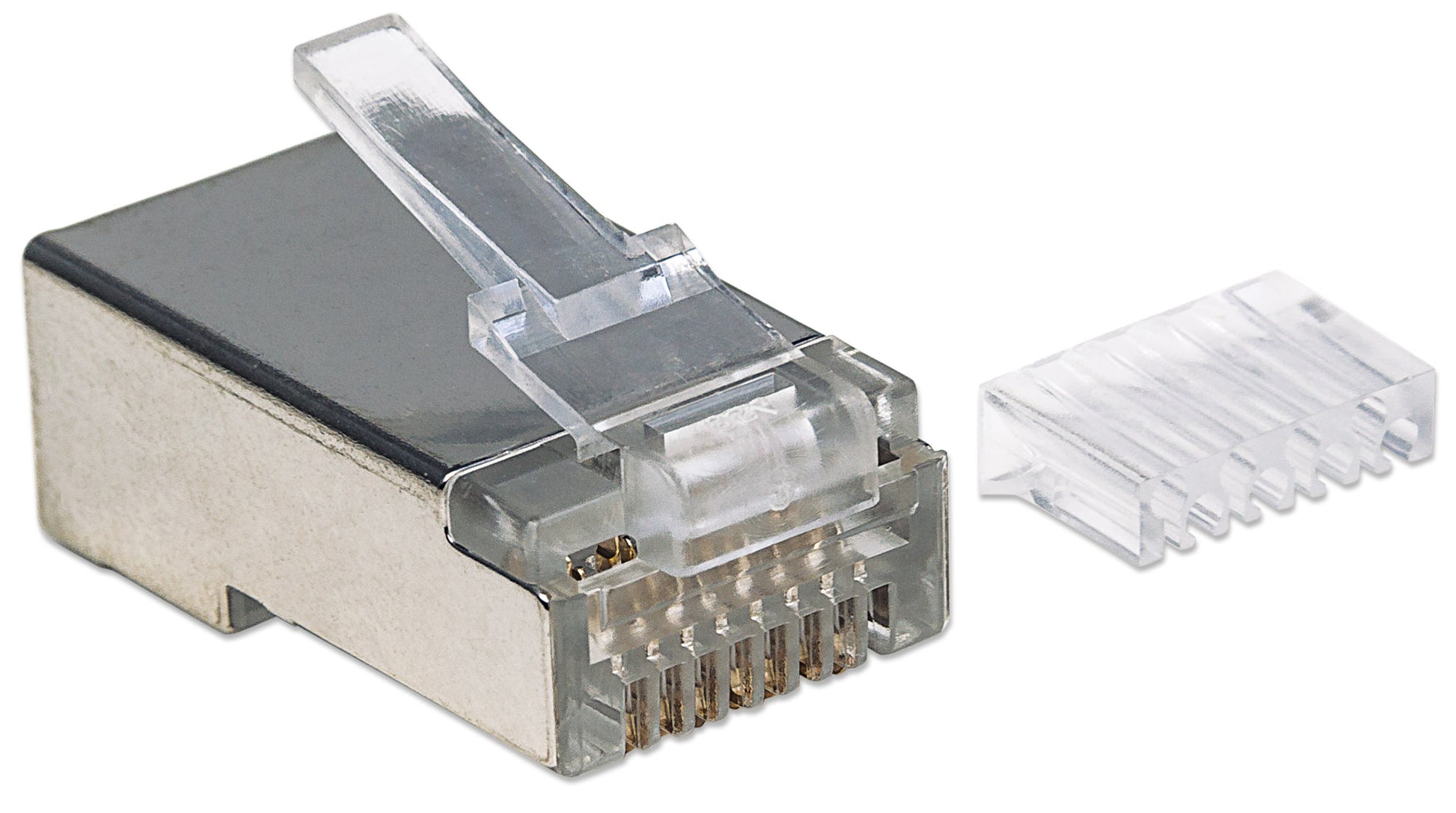

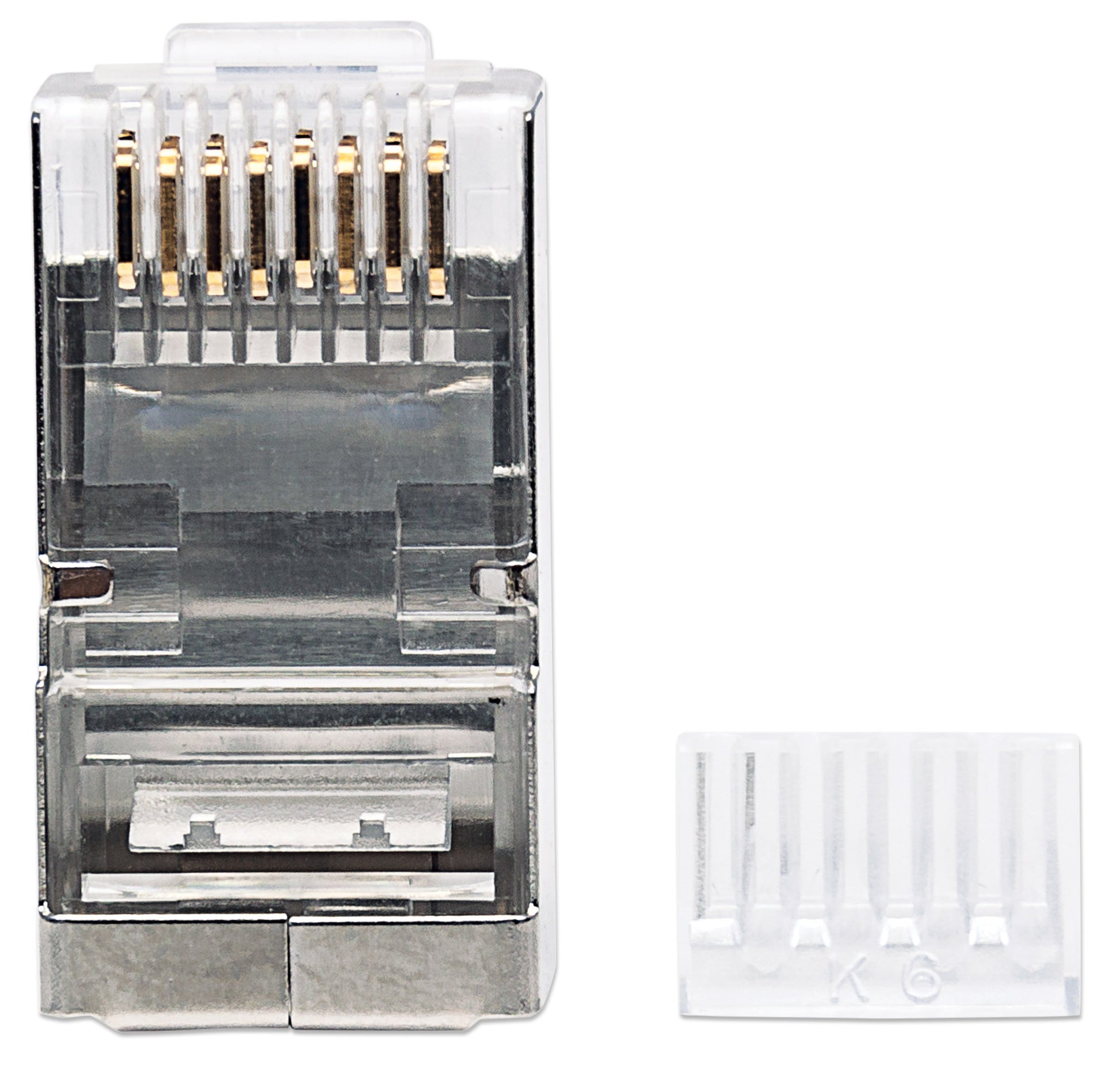

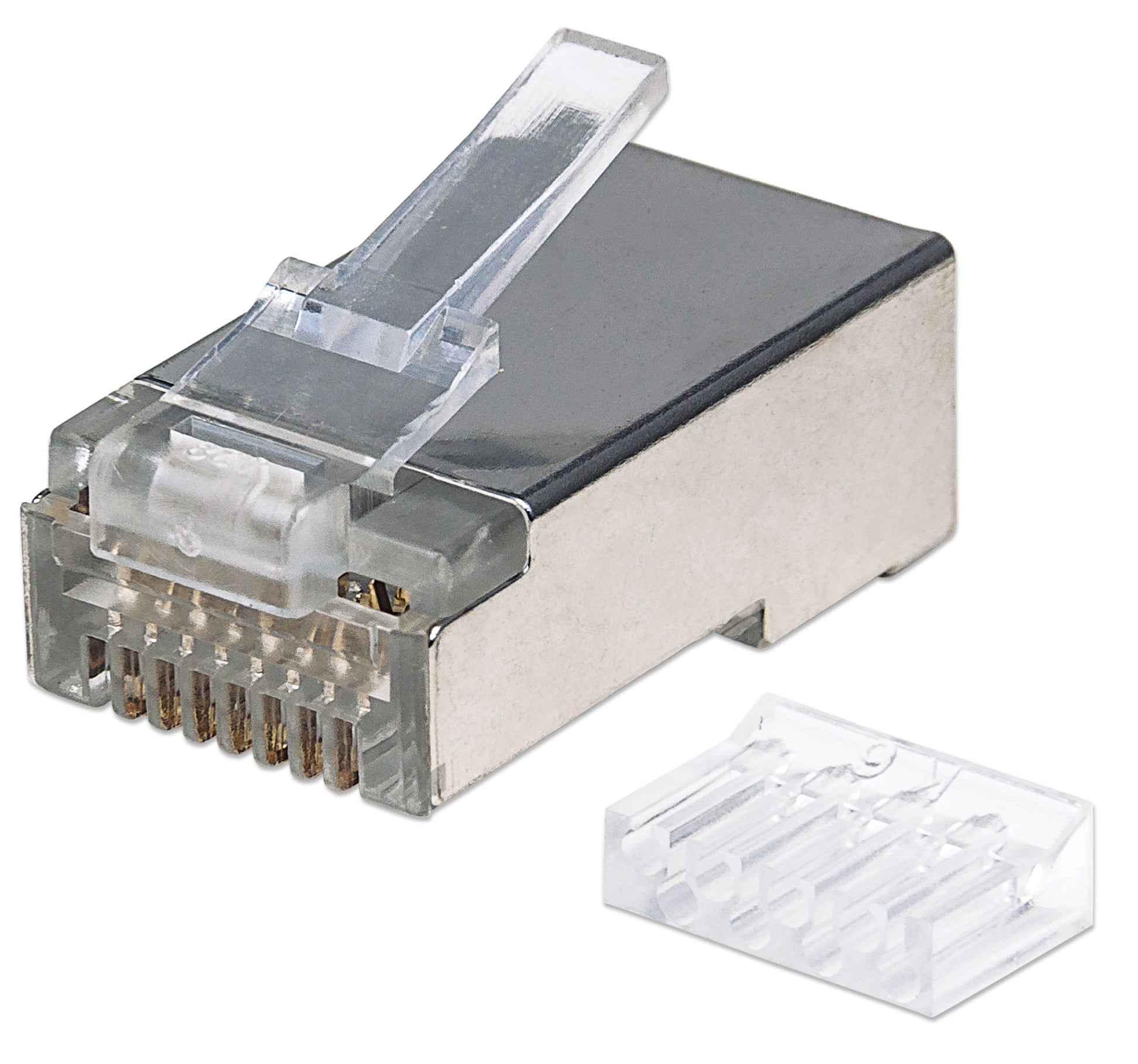

90-Pack Cat6 RJ45 Modular Plugs

STP, 2-prong, for stranded wire, 90 plugs in jar

Part-No.: 790635

Highlights

  • 15 µ gold-plated contacts
  • Two-prong terminal for stranded wire
  • Supports 22 to 26 AWG

Future arrivals:

#
Quantity
Arrival Date
1
70
2020-11-06


Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide our customers with options for CAT5e, CAT6 and CAT6a cables in unshielded and shielded varieties. We offer 15 micron gold contacts for our standard plugs or a high-quality 50 micron standard in our Premium and Pro lines.

  • 15 µ gold-plated contacts
  • Two-prong terminal for stranded wire
  • Supports 22 to 26 AWG
  • Fits round cable
  • For shielded twisted pair applications
  • Standard 8P8C design, compatible with all network RJ45 connections
  • Fully compatible with Category 3, 4, 5, 5e and 6 applications
  • Lifetime Warranty

    Standards
    Category 5 (ANSI/TIA/EIA-568-C)
    Category 5e (TIA/EIA-568-C)
    Category 6 (ANSI/TIA-568-C)

    Material
    Insulator: polycarbonate rated UL 94V-2
    Contacts: phosphor bronze
    Contact Plating: 15 micron gold

    Package Contents

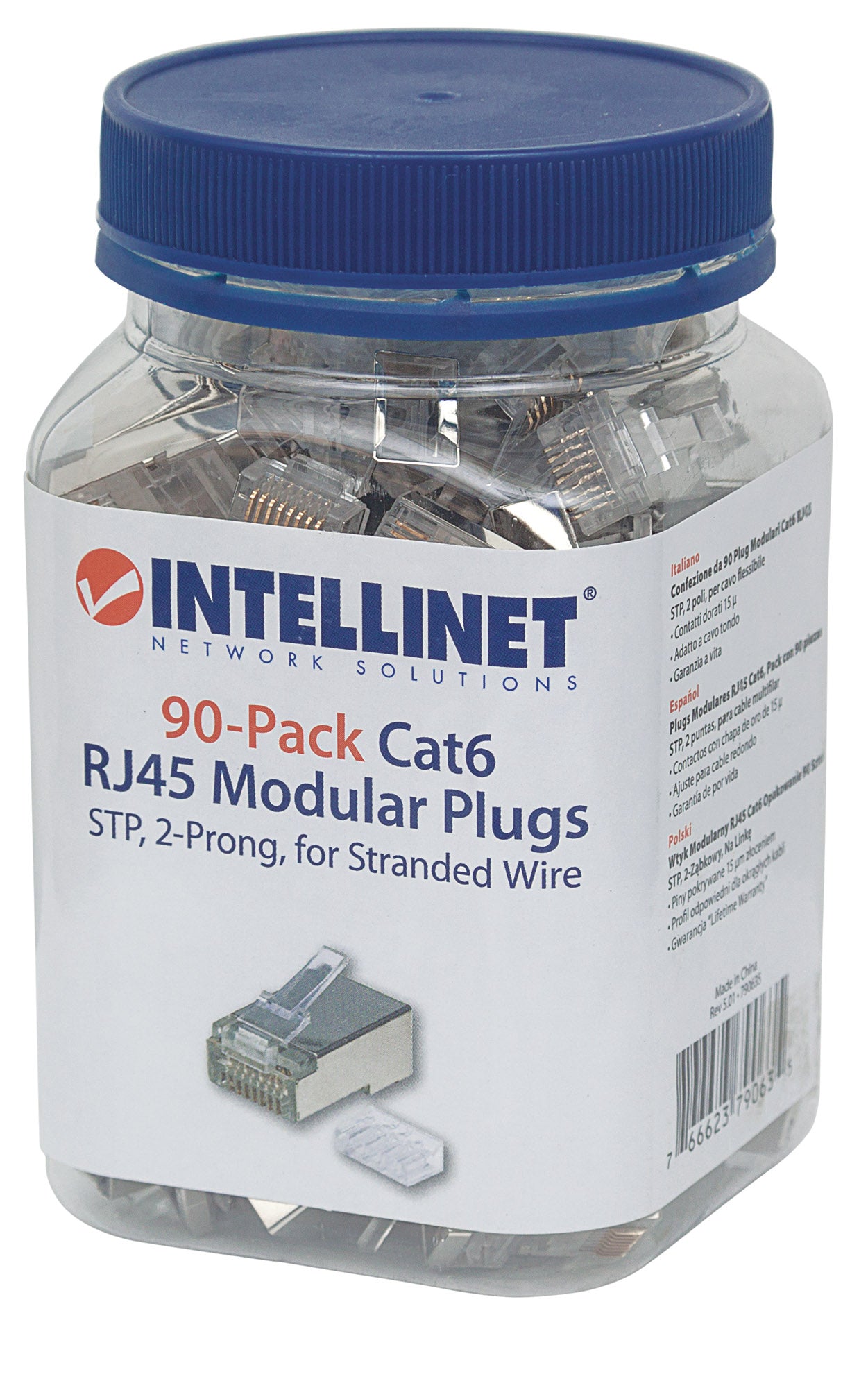

    90 Cat6 RJ45 Modular Plugs with liners in jar

  • Additional SKUs

    • Amazon ASIN: B01L6PJN14
    • EAN: 0766623790635
    • UPC: 766623790635
    • ALSO: 2645163
    • API: 209339

  • Physical Specifications

    • Weight: 0 kg
    • Dimensions: 21.5 (L) x 11.5 (W) x 8.2 (H) [mm]

  • Datasheet
