Mobilize Your Network Enclosure - 4-Piece Caster Set with Brakes - Compatible with Intellinet Basic Series
The Intellinet Casters for 19" Basic Wall Mount Network Cabinets provide an easy way to add mobility and flexibility to your installation. This four-piece caster set transforms select Intellinet wall mount enclosures into mobile units, allowing you to reposition your cabinet whenever needed for maintenance, cleaning or workflow adjustments.
Secure Positioning with Integrated Brakes
Two of the casters feature reliable integrated brakes that lock the wheels firmly in place, ensuring a stable setup in busy IT rooms, offices or service areas.
Strong, Smooth and Built to Last
Engineered with high-quality carbon steel and a durable polyurethane tread, these casters offer excellent strength and maneuverability. With a maximum load capacity of 60 kg (132 lbs.), they deliver consistent performance even under demanding conditions.
Designed for Intellinet Wall Mount Cabinets

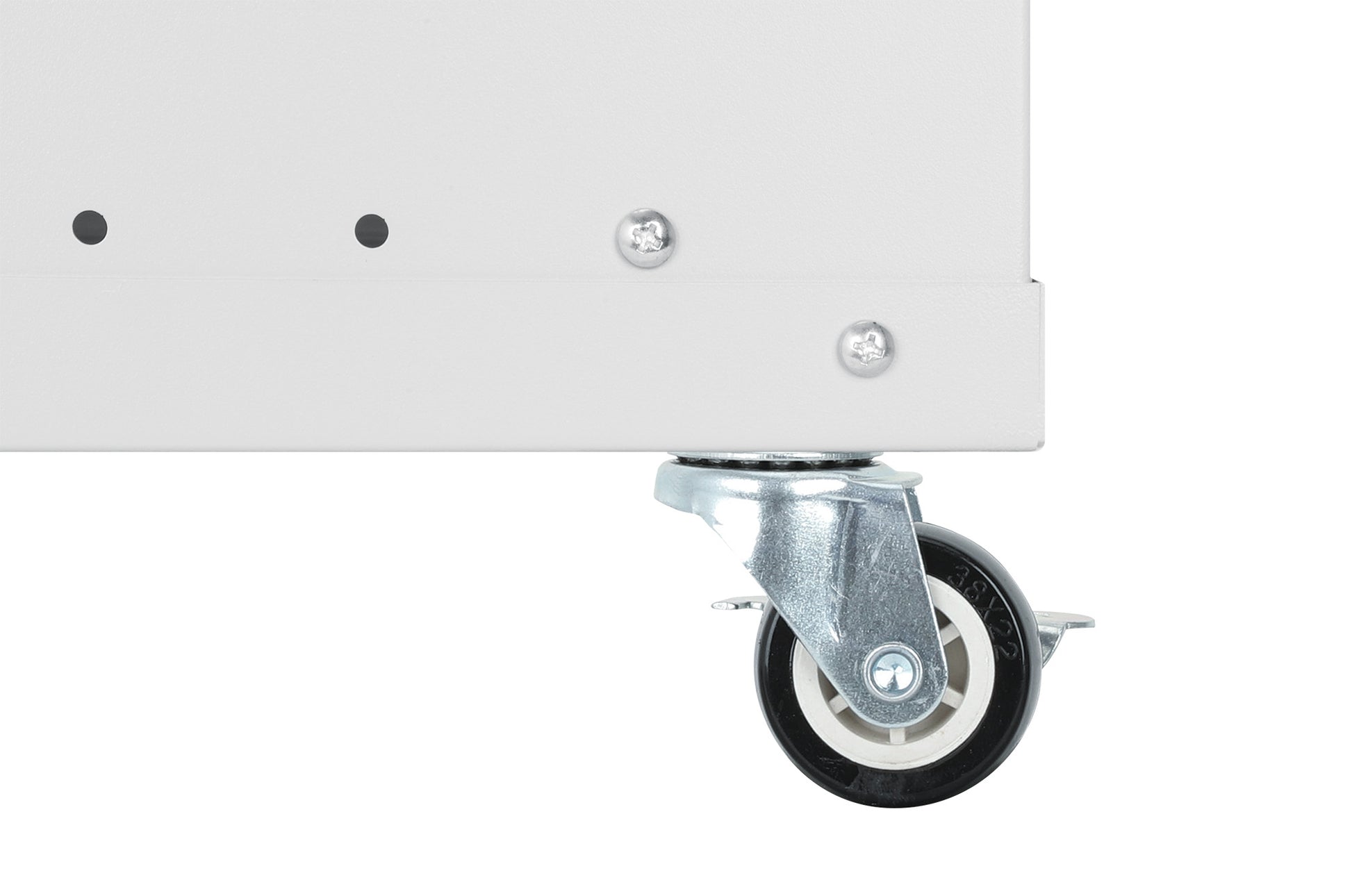

This caster set is fully compatible with the Intellinet 19-inch Basic Wall Mount Cabinet Series, making it a seamless upgrade for select models (see model numbers in specs). Installation is quick and straightforward thanks to the included M12 x 25 mm bolts, which easily screw into the threaded mounts of your cabinet.

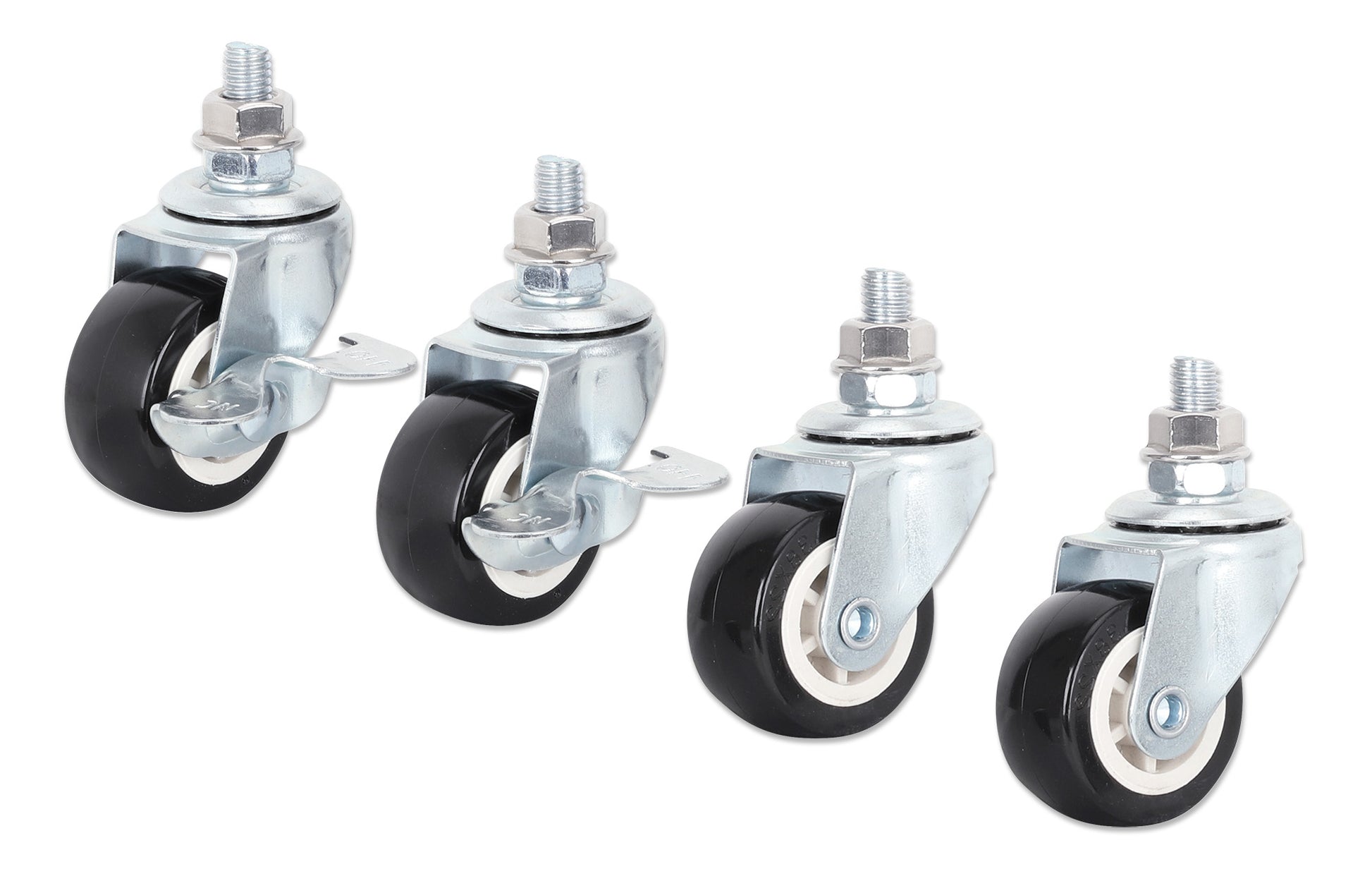

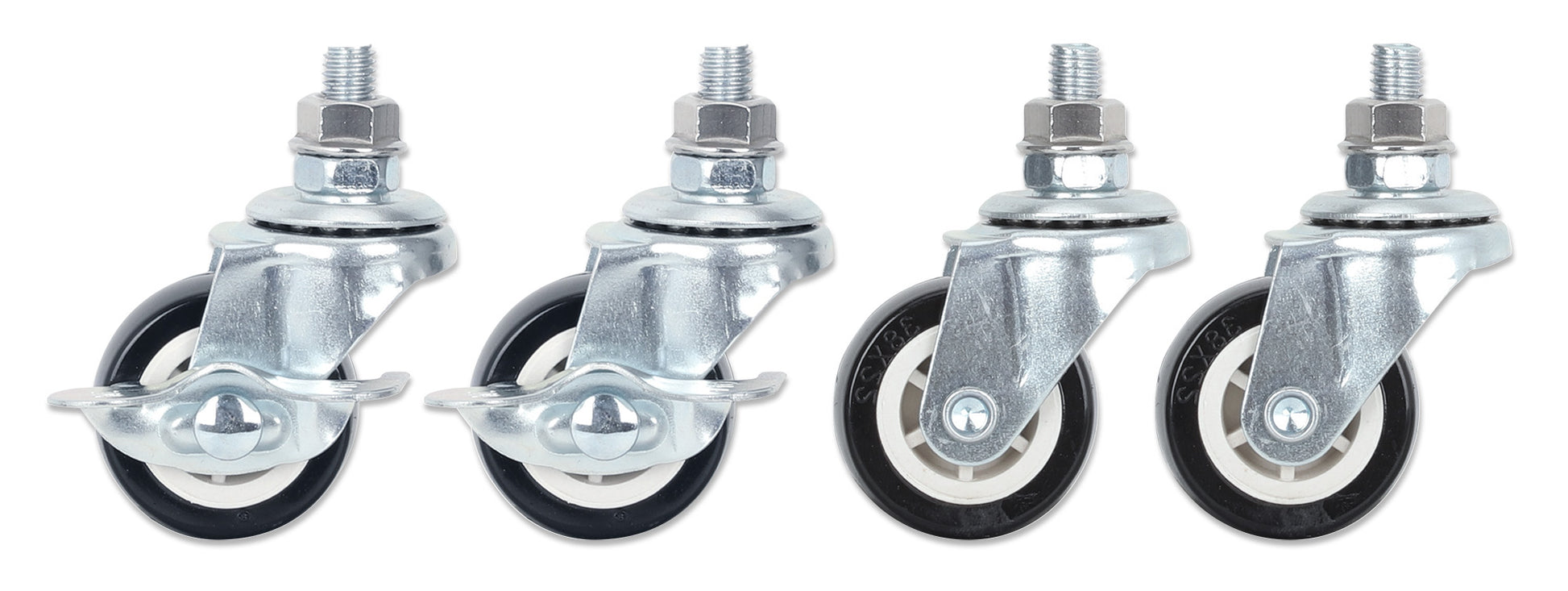

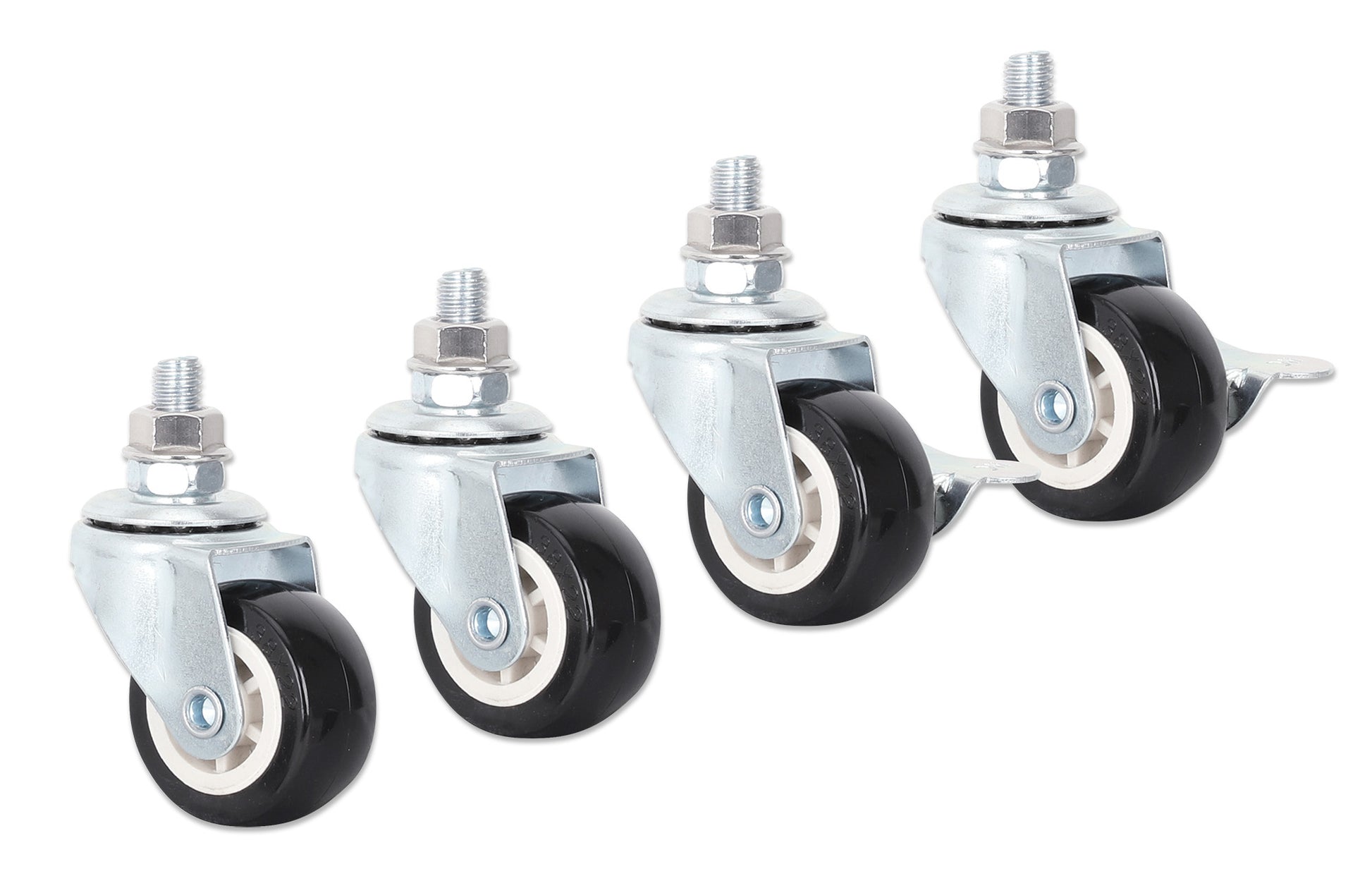

- Four-piece caster set that adds mobility to your network enclosure
- Two brakes safely lock the wheels in place
- Compatible with the 19-inch Basic Wall Mount Network Cabinet Series from Intellinet Network Solutions (see part numbers in specs)
- Maximum load capacity of 60 kg (132 lbs.)
- High-quality carbon steel and highly durable polyurethane tread to support heavy weights and swift maneuverability
- M12 x 25 mm bolts easily screw into the threaded mounts of your cabinet
- Three-year warranty
- Standards and Certifications
- RoHS
- REACH
Physical
- Net weight (set): 750 g (1.65 lbs.)
- Gross weight (set): 900 g (1.98 lbs.)
- Caster details
- Tread materials: polyurethane (PU)
- Plate materials: carbon steel
- Wheel diameter: 50 mm (1.97 in.)
- Wheel width: 28 mm (1.1 in.)
- Wheel height including plate: 75 mm (2.95 in.)
- Plate size (non-brake version): 70 x 55 mm (2.76 x 2.17 in.)
- Plate size (brake version): 52 x 36 mm (2.05 x 1.42 in.)
- Screw size: M12 x 25 mm
- Swivel radius (non-brake version): 53 mm (2.09 in.)
- Swivel radius (brake version): 83 mm (3.27 in.)
- Load capacity: 60 kg (132 lbs.)
Compatible models from the Intellinet 19" Basic Wall Mount Network Cabinet Series
- #716697 - 12U, 400 mm (15.7 in.) Depth, Black
- #716703 - 12U, 400 mm (15.7 in.) Depth, Gray
- #716758 - 12U, 560 mm (22 in.) Depth, Black
- #716765 - 12U, 560 mm (22 in.) Depth, Gray
- #716710 - 15U, 400 mm (15.7 in.) Depth, Black
- #716727 - 15U, 400 mm (15.7 in.) Depth, Gray
- #716772 - 15U, 560 mm (22 in.) Depth, Black
- #716789 - 15U, 560 mm (22 in.) Depth, Gray
- #716734 - 20U, 400 mm (15.7 in.) Depth, Black
- #716741 - 20U, 400 mm (15.7 in.) Depth, Gray
- #716796 - 20U, 560 mm (22 in.) Depth, Black
- #716802 - 20U, 560 mm (22 in.) Depth, Gray
Package Contents
- Caster for 19" Basic Wall Mount Network Cabinets (4 pcs)
Additional SKUs
- EAN: 0766623716819
- UPC: 766623716819
Physical Specifications
- Product net weight: 0.33 kg
- Product gross weight: 0.37 kg
- Dimensions: 41(L) x 50 (W) x 70.6 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 120 x 120 x 55 [mm]
- Master Carton Quantity: 20
- Master Carton Weight: 7.90 kg
- Master Carton Dimensions: 265 x 260 x 295 [mm]
