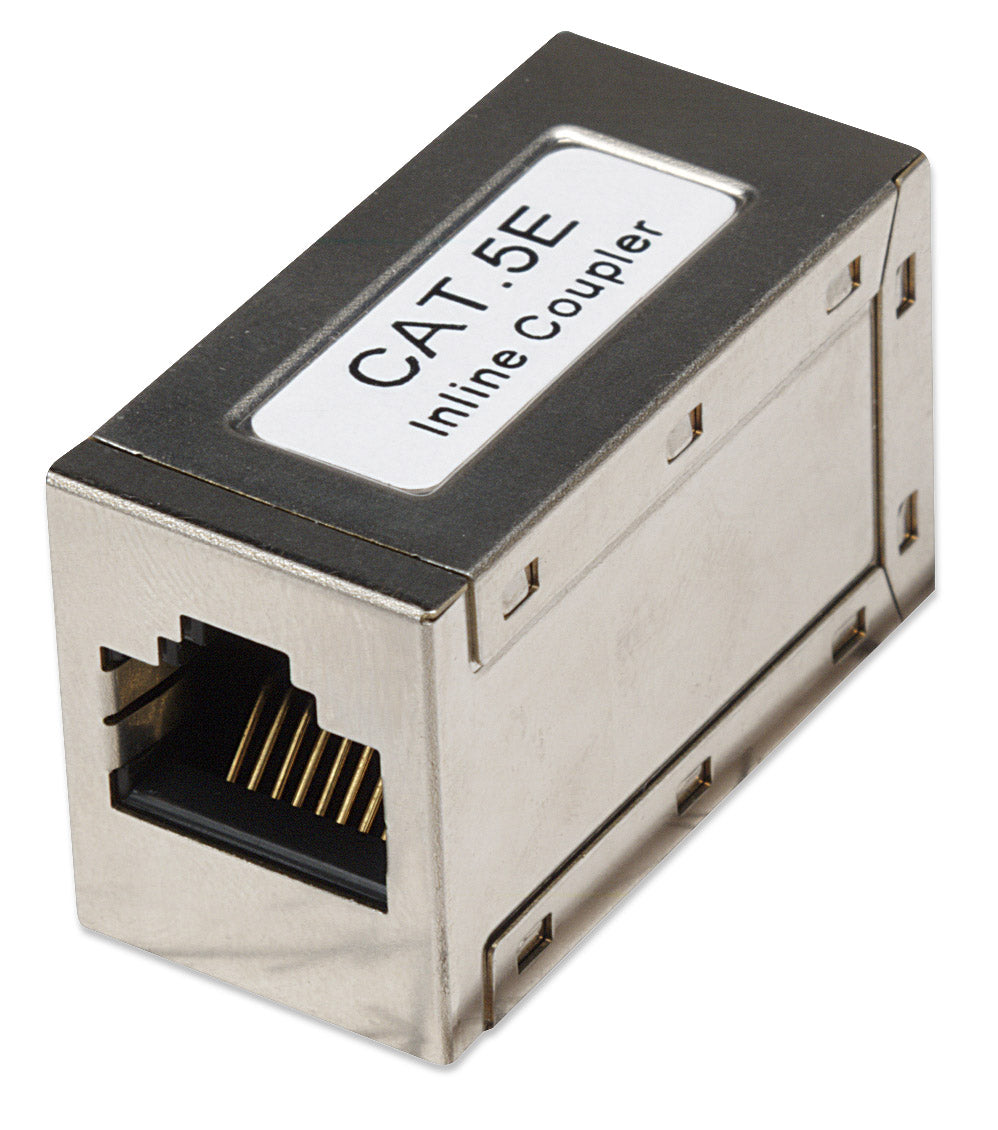

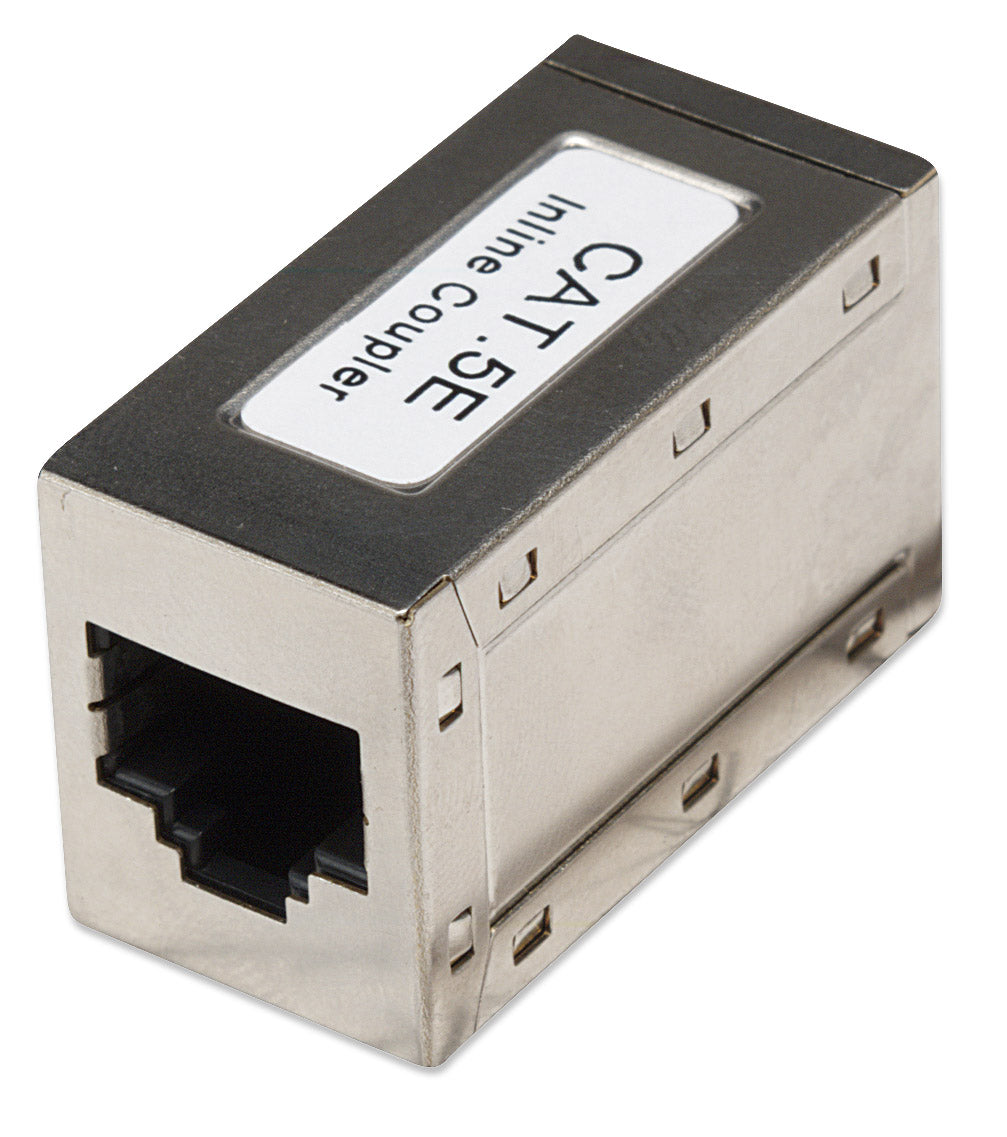

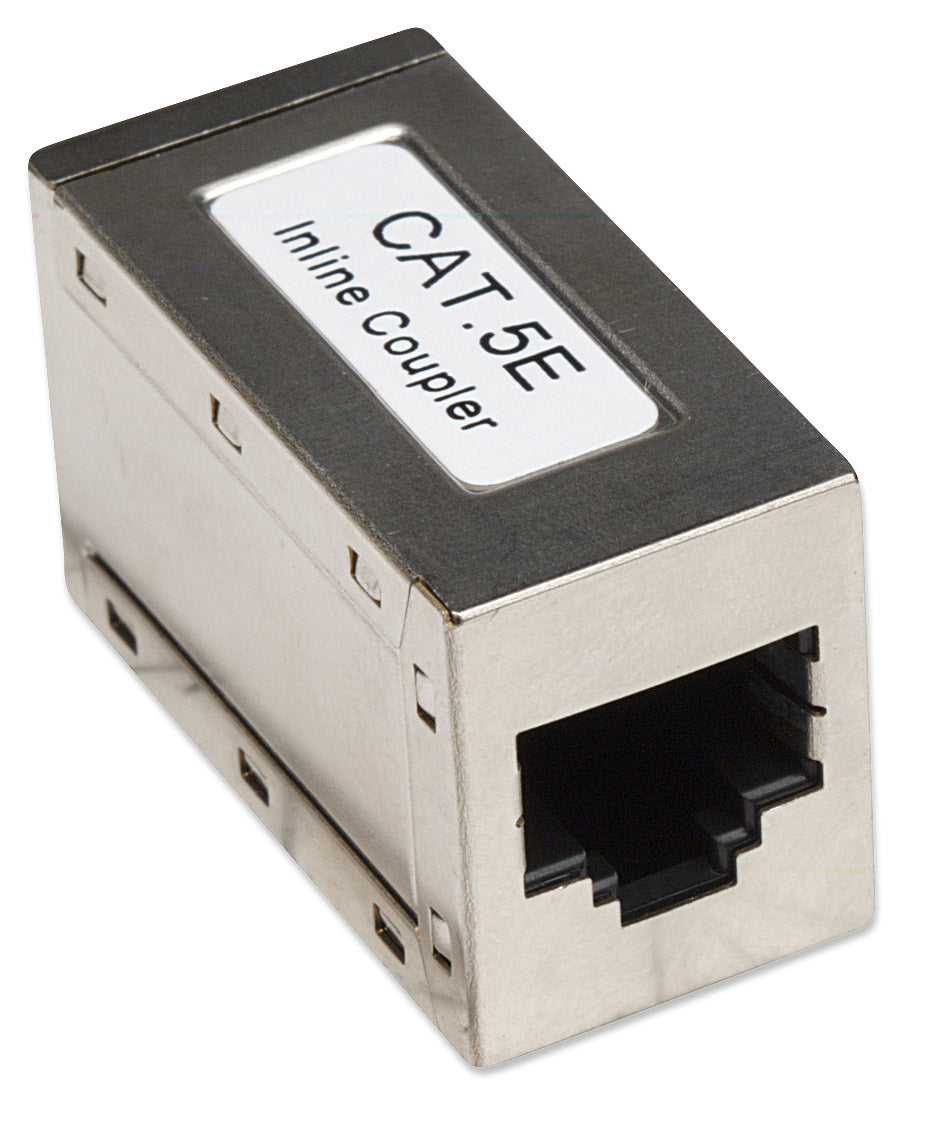

Cat5e Modular Inline Coupler

8P8C Female to 8P8C Female, FTP, Silver

Part-No.: 504768

Highlights

  • Used to extend the length of shielded Cat5e cables
  • 50 micron gold plated contacts
  • For use with shielded twisted pair (FTP) Cat5e cable


  • Used to extend the length of shielded Cat5e cables
  • 50 micron gold plated contacts
  • For use with shielded twisted pair (FTP) Cat5e cable
  • Cat5e performance is in compliance with ANSI/TIA/EIA 568 B.2 standard
  • Lifetime Warranty

  • Metal housing
  • EIA/TIA approved
  • UL listed
  • 568 A/B color coded
  • Straight-through wiring
  • Operating temperature: -40 – 80°C (-40 – 176°F)

  • Additional SKUs

    • Amazon ASIN: B002HMTSK2
    • EAN: 0766623504768
    • UPC: 766623504768
    • ALSO: 1955190
    • API: 101241

  • Physical Specifications

    • Weight: 0.02 kg
    • Dimensions: 36 (L) x 17.8 (W) x 22 (H) [mm]

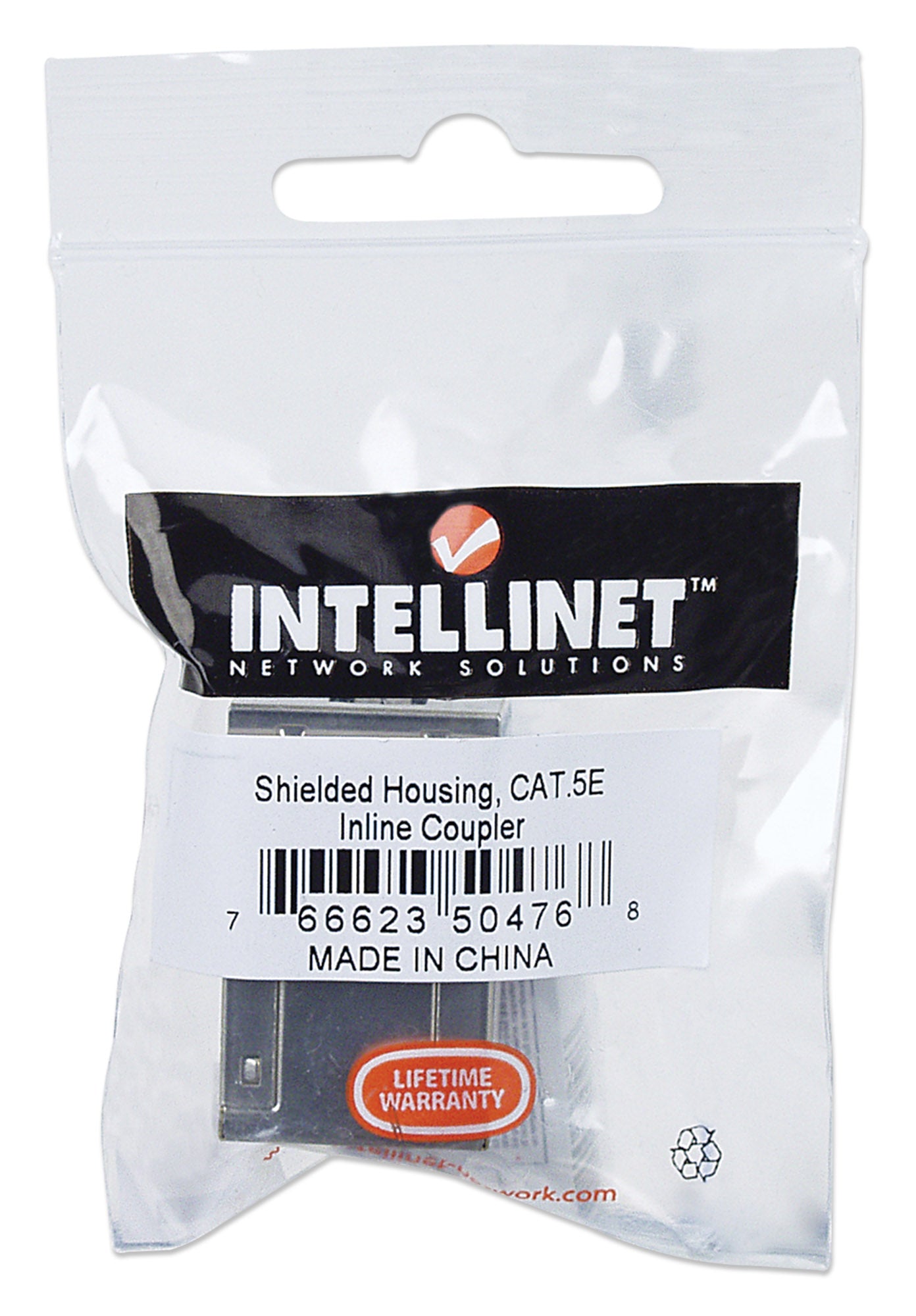

    • Packaging: Bag
    • Carton Quantity: 500
    • Carton Weight: 8.80 kg

  • Datasheet
