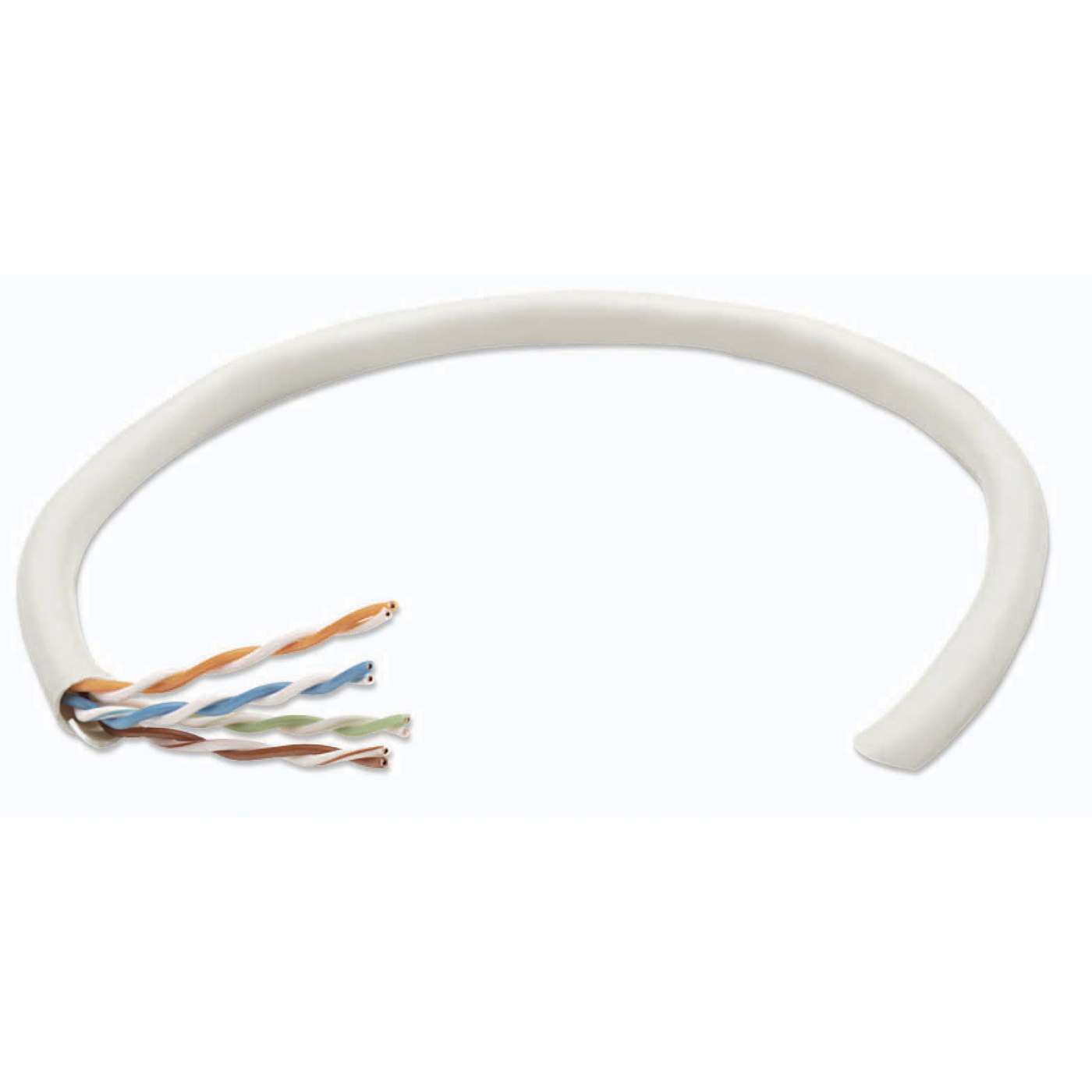

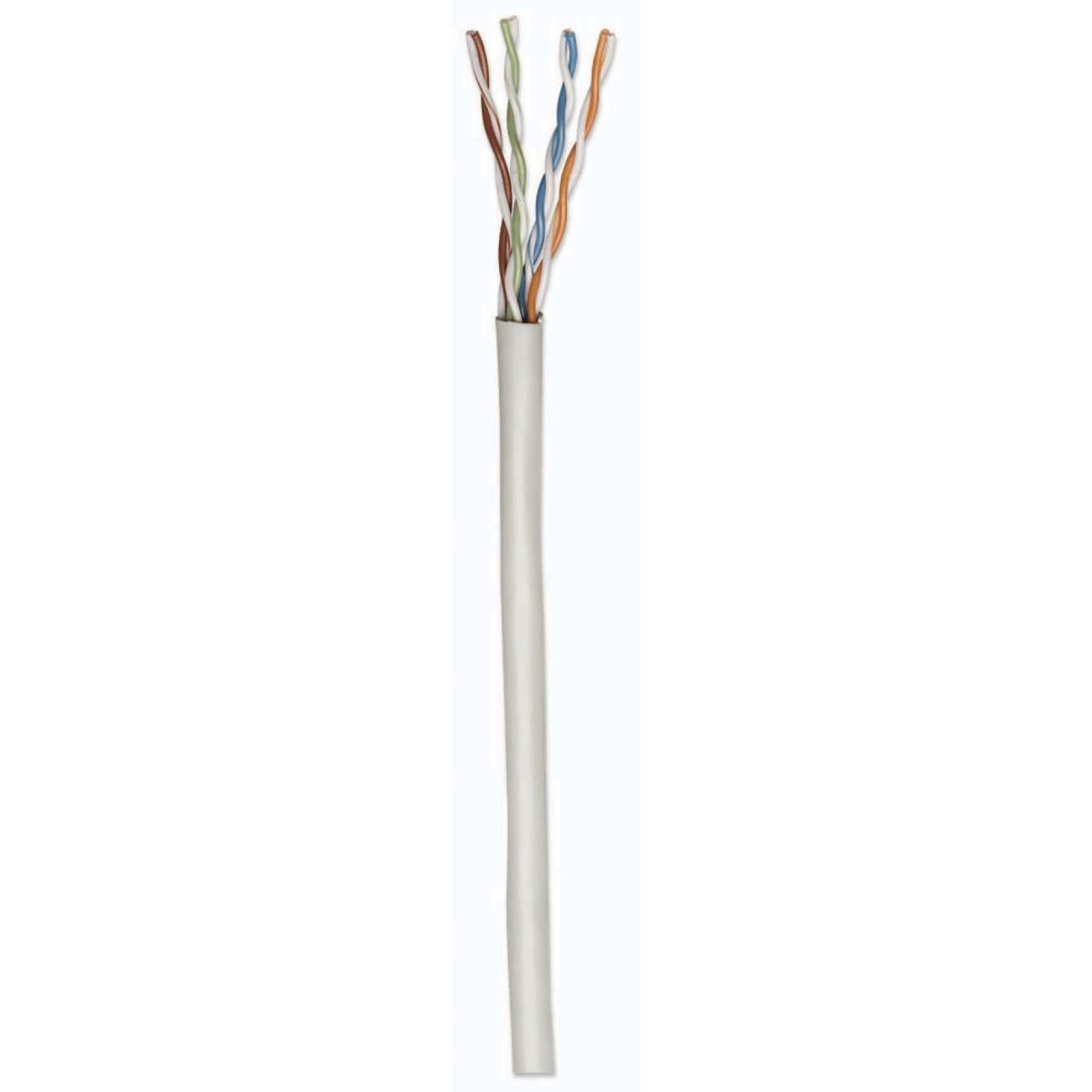

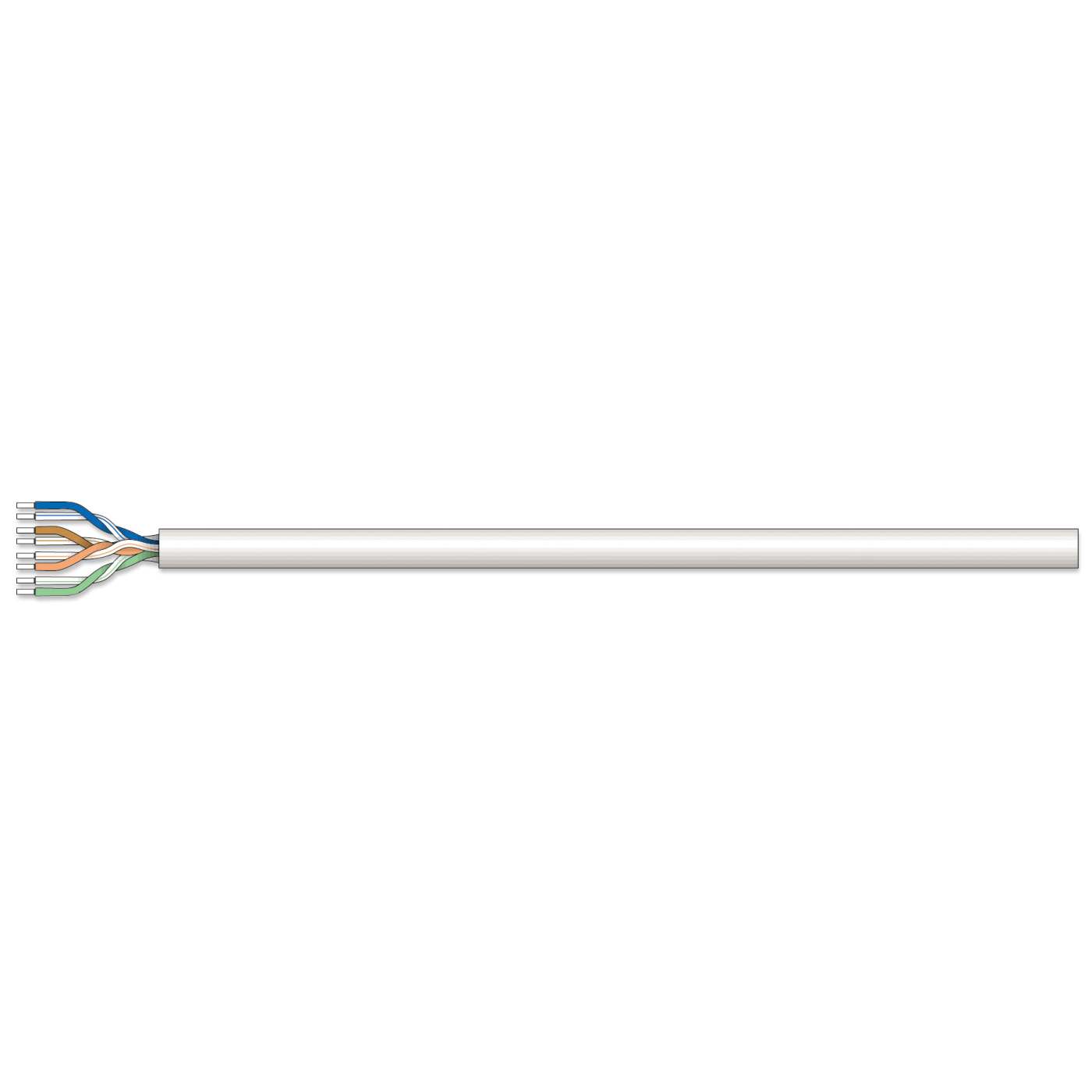

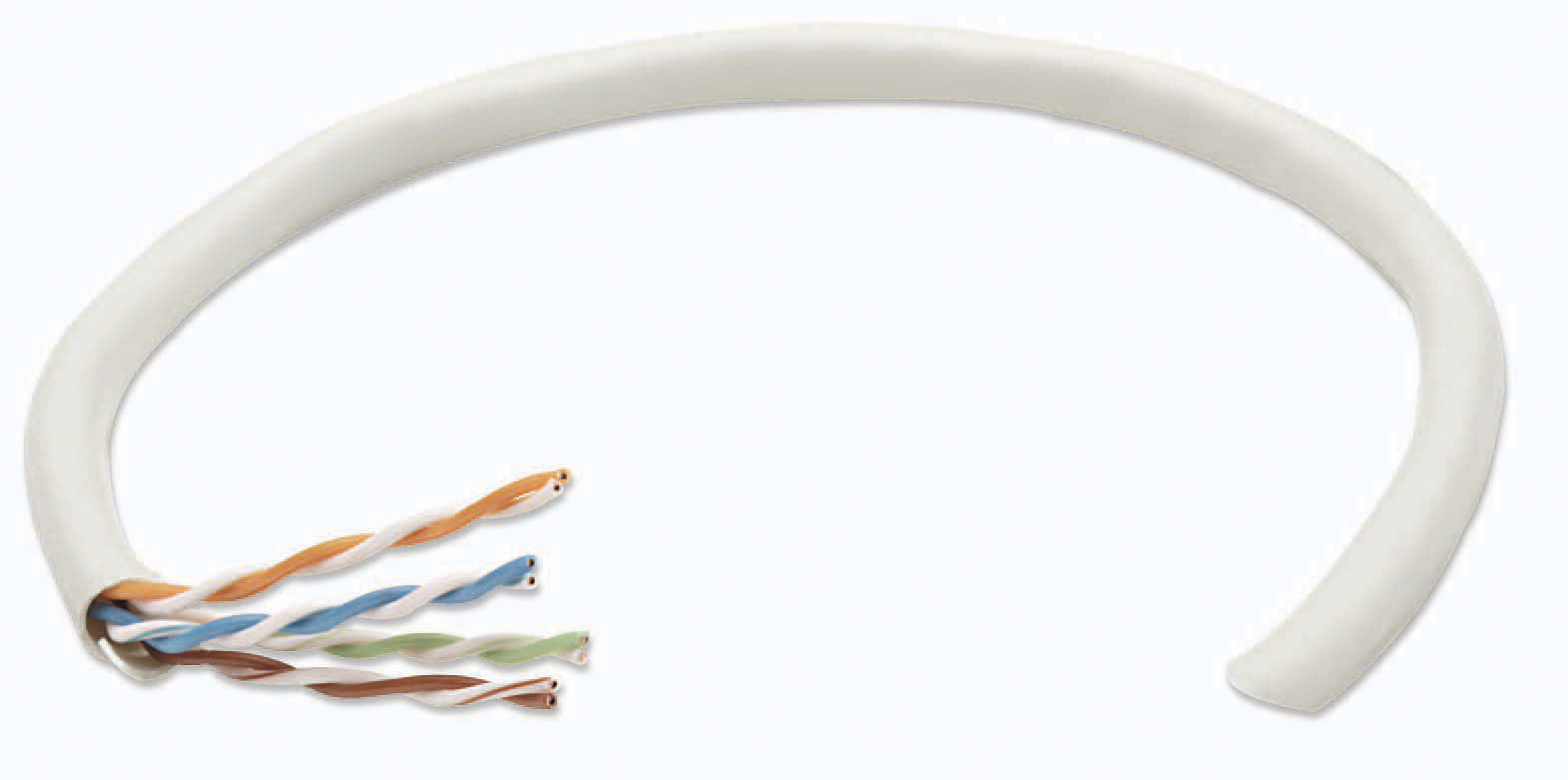

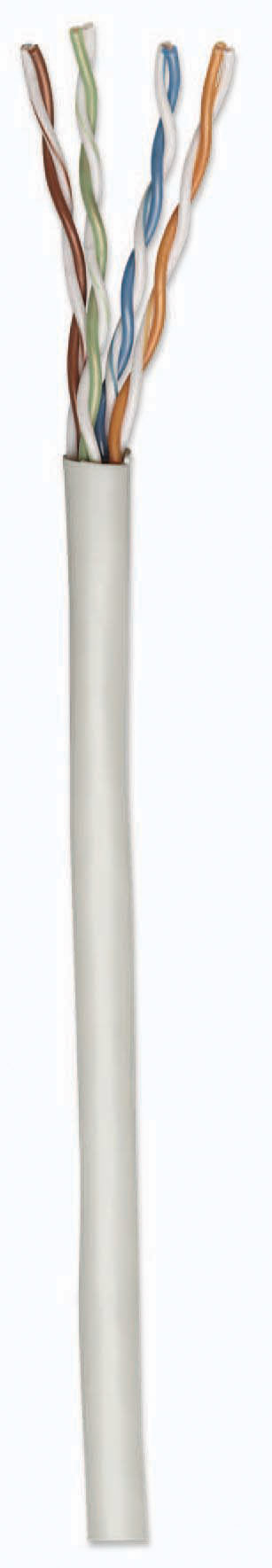

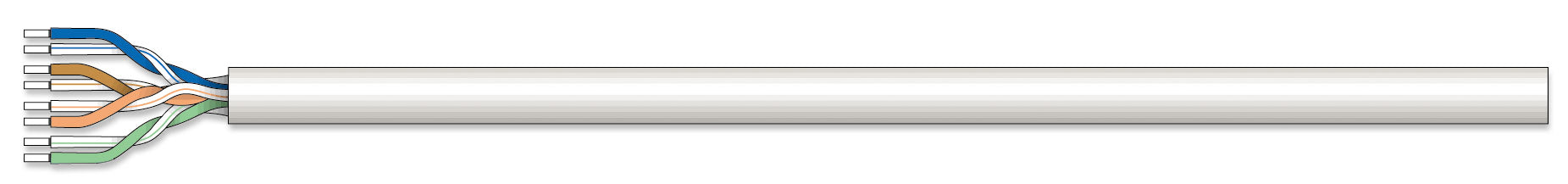

Cat6 Bulk Cable, Solid, 23 AWG

UTP, 305 m (1,000 ft.), CM Rated, Plastic Reel, Gray, Copper

Part-No.: 334136

Highlights

  • UTP, Unshielded Twisted Pair
  • Can be used in riser with raceway/fireproof shaft
  • Standards tested; meets or exceeds current Cat6 proposed standards

Future arrivals:

#
Quantity
Arrival Date
1
60
2021-07-08


Designed for today’s applications.
Intellinet Network Solutions Cat6 Bulk Cable allows for a better signal-to-noise ratio with minimal loss, which translates to faster and reliable networks for today’s applications.

  • UTP, Unshielded Twisted Pair
  • Can be used in riser with raceway/fireproof shaft
  • Standards tested; meets or exceeds current Cat6 proposed standards
  • Length usage log on box tracks remaining cable available for next job
  • Lifetime Warranty

    General
  • Gray
  • Unshielded twisted 4-pair w/ pair separator
  • 23 AWG
  • Solid core
  • PVC jacket
  • Rated to 250 MHz
  • Meets or exceeds Cat6 specifications
  • Ideal for for carrying data, audio and video
  • Flame Retardant Rating: CM
  • In-wall rated; permitted in 1-2 family residential riser applications, or in riser with raceway/fireproof shaft; not permitted in plenums
  • UL approved

    Technical Specifications
  • TIA Cat6 channel test 250 MHz:
    - Return loss (db) = 17.32
    - Attenuation (db/100) = 33.04
    - Near-end crosstalk (db) = 38.3
    - Power sum-NEXT (db) = 36.3
    - Equal level-FEXT (db) = 19.8
    - Power sum-ELFEXT (db) = 16.8

  • Additional SKUs

    • Amazon ASIN: B00176NMTC
    • EAN: 0766623334136
    • UPC: 766623334136
    • ALSO: 1955041
    • API: 101245

  • Physical Specifications

    • Weight: 14.25 kg
    • Dimensions: 305 m
    • Packaging: Brown Box
    • Carton Quantity: 2
    • Carton Weight: 28.00 kg

  • Datasheet

    • Datasheet (English)     » Download

    • Declaration of Conformity     » Download

    • Datasheet     » Download
