High-quality materials in a tool-less design

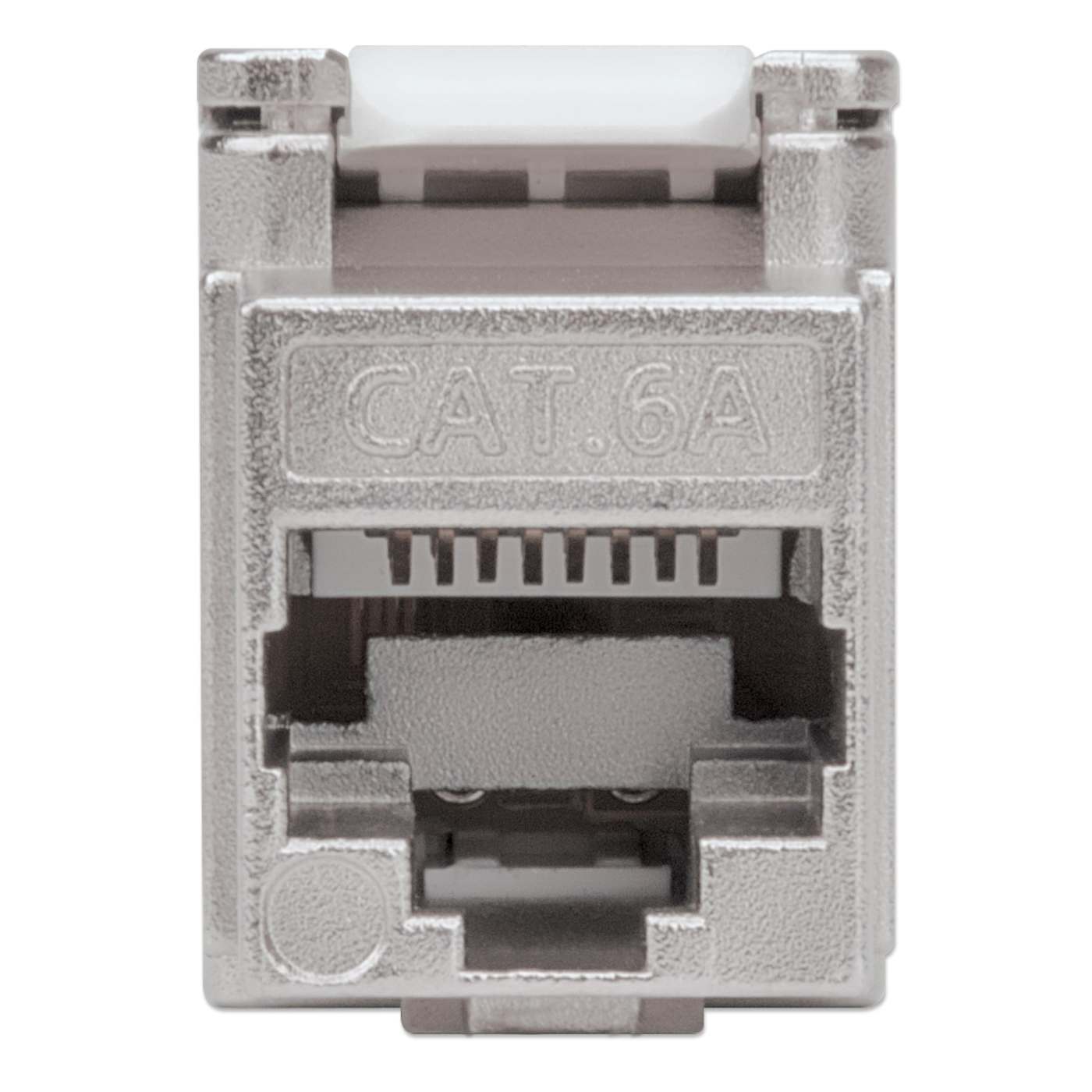

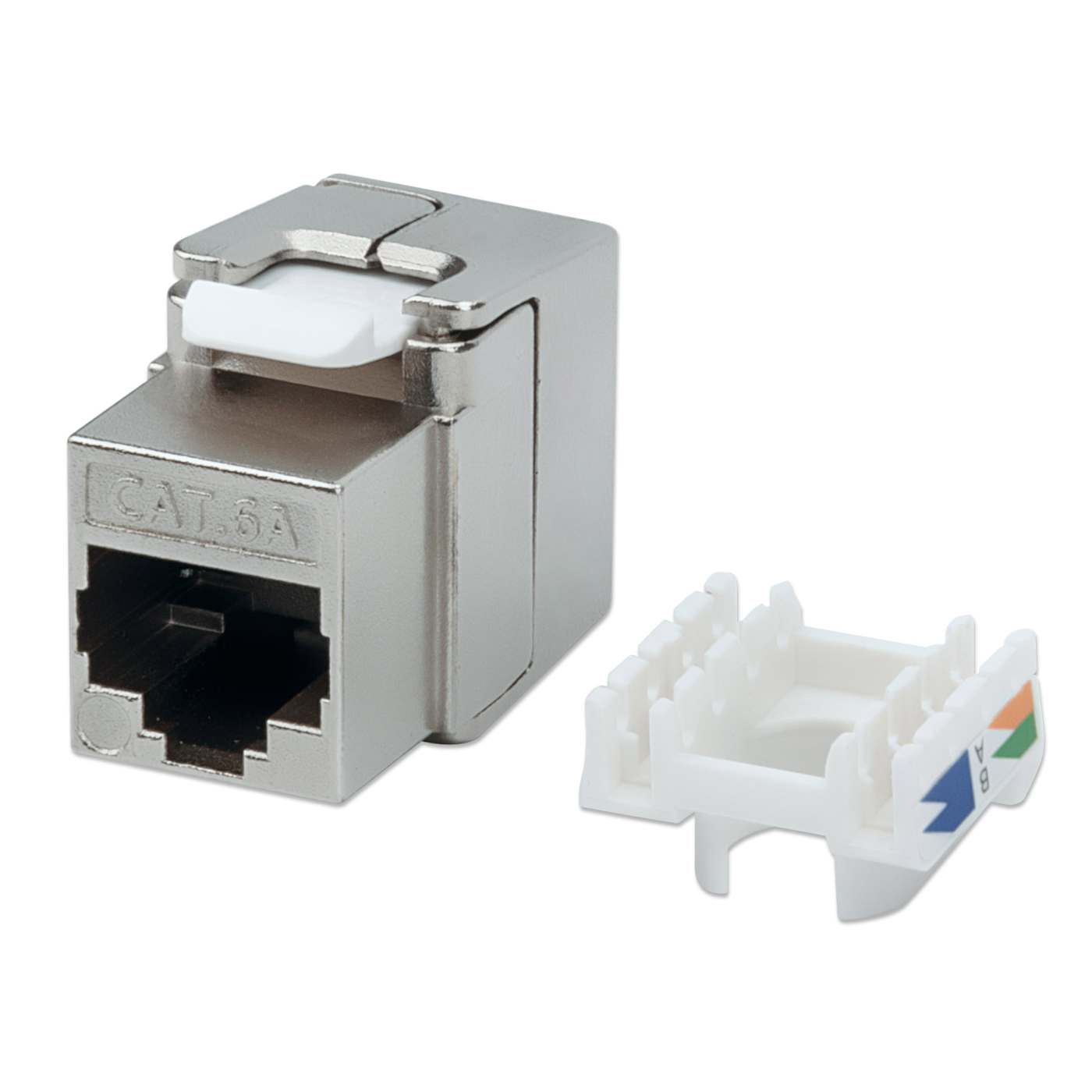

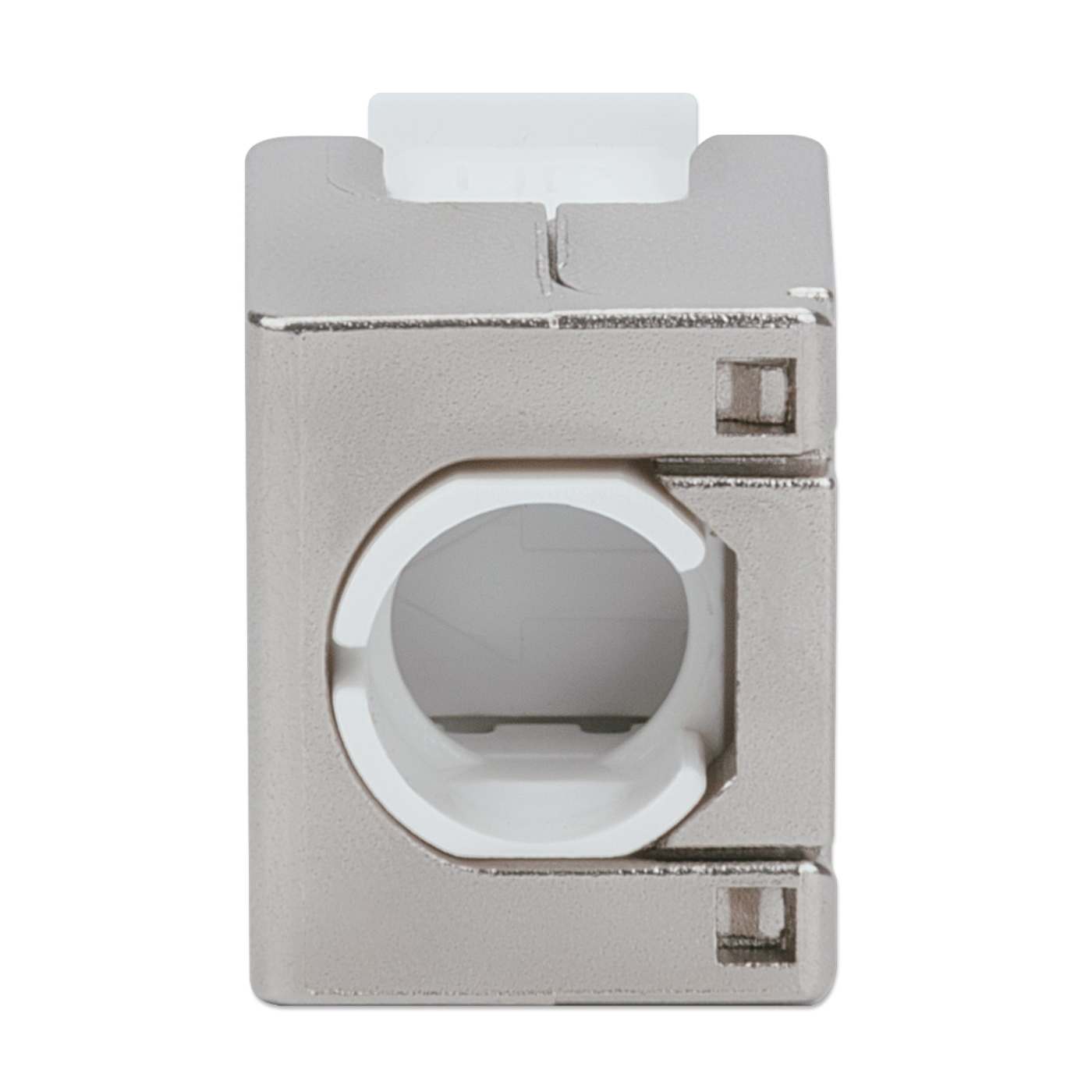

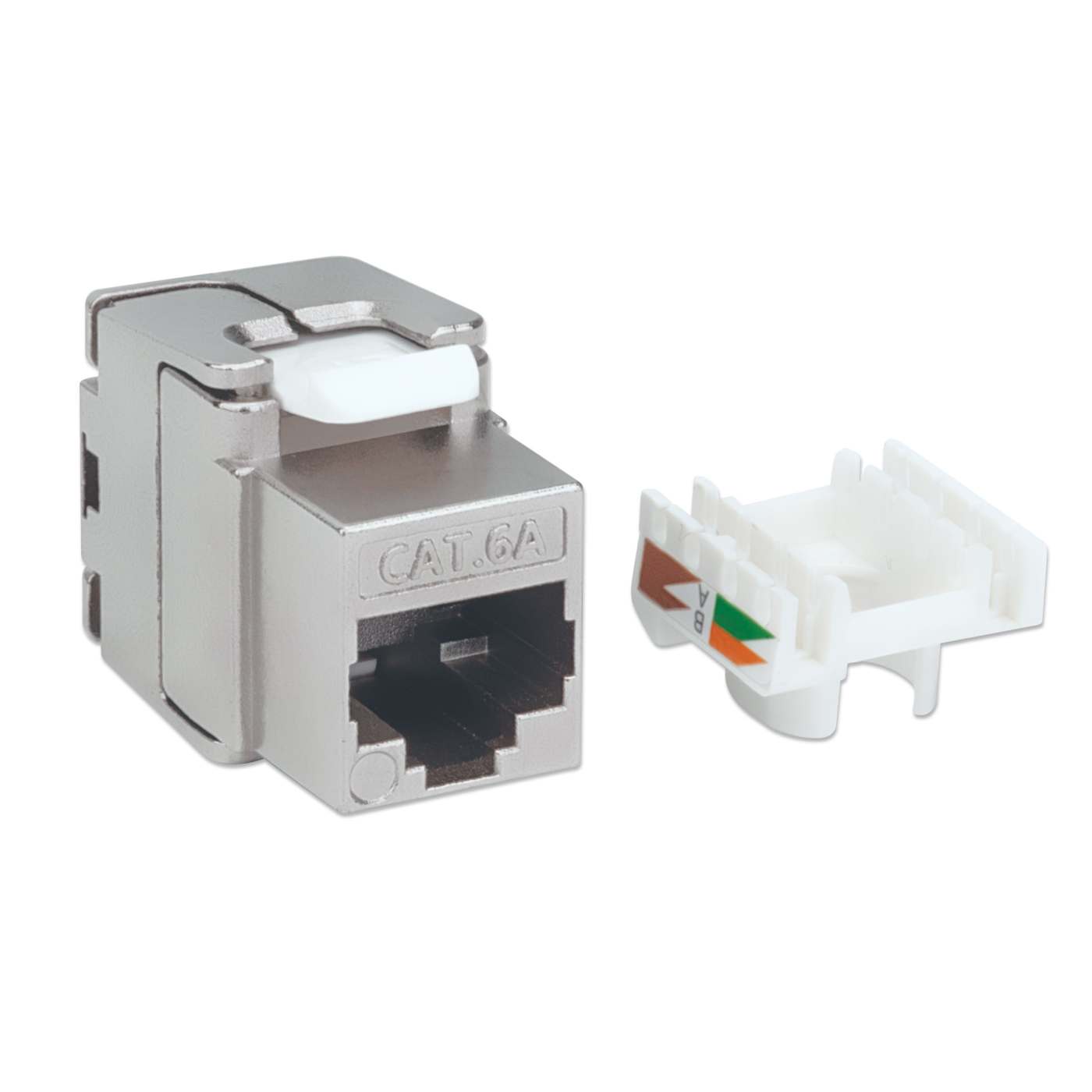

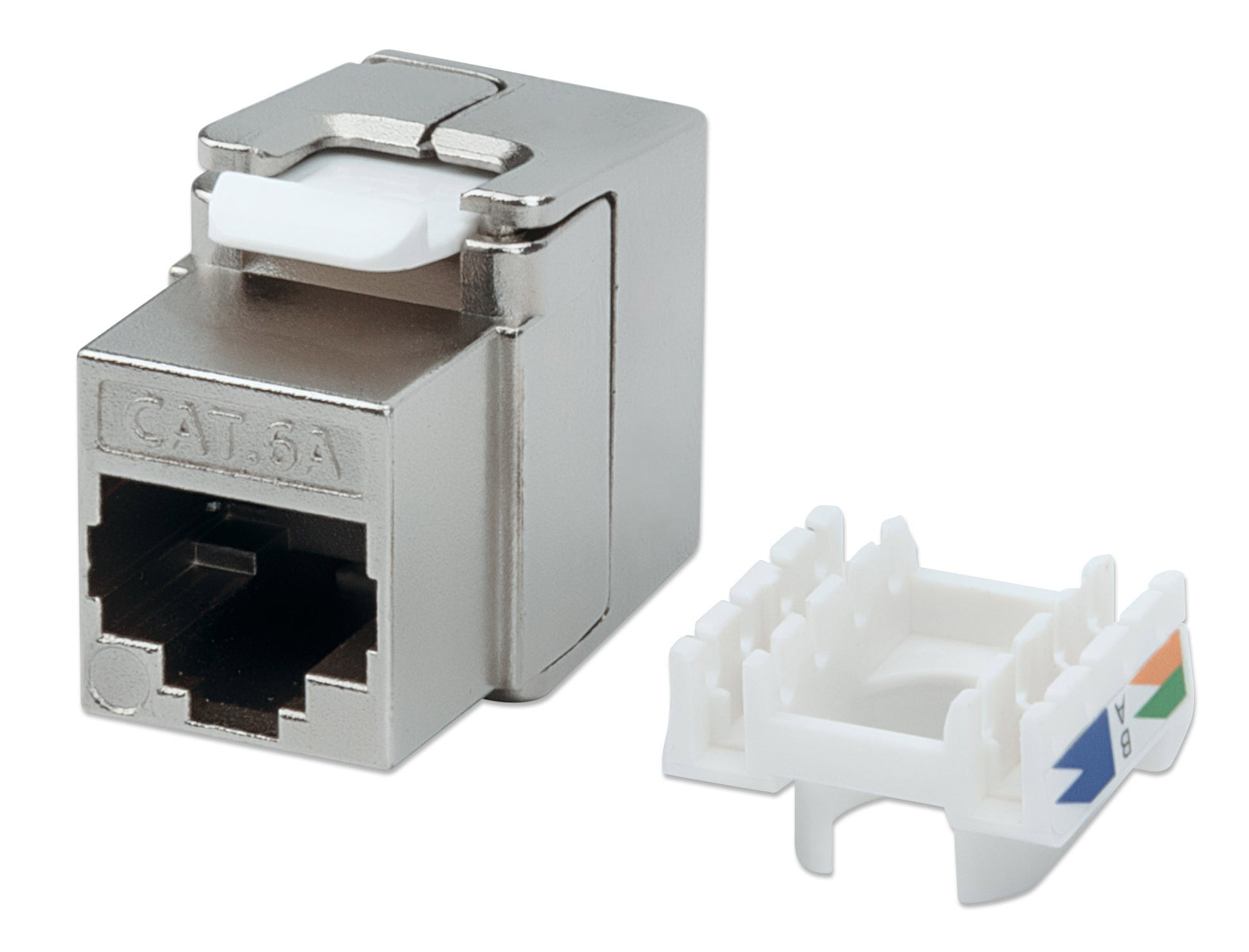

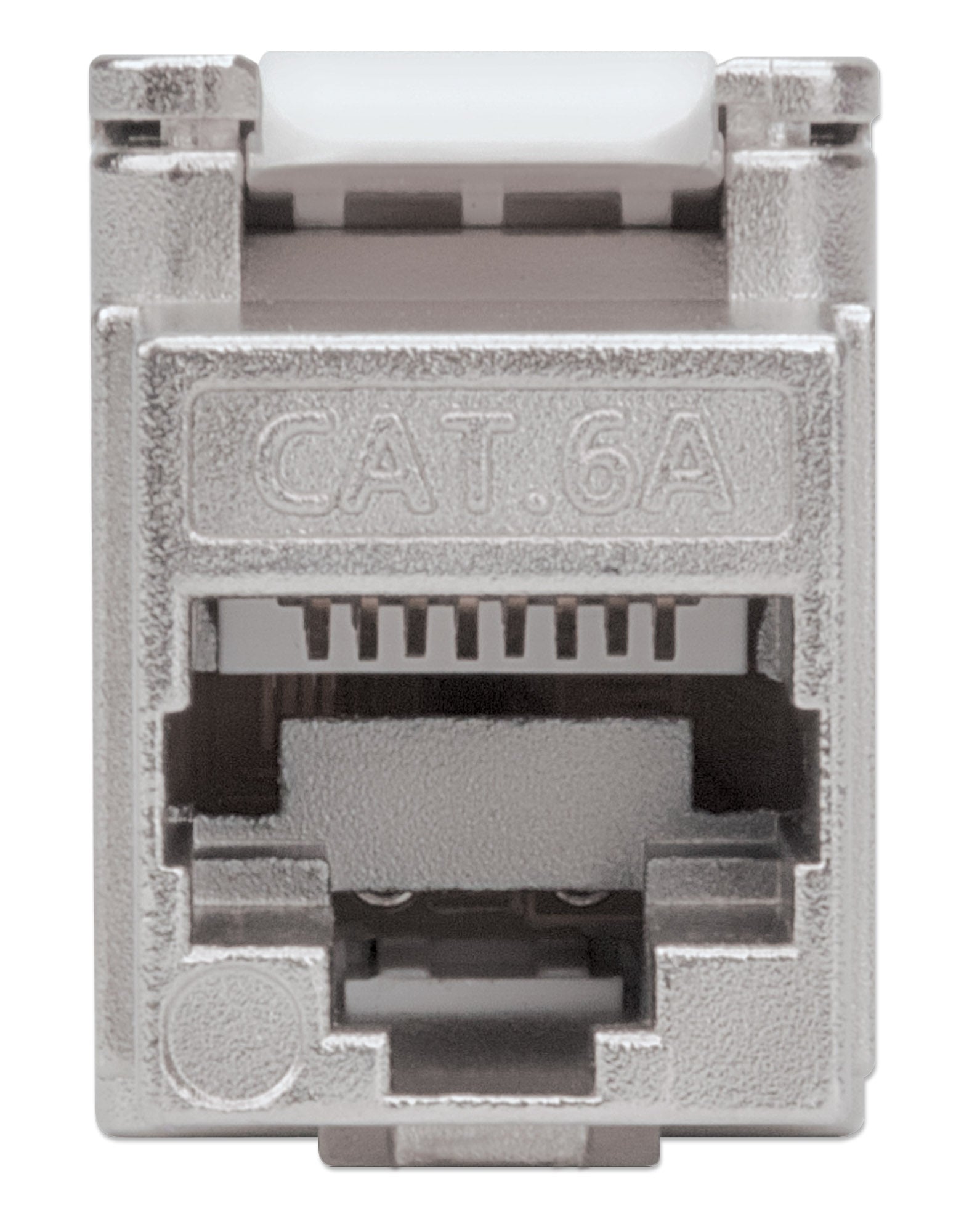

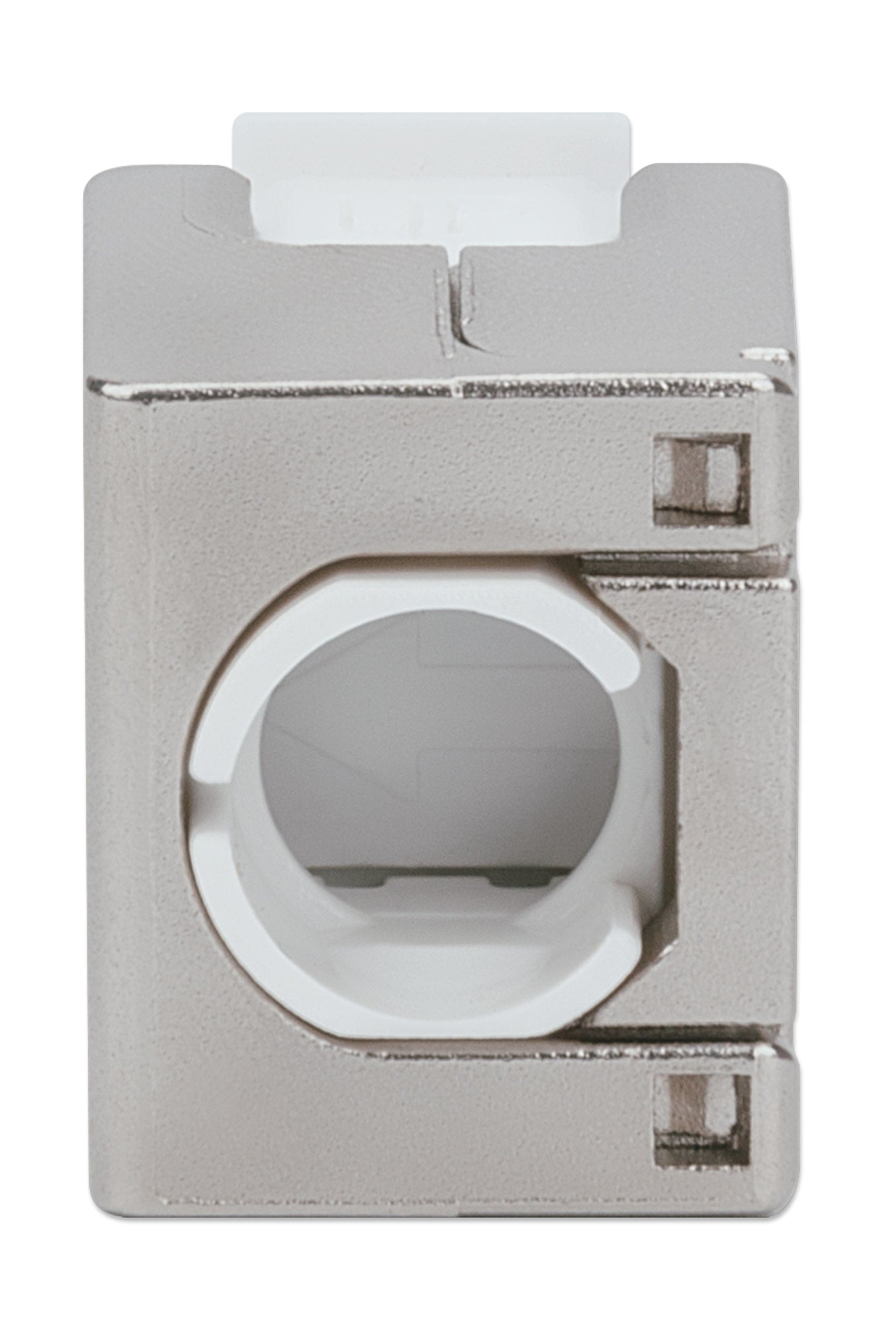

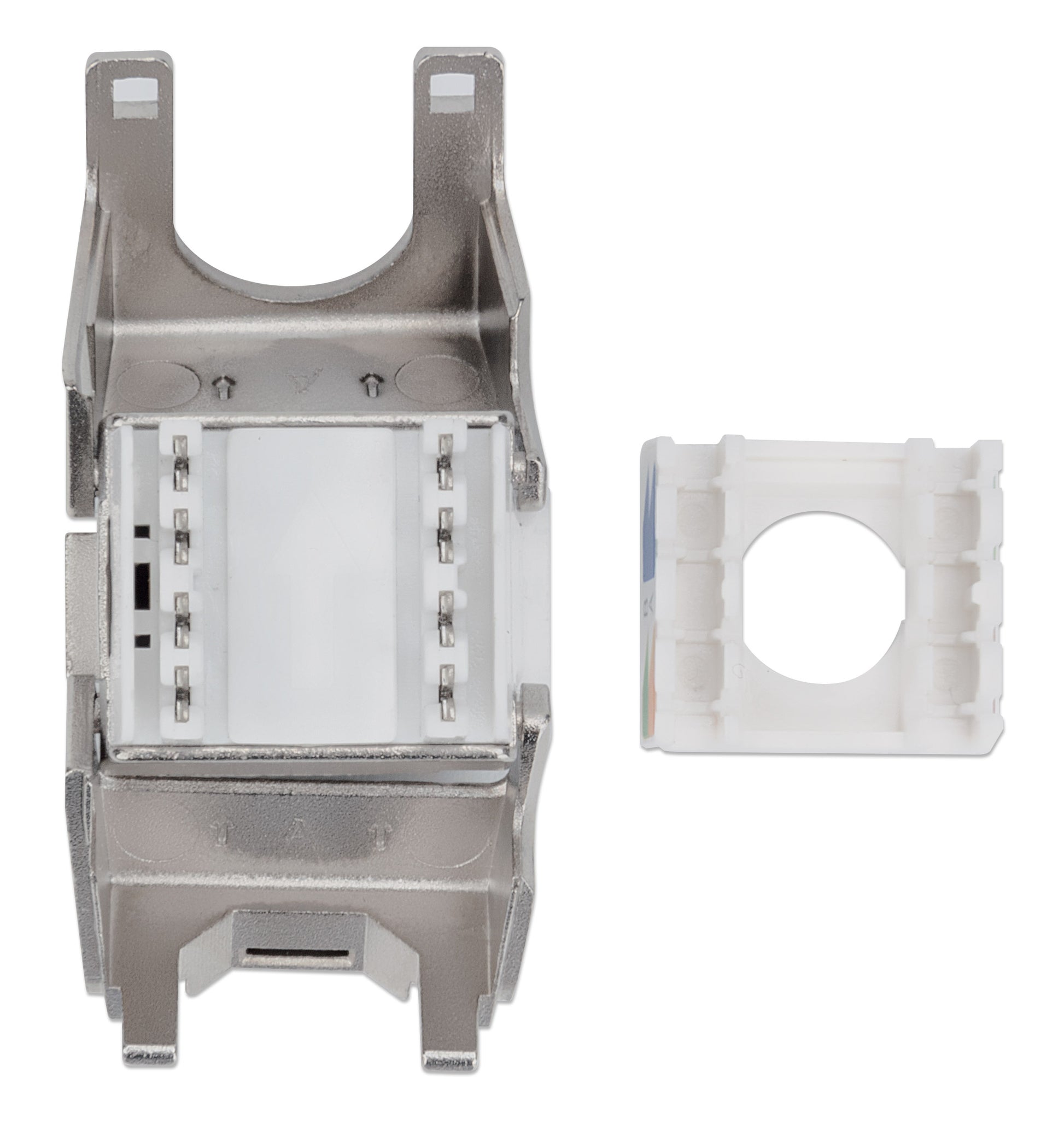

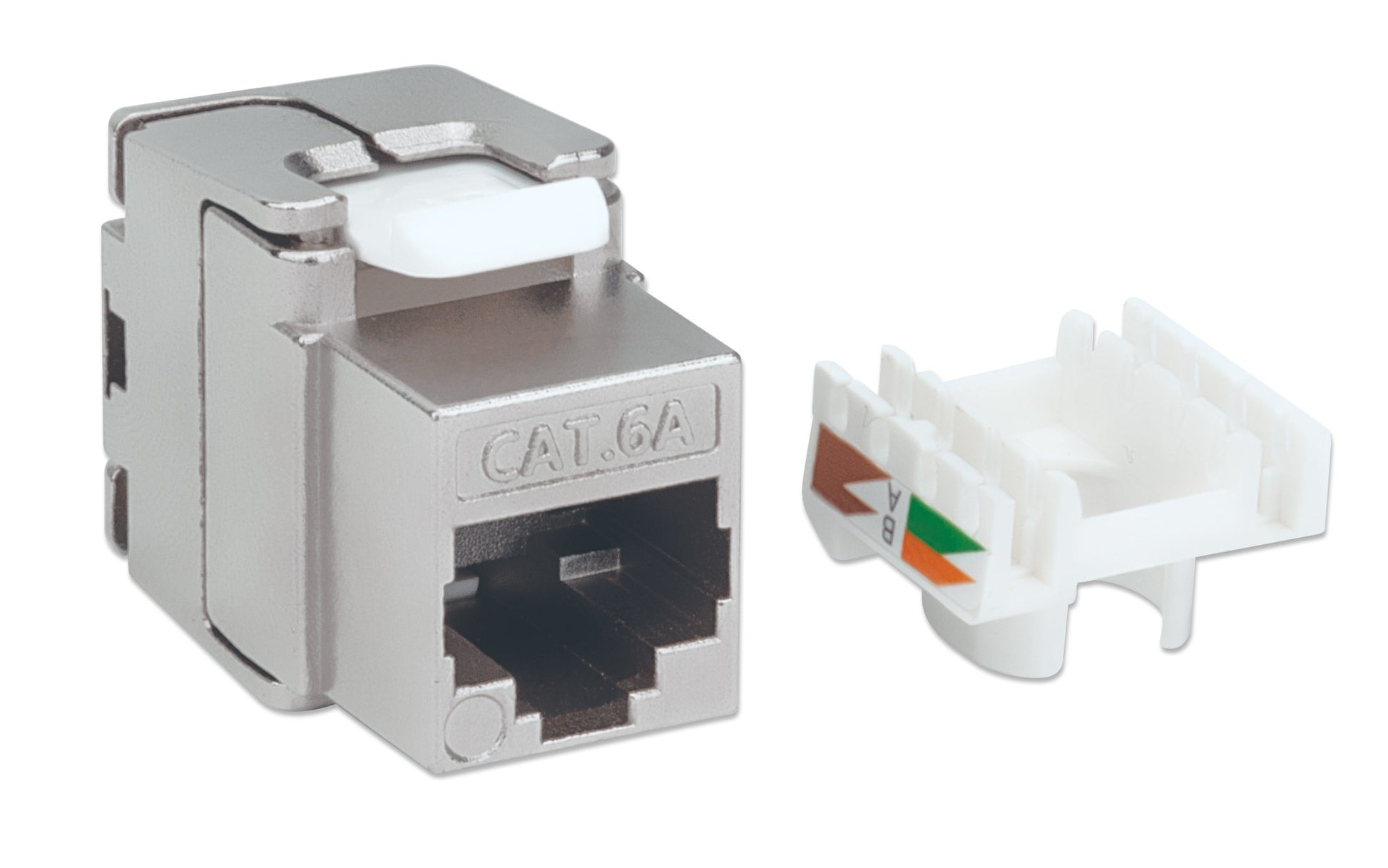

With a zinc die-cast housing and full shielding, the Intellinet Cat6a Keystone Jack ensures premium quality connections for 10-Gigabit Ethernet networks. Its tool-less design makes termination fast and easy.

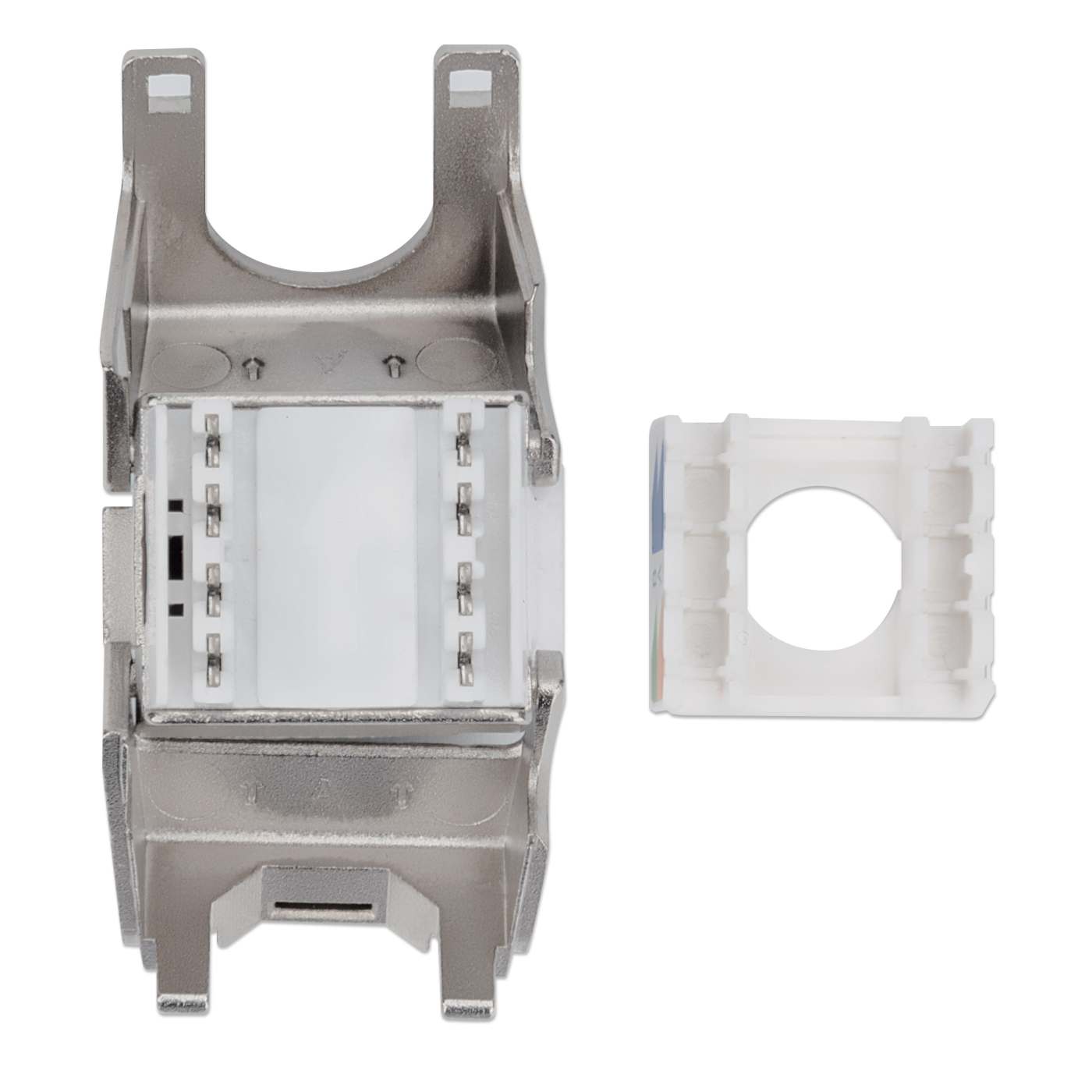

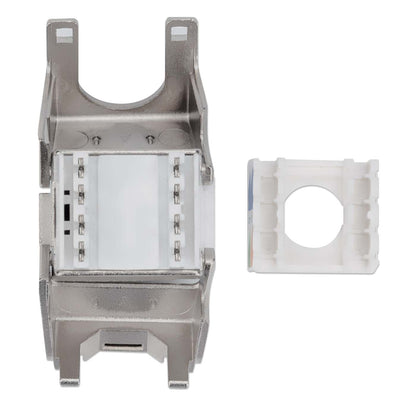

- Toolless design for easy termination in standard wall plates or blank patch panels
- Superior shielding and zinc die-cast housing to minimize signal crosstalk
- Cat6a performance compliant with ANSI/TIA-568-C.2, ISO/IEC 11801 and IEC 60603-7-51
- Up to 10 Gbps data transfer rate, ideal for 10GBASE-T networks
- Fully backward compatible with all the previous cable categories including Category 6, 5e and 5
- Supports 23 to 26 AWG stranded and solid wire
- UL listed
- GHMT certified
- Lifetime warranty
- General
- For use with 23 to 26 AWG stranded and solid wire
- Connection type: IDC
- Certifications: CE, RoHS, UL, GHMT
Physical
- Nickel plated zinc housing
- Dimensions: 38.1 (L) x 16 (W) x 22.8 (H) mm / 1.5 (L) x 0.63 (W) x 0.9 (H) in.
- Weight: 21 g (0.74 oz.)
Environmental
- Operating temperature: 0 – 40°C (32 – 104°F)
- Operating humidity: 20 – 85% RH, non-condensing
- Storage temperature: -10 – 70°C (14 – 158°F)
Package Contents
- Cat6a Keystone Jack
- Cable tie
- Instructions
Additional SKUs
- Amazon ASIN: B07SLNXLHH
- EAN: 0766623771986
- UPC: 766623771986
Physical Specifications
- Product net weight: 0.02 kg
- Product gross weight: 0.02 kg
- Dimensions: 38.1 (L) x 16 (W) x 22.8 (H) [mm]

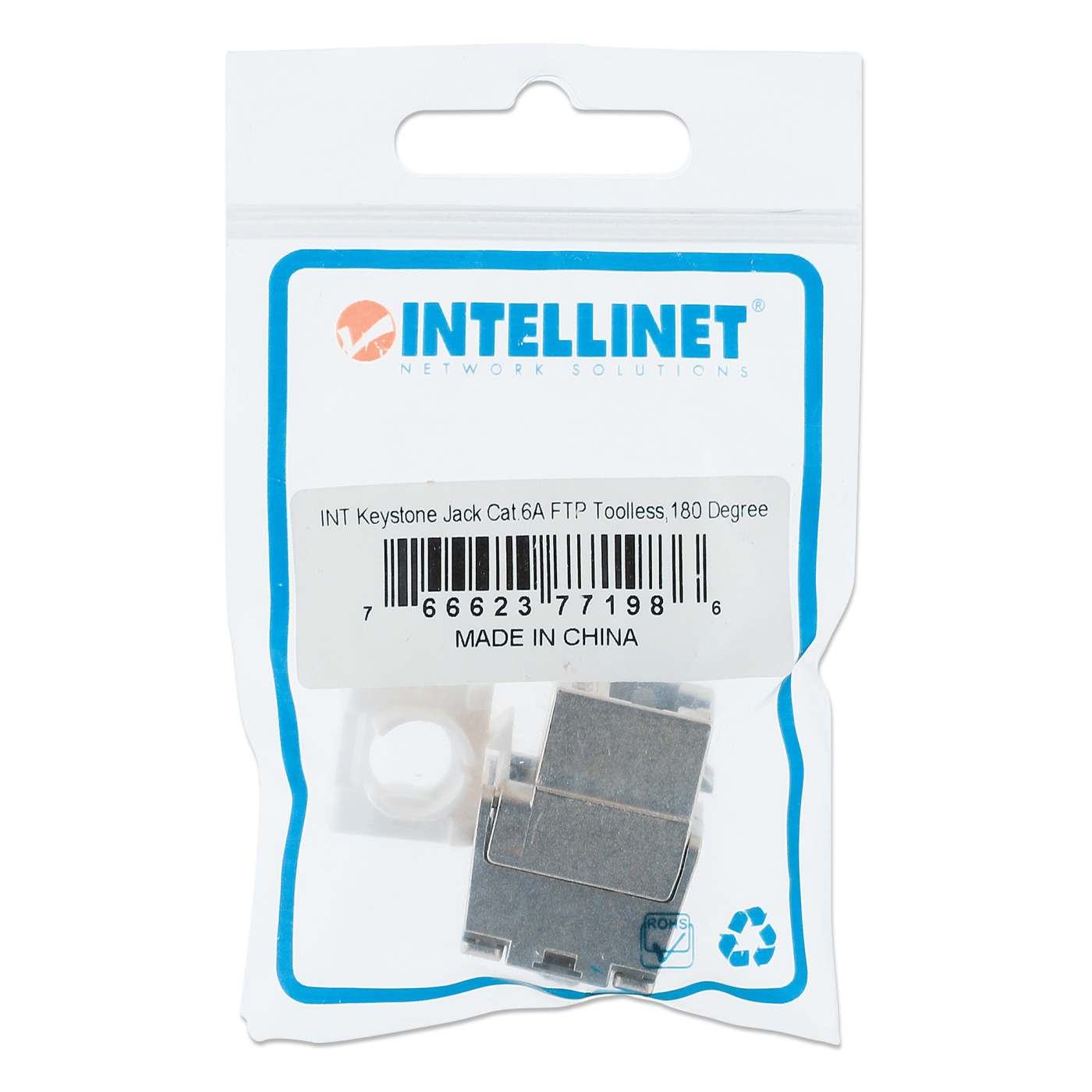

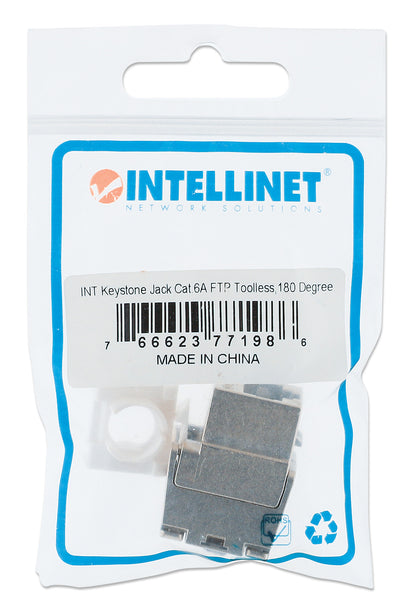

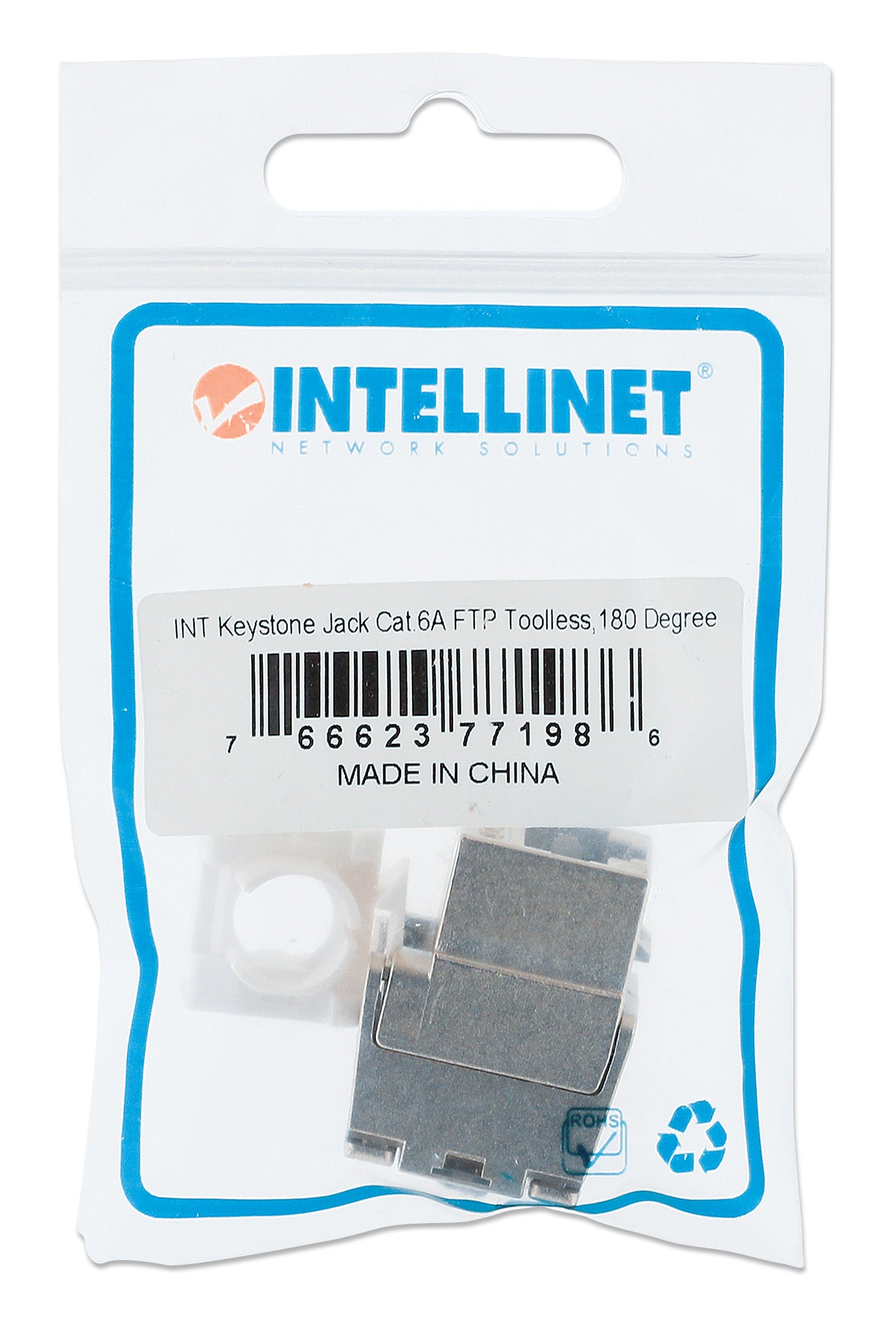

- Packaging type: Bag
- Packaging dimensions: 65 x 85 x 0.9 [mm]
- Master Carton Quantity: 500
- Master Carton Weight: 13.00 kg
- Master Carton Dimensions: 480 x 380 x 250 [mm]
