Cat6a STP Slimline Keystone Jack for easy, fast and tool-free deployment with comfortable fit in high-density patch panels

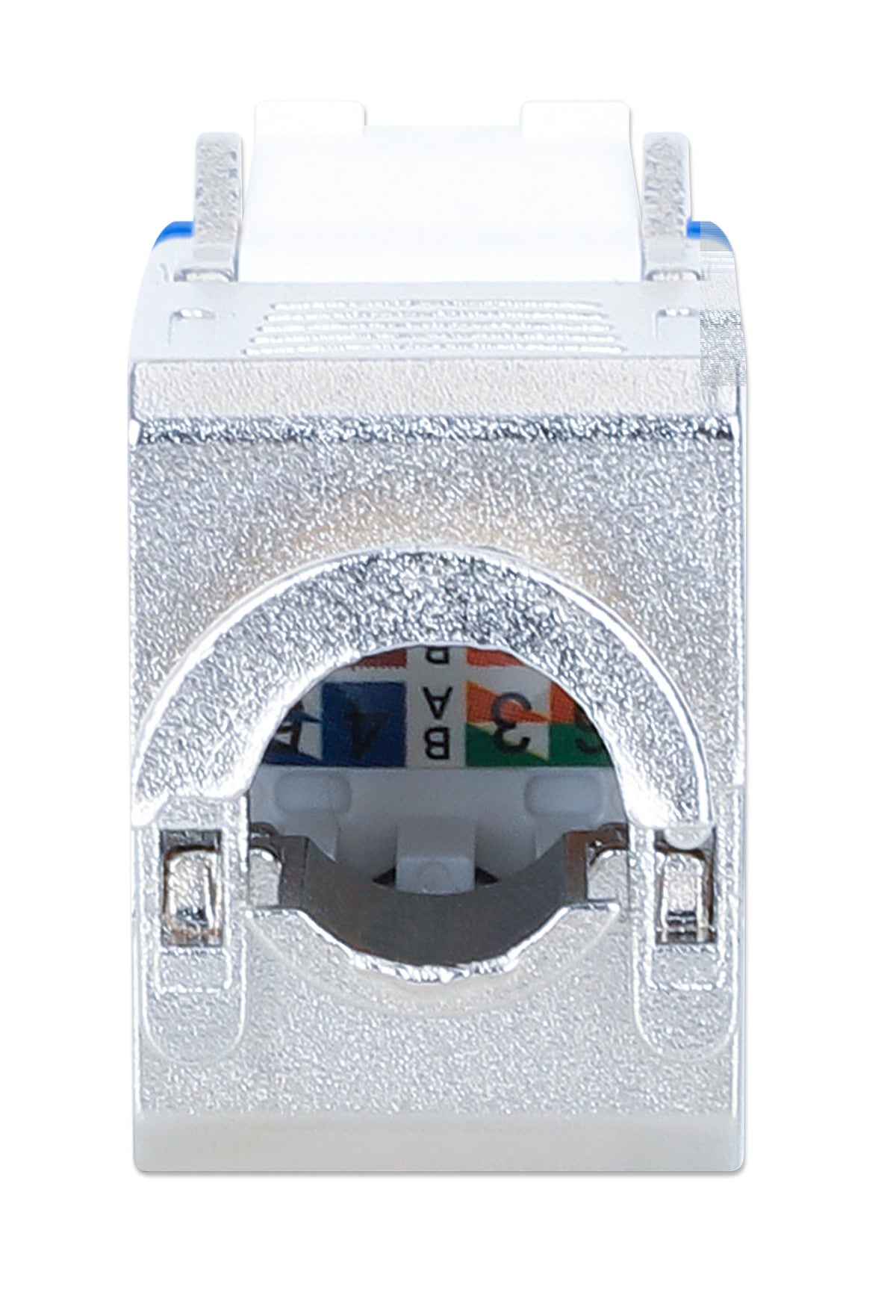

The Cat6a 10G Shielded Toolless Slim Keystone Jack, Black from Intellinet Network Solutions is designed for quick, seamless side-by-side deployment. Without any special tools, this module easily snaps into blank patch panels, wall plates or surface connection boxes. It is suitable for solid conductor cables in high-performance network applications up to 10GBase-T and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. For maximum signal integrity, it is equipped with gold-plated contacts and 360° STP shielding.

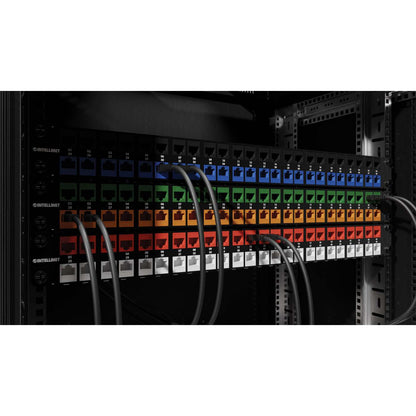

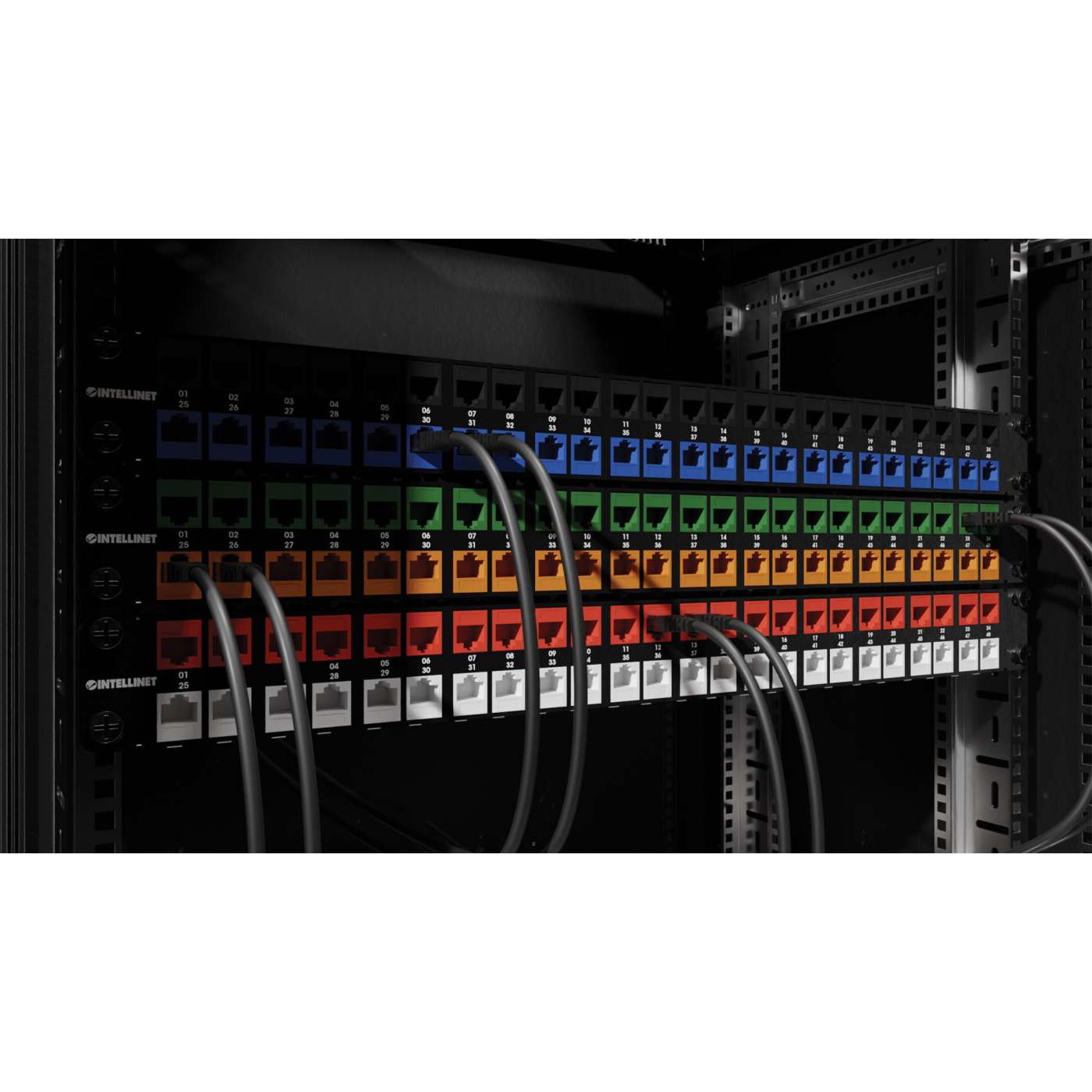

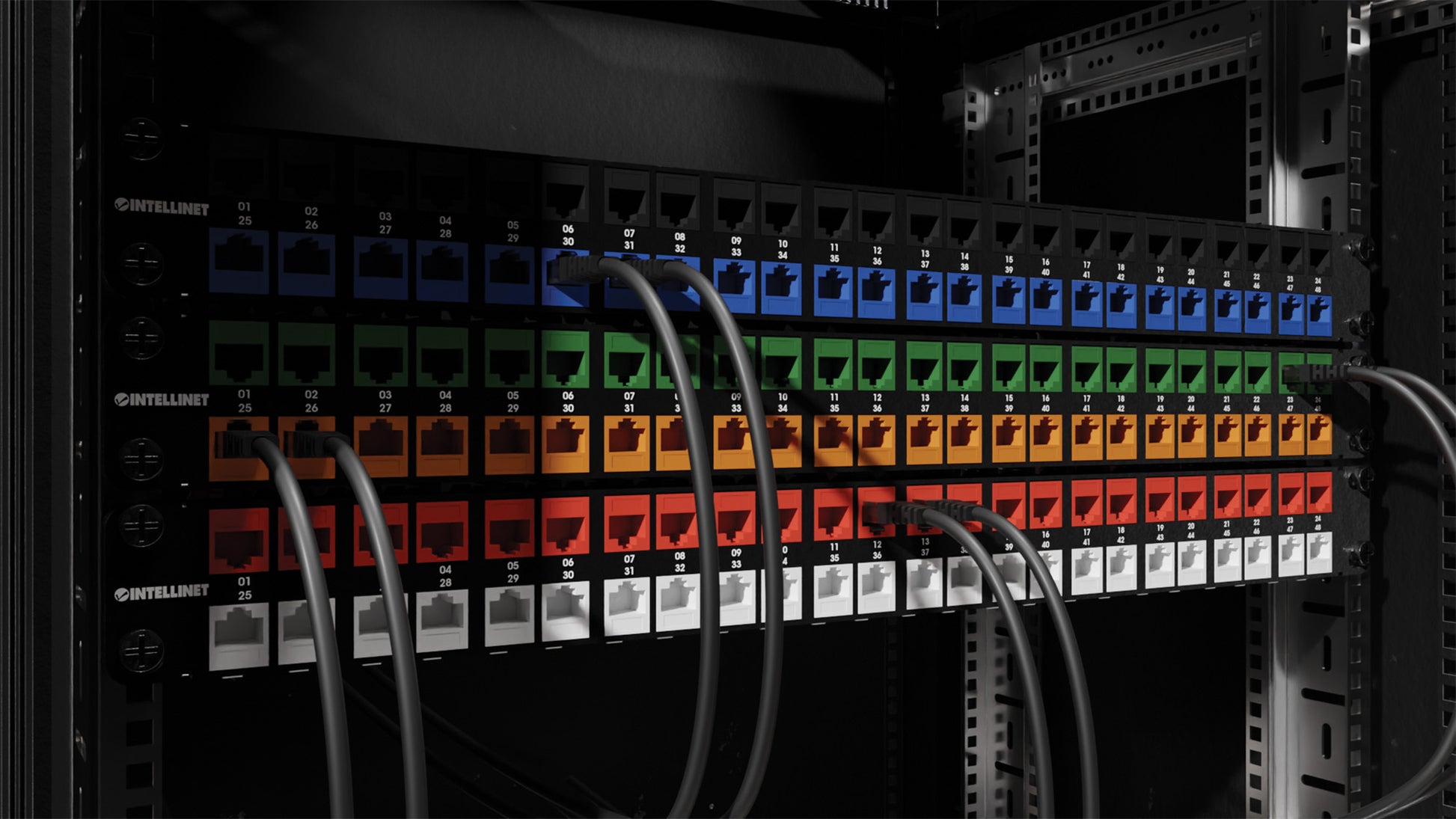

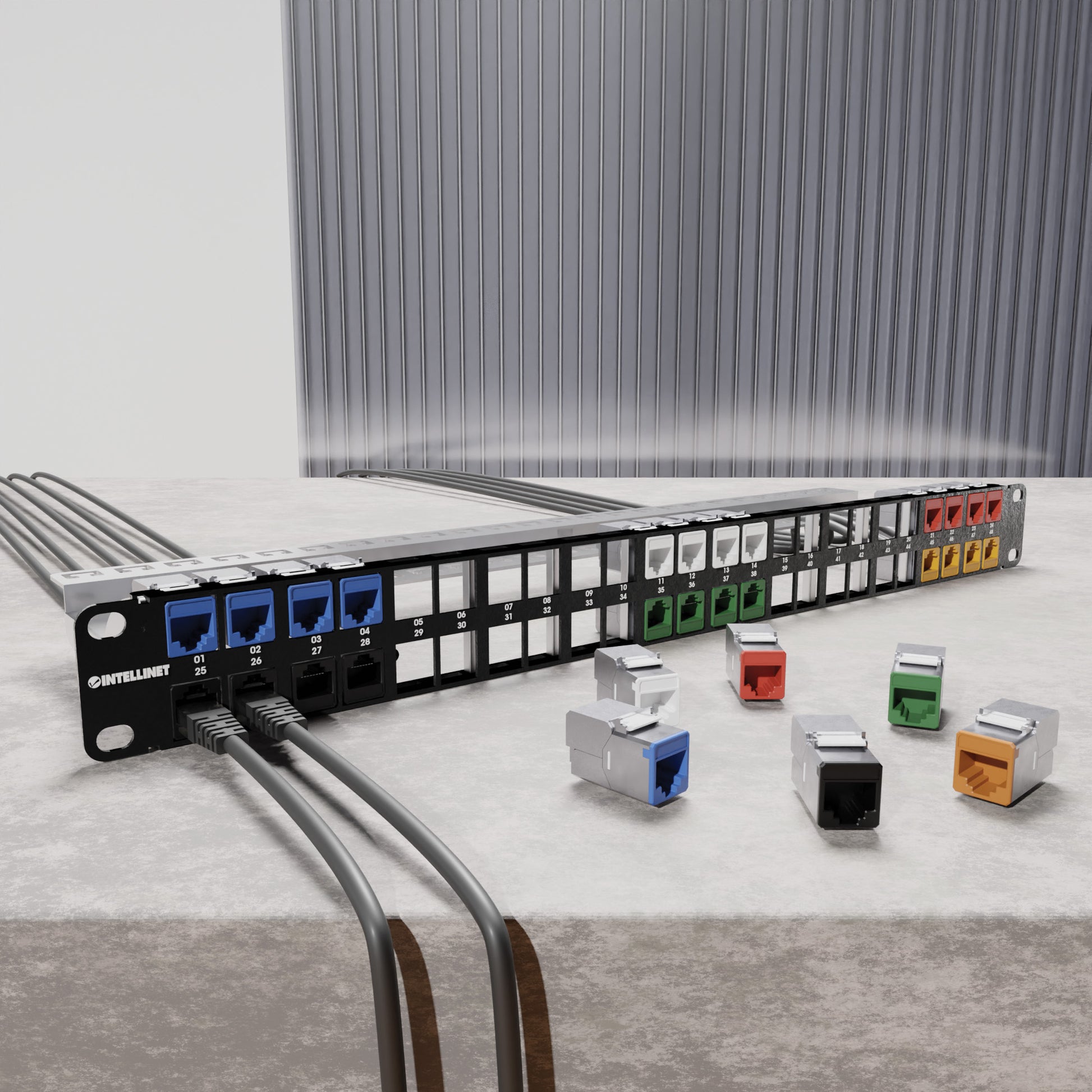

- For easy, time-saving and tool-free deployment in blank patch panels, wall plates or surface connection boxes
- Slimline design, only 14.8 mm (0.58 in.) wide for comfortable side-by-side installation
- Cat6a Class EA RJ45 module with 10G and 500 MHz in accordance with ISO/IEC 11801
- STP 360° shielded RJ45 module for PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
- 6 micro-inch gold-plated contacts
- Supports solid wire with 22/1 to 26/1 AWG

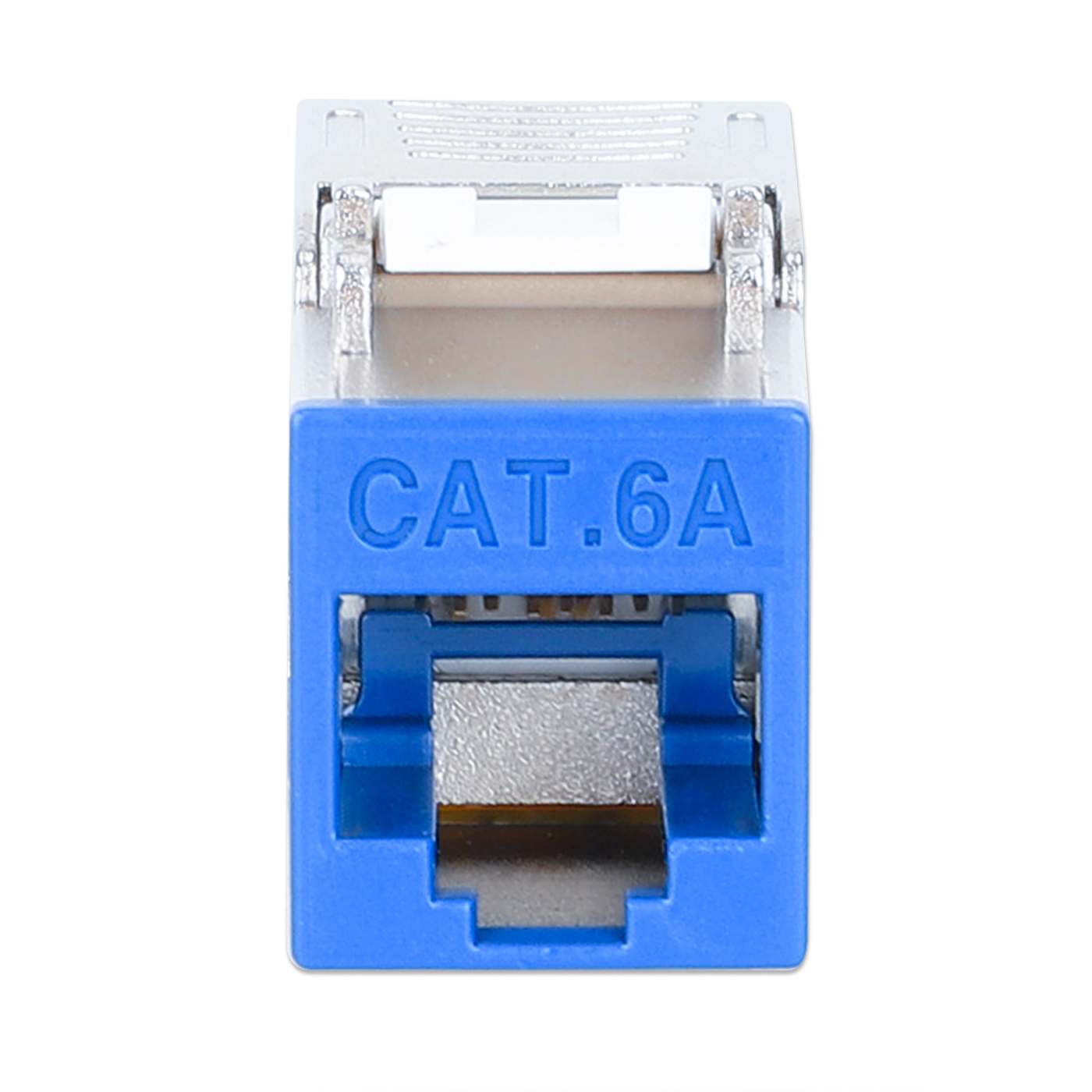

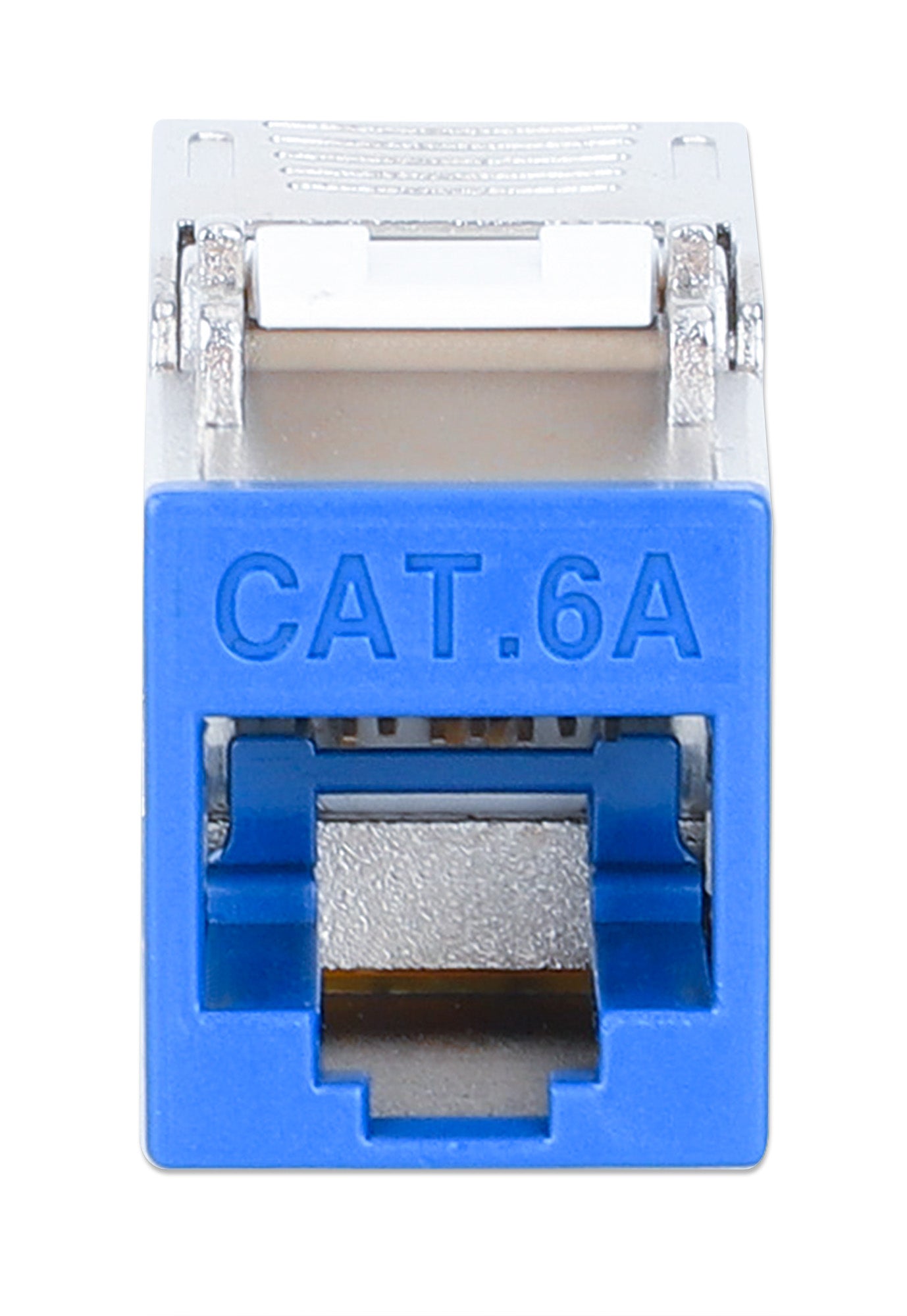

- Standard 8P8C design, compatible with all network RJ45 connections

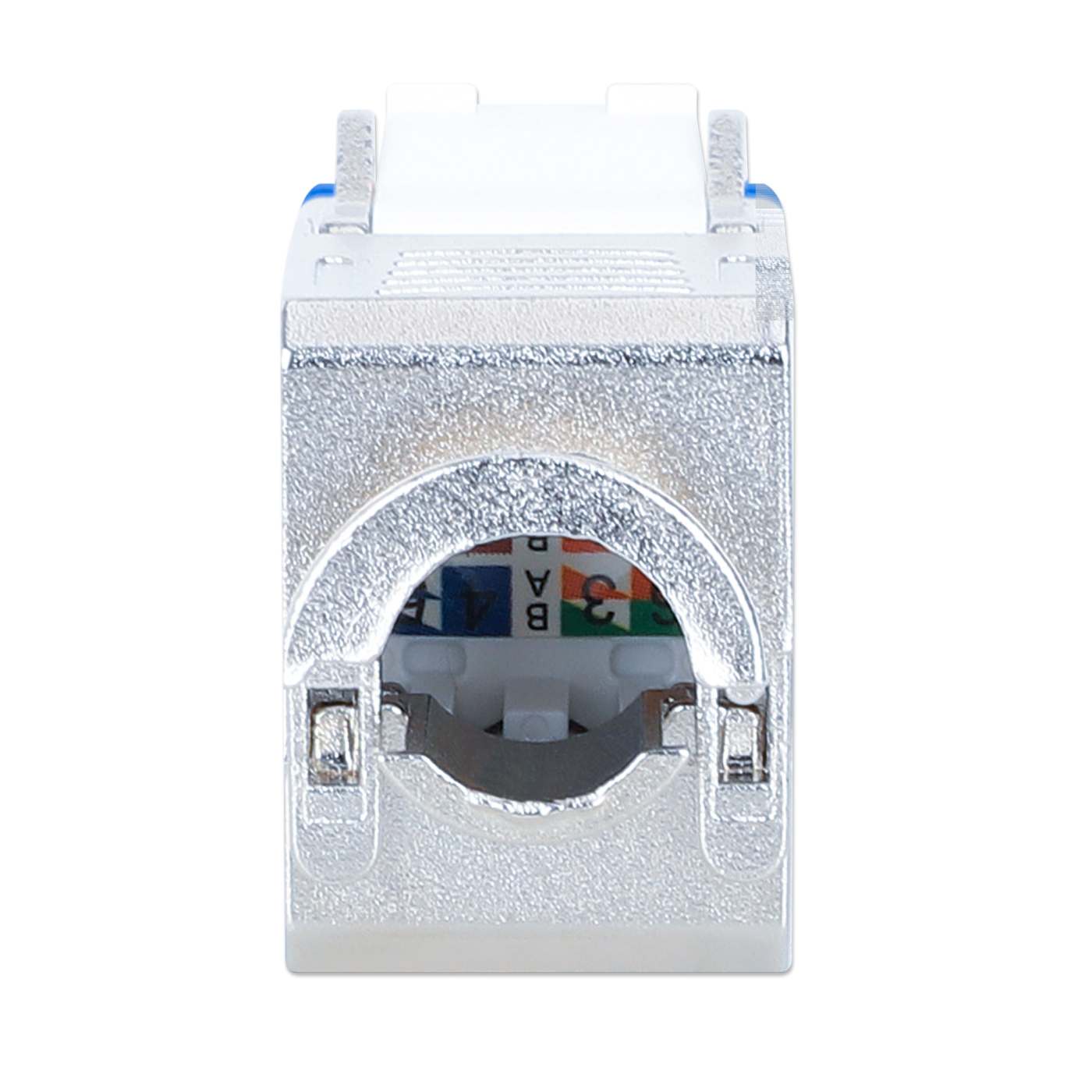

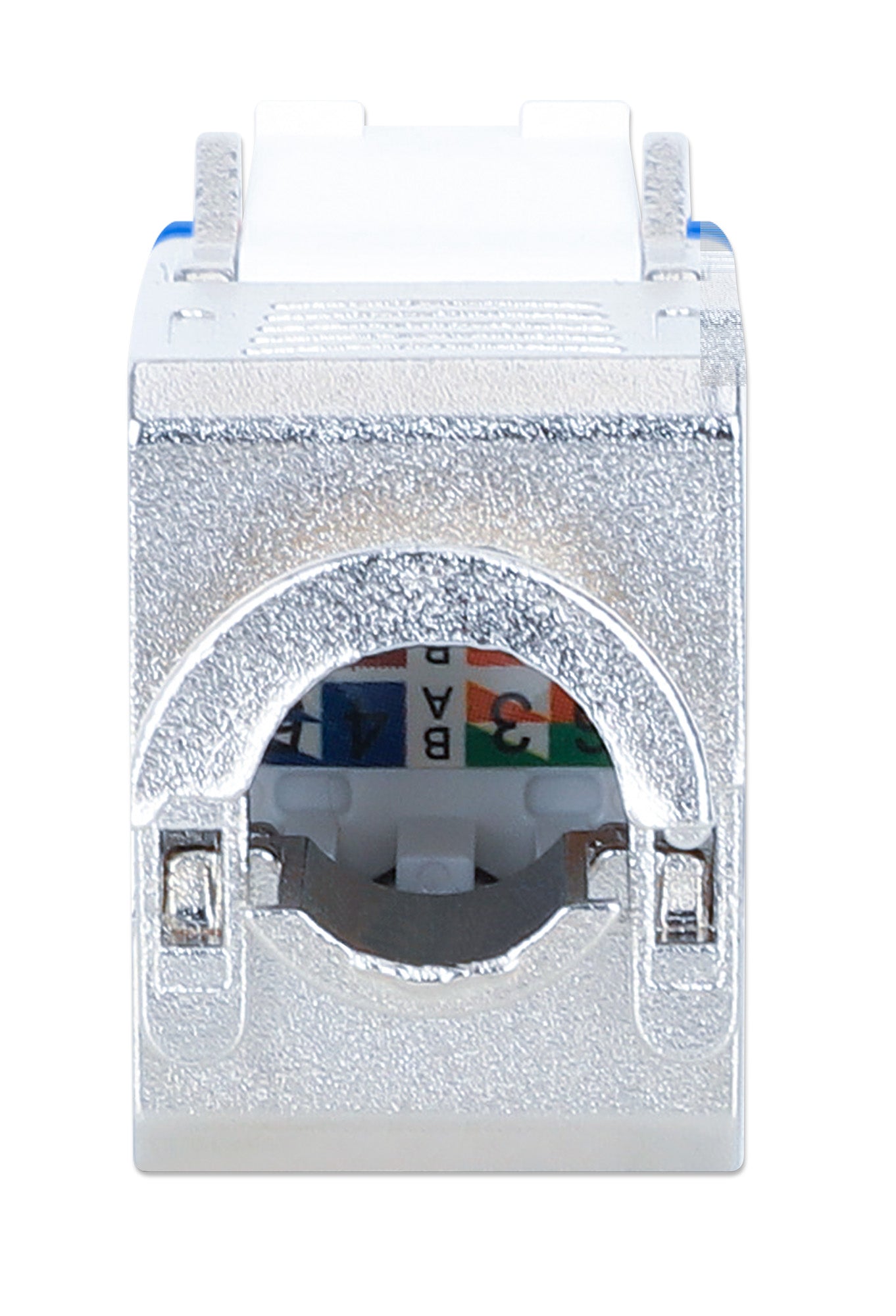

- Compatible and color-coded with T568A and T568B
- Fully backward compatible with all the previous cable categories, including Category 6, 5e and 5
- Cable tie included
- Lifetime warranty
- Standards and Certifications

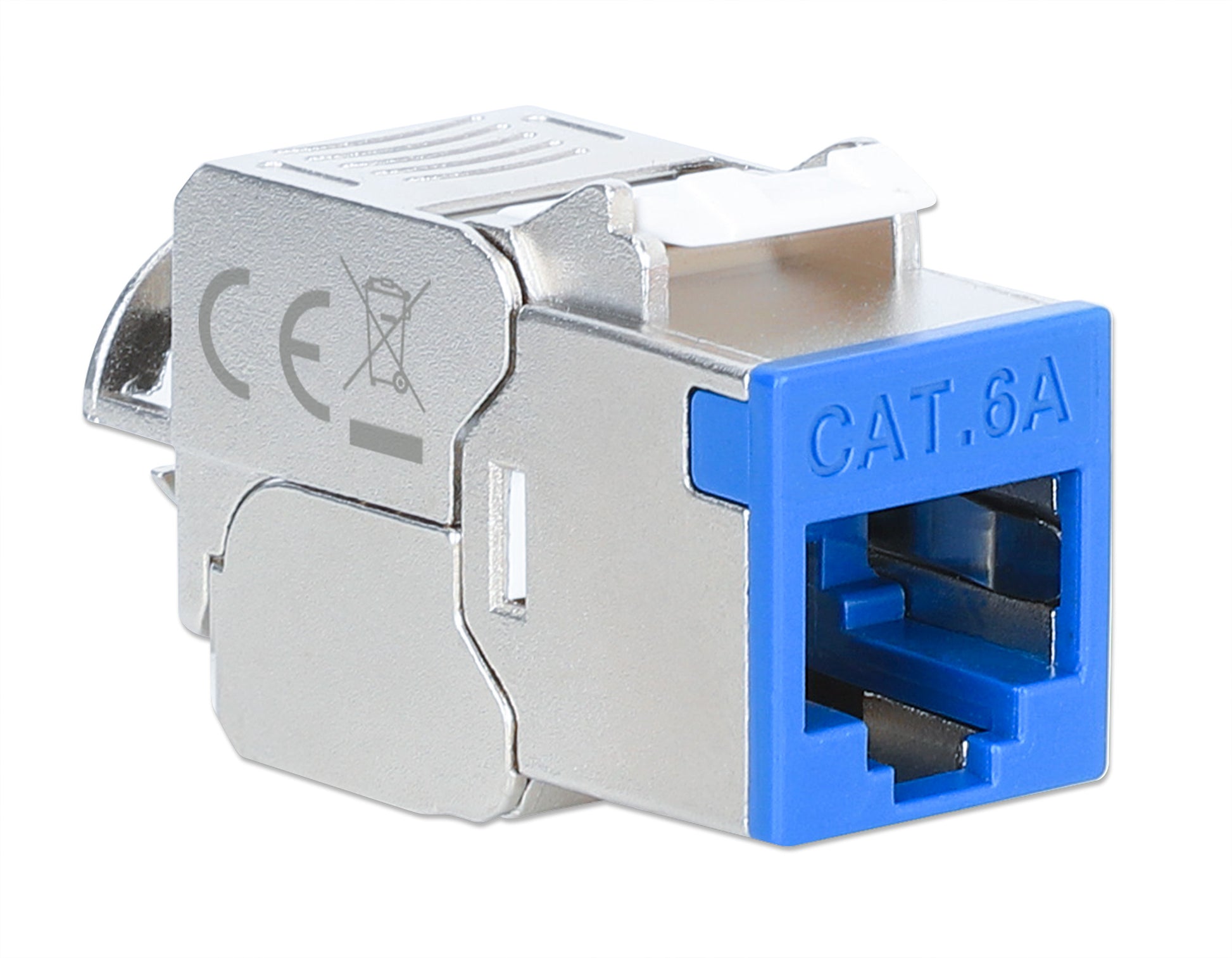

- CE
- RoHS
- ISO/IEC 11801
- REACH
- UKCA
General
- Supports transfer speeds up to 10 Gbps
- Max. operating frequency: 500 MHz
- Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
- Mating cycles: ≥750
- Insertion force: 30N max.
- Retention strength: 7.7 kg (17 lbs.) between jack and plug
- Suitable for cables with solid wire: 22/1 to 26/1 AWG, OD 6.0 to 8.0 mm
Material
- Contacts: phosphor bronze
- Contact plating: 6 micro-inch gold
- IDC: phosphor bronze
- Housing: zinc alloy die casting
Electrical
- Insulation resistance: ≥500 MOhm
- Dielectric withstanding voltage: 1,000 V DC/700 V AC
- Contact resistance: ≤20 MOhm
- DC resistance: ≥0.3 Ohm
- Current rating: 1.5 A
Physical

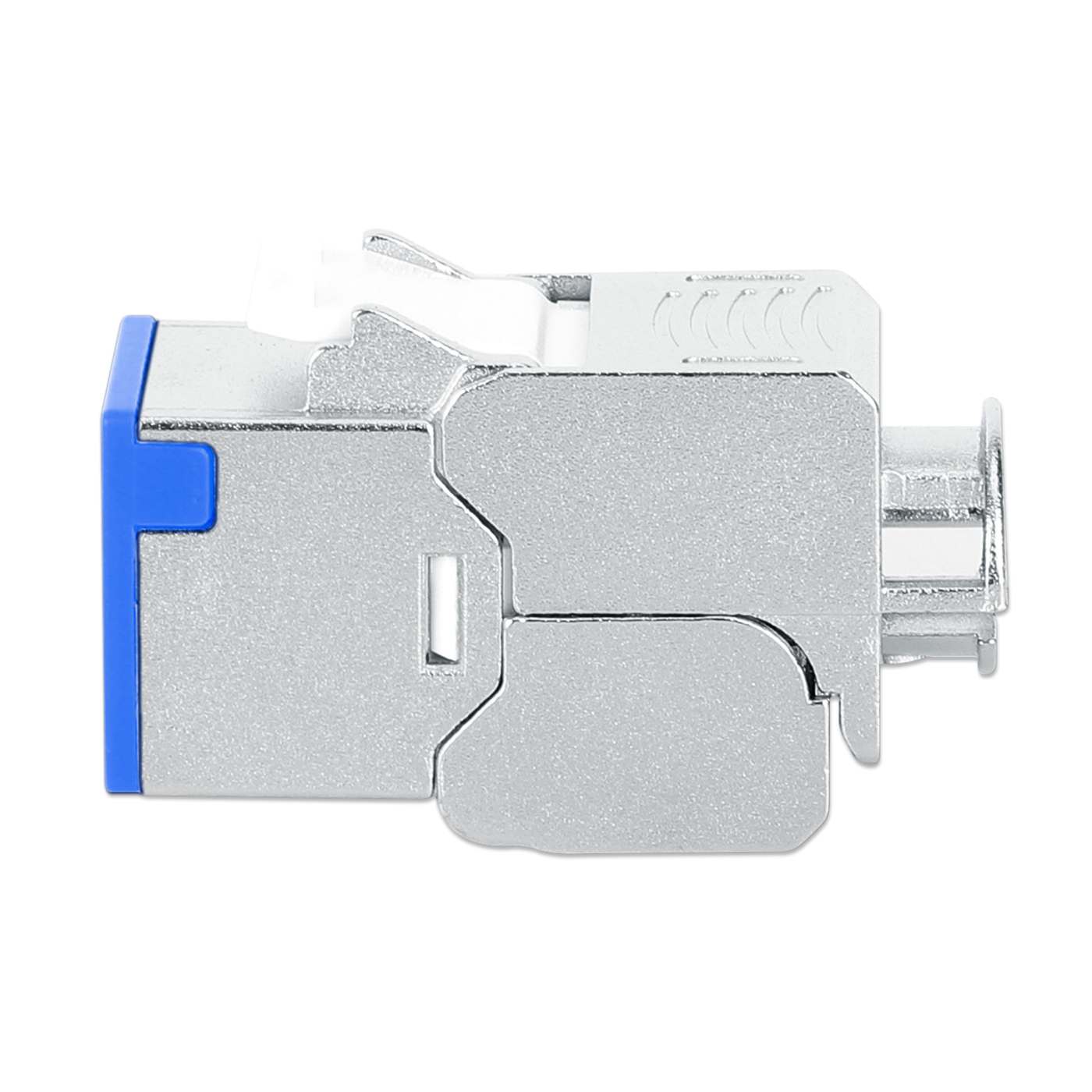

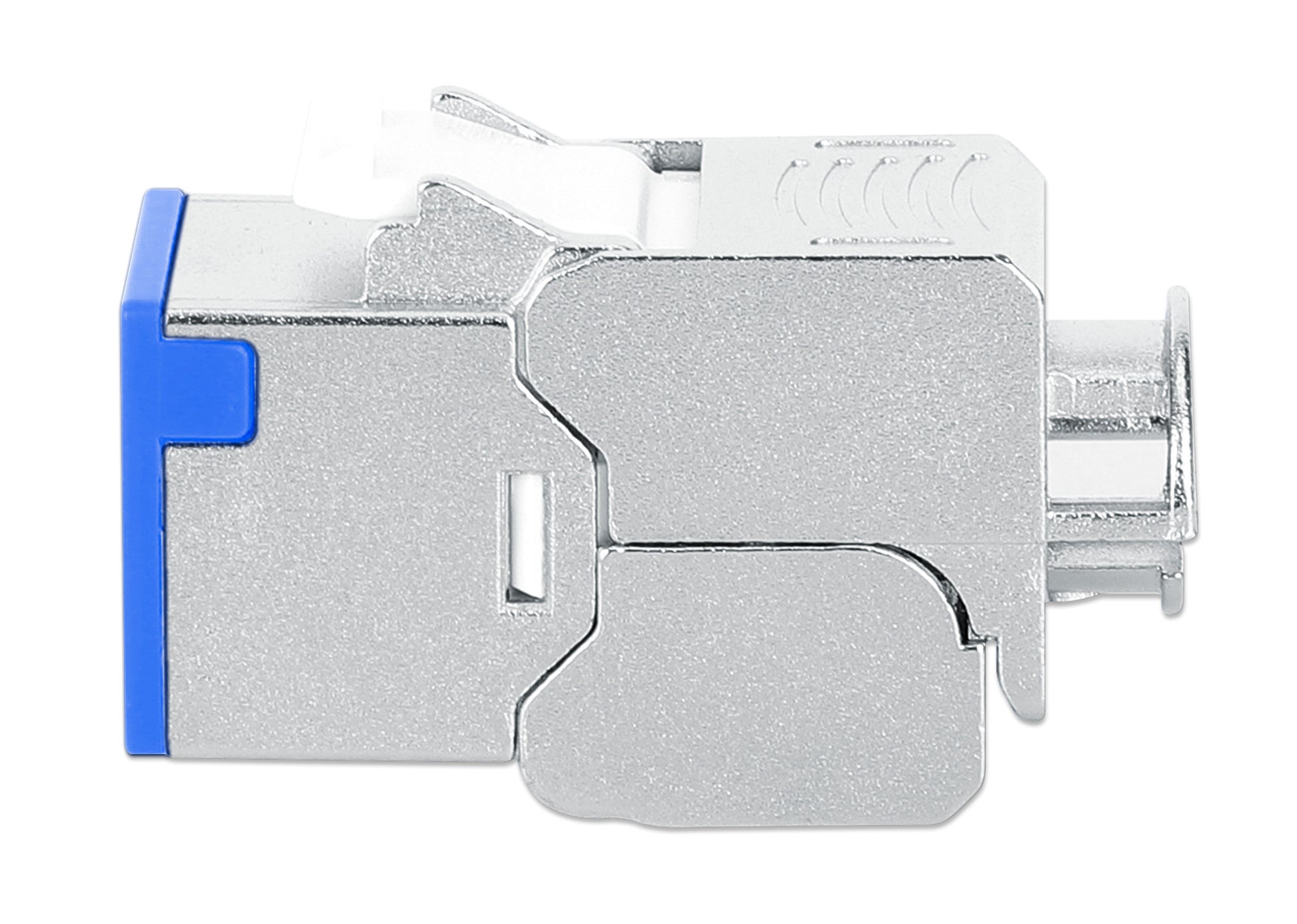

- Dimensions (L x W x H): 36 x 14.8 x 20 mm (1.41 x 0.58 x 0.79 in.)
- Net weight: 12 g (0.42 oz.)
- Gross weight: 24 g (0.85 oz.)
Environmental
- Operating temperature: -10 - 60°C (14 - 140°F)
- Storage temperature: -40 - 70°C (-40 - 158°F)
- Operating humidity (non-condensing): 10 - 90% RH

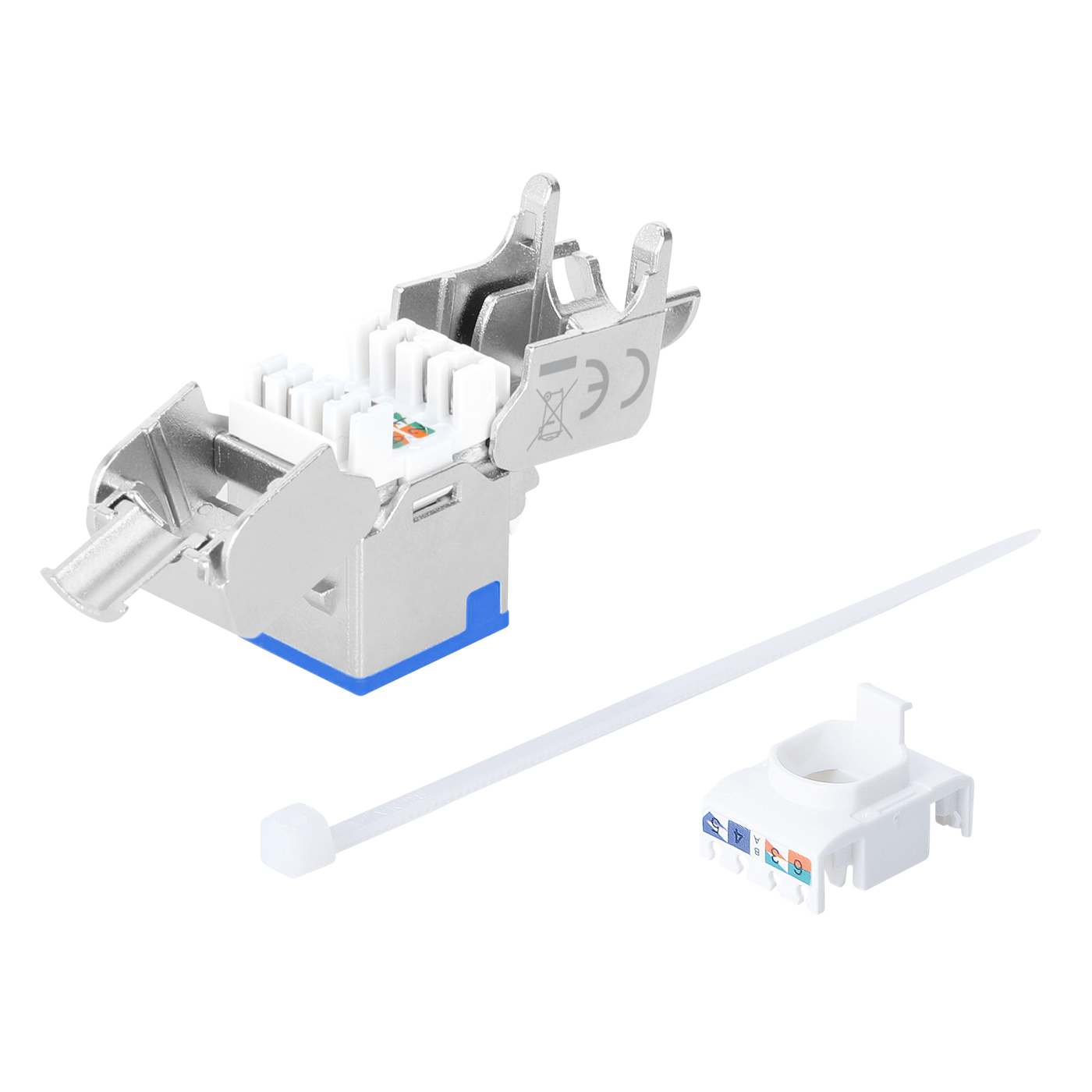

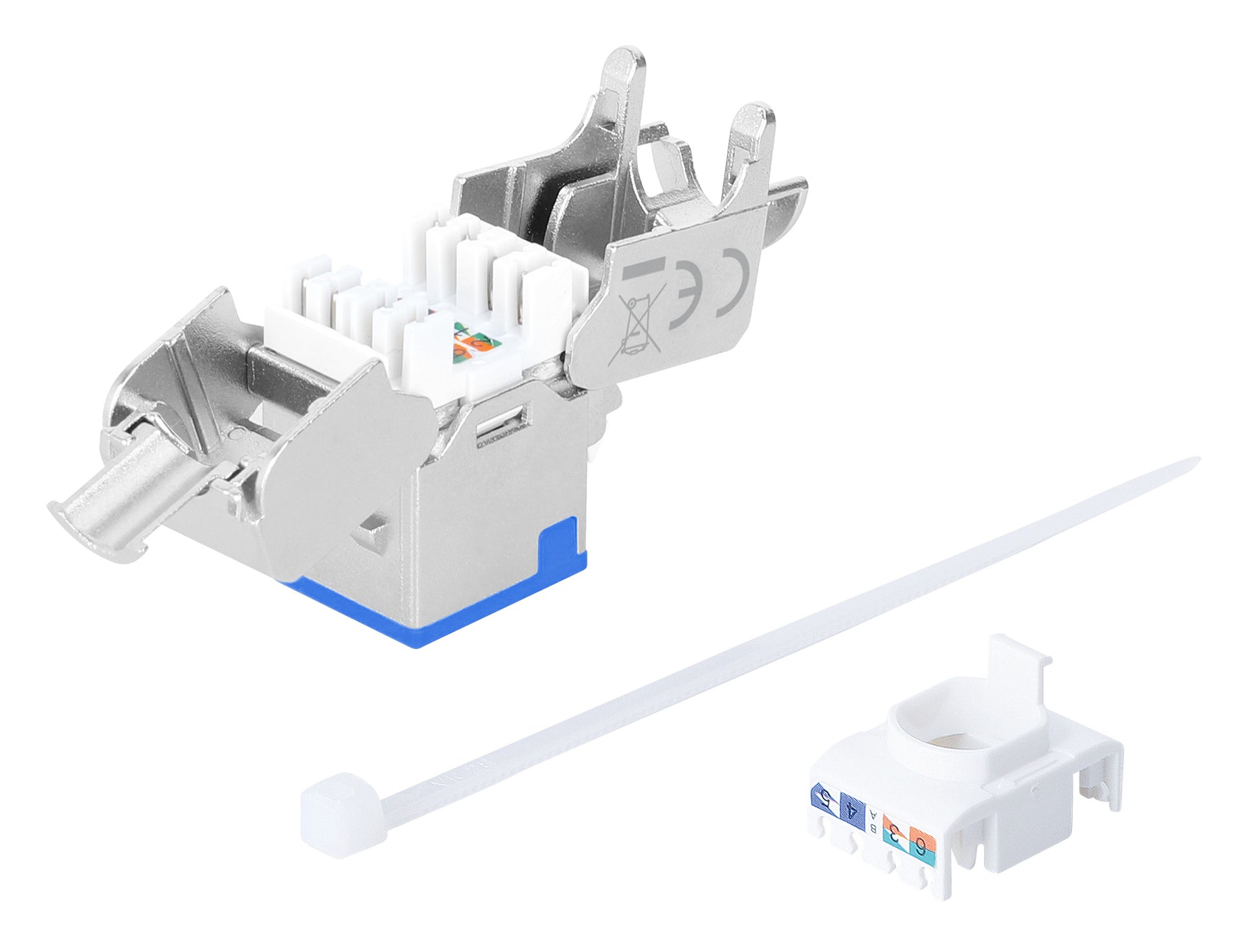

Package Contents
- Cat6a 10G Shielded Toolless Slim Keystone Jack
- Cable tie
- Instructions
Additional SKUs
- EAN: 0766623791342
- UPC: 766623791342
Physical Specifications
- Product net weight: 0.01 kg
- Product gross weight: 0.02 kg
- Dimensions: 36 (L) x 14.8 (W) x 20 (H) [mm]
- Packaging type: Bag
- Packaging dimensions: 90 x 145 x 15 [mm]
- Master Carton Quantity: 500
- Master Carton Weight: 13.90 kg
- Master Carton Dimensions: 500 x 270 x 410 [mm]
