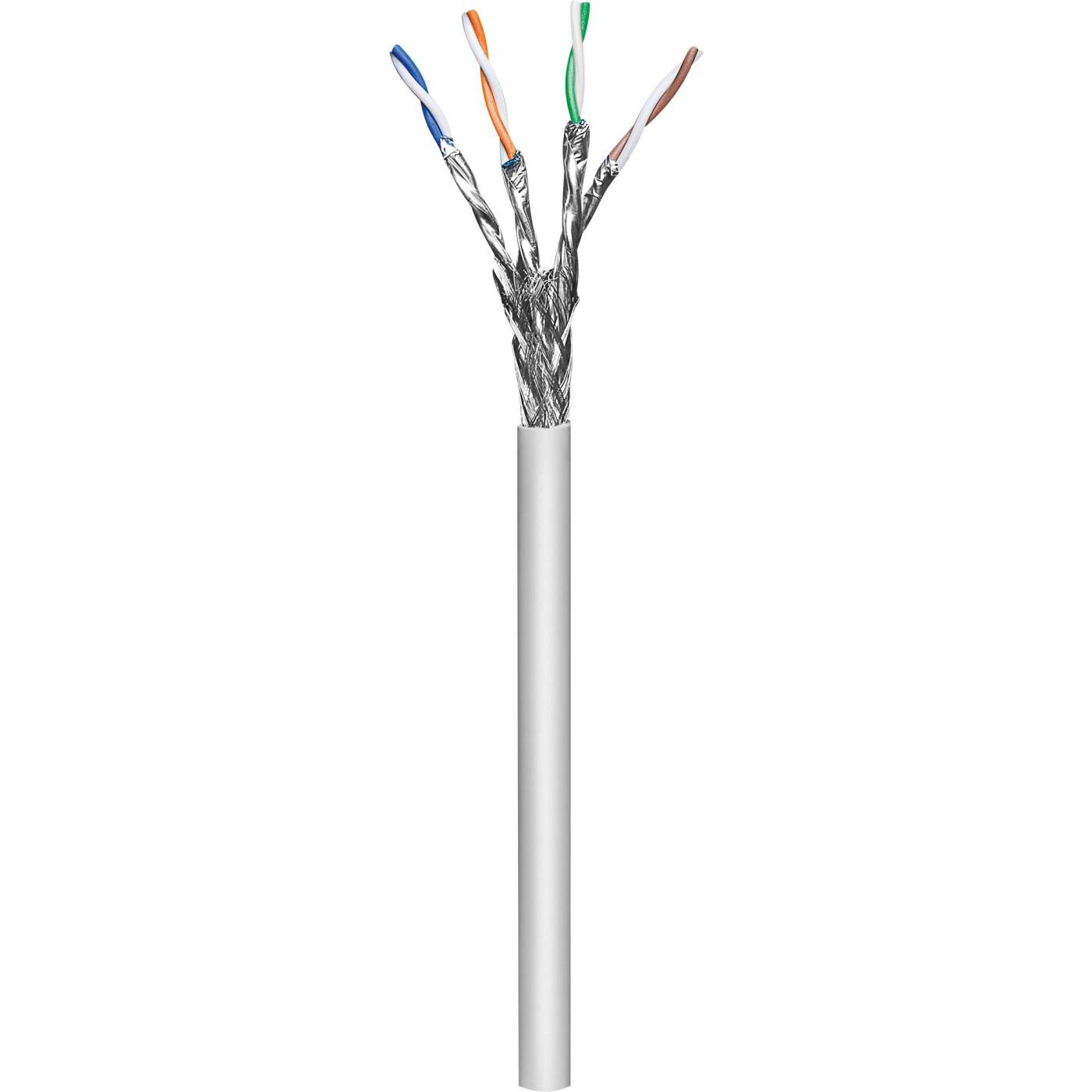

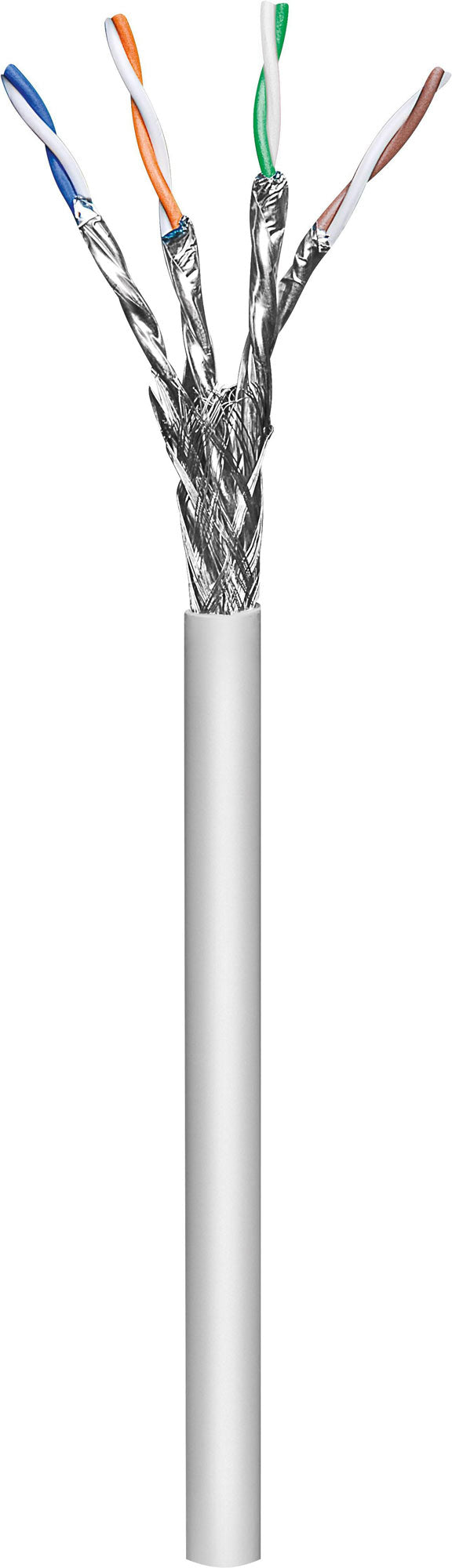

Cat6a S/FTP Bulk Cable, Solid, 23 AWG Image 1

Cat6a S/FTP Bulk Cable, Solid, 23 AWG

LSZH, 305 m Drum (1,000 ft.), CPR-Dca Rated, Gray

Part-No.: 705035

Highlights

  • S/FTP
  • CPR-Dca Rated (Construction Products Regulation)
  • Standards tested; meets or exceeds current Cat6a standards


The Intellinet Network Solutions Cat6a S/FTP installation cable has a cable construction of 4x2x AWG23/1. The halogen-free cable jacket conforms to IEC 60332-3-24, FRNC-C, LSZH-3 and EuroClass CPR-Dca standards. The cable is best suited for building-structure cabling in secondary and tertiary areas.

  • S/FTP
  • CPR-Dca Rated (Construction Products Regulation)
  • Standards tested; meets or exceeds current Cat6a standards
  • Suitable for building-structure cabling in secondary and tertiary areas
  • Recommended for 10/100/1000/10GBase-T, ATM, FDDI, Video, ISDN, Multimedia and PoE applications
  • 305 m cable on drum
  • Lifetime warranty

    Certification and Standards
  • IEC61156-5
  • ISO/IEC 11801
  • CPR-Dca
  • RoHS, REACH

    Technical Specifications
  • Conductor: solid, bare copper
  • AWG 23
  • Conductor diameter: 1/0.56 mm ± 0.008 mm
  • Insulation: FMPE
  • Average thickness: 0.40 mm
  • Insulation diameter: 1.35 mm ± 0.05 mm
  • Aluminum foil on each pair
  • Braid: tinned copper
  • LSZH jacket
  • Rip cord

    Performance
  • Max. conductor DC resistance 20°C: 93.8 Ω/km
  • Delay skew: ≤ 45 ns/100 m
  • Pair-to-ground capacitance unbalance: ≤ 330 pF/100 m
  • Min. insulation resistance: 5000 MΩ/km
  • Resistance unbalance: ≤ 4%
  • Min. bend radius: 8 mm OD

  • Additional SKUs

    • Amazon ASIN: B08336SX8N
    • EAN: 0766623705035
    • UPC: 766623705035

  • Physical Specifications

    • Weight: 16.78 kg
    • Dimensions: 305 m
    • Carton Quantity: 1
    • Carton Weight: 19.94 kg

  • Datasheet
