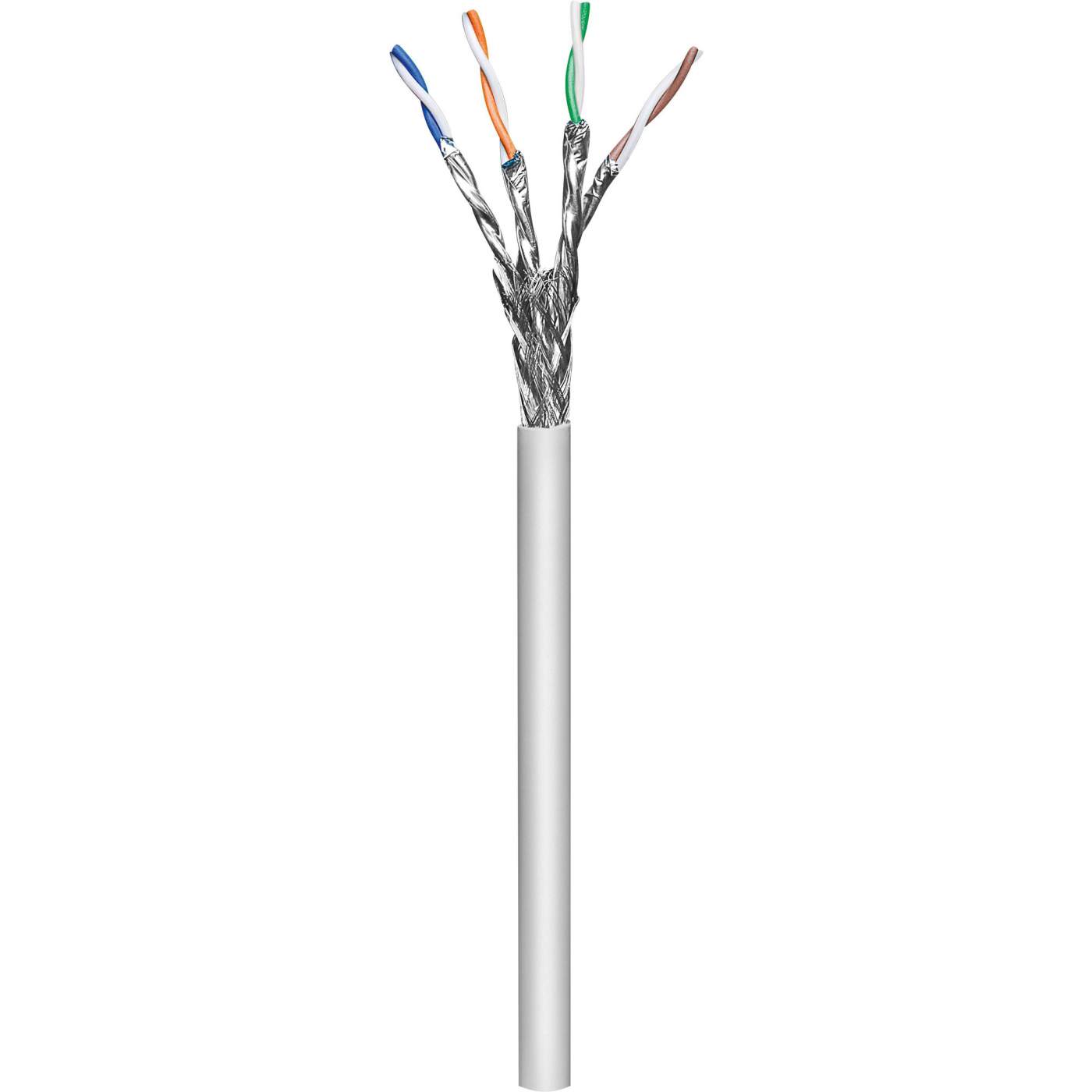

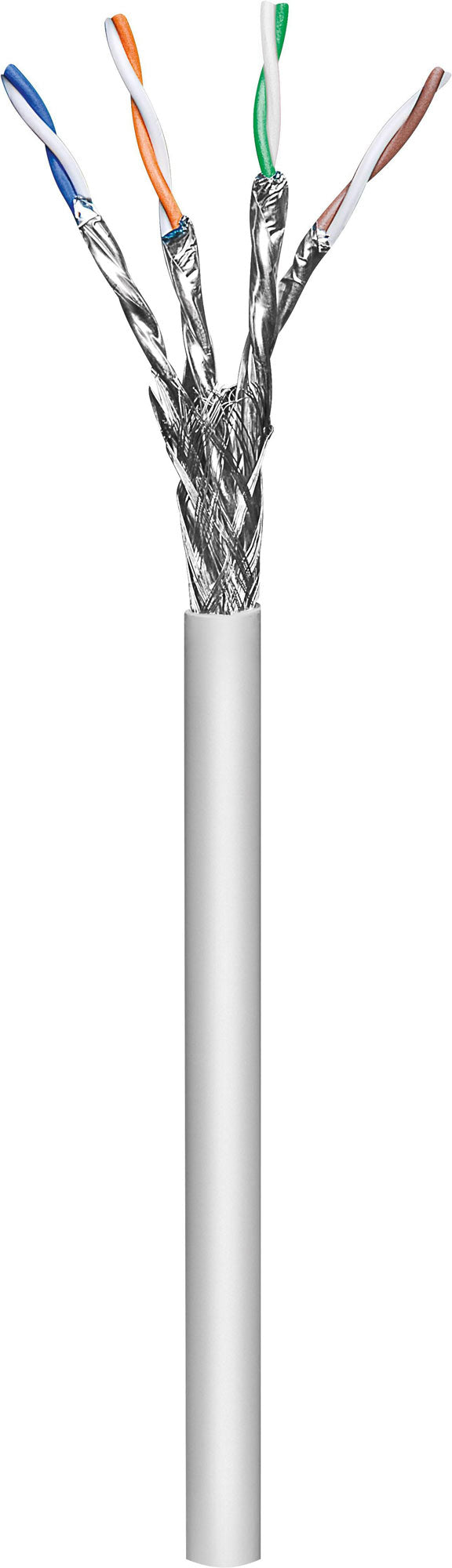

Cat7a S/FTP Bulk Cable, Solid, 22 AWG Image 1

Cat7a S/FTP Bulk Cable, Solid, 22 AWG

LSZH, 100 m Roll (328 ft.), CPR-Dca Rated, Gray, Copper

Part-No.: 704939

Highlights

  • S/FTP
  • CPR-Dca Rated (Construction Products Regulation)
  • Standards tested; meets or exceeds current Cat7a standards

Future arrivals:

#
Quantity
Arrival Date
1
51
2021-10-29
2
60
2021-10-29


The Intellinet Network Solutions Cat7a S/FTP Installation Cable has a cable construction of 4x2x AWG22/1 and reaches a transmission frequency up to 1000 MHz. The halogen-free cable jacket conforms to IEC 60332-3-24, FRNC-C, LSZH-3 and EuroClass CPR-Dca standards. The cable is best suited for building-structure cabling in secondary and tertiary areas.

  • S/FTP
  • CPR-Dca Rated (Construction Products Regulation)
  • Standards tested; meets or exceeds current Cat7a standards
  • Suitable for building-structure cabling in secondary and tertiary areas
  • Recommended for 10/100/1000/10GBase-T, ATM, FDDI, Video, ISDN, Multimedia and PoE applications
  • Convenient 100 m roll
  • Lifetime warranty

    Certification and Standards
  • IEC61156-5
  • ISO/IEC 11801
  • CPR-Dca
  • RoHS, REACH

    Technical Specifications
  • Conductor: solid, bare copper
  • AWG 22
  • Conductor diameter: 1/0.62 mm ± 0.008 mm
  • Insulation: FMPE
  • Average thickness: 0.44 mm
  • Insulation diameter: 1.50 mm ± 0.1 mm
  • Aluminum foil on each pair
  • Braid: tinned copper
  • LSZH jacket
  • Rip cord

    Performance
  • Max. conductor DC resistance 20°C: 95 Ω/km
  • Mutual capacitance: < 56 (1 KHz)
  • 4-1000 MHz Delay skew: ≤ 25 ns/100 m
  • Pair-to-ground capacitance unbalance: ≤ 160 pF/100 m
  • Min. insulation resistance: 5000 MΩ/km
  • Resistance unbalance: ≤ 2%
  • Min. bend radius: 8 mm OD

  • Additional SKUs

    • Amazon ASIN: B083YJQPWG
    • EAN: 0766623704939
    • UPC: 766623704939

  • Physical Specifications

    • Weight: 6.5 kg
    • Dimensions: 100 m
    • Packaging: Bag
    • Carton Quantity: 3
    • Carton Weight: 21.50 kg

  • Datasheet
