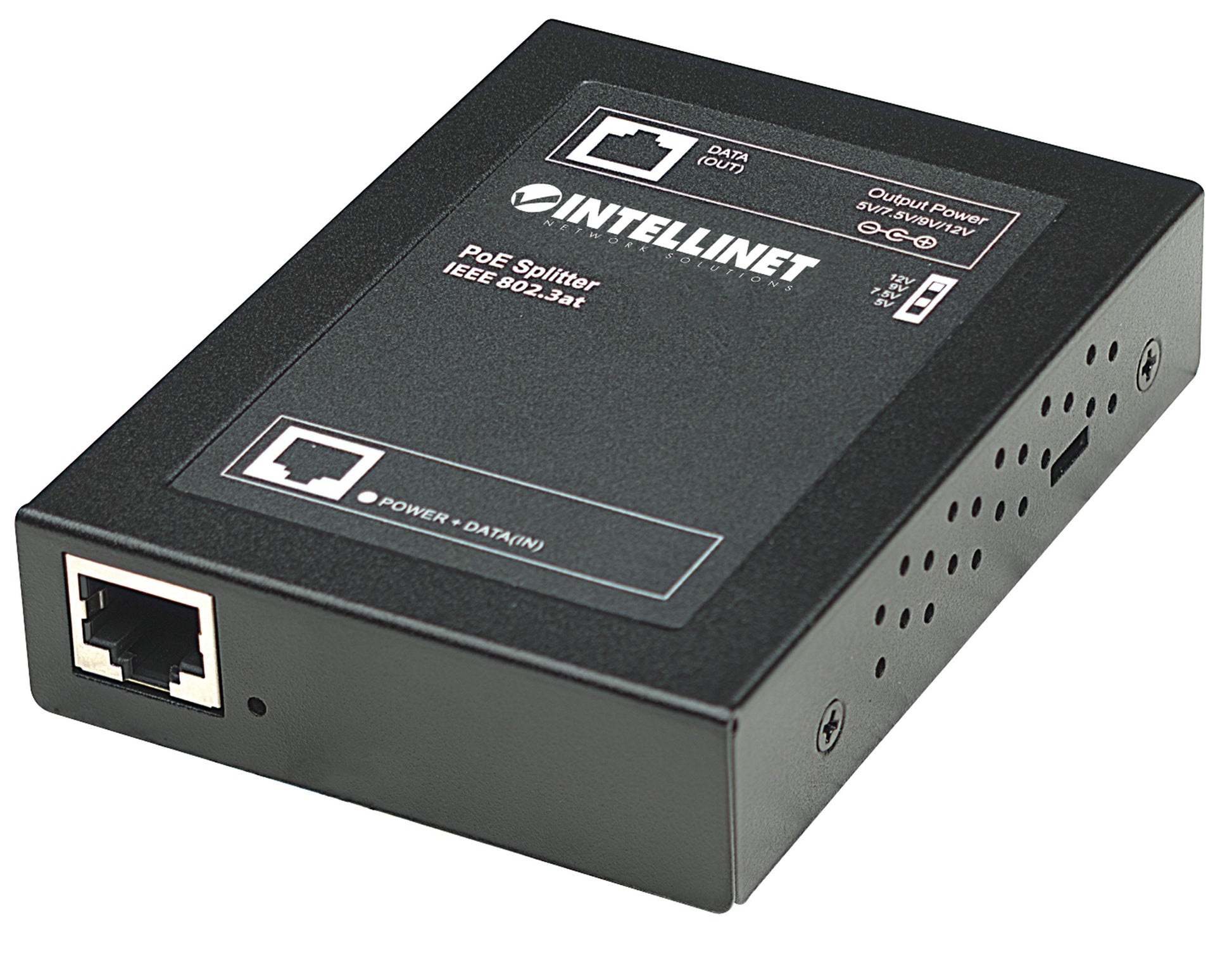

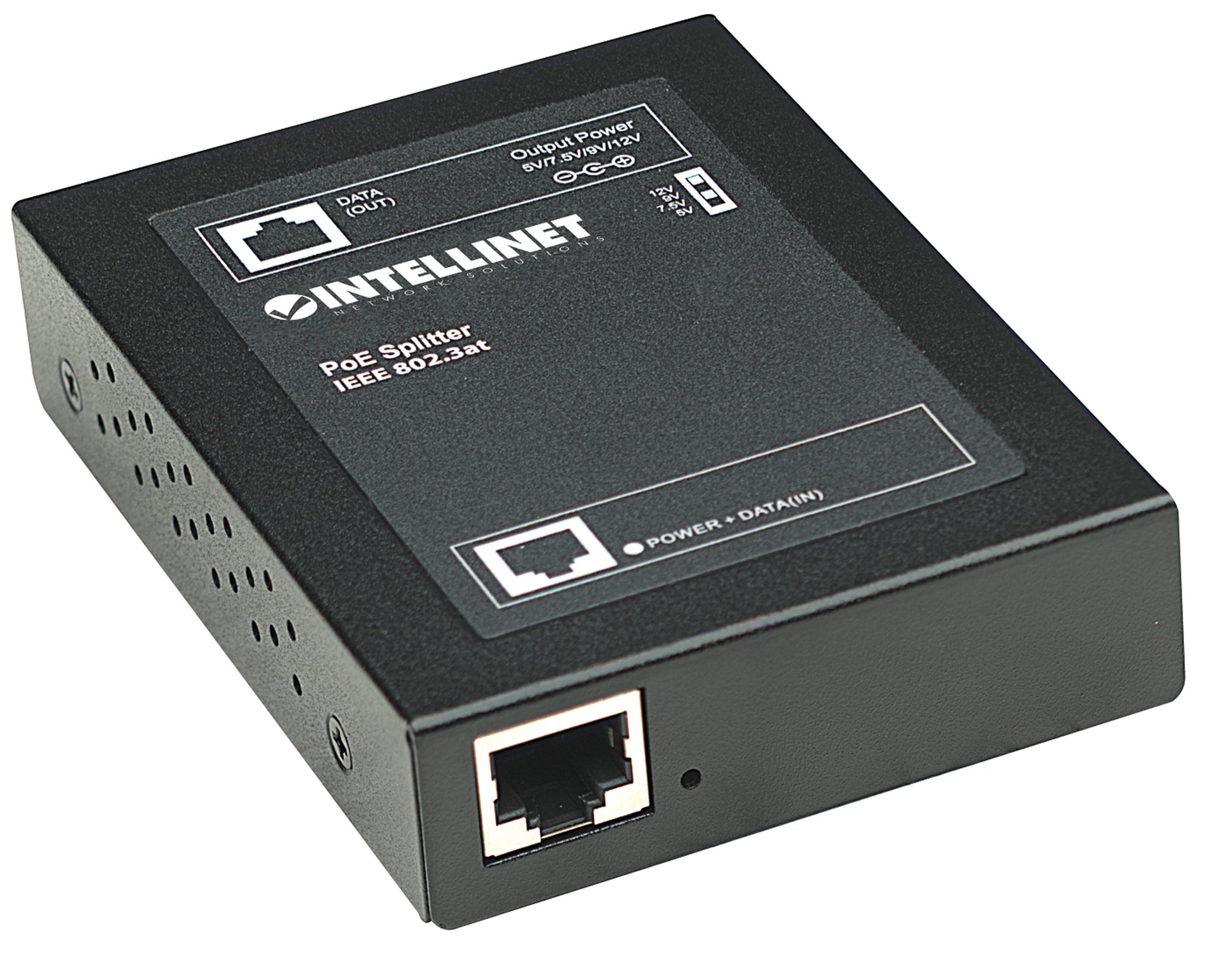

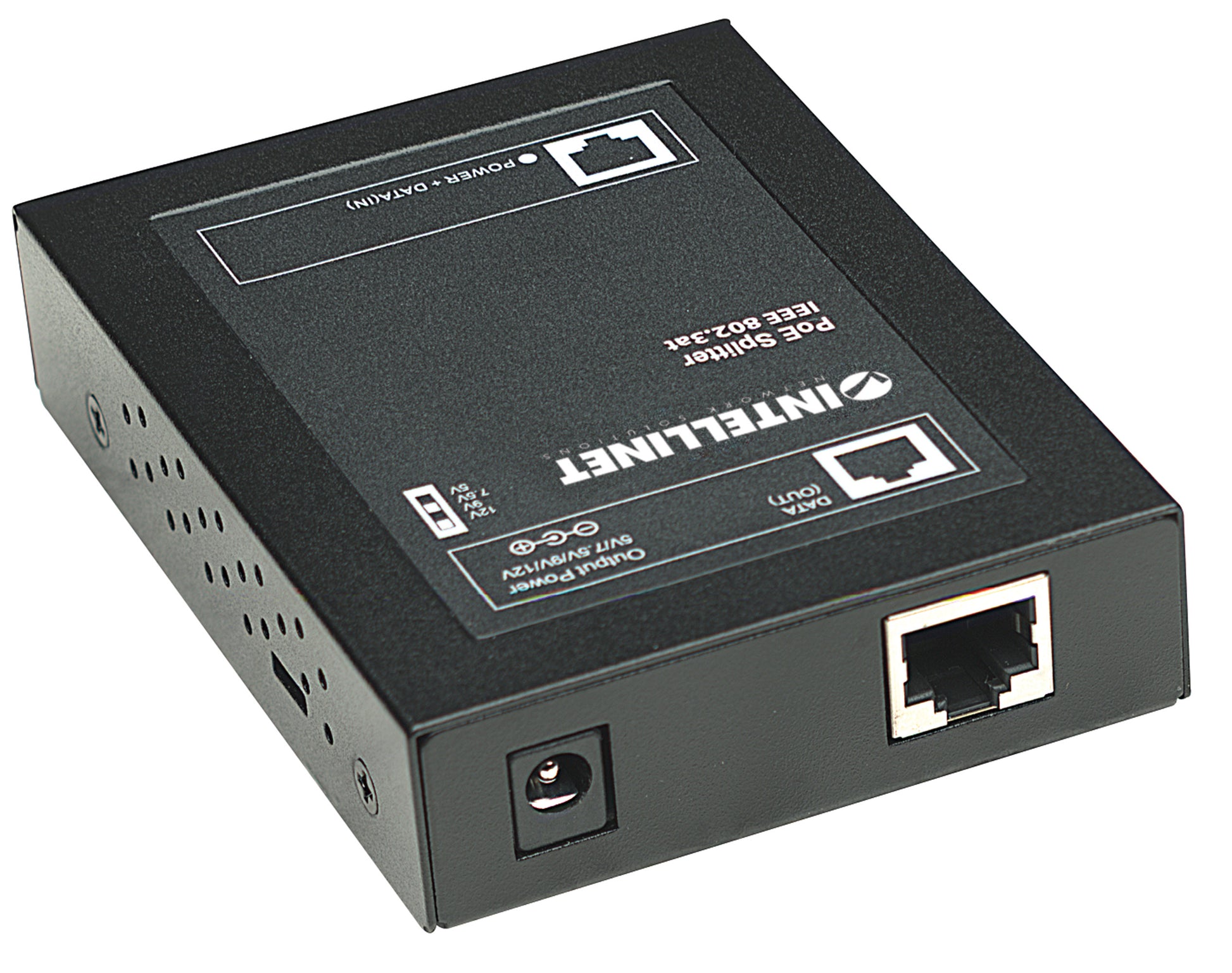

Deliver Power over Ethernet to remote devices

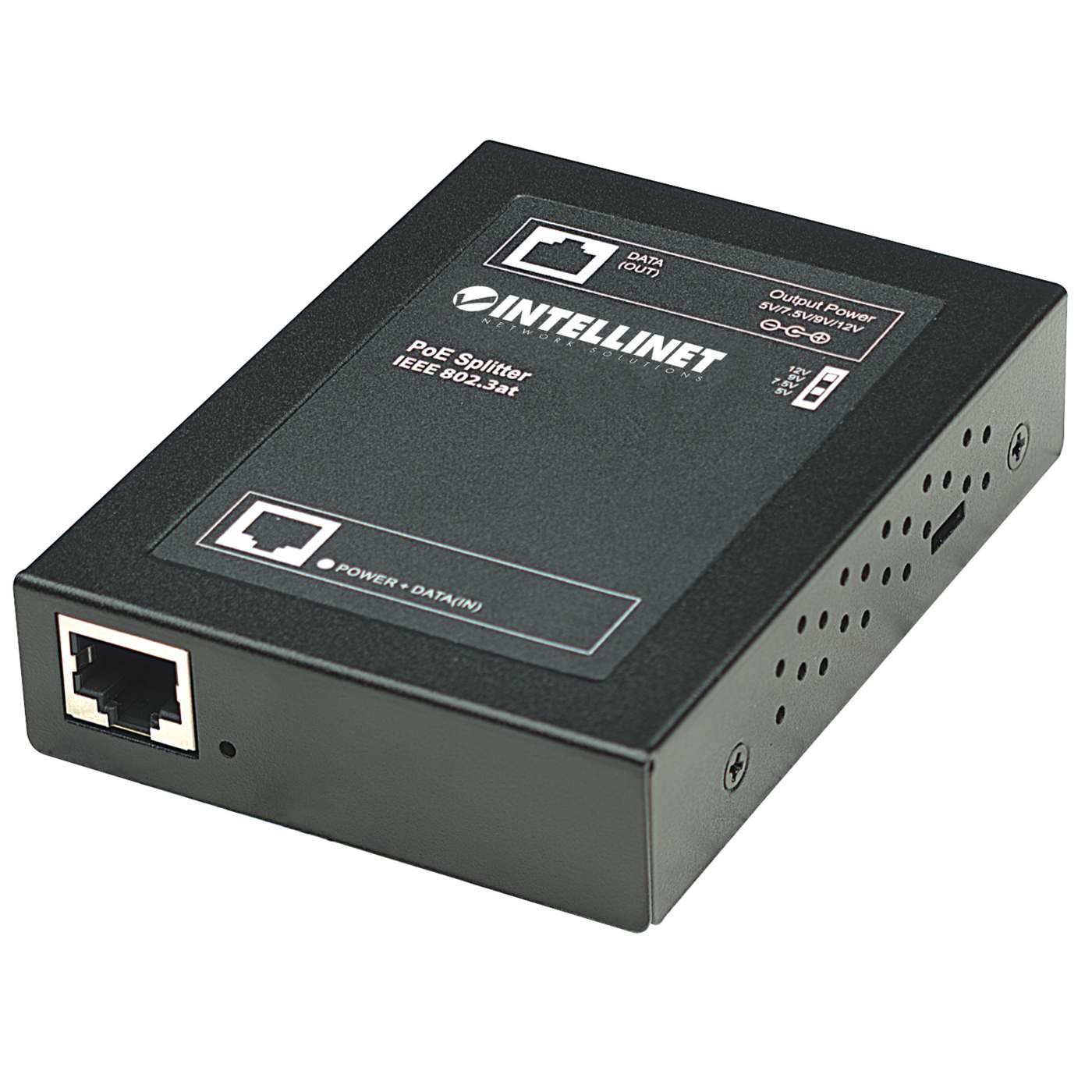

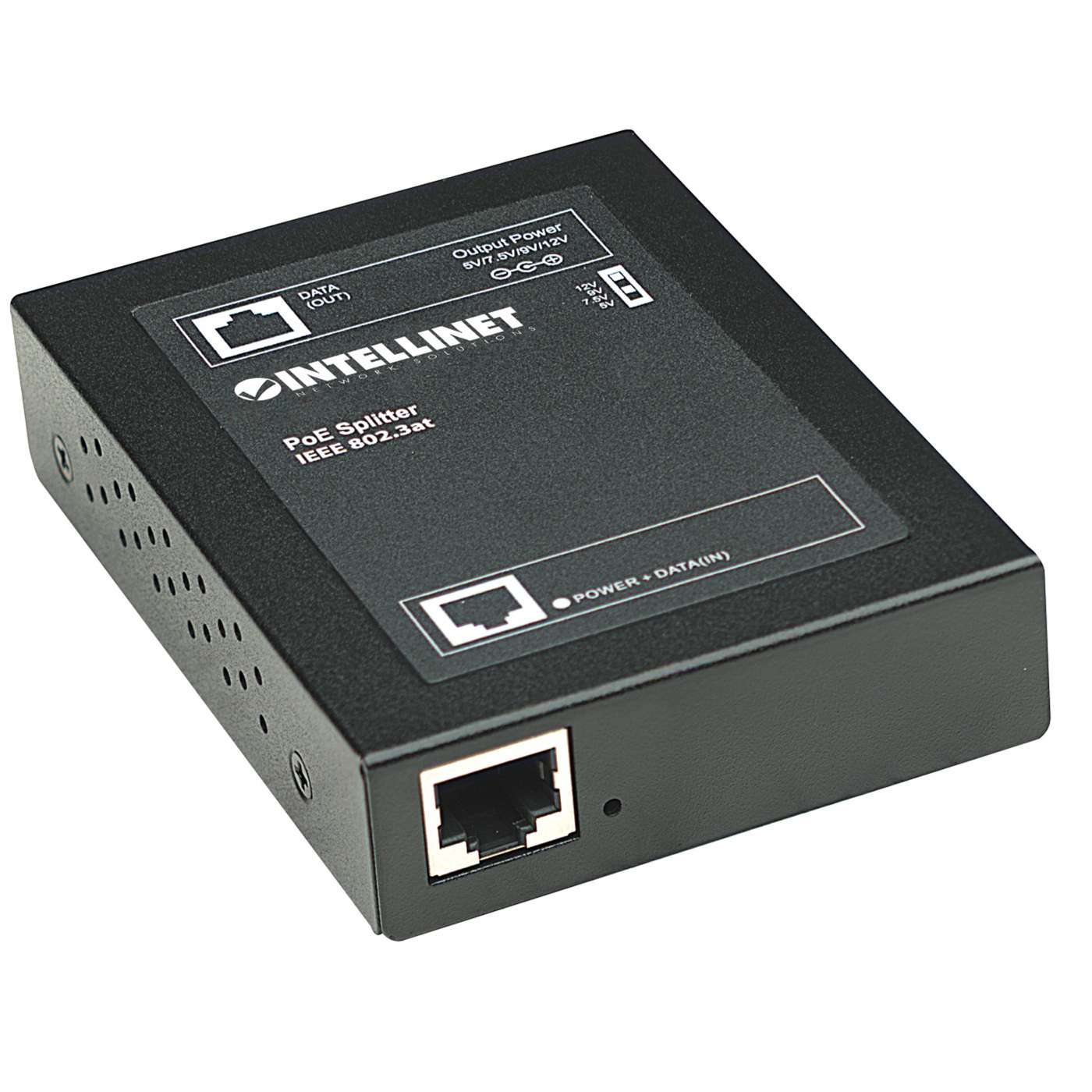

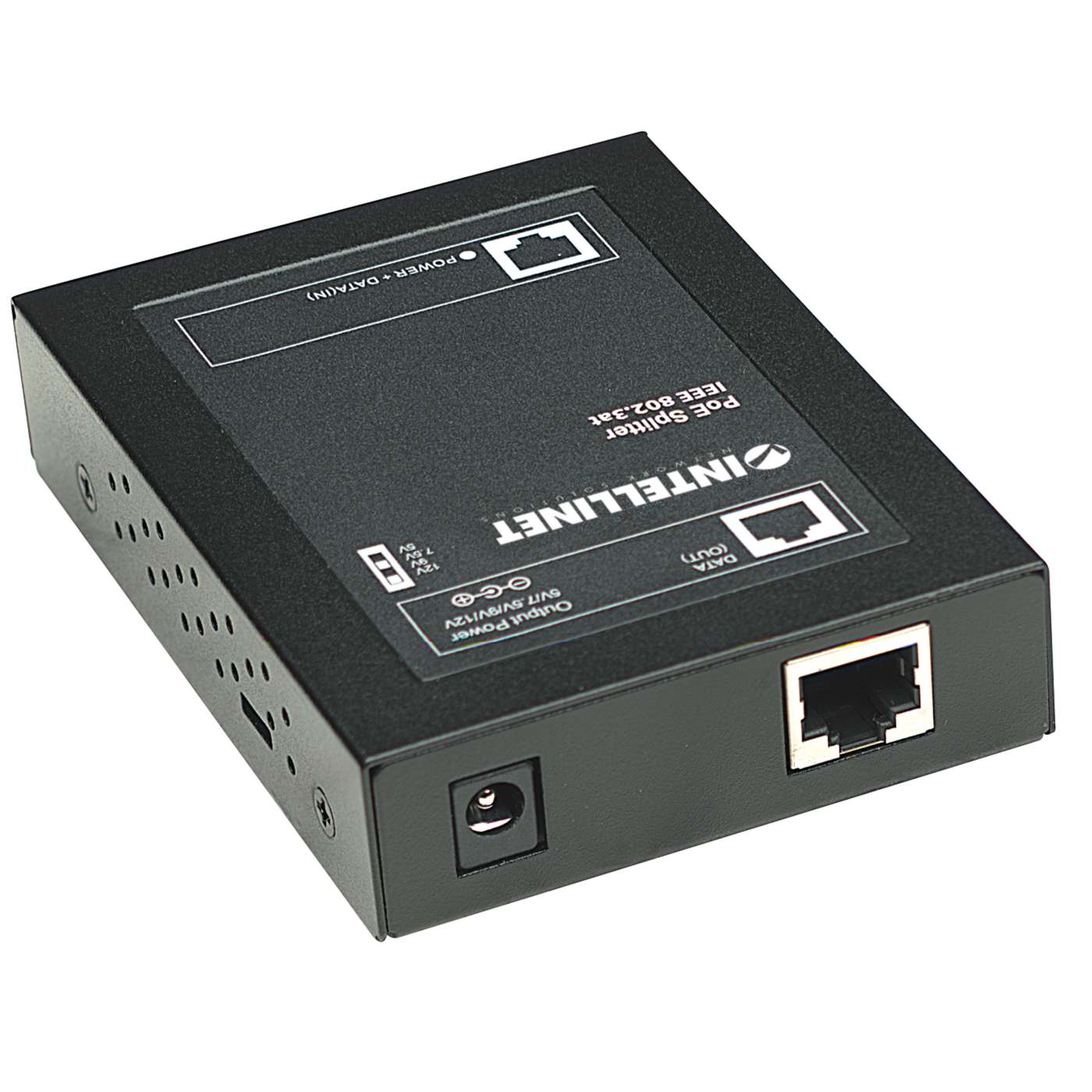

The Intellinet Network Solutions PoE+ Splitter allows you to deliver both data and electrical power to non-PoE Ethernet-enabled products using the Cat5 Ethernet cable. Using the PoE Splitter, you can take advantage of Power over Ethernet and place Ethernet-enabled products, such as Network Cameras and Wireless Access Points, where power outlets are not readily available.
Simplify Installation for an Ethernet-based Device
Having to manage only an Ethernet cable simplifies the physical installation of the device. Without having to worry about the availability of a power source, you can mount Ethernet-enabled products on a ceiling or outdoors, up to 100m (328 feet)** from a power source. The PoE Splitter is simple to install and requires no tools or software.
802.3af Compliant Power over Ethernet
The PoE Splitter can be used to complement any PoE injector unit or midspan switch to provide small to medium-sized businesses a complete end-to-end PoE solution. This unit supports 802.3af and 802.3at, ensuring compatibility with other 802.3af/t PoE-compliant injector units or PSE switches.
Adjustable Power Output

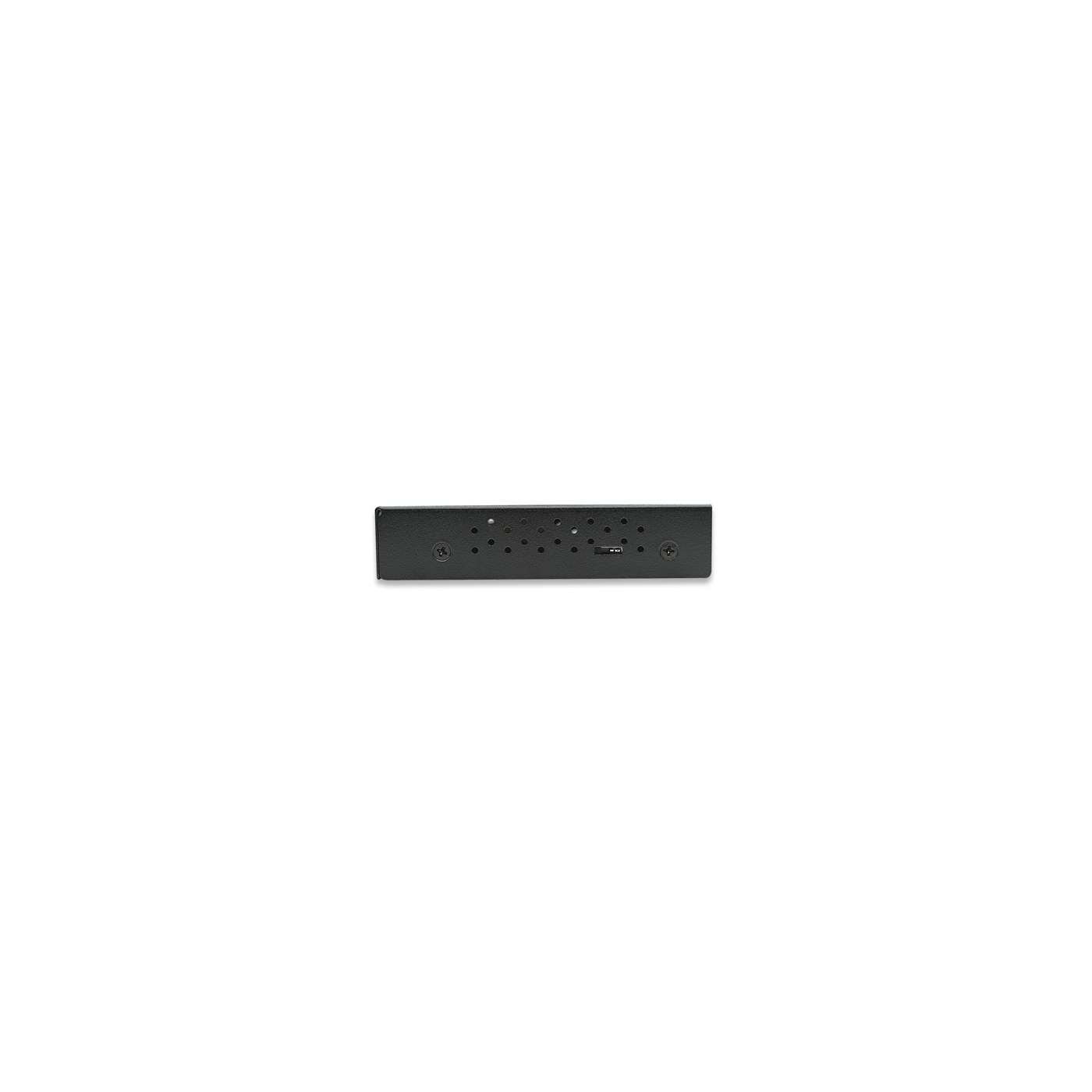

During the setup, the PoE Splitter can be set to power any compatible 5 V, 7.5 V, 9 V or 12 V Ethernet-enabled device via the volt selector located on the side.
- Can be used to connect non-PoE IEEE 802.3af/t-compliant devices to a PoE injector or PoE switch
- Output voltage, selectable: 5, 7.5, 9 or 12 V DC
- Power output: 5 V / 4 A, 7.5 V / 2.7 A, 9 V / 2.3 A and 12 V / 1.7 A
- 10/100/1000 auto-sensing input port automatically detects optimal network speeds
- RJ45 input port with Auto-MDIX and NWay auto-negotiation support
- Full/half duplex operation
- Compact metal case
- LED for link on PoE input port
- Fully NDAA-compliant
- Three-Year Warranty
- Standards
- IEEE 802.3af (Power over Ethernet)
- IEEE 802.3at (High-Power PoE+ Power over Ethernet)
- IEEE 802.3 (10BASE-T Ethernet)
- IEEE 802.3u (100BASE-TX Fast Ethernet)
- IEEE 802.3ab (1000BASE-T Gigabit Ethernet)
General
- Media support:
- 10Base-T Cat3/4/5/5e/6/6a UTP/STP RJ45
- 100Base-TX Cat5/5e/6/6a UTP/STP RJ45
- 1000Base-T Cat5e/6/6a UTP/STP RJ45

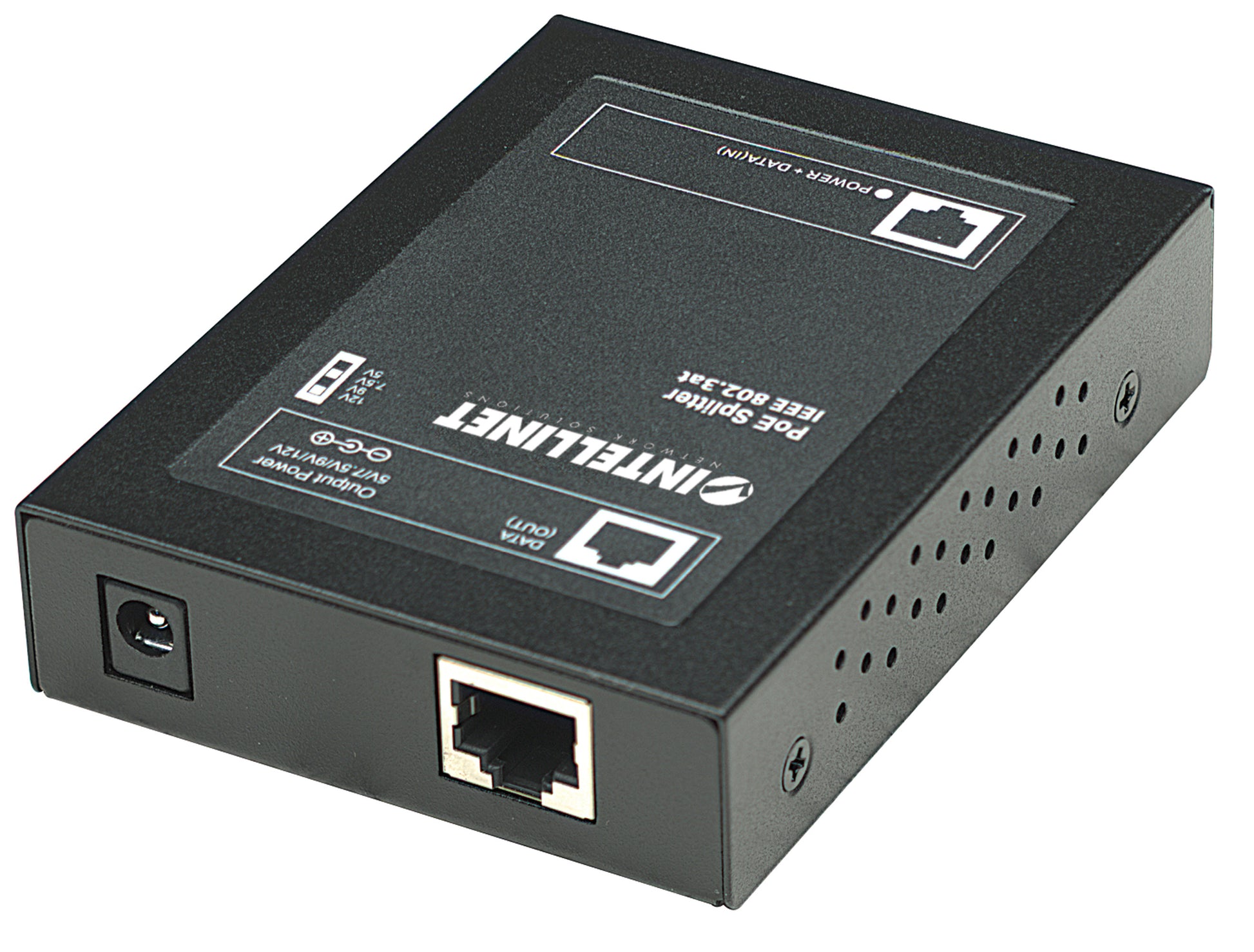

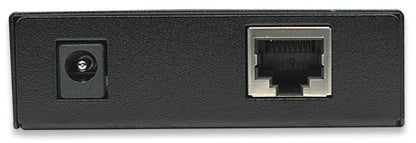

- Ports:

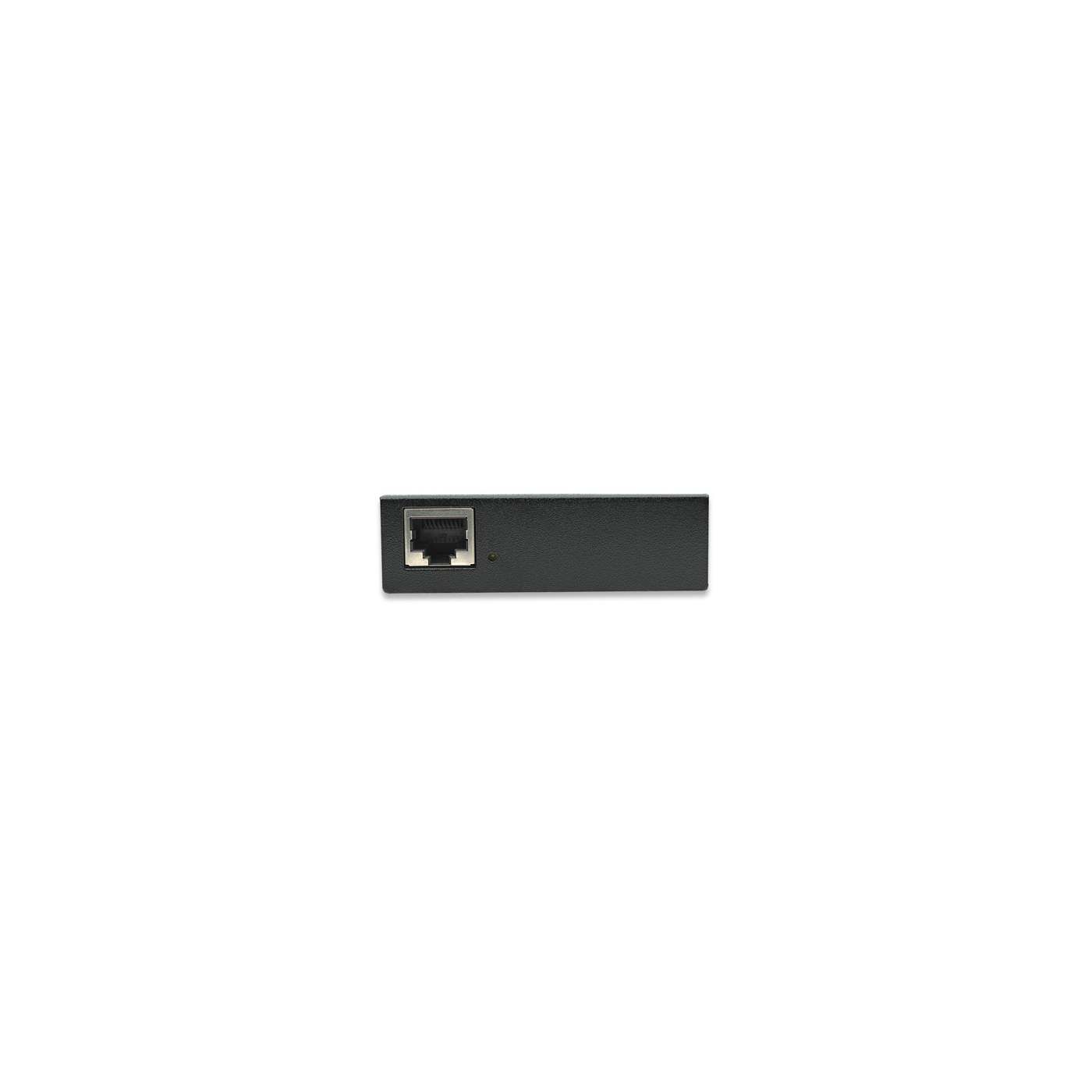

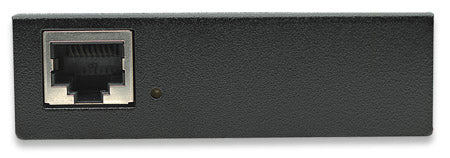

- 1 RJ45 10/100/1000 Mbps input port for 48 V IEEE 802.3af-compliant signal

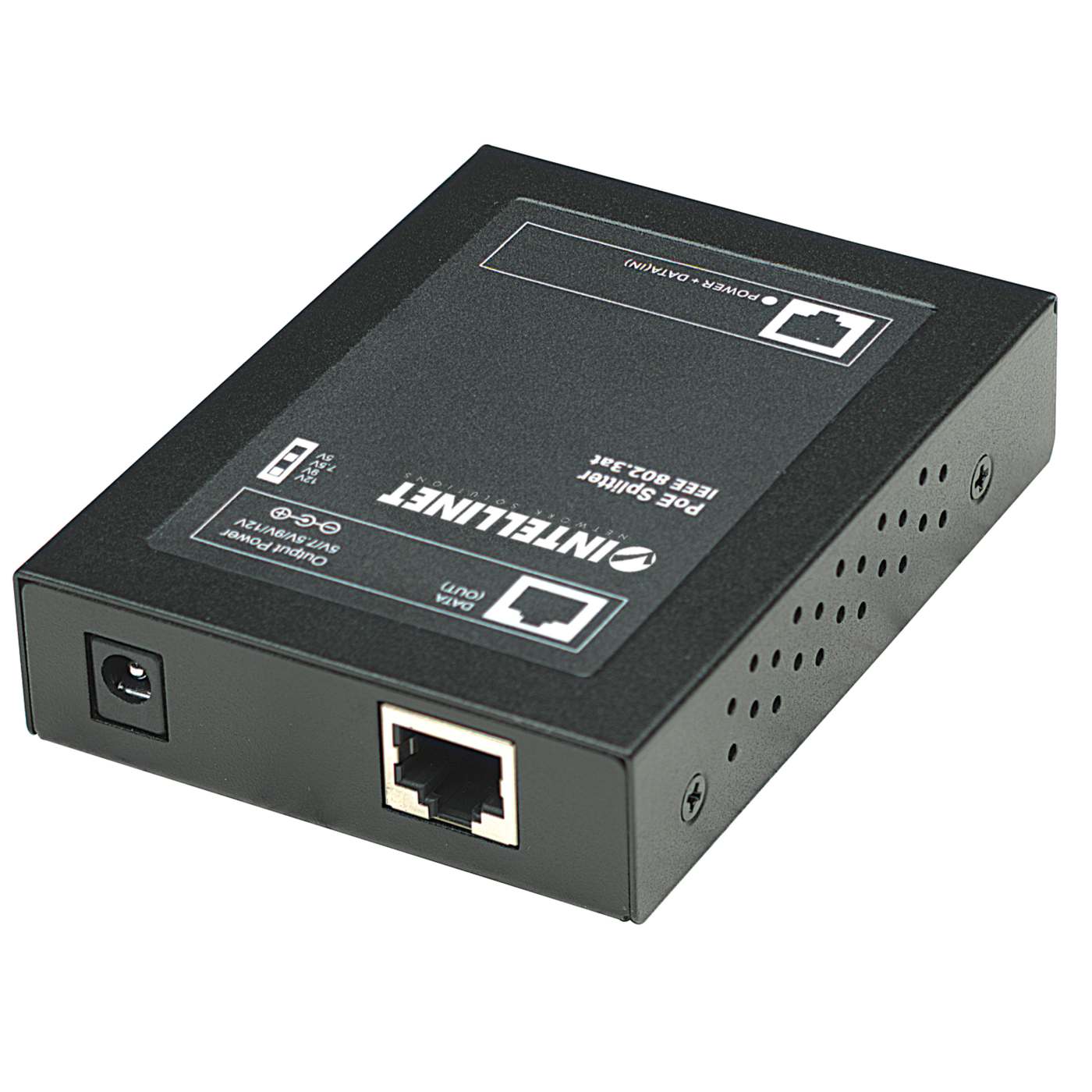

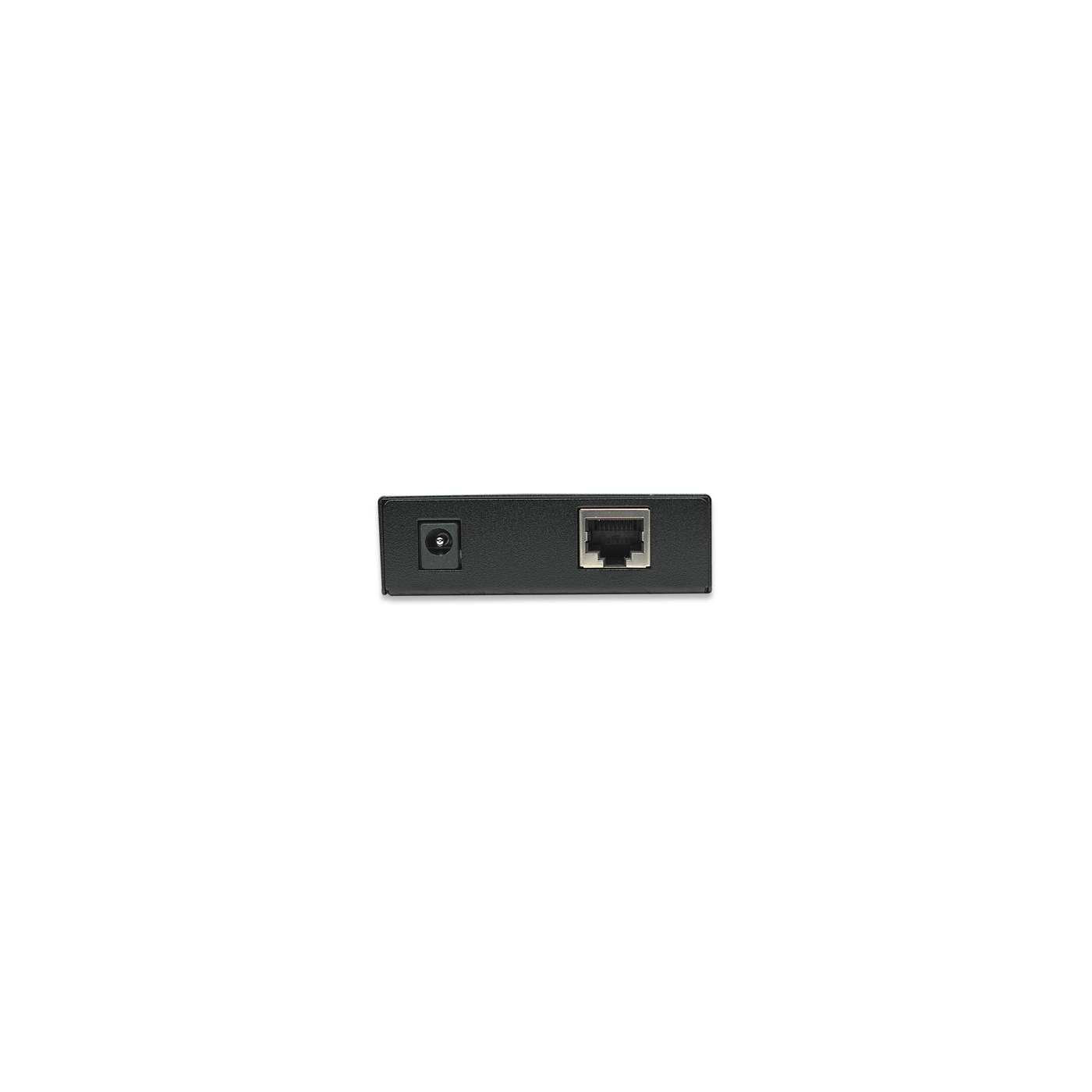

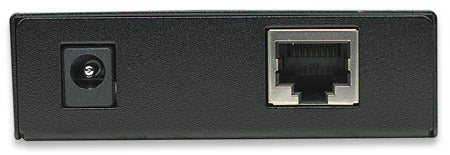

- 1 RJ45 10/100/1000 Mbps output port
- 1 power output port
- Certifications: FCC Class A, CE, UKCA, NDAA
LEDs
- LINK
Power
- Output power:
- 5, 7.5, 9 or 12 V DC, selectable via switch
- Maximum output: 5 V - 4 A, 7.5 V - 2.7 A, 9 V - 2.3 A, 12 V - 1.7 A
- Polarity, outer: negative ( - ); inner: positive ( + )
- Power consumption: 25.4 Watts (maximum)
Environmental
- Metal housing
- Dimensions: 102 (L) x 74 (W) x 22 (H) mm (4.0 x 2.9 x 0.9 in.)
- Weight: 0.24 kg (0.5 lbs.)
- Operating temperature: 0 – 60°C (32 – 140°F)
- Operating humidity: 10 – 90% RH, non-condensing
- Storage temperature: -20 – 90°C (-4 – 194°F)
Package Contents
- PoE+ Splitter

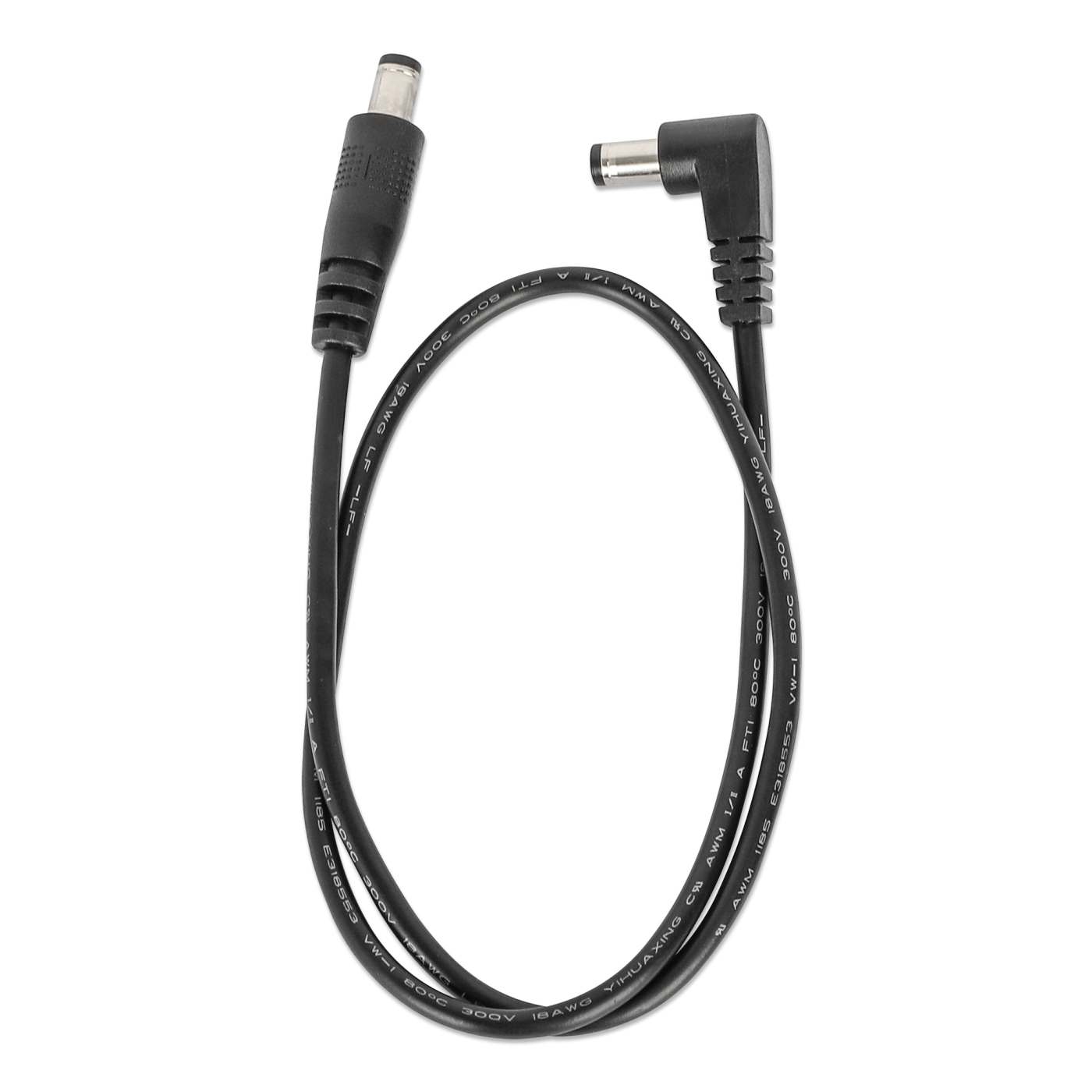

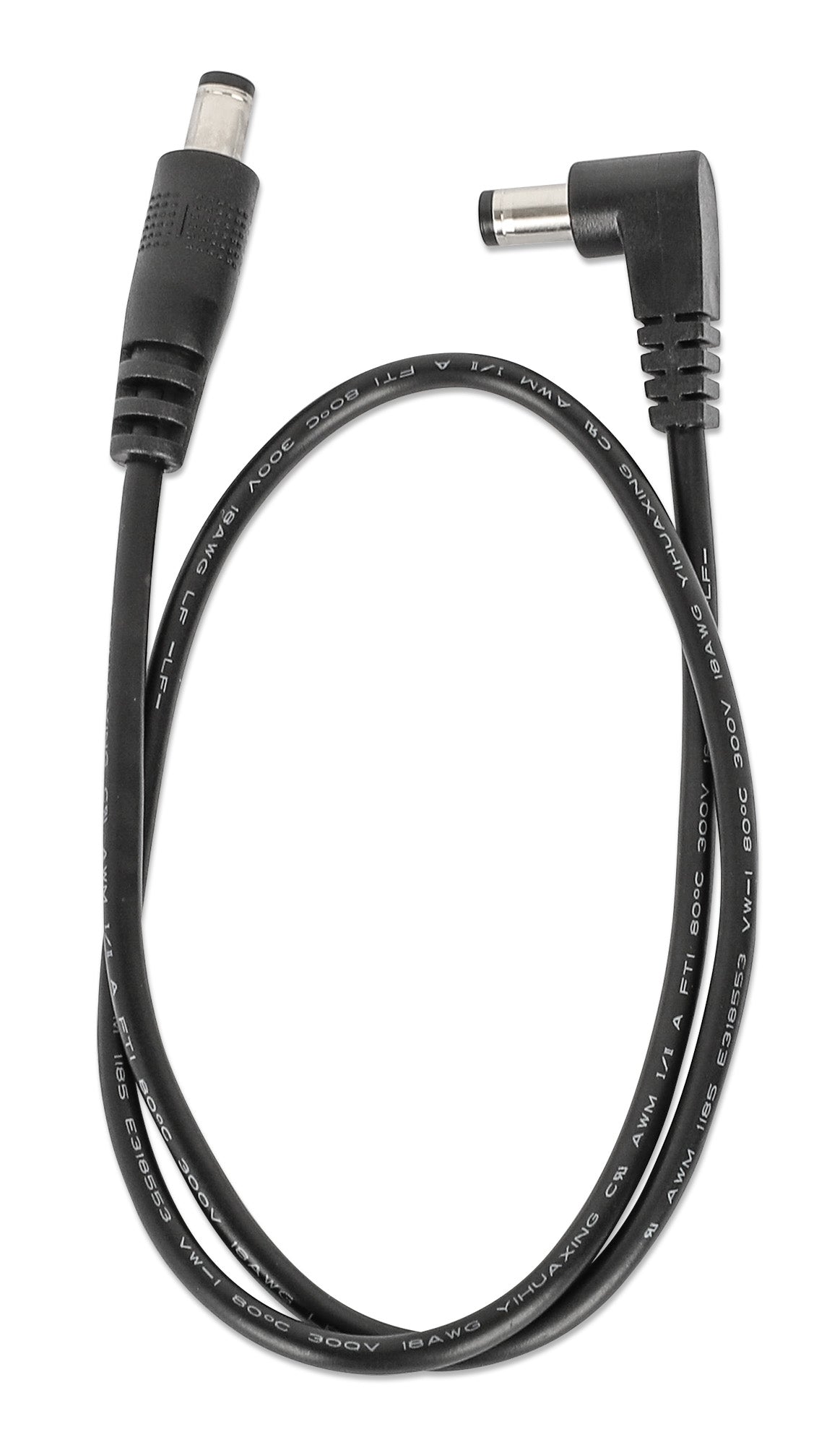

- Power output cable
- User manual
Additional SKUs
- Amazon ASIN: B003VCBBT8
- EAN: 0766623560443
- UPC: 766623560443
- ALSO: 1614894
- API: 85525
Physical Specifications
- Product net weight: 0.22 kg
- Product gross weight: 0.32 kg
- Dimensions: 102 (L) x 75 (W) x 23 (H) [mm]
- Packaging type: Retail Box
- Packaging dimensions: 154 x 213 x 33 [mm]
- Master Carton Quantity: 20
- Master Carton Weight: 7.00 kg
- Master Carton Dimensions: 353 x 328 x 228 [mm]
