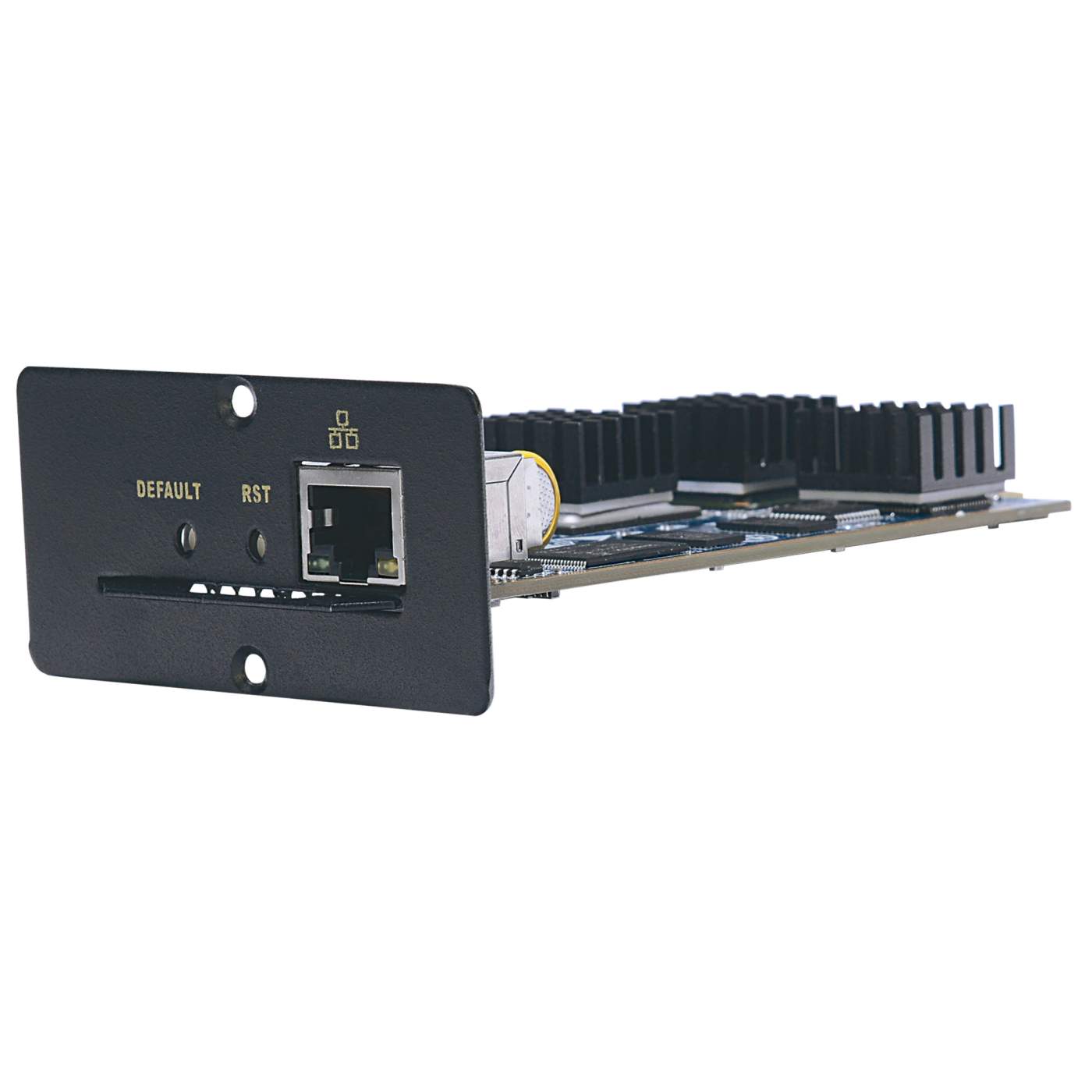

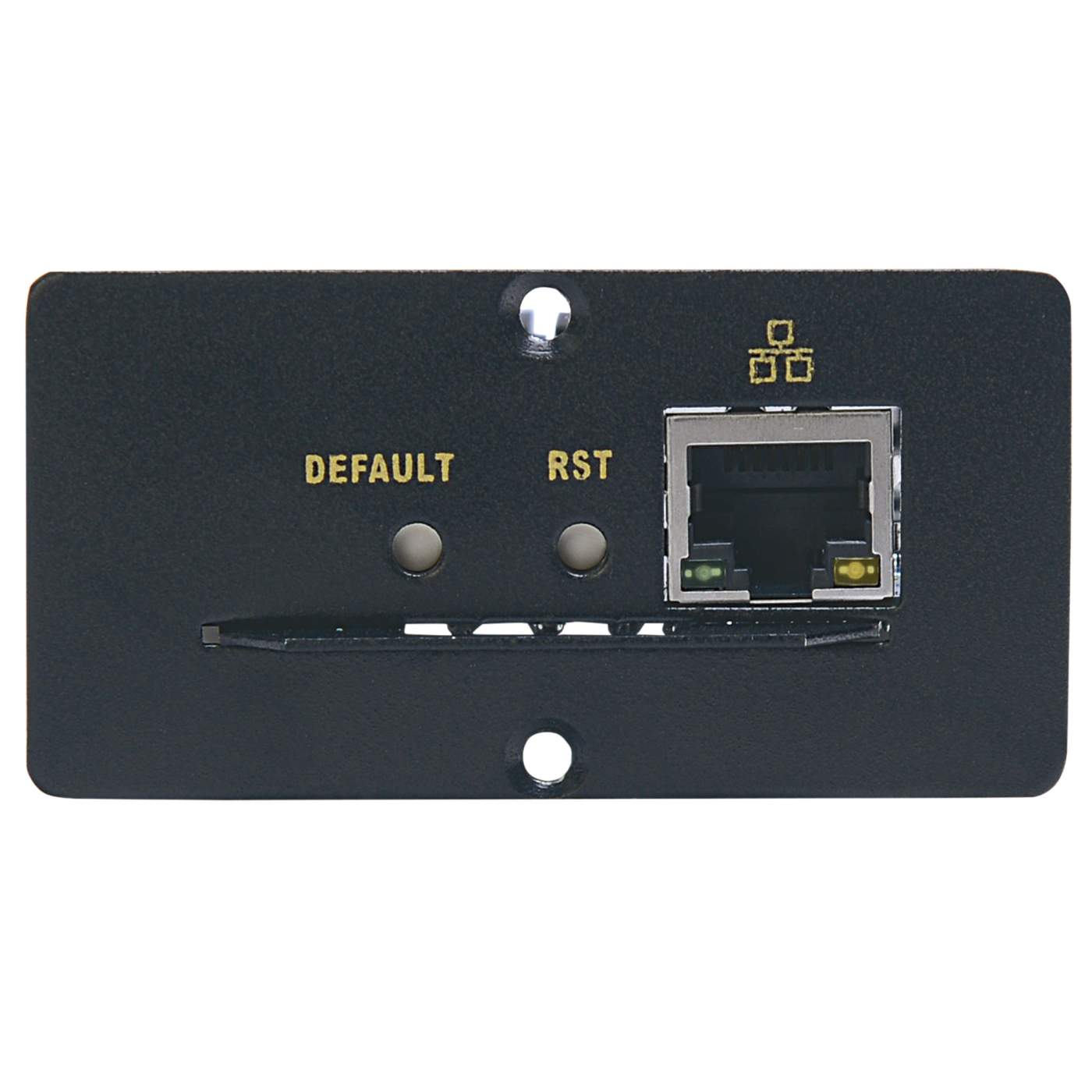

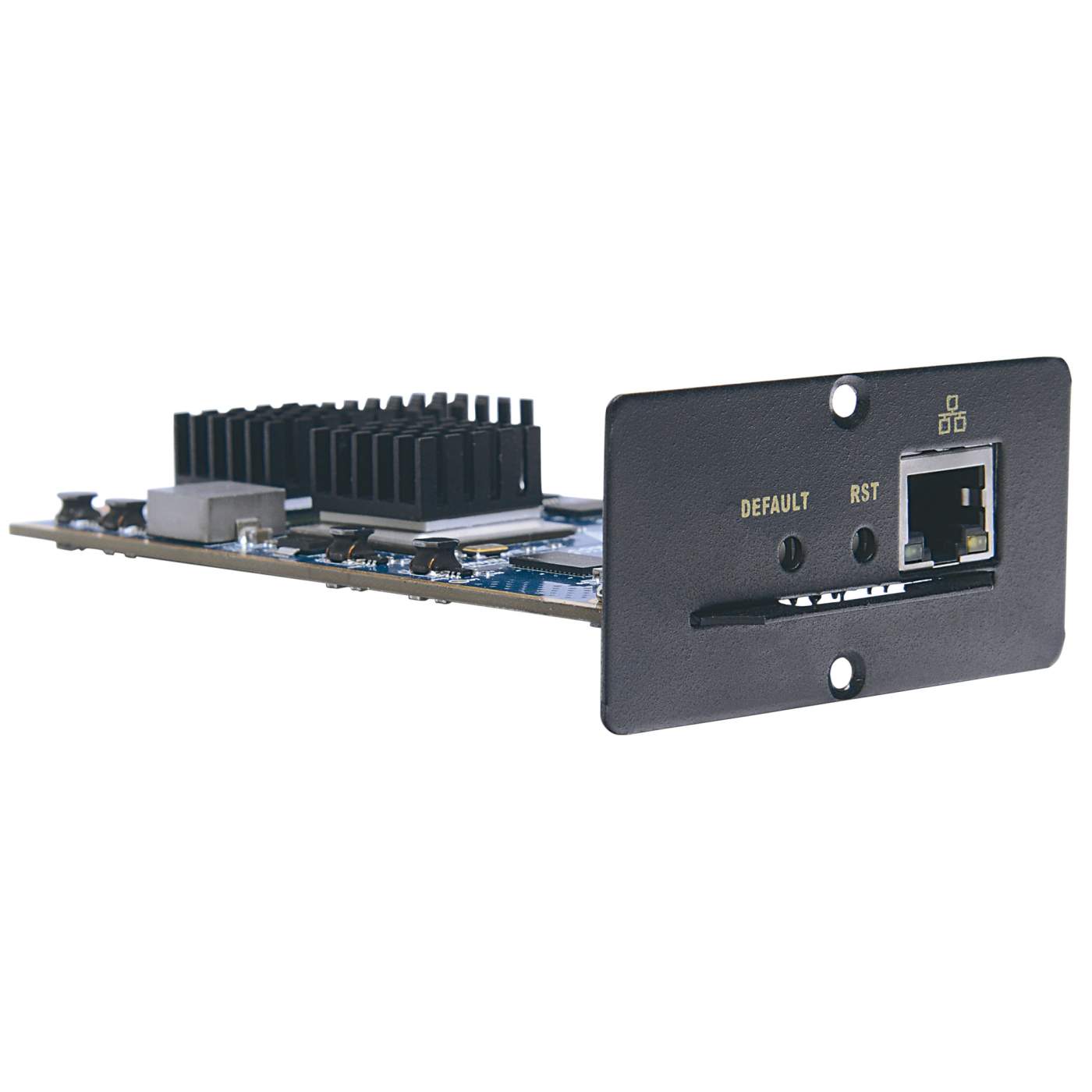

IP-Function Module for KVM Switches

Designed to work with Intellinet Modular KVM Console / Switch range

Part-No.: 507936

Highlights

  • Remotely access computers via LAN, WAN, or the Internet
  • Full control under all OS, including BIOS level, during boot process, and even at Blue Screens
  • Remote, WEB-based management

The IP-Function module is designed for use with Intellinet Network Solutions KVM switches in small to medium server rooms where an administrator access must be available at all times and from any location. They provide a direct connection via the KVM switch connected to the computer through an existing Internet connection with a browser.
Compatible with 507776, 507844, 507882 and 507899.

  • Remotely access computers via LAN, WAN, or the Internet
  • Full control under all OS, including BIOS level, during boot process, and even at Blue Screens
  • Remote, WEB-based management
  • DES encryption of all transmitted data
  • IP access via 10/100/1000 Mbps LAN
  • Three-Year Warranty

    Standards
  • Supports all operating systems
  • Designed to work with Intellinet Modular KVM Console / Switch range

    Environmental
  • Operating temperature: 0 – 50°C
  • Storage temperature: -20 – 60°C

    Package Contents
  • IP-Function Module for KVM Switches
  • Install Guide
  • CD with software and soft copy of manual

  • Additional SKUs

    • Amazon ASIN: B076FW45BL
    • EAN: 0766623507936
    • UPC: 766623507936
    • ALSO: 2965615
    • API: 246017

  • Physical Specifications

    • Weight: 0.07 kg
    • Dimensions: 124 (L) x 68.5 (W) x 1.6 (H) [mm]
    • Packaging: Brown Box
    • Carton Quantity: 5
    • Carton Weight: 0.50 kg

  • Datasheet


  • Manual


  • Software

    • Setup Software for Windows     » Download
