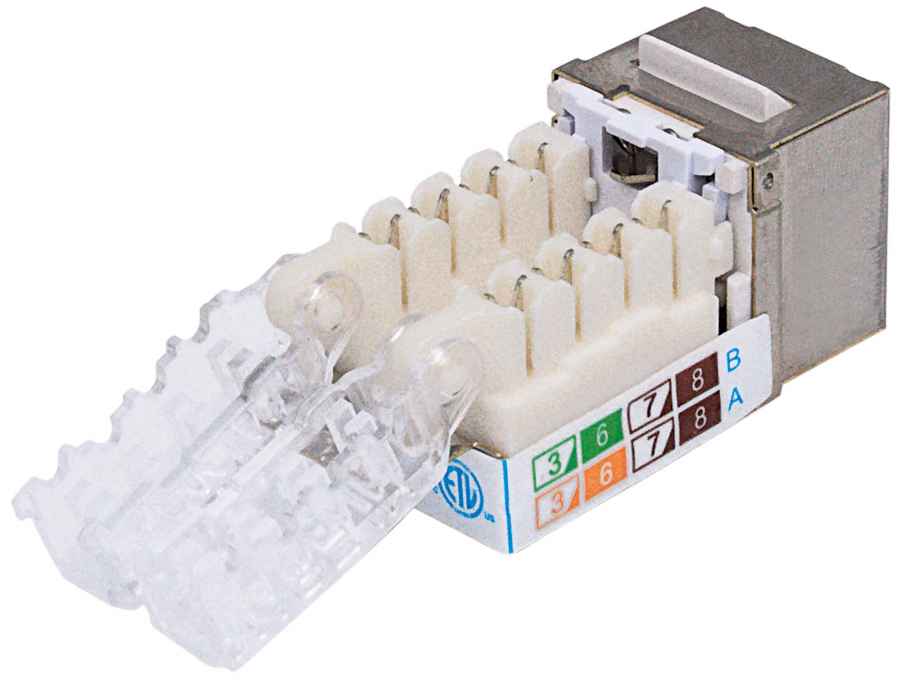

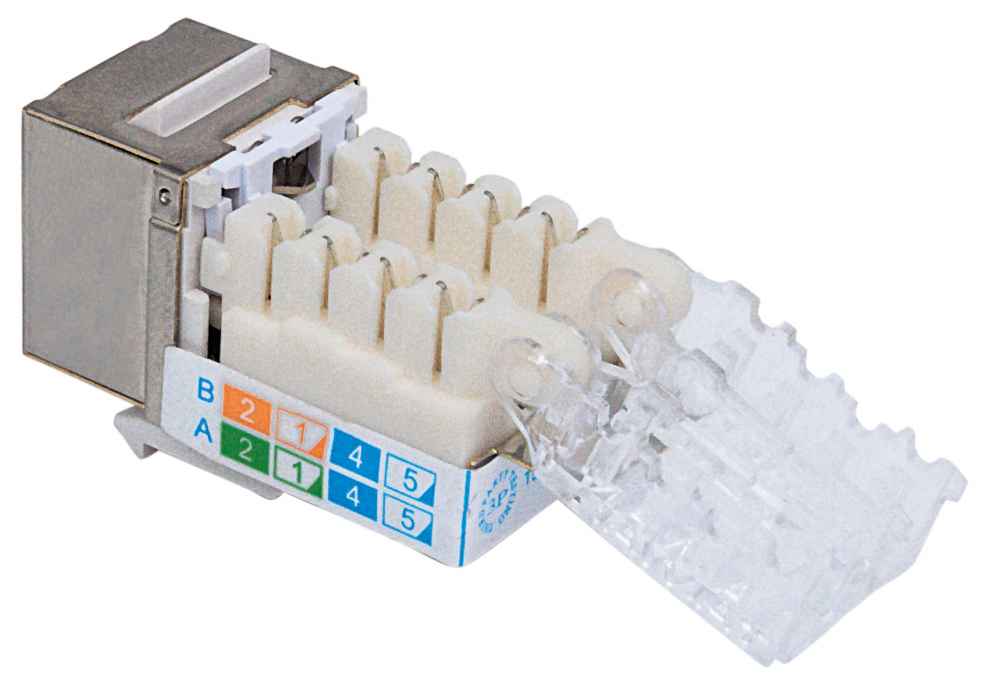

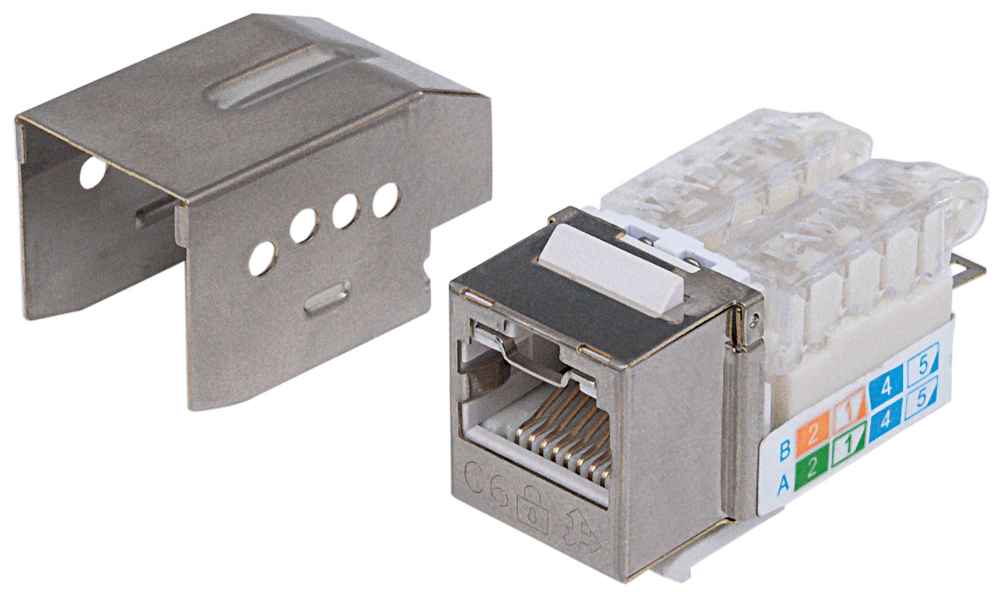

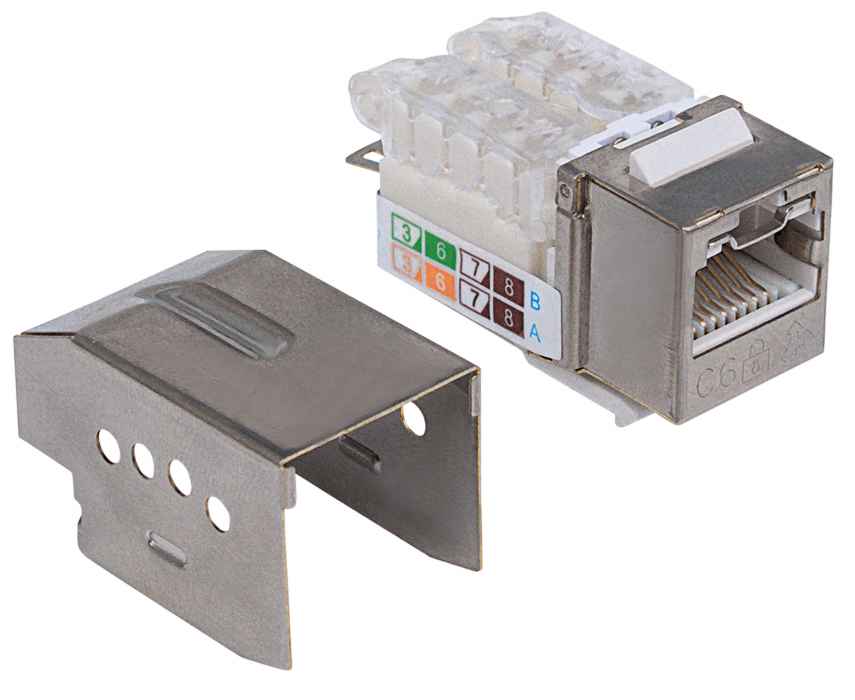

Locking Cat6A Keystone Jack

FTP, Toolless, Locking Function, Metallic

Part-No.: 790789

Highlights

  • 50 micro-inch gold plated contacts
  • Toolless type, compatible with Krone or 110 punch-down Tool
  • For use with Cat6A Shielded cable


For extra security in your server room patch panels, I.T. Department test bench or network access points, the new range of Locking Function Patch Panels, Keystones, Inline Couplers and mount boxes will inevitably be of interest to you and your I.T. team. Recommended for all businesses and currently utilized in financial institutions, hotels, airports, schools, hospitals and retail stores. Excellent in areas where vibration can loosen a standard RJ45 connection such as in trains, aircraft and in the vicinity of vibrating machinery.

  • 50 micro-inch gold plated contacts
  • Toolless type, compatible with Krone or 110 punch-down Tool
  • For use with Cat6A Shielded cable
  • Cat6A performance compliance with ANSI/TIA/EIA 568B.2 standard
  • Lifetime Warranty

  • Metallic housing
  • 50 micro-inch gold contacts
  • Fireproof ABS UL-94V0 Body
  • For use with 22 to 26 AWG stranded and solid wire
  • EIA/TIA approved
  • UL listed
  • 568A/B color coded
  • Operating temperature: -40 – 70°C (-40 – 158°F)

    Package Contents
  • Keystone Jack

    NOTE: Part number 790833 needed for use

  • Additional SKUs

    • Amazon ASIN: B01MYM2LMO
    • EAN: 0766623790789
    • UPC: 766623790789
    • ALSO: 2829090
    • API: 219802

  • Physical Specifications

    • Weight: 0.02 kg
    • Dimensions: 38.75 (L) x 16.6 (W) x 22.3 (H) [mm]
    • Packaging: Bag
    • Carton Quantity: 500
    • Carton Weight: 9.80 kg

  • Datasheet

    • Datasheet     » Download

    • Declaration of Conformity     » Download


  • Manual

    • Quick Instruction Guide     » Download
