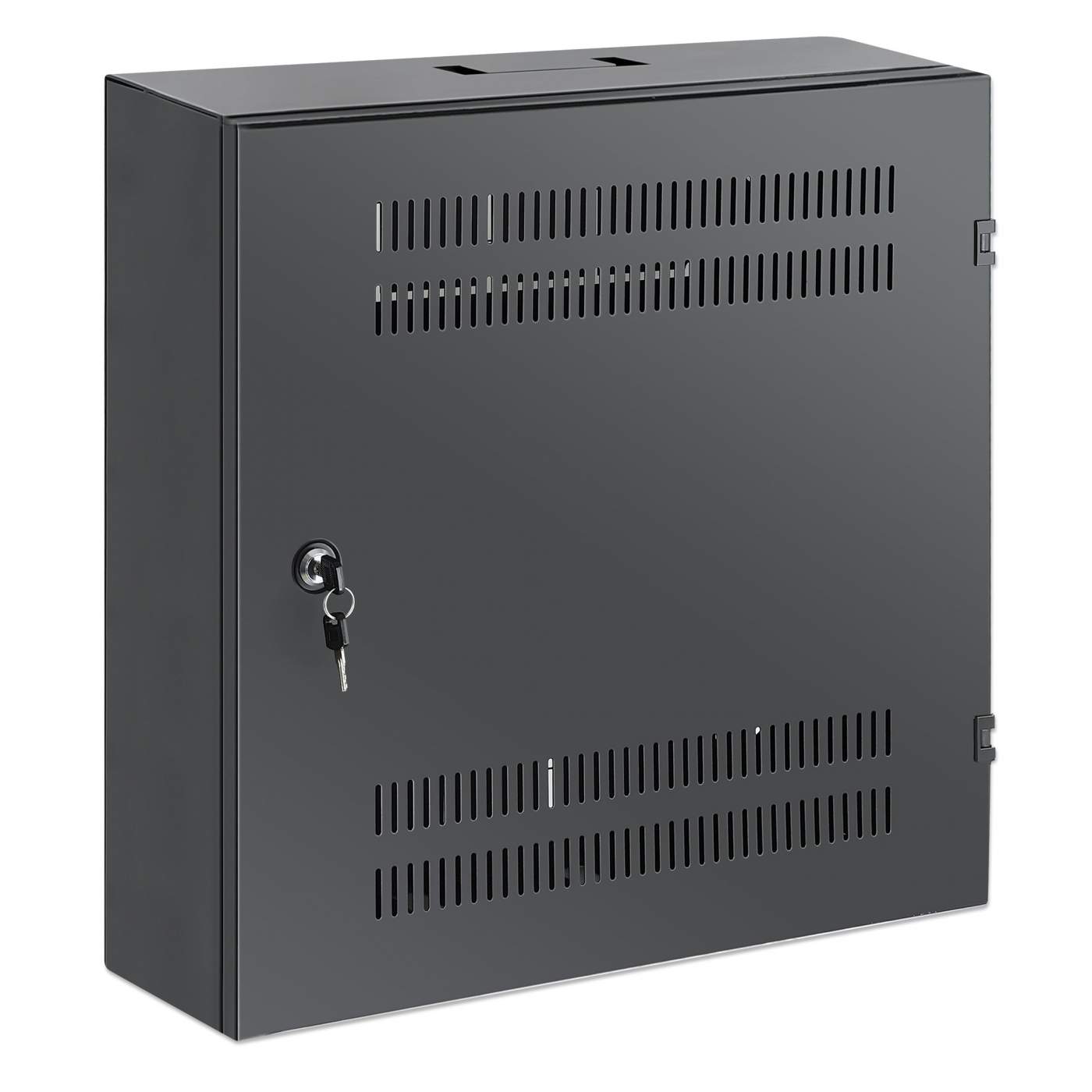

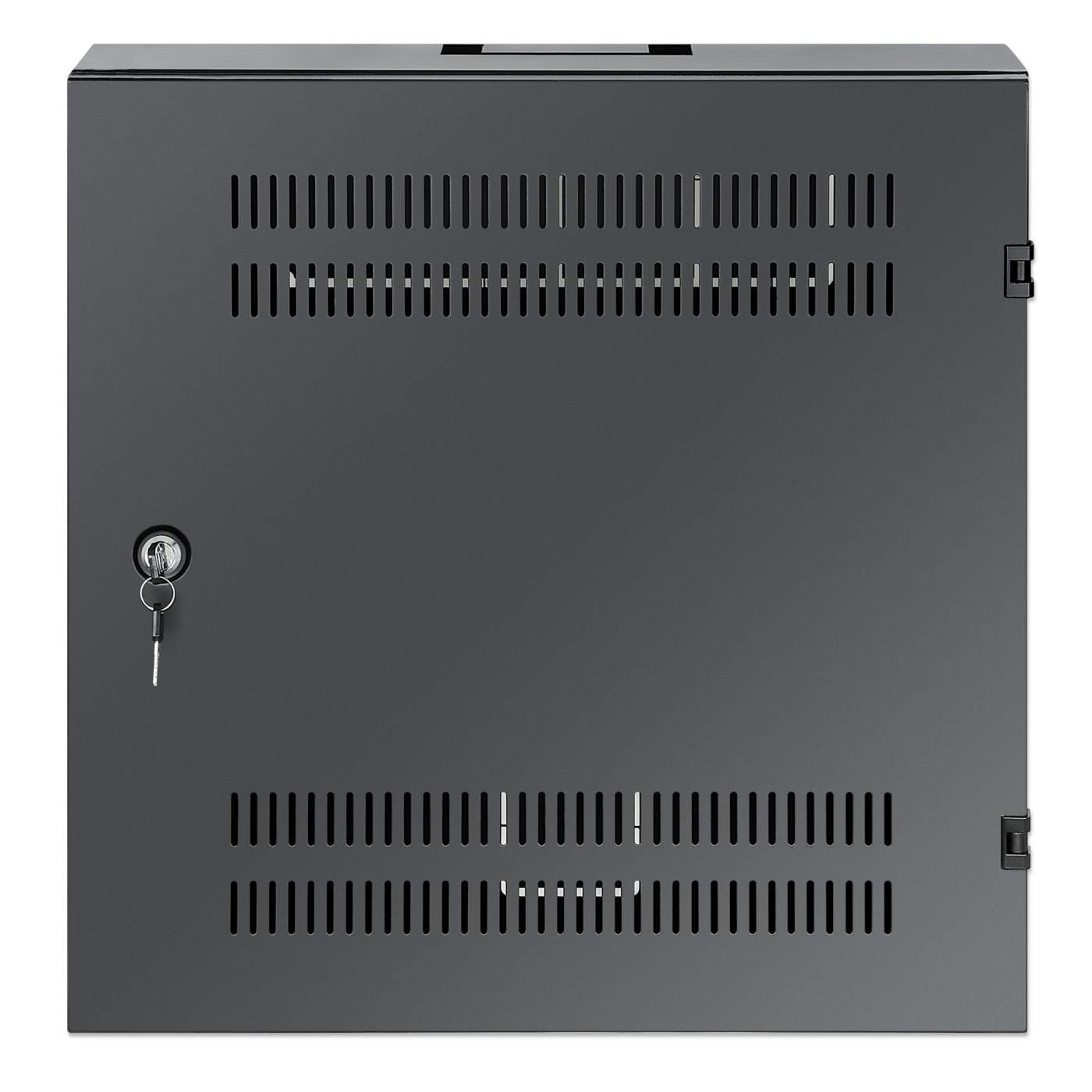

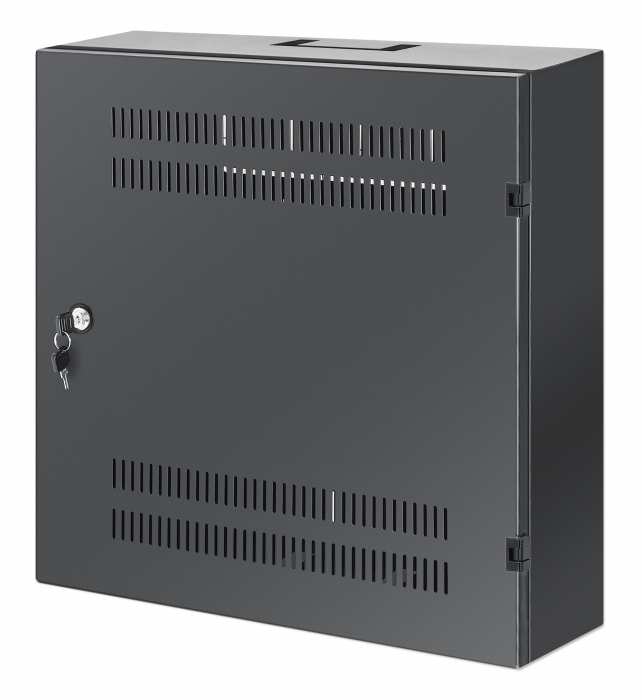

Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails

Slim, Space-saving Enclosure with Only 170 mm (6.7 in.) Depth, Ideal for AV, Multimedia and Surveillance Applications, Assembled, Black RAL7021

Part-No.: 713689

Highlights

  • Slim, space-saving design for organized, secure housing of multimedia, surveillance, audio/video and smart home equipment
  • Horizontal 4U 19" rackmount option for PDUs, patch panels and other equipment with a depth up to 170 mm (6.7 in.)
  • Vertical 2U 19" rackmount option for network switches and other equipment with a depth up to 280 mm (11 in.)


Slim, space-saving wall-mount enclosure rack for AV multimedia equipment and more

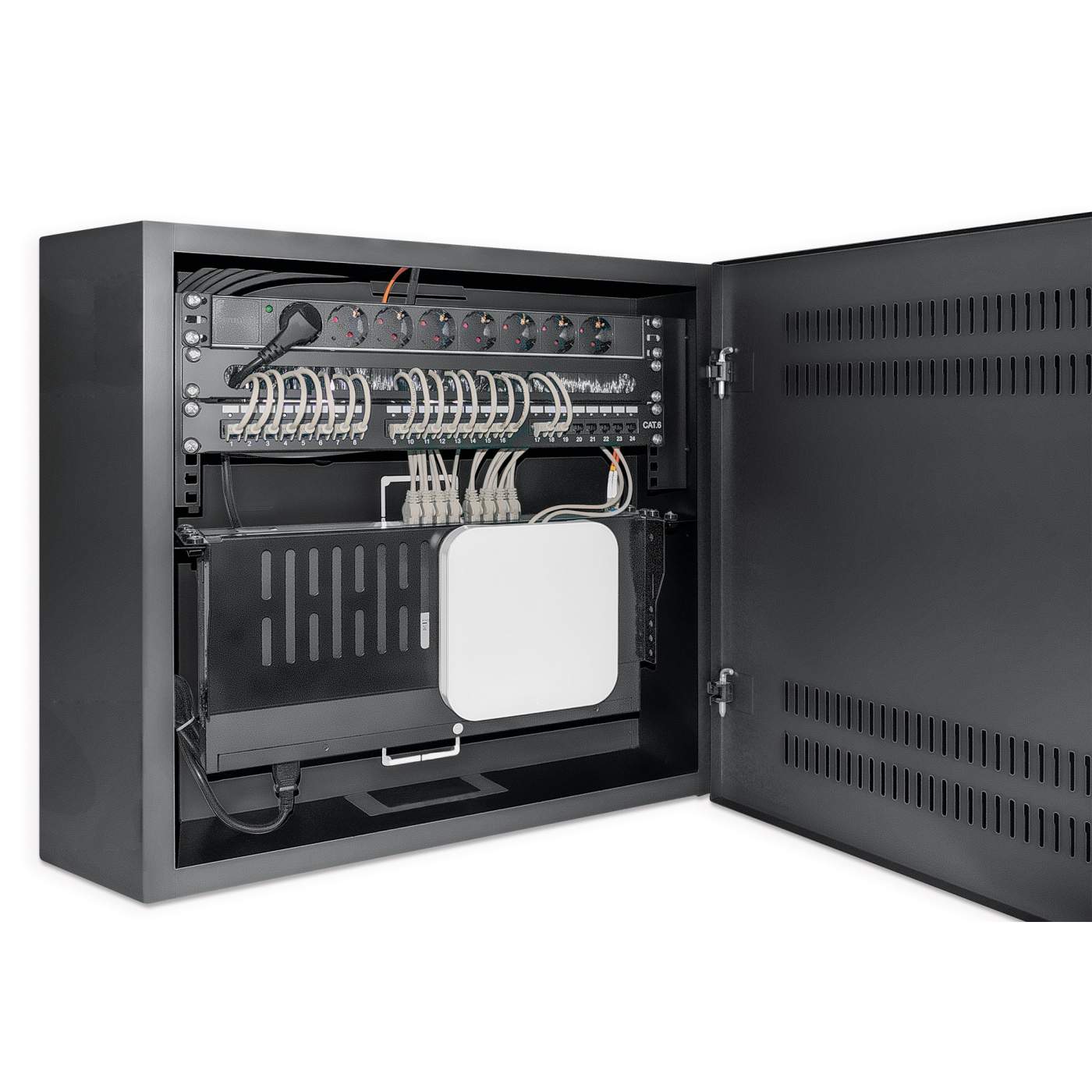

The Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails from Intellinet Network Solutions is a slim rack enclosure for residential and SOHO environments. It organizes and secures network equipment from multimedia, surveillance, audio/video and home automation equipment while saving valuable space with its hybrid of two mounting options.

Thanks to its compact depth, it only extends 170 mm (6.7 in.) from the wall, but its vertical mounting option means you can install even bulky equipment like network switches with a depth up to 280 mm (11 in.). The sturdy IP20-rated steel housing with antistatic powder coating can be locked with a secure three-point door lock to prevent damage, tampering or theft. It carries a load capacity up to 60 kg (132 lbs.), and ventilation slots ensure maximum airflow to keep your equipment cool. Your structured cabling can enter through pre-punched holes on the top, rear or bottom. Its fully assembled shipping condition saves you the trouble of putting it together.

  • Slim, space-saving design for organized, secure housing of multimedia, surveillance, audio/video and smart home equipment
  • Horizontal 4U 19" rackmount option for PDUs, patch panels and other equipment with a depth up to 170 mm (6.7 in.)
  • Vertical 2U 19" rackmount option for network switches and other equipment with a depth up to 280 mm (11 in.)
  • Maximum load capacity of 60 kg (132 lbs.)
  • Extends only 170 mm (6.7 in.) from the wall
  • Sturdy, secure steel housing with antistatic powder coating
  • Three-point door lock with two included keys
  • Ventilation slots for maximum airflow to keep your equipment cool and prevent overheating
  • IP20-rated protection

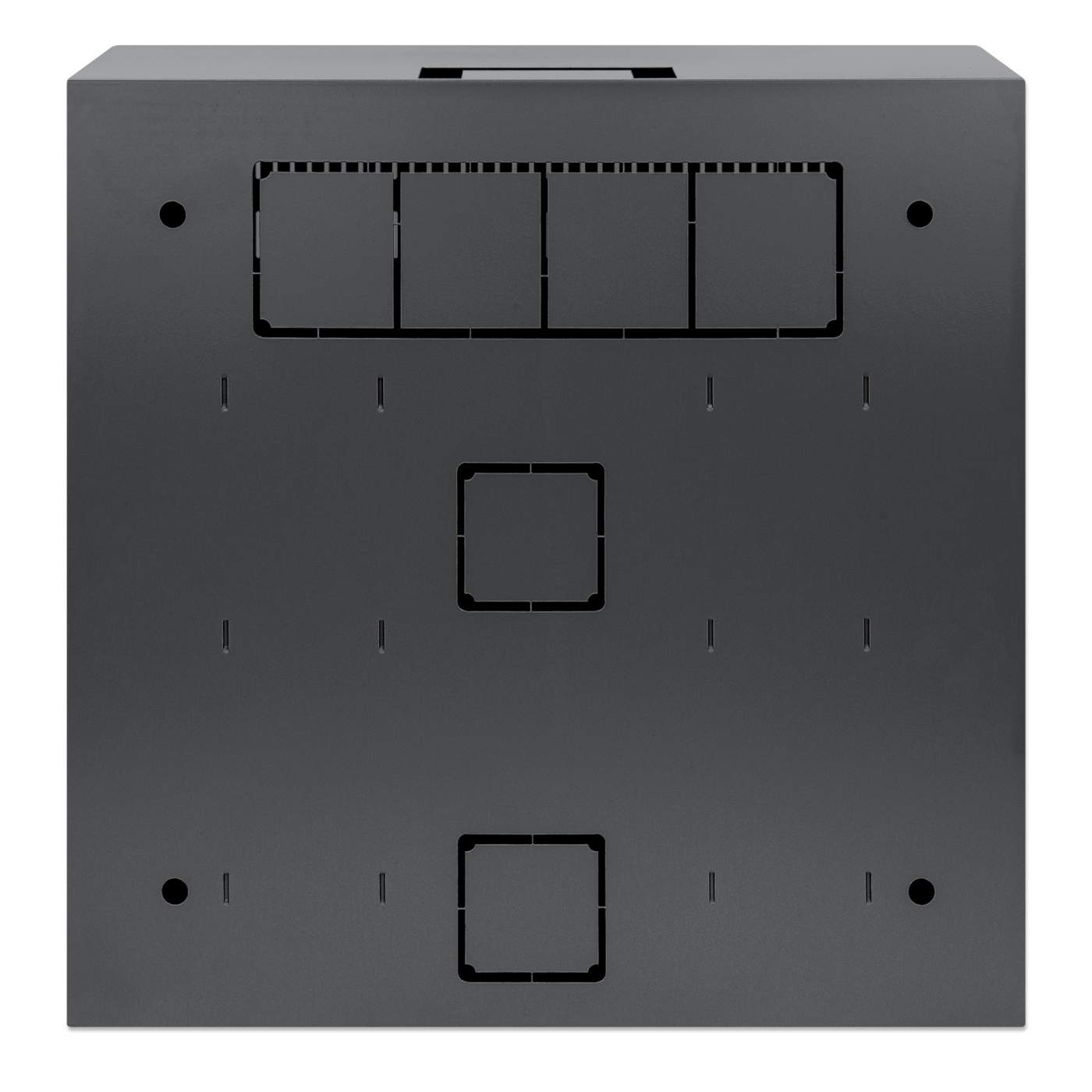

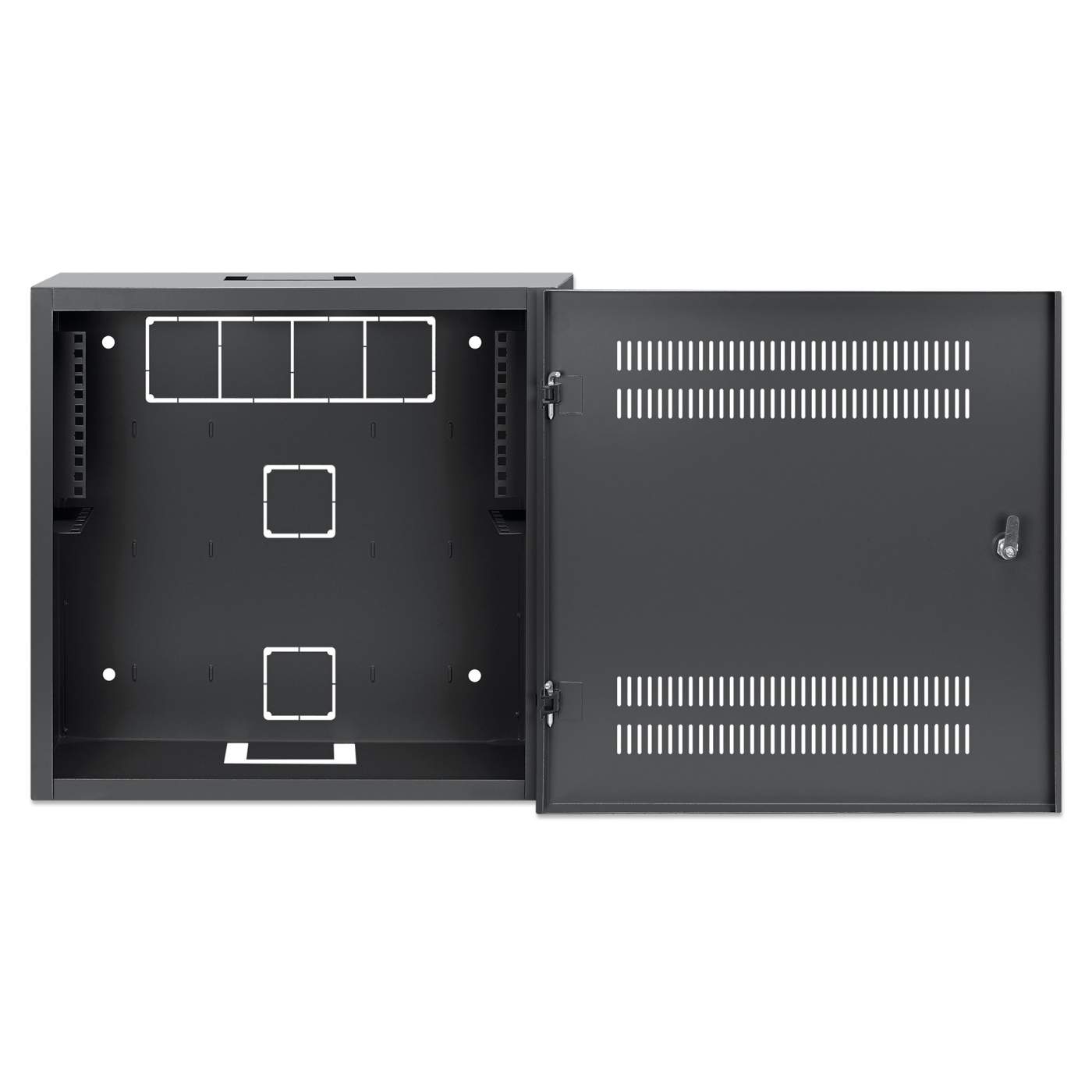

  • Pre-punched cable entry openings on top, rear and bottom
  • Ships fully assembled for quick installation
  • Three-year warranty

    Standards and Certifications
  • RoHS
  • IP20 Protection Rating
  • ANSI/EIA 310-E
  • IEC 60297-2

    General
  • Dimensions (L x W x H): 540 x 550 x 170 mm (21.26 x 21.65 x 6.69 in.)
  • Weight: 8.5 kg (18.74 lbs.)
  • Maximum static load: 60 kg (132 lbs.)
  • Material: steel
  • Color: black RAL7021

    Package Contents
  • Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails

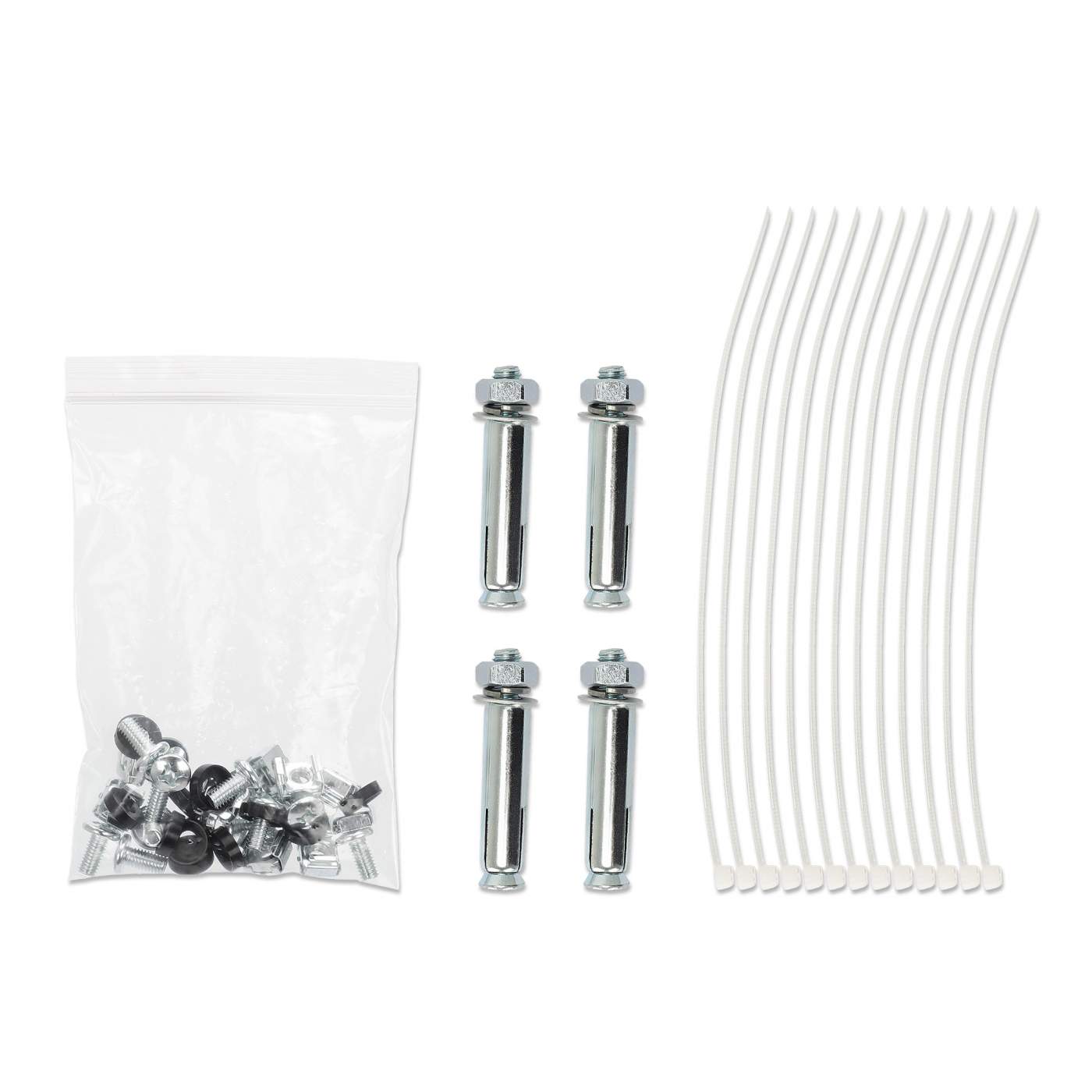

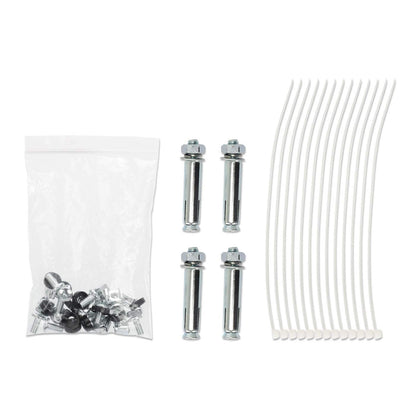

  • Cage nut set for 19" rackmount equipment (12 x M6 screw, 12 x M6 cage nut, 12 x plastic washer)
  • Two keys

  • Additional SKUs

    • EAN: 0766623713689
    • UPC: 766623713689

  • Physical Specifications

    • Weight: 8.5 kg
    • Dimensions: 540 (L) x 550 (W) x 170 (H) [mm]
    • Packaging: Brown Box
    • Carton Quantity: 1
    • Carton Weight: 9.50 kg

  • Datasheet

    • Cabinet accessory compatibility chart EU
      Cabinet accessory chart for European Market

      English and German PDF Included     » Download

    • Datasheet     » Download

    • Datenblatt (Deutsch)     » Download

    • Technical Drawing     » Download


  • Manual

    • Assembly Guide
      Assembly guide for Network and Server Cabinets     » Download
