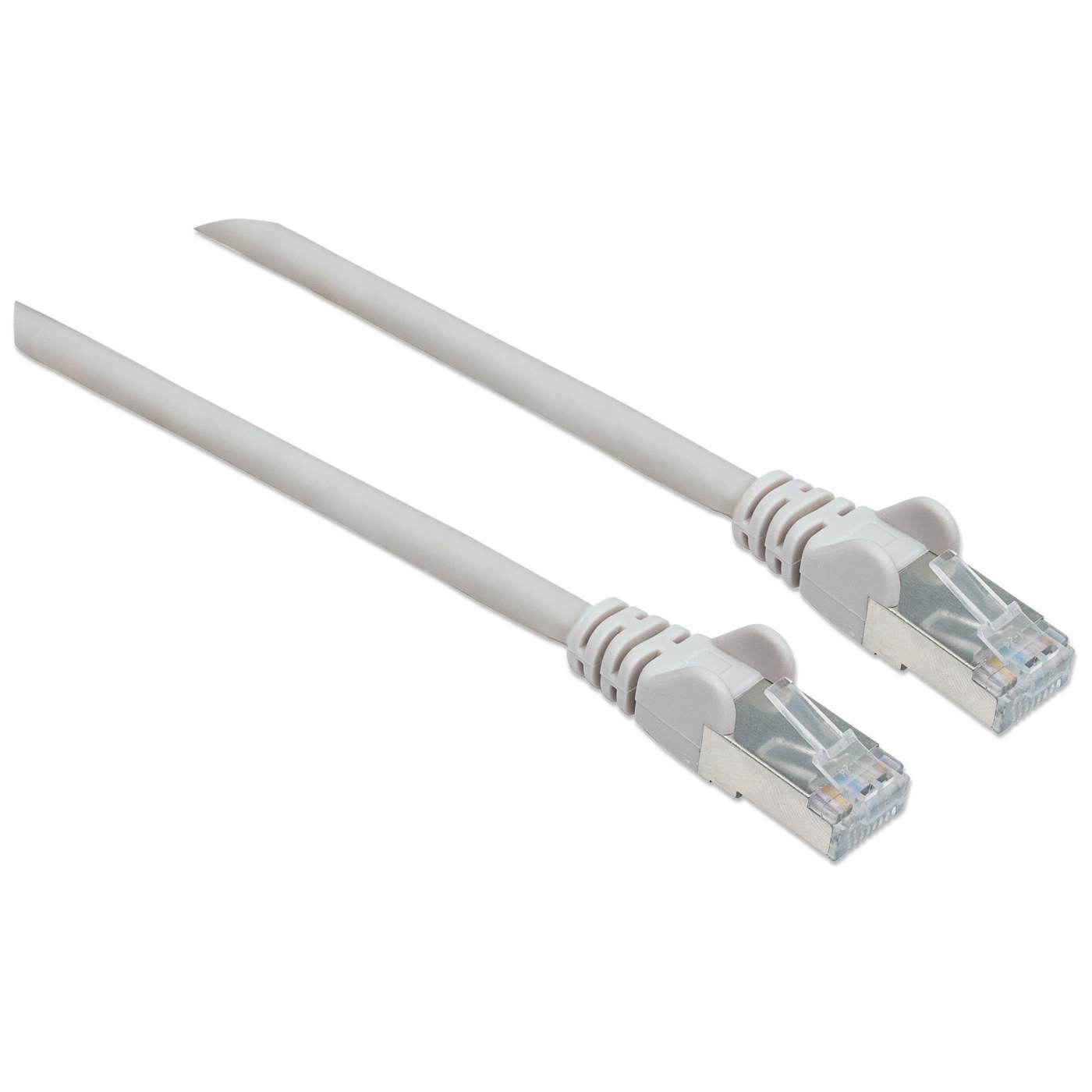

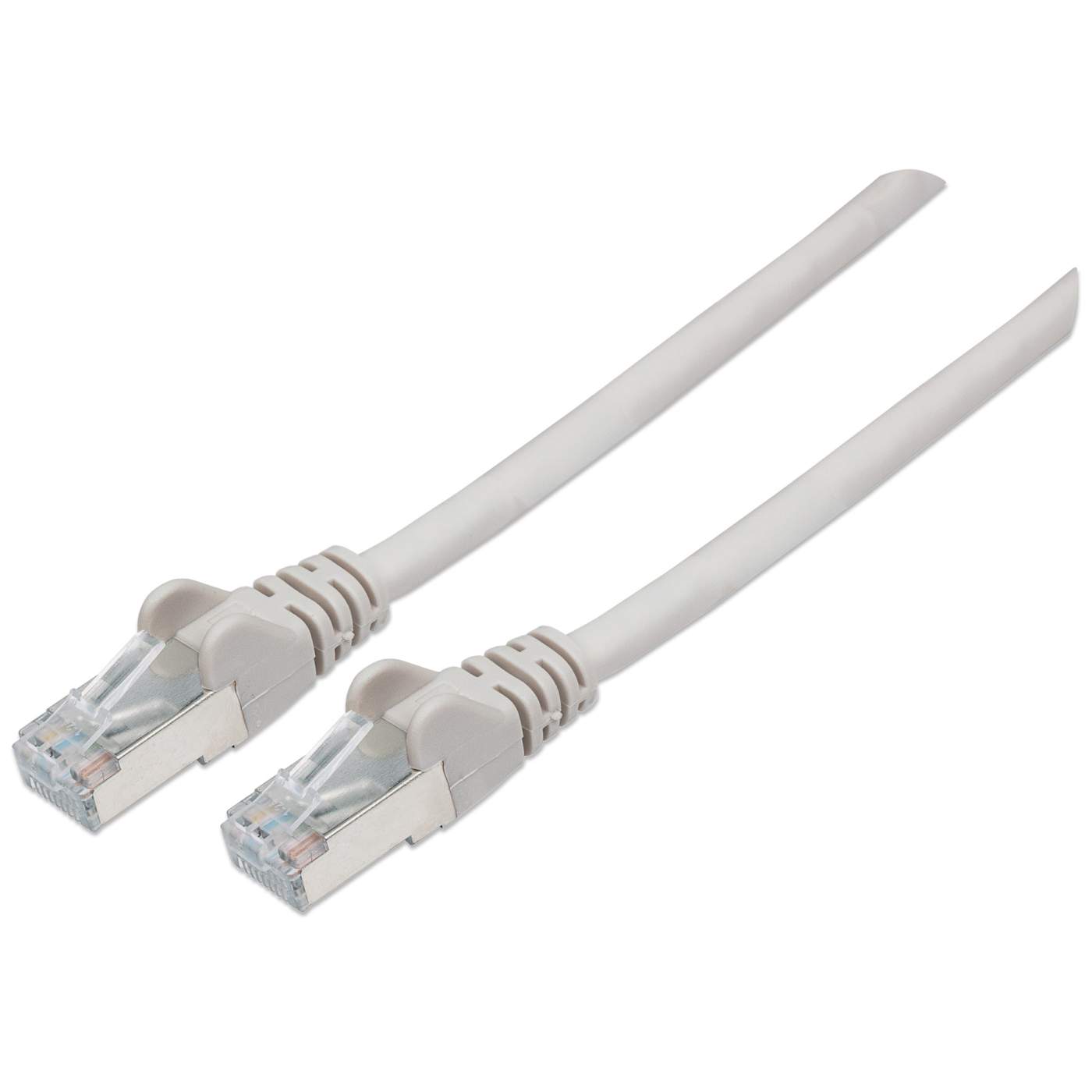

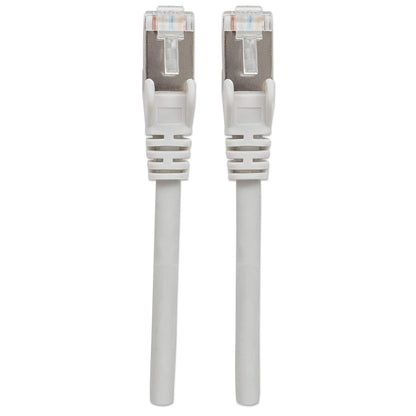

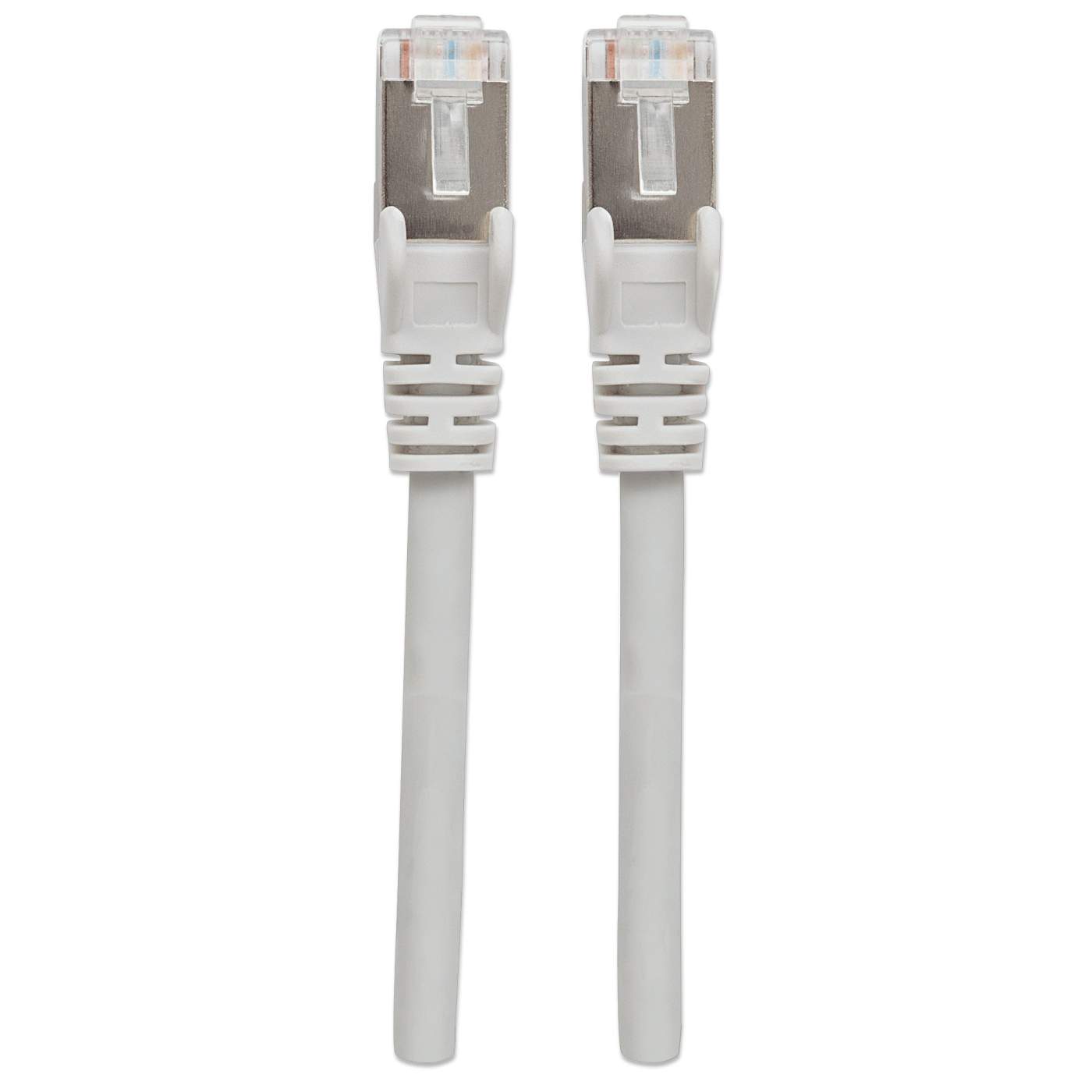

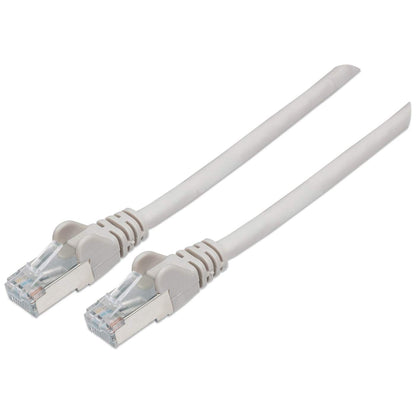

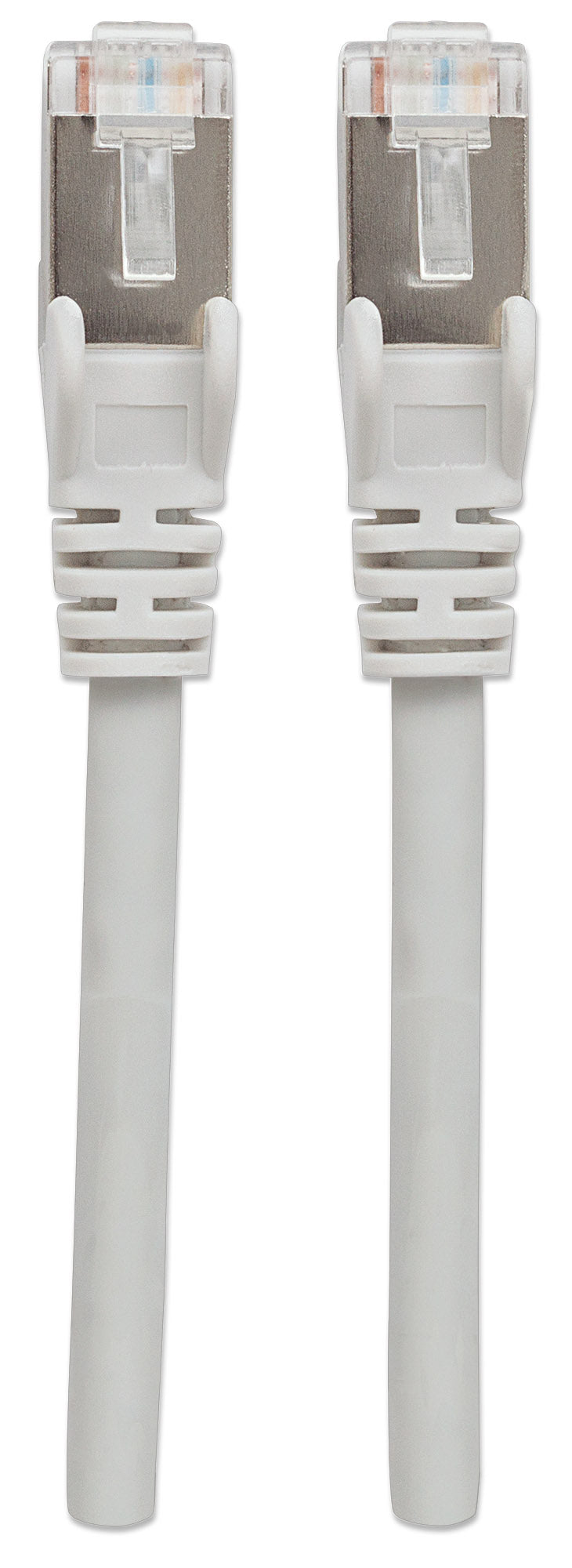

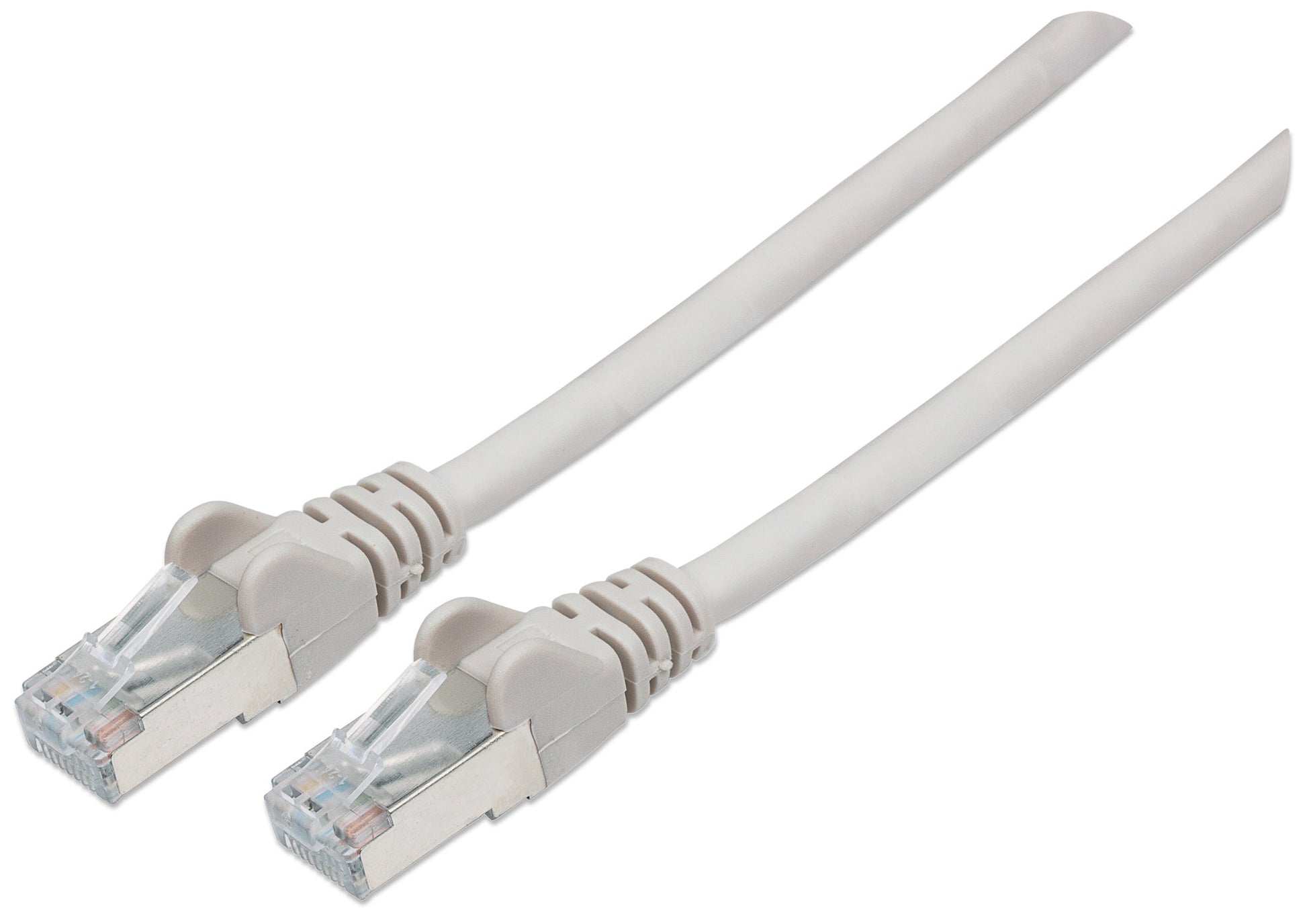

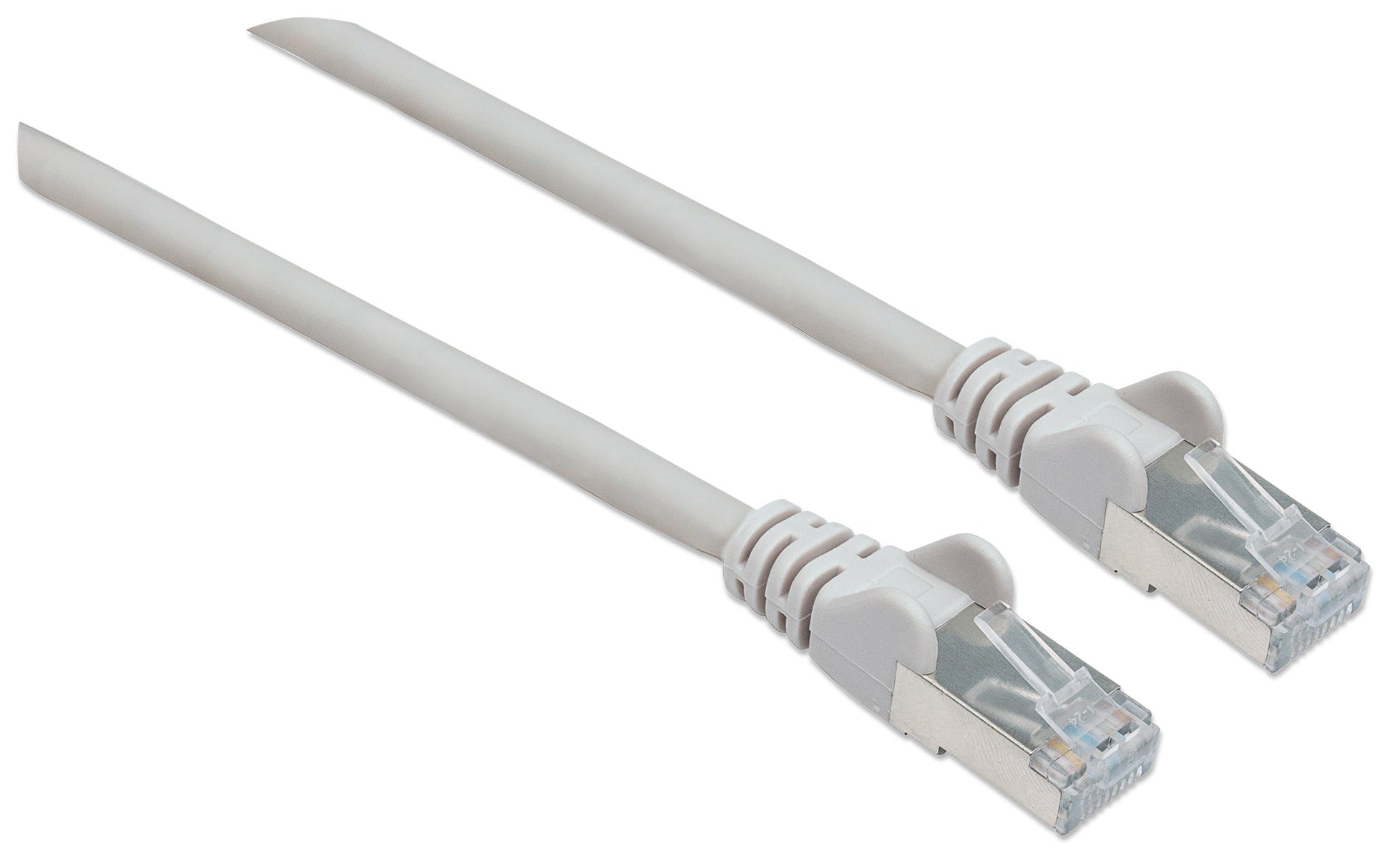

LSOH Network Cable, Cat6, SFTP

RJ45 Male / RJ45 Male, 30.0 m (100 ft.), Gray

Part-No.: 733328

Highlights

  • Double-shielded twisted pair cable
  • PIMF (Pairs in Metal Foil) shielding
  • Low-smoke, zero-halogen (LSOH / LSZH) cable with molded boot

Future arrivals:

#
Quantity
Arrival Date
1
150
2021-03-10


Cat6 performance for a variety of applications.This Intellinet Network Solutions Cat6 network cable is commonly used for networking and audio/video installations in both SOHO and SMB applications. Made from 28-AWG copper cable and shielded to virtually eliminate interference, this cable supports Gigabit Ethernet speeds (100 Mbps) and is ideal for HDMI repeaters and extenders, as well as high-speed data and PoE. Low-Smoke, Zero-Halogen (LSZH)In a fire, typical plastics can release hydrogen chloride and other caustic gases. Low-smoke, zero-halogen cable is made of a thermoplastic compound that emits a limited amount of smoke and no halogens when exposed to fire or high heat.

  • Double-shielded twisted pair cable
  • PIMF (Pairs in Metal Foil) shielding
  • Low-smoke, zero-halogen (LSOH / LSZH) cable with molded boot
  • Gold-plated contacts for best connection

  • Standard: Cat6 (250 MHz)
  • 4 x 2 x AWG 28/7 CU
  • Shielding: S/FTP
    - S = stranded: tinned copper braid
    - FTP = foiled twisted pair: aluminum foil screen around each pair (PIMF)
  • EIA/TIA 568B

  • Additional SKUs

    • Amazon ASIN: B00WGF22EO
    • EAN: 0766623733328
    • UPC: 766623733328
    • ALSO: 2733750
    • API: 177186

  • Physical Specifications

    • Dimensions: 30 m
    • Packaging: Bag
    • Carton Quantity: 15

  • Datasheet
