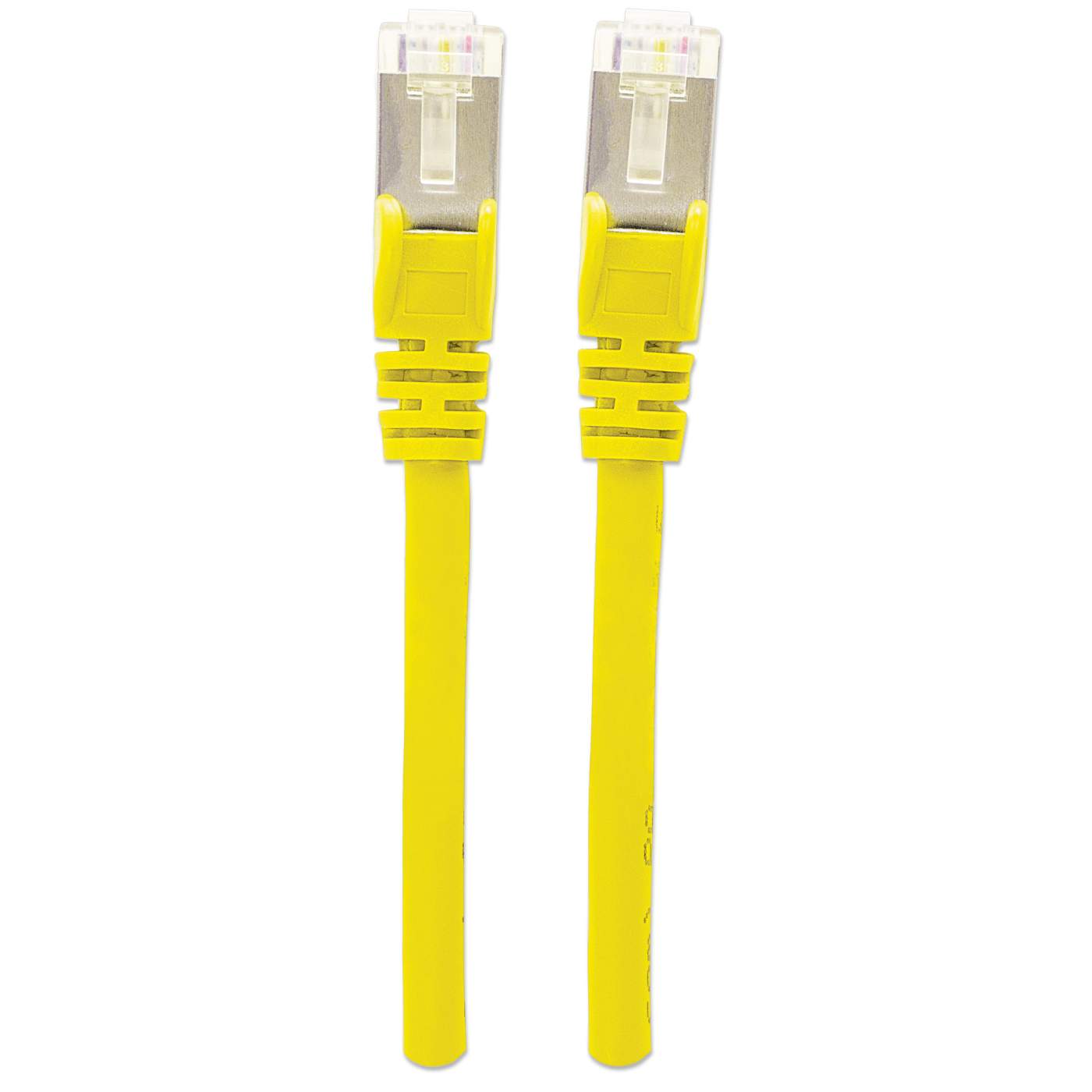

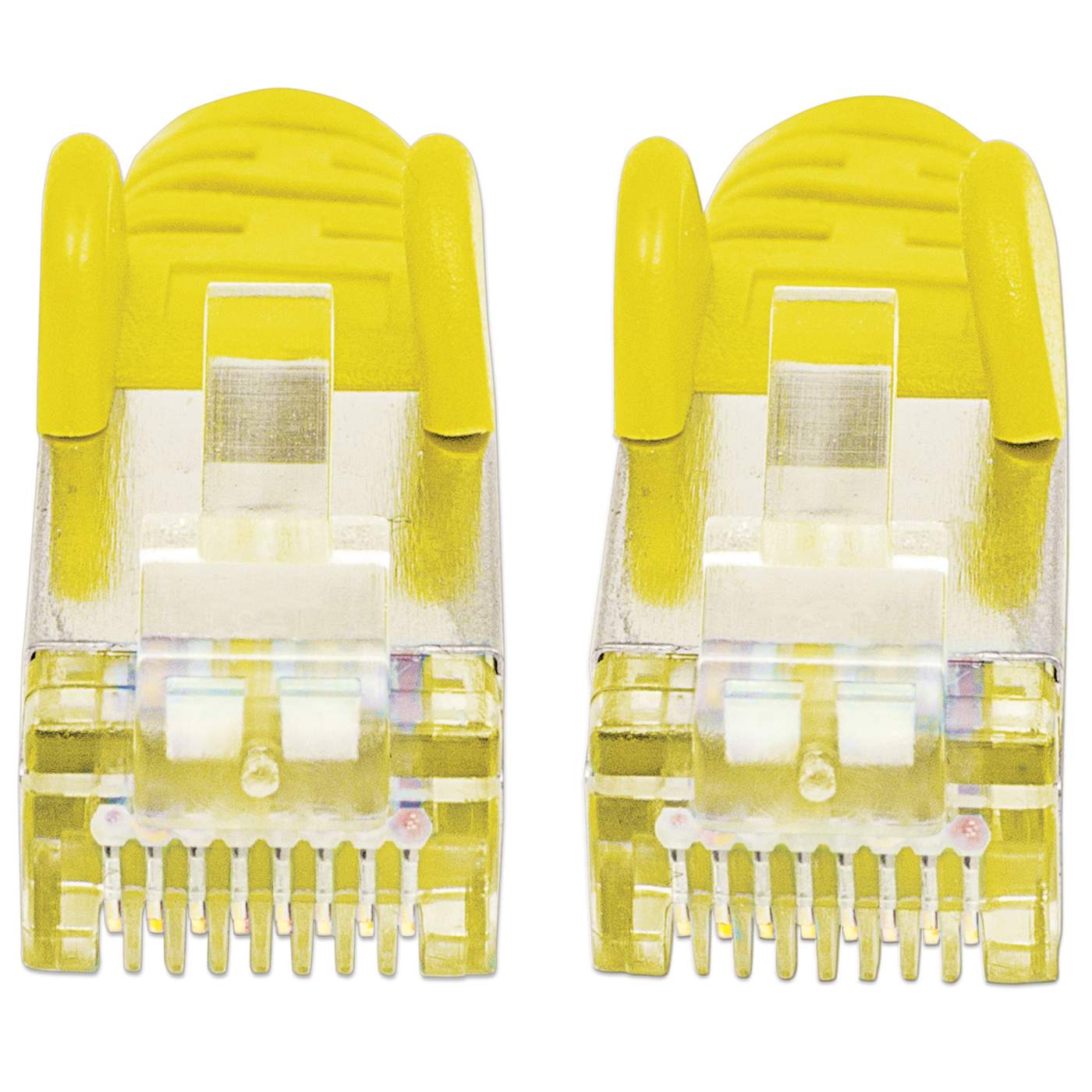

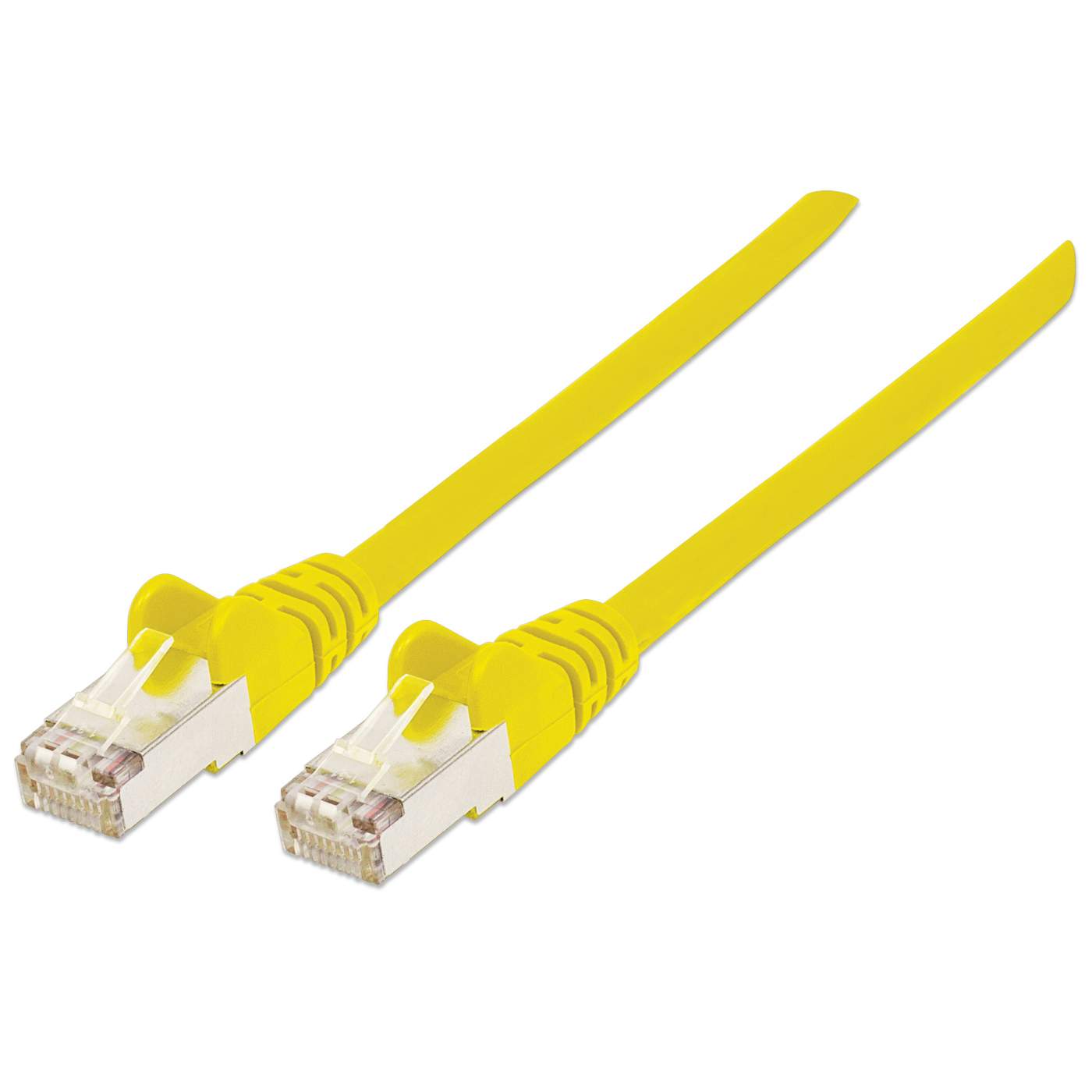

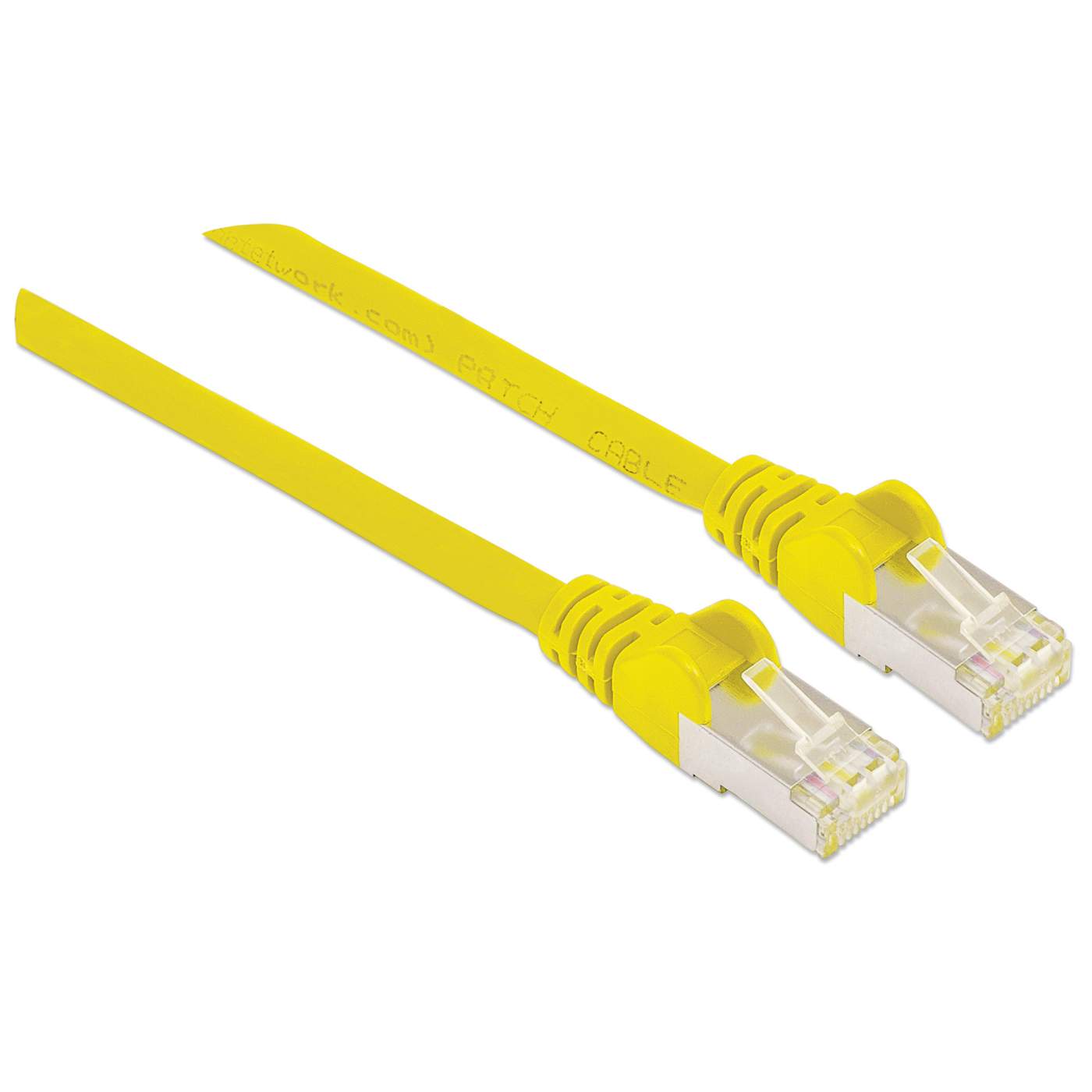

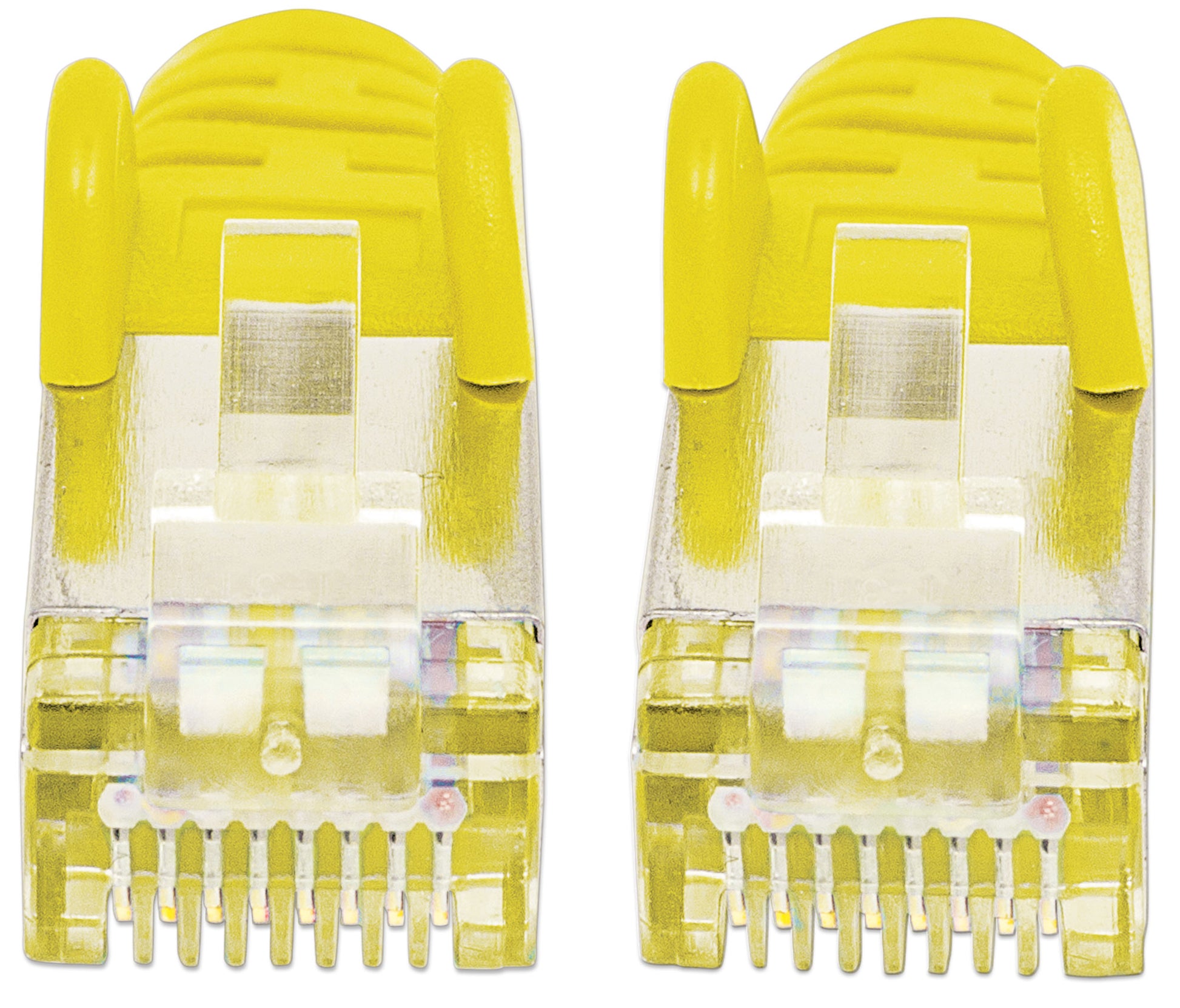

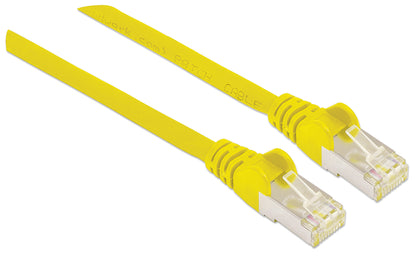

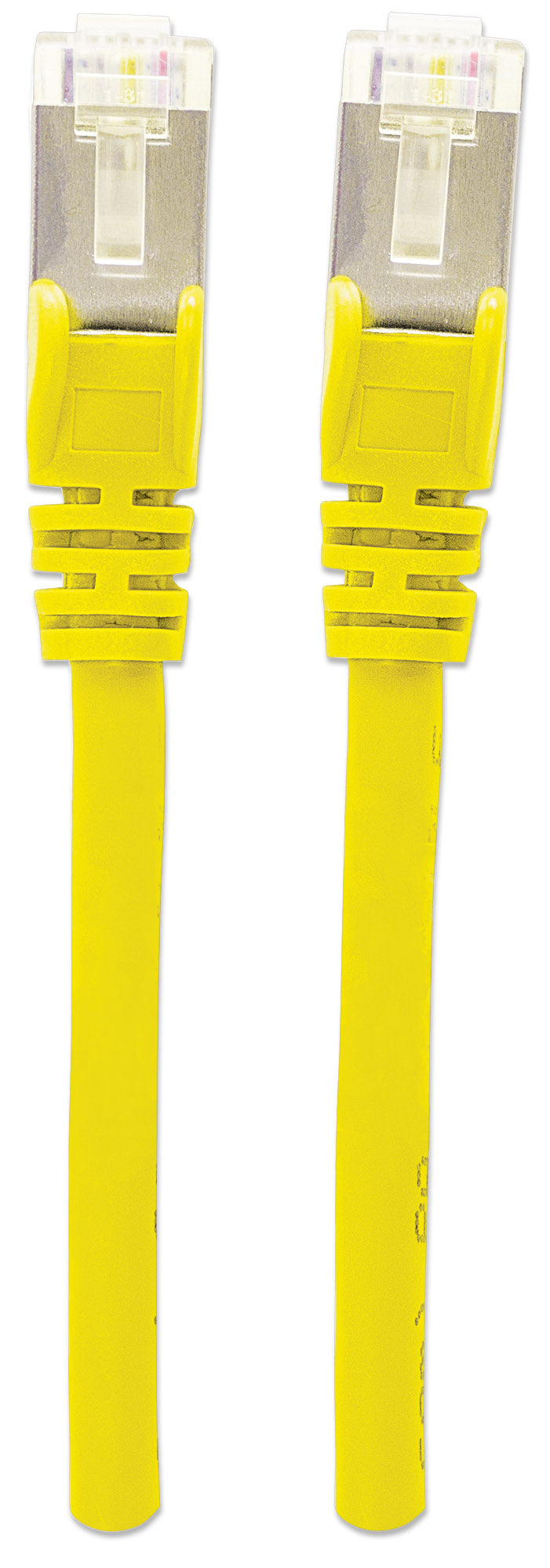

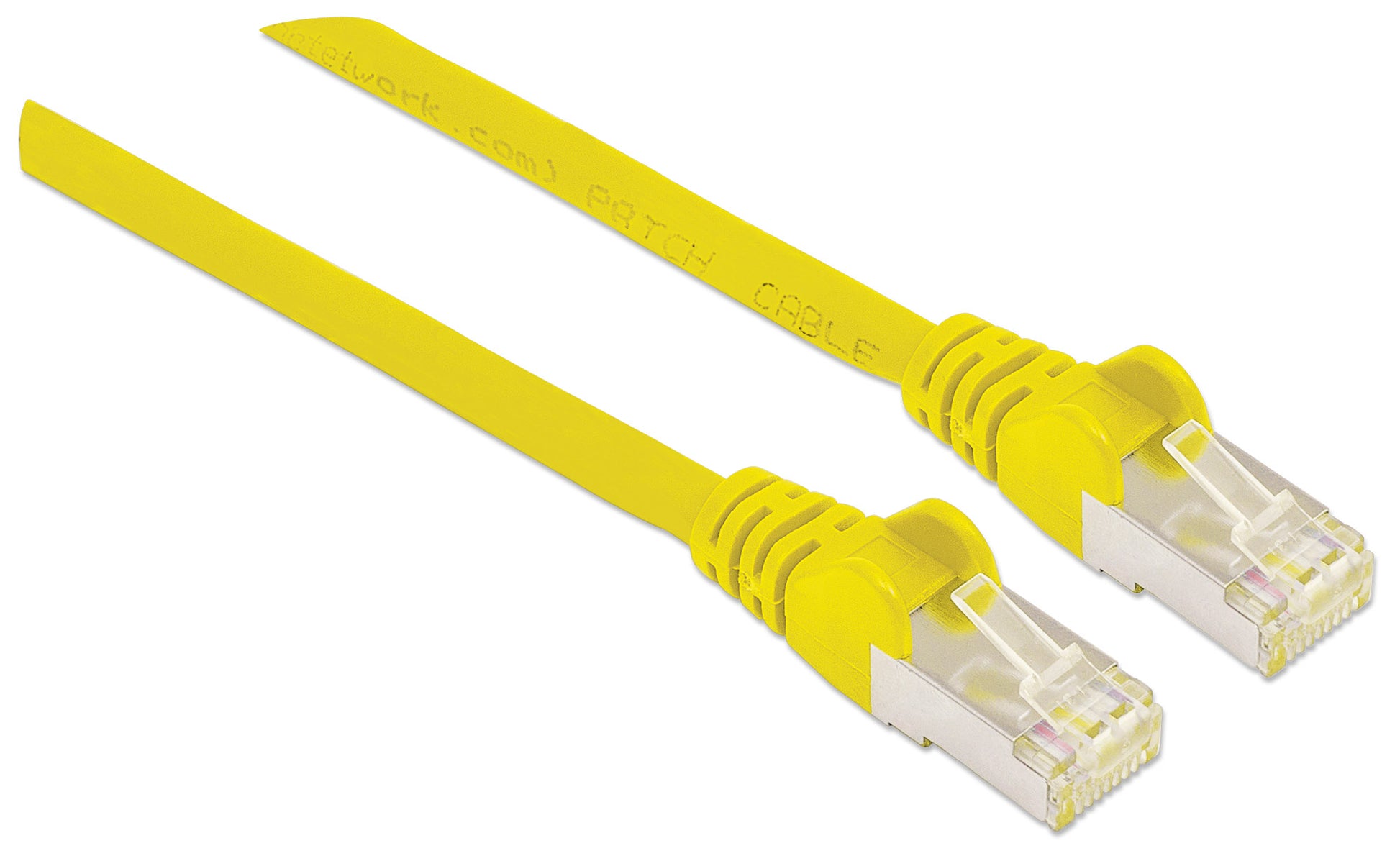

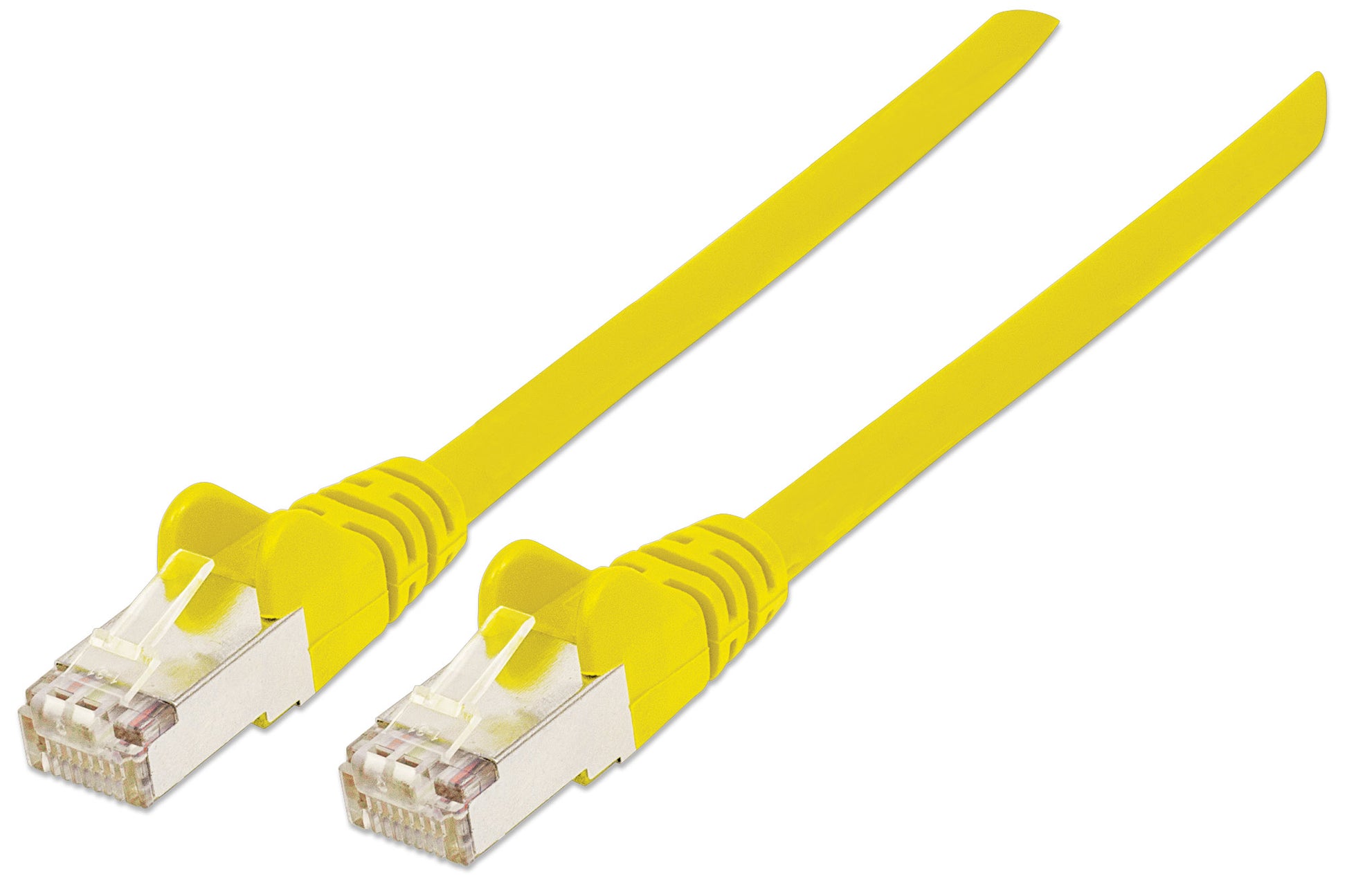

LSOH Network Cable, Cat6, SFTP

RJ45 Male / RJ45 Male, 3.0 m (10 ft.), Yellow

Part-No.: 735520

Highlights

  • Double-shielded twisted pair cable
  • PIMF (Pairs in Metal Foil) shielding
  • Low-smoke, zero-halogen (LSOH / LSZH) cable with molded boot


Cat6 performance for a variety of applications.This Intellinet Network Solutions Cat6 network cable is commonly used for networking and audio/video installations in both SOHO and SMB applications. Made from 28-AWG copper cable and shielded to virtually eliminate interference, this cable supports Gigabit Ethernet speeds (1000 Mbps) and is ideal for HDMI repeaters and extenders, as well as high-speed data and PoE. Low-Smoke, Zero-Halogen (LSZH)In a fire, typical plastics can release hydrogen chloride and other caustic gases. Low-smoke, zero-halogen cable is made of a thermoplastic compound that emits a limited amount of smoke and no halogens when exposed to fire or high heat.

  • Double-shielded twisted pair cable
  • PIMF (Pairs in Metal Foil) shielding
  • Low-smoke, zero-halogen (LSOH / LSZH) cable with molded boot
  • Gold-plated contacts for best connection

  • Standard: Cat6 (250 MHz)
  • 4 x 2 x AWG 28/7 CU
  • Shielding: S/FTP:
    - S = stranded: tinned copper braid
    - FTP = foiled twisted pair: aluminum foil screen around each pair (PIMF)
  • EIA/TIA 568B

  • Additional SKUs

    • Amazon ASIN: B00WGELNX6
    • EAN: 0766623735520
    • UPC: 766623735520
    • ALSO: 2484369
    • API: 256603

  • Physical Specifications

    • Weight: 0.12 kg
    • Dimensions: 3.0 m
    • Packaging: Bag
    • Carton Quantity: 100
    • Carton Weight: 11.60 kg

  • Datasheet
