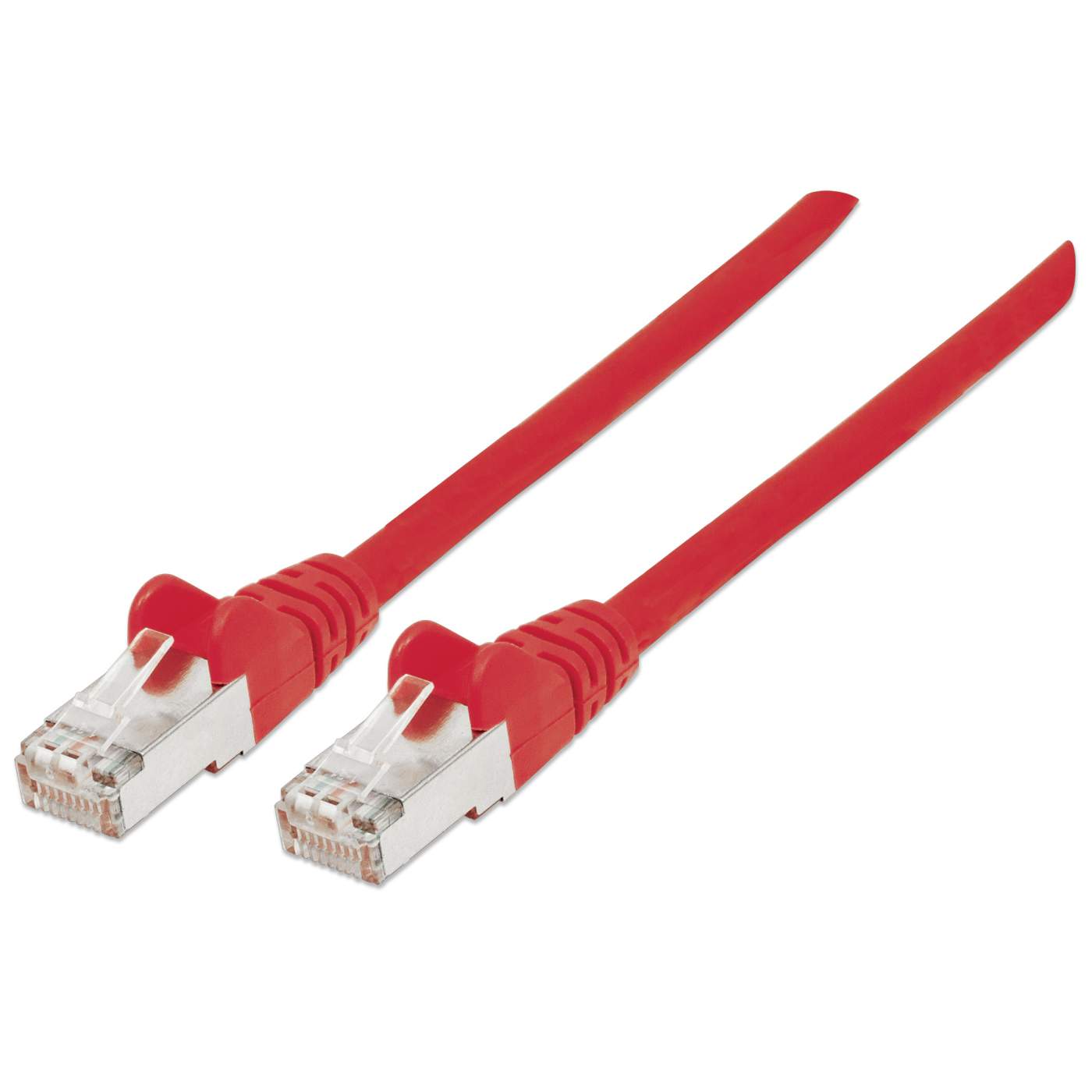

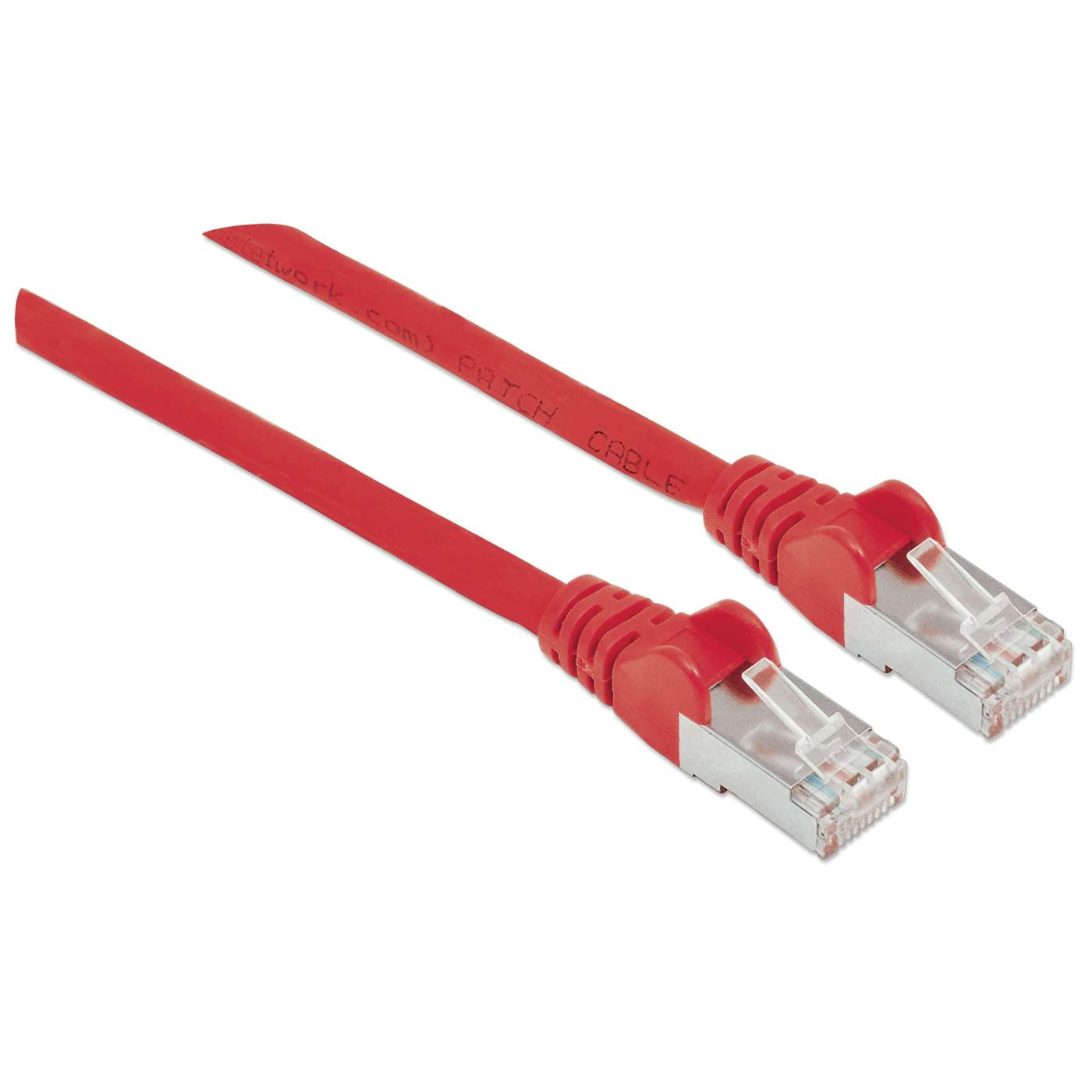

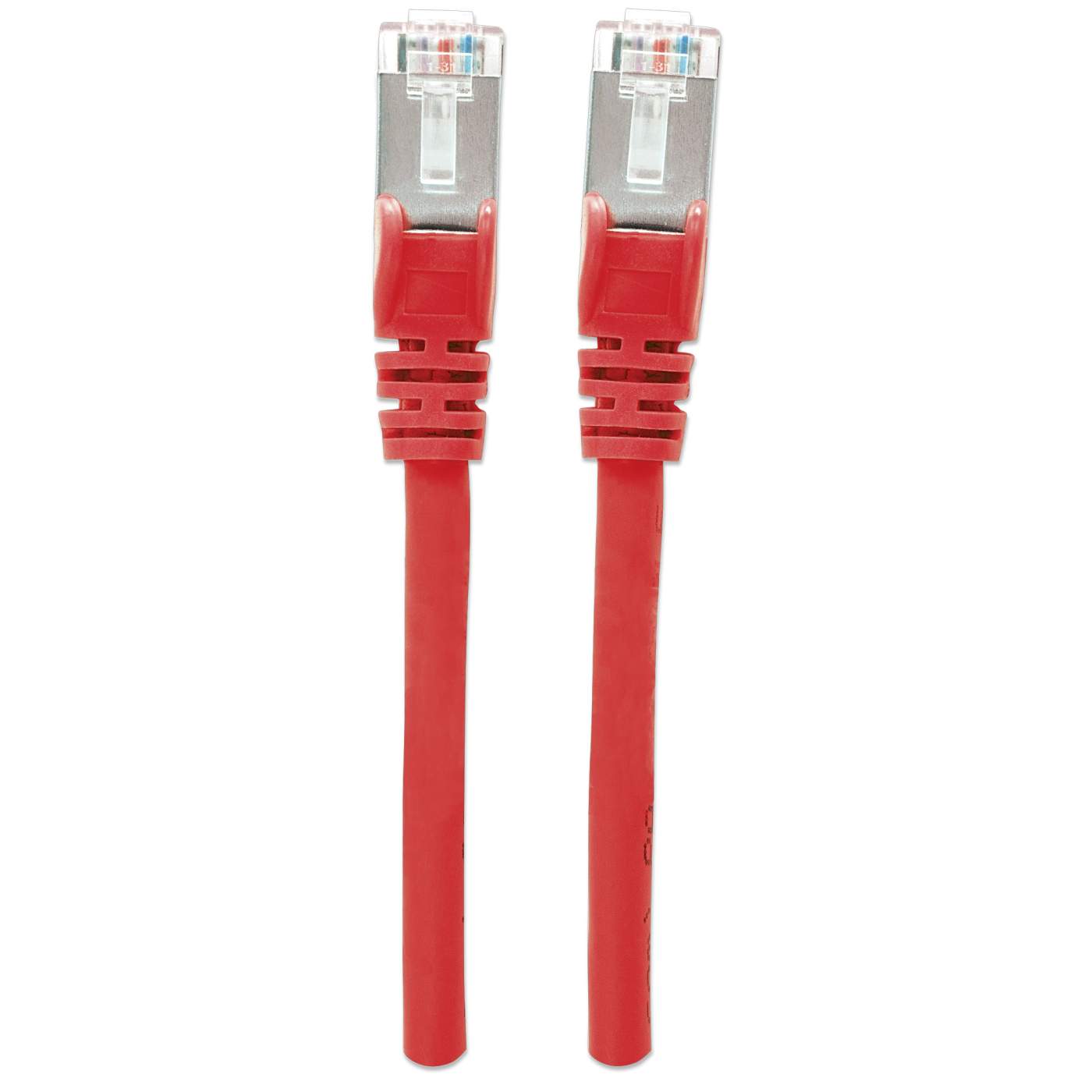

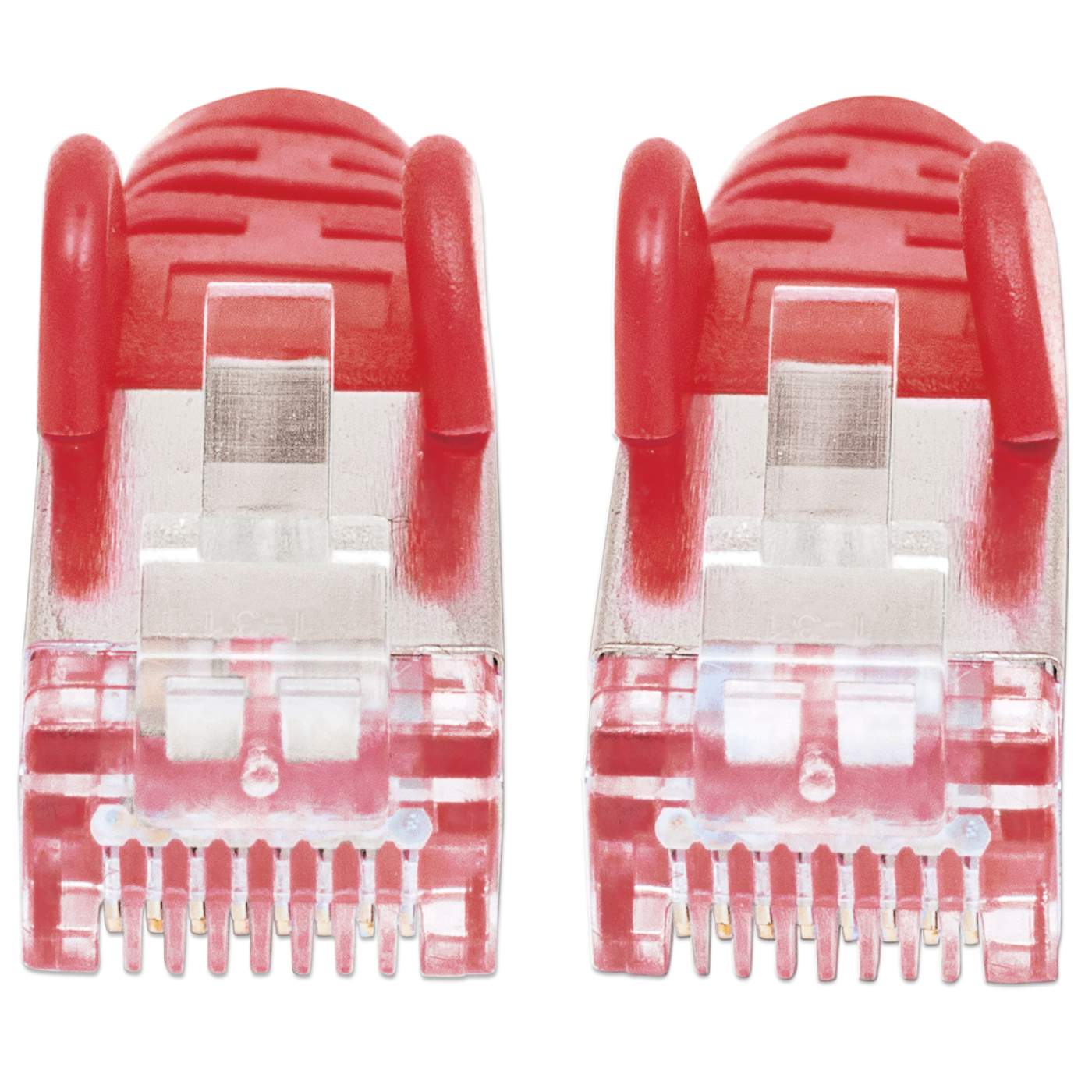

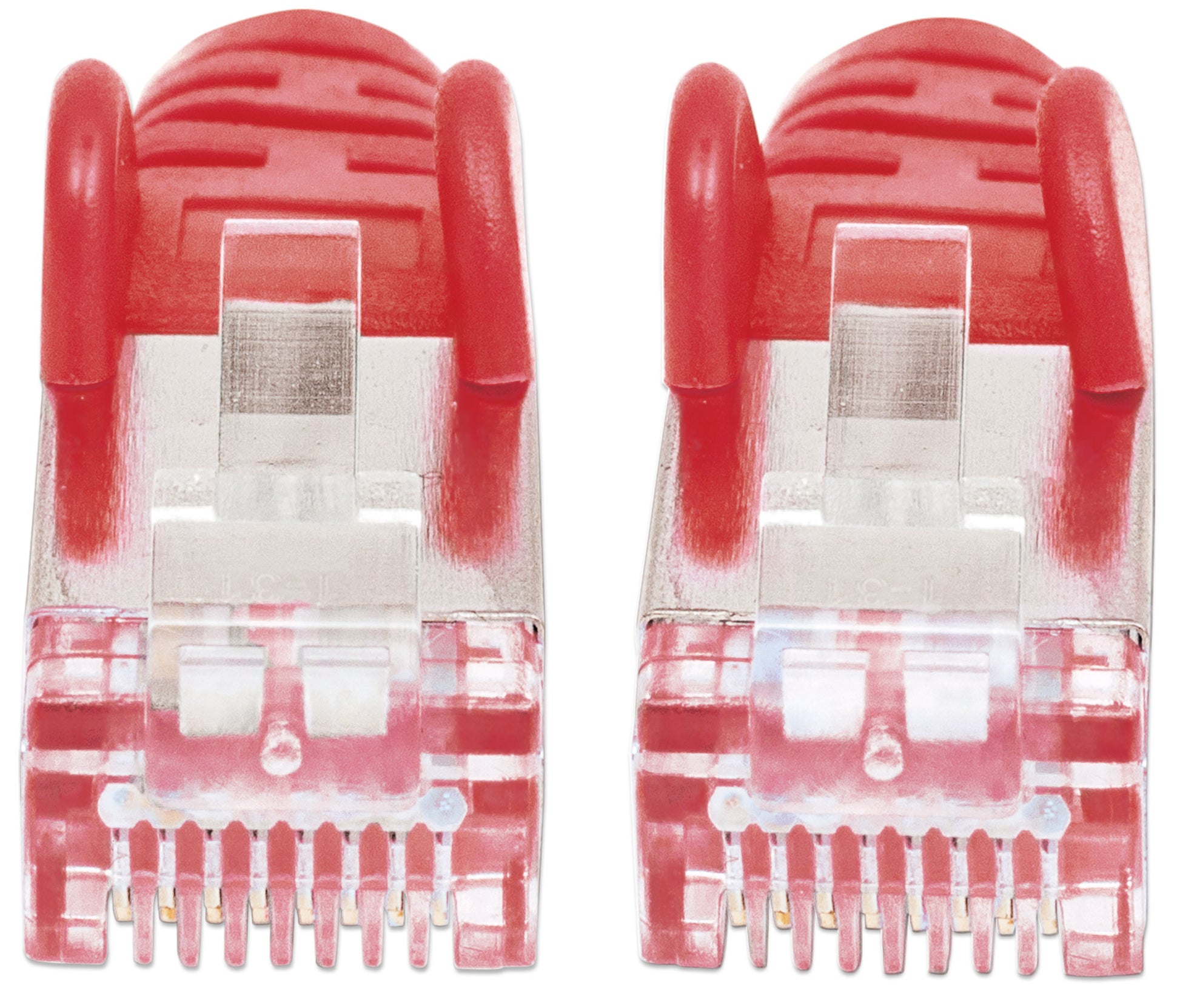

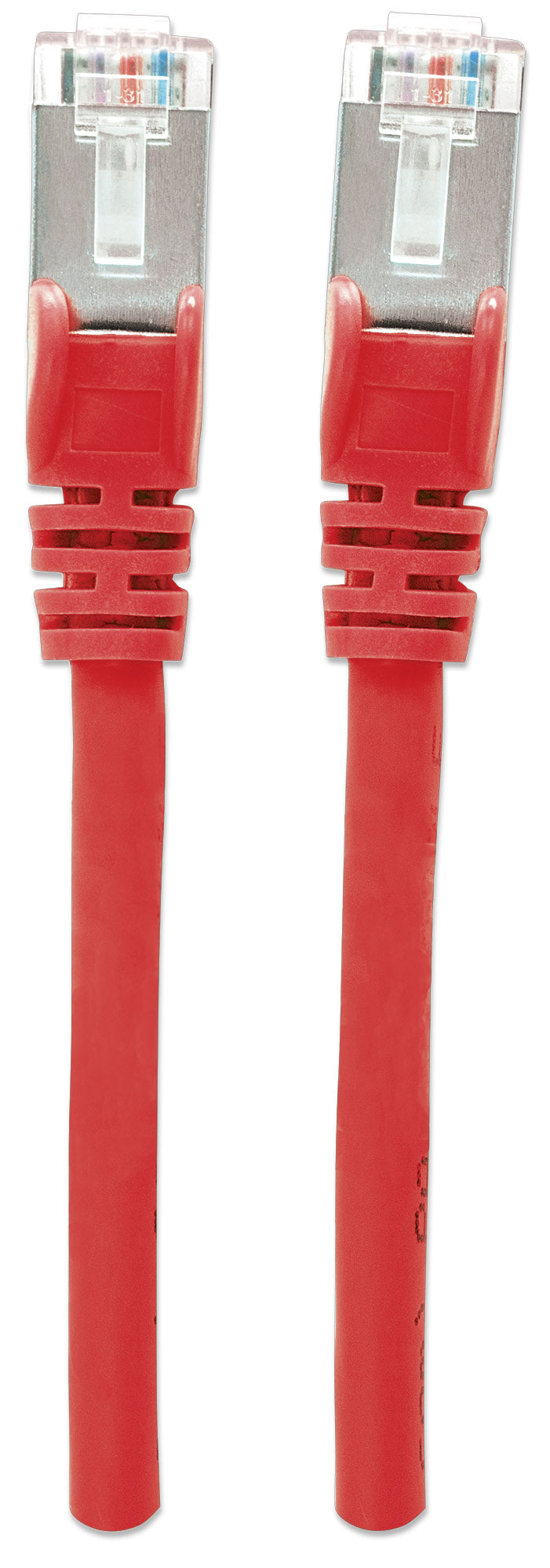

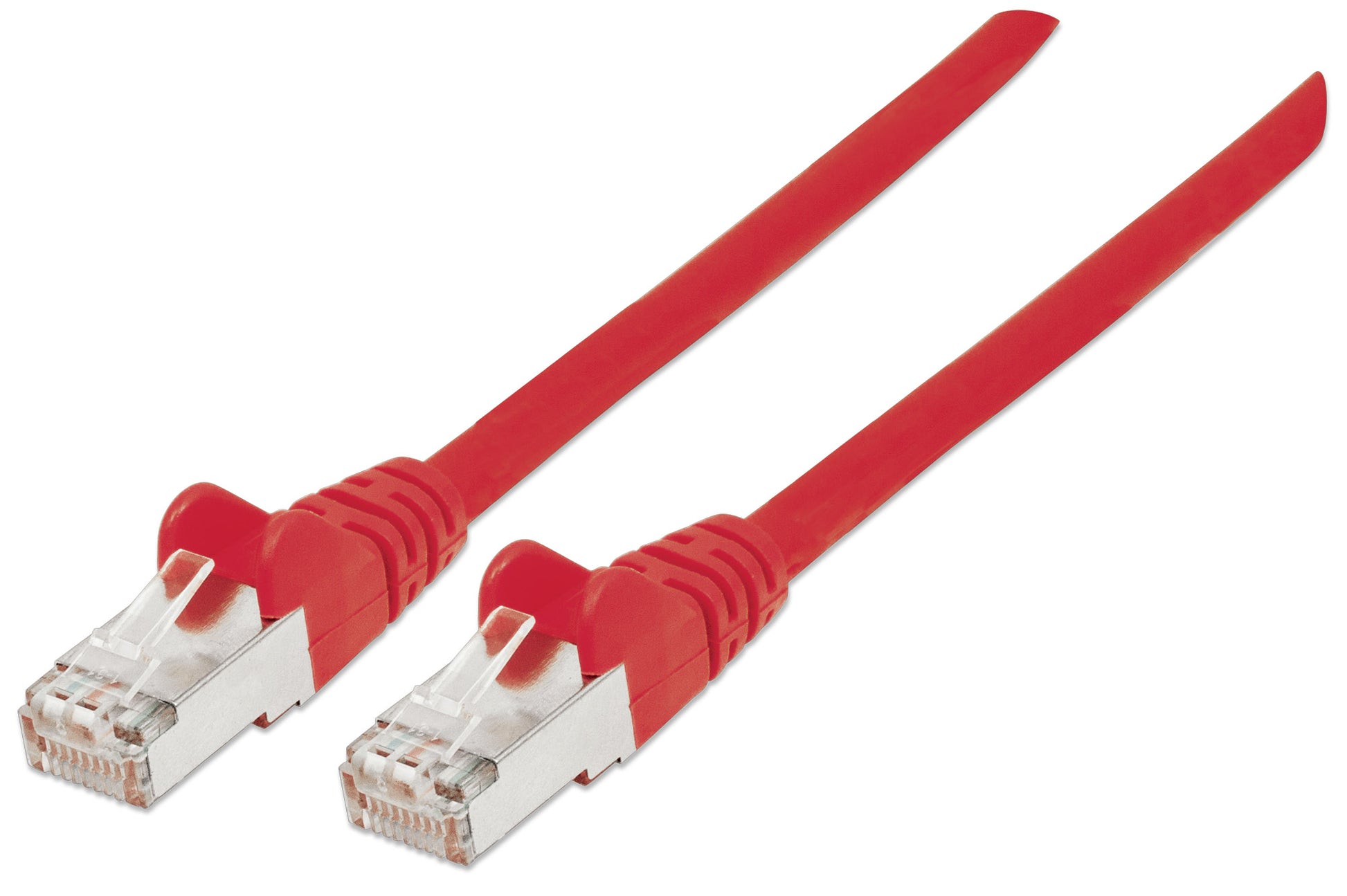

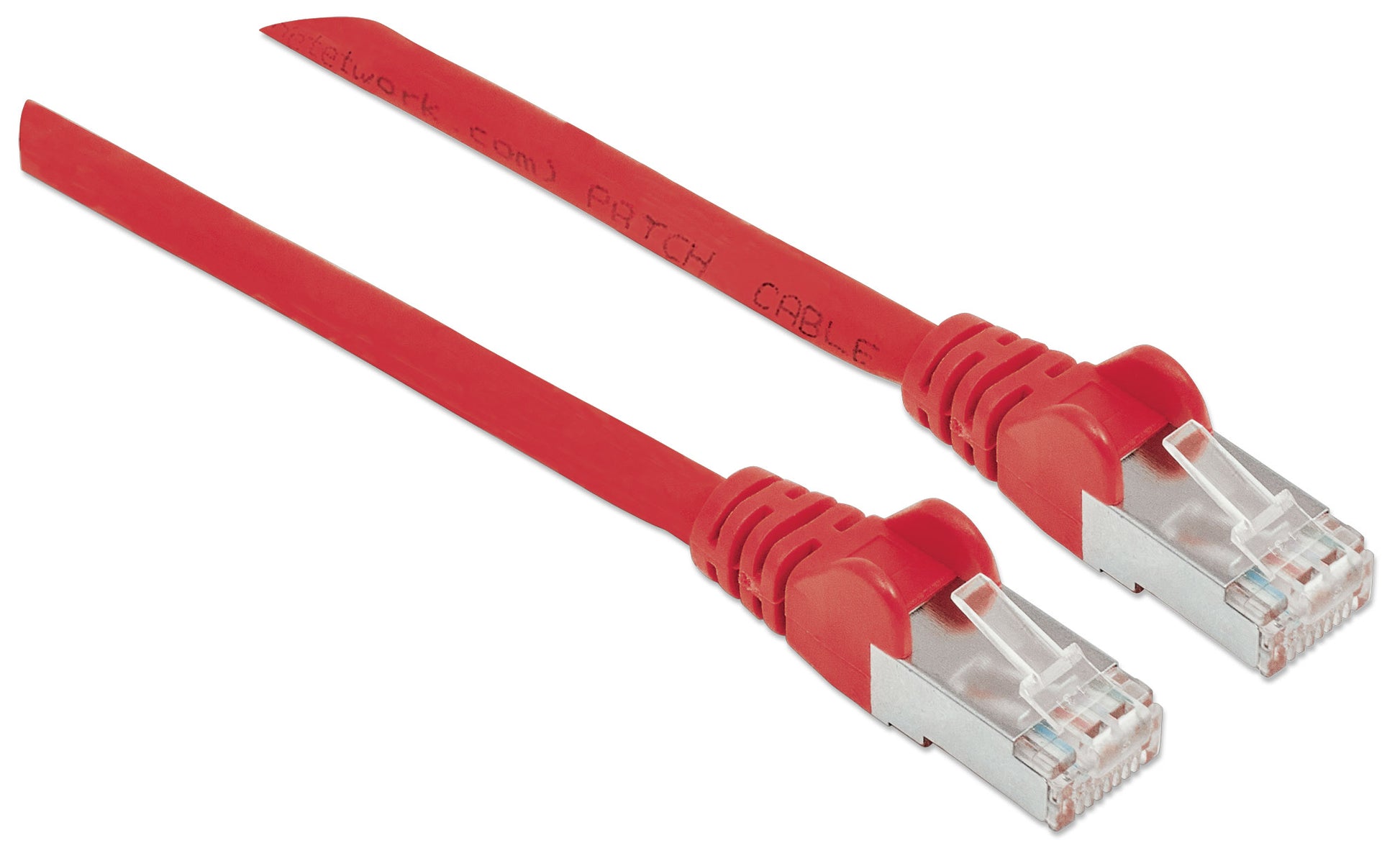

LSOH Network Cable, Cat6, SFTP

LSOH Network Cable, Cat6, SFTP

RJ45 Male / RJ45 Male, 10.0 m (33 ft.), Red

Part-No.: 735803

Highlights

  • Double-shielded twisted pair cable
  • PIMF (Pairs in Metal Foil) shielding
  • Low-smoke, zero-halogen (LSOH / LSZH) cable with molded boot
[ view high resolution images ]
View full details

Cat6 performance for a variety of applications.This Intellinet Network Solutions Cat6 network cable is commonly used for networking and audio/video installations in both SOHO and SMB applications. Made from 28-AWG copper cable and shielded to virtually eliminate interference, this cable supports Gigabit Ethernet speeds (1000 Mbps) and is ideal for HDMI repeaters and extenders, as well as high-speed data and PoE. Low-Smoke, Zero-Halogen (LSZH)In a fire, typical plastics can release hydrogen chloride and other caustic gases. Low-smoke, zero-halogen cable is made of a thermoplastic compound that emits a limited amount of smoke and no halogens when exposed to fire or high heat.

  • Double-shielded twisted pair cable
  • PIMF (Pairs in Metal Foil) shielding
  • Low-smoke, zero-halogen (LSOH / LSZH) cable with molded boot
  • Gold-plated contacts for best connection

    Standards and Certifications
  • CE
  • RoHS
  • REACH

    Standards and Certifications
  • CE
  • RoHS
  • REACH

  • Standard: Cat6 (250 MHz)
  • 4 x 2 x AWG 28/7 CU
  • Shielding: S/FTP:
    - S = stranded: tinned copper braid
    - FTP = foiled twisted pair: aluminum foil screen around each pair (PIMF)
  • EIA/TIA 568B

  • Additional SKUs

    • Amazon ASIN: B00WGEMQ64
    • EAN: 0766623735803
    • UPC: 766623735803
    • ALSO: 2484375
    • API: 256517

  • Physical Specifications

    • Product net weight: 0.21 kg
    • Product gross weight: 0.22 kg
    • Dimensions: 10 m

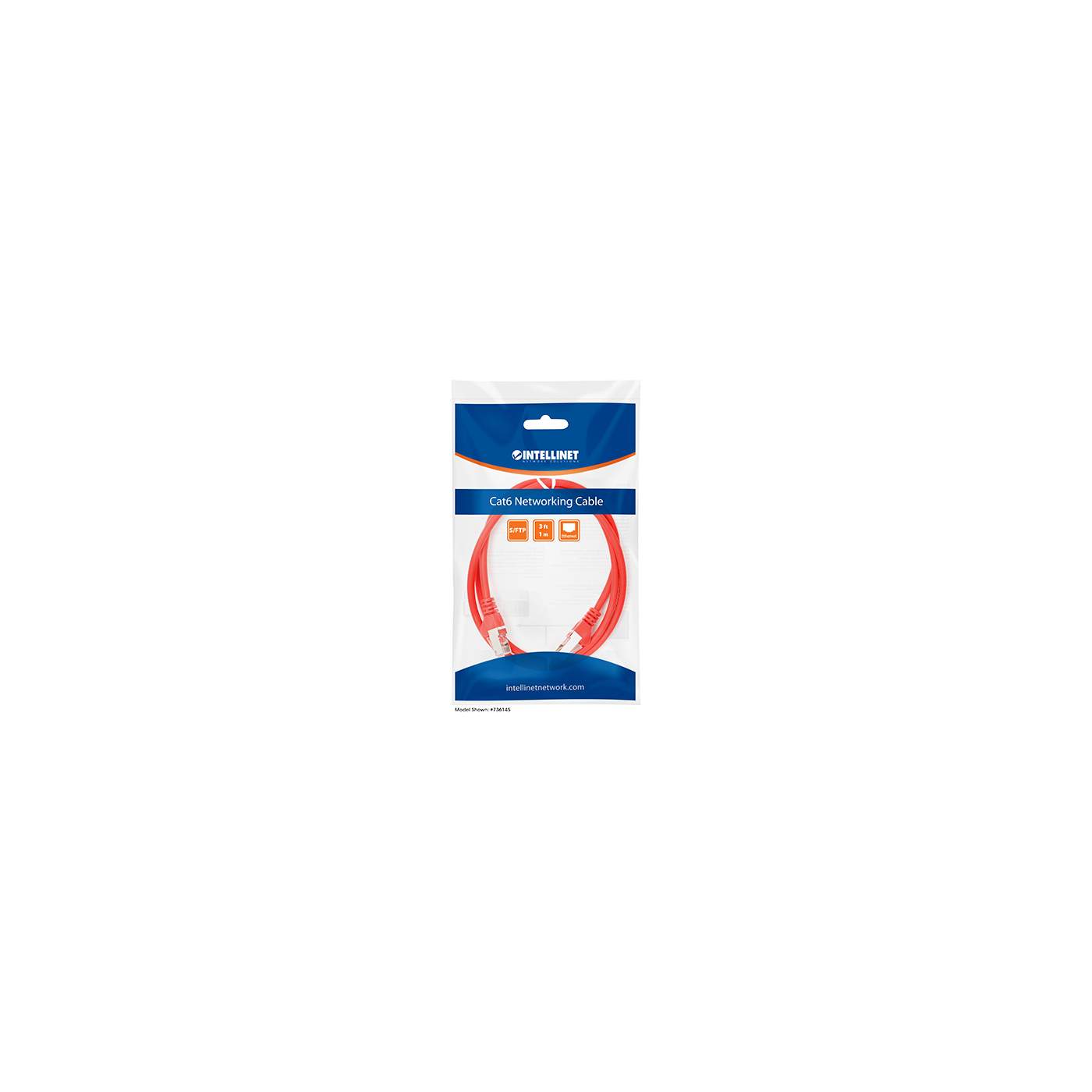

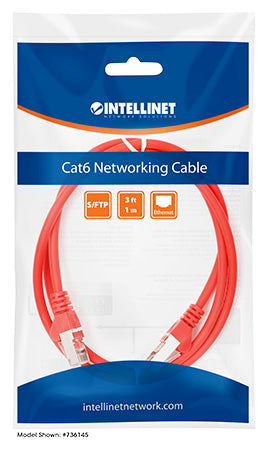

    • Packaging type: Bag
    • Packaging dimensions: 280 x 175 x 50 [mm]
    • Master Carton Quantity: 40
    • Master Carton Weight: 14.60 kg
    • Master Carton Dimensions: 490 x 300 x 300 [mm]

  • Datasheet
    • Datasheet     » Download

    • Declaration of Conformity     » Download
