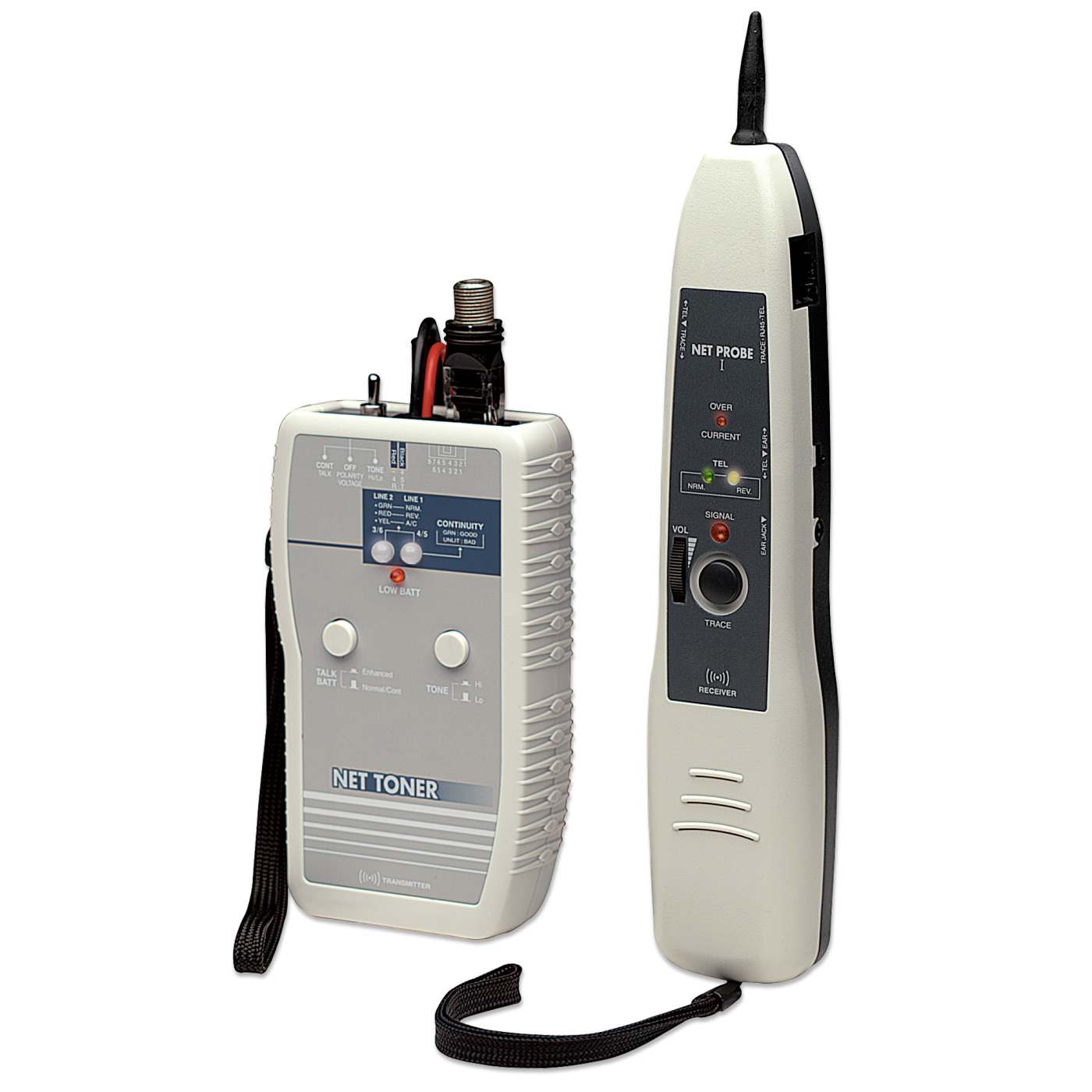

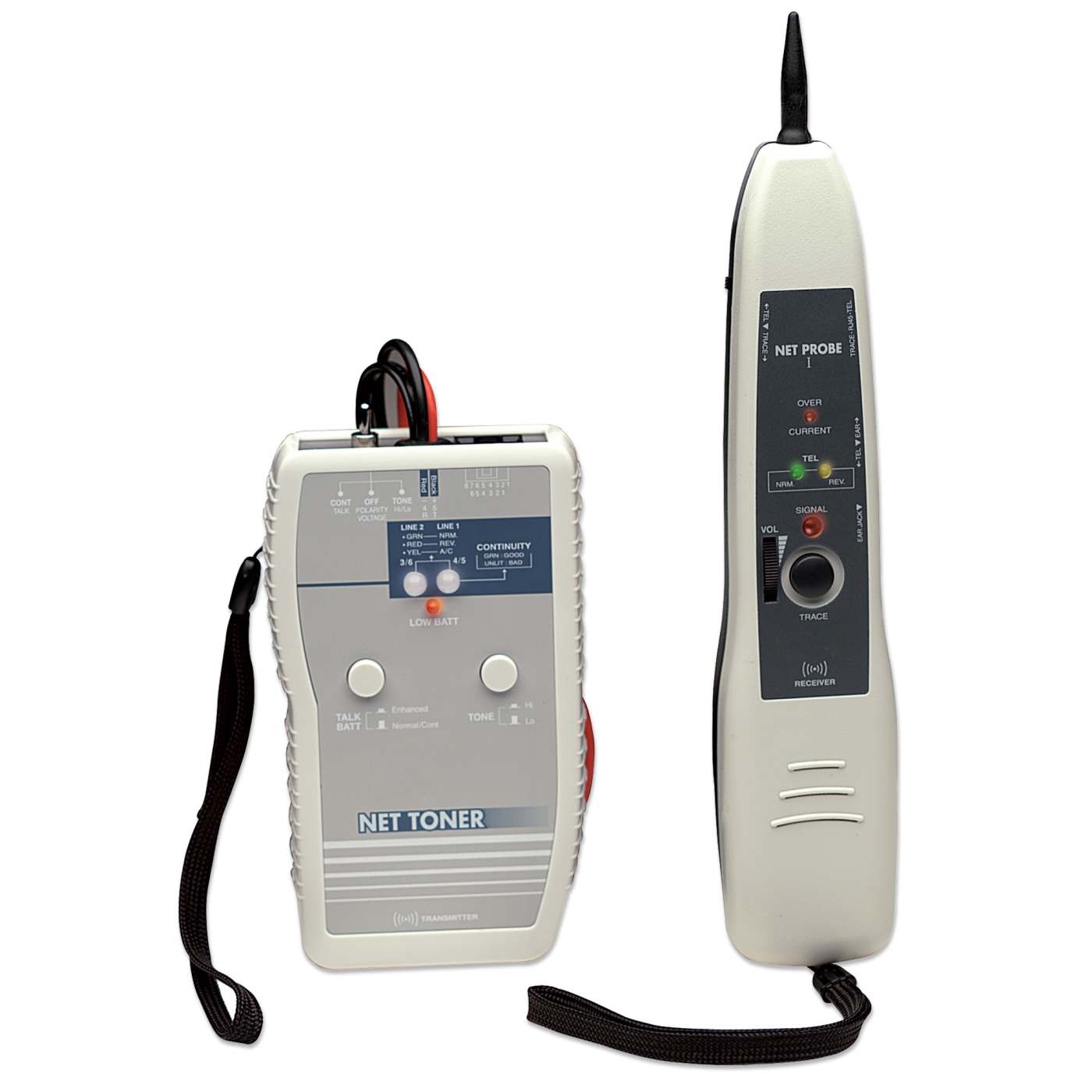

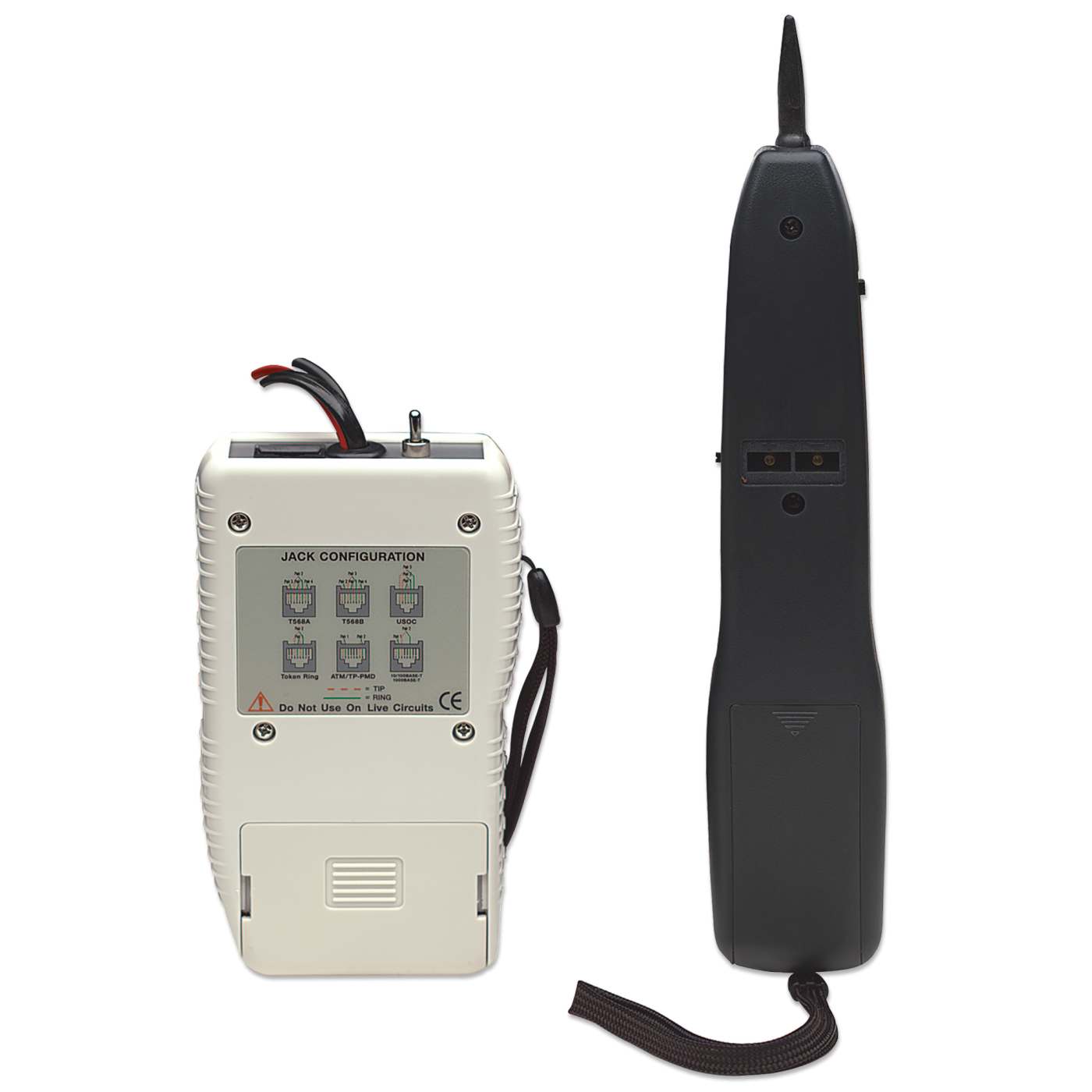

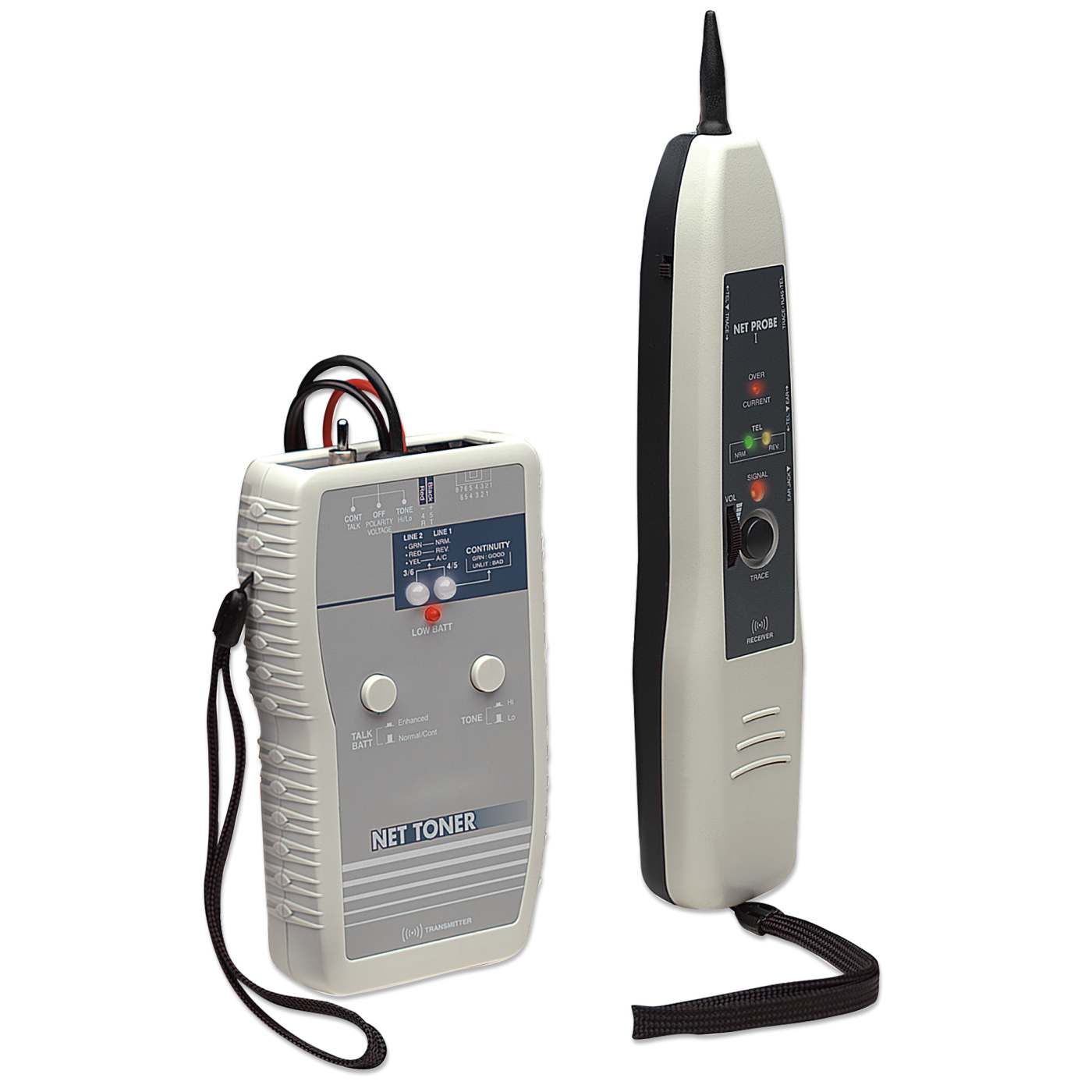

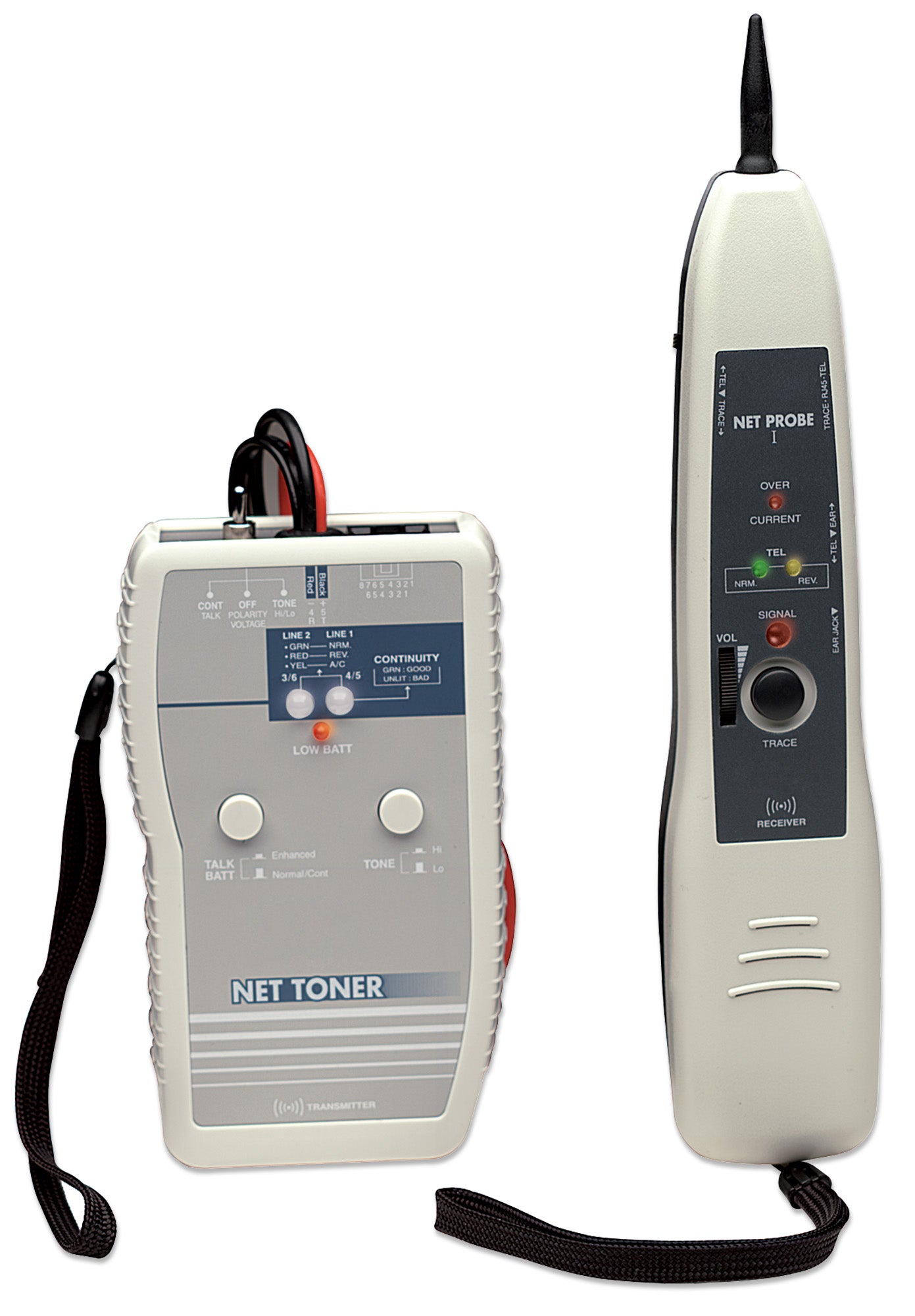

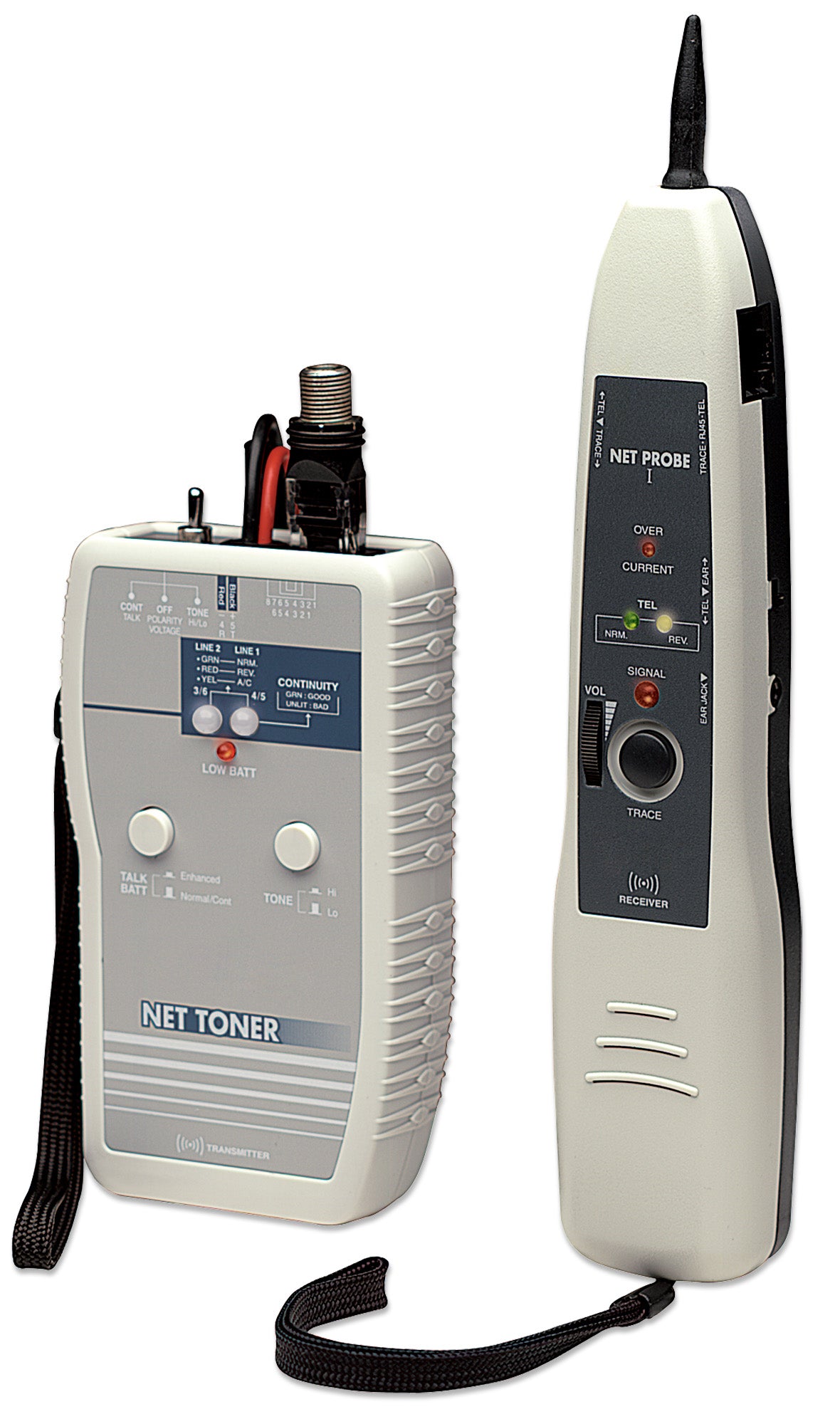

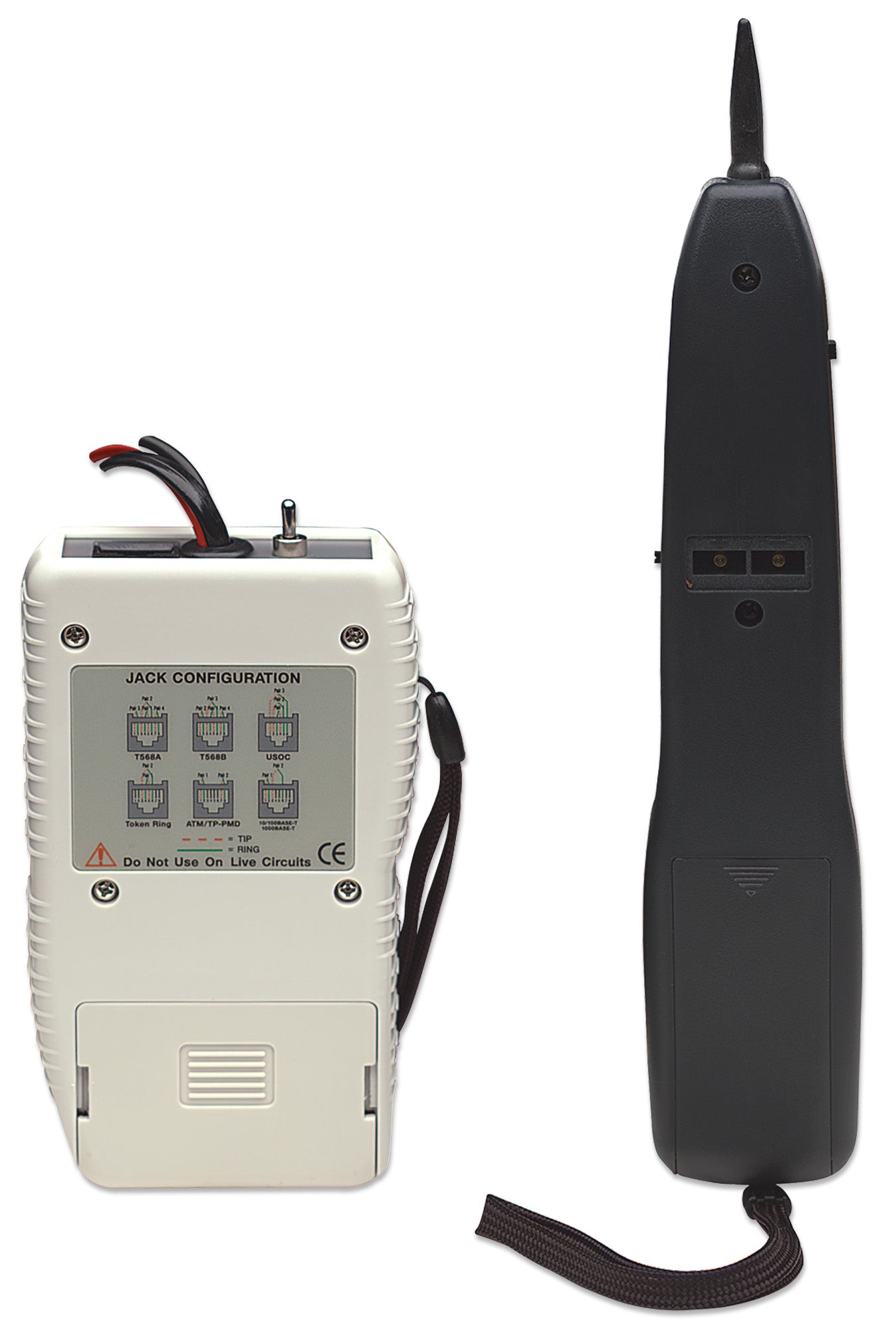

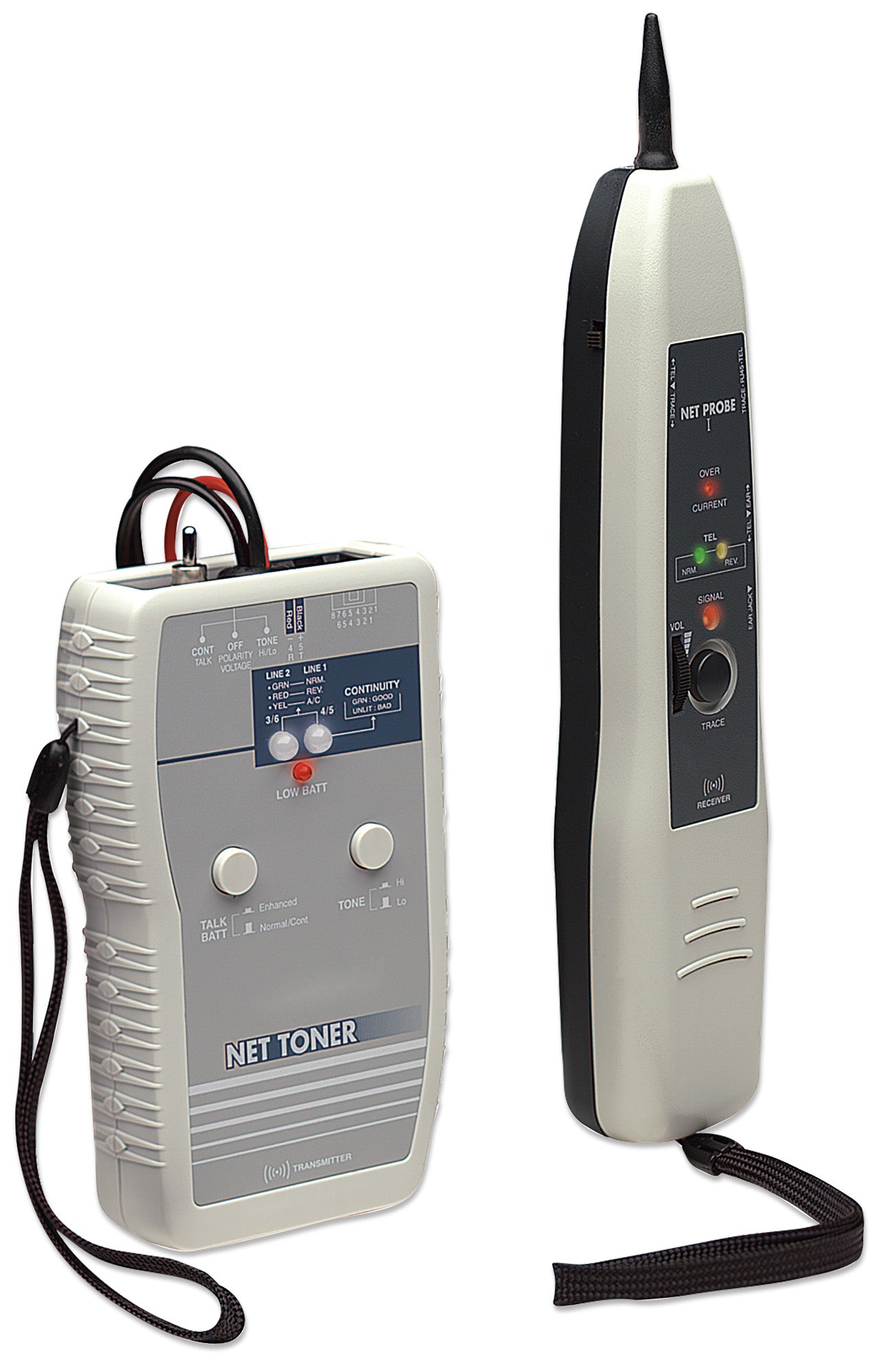

Net Toner and Probe Kit

Tone Generator, Tests Datacom, Telecom, Security, Video, and Audio Networks

Part-No.: 515566

Highlights

  • Tests datacom, telecom, security, video, and audio networks
  • Two position switch for single or multi-tone signal
  • LEDs for line polarity, continuity and voltage


  • Tests datacom, telecom, security, video, and audio networks
  • Two position switch for single or multi-tone signal
  • LEDs for line polarity, continuity and voltage
  • Enhanced talk battery mode provides power for voice communications over inactive pairs
  • Testing leads and modular cables for individual wire tests or modular jack tests
  • Replaceable plastic tip to prevent accidental shorts
  • Trace or identify wire or cables in a bundle or group

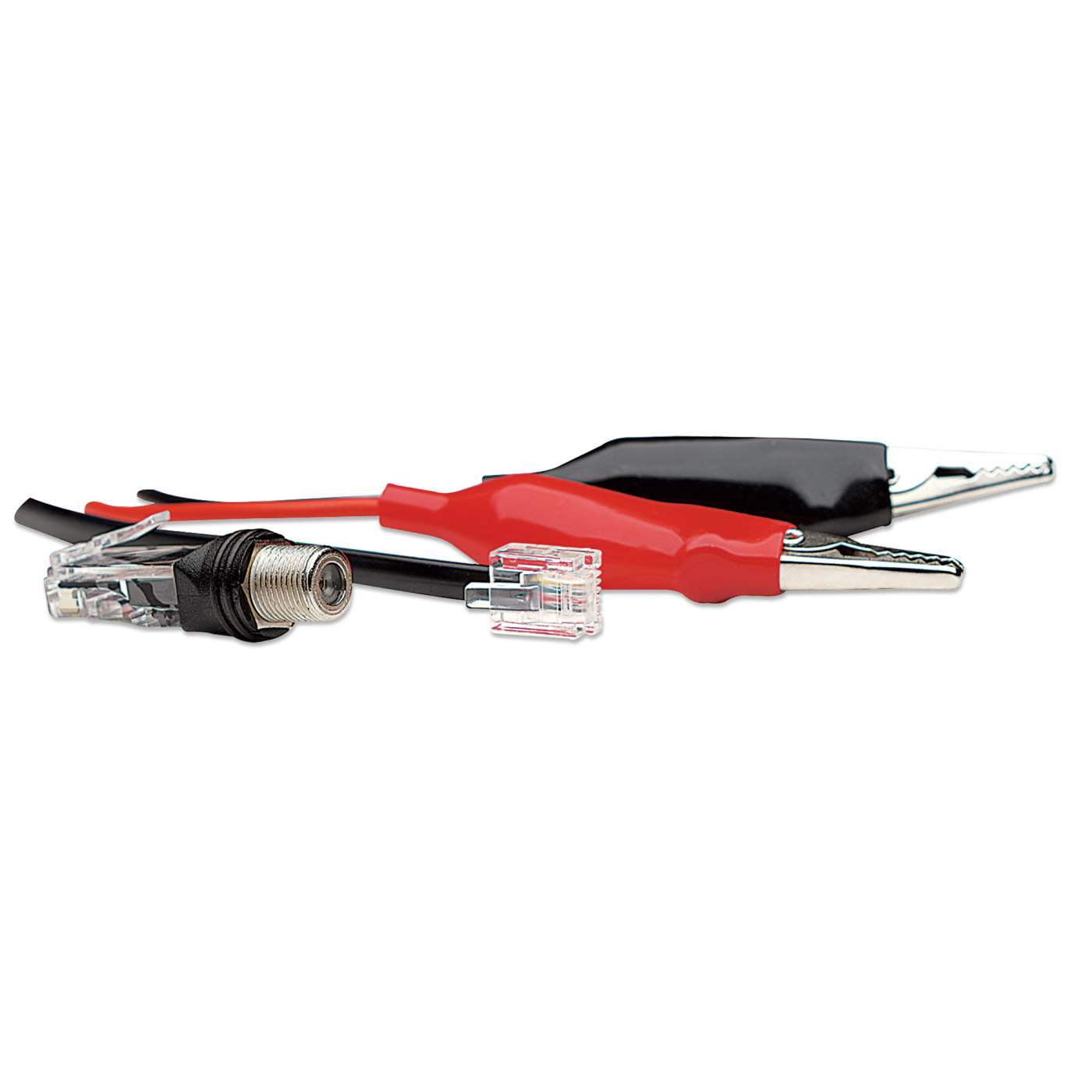

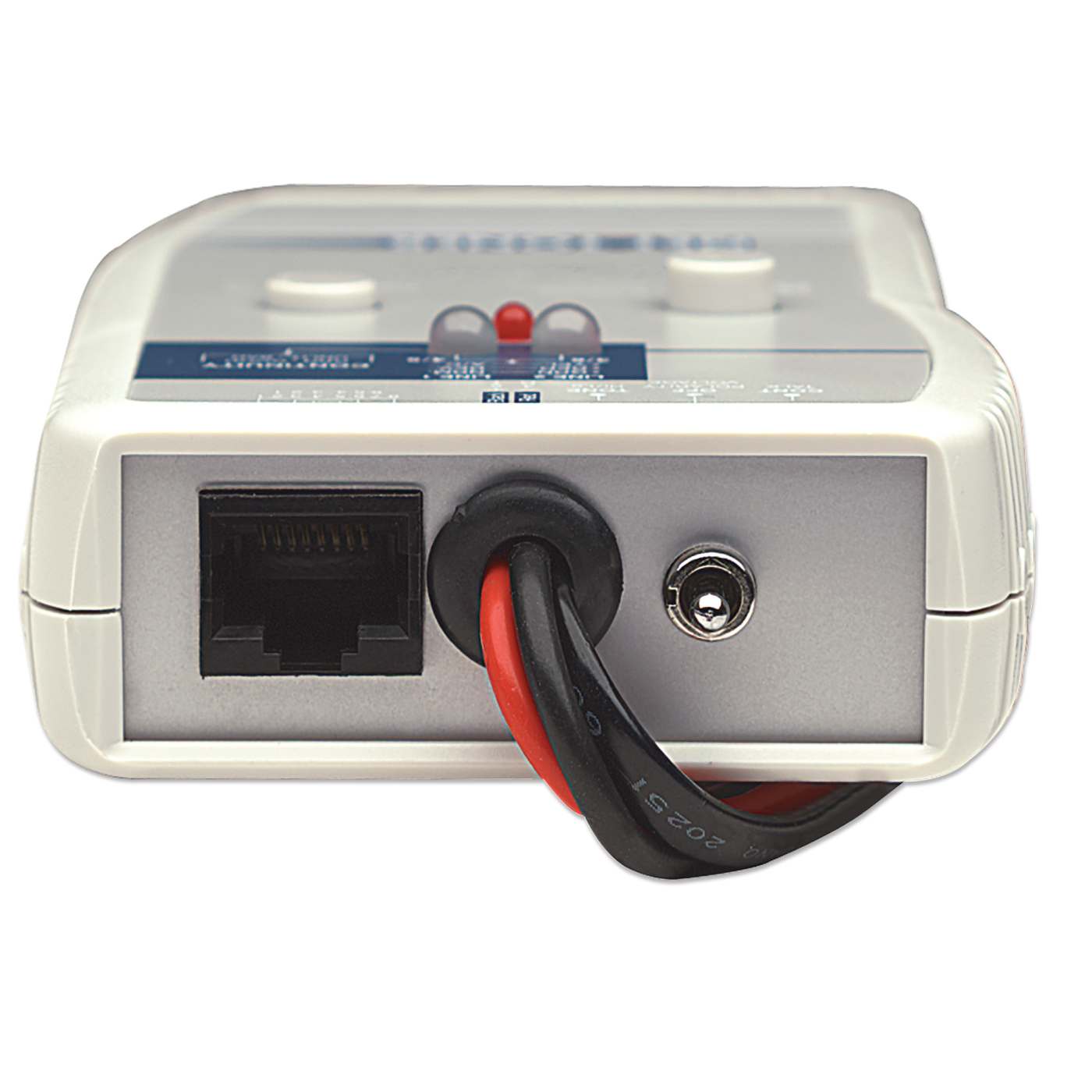

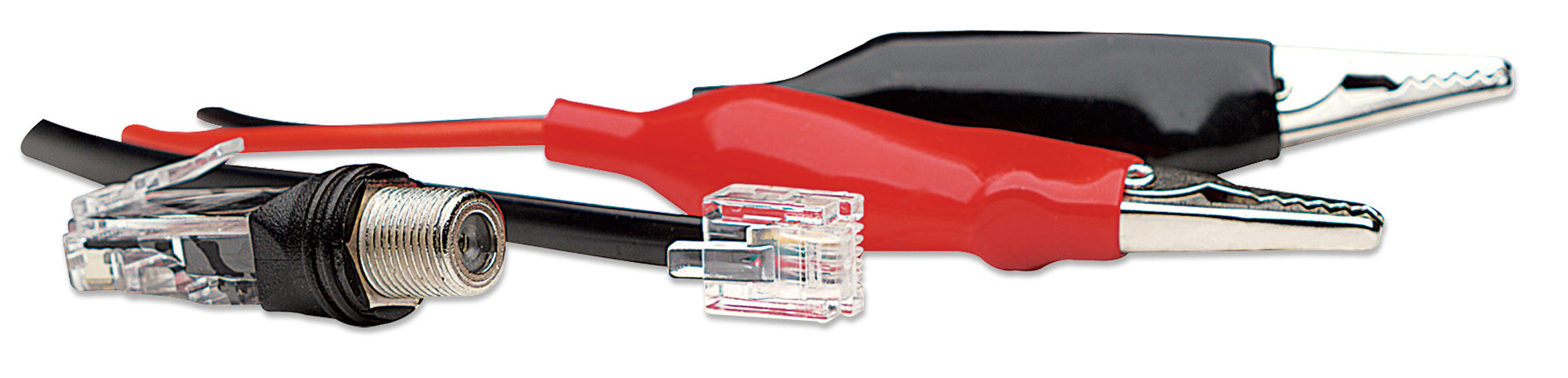

  • Alligator clips, RJ45 jack, RJ12 plug, optional F-connector
  • Three-year warranty

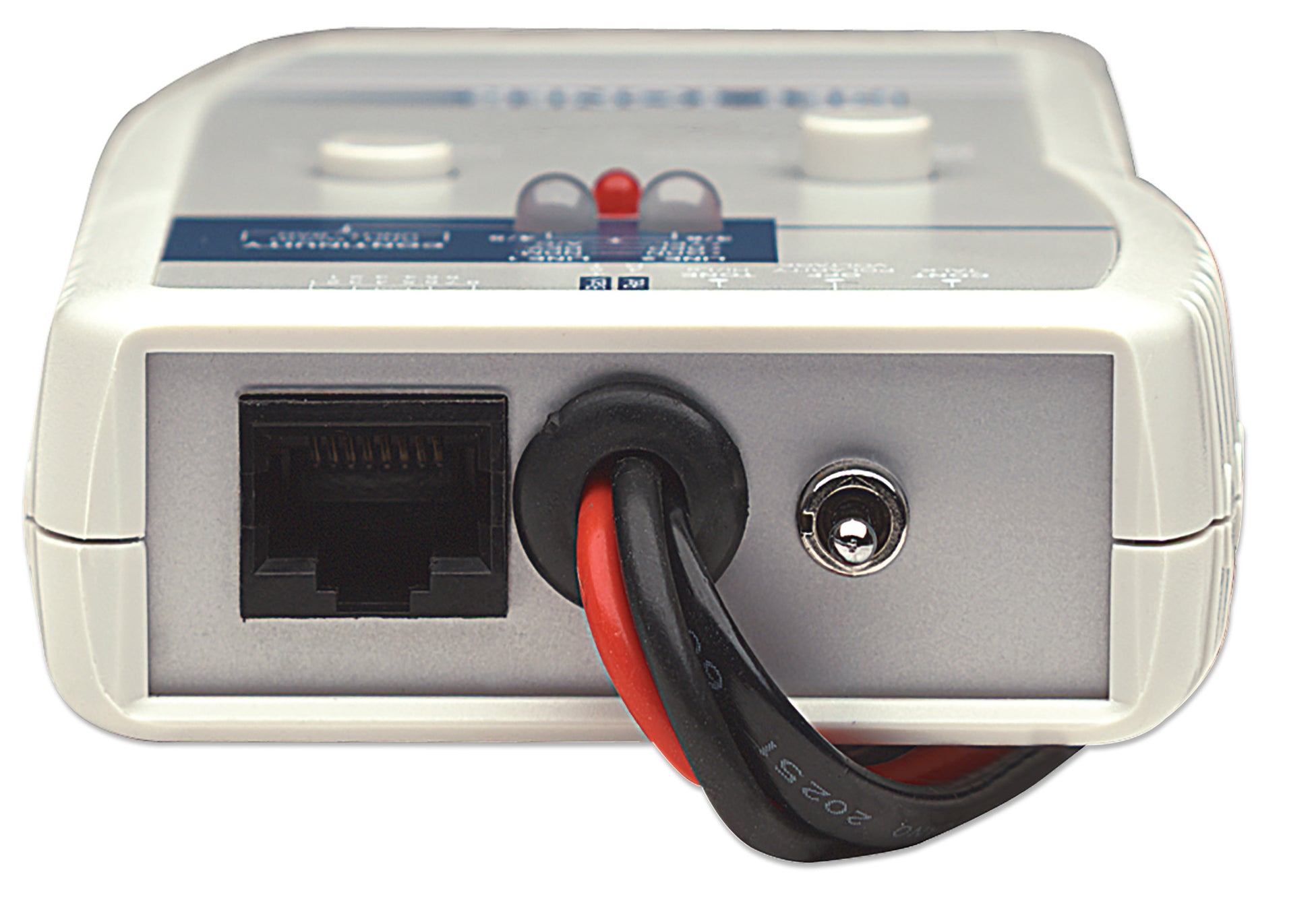

    Net Toner
  • Toner Frequency: High alternating 500-781 Hz ; Low alternating 446-657 Hz
  • Talk Battery: 9V into a 600 ohms circuit
  • Voltage protection: 50 VDC or 24 VAC

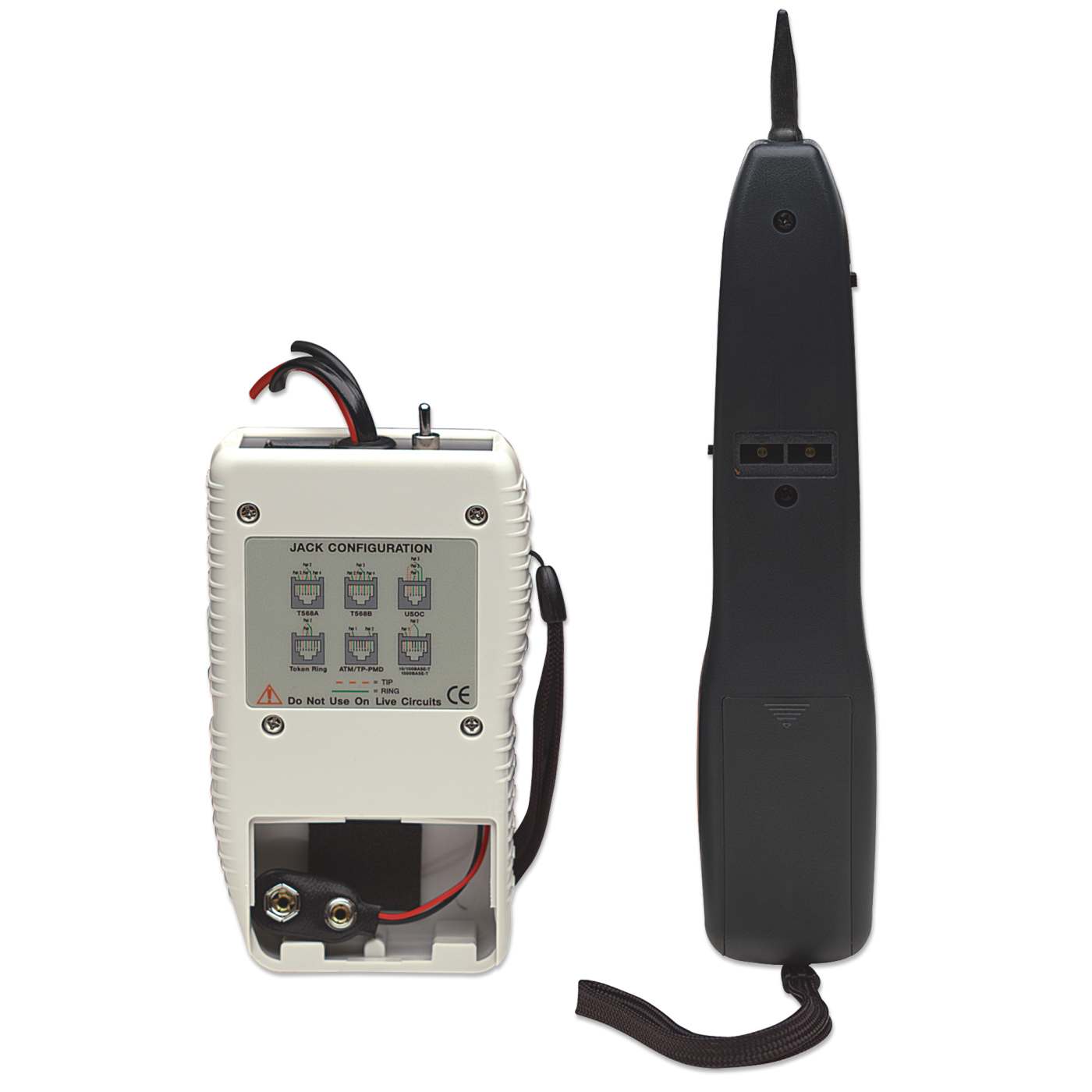

  • Battery: 9V DC standard or alkaline
  • CE Approved: EN 55022 Class B for ITE and EN 55024
  • Size: 125 (L) x 68 (W) x 26 (H) mm (4.9 x 2.7 x 1.2 in.)
  • Weight: 120g (.37 lb)

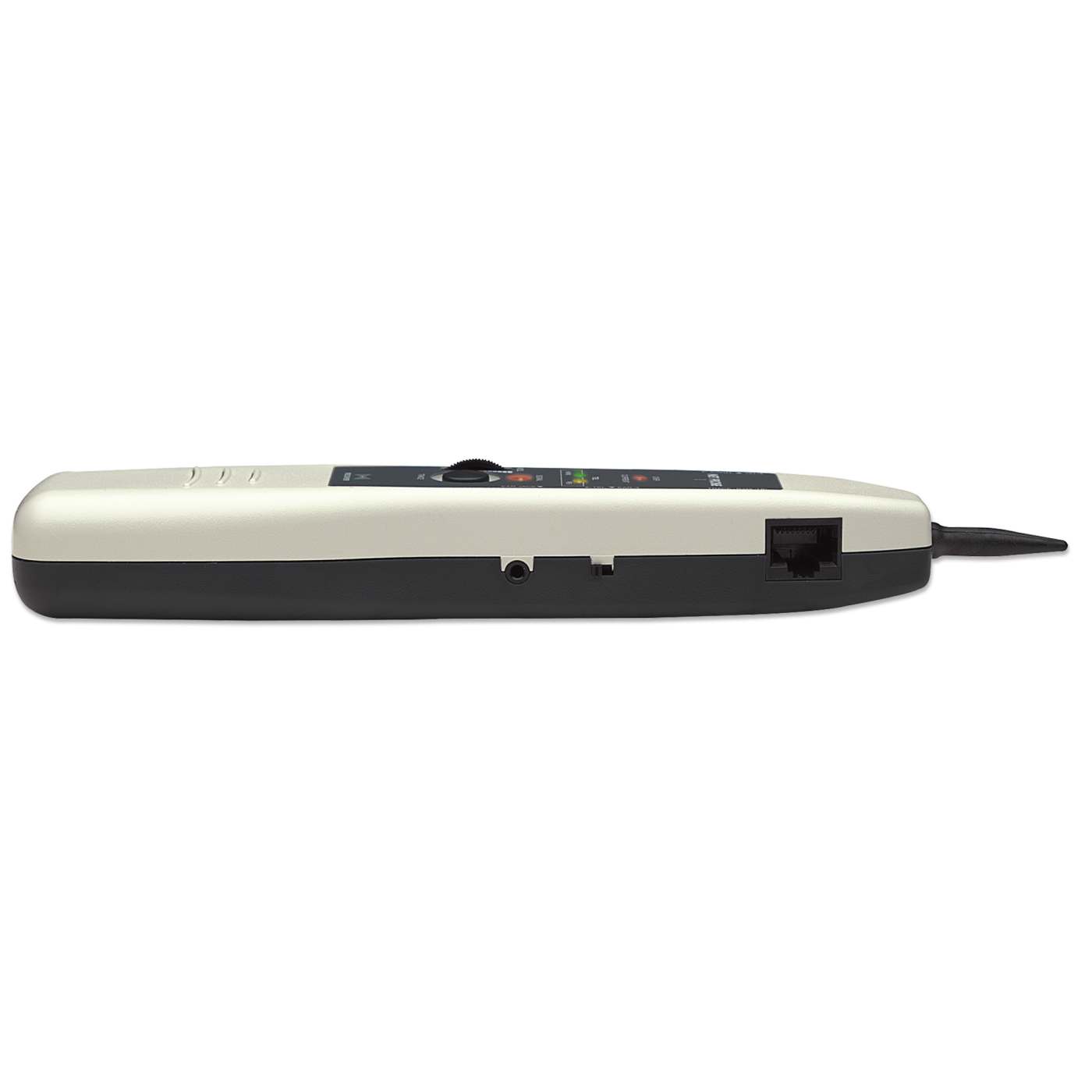

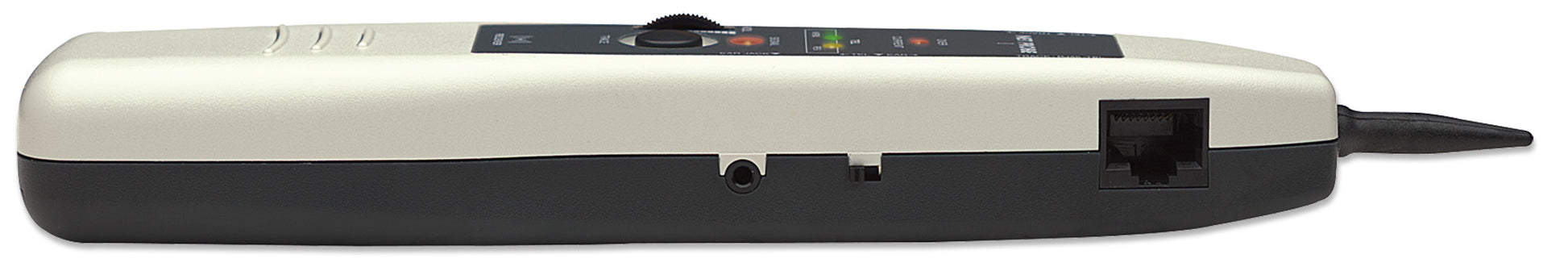

    Net Probe
  • Gain: 30 db
  • Tip resistance: 30 ohms (Plastic tip)
  • Battery: 9V DC standard or alkaline
  • CE Approved: EN 55022 Class B for ITE and EN 55024
  • Size: 210 (L) x 40 (W) x 28 (H) mm (8.1 x 1.6 x 1 in.)
  • Weight: 140g (.30 lb)

    Environmental:
  • Operating temperature: 0 – 40°C (32 – 104°F)

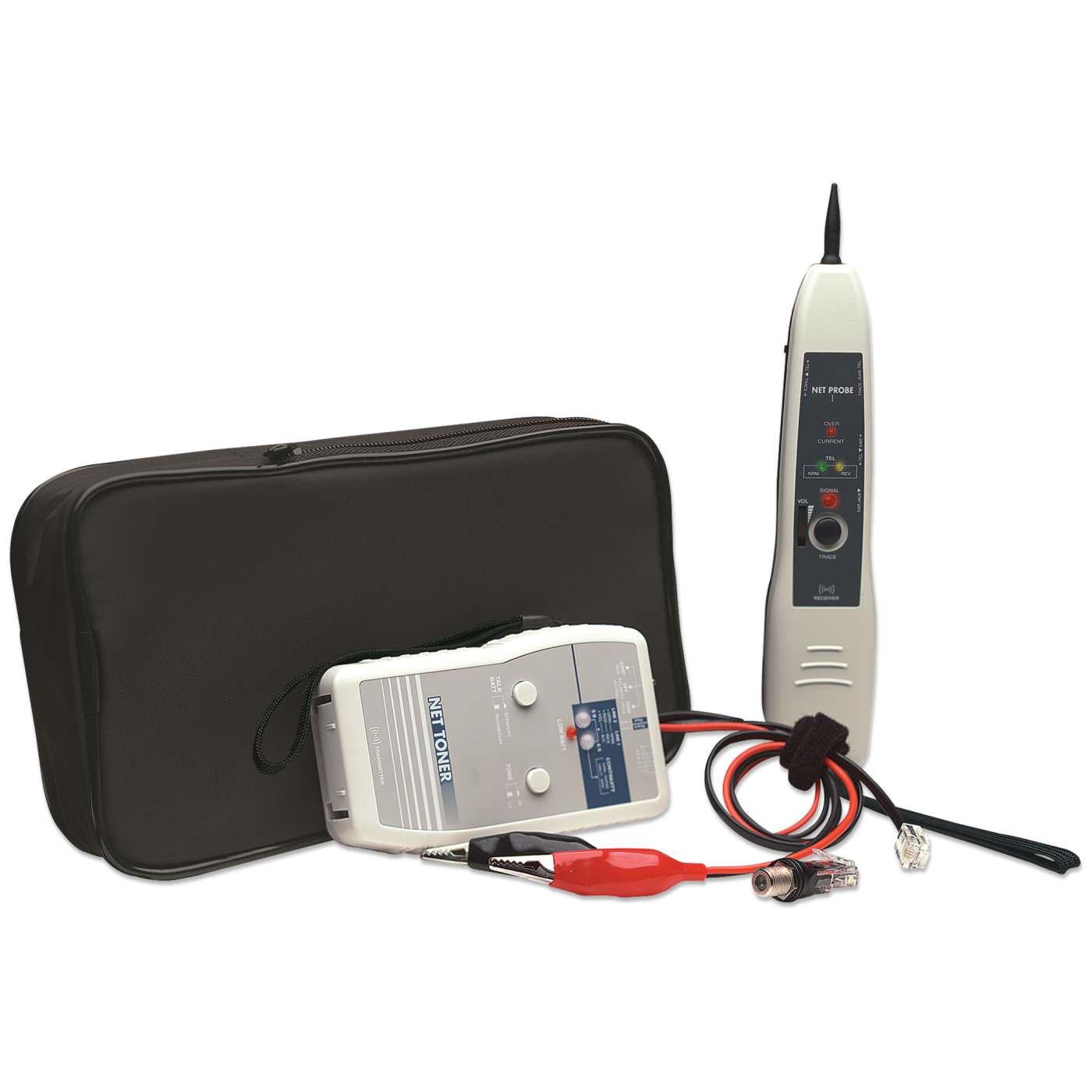

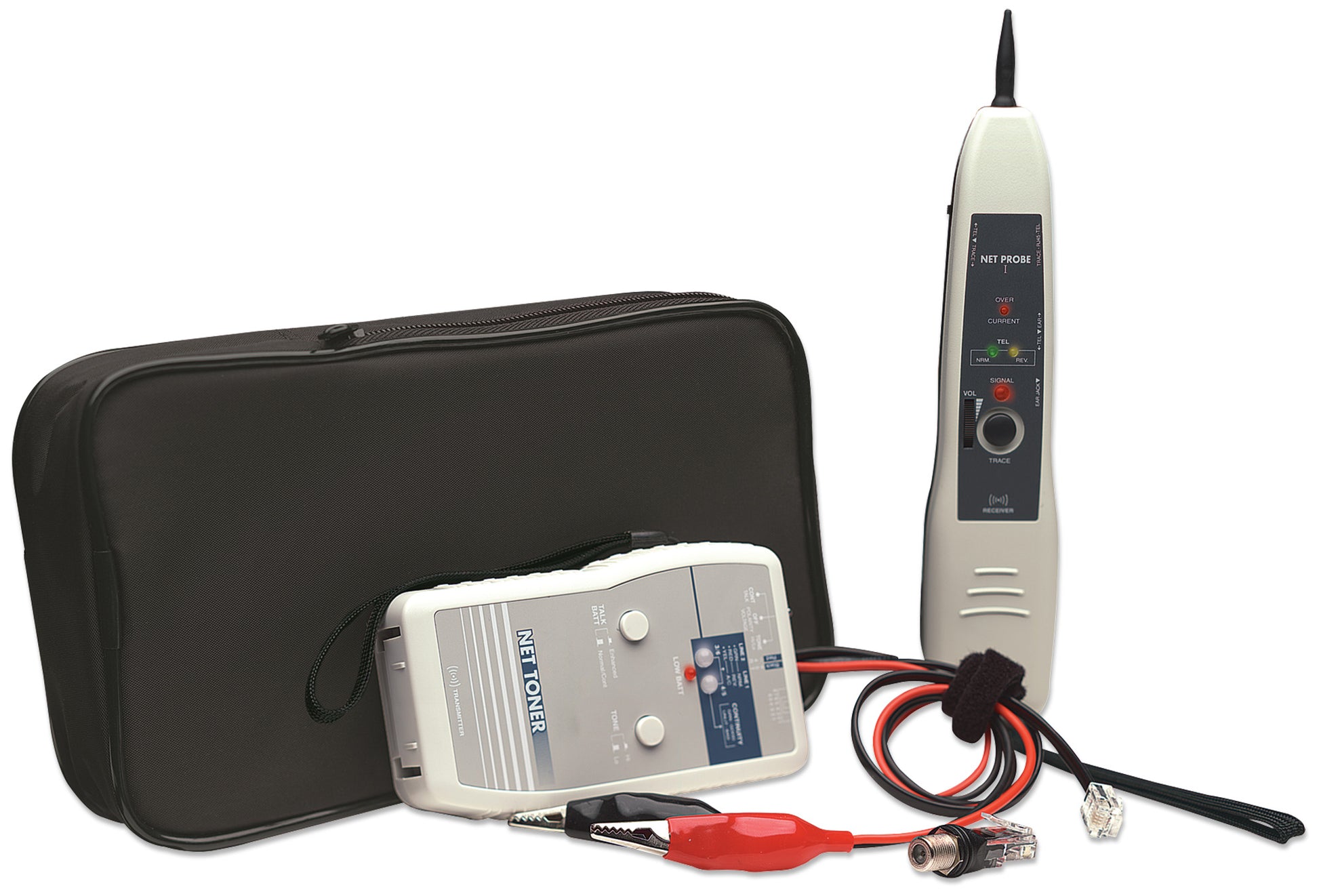

    Package Contents
  • Net Probe
  • Net Toner w/ Alligator clips and RJ12 connector
  • Female F-connector to RJ45 adapter
  • Carrying pouch
  • User Manual

  • Additional SKUs

    • Amazon ASIN: B000O54P3Y
    • EAN: 0766623515566
    • UPC: 766623515566
    • ALSO: 1602284
    • API: 101352

  • Physical Specifications

    • Weight: 0.48 kg
    • Packaging: Retail Box
    • Carton Quantity: 20
    • Carton Weight: 8.00 kg

  • Datasheet


  • Manual

    • User Manual     » Download

    • Instrukcja ObsÅ‚ugi     » Download
