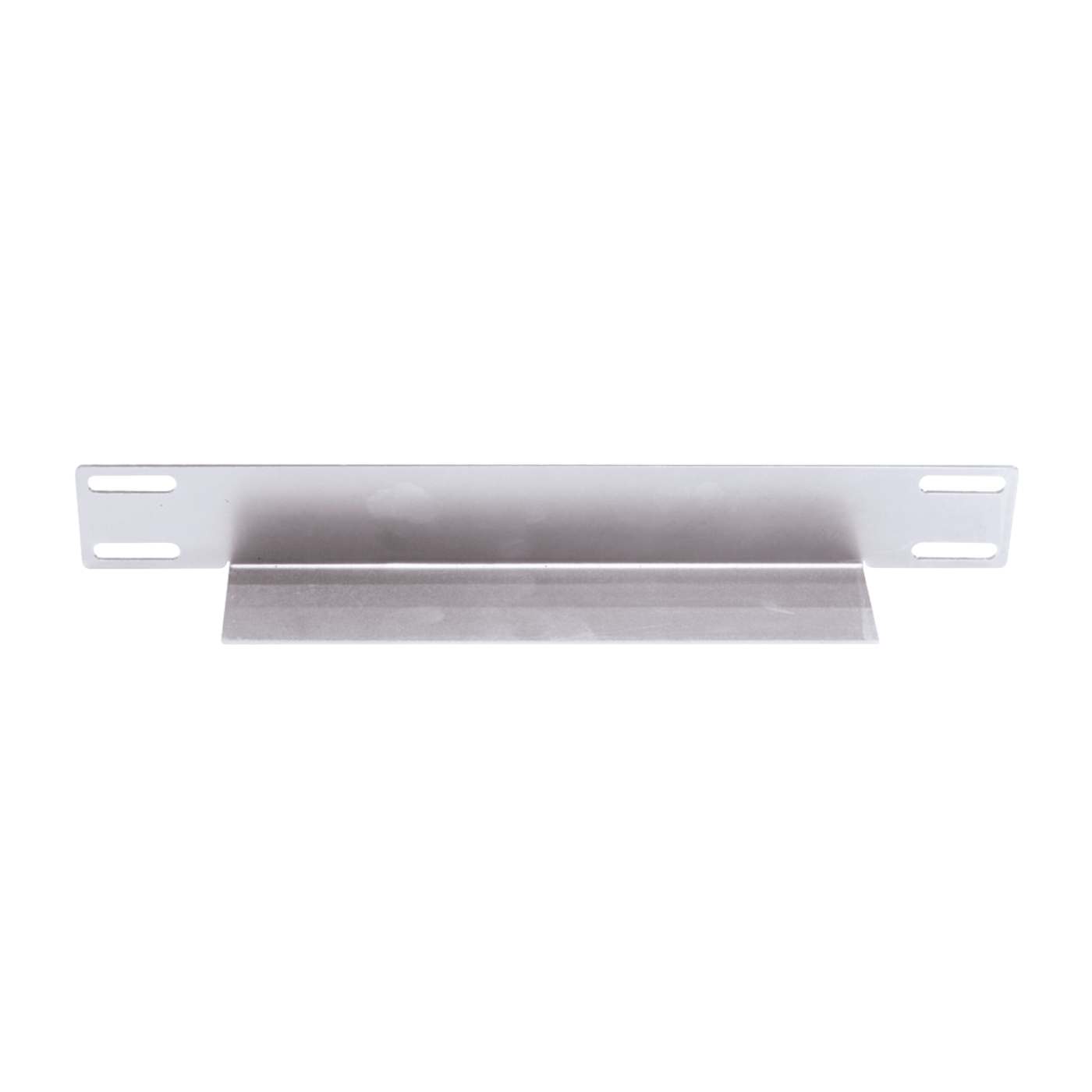

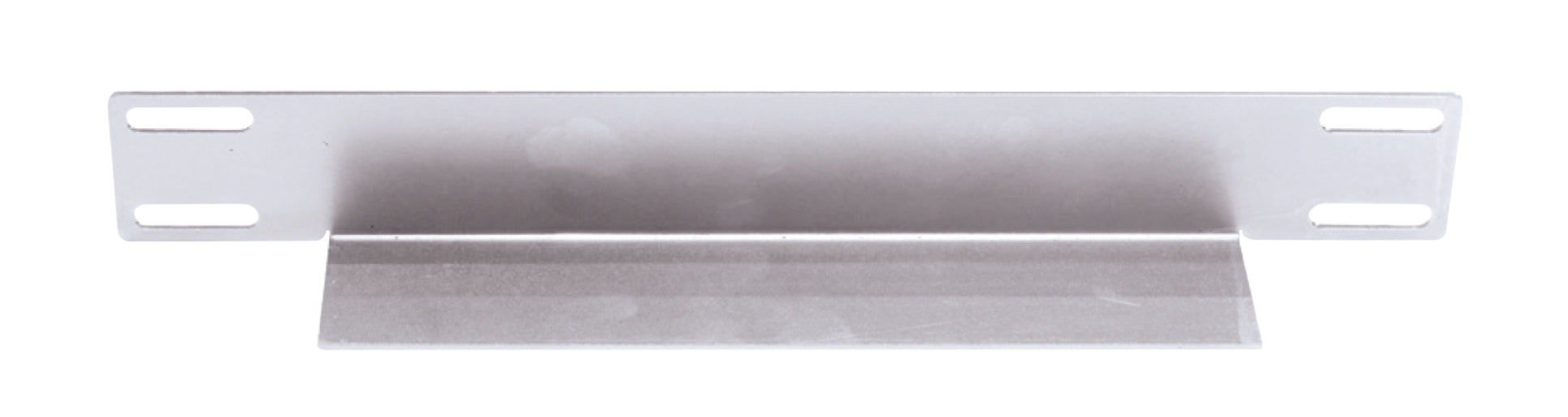

Slide Rails for 19" Cabinets

Slide Rails for 19" Cabinets

Heavy-duty Support, 336 mm Deep, for Cabinet Depths of 600 mm, 2-piece Set, L-shape, Silver

Part-No.: 715874

Highlights

  • Heavy-duty support for rackmounting heavy 19" network equipment
  • Supports a maximum load of 100 kg (220 lbs.)
  • High-quality, zinc-plated steel with 2 mm thickness
[ view high resolution images ]
View full details

Slide Rail Set - extra installation support for 19" Cabinets

Install extra-heavy network equipment in your network cabinets with these L-shaped slide rails from Intellinet Network Solutions. Their high-quality, zinc-plated steel is mounted on the front and rear 19" rails where they add a robust load capacity of 100 kg (220 lbs.).

  • Heavy-duty support for rackmounting heavy 19" network equipment
  • Supports a maximum load of 100 kg (220 lbs.)
  • High-quality, zinc-plated steel with 2 mm thickness
  • Set of two pieces, each with 4-point fixation on front and rear rails
  • Lifetime warranty

    General
  • Weight capacity: 100 kg (220 lbs.)
  • Installation: 4-point fixation on front and rear rails (each set piece)
  • Material: zinc-plated steel

    Physical

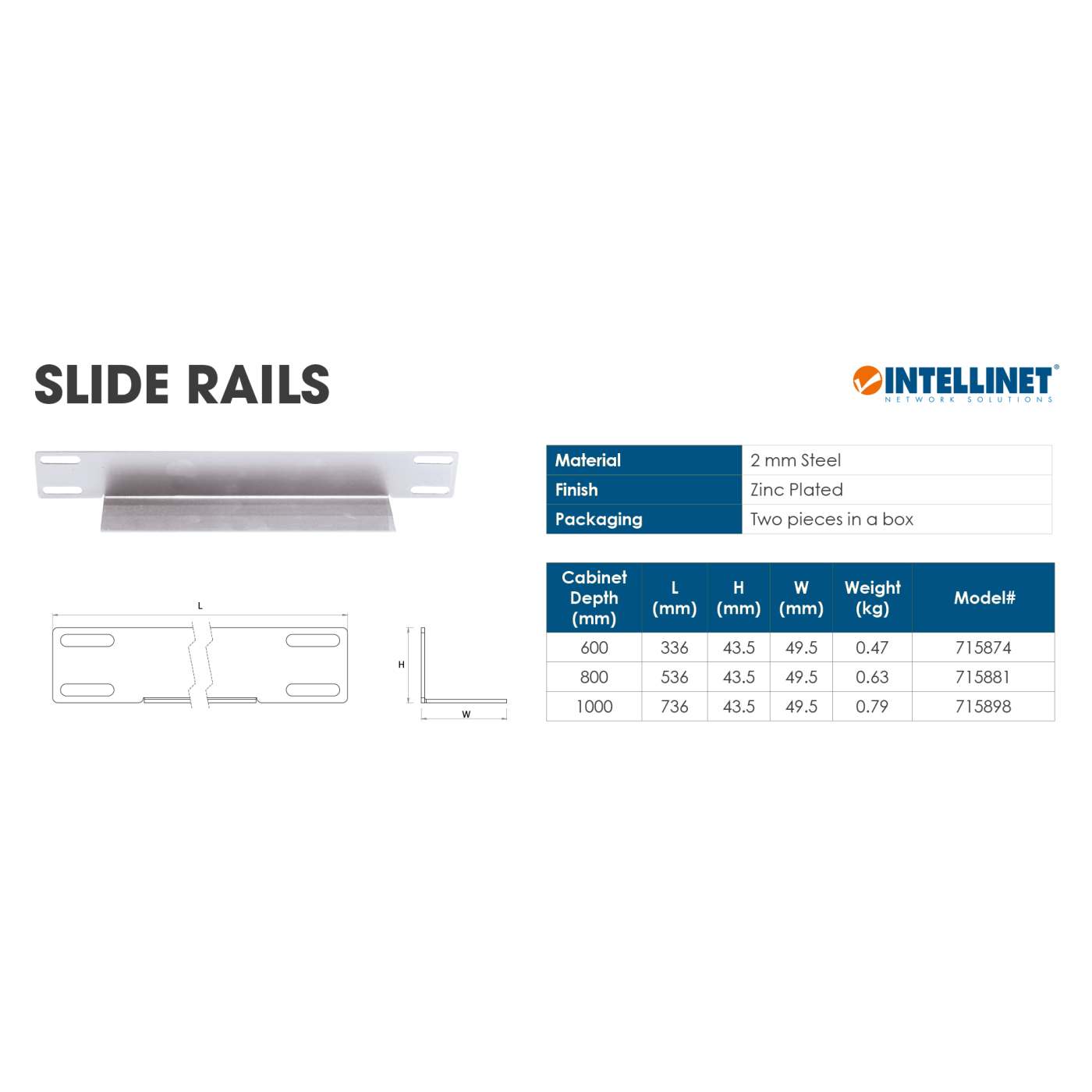

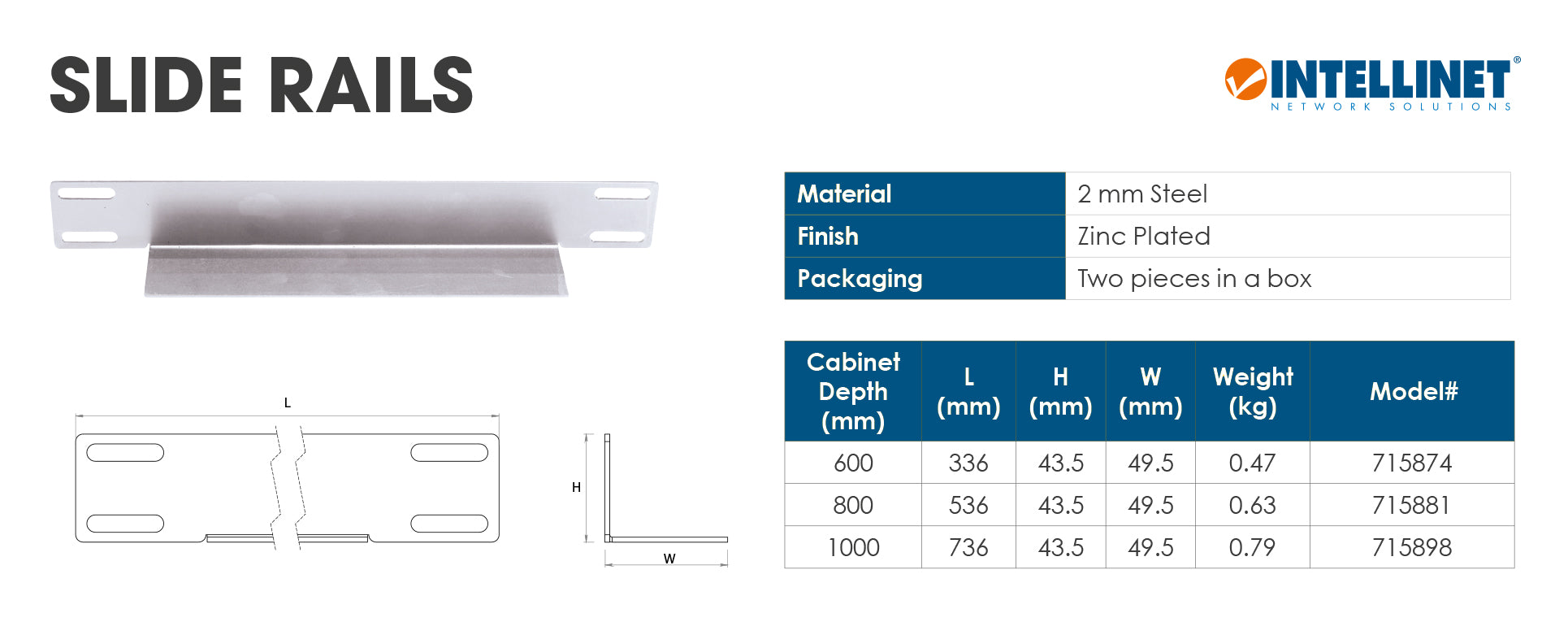

  • Dimensions (per rail): 336 x 49.5 x 43.5 mm (13.23 x 1.95 x 1.71 in.)
  • Net weight (per rail): 380 g (0.84 lbs.)
  • Gross weight (total): 883 g (1.87 lbs.)

    Package Contents
  • Slide Rails for 19" Cabinets with 600 mm Depth (2-piece set)
  • Installation material

  • Additional SKUs

    • EAN: 0766623715874
    • UPC: 766623715874

  • Physical Specifications

    • Product net weight: 0.77 kg
    • Product gross weight: 0.88 kg
    • Dimensions: 336 (L) x 49.5 (W) x 43.5 (H) [mm]
    • Packaging type: Brown Box
    • Packaging dimensions: 360 x 80 x 60 [mm]
    • Master Carton Quantity: 1
    • Master Carton Weight: 0.89 kg
    • Master Carton Dimensions: 360 x 80 x 60 [mm]

  • Datasheet
