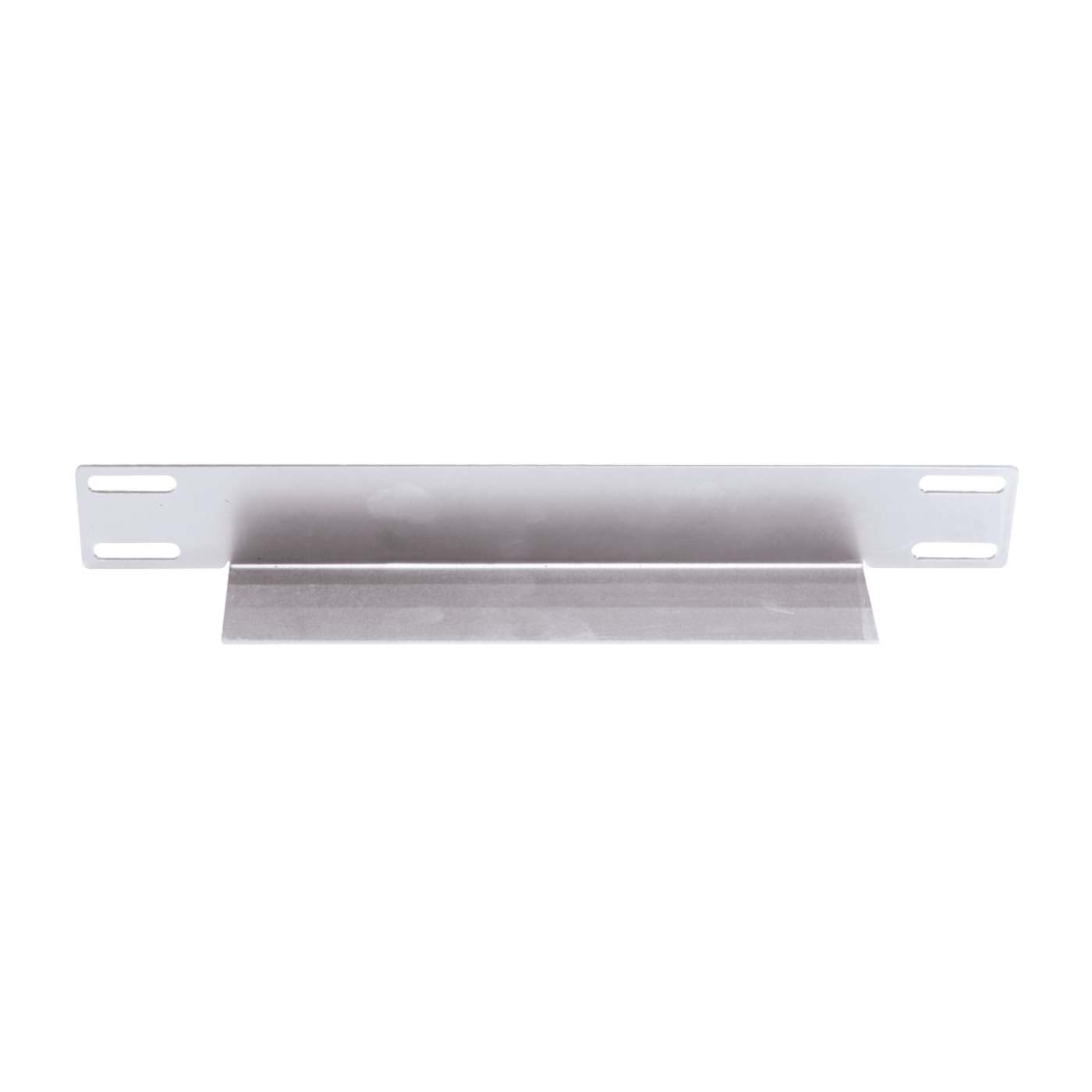

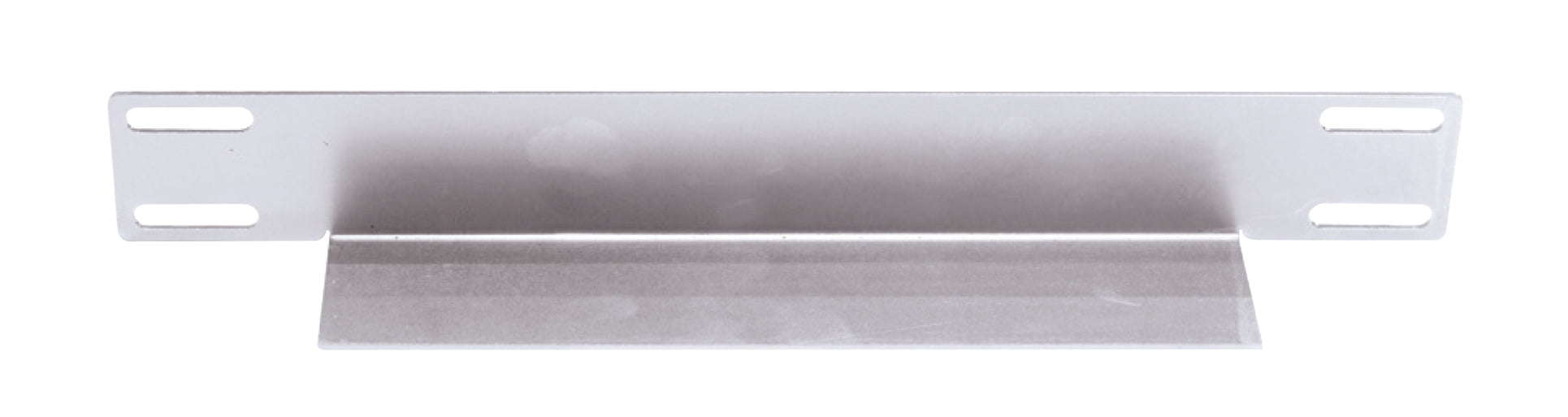

Slide Rails for 19" Cabinets Image 1

Slide Rails for 19" Cabinets

Heavy-duty Support, 736 mm Deep, for Cabinet Depths of 1000 mm, 2-piece Set, L-shape, Silver

Part-No.: 715898

Highlights

  • Heavy-duty support for rackmounting heavy 19" network equipment
  • Supports a maximum load of 100 kg (220 lbs.)
  • High-quality, zinc-plated steel with 2 mm thickness


Slide Rail Set - extra installation support for 19" Cabinets

Install extra-heavy network equipment in your network cabinets with these L-shaped slide rails from Intellinet Network Solutions. Their high-quality, zinc-plated steel is mounted on the front and rear 19" rails where they add a robust load capacity of 100 kg (220 lbs.).

  • Heavy-duty support for rackmounting heavy 19" network equipment
  • Supports a maximum load of 100 kg (220 lbs.)
  • High-quality, zinc-plated steel with 2 mm thickness
  • Set of two pieces, each with 4-point fixation on front and rear rails
  • Lifetime warranty

    General
  • Weight capacity: 100 kg (220 lbs.)
  • Installation: 4-point fixation on front and rear rails (each set piece)
  • Material: zinc-plated steel

    Physical

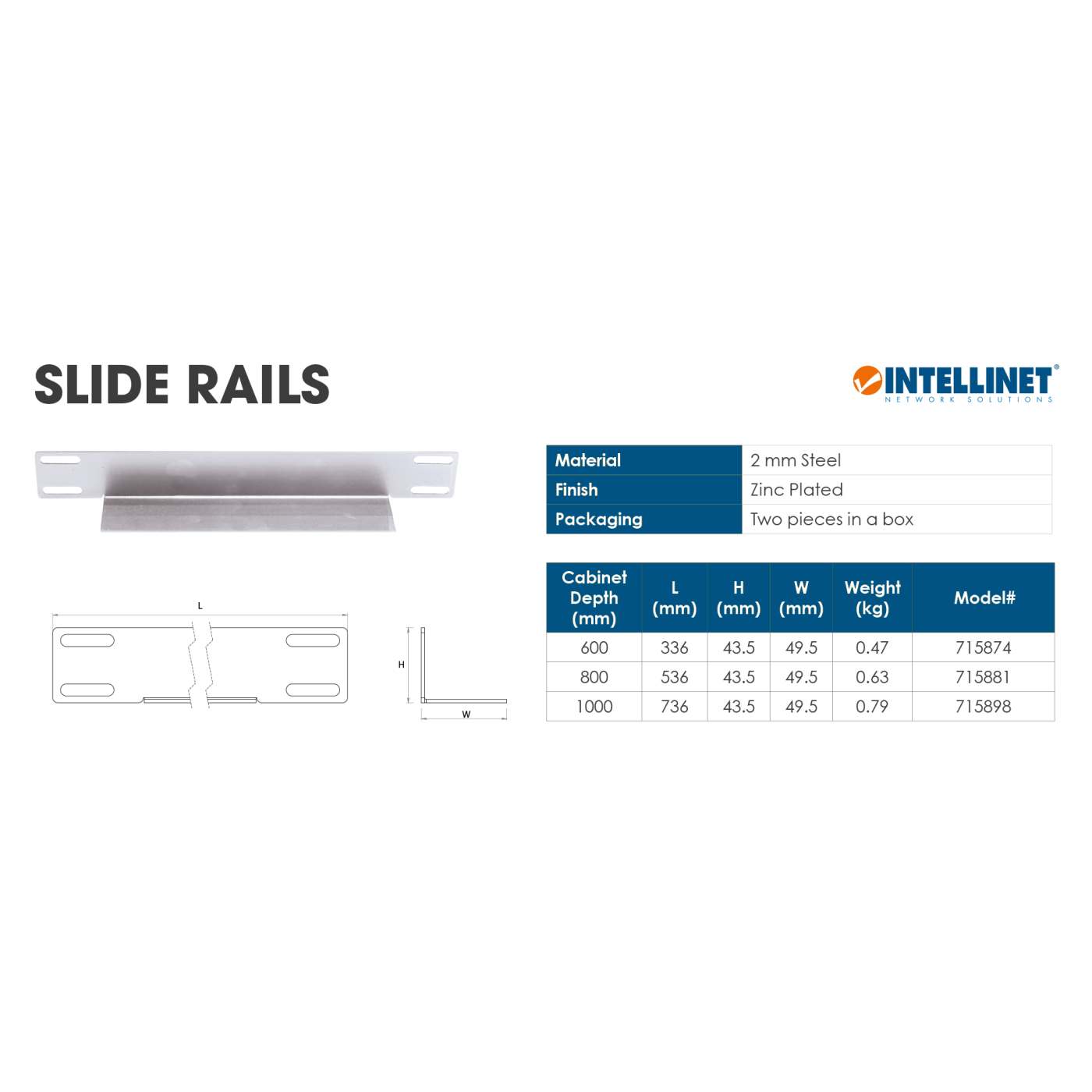

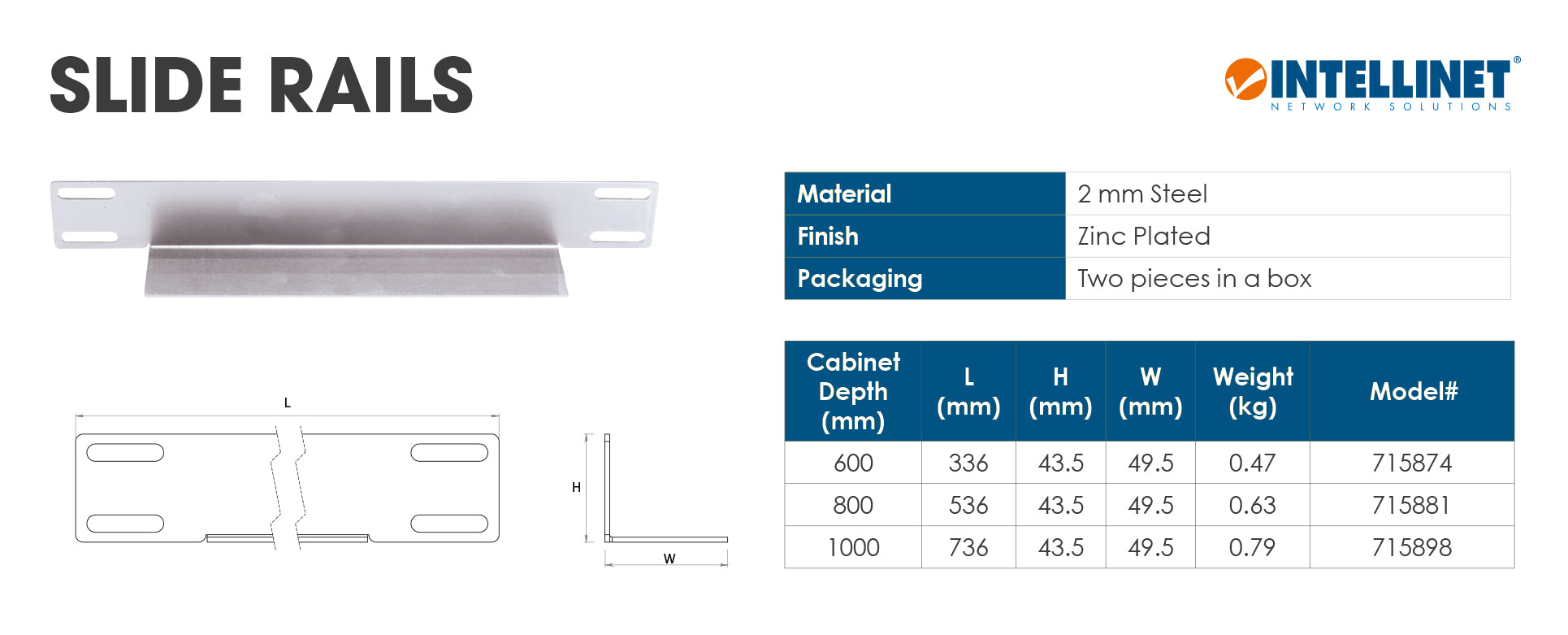

  • Dimensions (per rail): 736 x 49.5 x 43.5 mm (28.98 x 1.95 x 1.71 in.)
  • Net weight (per rail): 935 g (2.06 lbs.)
  • Gross weight (total): 2090 g (4.61 lbs.)

    Package Contents
  • Slide Rails for 19" Cabinets with 1000 mm Depth (2-piece set)
  • Installation material

  • Additional SKUs

    • EAN: 0766623715898
    • UPC: 766623715898

  • Physical Specifications

    • Weight: 1.87 kg
    • Dimensions: 736 (L) x 49.5 (W) x 43.5 (H) [mm]
    • Packaging: Brown Box
    • Carton Quantity: 1
    • Carton Weight: 2.10 kg

  • Datasheet
