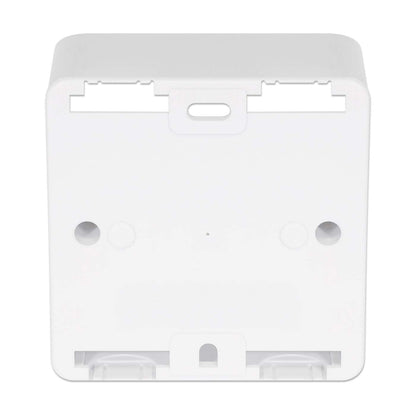

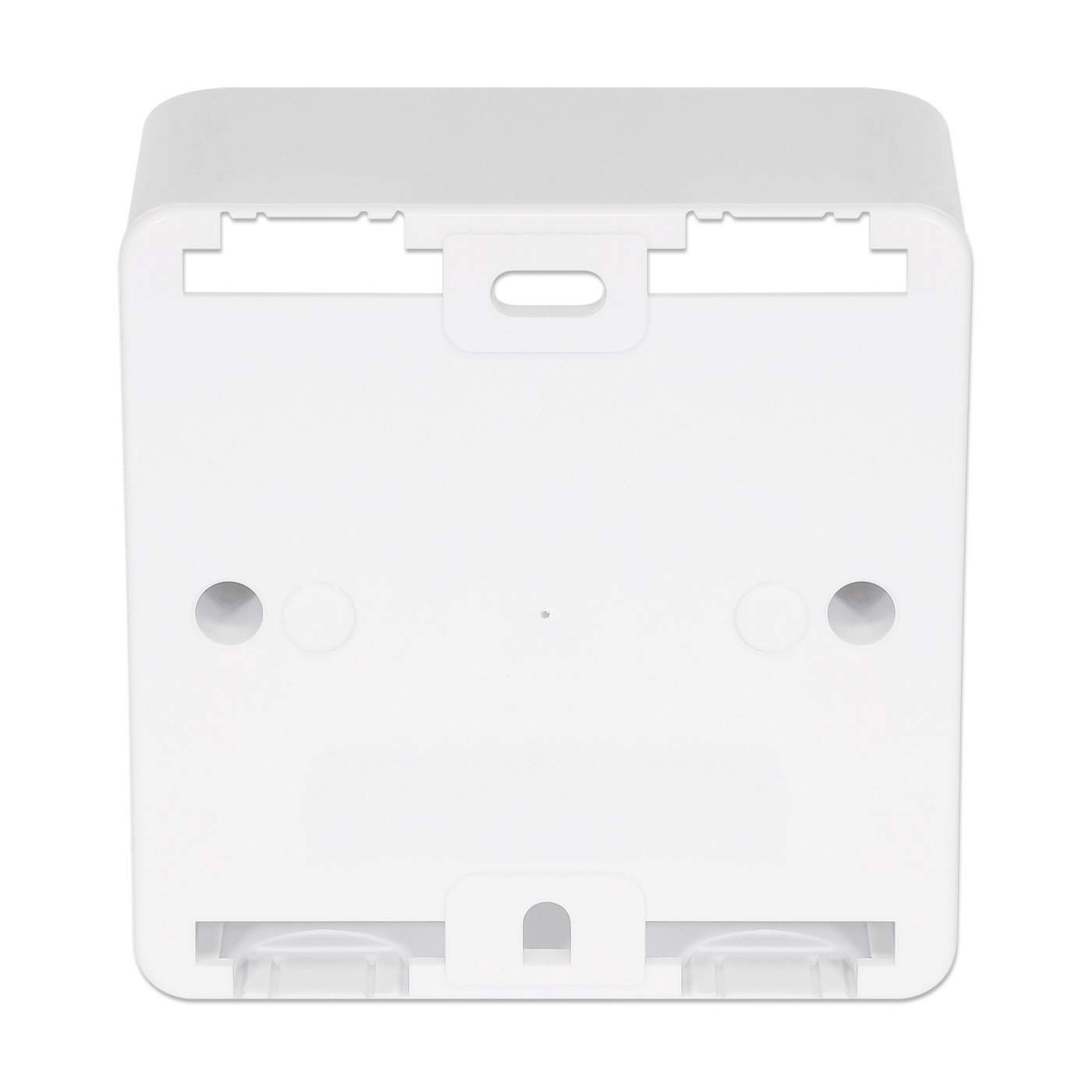

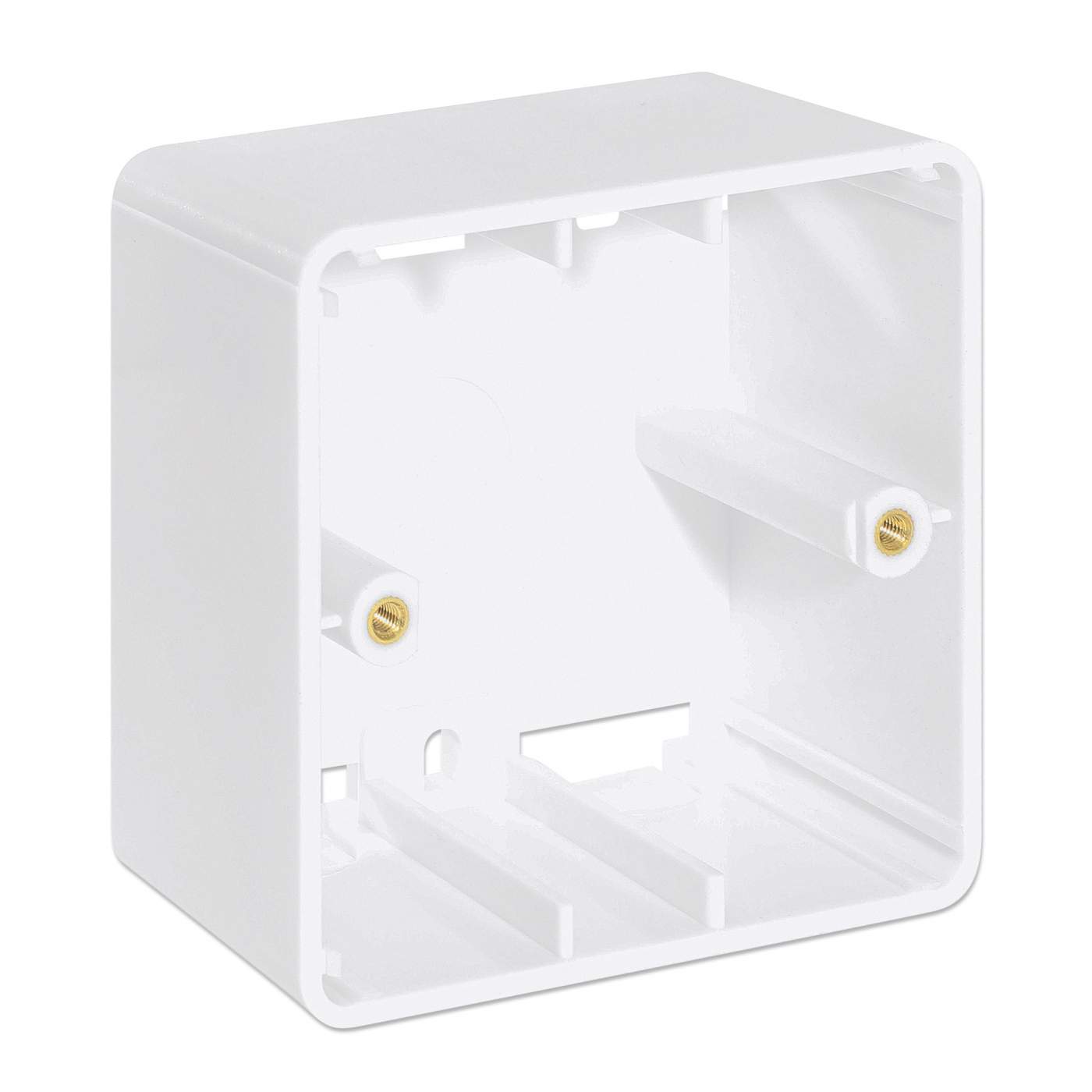

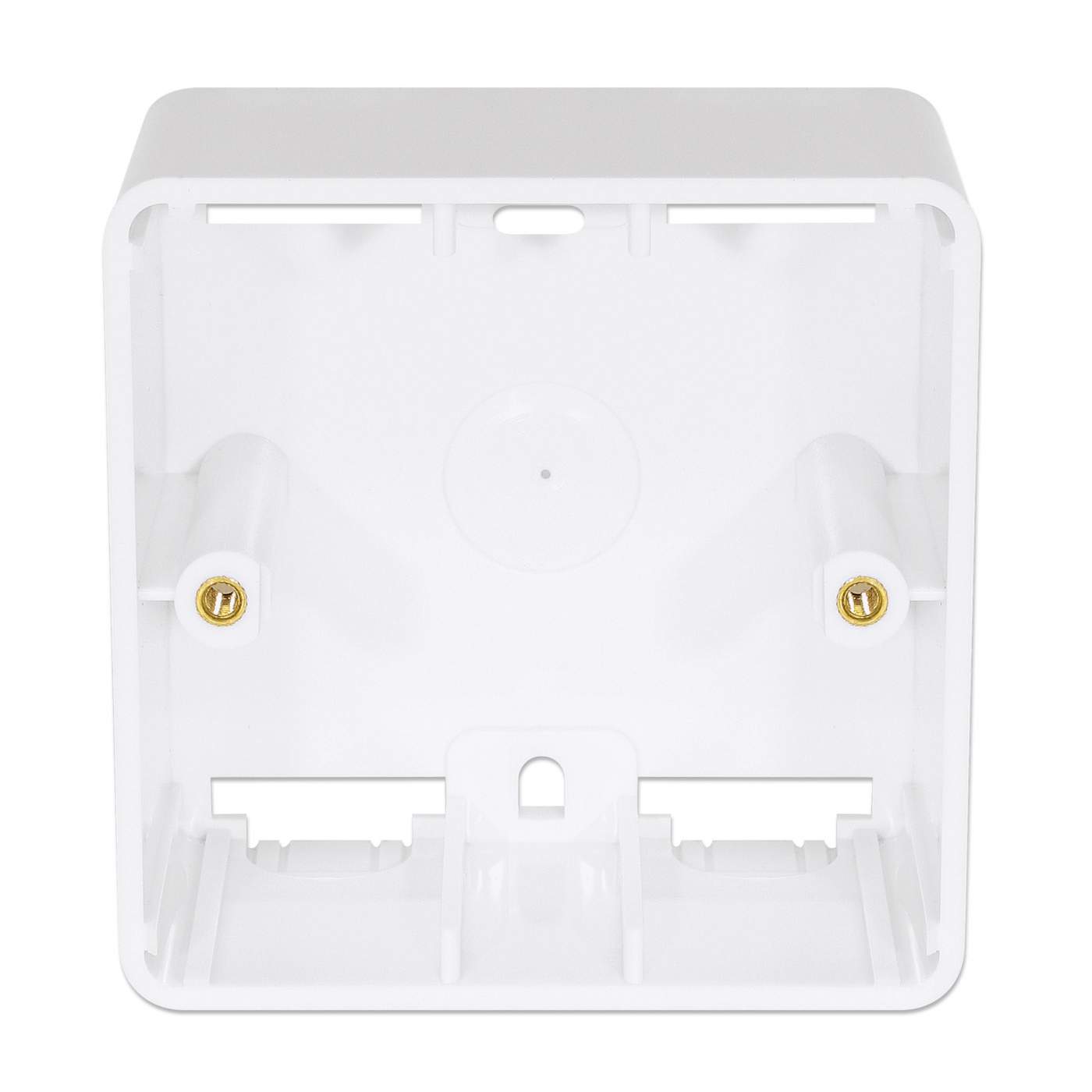

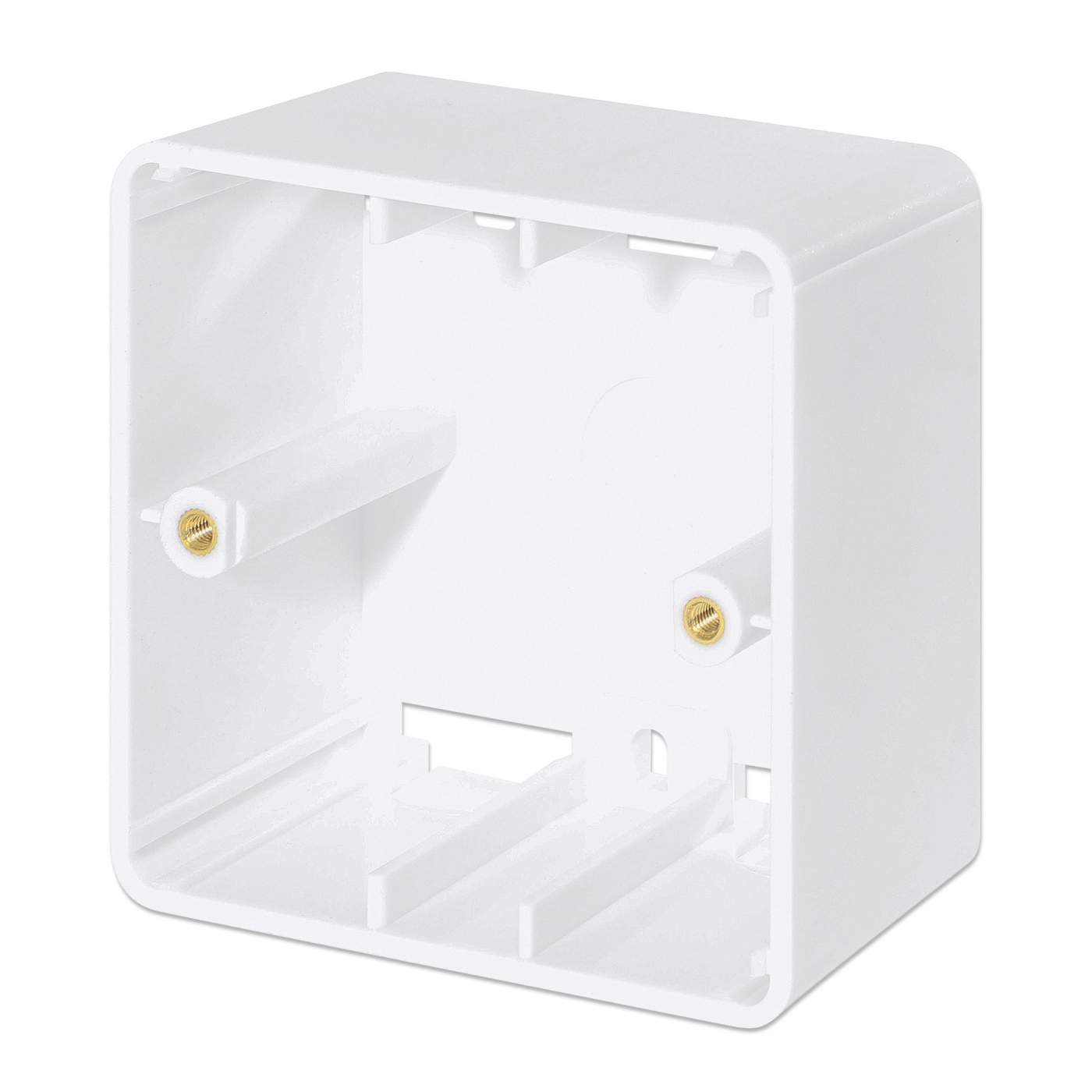

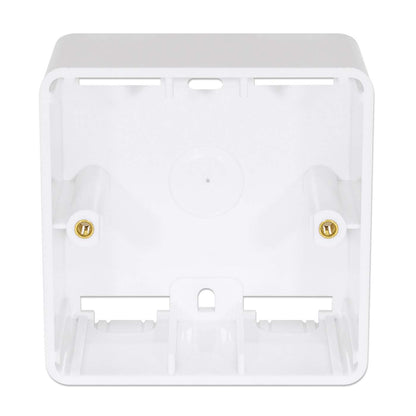

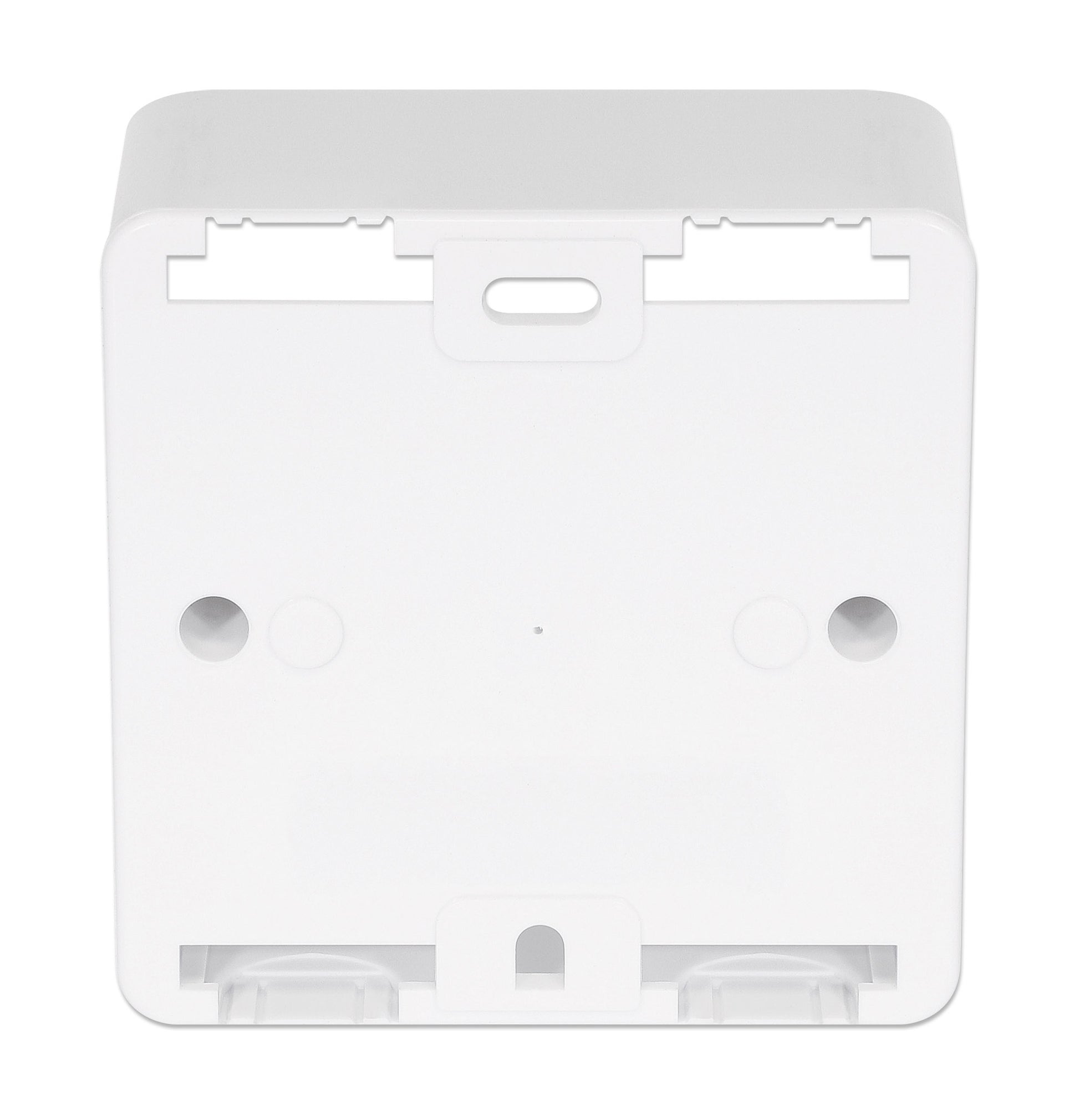

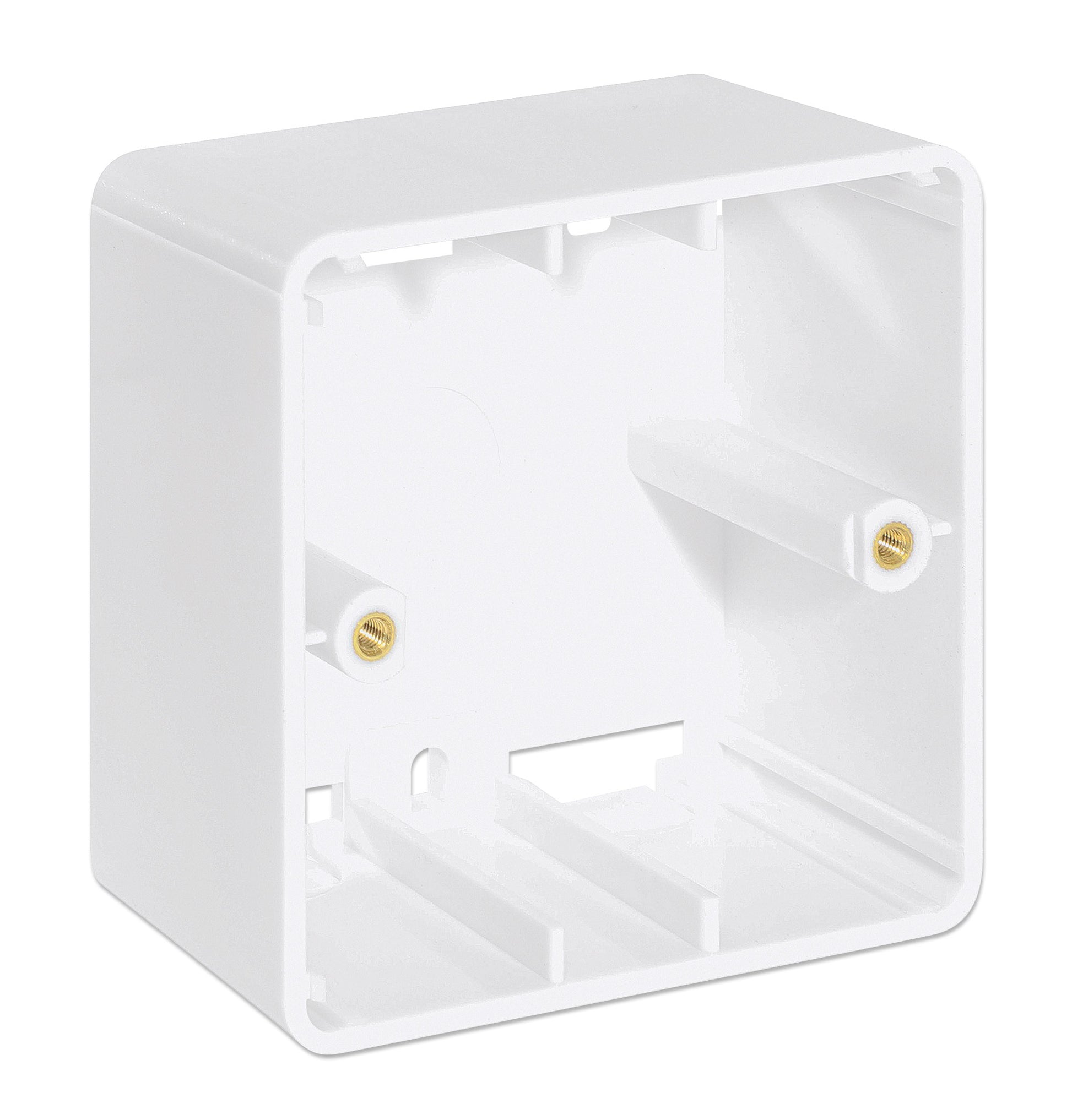

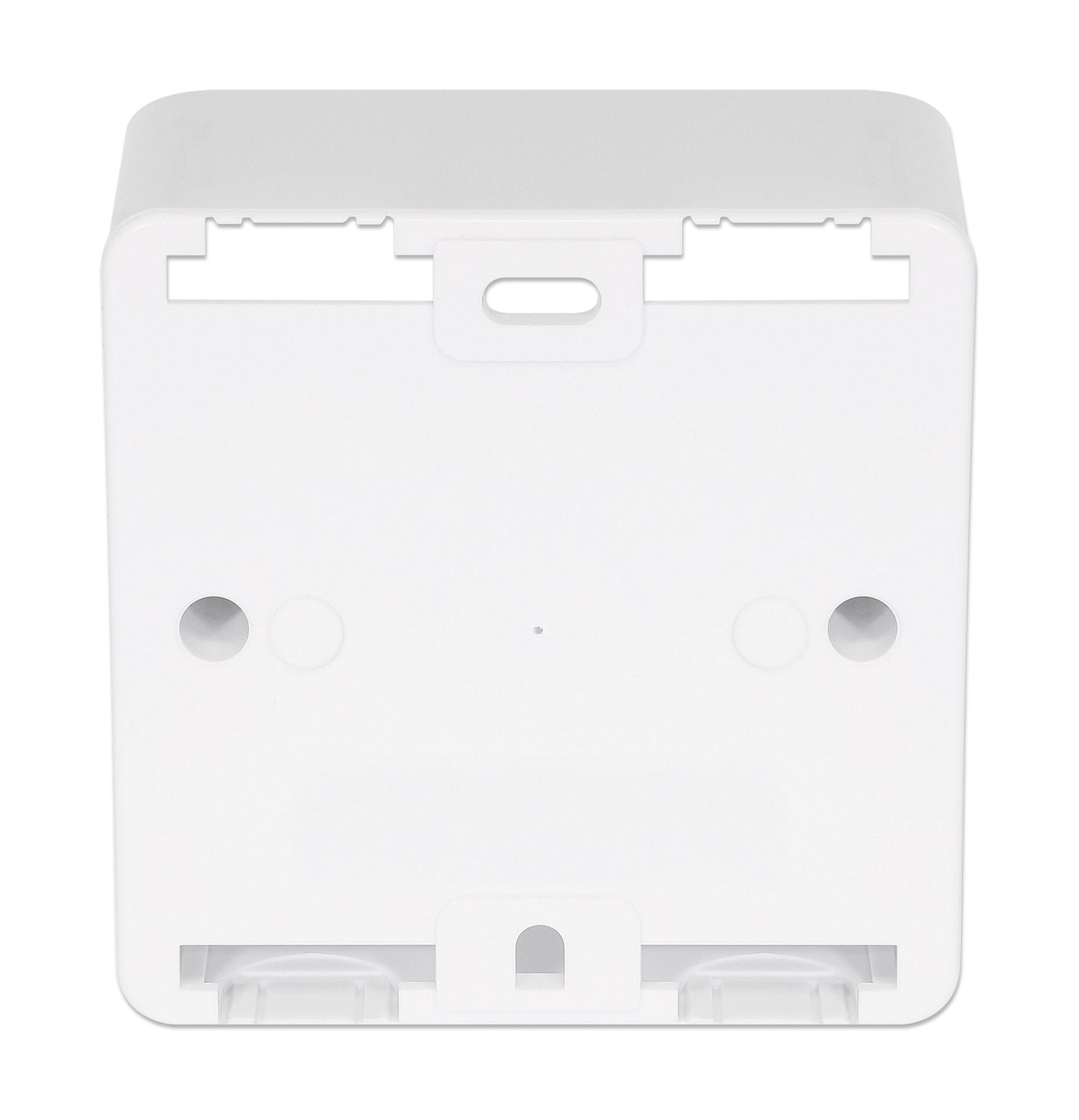

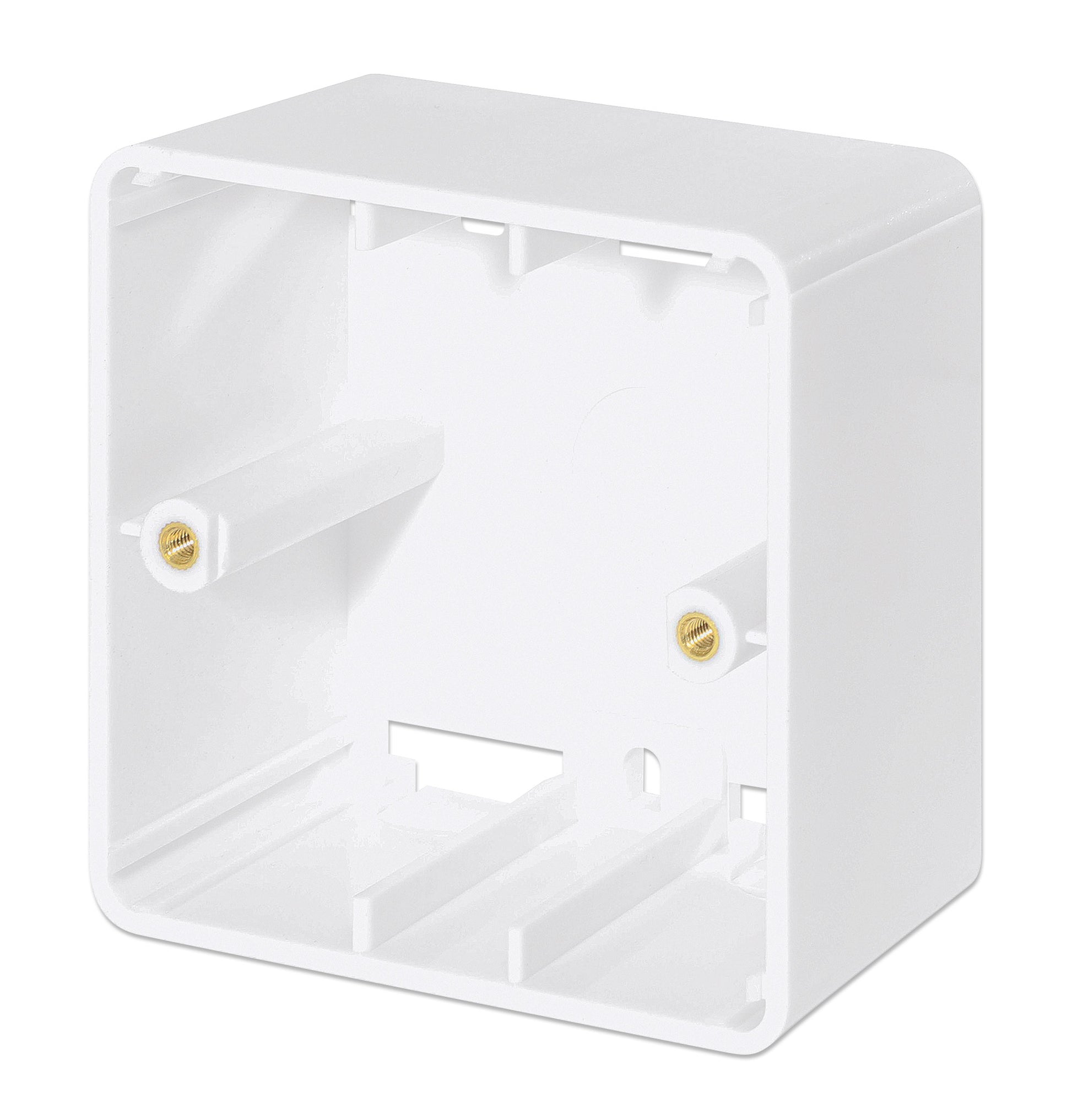

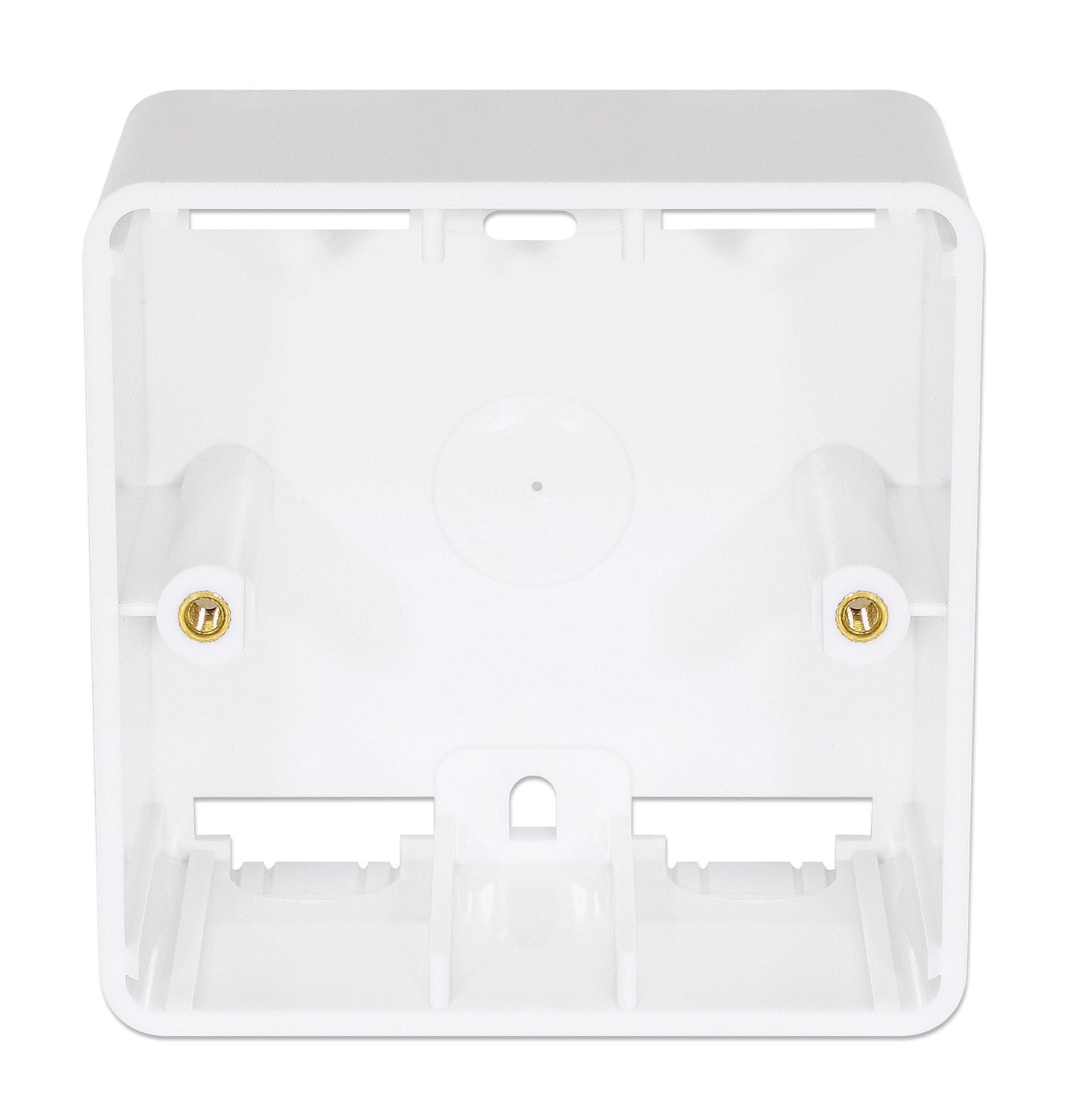

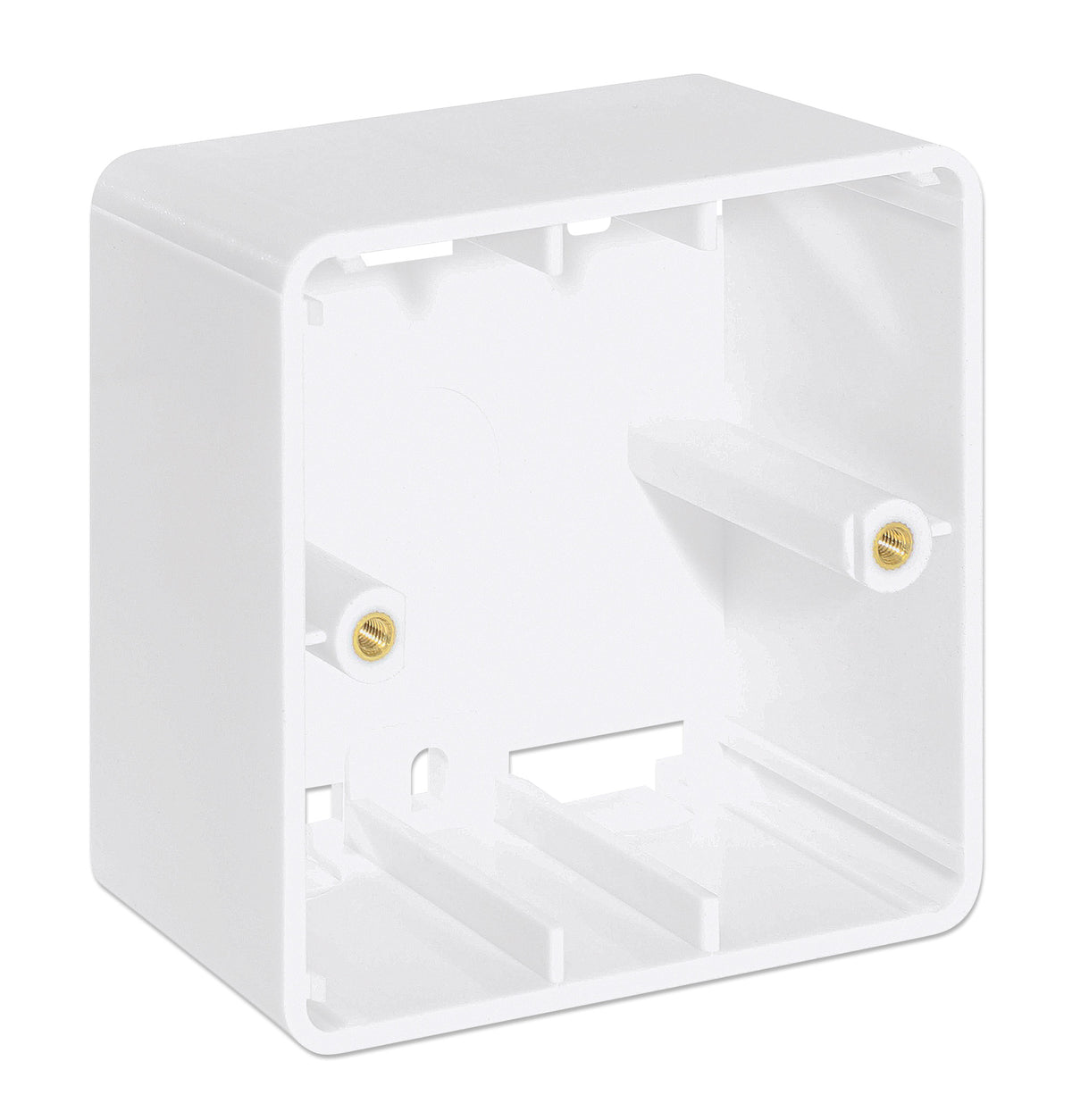

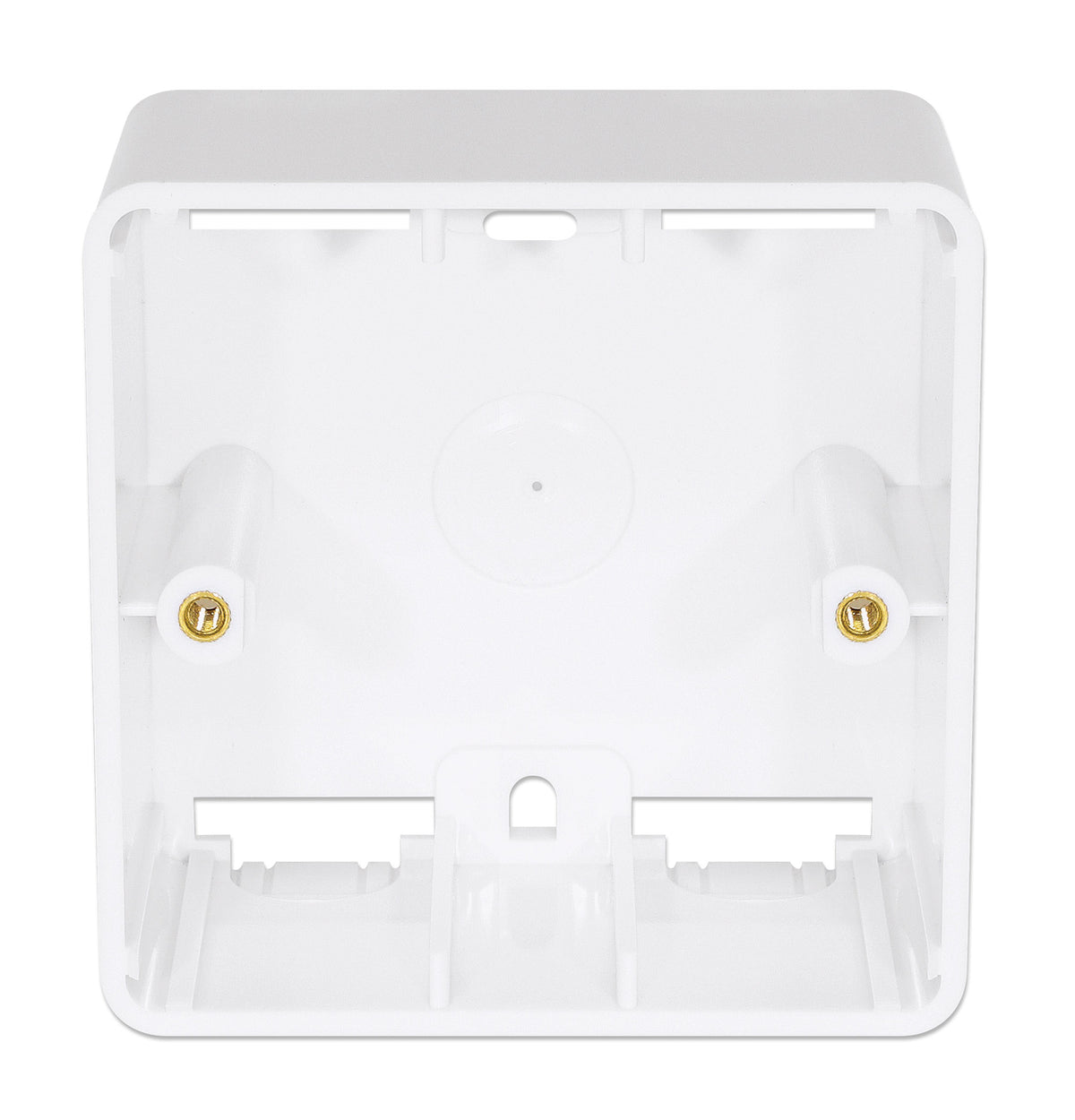

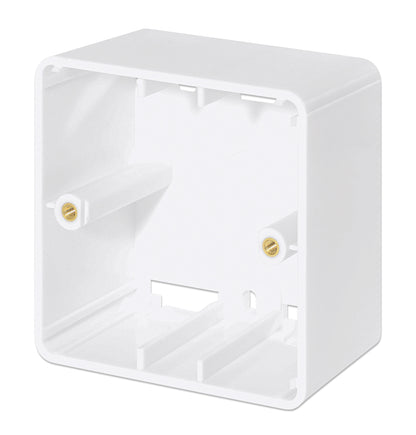

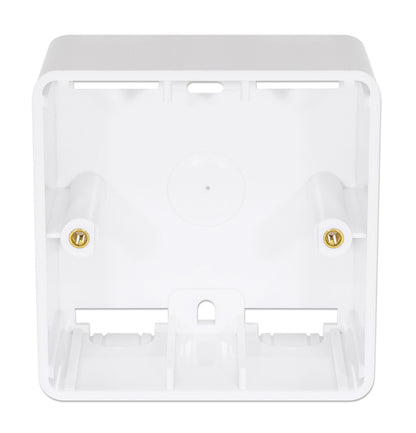

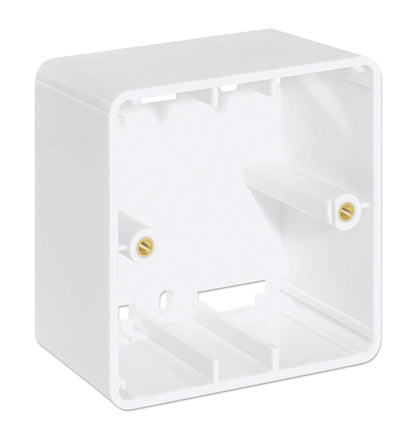

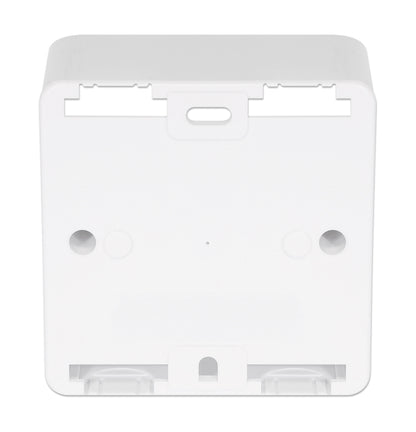

Surface Mount Pattress Box for Wall Plates

For Faceplate Models 771900 and 771917 from Intellinet Network Solutions, 80 x 80 x 45 mm, Signal White RAL9003

Part-No.: 771894

Highlights

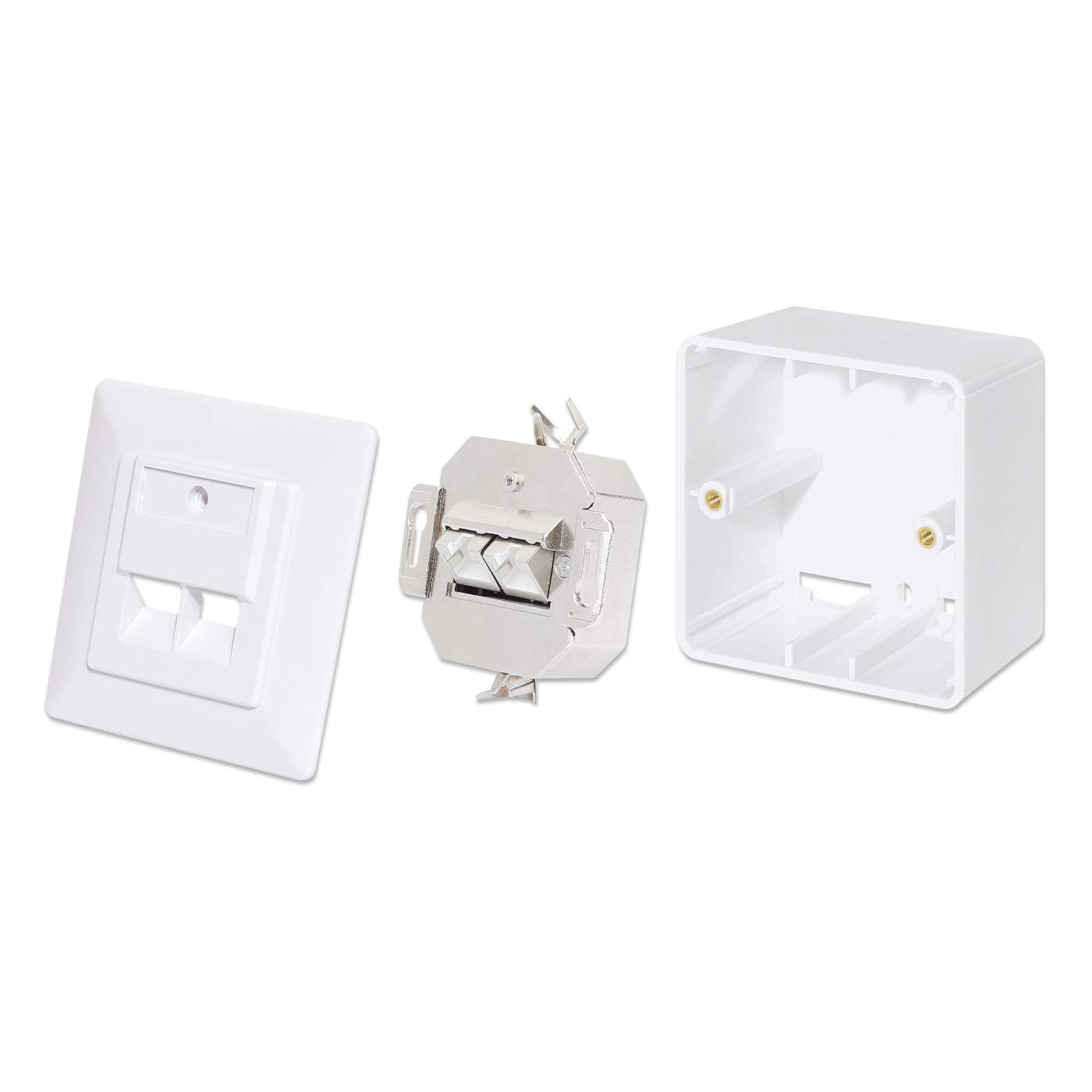

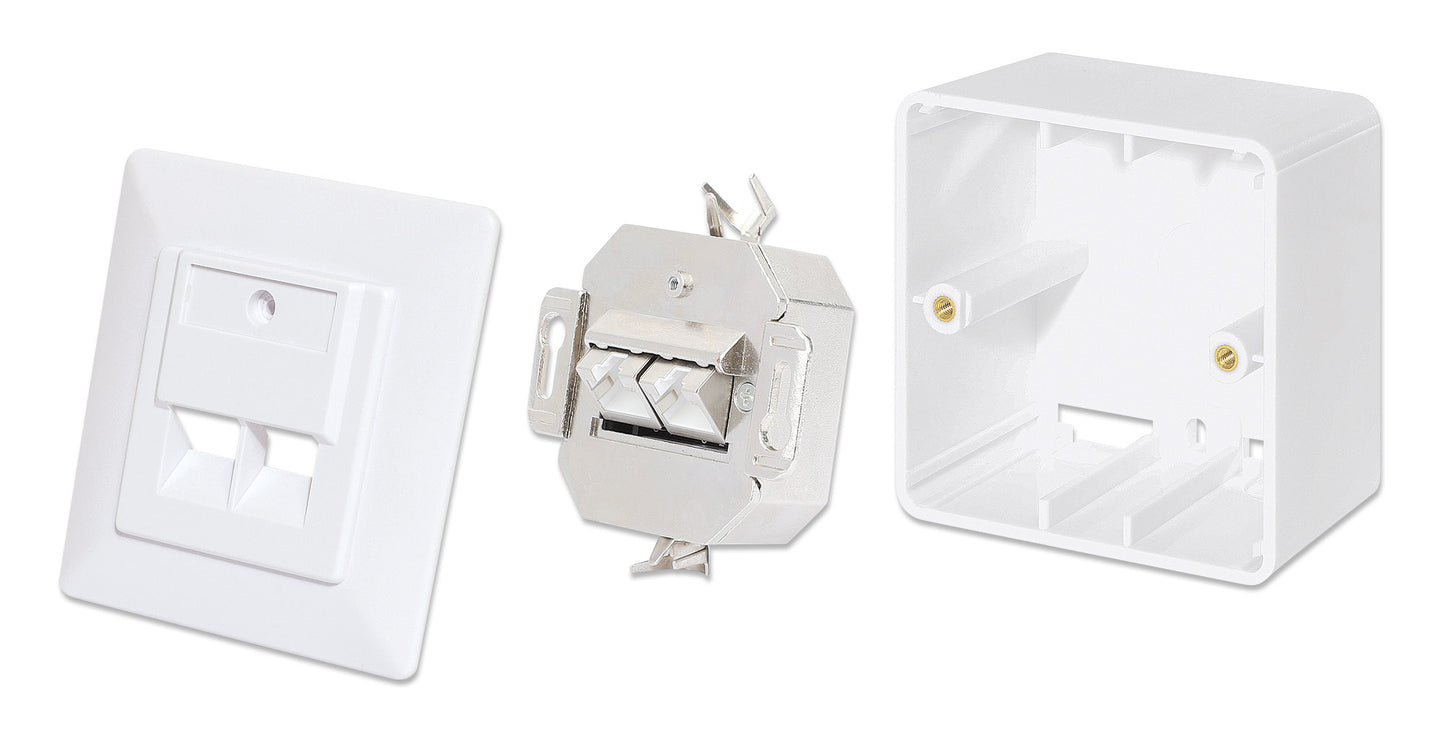

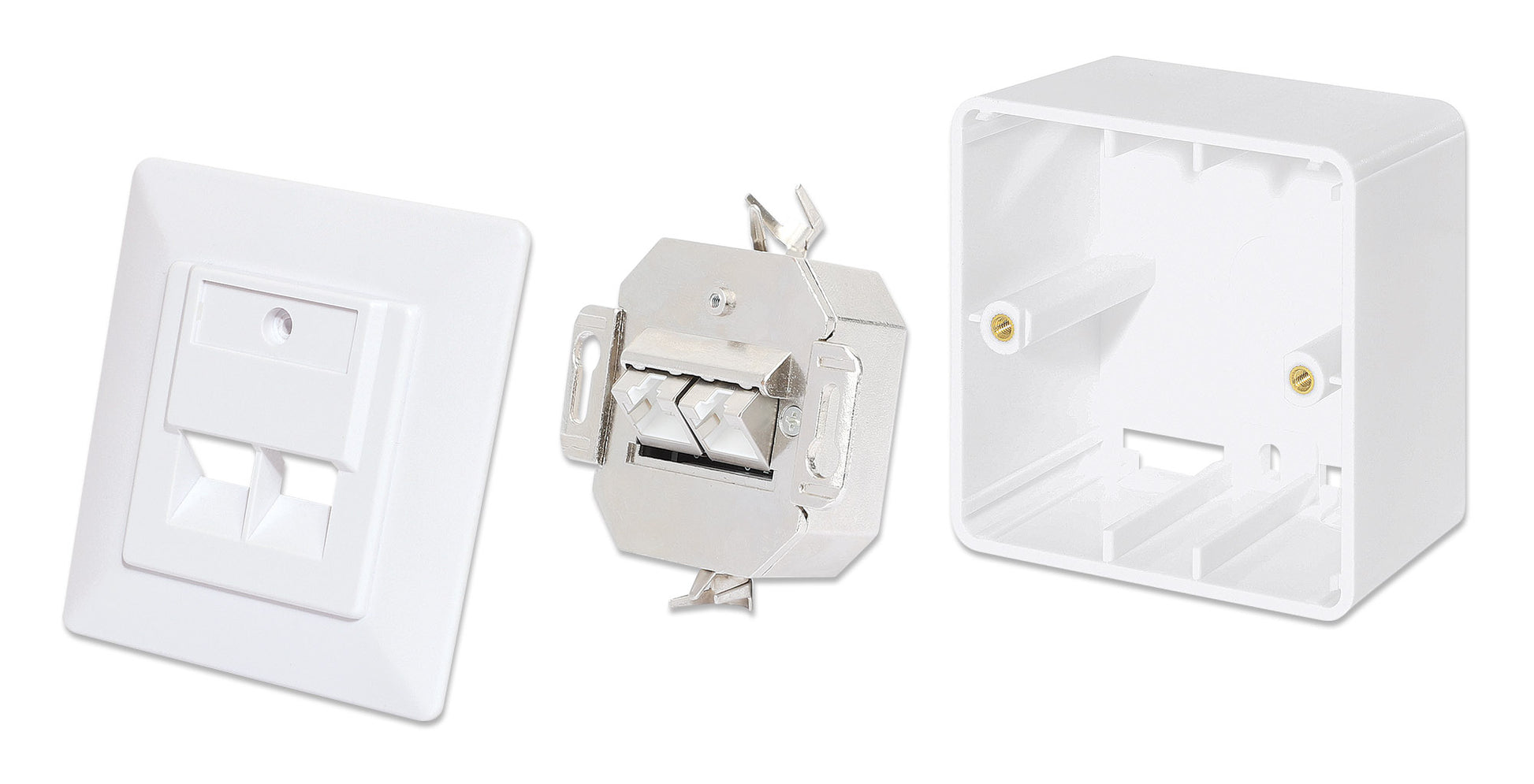

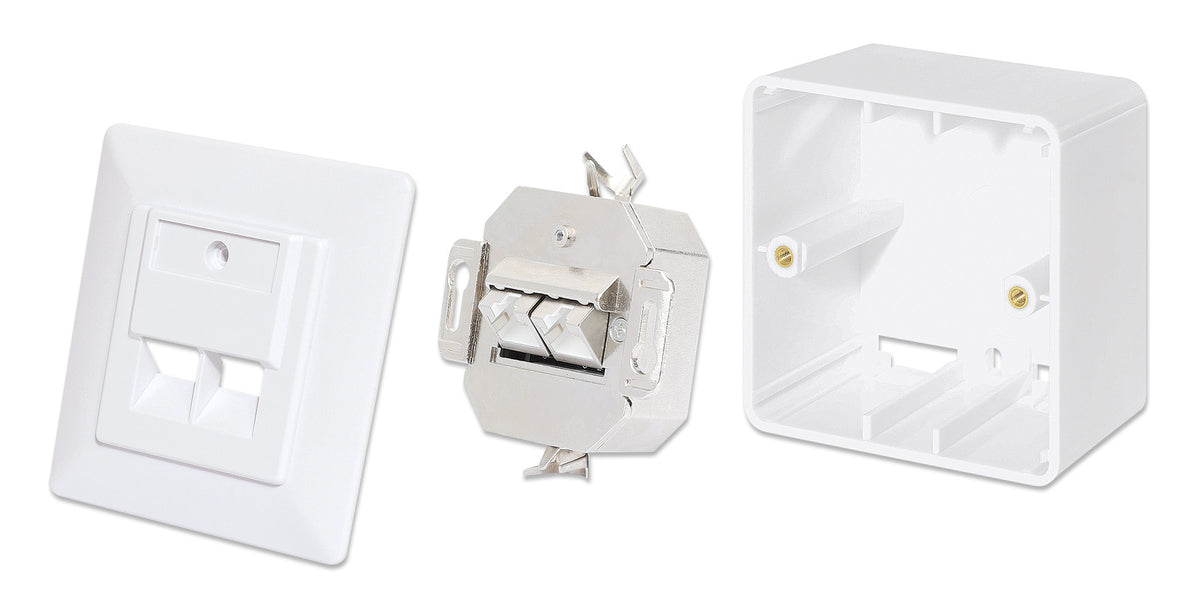

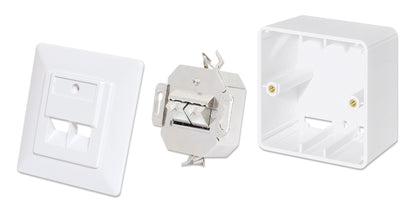

  • Extends flush-mount wall plates 771900 and 771917 to surface mount
  • European format with dimensions 80 x 80 x 45 mm

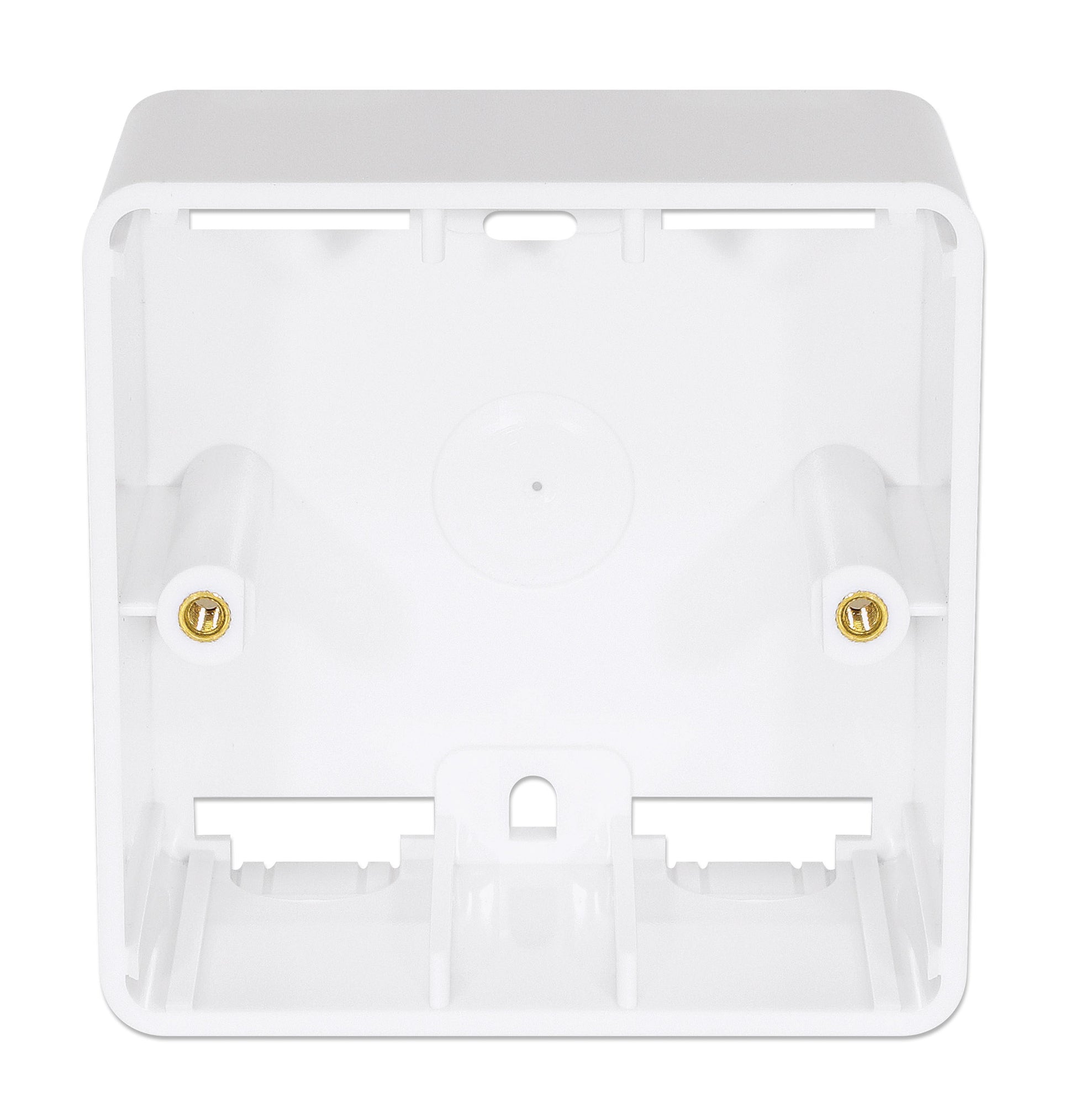

  • Two built-in screw holes for firm connection


Surface Mount Back Box for Wall Plates

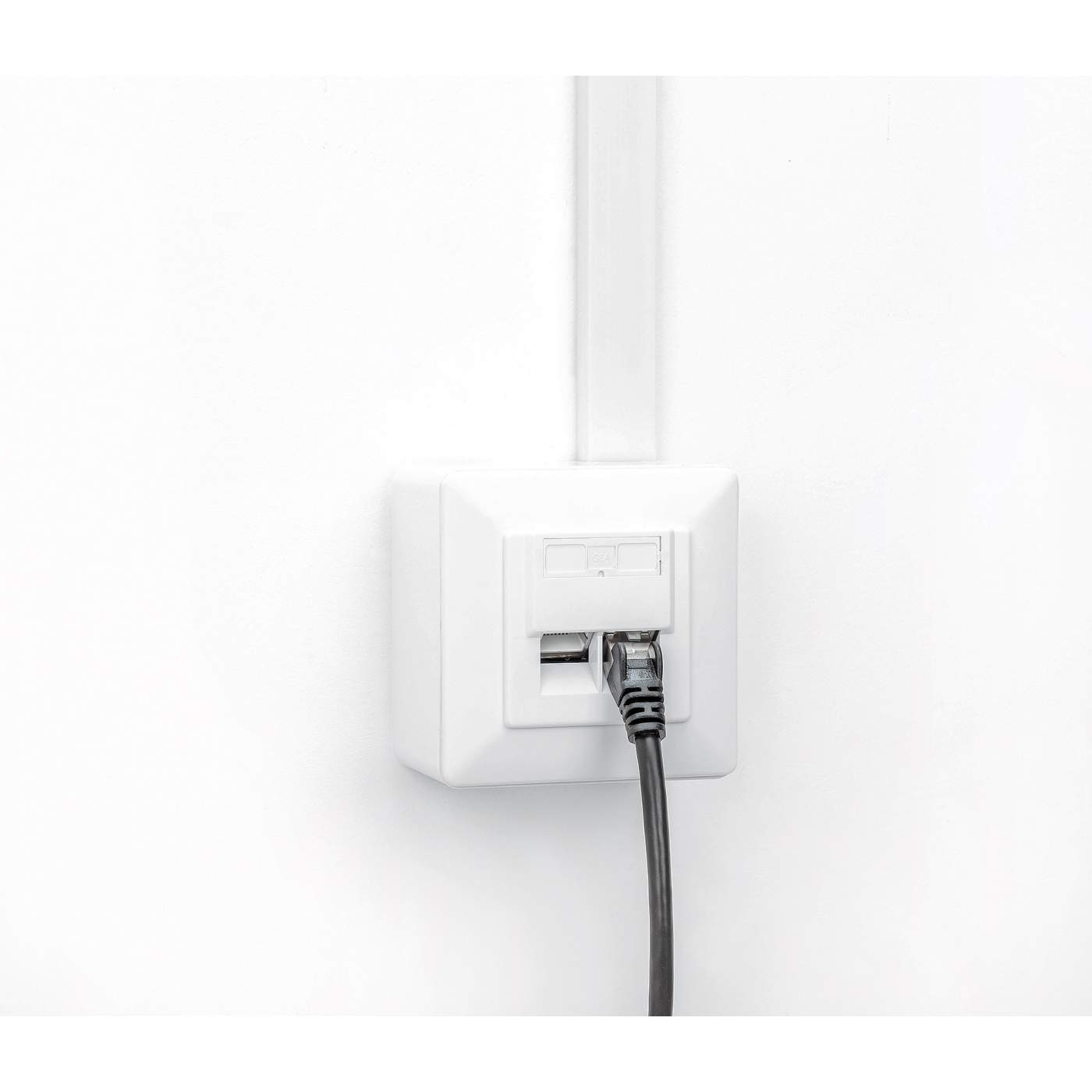

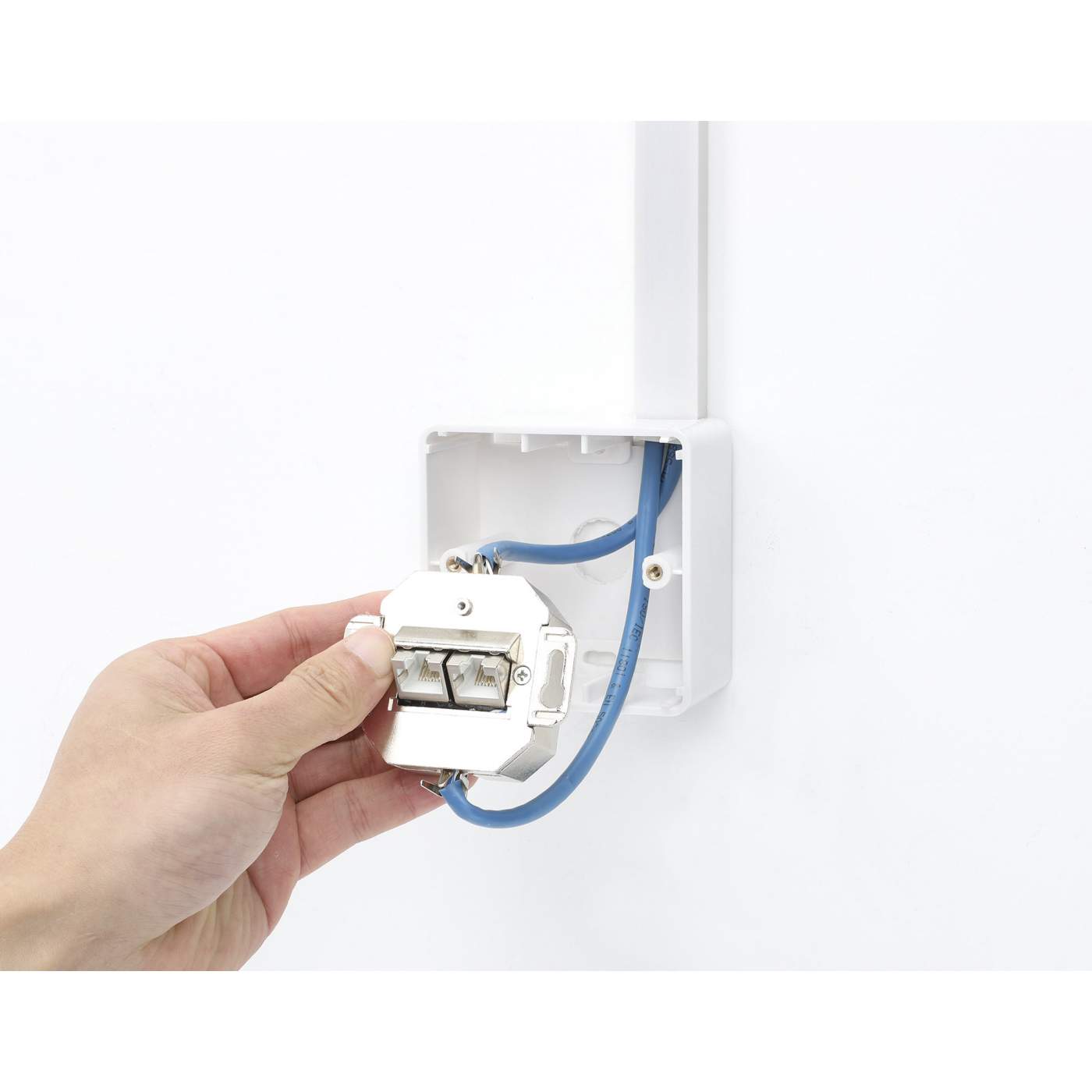

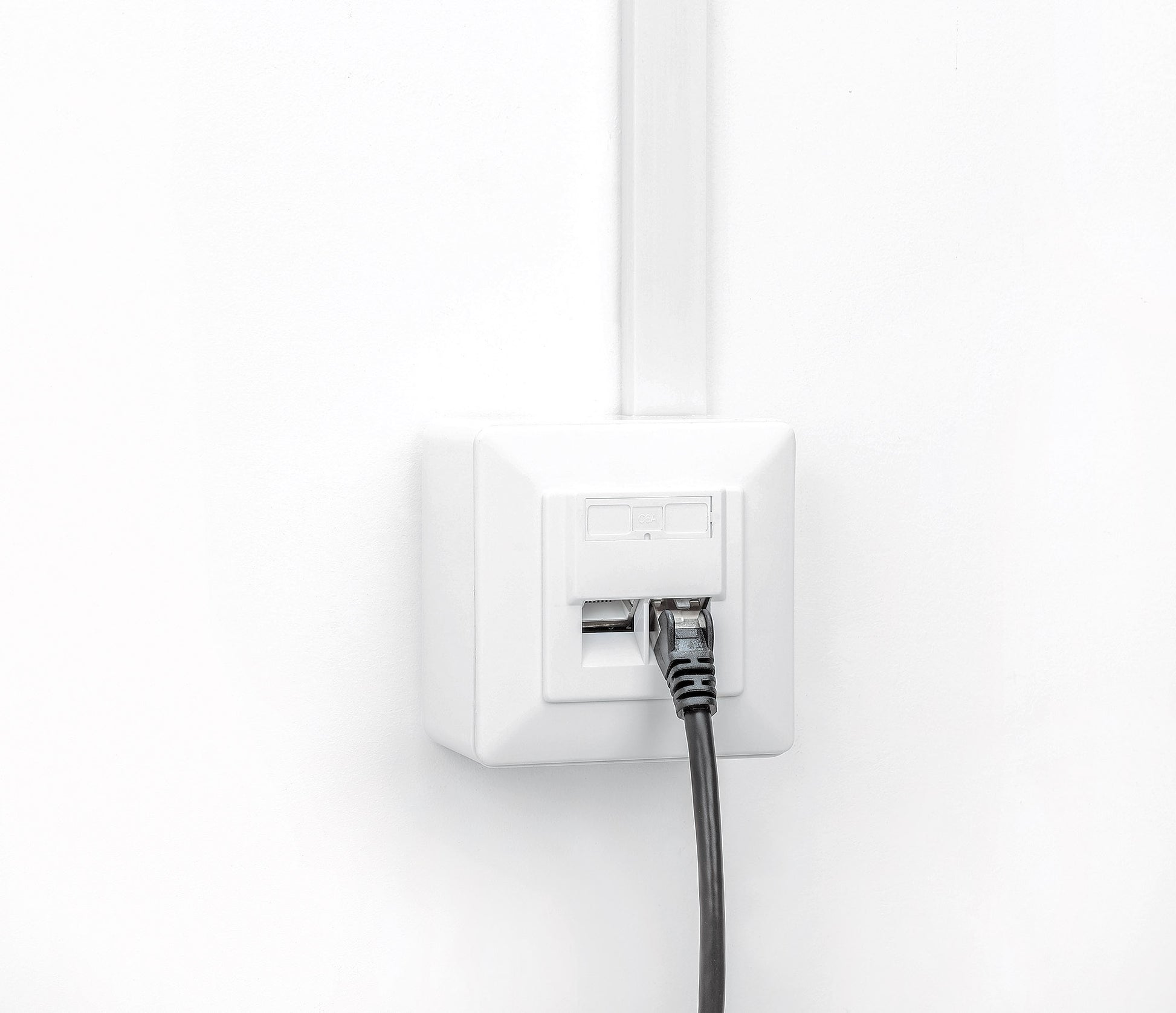

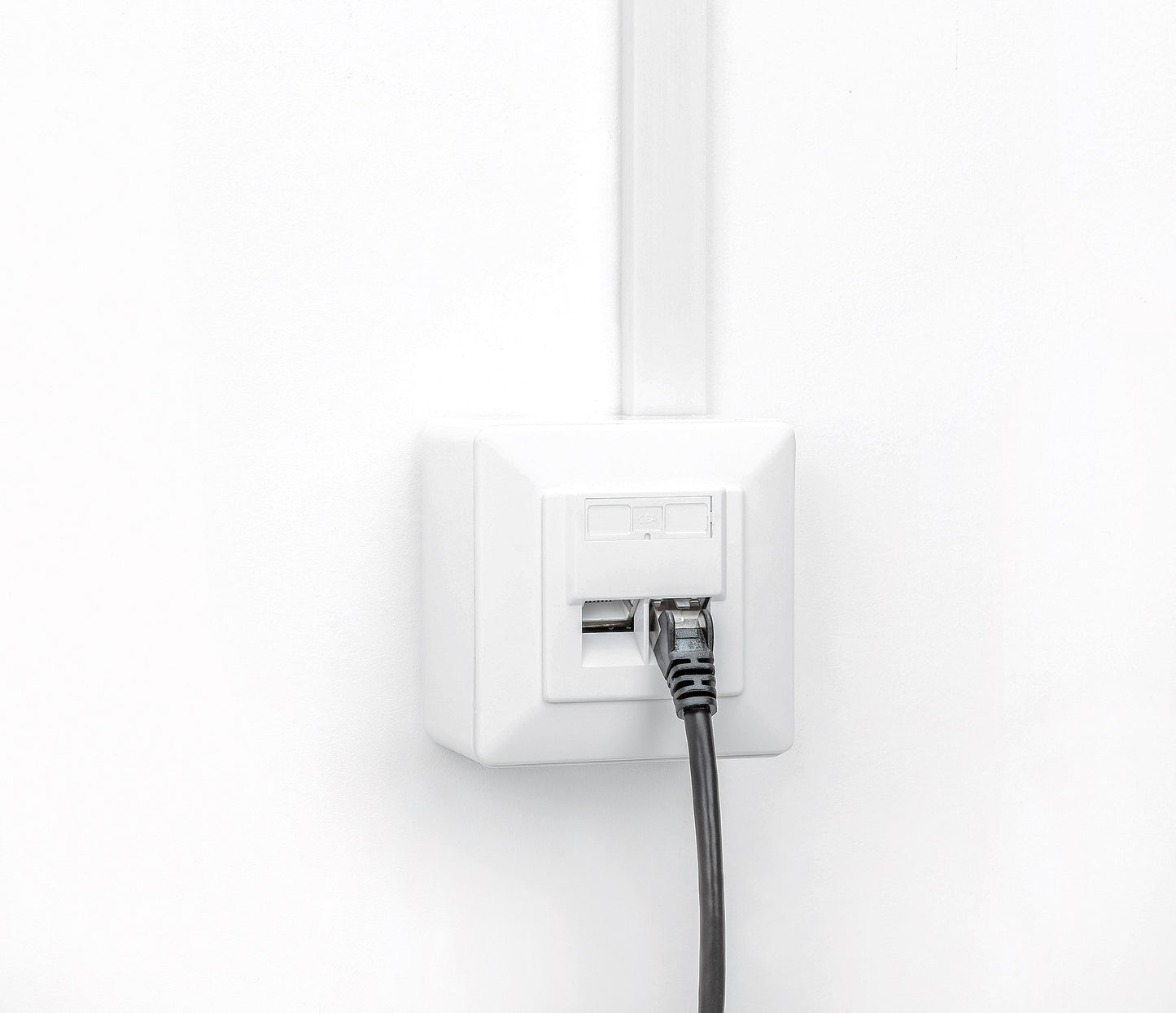

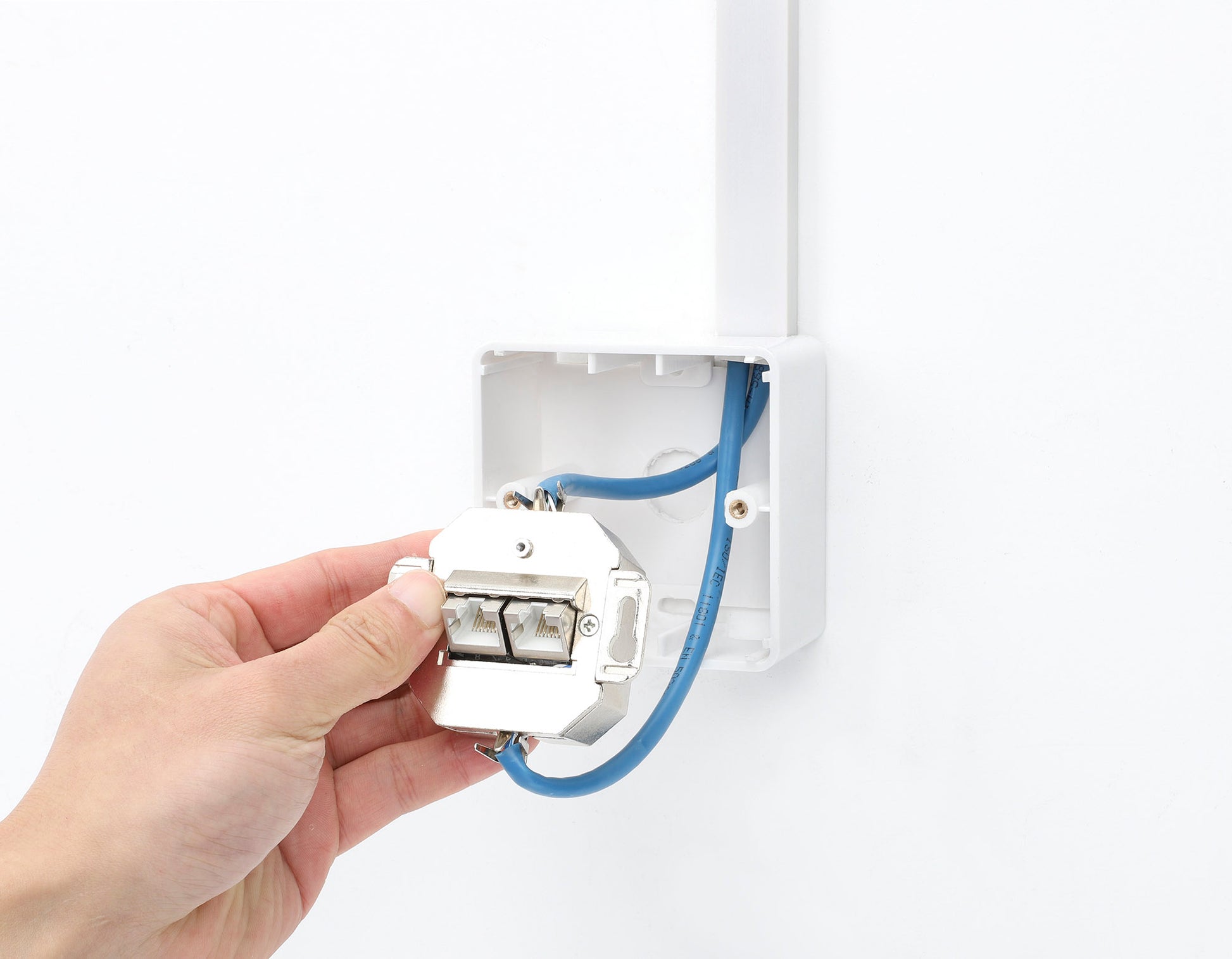

If you would like to avoid opening your wall for a flush-mount installation, use this Surface Mount Pattress Box. It is ideal for a Cat6 (#771900) and Cat6a (#771917) wall plate from Intellinet Network Solutions. It uses the European format with dimensions at 80 x 80 x 45 mm and offers two built-in screw holes to give you a firm connection.

  • Extends flush-mount wall plates 771900 and 771917 to surface mount
  • European format with dimensions 80 x 80 x 45 mm
  • Two built-in screw holes for firm connection
  • Lifetime warranty

    Standards and Certifications
  • RoHS

    Material
  • ABS plastic

    Physical
  • Dimensions (L x W x H): 80 x 80 x 45 mm (3.15 x 3.15 x 1.77 in.)
  • Net weight: 40 g (1.41 oz.)
  • Gross weight: 50 g (1.76 oz.)

    Environmental
  • Operating temperature: -10 - 60°C (14 - 140°F)
  • Storage temperature: -40 - 70°C (-40 - 158°F)
  • Operating humidity (non-condensing): 10 - 90% RH

    Package Contents
  • Surface Mount Pattress Box for Wall Plates

    Also available for this product:
  • #771900 - 2-Port Cat6 10G Shielded RJ45 Wall Plate
  • #771917 - 2-Port Cat6a 10G Shielded RJ45 Wall Plate

  • Additional SKUs

    • EAN: 0766623771894
    • UPC: 766623771894

  • Physical Specifications

    • Weight: 0.04 kg
    • Dimensions: 80 (L) x 80 (W) x 45 (H) [mm]
    • Packaging: Bag
    • Carton Quantity: 200
    • Carton Weight: 11.50 kg

  • Datasheet
