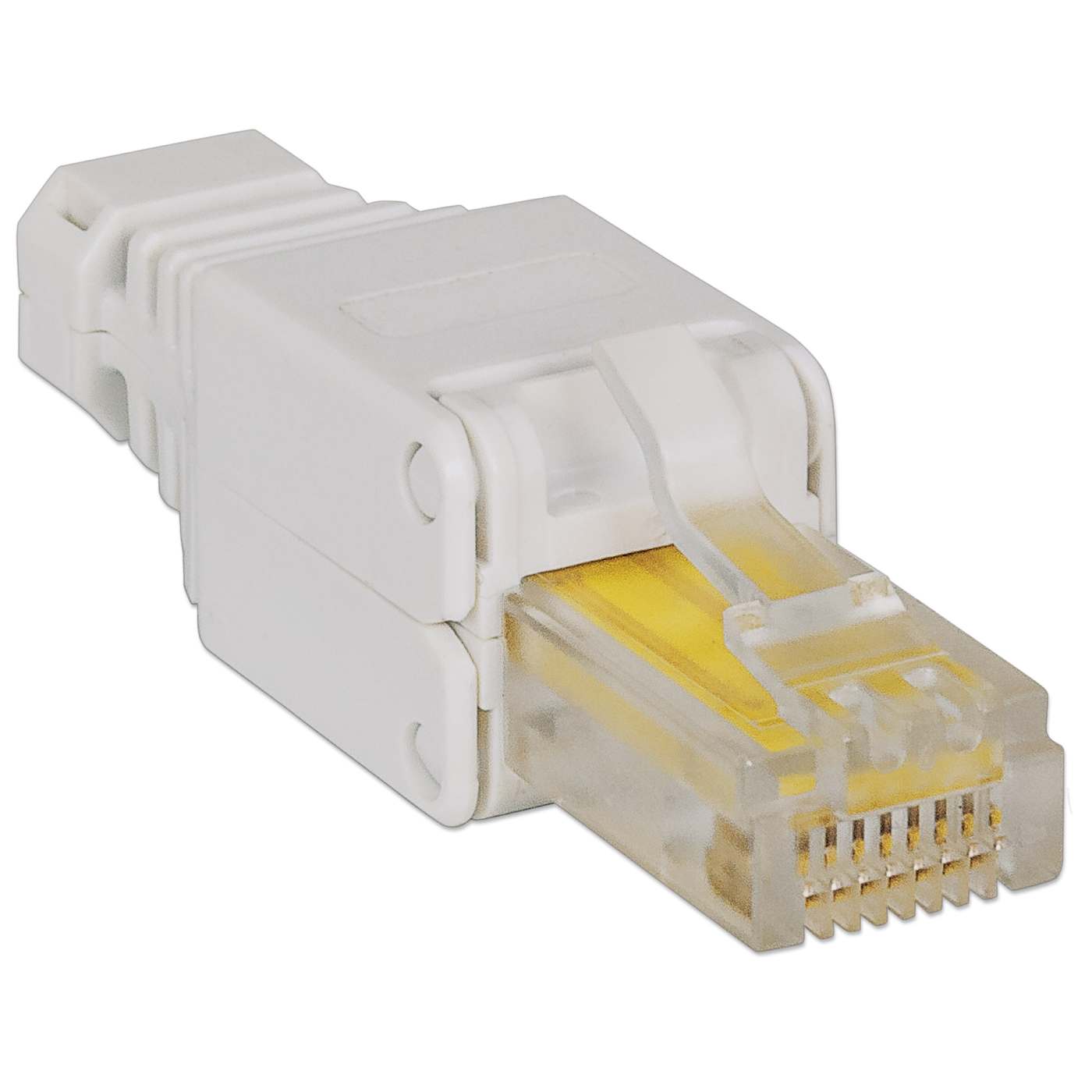

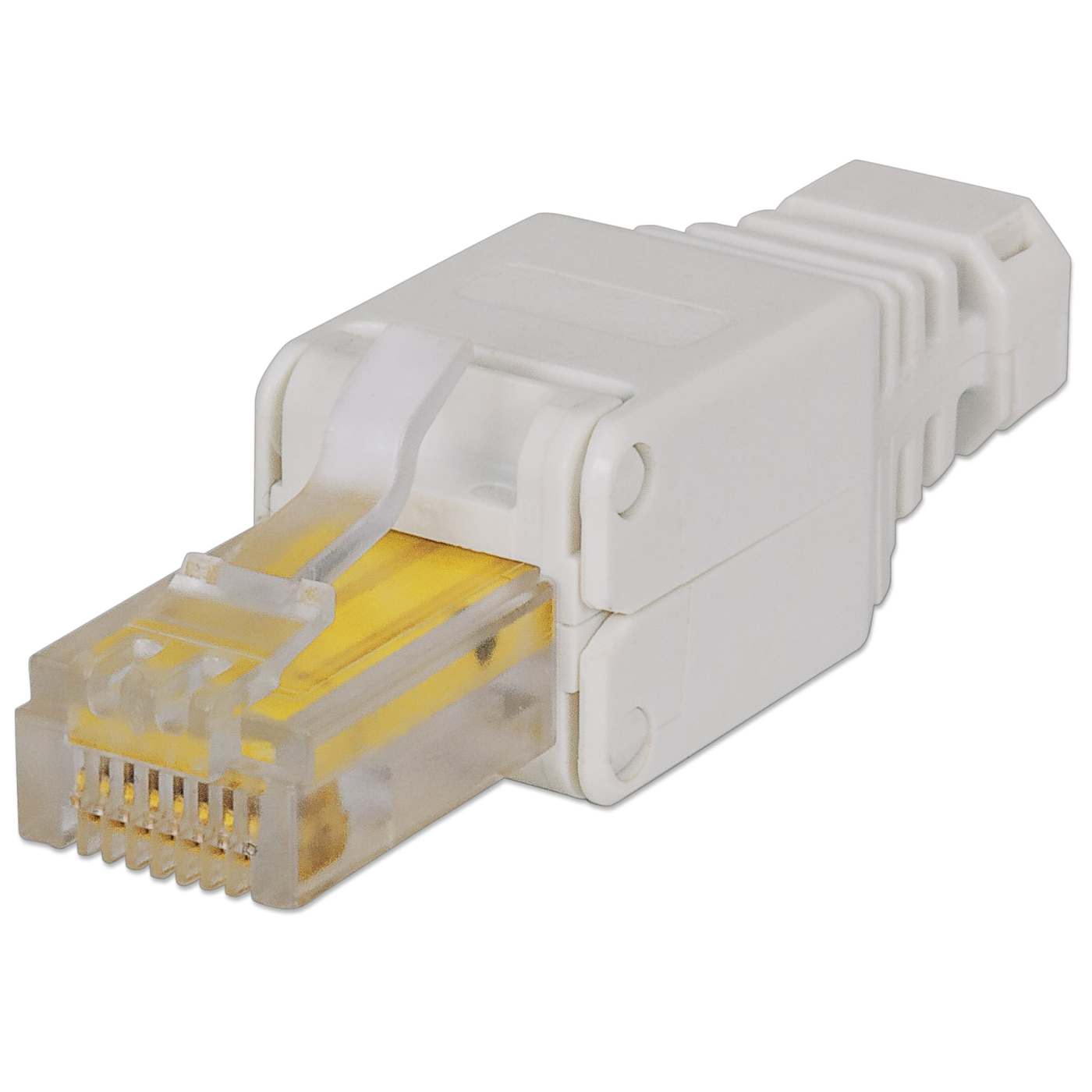

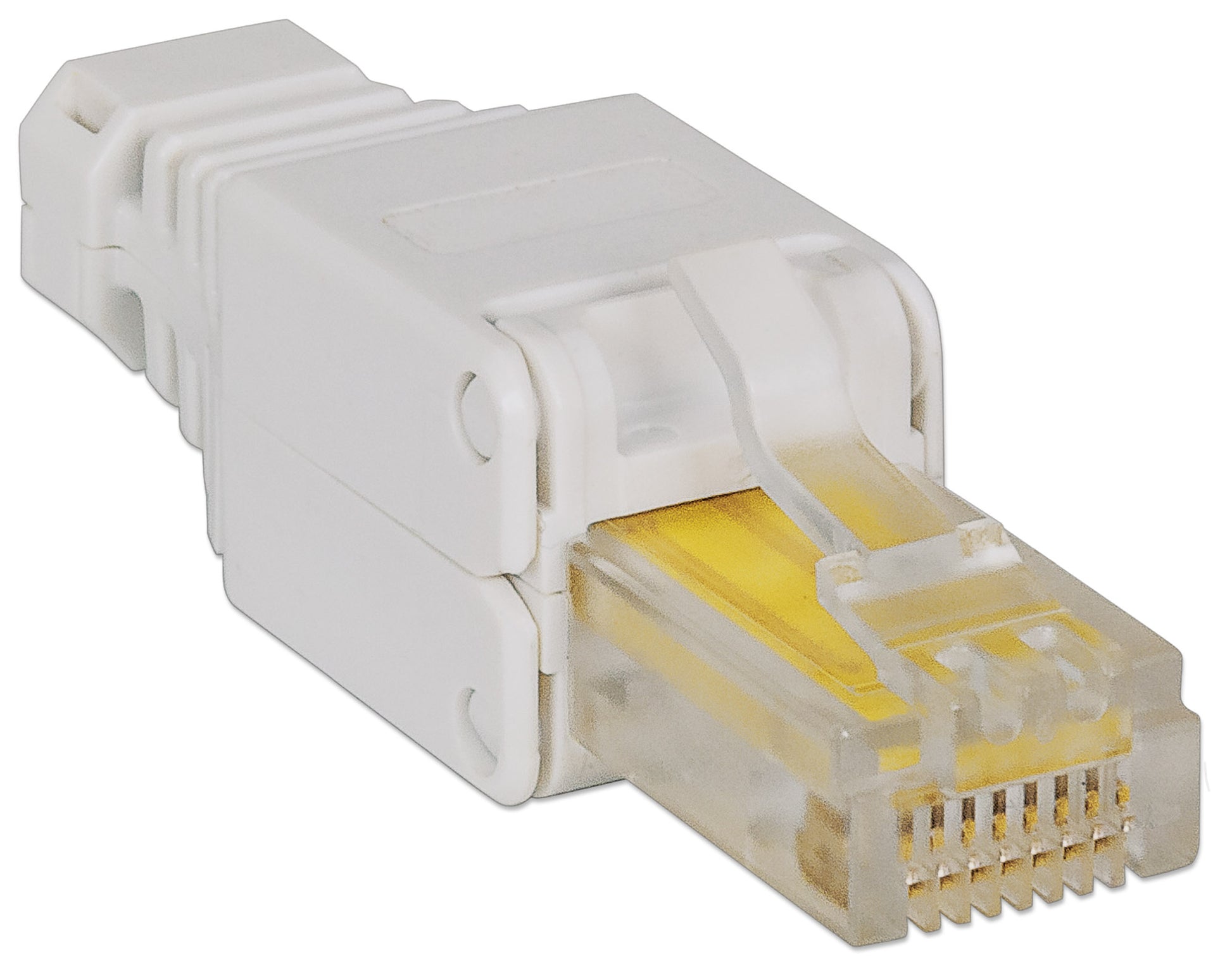

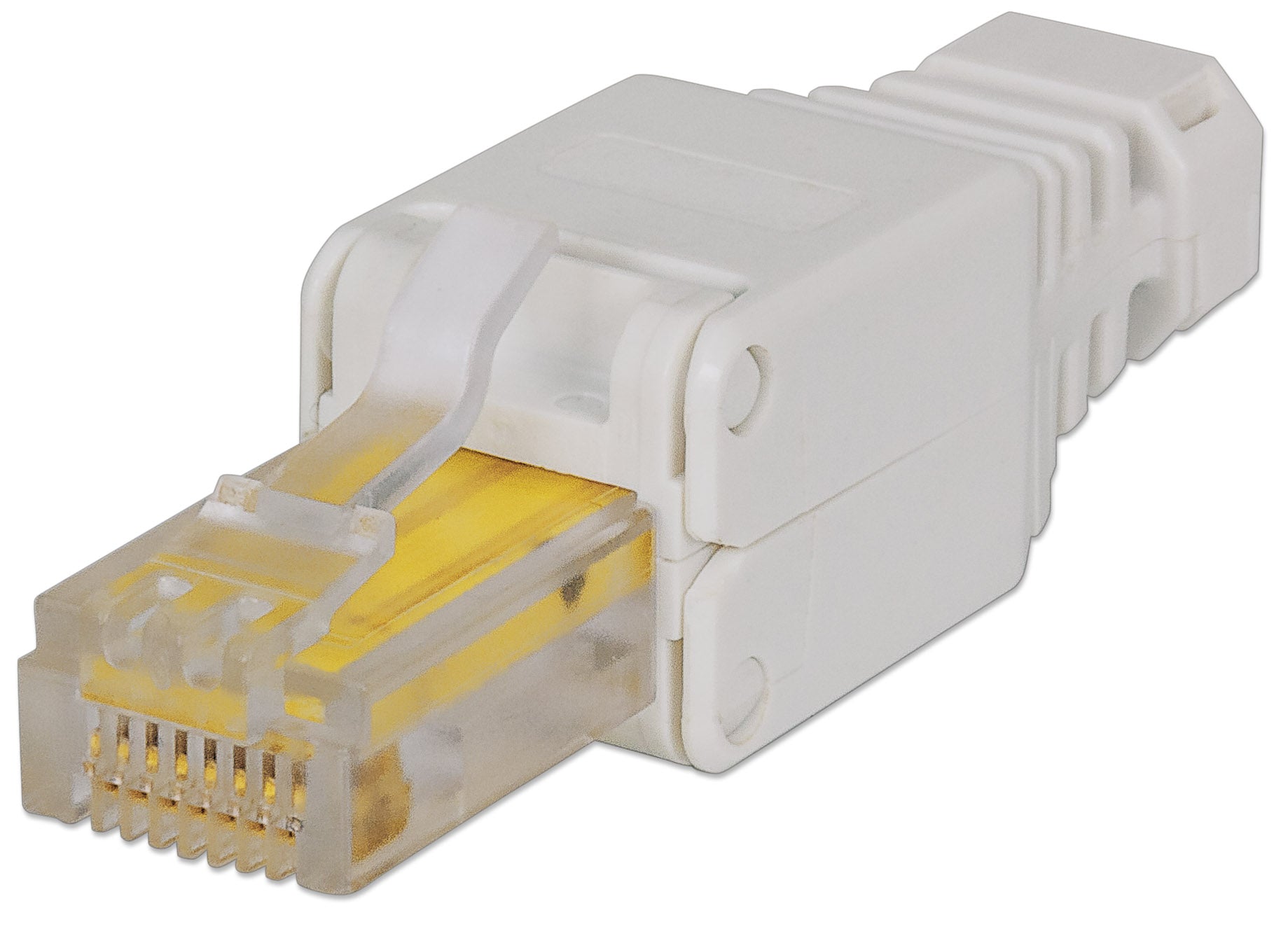

Toolless RJ45 Plug

Toolless RJ45 Modular plug

Part-No.: 790482

Highlights

  • RJ45 plug
  • Toolless connector
  • TIA/EIA-568-B.2, ISO/IEC11801 and EN50173-1

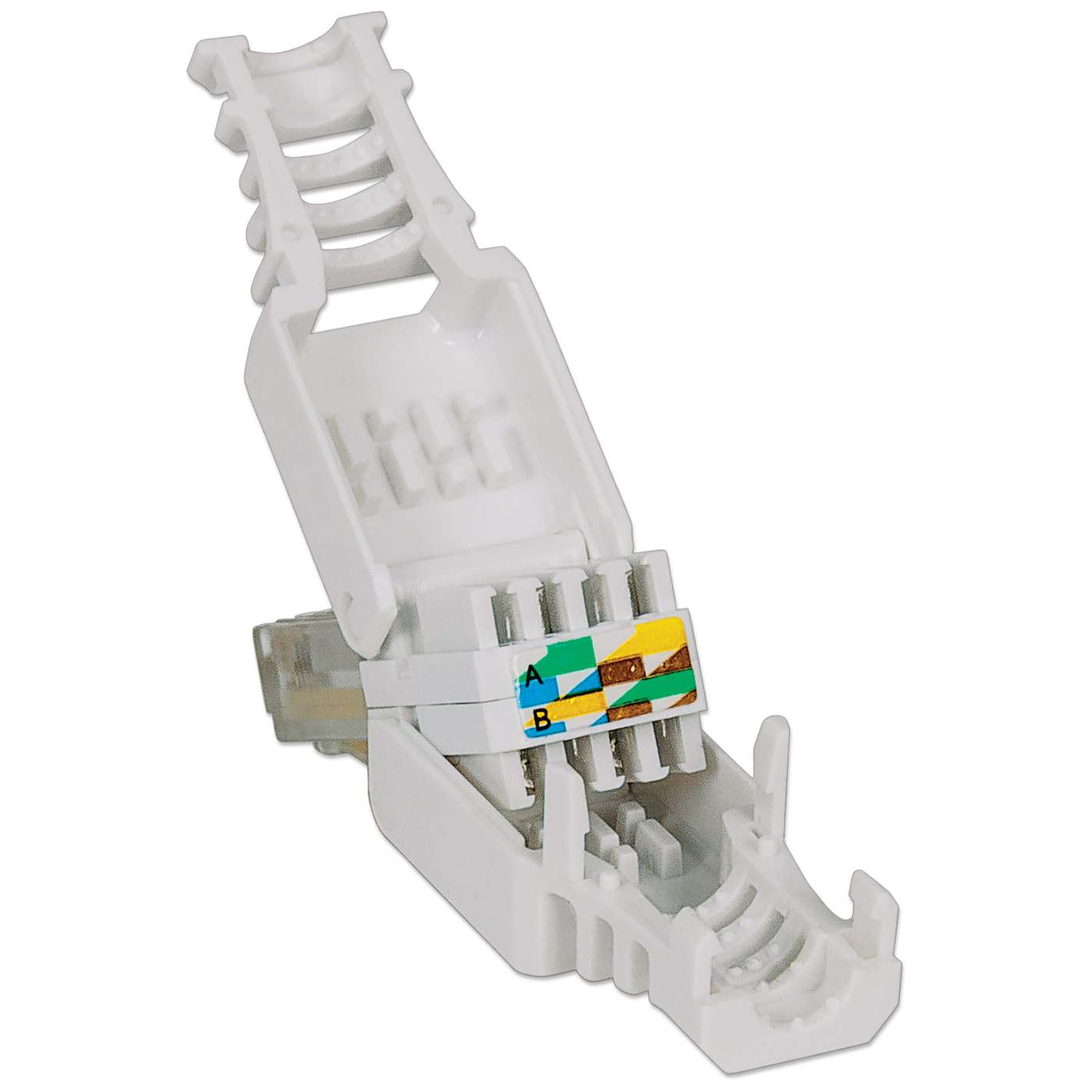

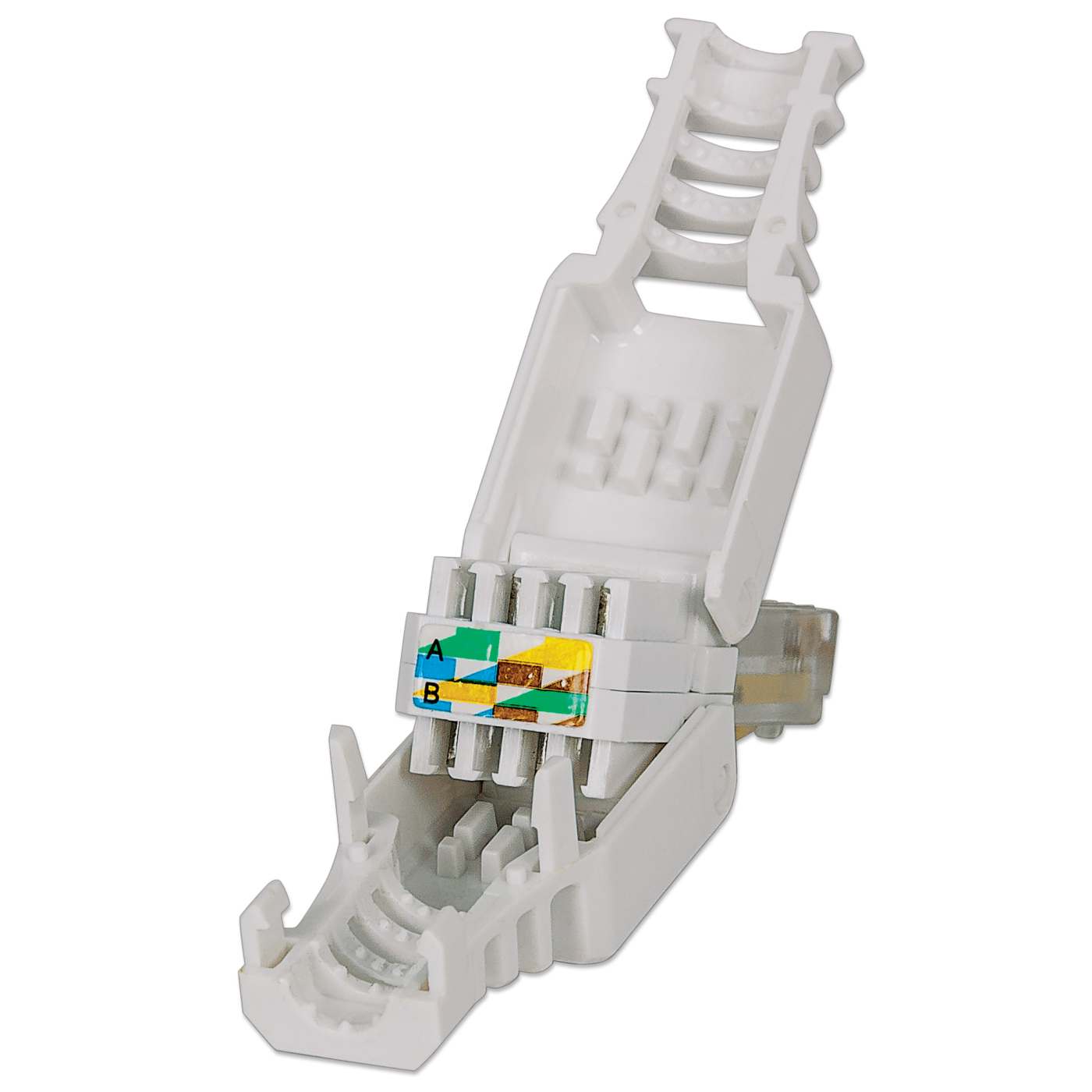

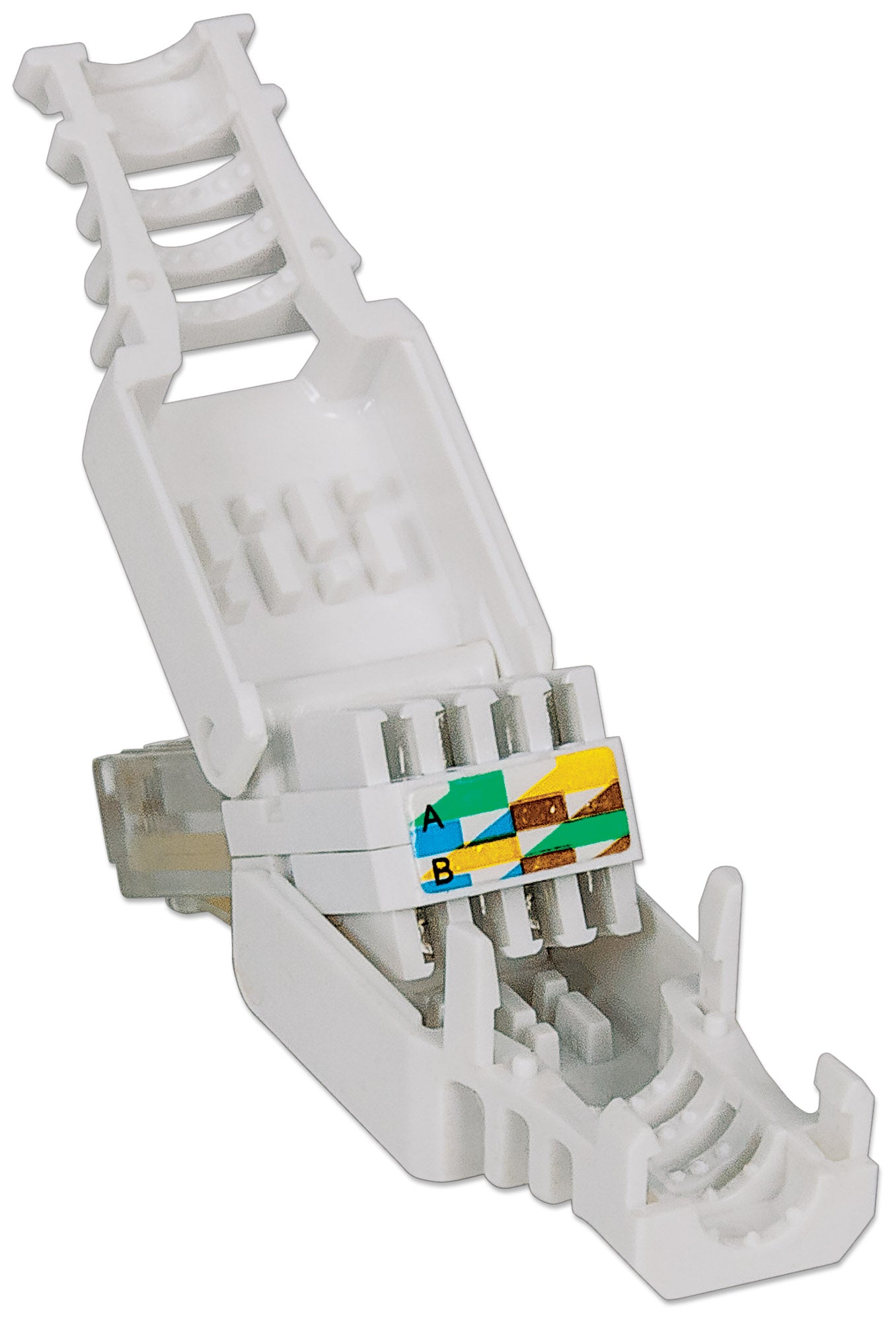

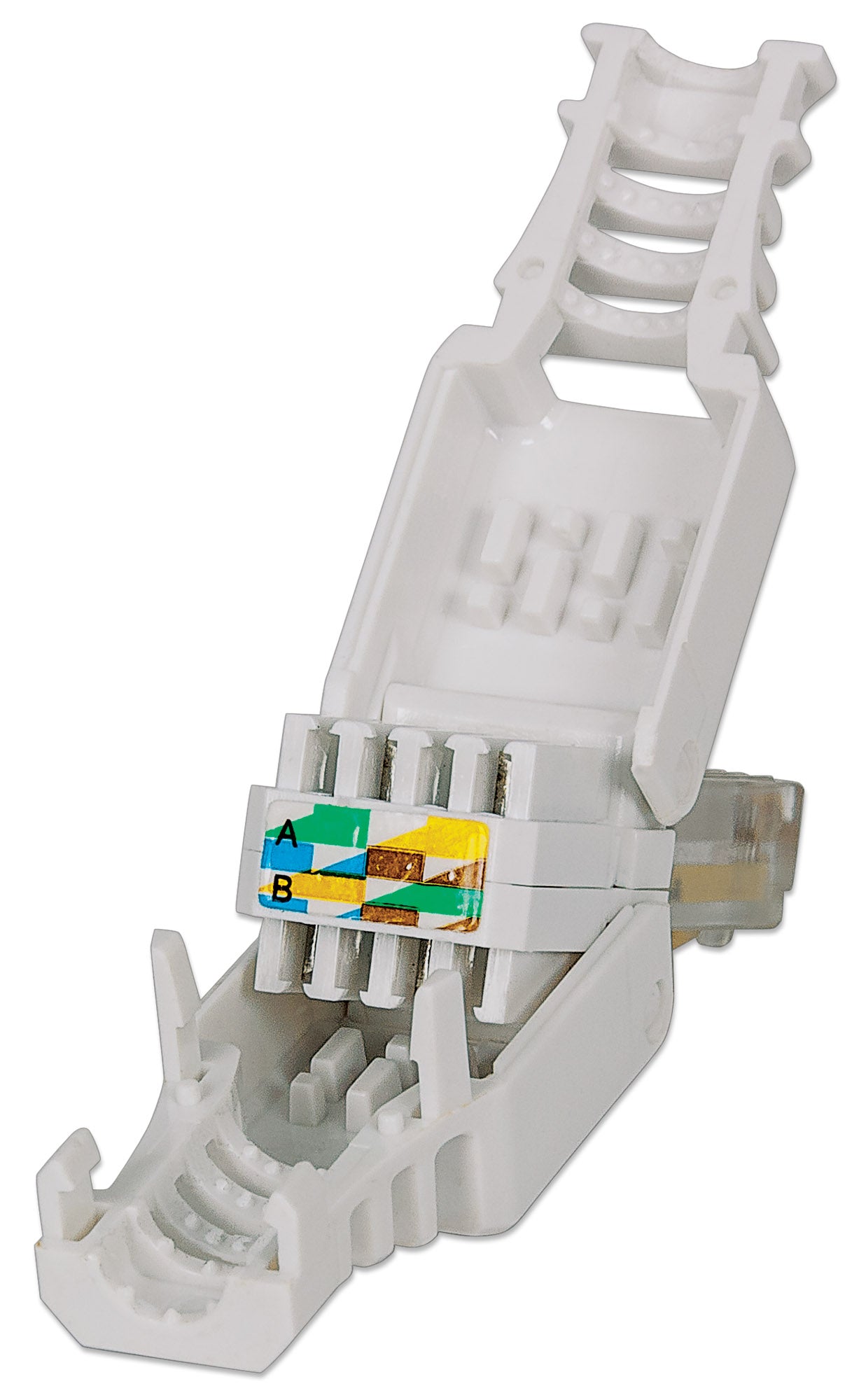

With this Toolless RJ45 Plug from Intellinet Network Solutions, there is no need for a crimping tool. Simply strip about 15 mm off the cable, select either T568A or B wiring style, place the wires in the corresponding color-coded slot and close the boot onto the cable. When the boot is closed over the IDC connectors, it pushes the wires into place and makes the connection.

  • RJ45 plug
  • Toolless connector
  • TIA/EIA-568-B.2, ISO/IEC11801 and EN50173-1
  • Compatible with 22-26 AWG solid and stranded UTP cables
  • Fast and easy installation
  • Lifetime Warranty

    General
  • For Cat5/5e/6 installations
  • Connector accepts 22-26 AWG solid and stranded UTP cables

    Compliance
  • Meets TIA/EIA-568-B.2, ISO/IEC11801 and EN50173-1 specifications
  • Complies with Cat5e patch cord testing performance requirements
  • Supports T568 A&B wiring

  • Additional SKUs

    • Amazon ASIN: B00NUSW86S
    • EAN: 0766623790482
    • UPC: 766623790482
    • ALSO: 2430523
    • API: 195607

  • Physical Specifications

    • Weight: 0.01 kg
    • Dimensions: 14.5 x 14.8 x 53.4 (mm)
    • Packaging: Bag
    • Carton Quantity: 500
    • Carton Weight: 5.51 kg

  • Datasheet
