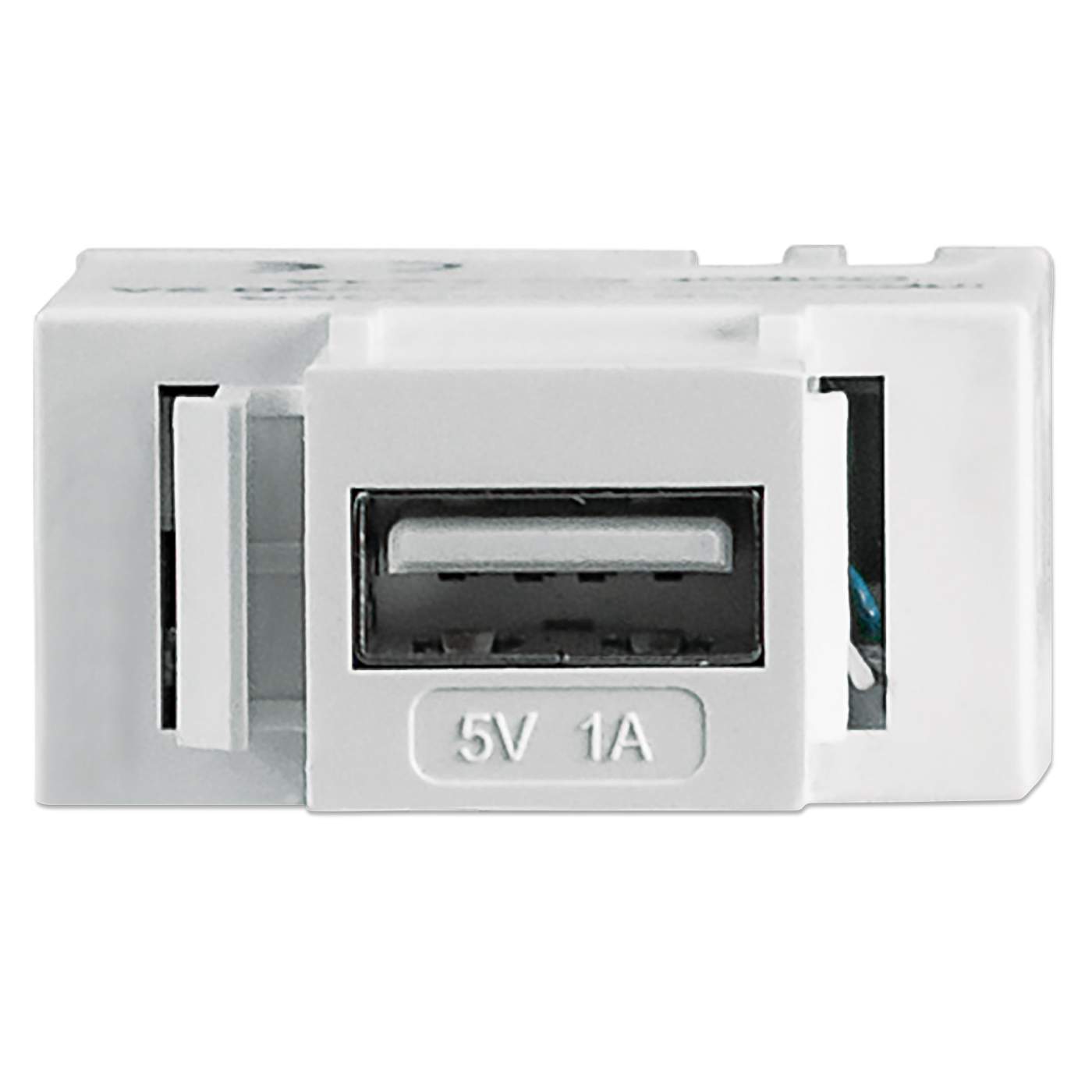

USB Charging Keystone Jack Image 1

USB Charging Keystone Jack

One Type-A Charging Port, Output 5 V / 1 A

Part-No.: 772167

Highlights

  • One USB type-A port
  • 5 V / 1 A charging output
  • Keystone jack design to fit in wall plates or patch panels

The Intellinet Network Solutions USB Charging Keystone Jack fits directly into a wall plate or patch panel so users can charge a portable electronic device, such as a phone and tablet, using only USB-A-compatible cable. No adapter is required, so this unique charging solution will help keep IT and networking areas neat and tidy. The Intellinet Network Solutions USB Charging Keystone Jack is sure to simplify how you power up your device, so it's ready to go when you are.

  • One USB type-A port
  • 5 V / 1 A charging output
  • Keystone jack design to fit in wall plates or patch panels
  • Three-year warranty

    General
  • USB Charging Keystone Jack
  • Green LED
  • PC flame-retardant housing

    Electrical
  • DC output: 5 V
  • Output voltage tolerance: +/- 5%
  • Output currrent: 1000 mA
  • Output power: 5 W max
  • No load power: 0.2 W max
  • Input voltage: 100 – 240 VAC, 50 – 60 Hz

    Environment
  • Operating environment: -10°C – 40°C
  • Storage environment: -20°C – 85°C

    Dimensions
  • 40.5 (L) x 32.5 (W) x 17.01 (H) [mm] 1.59 (L) x 1.28 (W) x 0.67 (H) [in]

    Package contents
  • USB Charging Keystone Jack
  • Quick Instruction Guide

  • Additional SKUs

    • Amazon ASIN: B07FQ99FM4
    • EAN: 0766623772167
    • UPC: 766623772167

  • Physical Specifications

    • Weight: 0.26 kg
    • Dimensions: 40.5 (L) x 32.5 (W) x 17.01 (H) [mm]
    • Packaging: Bag

  • Datasheet


  • Manual

    • Quick Instruction Guide     » Download
