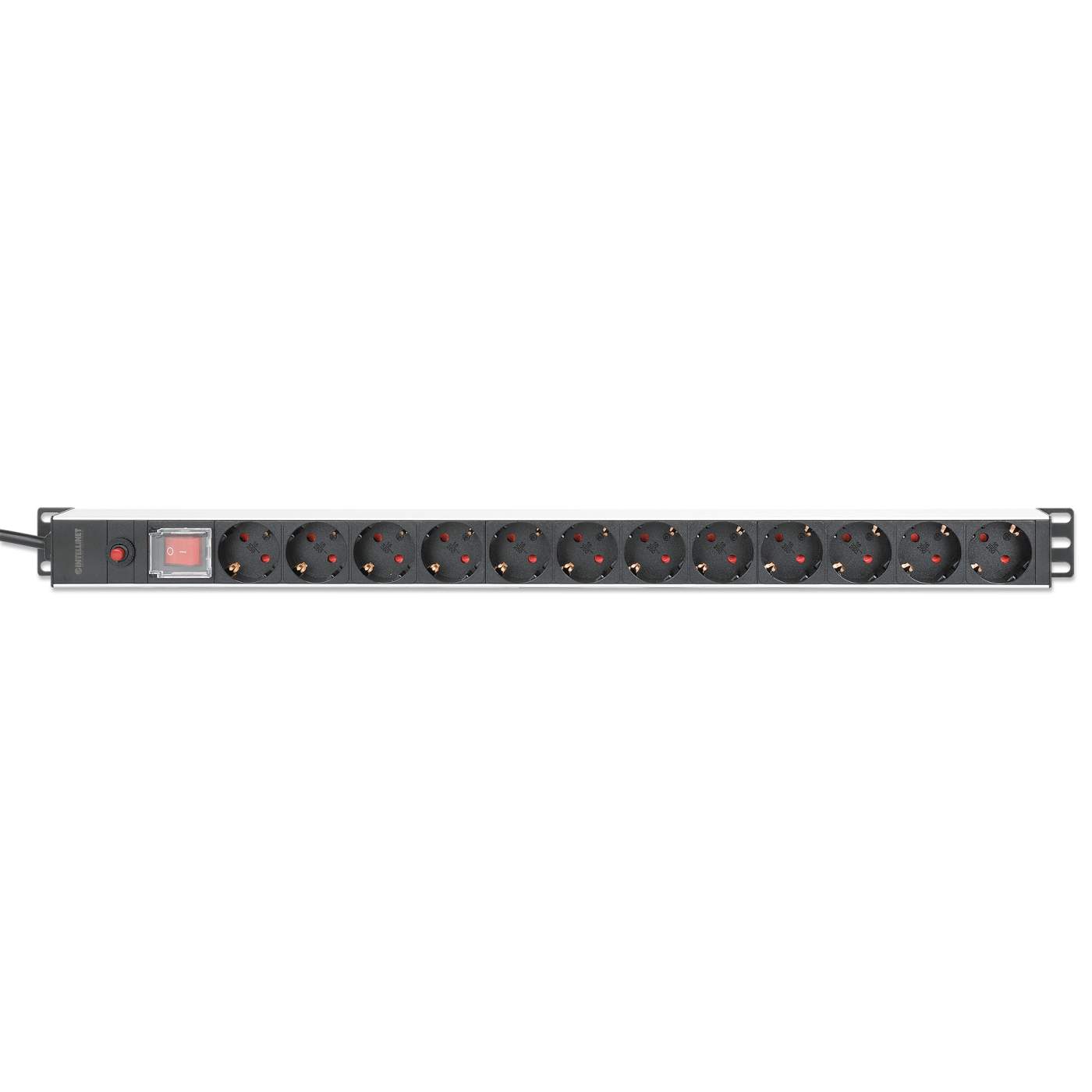

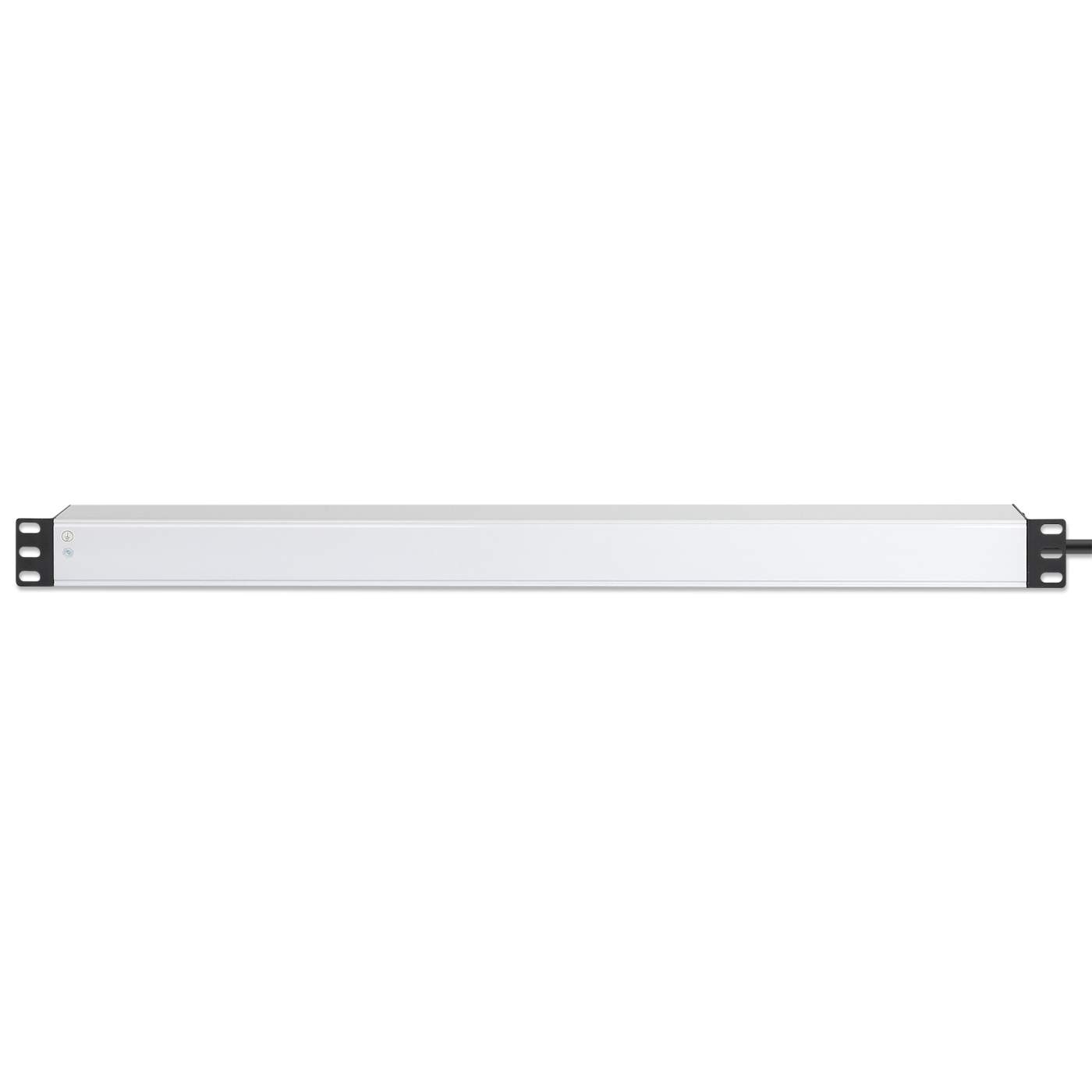

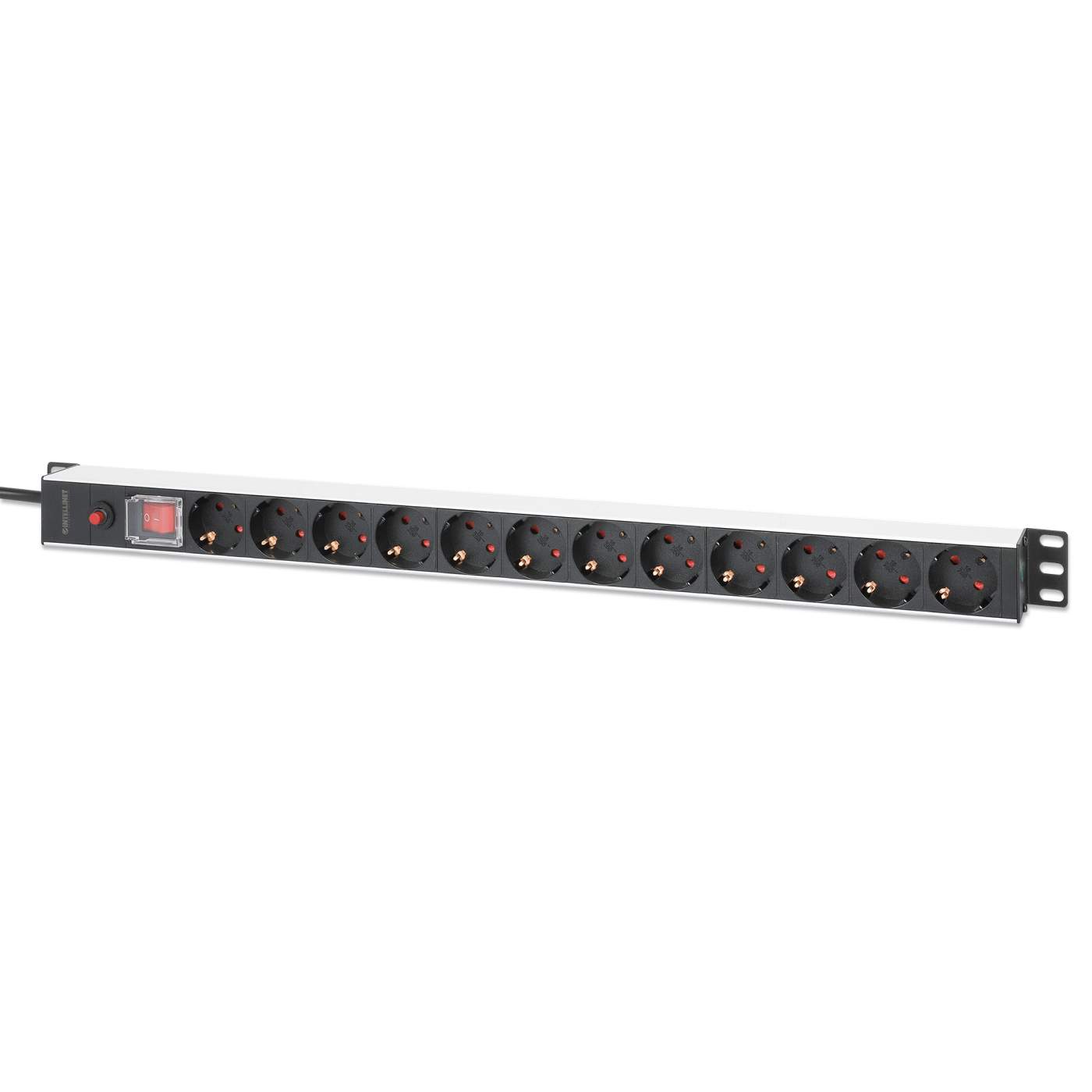

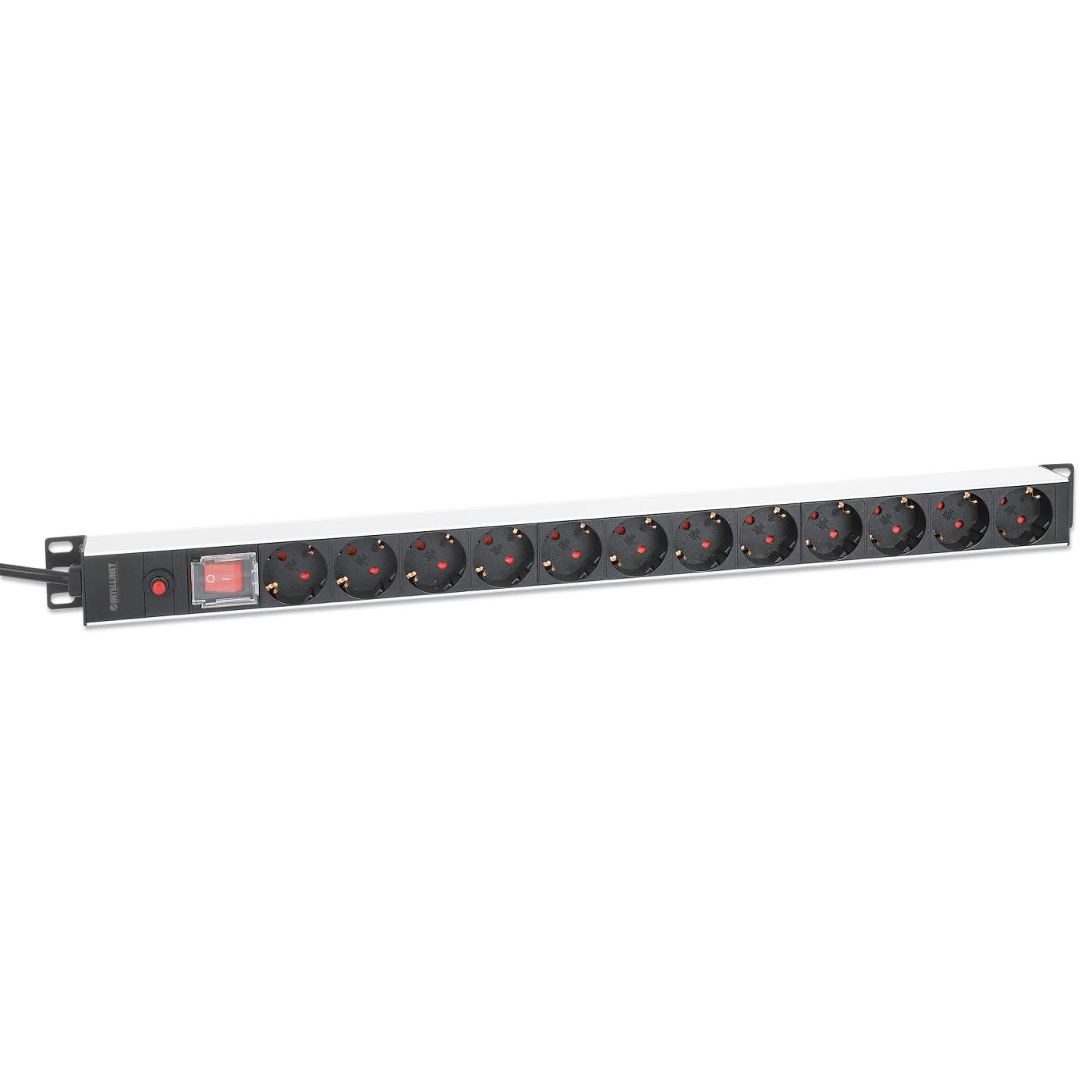

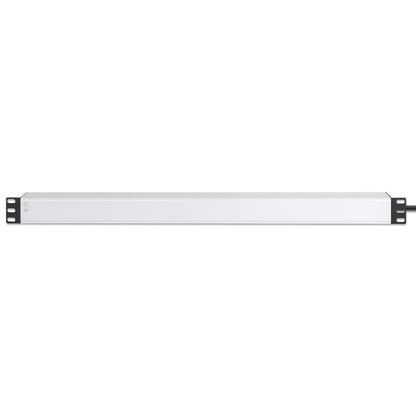

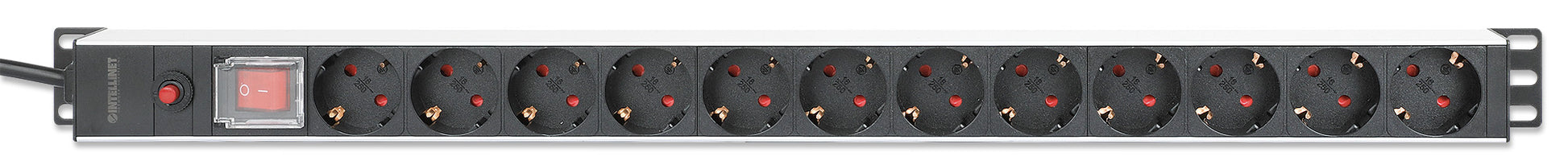

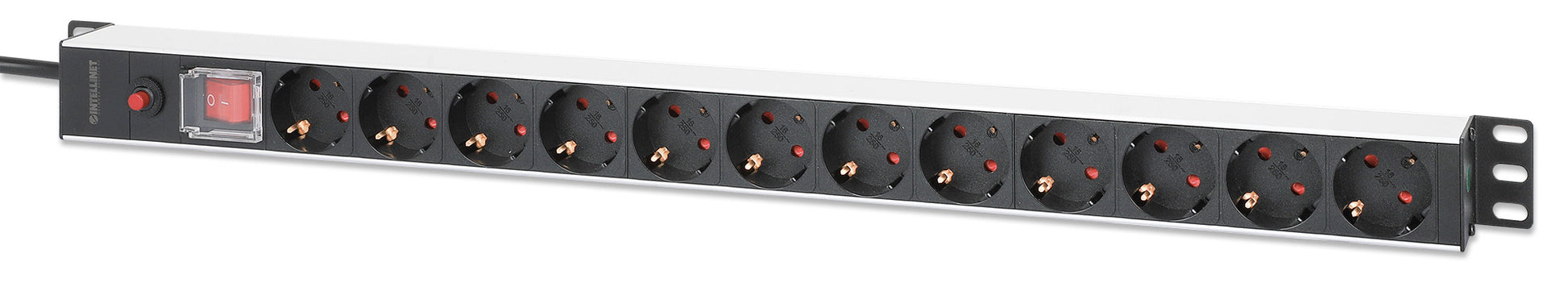

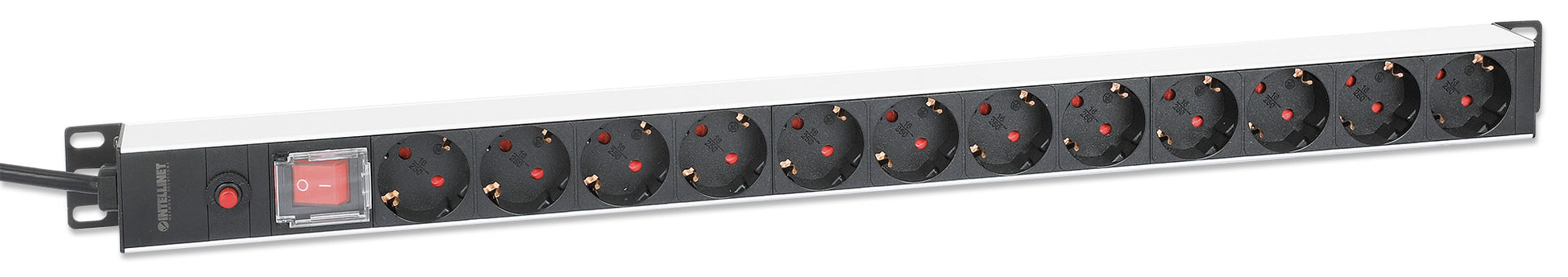

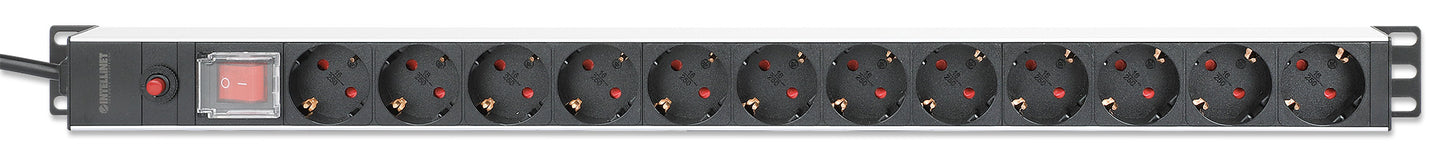

Intellinet Network Solutions basic rack PDUs (Power Distribution Units) provide reliable power distribution via a single input with multiple output receptacles. Our current range is designed to distribute power from low amperage single phase electrical circuits.
- Outlets: 12
- Power input style: left-end single input
- Suitable for network and server cabinets of 20U or larger
- Cable plug: IEC60884
- Protection functions: Overload protection with power cut at loading over 16 A
- Shell color & material: black aluminum
- Three-year warranty
- Socket/outlet standard: IEC60884
- Outlets: 12

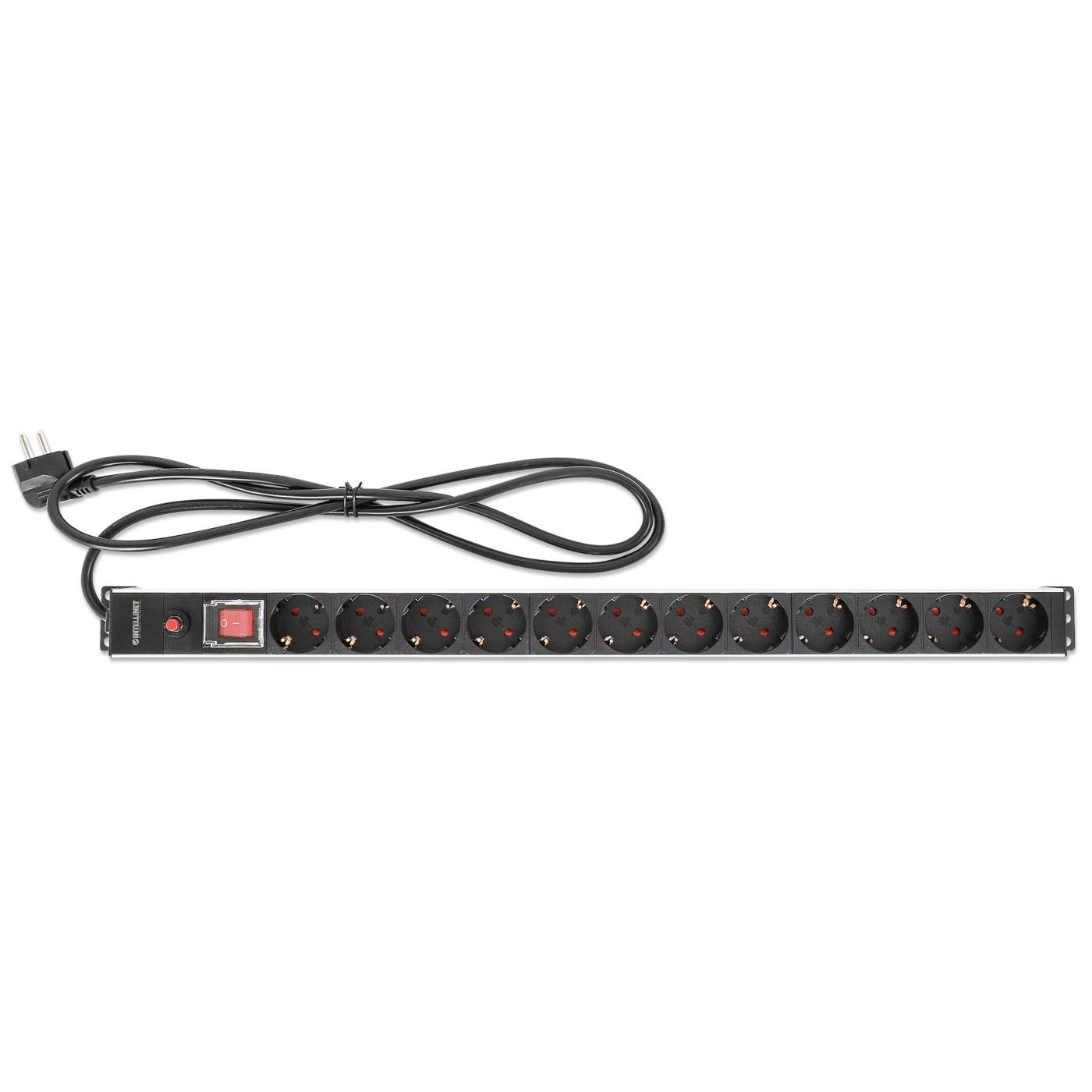

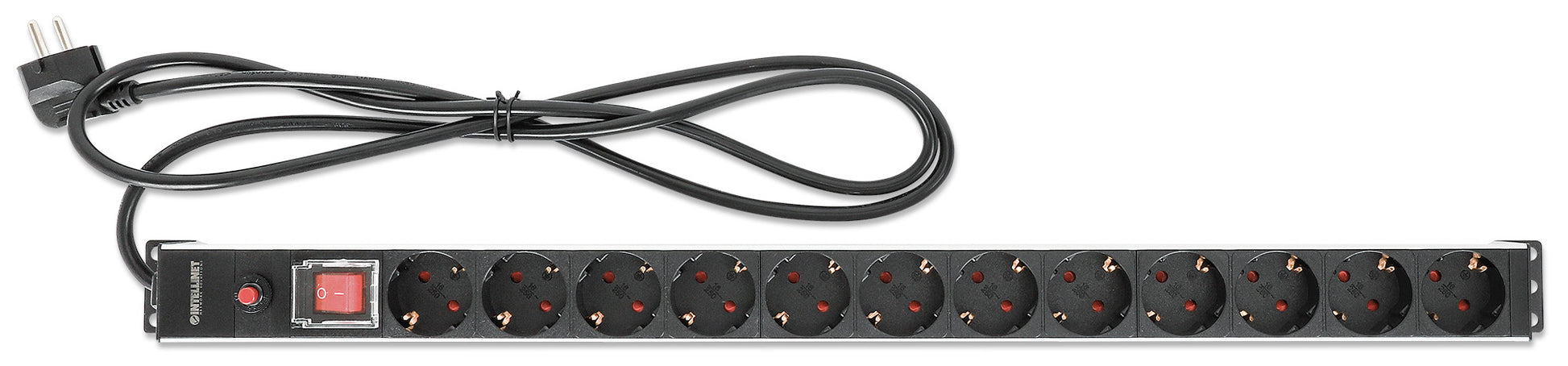

- Cable specification: standard 1.8 m power cord
- Size: 675 (L) x 45 (W) x 45 (H) [mm]
- Electrical rating: 250V AC
- Maximum load current: 16 A
- Overload protection with power cut at loading over 16 A
- Flammability: Tested and rated in accordance with UL 94 V-0
- MTBF: >100,000 hours
Additional SKUs
- Amazon ASIN: B01GUXUG3G
- EAN: 0766623714044
- UPC: 766623714044
- ALSO: 2596790
- API: 200740
Physical Specifications
- Product net weight: 1.05 kg
- Product gross weight: 1.2 kg
- Dimensions: 675 (L) x 45 (W) x 45 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 715 x 103 x 68 [mm]
- Master Carton Quantity: 10
- Master Carton Weight: 12.30 kg
- Master Carton Dimensions: 725 x 350 x 215 [mm]
