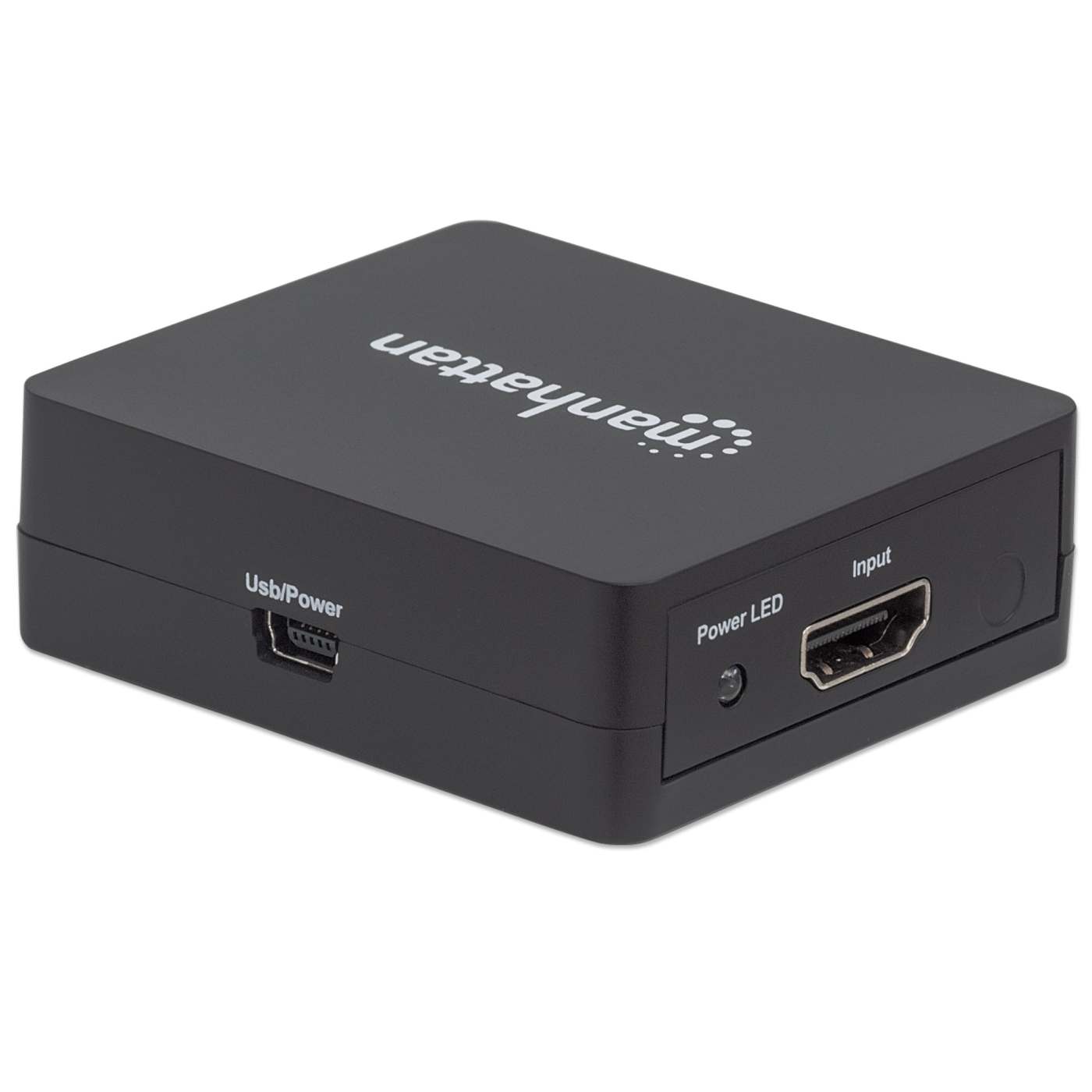

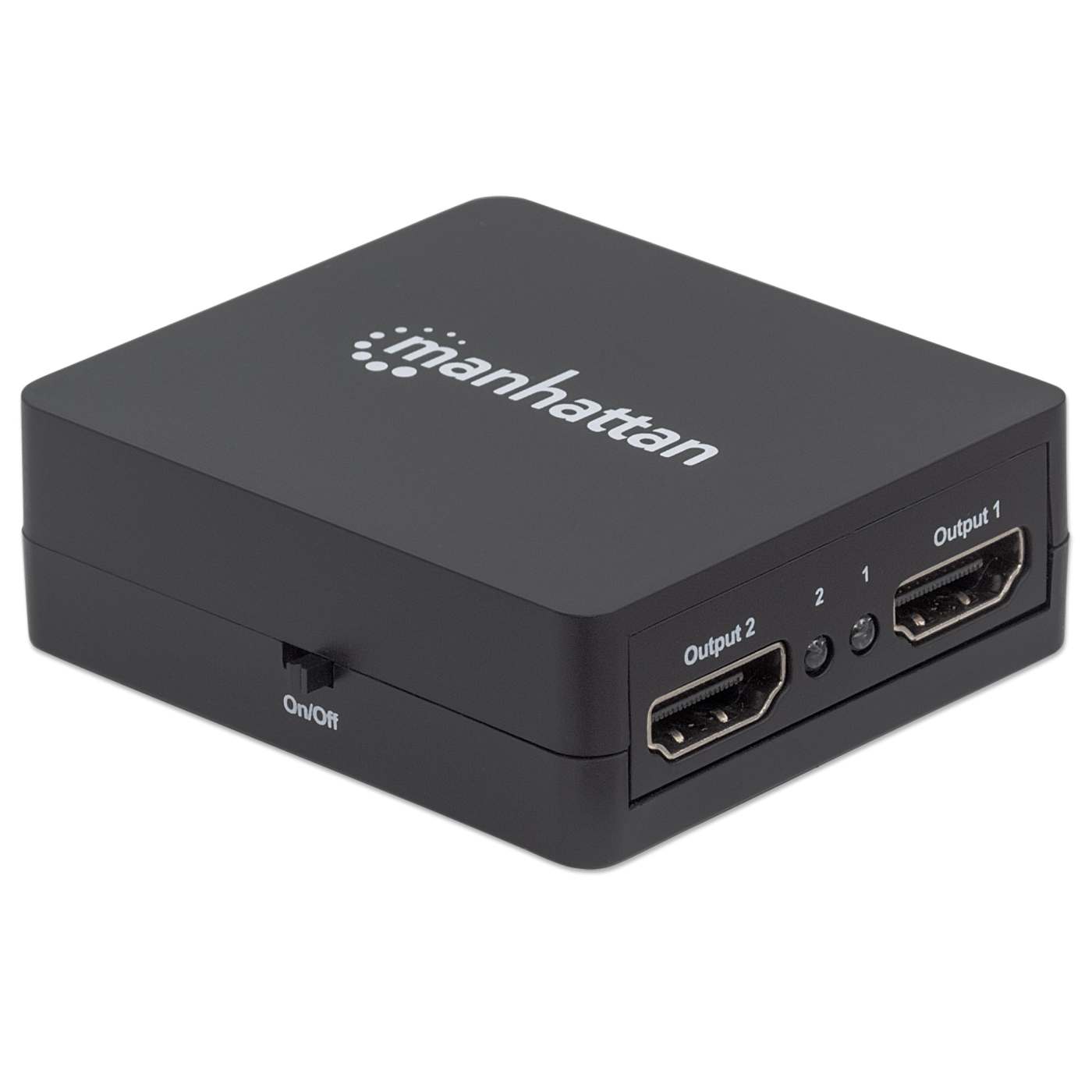

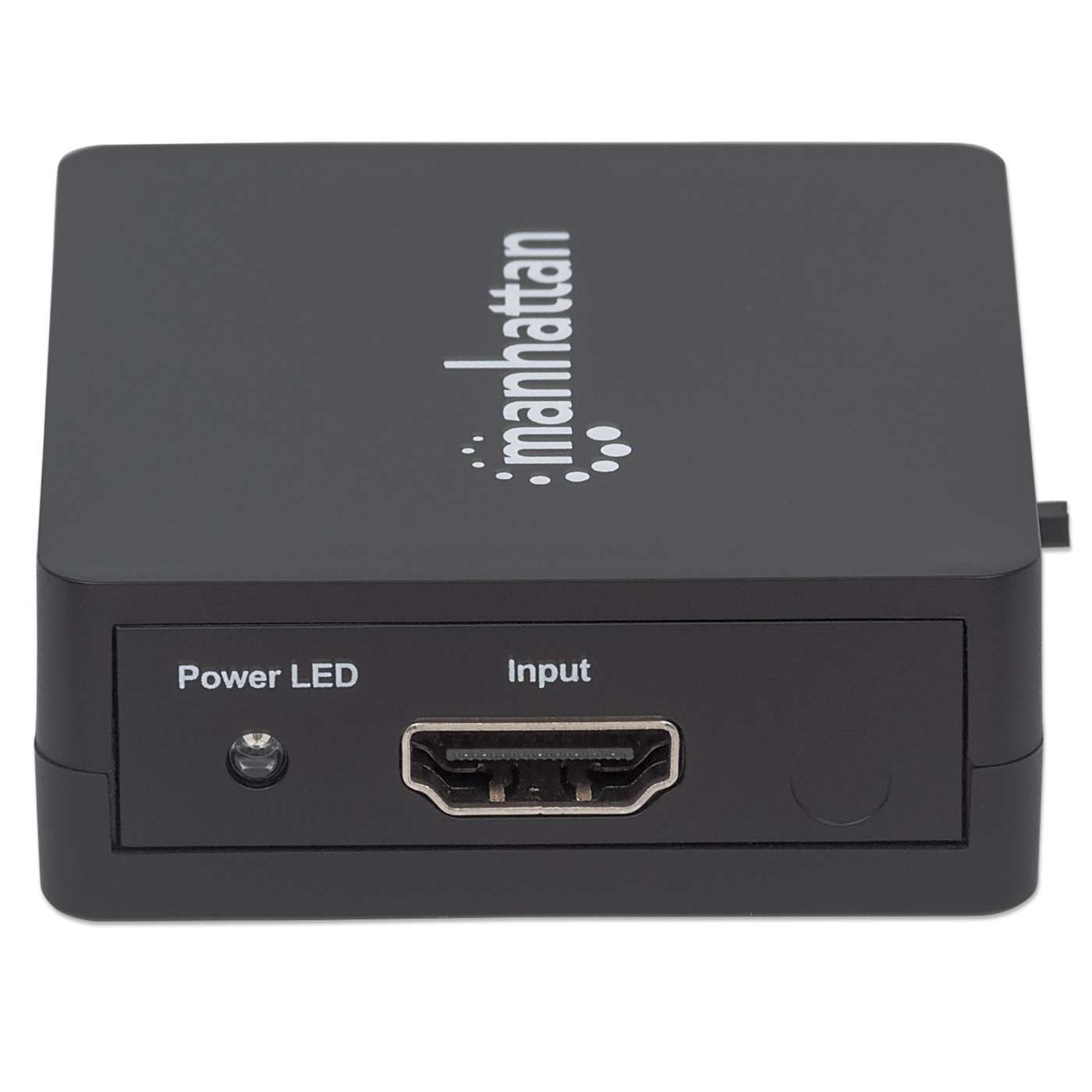

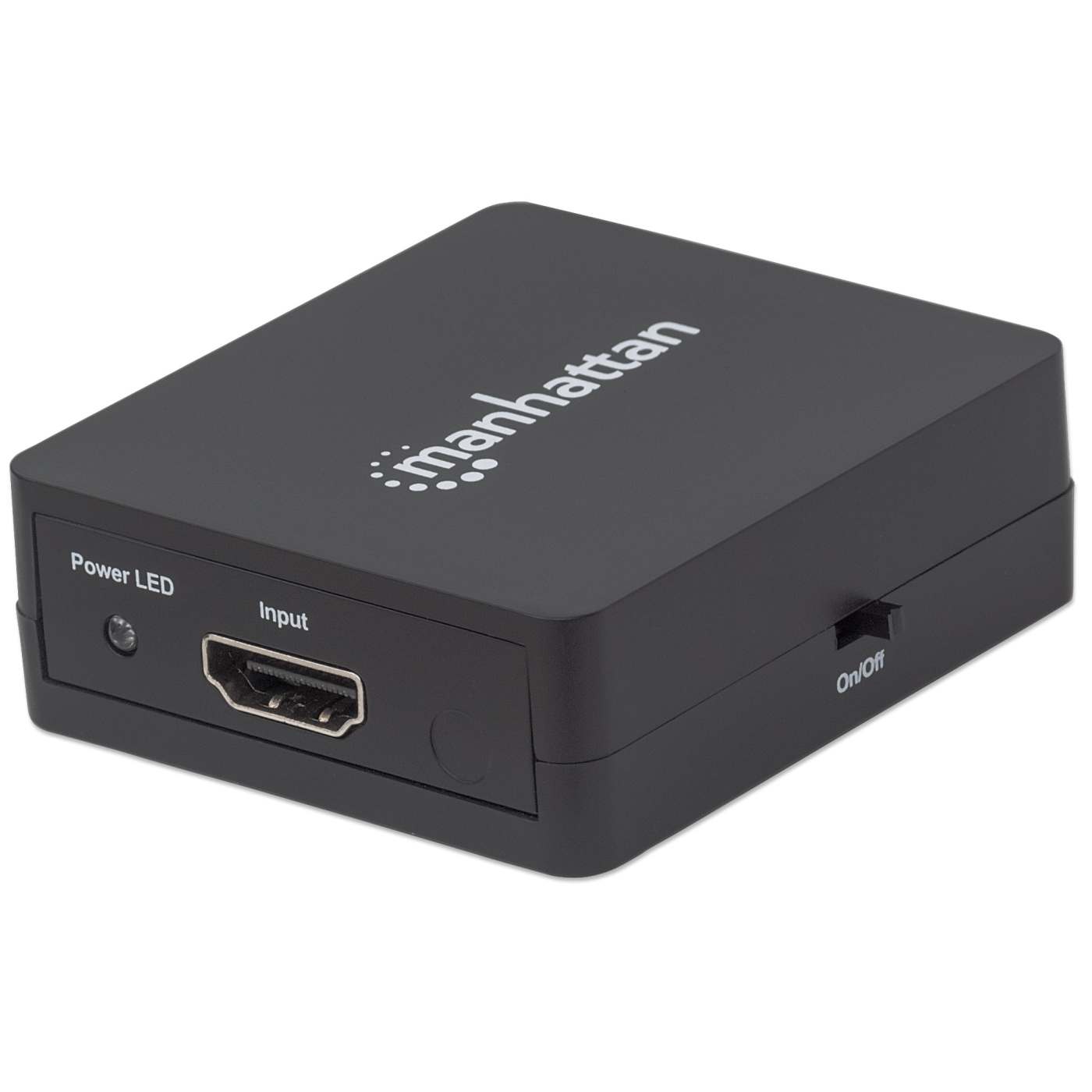

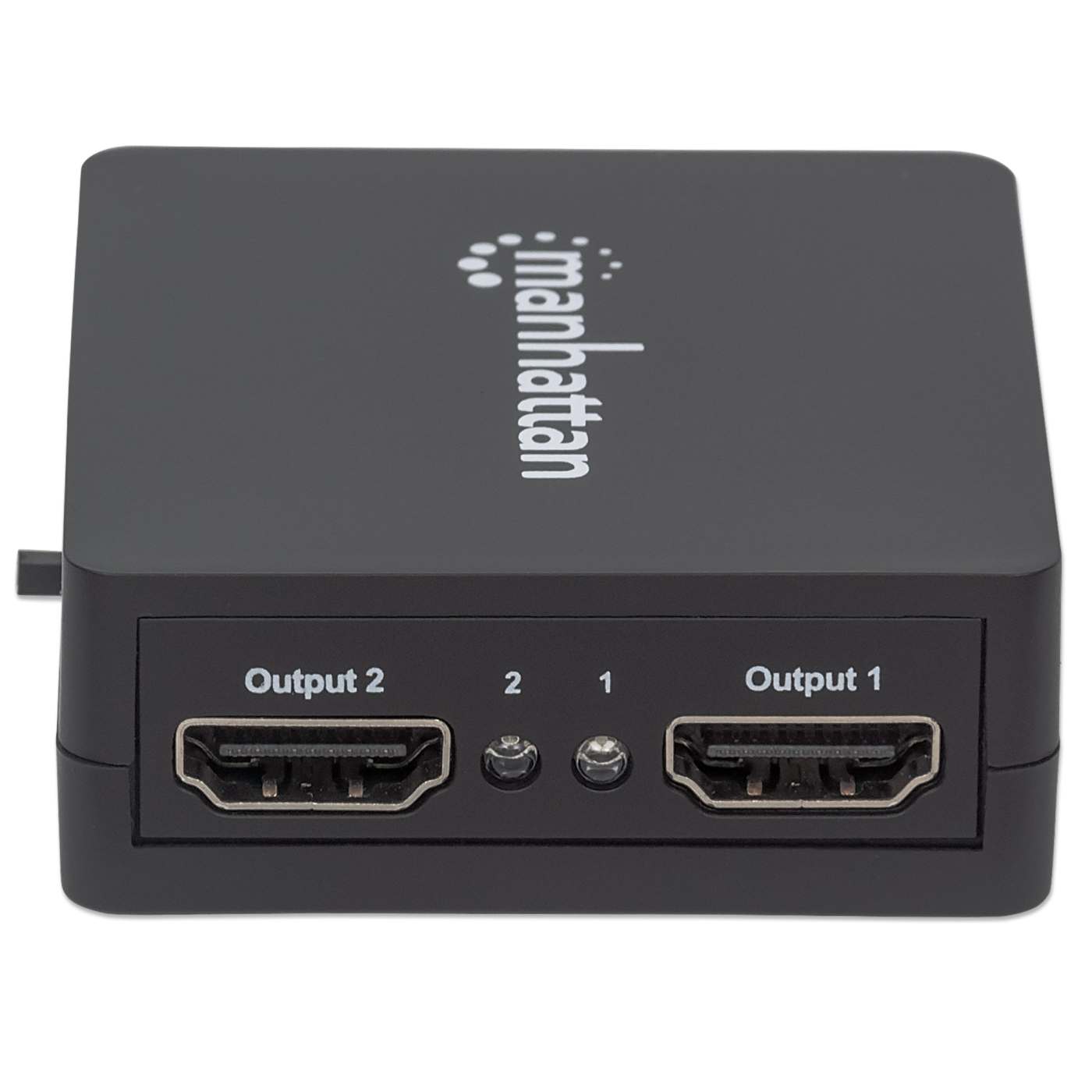

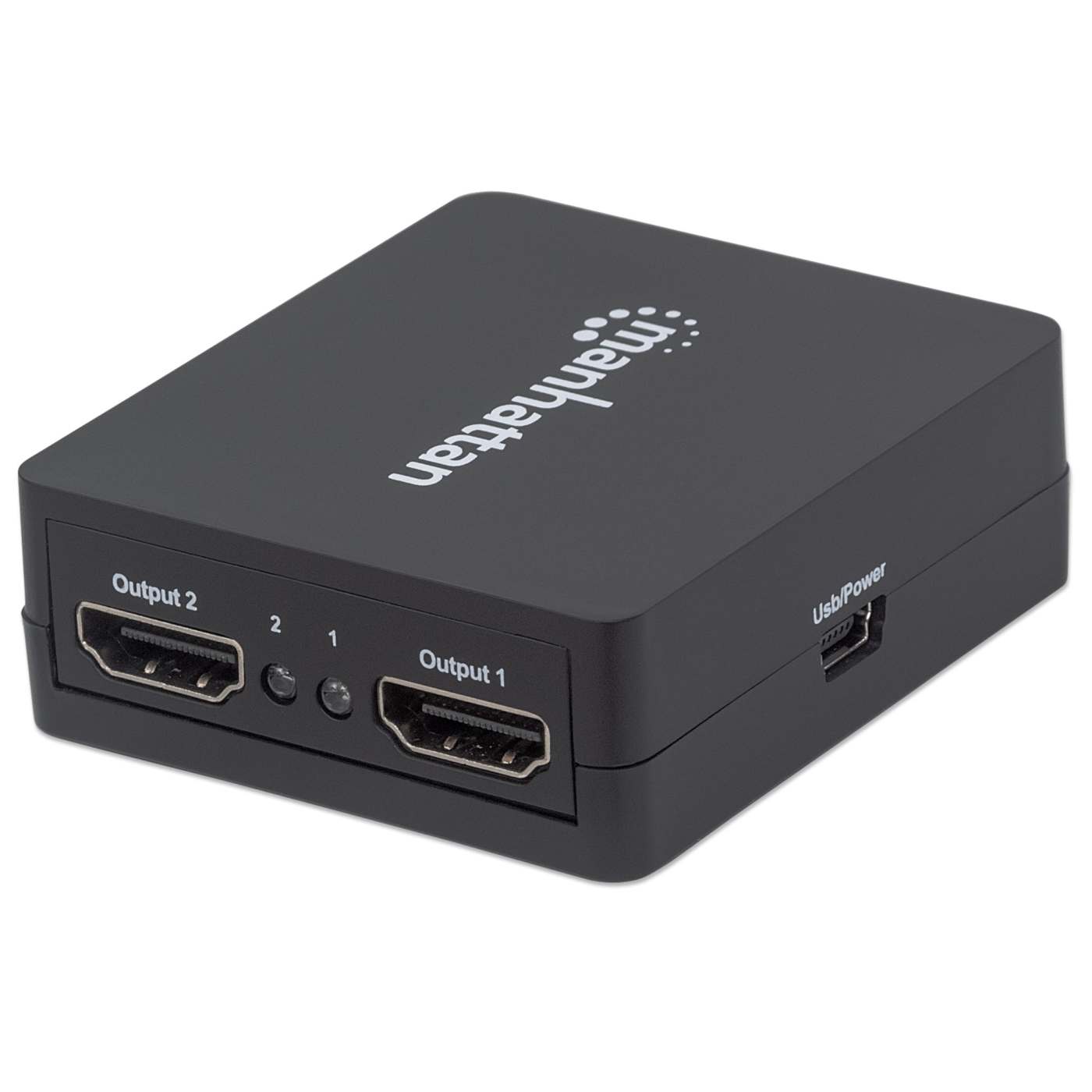

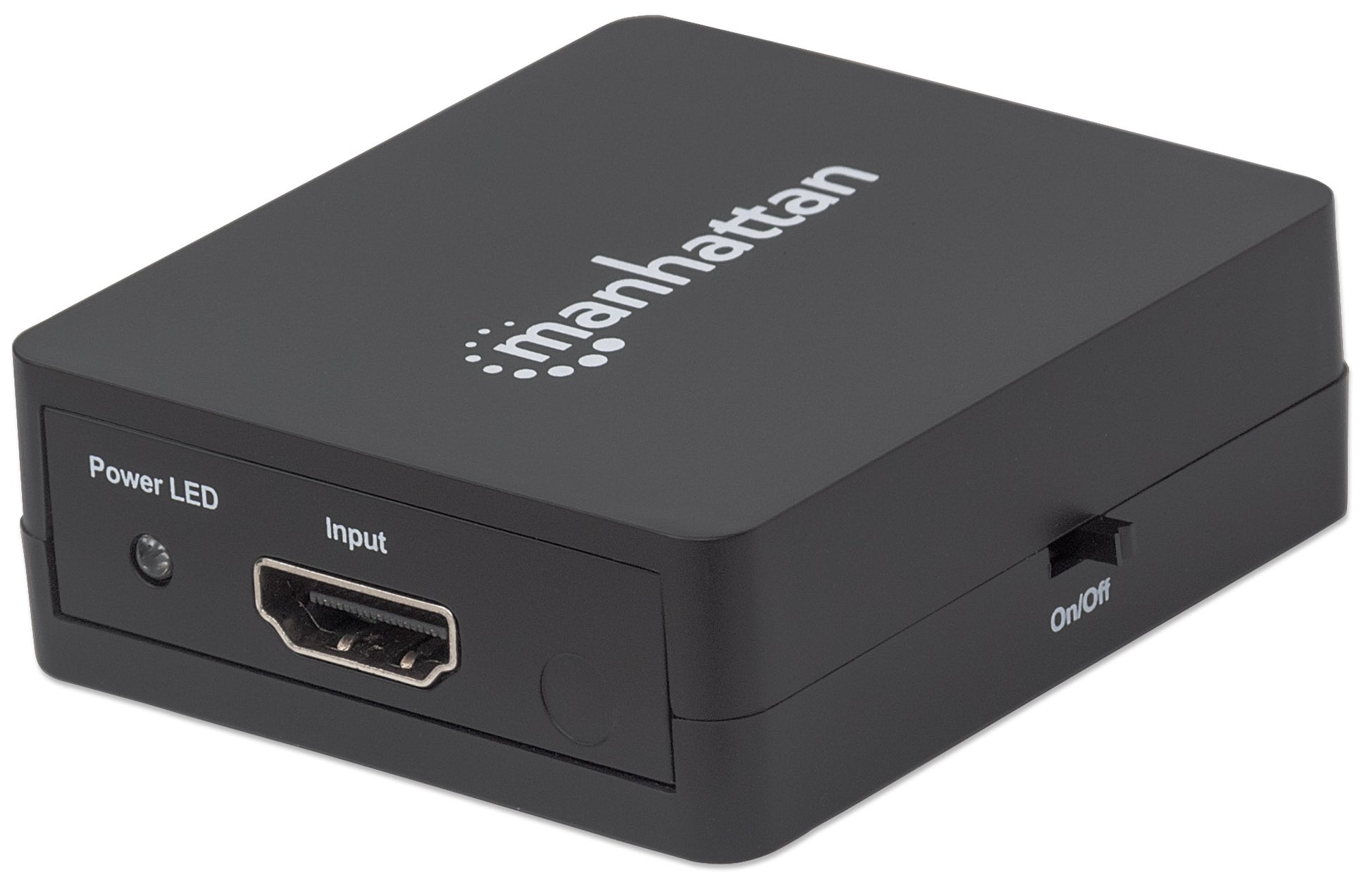

1080p 2-Port HDMI Splitter

USB Powered, Black

Part-No.: 207652

Highlights

  • Displays video from one HDMI source on two HD displays
  • Delivers a sharp, clear signal from Blu-ray players, set-top boxes, satellite receivers and more
  • Cascadable up to three levels to expand signal distribution to more displays

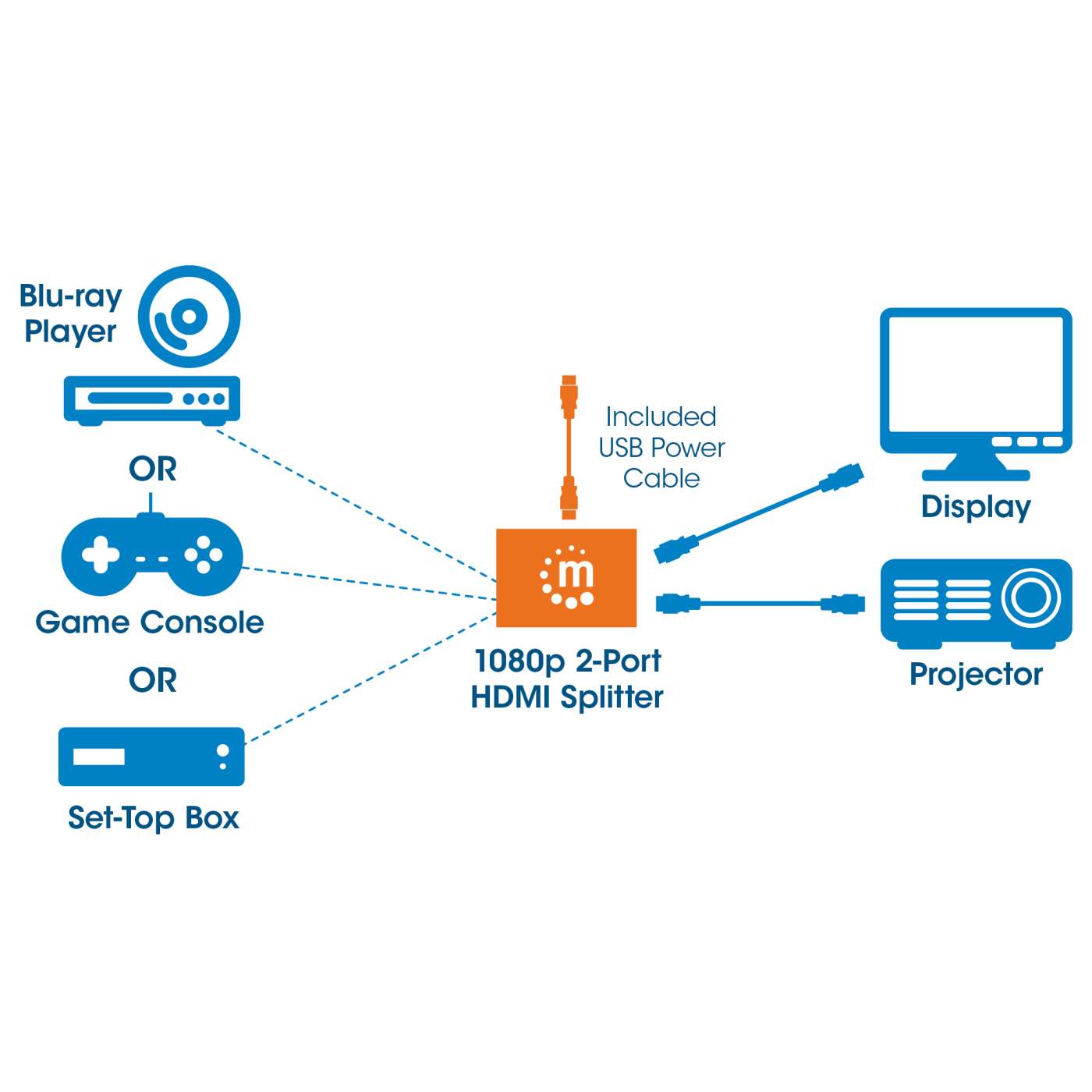

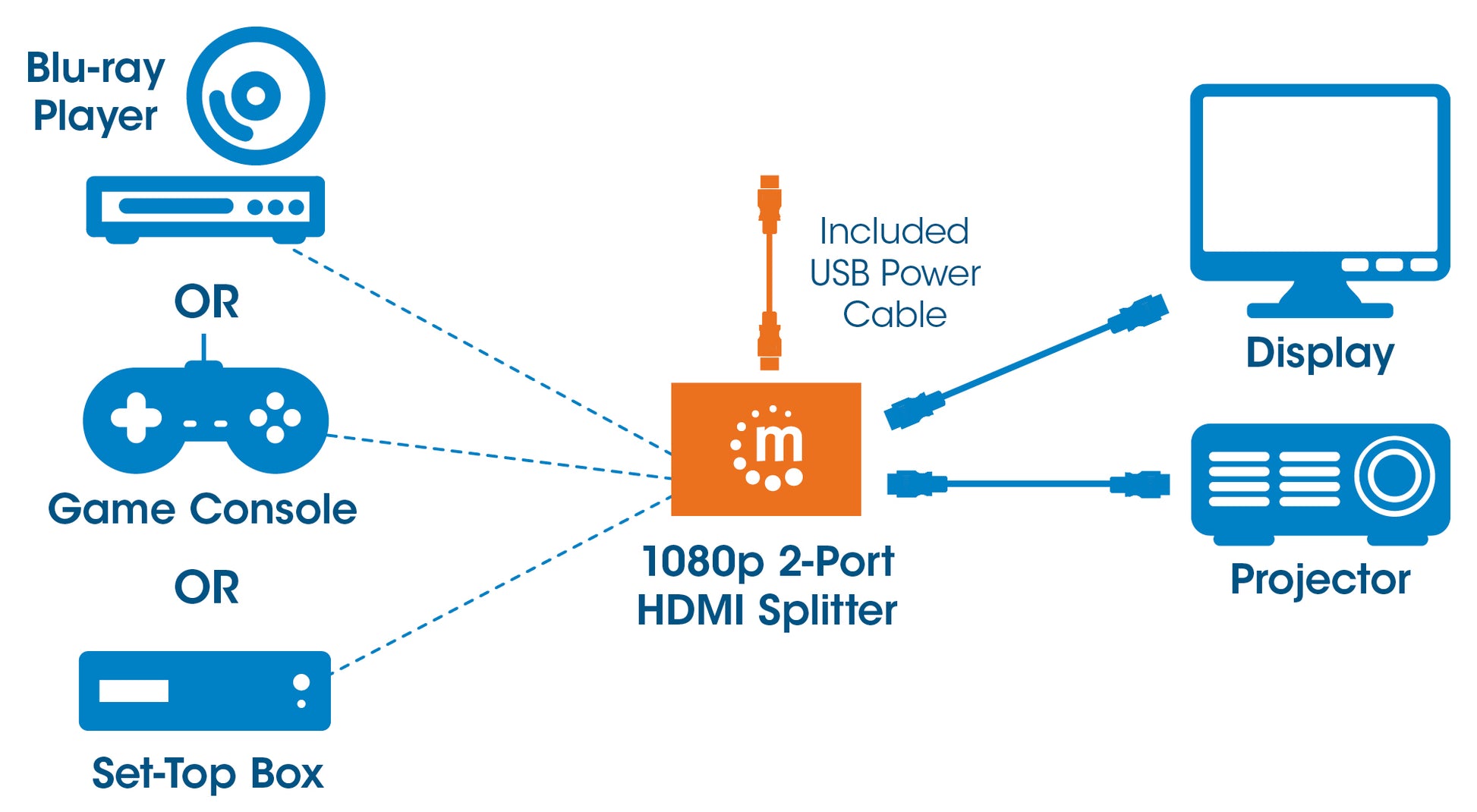

Easily distribute a single HDMI signal to multiple displays.The Manhattan 1080p 2-Port HDMI Splitter sends HDMI signals from a single Blu-ray player, satellite receiver, digital recorder, set-top box, game console or other HDMI source to two HDMI displays. Flexible Solution for Many A/V ApplicationsIdeal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan 1080p 2-Port HDMI Splitter features a built-in booster for added signal strength. It’s also a good choice for splitting and distributing a synchronous signal to multiple HDMI displays when source equipment is remotely stored in a secured room or cabinet. Users can cascade multiple units up to three levels and output HDMI video/audio to additional displays in widely distributed applications.Quality Construction and Easy InstallationFull compliance with HDMI, HDCP 1.0, 1.1 and 1.2 as well as DVI 1.0 ensures that the Manhattan 1080p 2-Port HDMI Splitter can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the USB power cable, and this affordable HDMI solution is complete — no complicated settings or software or hardware configurations necessary.

  • Displays video from one HDMI source on two HD displays
  • Delivers a sharp, clear signal from Blu-ray players, set-top boxes, satellite receivers and more
  • Cascadable up to three levels to expand signal distribution to more displays
  • HDCP compliant
  • Supports LPCM, DTS@ Digital, DTS-HD Master Audio and Dolby TrueHD audio
  • Supports 1080p HD resolution, 3D video and Deep Color
  • Supports the video amplifier bandwidth up to 2.25 Gbps
  • Plug-and-play installation; no special setup or remote
  • Gold-plated contacts for corrosion-free connections
  • Three-year warranty

    Standards and Certifications
  • HDCP 1.0 / 1.1 / 1.2
  • DVI 1.0
  • CE
  • FCC
  • RoHS2

    General
  • Source-to-splitter range: up to 15 m (49 ft.)
  • Splitter-to-display range: up to 15 m (49 ft.)
  • Power: 5 W; USB cable, 0.7 m (2.3 ft.)

    Connections

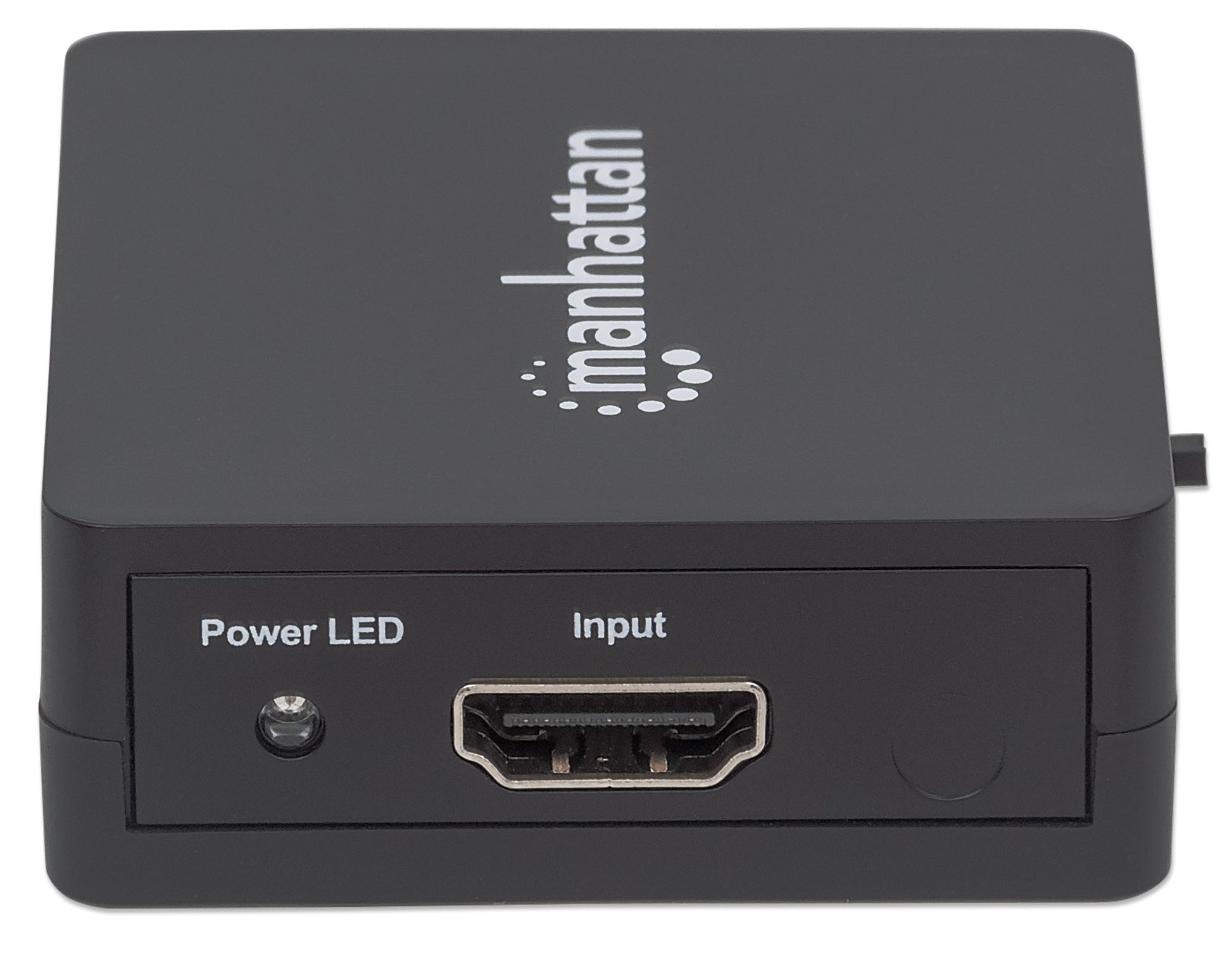

  • One HDMI female, 19-pin (input)

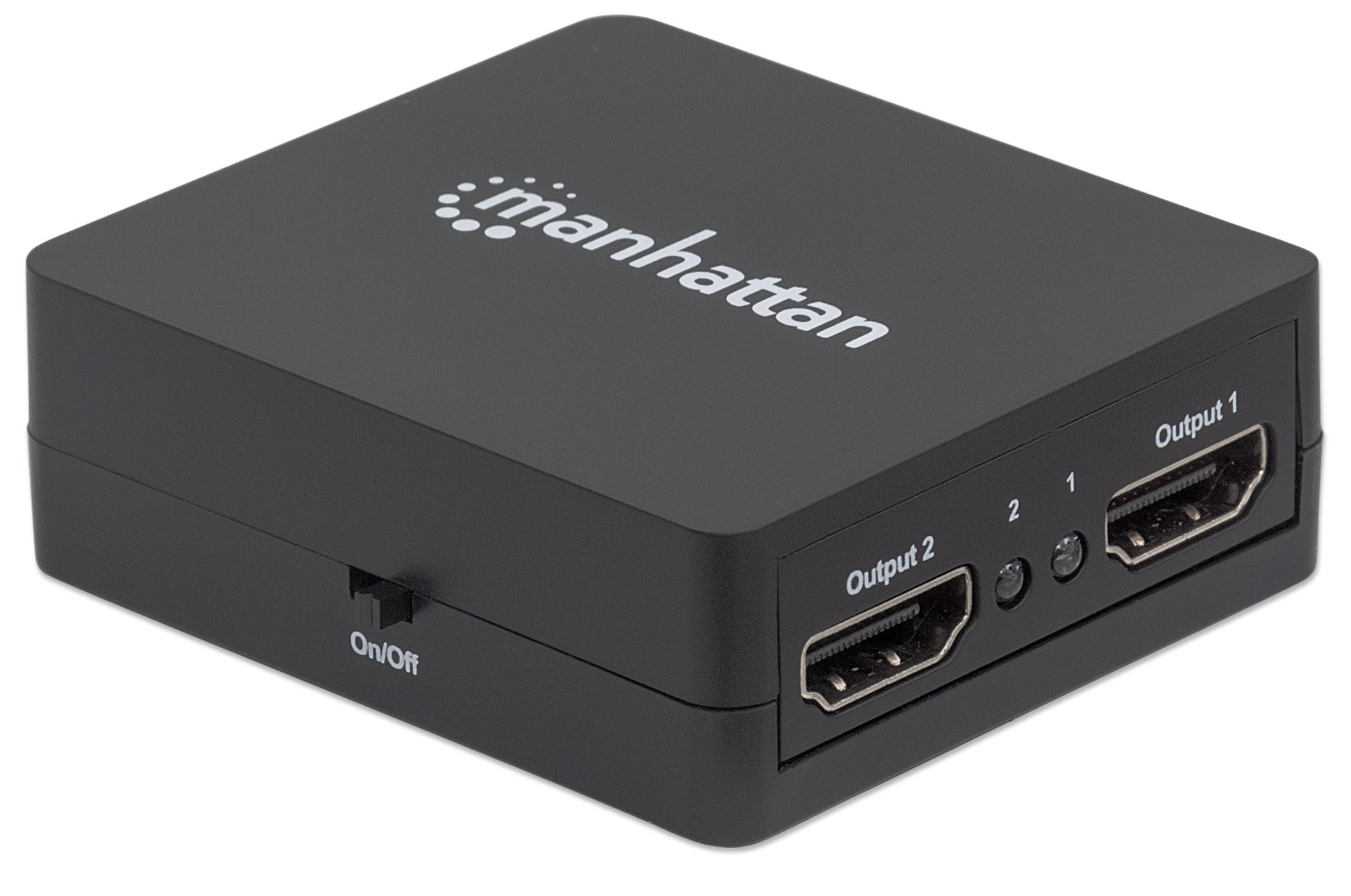

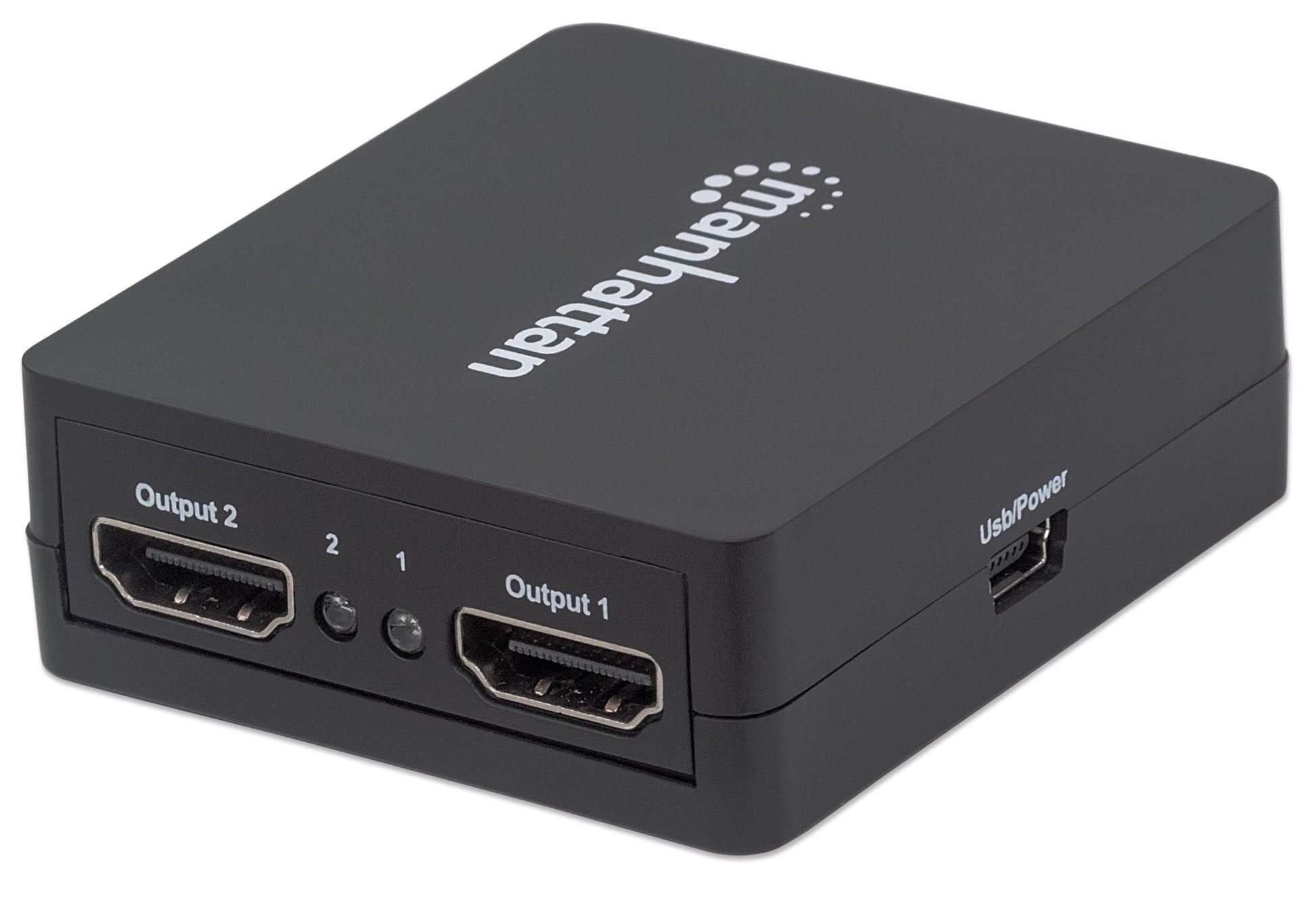

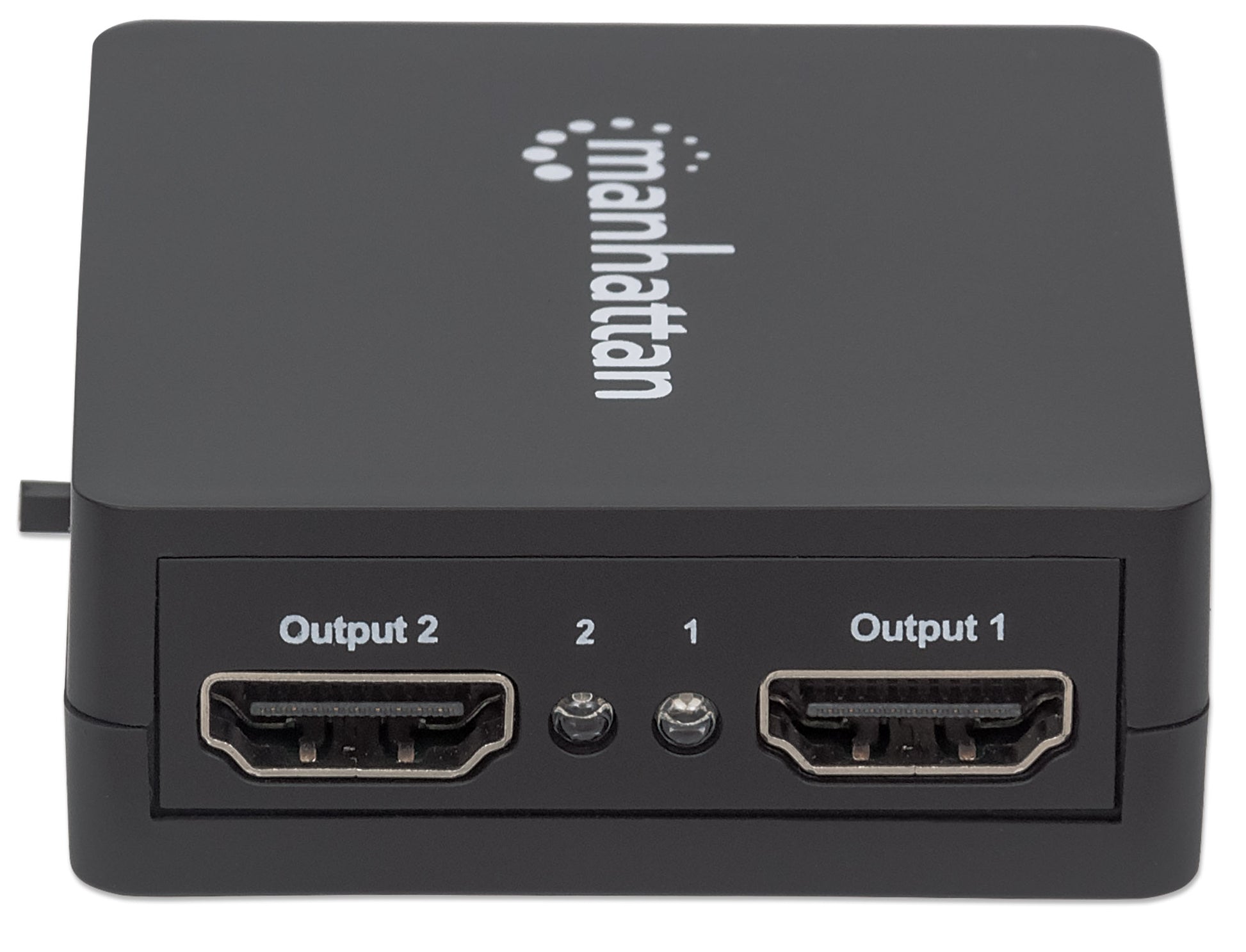

  • Two HDMI female, 19-pin (output)

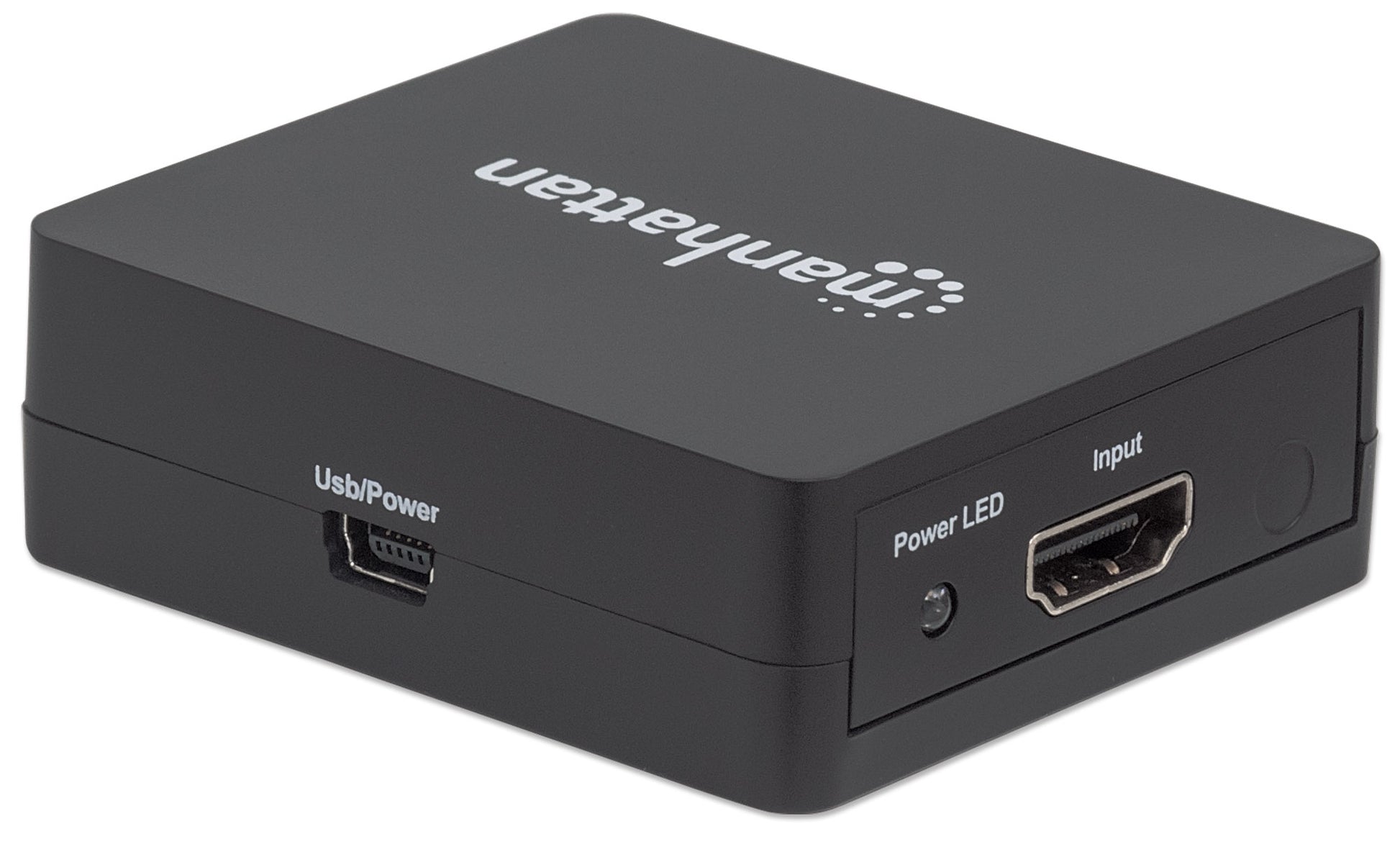

  • One USB Mini-B female, 5-pin (input)

    Signal Input/Output
  • Input video signal: 0.5 – 1.0 V p-p
  • Input DDC signal: 5 V p-p (TTL)
  • Maximum single-link range: 2.25 Gbps, 1920x1200, 1080p
  • Output video: HDMI 1.3b, HDCP 1.0 / 1.1 / 1.2, DVI 1.0
  • Frequency: 2.25 Gbps / 225 MHz

    Video Resolutions
  • DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p

    Physical
  • LED indicators: power and port connection
  • On/off switch
  • Dimensions: 60 x 54 x 20 mm (2.4 x 2.1 x 0.8 in.)
  • Weight: 0.04 g (0.08 lb.)
  • Housing: plastic

    Operating Environment
  • Operation Temperature: 0 – 70°C (32 – 158°F)
  • Storage Temperature: -10 – 80°C (14 – 176°F)
  • Operation Humidity (noncondensing): 10 – 85%
  • Storage Humidity (noncondensing): 5 – 90%

    Package Contents
  • 1080p 2-Port HDMI Splitter
  • USB power cable
  • Quick Instruction Guide

  • Additional SKUs

    • Amazon ASIN: B077YWM5W1
    • EAN: 0766623207652
    • UPC: 766623207652

  • Physical Specifications

    • Weight: 0.06 kg
    • Dimensions: 60 (L) x 54 (W) x 20 (H) [mm]
    • Packaging: Retail Box

  • Datasheet

    • Datasheet     » Download

    • Declaration of Conformity     » Download


  • Manual

    • Quick Instruction Guide     » Download
